Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Product Specificatons 17

Safety Instructions 18

Product Introduction 19

Installation 20

Cartridge Installation 21

Installation of water inlet and outlet 22

Operation 23

Maintenance 24

Troubleshooting 25

Technical Drawings 26

Disposal Considerations 27

Manufacturer & Importer (UK) 27

PRODUCT SPECIFICATIONS

Article number	1004550610045507	10045508,10045509	10045510,10045511
Power supply 100-240 V~ 50/60 Hz
Rated power	70 W 90 W	110 W
Water pressure 0,1-0.4 MPa
Drinking water rate	1.3 l/min 1.56	l/min 2.0 l/min
Applicable conditions Temperature 4-40 °CAmbient humidity below 90%
Water Source Municipal Water
Product Size 415x135x375 mm

SAFETY INSTRUCTIONS

• Do not use other accessories which are not permitted by manufacturer to avoid any damage of machine.
• Please check the machine and all accessories before installation.
• Children are only permitted to maintain the machine under guardian supervision.
• If malfunctions appears, please cut off the power, close the inlet water valve immediately, do not keep the machine in working mode.
• This machine shall be repaired by authorised and skilled personnel only.
• The production capacity of pure water is dependent on the feed water quality, pressure and temperature. Abnormal values will result in a lower flow rate.
• Avoid direct sunlight.
• Do not place in conditions below 4^ .
• Do not place near flammables and explosives.
• When errors occur, immediately cut off power and water supply.
• Keep away from children.
• Do not disassemble the machine without guidance of professional personnel to avoid machine leakage or damage.
• Please use in condition of 4-40 °C-.
• Please cut off the water source and power supply if not using for over 24 hours.
• Only use accessories and cartridges from original manufacturer to make sure the machine works well.
• Only professional personnel can repair and maintain the machine.

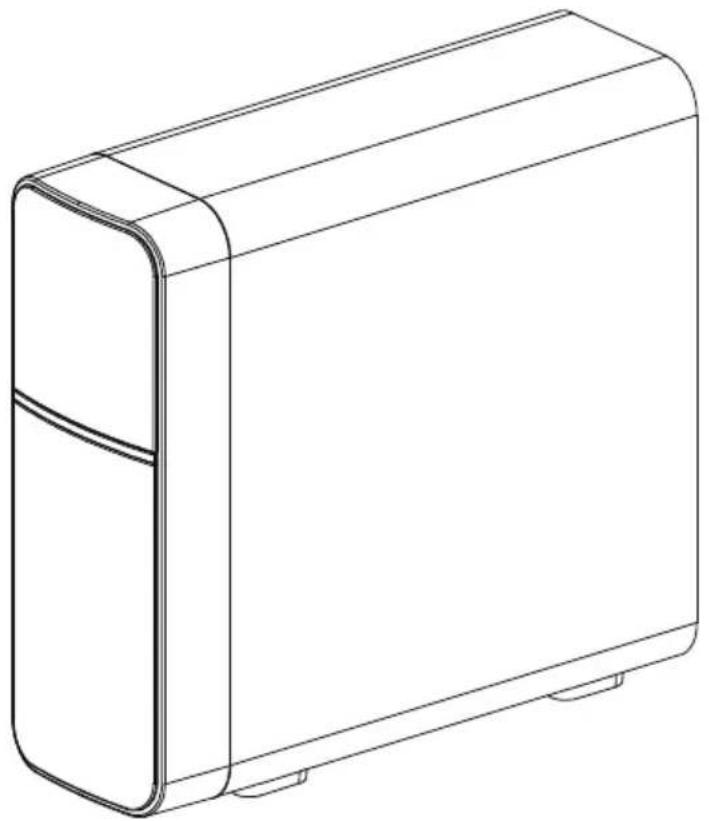

PRODUCT INTRODUCTION

Stage 1: PCT Filter: Removes dirt, corrosion, sediment, red worms, sand and other physical particles to protect the RO membrane.

Stage 2 :RO Membrane: Reverse osmosis membrane with the filtration precision 0.0001 m removes bacterial, virus, antibiotics and other harmful substances, heavy metal and pesticide residues from water.

Line drawing of a rectangular electronic device with lid and base (no text or symbols)

INSTALLATION

This machine shall be installed by authorised and skilled personnel only. Please check all accessories before installation.

Requirements of installation conditions

1. The machine is equipped with a booster pump and shall be used with tap water only.
2. Please use the right adapter for voltage 100 V-240 V.
3. Make sure the installation place is clean and not in the proximity of direct sunlight, high humidity, flammables, explosives or unsafe electrical equipment.

Attention: Please pay attention to the safety when drilling and make sure there is no hidden water pipe, electric wire and gas tube.

Installation of the Quick Connector

Quick connector ports are adopted on the inlet and outlet of the machine. A quick connector is a port which can connect quickly and firmly without any tools.

1. Firstly, pull out the -type clip on the port, push the movable plastic ring to the port, make it attaching to the port to move the plastic plunge or PE pipe.
2. Insert the PE pipe to the end of the port, then pull slightly to make a gap between the movable plastic ring and the port. Finally insert the -type clip in the gap.
3. When taking the PE pipe from quick connector, first pull out the -type clip. Push the movable plastic ring to the port to make it attaching the port. Then you can pull out the PE pipe.

Disconnect and Connect of PE pipe and quick connector

Detach the -type clip, trim the PE pipe to achieve a smooth end, and insert it into the quick connector. Next, give it a slight tug to verify that the PE pipe has been securely sealed by the O-ring within the quick connector. Lastly, insert the clip to hold the pipe in position.

blue Ω type clip plastic ring port

Take down Ω type clip

3 Insert the PE pipe

4 Pull it softly to make a gap

5 Put the clip into the gap

To disconnect

Take down the type clip. Make the plastic ring attaching to the port. Pull out the PE pipe.

1 Installed connector

2 Remove Ω clip.

3 Press the plastic ring.

4 Pull out the PE pipe.

CARTRIDGE INSTALLATION

1. Take out the cartridge from the carton. Remove the outer plastic packing
2. Put the cartridge into the hole of machine. Spin clockwise to connect with waterway board.
3. Install the cartridge into the machine according to the picture.

RO membrane

Technical line drawing of a mechanical device with two ports and directional arrows indicating movement (no text or symbols)

PCT filter

INSTALLATION OF WATER INLET AND OUTLET

Installation place

Place the machine on a flat and stable surface.

1. Installation of inlet water T valve

Clean the installation area, close the inlet water valve, take apart the faucet or angle valve, then connect the inlet water T valve, finally connect to the original faucet or angle valve.

Attention: Connection of screw thread should be sealed with tape or 0 ring to avoid leakage.

2. Connection of inlet water port:

Connect one side of PE pipe to the inlet water valve, and another side to the inlet water port on the machine.

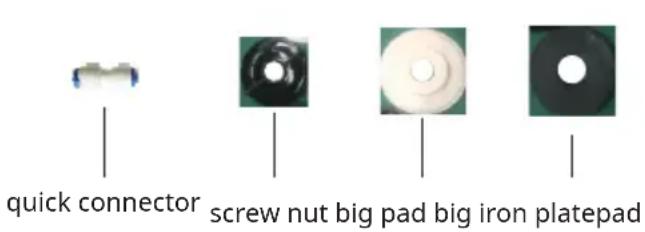

3. Installation of faucet

According to the required place of faucet, drill a ∅29-mm hole on the stainless steel sink. Then fix the faucet.

1

quick connector screw nut big pad big iron platepad

4. Connection of drinking water port

Connect directly with the connecting rod of faucet, cut the 1/4" PE pipe to a suitable length, one side insert to the quick connector and the other side connect to the port of drinking water on the machine.

5. Connection of drain water port

Take a suitable length of 1/4" PE pipe to connect with the port of drain water on the machine. And connect another side to the drain line and fix the PE pipe to avoid drop.

6. Flush the cartridge

Install all the cartridges before flushing.

1. Flushing of PCT cartridge: After all the installation, turn on the purified water tap to flush PCT filter about 10-20 minutes until the water is clean, then turn off the purified water tap.

Attention

1. If there is no water coming from the tap, please check the power supply.

2. Flush filter cartridges according to instruction before first usage.

OPERATION

General Instructions

When using for the first time, please open the faucet and the inlet water valve. When water is running from tap, close the tap for 30 minutes and check for leakages. If there are no leaks, you can use the machine normally. In normal user mode, keep the power connected, open and close the faucet.

When using the machine after a langer period of no usage, please open the faucet and flush cartridges according to the instructions.

Operation

The machine is equipped with an LED display. When connecting the power supply, the machine buzzes once and goes into rinse mode.

1. Rinse

1. Auto rinse: Every time the power supply is connected, the machine will flush automatically. If the machine is not used for more than 72 hours, the machine will flush automatically.
2. When flushing, the booster pump, the inlet water solenoid valve and the drain water are all in working mode, flushing lasts for 15 seconds. This will be indicated on the front panel.
3. If you press the "Select" button once, the machine will flush for 30 seconds.

2. Purify

Turn an the water tap and start filtering, the inlet water solenoid valve and booster pump start working, this is indicated an the front panel.

3. Fault

When continuously filtering or rinsing for 30 minutes, the fault light turns red while buzzing for 6 seconds until the problems are solved to connect the power again.

4. Cartridge Life

Filter life time is indicated an the front panel. Over time and usage the bars will lower. When the last bar is arrived, a 10 second alarm goes off. After that, for 3 more times, every half an hour an alarm goes off.

5. Replace Cartridge

Press "Reset" button for 3 seconds until you hear a sound. You are in replacement mode now. To switch between cartridges, push "Select" once. Select the cartridge to be changed and press "Reset" button for 3 seconds until you hear a sound.

MAINTENANCE

Cartridge replacement time

Cartridge PCT Filter RO membrane
Replacement Time 6-12 months	24 months

Attention:

• Depending an the inlet water quality, please change 1 st stage cartridge accordingly.
• If the TDS level in the drinking water increases rapidly, the RO membrane needs to be changed soon.

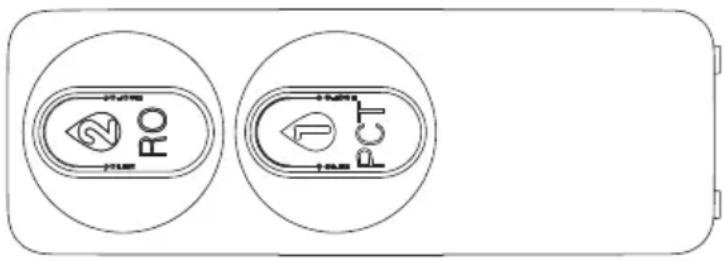

Replacing the cartridges

Please change cartridges regularly to maintain an effective and efficient filtration.

1. Close inlet water, cut off the power supply and open the faucet until water stops running.
2. Remove the lid and put aside. Remove and install the cartridges as described.

Diagram showing two circular buttons with icons and labels, likely representing a device or control panel layout.

Attention: Please replace the cartridge in turn and make sure in right position. The cartridge life will be different according to the area, water quality, season and working time. Please change them in time as actual usage.

Maintaining the machine

When cleaning the machine, do not use soap, detergent and strong volatile solvent like thinner, gasoline and alcohol, it will cause the cracks and color change. Do not wash the machine directly in water.

TROUBLESHOOTING

Common Malfunction Possible Reason Solutions
Very little or no water flow.	PE pipe is bent. Straighten pipe.
	Inlet water T valve is shut down.	Wait for the water source supply.
	Source water is shut down.	Wait for the water source supply.
	PP+C cartridge is blocked.	Replace the cartridge.
	Water pressure is low. Add pressure boost treatment.
	Feed water temperature is lower than required.	Increase feed water temperature.
Machine does not work.	Electricity fault. Check power supply.
	Adaptor loses efficiency. Replace the adaptor.
	Machine short of water. Check feed water. If feed water is OK, reconnect power supply.
Water taste is abnormal.	Not using for a long time.	Flush the cartridge for 5 minutes. If this does not solve the problem, replace the cartridges.
	Poor feed water quality. Check feed water quality.
	Cartridges not replaced for a long time.	Replace the cartridges.
Noises during machine operation	Power and voltage do not match.	Call professional personnel to check and repair.
	Feed water flow to little Increase feed water flow rate.
	Adaptor is damaged. Call professional personnel to check and repair
	Failure caused on water pump.	Call professional personnel to check and repair

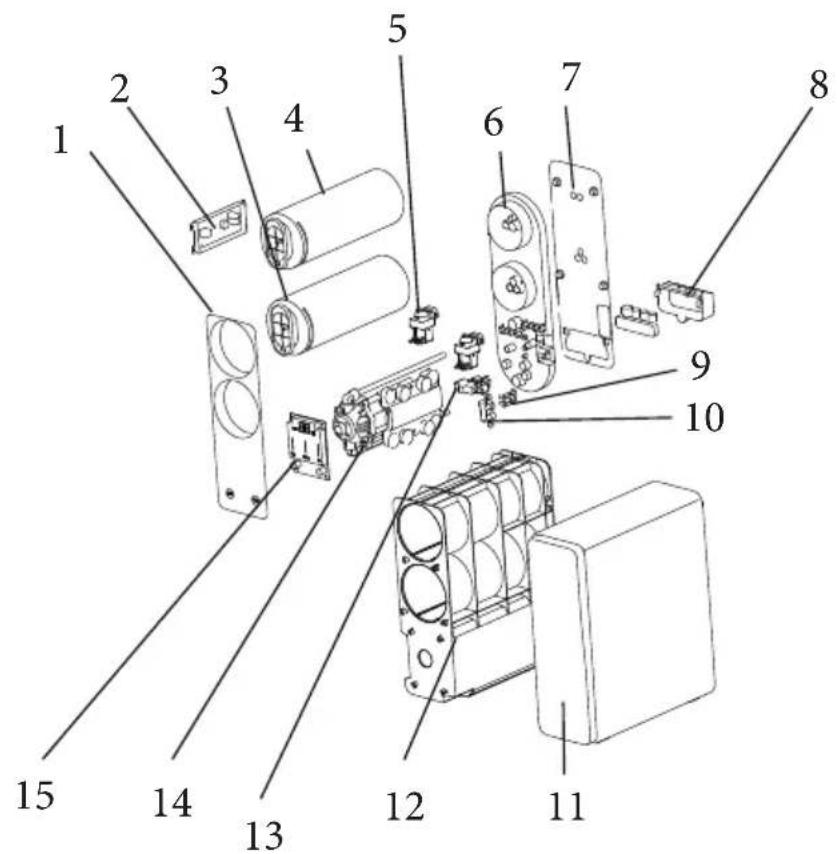

TECHNICAL DRAWINGS

Explosion drawing of parts

1 Panel
2 Control board
3 PCT filter
4 RO membrane
5 Inlet water solenoid valve
6 Integrated water board
7 Bottom base
8 Fittings board cover
9 Power supply base
10 Check valve
11 Outer frame
12 Frame body
13 High pressure valve
14 Booster pump
15 Display

Exploded view diagram of a mechanical assembly with numbered parts for identification

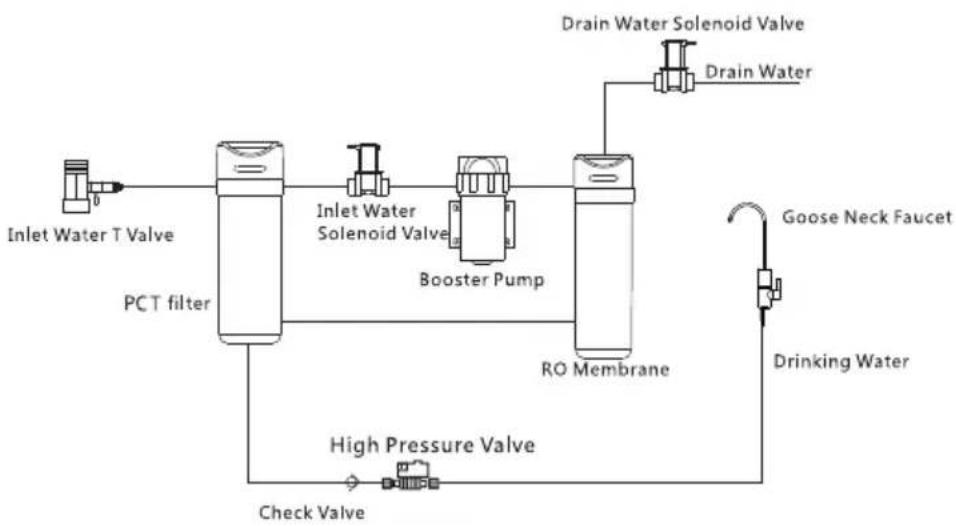

Electric principle diagram

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Fiche technique 29

Line drawing of a rectangular electronic device with a lid and side connectors (no text or symbols)

INSTALLATION

Raccordement branché

2 Retirer la pince Ω.

4 Retirez le tube PE.

INSTALLATION DE LA CARTOUCHE

Technical line drawing of a mechanical component with two ports and directional arrows indicating flow or movement (no text or symbols)

Filtre multiple PCT

INSTALLATION DU RACCORDEMENT À L'EAU ET DE L'ÉVACUATION DE L'EAU

Lieu d'installation

Technical diagram showing two circular components with internal symbols and labels, possibly representing a device or component layout.

Exploded view diagram of a mechanical assembly with numbered parts for identification

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente,

QR code image containing encoded data, no visible human-readable text

INDICE

Dati tecnici 41

Line drawing of a rectangular electronic device with a lid and base (no text or symbols)

INSTALLAZIONE

Technical line drawing of a mechanical component with two ports and directional arrows indicating movement (no text or symbols)

Filtro PCT

Diagram showing two circular components with labeled symbols and directional arrows, possibly representing a device or control panel.

Exploded view diagram of a device with numbered parts for identification

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

CONTENIDO

Datos técnicos 55

Line drawing of a rectangular electronic device with a lid and base (no text or symbols)

INSTALACIÓN

Technical line drawing of a mechanical component with two ports and directional arrows indicating flow or movement (no text or symbols)

Multifiltro PCT

Technical diagram showing two circular components with internal symbols and labels, possibly representing a device or component layout.

Exploded view diagram of a device with numbered parts for identification

Symbol of a trash bin with crossed lines and a horizontal bar below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

KLARSTEIN
