Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 18

Scope of delivery 19

Product Overview 19

Product Features 20

Installation 21

Operation 22

Function Keys 23

Cleaning and Maintenance 25

Troubleshooting 26

Disposal Considerations 28

Manufacturer & Importer (UK) 28

PRODUCT SPECIFICATIONS

Article number 10046404, 10046405
Power supply 220 V ~ 50 Hz
Rated power 2150 W (+5/ -10 %)
Rated heating power 2100 W
Water heating capacity ≥ 24 L/h
Water tank capacity 5 L
Purified water tank 1.5 L
Dimensions 380x203x395 mm
Capacity 2000 L
Source water temperature 5-38 °C
Environment temp. 5-38 °C
Inlet water pressure 0.1-0.4 MPa

SAFETY INSTRUCTIONS

• Please read this manual carefully before installing and using this machine.
• It is strictly forbidden to move the machine at will. Before moving the machine, empty the water in the water tank.
• It is strictly forbidden to flush the machine body with water.
• It is strictly forbidden to use a universal socket together with other electrical appliances and a special socket of not less than 10 A must be used.
• It is strictly forbidden to suspend the water reservoir in the air; it must be placed on a table.
• It is strictly forbidden to fill the water reservoir with cloudy tap water, ice cubes and other mixed liquids such as milk, juice, etc.
• When drawing water, it is strictly forbidden to extend the water spout into the mouth of the cup, in order to avoid the risk of the spout being blocked by boiling water.
• This water purifier can be used by children from the age of 8 years, persons with reduced physical, sensory or mental abilities or lack of experience and knowledge, provided they are under supervision or instruction in the safe use of the water purifier and understand the risks involved. Do not allow children to clean or operate the machine without supervision.
• If the power cord is damaged, it must be replaced by the manufacturer, service agents or qualified professionals to avoid hazards.
• Do not use the appliance if the water inlet temperature or the ambient temperature is lower than 5 °C or higher than 38 °C.
  • After using the higher temperature water, immediately use the lower temperature water. The temperature of the water just coming out may be higher, please avoid bumping.
• If the raw water does not meet the municipal tap water standard (the sediment content in the water is large and the TDS exceeds the standard), the service life of the filter element will be shortened.
• To avoid hazards, place the water purifier on a flat table. (The angle of inclination of the table surface must not exceed 10^ ).
• When using the bubble water function, operate when the bottle is filled with cold water up to the designated fill line and do not operate when the bottle is under the free space.
• Do not overfill with water.
• Under no circumstances should you attempt to make the bottle bubble or continue to bubble by inflating air when the water level exceeds the maximum water level of the bottle, as this may cause the bottle body to break.
• Operating voltage range: 220V\~±10% o
• After adding non-machine made low-temperature water or ice-water mixture to the bubble water bottle, do not continue to bubble by inflating air, as this is likely to cause accidents such as breaking of the bottle body and breaking of the air inlet blocking structure, etc.

SCOPE OF DELIVERY

Part Quantity
Appliance 1 Pcs
CPSRC filter 1 Pcs
Instruction manual 1 Pcs
Source water tank 1 Pcs
Wrench 1 Pcs

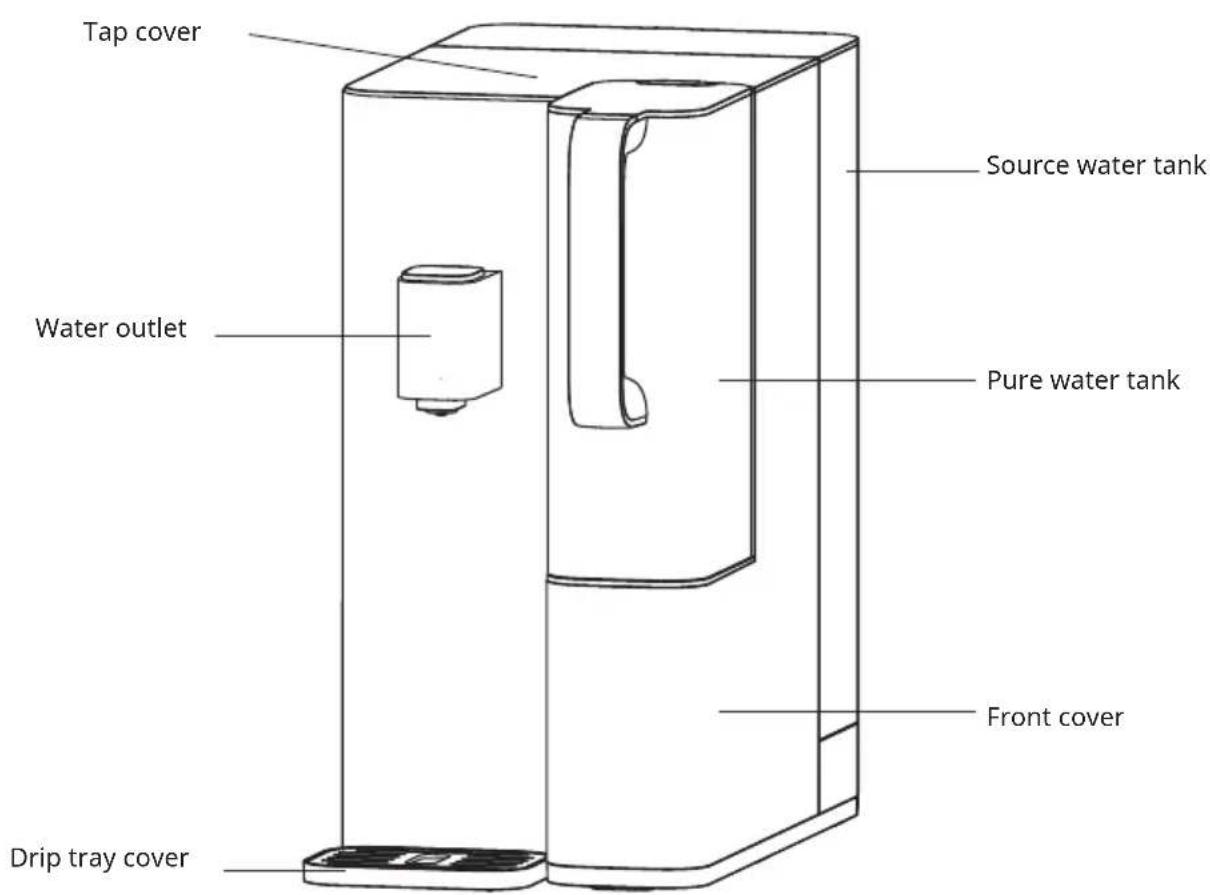

PRODUCT OVERVIEW

Tap cover Water outlet Source water tank Pure water tank Front cover Drip tray cover

PRODUCT FEATURES

• Five-in-one RO reverse osmosis filtration, precision of 0.0001 micron, the water can be directly drunk.
• The bacteria removal rate reached 99.999%, and the heavy metal removal rate reached 99.9%.
• 360 degree stereo speed heat, water without waiting, non-heat storage design, refused to thousand rolling water.
• Rare earth thick film vortex heat technology, hot water second speed, water temperature and water quantity separately controlled.
• Child lock function, anti-dry burning mode, plateau mode, intelligent temperature control, filter element life reminder.
• No installation, slim design, no waste water, plug and use.
• Internal TOS monitoring function, automatic reminder.
  • Water tank, antibacterial function.

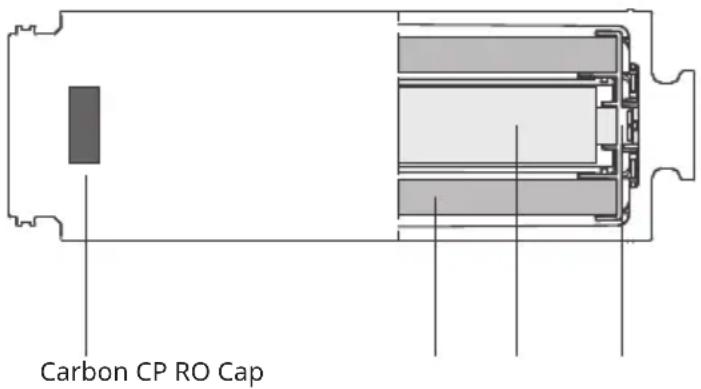

CPSRC Filter

Carbon CP RO Cap

CP filtration: Removes dirt, corrosion, sediment, red worms, sand and other physical particles to protect the RO membrane.

RO membrane filtration: Reverse osmosis membrane with 0.0001 micron filtration precision removes bacteria, viruses, antibiotics and other harmful substances, heavy metals and pesticide residues from water.

Carbon filtration: Removes odour to improve the taste of drinking water.

INSTALLATION

1. The machine must be placed on a flat, firm, dry platform and not in direct sunlight.
2. When using the machine for the first time, empty the first three buckets of water to clean the machine pipework.
3. If the key is accidentally lost, open the cover of the original water tank, unscrew the retaining screw, open the top cover and remove the filter element by turning it counter-clockwise.

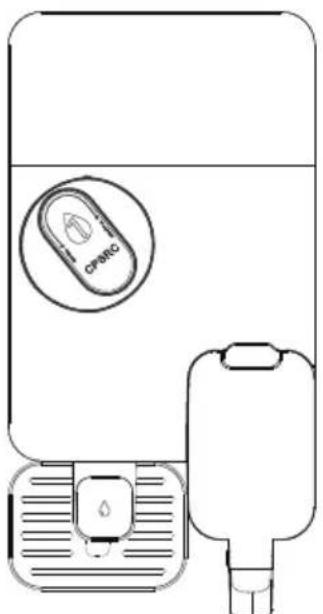

Installation of CPSRC Composite Filter element

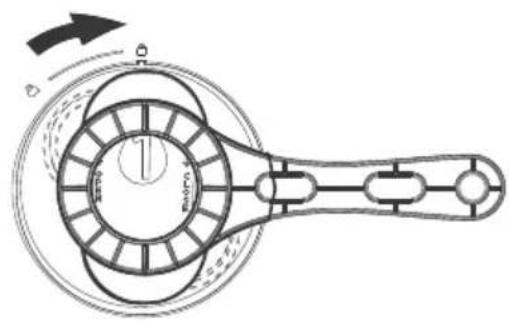

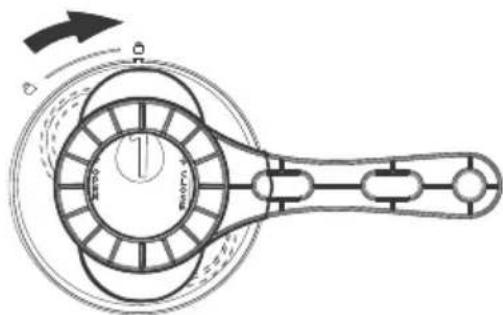

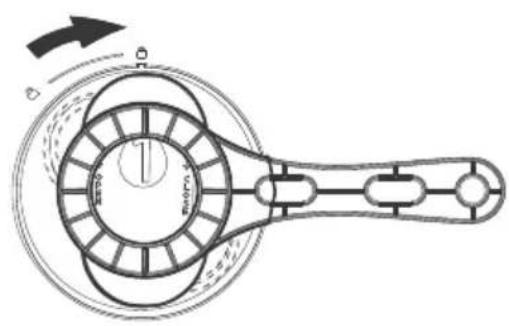

As shown in Figure (2), align the appropriate filter element with the "unlock" position, use the wrench to push the filter element down and turn it in the direction of the arrow until it aligns with the "lock" position, tighten the filter element.

Line drawing of a water dispenser with a circular logo and a water bottle (no text or symbols)

Figure 2

Technical line drawing of a mechanical component with circular and linear features, no text or symbols present

OPERATION

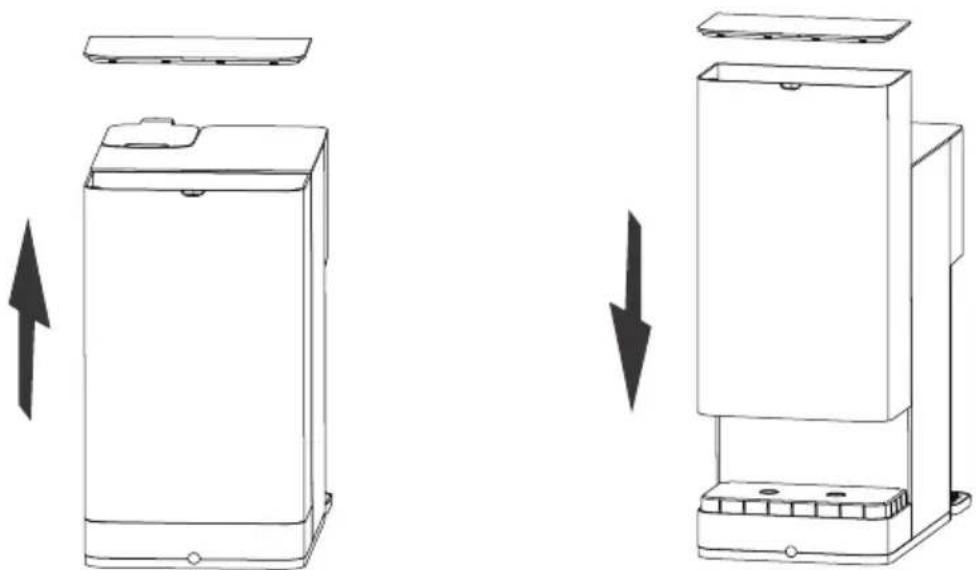

Open the feedwater reservoir cover as shown in Figure (3), Lift the feedwater reservoir, fill it with tap water and reinstall it.

Diagram showing two views of a portable appliance with arrows indicating direction (no text or symbols)

Figure 3

1. Remove the original water tank from the whole machine, fill it with tap water that meets the standard, the amount of water does not exceed the highest level of the original water tank, and then replace it on the whole machine.
2. Make sure that the power supply is switched on.
3. Press and hold the water change button for 5 seconds to put the machine into the washing state, after washing, the machine will start making water until the clean water tank is full of water (about 15 minutes). Pour the remaining water into the original water tank, place a container with a volume greater than 1.5L to intercept drainage.
4. Press and hold the water intake button for 5 seconds for the machine to start draining and repeat the above process eight times.

Note: For the first use, after the second water filling, wait for 24 hours before the next operation.

WARNING

If the water is found to be unclean or contains foreign matters or odor, please let it stand still for 24 hours before drainage. Flush until the water quality is normal.

FUNCTION KEYS

Purified water production

• The high sensor of the clean water tank is connected (test for 2 seconds to determine if it is connected) to stop water production, the self-priming pump is switched off;
• The high sensor of the clean water tank is not connected for the first time (test for 2 seconds to determine if it is disconnected) to start water production, the self-priming pump starts working and the waste water solenoid valve is closed.
• When the water tank is full, take water 10 seconds to start water production.
• When the source water tank or the purified water tank is full, no water is produced.
• Stop making water when the water tank or purifier is lifted.
• The screen cannot enter the screensaver state when making water.

Flushing

• Each time the machine is switched on, it automatically rinses for 20 seconds.
- The machine automatically rinses for 30 seconds after 24 hours of standby.
- After each water production cycle, an automatic rinse of 10 seconds is initiated.
- When the machine detects the installation of the feed water tank, it initiates an automatic rinse for 20 seconds. for 20 seconds.

Inspection and repair

- After the self-priming pump has worked continuously for 0.5 hours, the machine goes into maintenance mode. The full screen flashes and all buttons are invalid. The machine starts to work normally, any faults are cleared and power is restored.

Dispensing purified water

- Press and hold the "Dispense" button for 5 seconds. Purification stops and water is drained until the clean water tank is empty. The machine will restart after 2 minutes.

Note: If you are going to be away for a long time without using the machine, please empty the purified water tank.

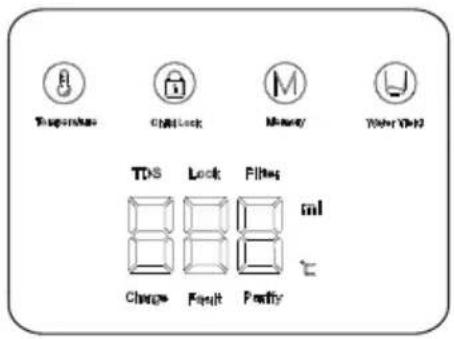

Dispensing water

• Select the amount of water, then press the 'Dispense' button to start dispensing water.
• Click on the child lock to unlock it, select the amount of water, then press the appropriate temperature button to start dispensing water.

Note: To prevent the machine from overheating, before switching on and dispensing hot water for the first time, please first draw some room temperature water before selecting hot water.

Tempensize CtrlLock Memory Timer Unit TDS Lock Filter Charge Fault Purity

CLEANING AND MAINTENANCE

Suggested filter replacement cycle

Cartridge type Recpmended replacement cycle
CPSRC composite filter 12 months

The replacement cycle of the filter is completely dependent on the water quality of the user and the amount of pure water produced. If the safe replacement cycle is carried out, the normal operation of the reverse osmosis system and the water quality of the pure water produced by it can be ensured. Therefore, the above recommended filter replacement cycle is for your reference only.

Filter life display

When the service life of the filter element reaches the set service life, the "Change Filter" light will illuminate for a long time. When the service life is reached for the first time, the continuous alarm will sound 10 times.

The machine can operate normally when any filter element is exhausted.

New filter reset:

Press the "Change Filter" button for 5 seconds, the buzzer beeps 1 sound, the filter reset is complete.

TROUBLESHOOTING

If your machine malfunctions, first check the help information in the following table. If the problem cannot be solved, contact your local service centre.

Problem Cause Possible solution
The device does not produce water	Ensure that the filters are not clogged	Replace the filter
	Not connected properly Verify if the machine is receiving power
Decreased water flow Ensure that	the filters are not clogged	Replace the filter
	Low-feed water temperature Fill with water of the appropriate temperature
Machine not operating Power fail	ure Check the power
	Power adapter failure Replace the power adapter
Unpleasant odor in water Long period	periods of inactivity Replace the water
	Long time without filter replacement	Replace the filter
	Lack of scheduled tank cleaning S scheduled cleaning of water tank
Abnormal noise during operation	Abnormal power voltage Contact the customer service
	Water infiltration in the transformer	Contact the customer service
	Failure of the self-priming pump	Contact the customer service
Abnormal TDS levels The water in	the supply tank has not been changed for a long time.	Change water
	The filter cartridge has not been changed for a long time.	Replace the filter

Error codes

If the error occurs, please remember the code first and then turn off the device. Call qualified personnel for help.

Code Error
E00 Repair
E02 Pure water tank short of water or low level
E03 Abnormal TDS
E04 Expired filter lifetime
E06 Source tank not detected
E07 Source water tank short of water or low water level

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
