USER MANUAL Sky Breeze Smart Klarstein

QR code image containing encoded data, no visible human-readable text

INHALT

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1. Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3. Open the Klarstein app.
4. Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 24

Scope of delivery 25

Overview 27

Installation 28

Assembly 30

Device Control by Smartphone 36

Cleaning and Care 38

Troubleshooting 38

Disposal Considerations 39

Declaration of Conformity 39

TECHNICAL DATA

Item number 10047037, 10047038, 1	10048079, 10048080
Power supply 220-240 V~50 Hz
Fan power 27 W
Lamp type LED 16 W dimmable	(DKHB)
Colour temperature 3000 K, 4000 K,	6500 K
Colour Rendering Index (CRI) ≥80 Ra
Maximum volume flow 170 m	^3 /min
Frequency bandmaximum radio-frequency power	433 MHz10 dBm
This product contains a light source of energy efficiency class E.

SAFETY INSTRUCTIONS

• Never attach the fan to a power point, but to the ceiling itself.
• The minimum distance between the blades of the fan and the floor must be more than 2.3 m. The minimum carrying capacity of the hook from which the fan is hung must be 100 kg.
• Make sure to install all poles disconnection switch having a contact separation of at least 3 mm between poles in the supply wiring to the ceiling fan.
• All wiring must comply with national and local electrical codes. If you are unfamiliar with wiring, consult a qualified electrician.
• To avoid possible electric shock, before installing your fan, disconnect the power by turning off the circuit breakers to the fuse box and associated wall switch location. If you cannot lock the circuit breakers in the off position, securely attach a conspicuous warning device, such as a sign, to the service panel.
• The model or type reference of luminaries which may be installed in fans which are constructed for his purpose.
• Switch off the power before connecting.
• The electrical wiring must be in accordance with the local regulation.
• The fan must be properly earthed to avoid the risk of electric shocks.
• Never mount the fan in a moist or wet room.
• Be careful when working near the rotating blades.
• To reduce the risk of personal injury, secure the fan directly to the building's support structure according to these instructions and use only the hardware supplied.
• This device may be only used by children 8 years old or older and persons with limited physical, sensory and mental capabilities and / or lack of experience and knowledge, provided that they have been instructed in use of the device by a responsible person who understands the associated risks.
• To reduce the risk of fire, electric shock or motor damage, do not use a solid-state speed controller with this fan. Use only variable speed drives.
  • Children being supervised not to play with the appliance.
• Ensure that the fan is switched off from the supply mains before removing the guard.
  • Take precautions to avoid the back-flow of gases into the room from the open flue of gas or other fuel-burning appliances (for duct and partition fans).

Note: Always have your fan installed by someone who is knowledgeable about electrical wiring.

SCOPE OF DELIVERY

Canopy
Waterproof sleeve Downrod and hanging ball Downrod
Hanger bracket Decorative covers	Motor
Blade Lamp panel Lamp shade
LED light source Remote control	Spiral package

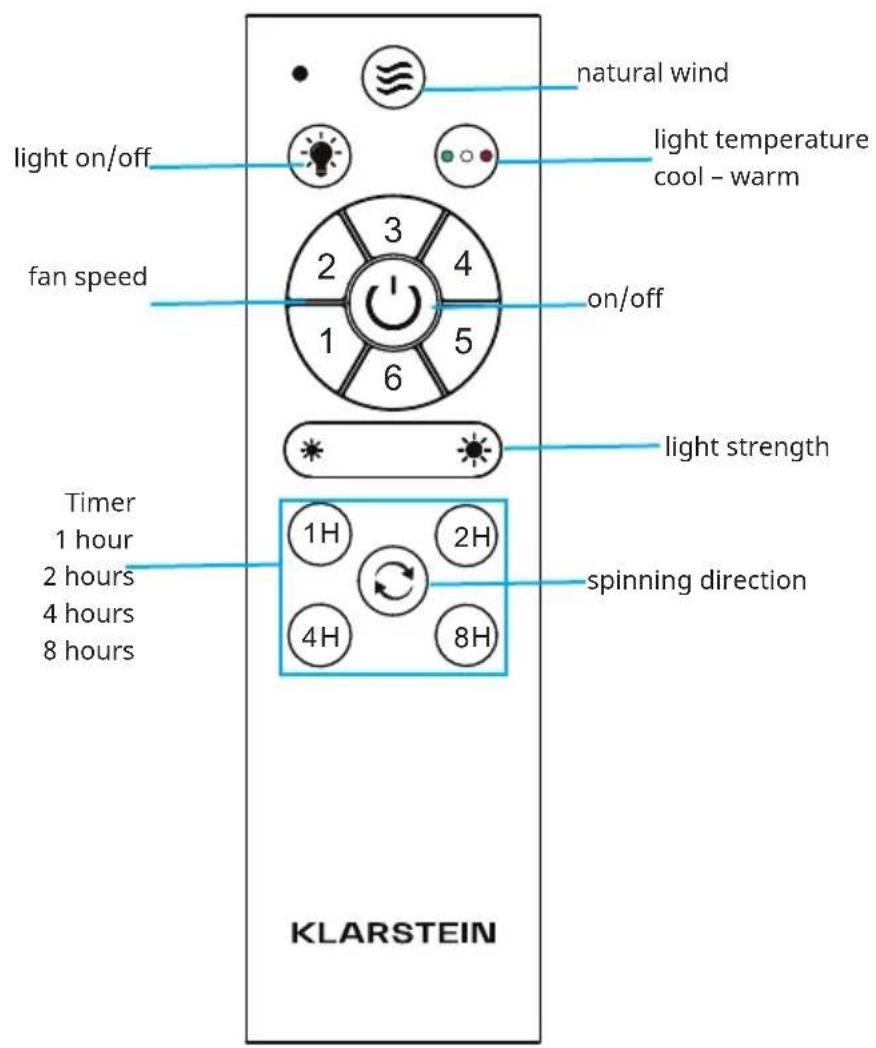

Remote control

natural wind light on/off light temperature cool - warm fan speed on/off light strength Timer 1 hour 2 hours 4 hours 8 hours 1H 2H spinning direction 4H 8H KLARSTEIN

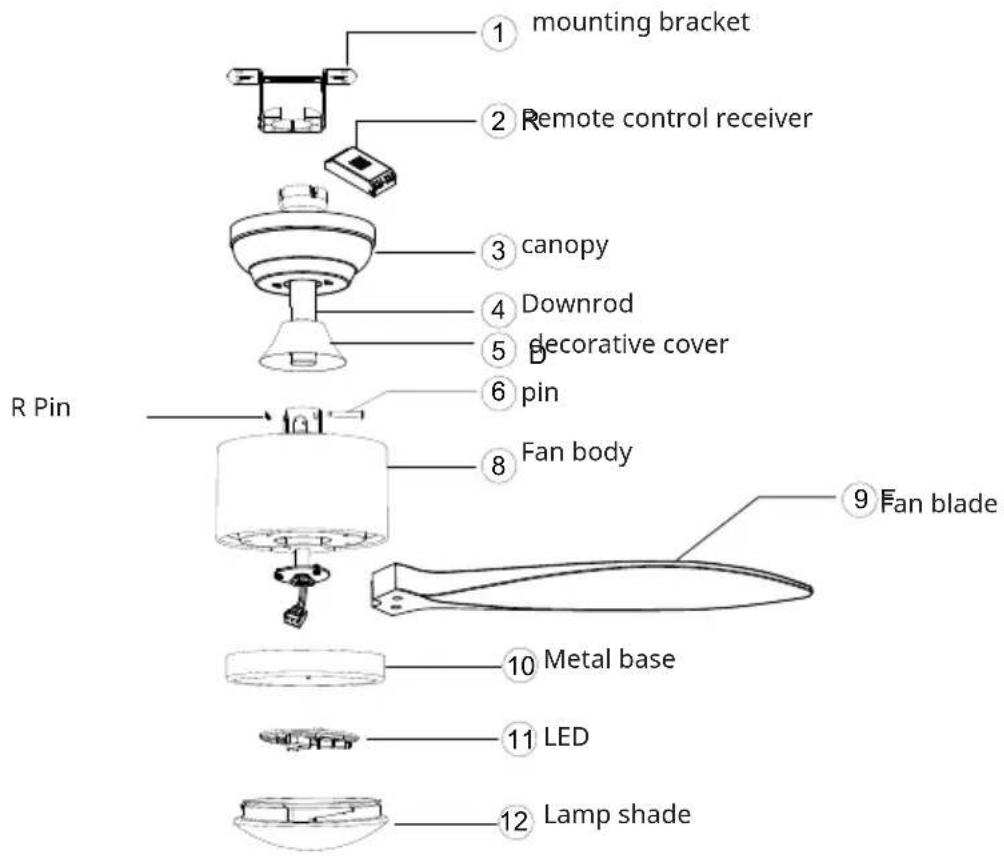

OVERVIEW

mounting bracket remote control receiver canopy downrod decorative cover pin fan body fan blade Metal base LED lamp shade

INSTALLATION

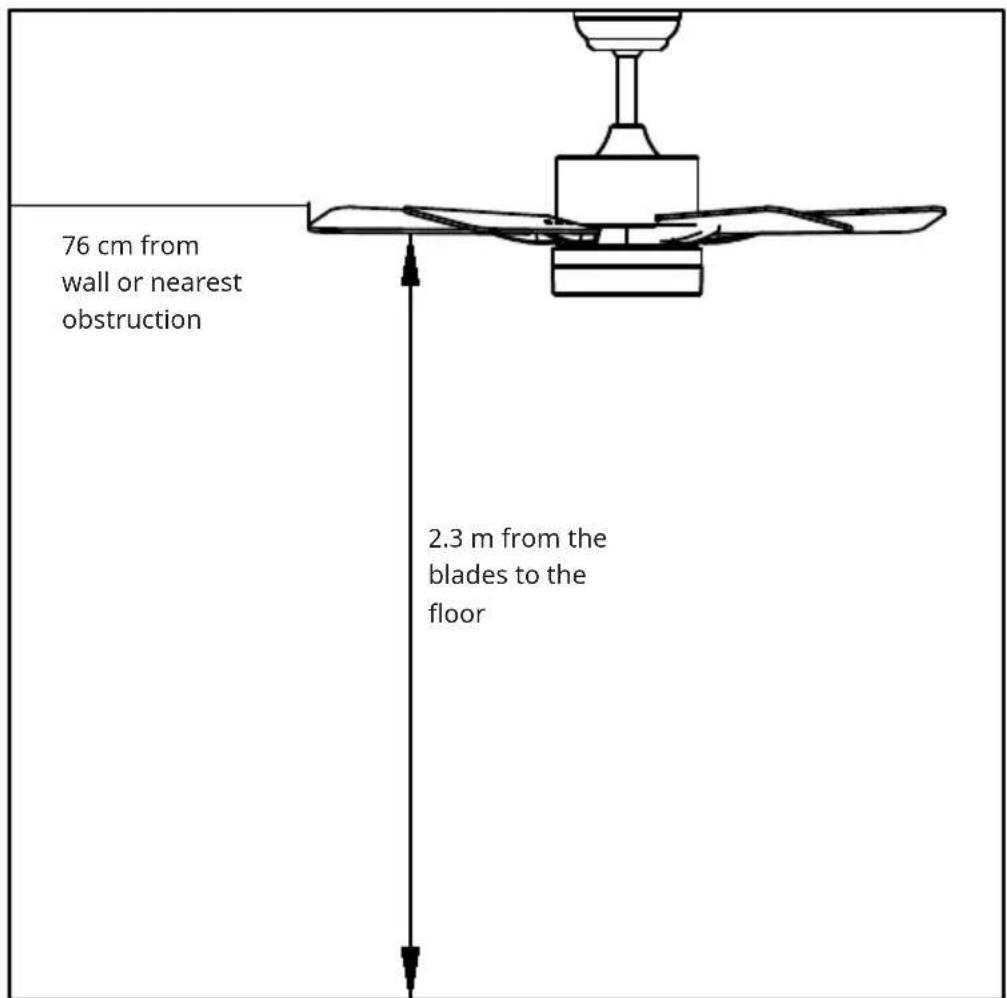

Installation Preparation

To prevent personal injury and damage, ensure that the hanging location allows the blades to be 2.3 m from the floor and 76 cm from any wall or obstruction. Ensure that the junction box is securely attached to the building structure and can support the full weight of the fan.

76 cm from wall or nearest obstruction 2.3 m from the blades to the floor

Installation requires these tools

Screwdriver, flat head screwdriver, adjustable pliers or wrench, stepladder, wire cutters and electrical tape.

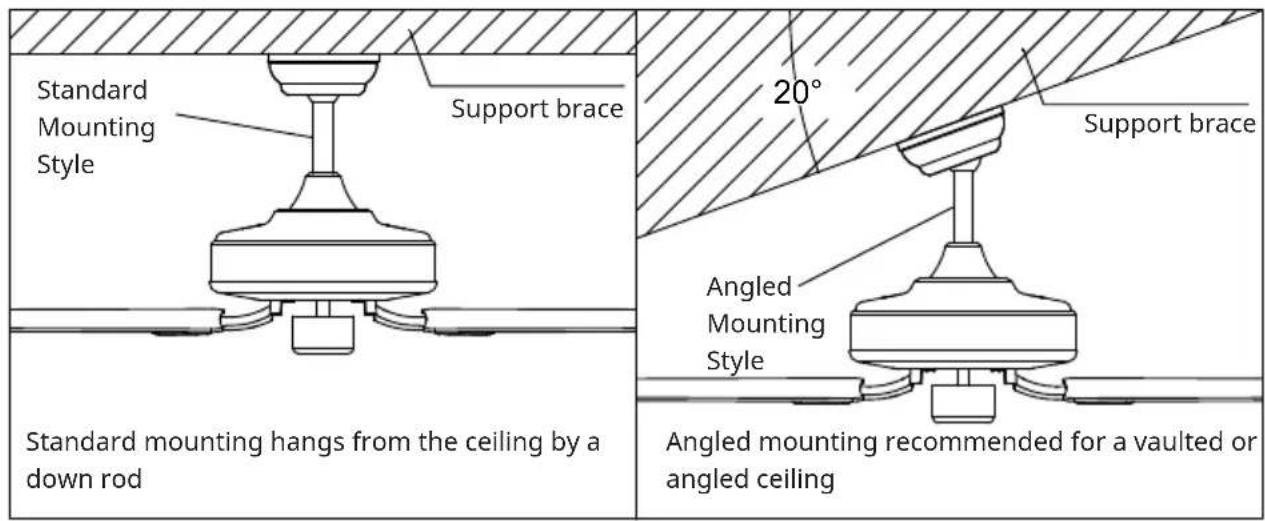

Preparing the fan site

This fan can be mounted on a normal or vaulted ceiling using a down rod. The hanging length can be increased by using a longer down rod.

Standard Mounting Style Support brace Standard mounting hangs from the ceiling by a down rod 20° Support brace Angled Mounting Style Angled mounting recommended for a vaulted or angled ceiling

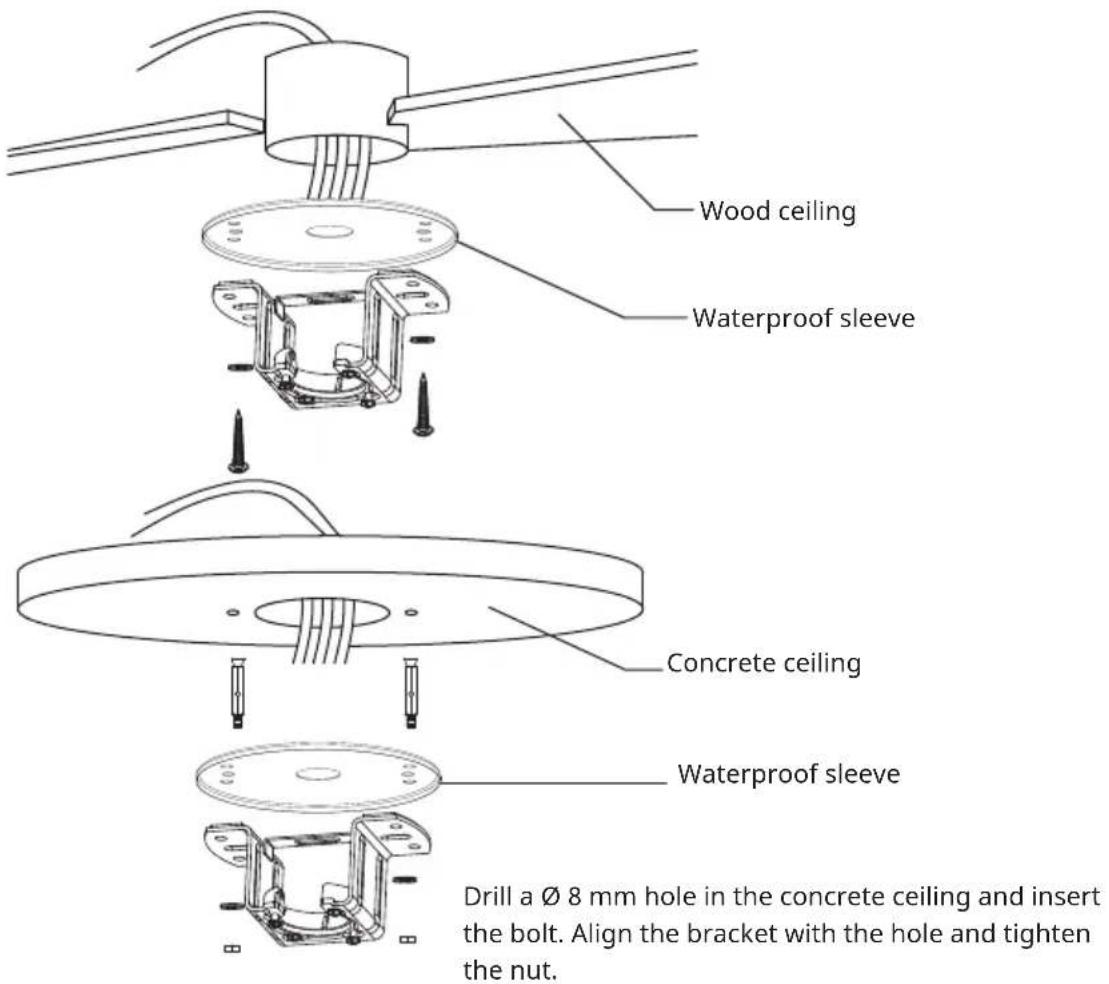

Installing the hanger bracket

Wood ceiling Waterproof sleeve Concrete ceiling Waterproof sleeve Drill a Ø 8 mm hole in the concrete ceiling and insert the bolt. Align the bracket with the hole and tighten the nut.

ASSEMBLY

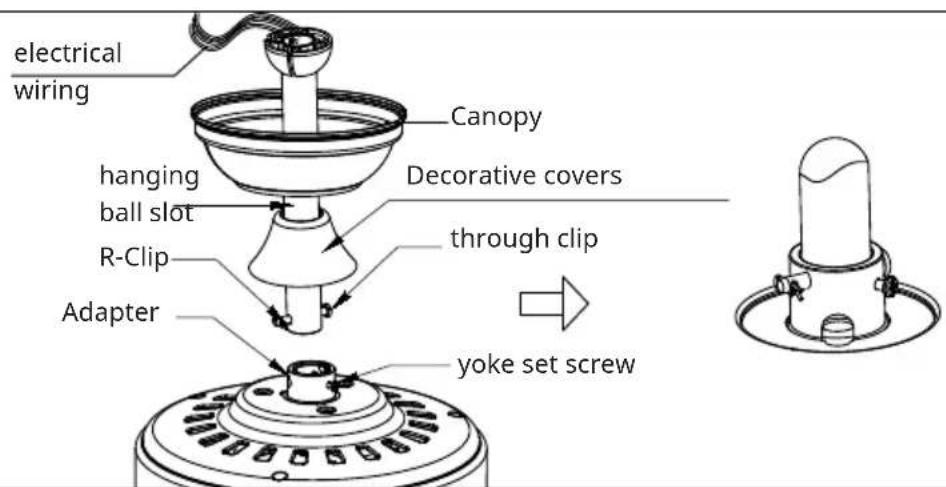

Assembling and hanging the fan

electrical wiring Canopy hanging ball slot R-Clip Adapter Decorative covers through clip yoke set screw

• If you wish to extend the hanging length of your fan, you will need to remove the hanging ball from the supplied 6" down rod to use with an extended down rod (supplied) (if you wish to use the 6" down rod, please follow the instructions below).
  • To remove the hanging ball, loosen the set screw on the hanging ball and remove the pin and clip. Lower the hanging ball and remove the stop pin. Slide the hanging ball off the original down rod A and slide it down the longer down rod B (note that the top of the down rod has a set screw hole; use this hole when adjusting the set screw).
• Insert the stop pin into the top of the extended down rod and lift the hanging ball.
• Ensure the stop pin aligns with the slots on the inside of the hanging ball and tighten the set screw securely.

Note: To prepare for threading electrical wires through the down rod, apply a small piece of electrical tape to the ends of the electrical wires - this will hold the wires together when threaded through the down rod.

• Loosen the yoke setscrews and nut at the top of the motor housing. Remove the pin and clip from the downrod (if you have not already done so). Slide the downrod through the canopy.
• Thread the electrical wires through the downrod and remove any excess wire slack from the top of the downrod.
• Insert the down rod into the motor housing yoke and re-insert the pin and clip that were previously removed. Tighten the yoke setscrews and nut securely.
• Lower the canopy onto the motor housing.

Remote control connection

DC: green/ yellow stripe Ground d wire L N L (black) input N (blue) Remote control receiver Neutral N (white) Light L blue Grey D G motor L Pink DC motor L Red DC motor L Receive place: Red DC motor L

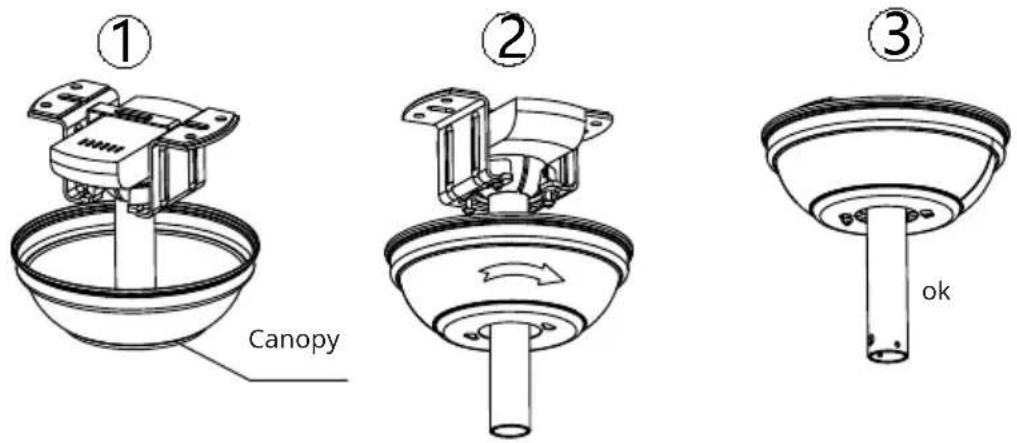

Canopy Assembly

Lift the canopy up to the hanger bracket, aligning the loosened screws in the hanger bracket with the slotted holes in the canopy. Turn canopy to lock. Re-insert screws and secure all screws with screwdriver.

With the hanging bracket secured to the outlet box and able to support the fan, you are now ready to hang your fan. Grasp the fan firmly with both hands. Slide the down rod through the opening in the hanger bracket and allow the hanger ball to rest on the hanger bracket. Turn the slot in the hanger ball until it aligns with the tab on the hanger bracket.

Note: Get help from another person to hold the stepladder in place and lift the fan up to you once you are on the ladder.

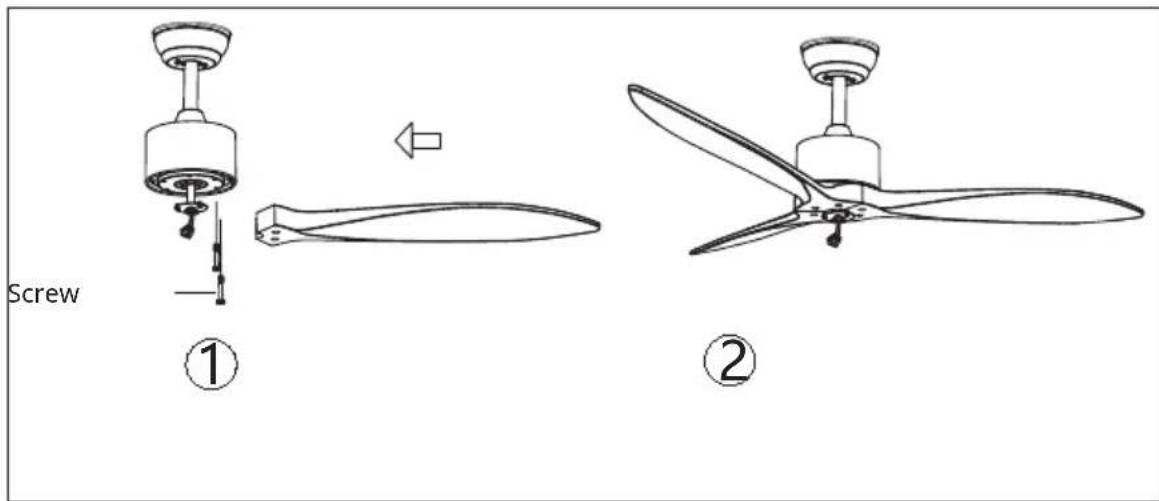

Blade assembly

Screw ① ②

Time saving: Washers for blade screws can be fitted to each blade screw before the blades are fitted.

Align blade holes with motor screw holes and tighten all screws when all blades are fitted. Repeat with the remaining blade arms before permanently securing the screws.

Note: Tighten blade screws twice.

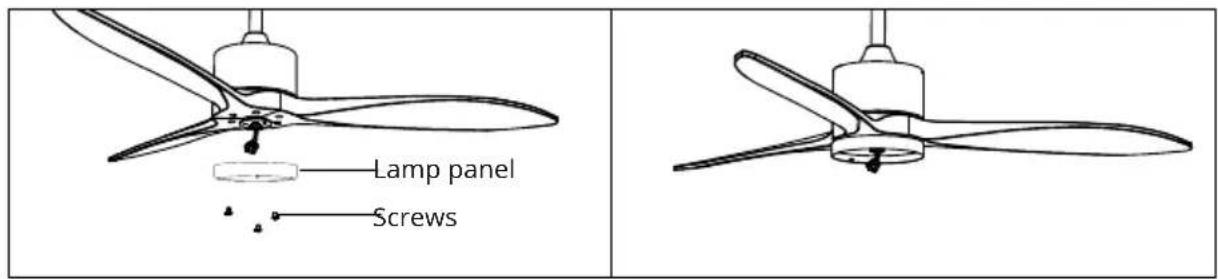

LED Pan Assembly

Lamp panel Screws

• Unscrew one set screw.
• Attach the LED panel to the bottom of the fan by inserting the other two set-screw heads into the keyhole slots, turn it into place, then secure the previous set-screw by aligning the screw hole and the hole on the bottom of the fan, tighten the remaining two set-screws to secure the LED panel

Note: When installing or removing the LED panel, please keep the insulation pads intact. Tightening the set screws too much or too fast will damage the insulation pads. Use the help of another person to hold the stepladder in place and lift the fan towards you once you are on the ladder.

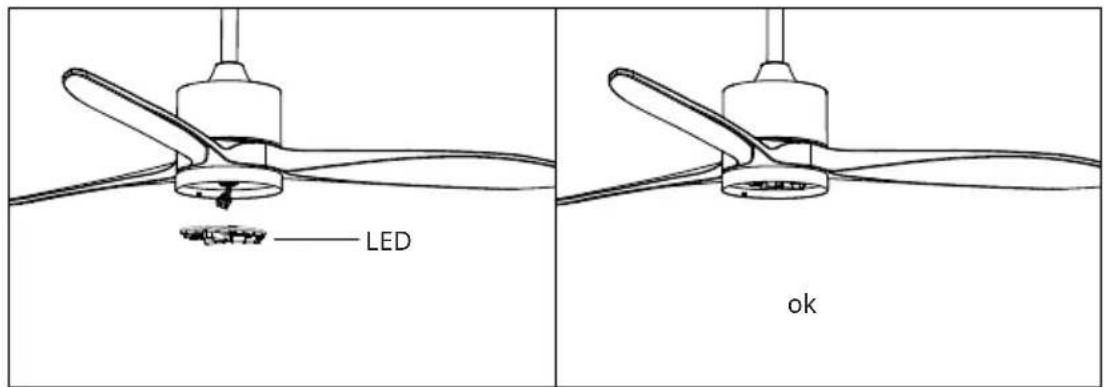

Lamp Shade Assembly

LED ok

Restore the cover and the lamp shade bacI to the LED pan.

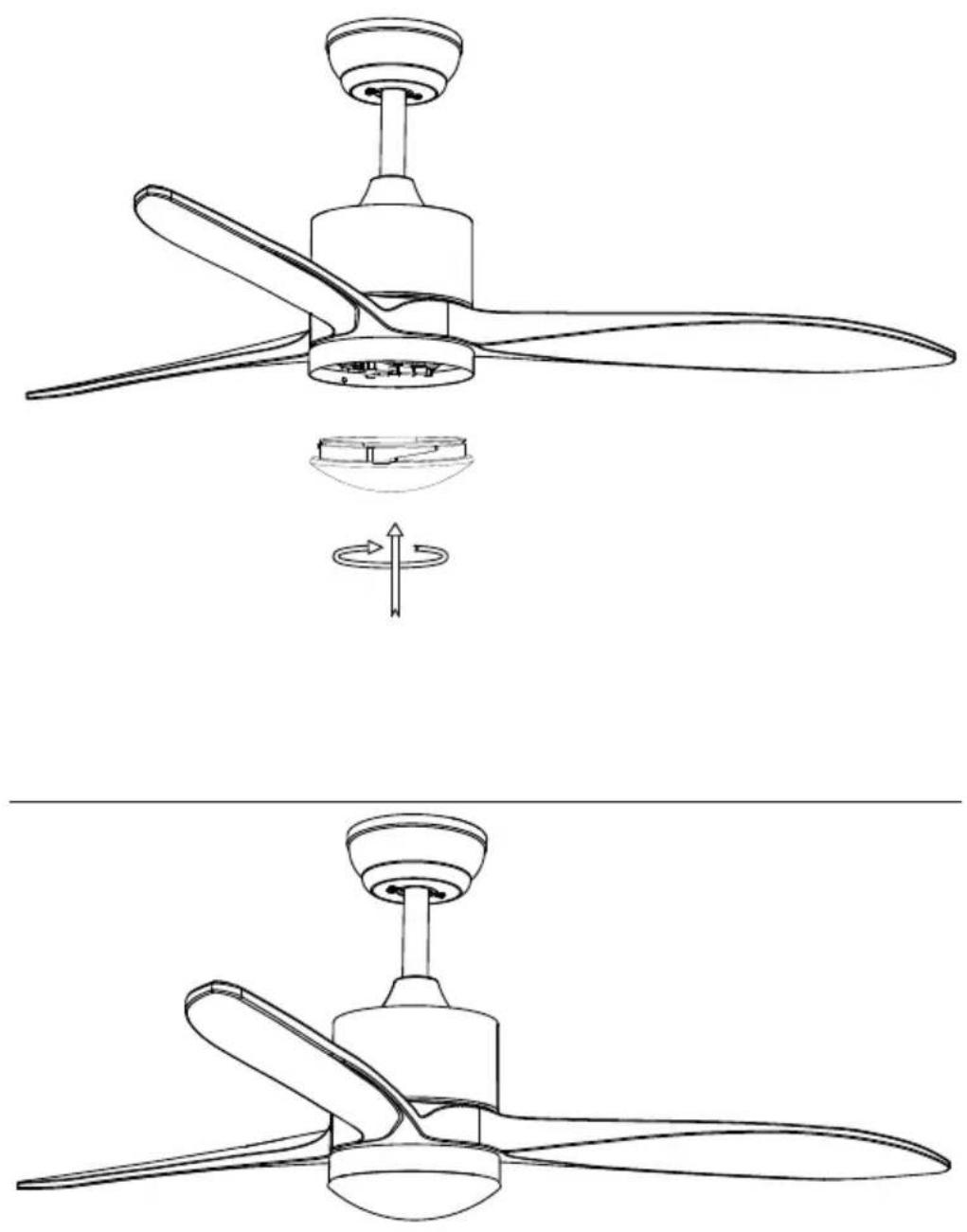

Decorative Pan Assembly

Restore the cover and the lamp shade back to the LED pan and secure them with decorative clips and bolt nuts.

DEVICE CONTROL BY SMARTPHONE

If you integrate the device into your home WiFi, you can conveniently operate it via the associated Klarstein app. The app not only allows you to remotely control the device via your smartphone, but also gives you access to recipes and additional information.

Follow these steps to connect your smartphone to your Klarstein device:

1. Download the Klarstein app first by scanning the QR code with your smartphone (see below), or download it directly from App Store or Google Play.
2. Make sure your smartphone is connected to the same WiFi network that your Klarstein device is to be connected to.
3. Open the Klarstein app.
4. Sign in to your account. If you do not have an account, sign up in the Klarstein app.
5. Follow the instructions from the app.

App Download

Use the scan function of your smartphone to scan the QR code and save the app on your smartphone.

Note: The app provides further information on how to use the app and help on how to connect to your device as soon as you open it for the first time.

iOS Android

Troubleshooting connection problems

If your Klarstein device cannot be found in the WLAN, check the following:

1. The device is not plugged in. Make sure that your device is plugged into an electric socket.
2. The device is not in pairing mode. Make sure that the WiFi indicator (LED) on the smart device control panel is blinking as described in the 'Reset WiFi settings' instruction of your smart device (instructions are usually available on device connection process).
3. The WiFi access point does not operate on 5 GHz. Make sure that your access point operates on 2.4 GHz band and you have a separate SSID on 2.4 GHz band. If you are not sure about the operating band of your access point, please contact your internet provider company.

Important: please note that if your WiFi router is dual band - operating on both 2.4 GHz and 5 GHz band - you need to separate the SSIDs for each band and use the 2.4 GHz SSID for connection.

1. Firewall settings of your WiFi network; the firewall setting of your WiFi network may not allow the Klarstein app to configure the WiFi settings on your smart device. Please make sure that you are not using a public WiFi network, e.g. airports, dormitories, companies, etc.

2. Different credentials used in smartphone and the app. Make sure that the WiFi credentials entered in the Klarstein app are the same as the ones that your smartphone is connected to.

Following the above mentioned points, if your smart device still fails to connect to the app, please contact us via email for support: [e-mail]

CLEANING AND CARE

• Always disconnect the appliance from the power supply before cleaning the appliance or carrying out maintenance work.
- Never use a wet sponge to clean the appliance.
- In order not to damage the product, it is advisable to use equipment adapted to the sensitive surfaces and products, which will slow down the wear of the device.

TROUBLESHOOTING

Problem Possible	cause Approach
The fan does not start.	Fuse or circuit breaker blown.	Check your fuses.
	Loose cable connections. Check all connections for loose cables.
	Speed was not set correctly. Select a speed.
The fan makes noise.	The upper cap touches the ceiling.	Make sure there is a minimum distance of 3 mm between the top cap and the ceiling.
	Screws of rotor blades are loose.	Tighten all screws.
	Ceiling fan is not properly attached to the ceiling.	Tighten all screws in the suspension plate.
	Speed is not adjusted correctly.	Select a speed.
The fan is wobbling.	Rotor blades are not adjusted horizontally to the ceiling.	Move the fan so that all blades are at the same height to the ceiling.
	Screws of the rotor blades are loose.	Tighten all screws.

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer & Importer for Great Britain:

Chal-Tec GmbH, Mühlenstrasse 25, 10243 Berlin, Germany.

Contact: [e-mail]

Hereby, Chal-Tec GmbH declares that the radio equipment type Sky Breeze Smart is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: use.berlin/10047037

For Great Britain: Hereby, Chal-Tec GmbH declares that the radio equipment type Sky Breeze Smart is in compliance with the relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: use.berlin/10047037

Product information requirements according to REGULATION (EU) No 206/2012
Information to identify the model(s) to which the information relates to
10047037, 10047038, 10048079, 10048080 Klarstein SkyBreeze Smart
Description Symbol Value Unit
Maximum fan flow rate F 169.6 m3/min
Fan power input P 26.8 W
Service value SV 3,3 (m3/min)/W
Standby power consumption PSB 0.45 W
Fan sound power level LWA <45 dB dB(A)
Maximum air velocity	c	2.5 m/s
Measurement standard for service value	IEC 60879:2019
Contact details for obtaining more information	Chal-Tec GmbHMühlenstraße 2510243 BerlinDeutschland
