USER MANUAL DCCS673 DEWALT

WARNING: Read all safety warnings, instructions, illustrations and specifications provided in this manual. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury

Definitions: Safety Alert Symbols and Words

This instruction manual uses the following safety alert symbols and words to alert you to hazardous situations and your risk of personal injury or property damage.

DANGER: Indicates an incidently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury. (Used without word) Indicates a safety related message.

NOTICE: Indicates a practice not related to personal injury which, if not avoided, may result in property damage.

English (original instructions) 5

1 Rear handle
2 Front handle
3 Variable speed trigger switch
4 Lock-off lever
5 On/Off button

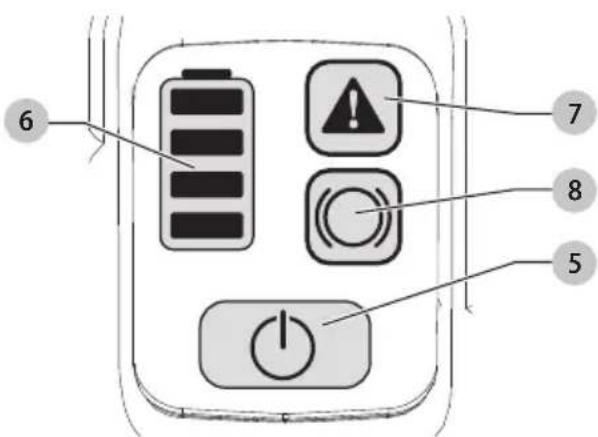

6 State of charge indicator LEDs
7 Overload LED
8 Chain brake LED
9 Oil flow adjust screw

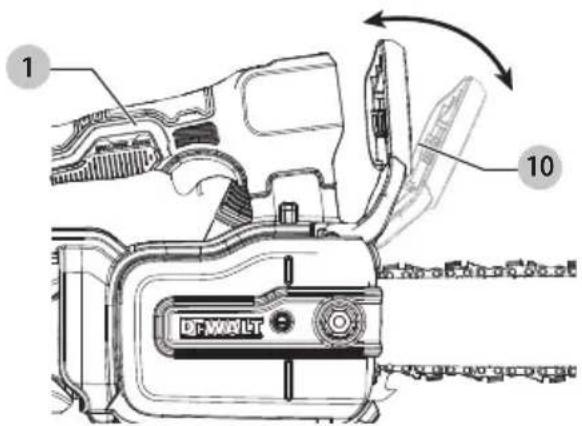

10 Chain brake/front hand guard
11 Guide bar
12 Saw chain
13 Sprocket cover
14 Bar lock nut
15 Chain tensioning screw
16 Oil level indicator
17 Oil cap
18 Guide bar scabbard

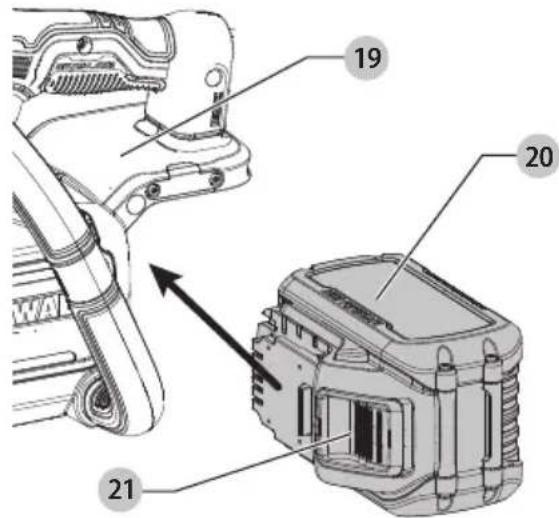

19 Battery housing
20 Battery pack
21 Battery release button
22 Wrench

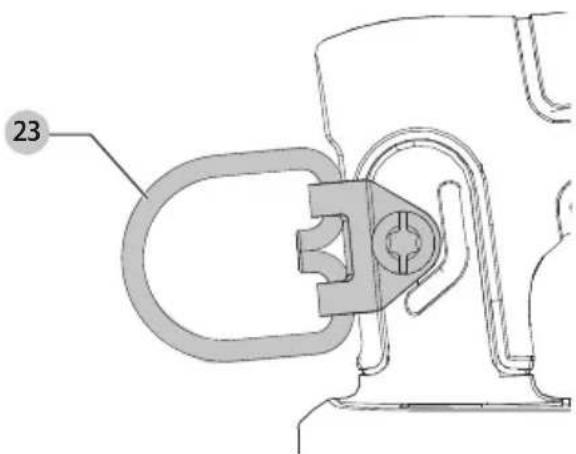

23 Harness attachment point
24 Bucking spikes

Diagram of a chain saw with labeled parts, showing hands operating the gear and a chain.

Fig. K Fig. L

Technical diagram of a mechanical device with numbered components and directional arrows indicating assembly or movement.

6 7 8 5

Fig. M

23

Fig. N

1 10 DF-MOOLT

Intended Use

This special use DCCS673 chainsaw is designed only for in-tree cutting applications, up to 12" (305 mm) in diameter when using 14" (355 mm) bar and chain, by certified tree service professionals specifically trained to do so in accordance with ANSI Z133 and TICA training materials. Operating this chainsaw in a tree without proper training could increase the risk of serious personal injury (or death).

This is a special use chain saw designed with handles that are close together for improved maneuverability in confined spaces when aloft in trees and should only be used by trained professionals that are properly secured by safety harnesses, etc. For other uses such as ground cutting or felling, a standard chain saw with longer spacing between handles which provides greater control should be used.

DO nOT use under wet conditions or in presence of flammable liquids or gases.

This chainsaw is a professional power tool.

DO nOT let children come into contact with the tool. Supervision is required when inexperienced operators use this tool.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING: Read all safety warnings, instructions, indications and specifications provided with this

power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND

INSTRUCTIONS FOR FUTURE REFERENCE.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work Area Safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical Safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or

moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a ground fault circuit interrupter (GFCI) protected supply. Use of a GFCI reduces the risk of electric shock.

3) Personal Safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power Tool Use and Care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from

English

the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery Tool Use and Care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F (130 °C) may cause explosion.

g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

General Chain Saw Safety Warnings

WARNING: Additional safety warnings for chainsaws.

a) Keep all parts of the body away from the saw chain when the chain saw is operating. Before you start the chain saw, make sure the saw chain is not contacting anything. A moment of inattention while operating chain saws may cause entanglement of your clothing or body with the saw chain.

b) Always hold the chain saw with your right hand on the rear handle and your left hand on the front handle. Holding the chain saw with a reversed hand configuration increases the risk of personal injury and should never be done.

c) Hold the chain saw by insulated gripping surfaces only, because the saw chain may contact hidden wiring. Saw chains contacting a "live" wire may make exposed metal parts of the chain saw "live" and could give the operator an electric shock.

d) Wear eye protection. Further protective equipment for hearing, head, hands, legs and feet is recommended. Adequate protective equipment will reduce personal injury from flying debris or accidental contact with the saw chain.

e) Do not operate a chain saw on a ladder, from a rooftop, or any unstable support. Operation of a chain saw in this manner could result in serious personal injury.

f) Always keep proper footing and operate the chain saw only when standing on fixed, secure and level surface. Slippery or unstable surfaces may cause a loss of balance or control of the chain saw.

g) When cutting a limb that is under tension, be alert for spring back. When the tension in the wood fibers is released, the spring loaded limb may strike the operator and/or throw the chain saw out of control.

h) Use extreme caution when cutting brush and saplings. The slender material may catch the saw chain and be whipped toward you or pull you off balance.

i) Carry the chain saw by the front handle with the chain saw switched off and away from your body. When transporting or storing the chain saw always fit the guide bar cover. Proper handling of the chain saw will reduce the likelihood of accidental contact with the moving saw chain.

j) Follow instructions for lubricating, chain tensioning and changing the bar and chain.

Improperly tensioned or lubricated chain may either break or increase the chance for kickback.

k) Cut wood only. Do not use chain saw for purposes not intended. For example: do not use chain saw for cutting metal, plastic, masonry or non-wood building materials. Use of the chain saw for operations different than intended could result in a hazardous situation.
1) This chain saw is not intended for tree felling. Use of the chain saw for operations different than intended could result in serious injury to the operator or bystanders.
m) Do not operate a chain saw in a tree unless you have been specifically trained to do so. Operation of a chain saw in a tree without proper training could increase the risk of serious personal injury.
n) Follow all instructions when clearing jammed material, storing or servicing the chain saw. Make sure the switch is off and the battery pack is removed. Unexpected actuation of the chain saw while clearing the jammed material or servicing may result in serious personal injury.

Causes and Operator Prevention of Kickback:

Kickback may occur when the nose or tip of the guide bar touches an object, or when the wood closes in and pinches the saw chain in the cut.

Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator.

Pinching the saw chain along the top of the guide bar may push the guide bar rapidly back towards the operator.

Either of these reactions may cause you to lose control of the saw which could result in serious personal injury. Do not rely exclusively upon the safety devices built into your saw. As a chain saw user, you should take several steps to keep your cutting jobs free from accident or injury.

Kickback is the result of tool misuse and/or incorrect operating procedures or conditions and can be avoided by taking proper precautions as given below:

a) Maintain a firm grip, with thumbs and fingers encircling the chain saw handles, with both hands on the saw and position your body and arm to allow you to resist kickback forces. Kickback forces can be controlled by the operator, if proper precautions are taken. Do not let go of the chain saw.
b) Do not overreach and do not cut above shoulder height. This helps prevent unintended tip contact and enables better control of the chain saw in unexpected situations.
c) Only use replacement bars and chains specified by the manufacturer. Incorrect replacement bars and chains may cause chain breakage and/or kickback.
d) Follow the manufacturer's sharpening and maintenance instructions for the saw chain.

Decreasing the depth gauge height can lead to increased kickback.

The Following Precautions Should Be Followed to Minimize Kickback:

1. Grip saw firmly. Hold the chain saw firmly with both hands when the motor is running. Use a firm grip with thumbs and fingers encircling the chain saw handles. Chain saw will pull forward when cutting on the bottom edge of the bar, and push backward when cutting along the top edge of the bar.
2. Do not over reach.
3. Keep proper footing and balance at all times.
4. Don't let the nose of the guide bar contact a log, branch, ground or other obstruction.
5. Don't cut above shoulder height.
6. Use devices such as low kickback chain and reduced kickback guide bars that reduce the risks associated with kickback.
7. Only use replacement bars and chains specified by the manufacturer or the equivalent.
8. Never let the moving chain contact any object at the tip of the guide bar.
9. Keep the working area free from obstructions such as other trees, branches, rocks, fences, stumps, etc. Eliminate or avoid any obstruction that your saw chain could hit while you are cutting through a particular log or branch.
10. Keep your saw chain sharp and properly tensioned. A loose or dull chain can increase the chance of kickback. Check tension at regular intervals with the motor stopped and tool unplugged, never with the motor running.
11. Begin and continue cutting only with the chain moving at full speed. If the chain is moving at a slower speed, there is a greater chance for kickback to occur.
12. Cut one log at a time.
13. Use extreme caution when re-entering a previous cut. Engage bucking spikes into wood and allow chain to reach full speed before proceeding with cut.
14. Do not attempt plunge cuts or bore cuts.
15. Watch for shifting logs or other forces that could close a cut and pinch or fall into chain.

Kickback Safety Features

WARNING: The following features are included on your saw to help reduce the hazard of kickback; however such features will not totally eliminate this dangerous reaction. As a chain saw user do not rely only on safety devices. You must follow all safety precautions, instructions, and maintenance in this manual to help avoid kickback and other forces which can result in serious injury.

- Reduced-Kickback Guide Bar, designed with a small radius tip which reduces the size of the kickback danger zone on bar tip. A reduced - kickback guide bar is one which has been demonstrated to significantly reduce the number and seriousness of kickbacks when tested in accordance with safety requirements for electric chain saws.

English

• Low-Kickback Chain, designed with a contoured depth gauge and guard link which deflect kickback force and allow wood to gradually ride into the cutter. A low-kickback chain is a chain which has met kickback performance requirements of ANSI B175.1–2012.
• Do not operate chain saw while on a ladder, on a scaffold, or from any unstable surface.
• Hold tool by insulated gripping surfaces when performing an operation where the cutting tool may contact hidden wiring. Contact with a "live" wire will make exposed metal parts of the tool "live" and shock the operator.
• Do not attempt operations beyond your capacity or experience. Read thoroughly and understand completely all instructions in this manual.
• Before you start chain saw, make sure saw chain is not contacting any object.
• Do not operate a chain saw with one hand! Serious injury to the operator, helpers, or bystanders may result from one-handed operation. A chain saw is intended for two-handed use only.
• Keep the handles dry, clean, and free of oil or grease.
• Do not allow dirt, debris, or sawdust to build up on the motor or outside air vents.
• Stop the chain saw before setting it down.
• Do not cut vines and/or small under brush.
• Use extreme caution when cutting small diameter branches because slender material may catch the saw chain and be whipped toward you or pull you off balance.

Chainsaw Names and Terms

• Bucking - The process of cross cutting a felled tree or log into lengths. (NOT to be done with this chainsaw.)
• Motor Brake (if equipped) - A device used to stop the saw chain when the trigger is released.
• Chainsaw Powerhead - A chainsaw without the saw chain and guide bar.
• Drive Sprocket or Sprocket - The toothed part that drives the saw chain.
• Felling - The process of cutting down a tree. (NOT to be done with this chainsaw.)

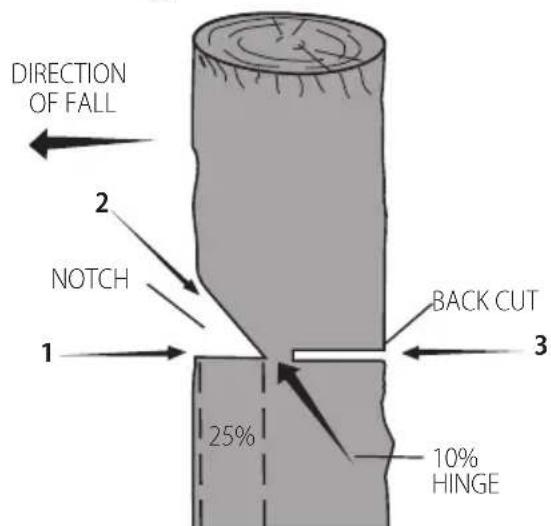

• Felling Back Cut - The final cut in a tree felling operation made on the opposite side of the tree from the notching cut. (NOT to be done with this chainsaw.)
• Front Handle - The support handle located at or toward the front of the chainsaw.
• Front Hand Guard - A structural barrier between the front handle of a chainsaw and the guide bar, typically located close to the hand position on the front handle.
• Guide Bar - A solid railed structure that supports and guides the saw chain.
• Scabbard/Guide Bar Cover - Enclosure fitted over guide bar to help prevent tooth contact when saw is not in use.
• Kickback - The backward or upward motion, or both of the guide bar occurring when the saw chain near the nose of the top area of the guide bar contacts any object such

as a log or branch, or when the wood closes in and pinches the saw chain in the cut.

- Kickback, Pinch - The rapid pushback of the saw which can occur when the wood closes in and pinches the moving saw chain in the cut along the top of the guide bar.

- Kickback, Rotational - The rapid upward and backward motion of the saw which can occur when the moving saw chain near the upper portion of the tip of the guide bar contacts an object, such as a log or branch.

- Limbing - Removing the branches from a fallen tree. (NOT to be done with this chainsaw.)

- Low-Kickback Chain - A chain that complies with the kickback performance requirements of ANSI B175.1–2012 (when tested on a representative sample of chainsaws).

• Normal Cutting Position - Those positions assumed in performing the bucking and felling cuts.

- Notching Undercut - A notch cut in a tree that directs the tree's fall.

- Rear Handle - The support handle located at or toward the rear of the saw.

- Reduced Kickback Guide Bar - A guide bar which has been demonstrated to reduce kickback significantly.

- Replacement Saw Chain - A chain that complies with kickback performance requirements of ANSI B175.1–2012 when tested with specific chainsaws. It may not meet the ANSI performance requirements when used with other saws.

- Saw Chain - A loop of chain having cutting teeth, that cut the wood, and that is driven by the motor and is supported by the guide bar.

- Bucking Spikes - The spikes are used, when sawing, to pivot the saw and maintain position while sawing.

- Switch - A device that when operated will complete or interrupt an electrical power circuit to the motor of the chainsaw.

- Switch Linkage - The mechanism that transmits motion from a trigger to the switch.

- Switch Lockout - A movable stop that prevents the unintentional operation of the switch until manually actuated.

Additional Safety Information

WARNING: Never modify the power tool or any part of it. Damage or personal injury could result.

WARNING: ALWAYS use safety glasses. Everyday eyeglasses are NOT safety glasses. Also use face or dust mask if operation is dusty. ALWAYS WEAR CERTIFIED SAFETY EQUIPMENT:

• ANSI Z87.1 eye protection (CAN/CSA Z94.3),
• ANSI S12.6 (S3.19) hearing protection,
• NIOSH/OSHA/MSHA respiratory protection.

WARNING: Some dust contains chemicals known to State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• compounds in fertilizers,
• compounds in insecticides, herbicides and pesticides,
• arsenic and chromium from chemically treated lumber.

To reduce your exposure to these chemicals, wear approved safety equipment such as dust masks that are specially designed to filter out microscopic particles.

- Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmful chemicals.

WARNING: Use of this tool can generate and/ disperse dust, which may cause serious and permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection

WARNING: Always wear proper personal hearing protection that conforms to ANSI S12.6 (S3.19) during use. Under some conditions and duration of use, noise from this product may contribute to hearing loss.

• Air vents often cover moving parts and should be avoided. Loose clothes, jewelry or long hair can be caught in moving parts.

The label on your tool may include the following symbols. The symbols and their definitions are as follows:

V....volts

Hz......hertz

min......minutes

or DC.....direct current

Class I Construction (grounded)

.../min.....per minute

BPM.....beats per minute

ClassII Construction (double insulated)

n_0 ...... no load speed

n......rated speed

m/s ...... meters per second

earthing terminal

⚠️ ......safety alert symbol

Visible radiation

Wearrespiratory protection

Wear eye protection

Wear hearing protection

Read all documentation

CSPM...... Cut strokes per minute

Do not leave in rain

Tip contact can cause the guide bar to move suddenly upward and backward, which can cause serious injury

Contact of the guide bar tip with any object should be avoided

.... Rotational direction of the saw chain

Always use two hands when operating the chainsaw

ASSEMBLY AND ADJUSTMENTS

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Installing the Guide Bar and Saw Chain (Fig. A–E, G)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

If the saw chain 12 and guide bar 11 are packed separately in the carton, the chain has to be attached to the bar, and both must be attached to the body of the tool.

1. Place the saw on a flat, firm surface.

2. Rotate the bar lock nut 14 counterclockwise with the wrench 22 provided.

3. Remove sprocket cover 13 and bar lock nut 14.

4. Wearing protective gloves, grasp the saw chain 12 and wrap it around the guide bar 11, ensuring the teeth are facing the correct direction (Fig. G).

5. Ensure the chain is properly set in the slot around the entire guide bar.

6. Place the saw chain around the sprocket 27. While lining up the slot on the guide bar with chain tensioning pin 26, and the bolt 25, on the base of the tool as shown in Fig. C.

7. Once in place, hold the bar still, replace sprocket cover 13. Install the rear of the sprocket cover first, rotate it down and make sure the bolt hole on the cover lines up with the bolt 25, on the main housing.

8. Install the bar lock nut 14 and rotate clockwise with the wrench 22 provided until snug, then loosen nut one full turn, so that the saw chain can be properly tensioned.

9. Rotate the chain tensioning screw 15 clockwise to increase tension as shown in Fig. D. Make sure the saw chain 12 is snug around the guide bar 11. Tighten the bar lock nut 14 until snug.

10. Follow the instructions in the section Adjusting Chain Tension.

Adjusting Chain Tension (Fig. A, D–F)

WARNING: Incorrect saw chain tension can cause the saw chain to come off of the guide bar and could cause serious injury or death.

nOTE: Saw chain tension should be adjusted regularly before each use.

1. With the saw still on a firm surface check the saw chain 12 tension. The tension is correct when the saw chain snaps back after being pulled 1/8" (3 mm) away from the guide bar 11 with light force from the middle finger and thumb as shown in Fig. E. There should be no "sag" between the guide bar and the saw chain on the underside as shown in Fig. F.

2. To adjust saw chain tension, loosen bar lock nut 14.

3. Rotate the chain tension screw 15 in the front of the housing using the flat screwdriver end of the wrench 22.

4. Check saw chain tension, adjust if needed.

ENGLISH

1. Do not over-tension the saw chain as this will lead to excessive wear and will reduce the life of the guide bar and saw chain.
2. Once saw chain tension is correct, tighten bar lock nut 14 until snug. Torque the bar lock nut 14 to 6 ft.-lbs (8 Nm).
3. A new chain stretches slightly during the first few hours of use. It is important to check the tension frequently (after disconnecting battery remove the battery pack) during the first two hours of use.

Replacing the Saw Chain (Fig. A–E, G)

CANTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure the battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

1. To remove the saw chain 12, place the saw on a flat, firm surface.
2. Remove sprocket cover 13 as described in Installing the Guide Bar and Saw Chain section.
3. Rotate the chain tension screw 15 using the flat screwdriver end of the wrench 22. Turning the screw counterclockwise allows the guide bar 11 to recede and reduces the tension on the chain so that it may be removed.
4. Wearing protective gloves, grasp the saw chain and lift the worn saw chain out of the groove in the guide bar.
5. Flip guide bar over every time you replace the chain to ensure even wear.
6. Place the new chain in the slot of the guide bar, making sure the saw teeth are facing the correct direction by matching the arrow and graphic of the saw chain on the housing 33 shown in Fig. C.
7. Follow instructions for Installing the Guide Bar and Saw Chain.

Replacement chains and bars are available from your nearest authorized service center.

The DCCS673 chainsaw is compatible with the following DEWALT accessories when using the supplied .325 pitch, 7-tooth sprocket 27 (NA265339):

SAW CHAINS GUIDE BARS

10" (25 cm) DW01DTX610	10" (25 cm) DWZCSBX10
12" (30 cm) DW01DTX612	12" (30 cm) DWZCSBX12
14" (35 cm) DW01DTX614	14" (35 cm) DWZCSBX14

Adjusting the Guide Bar Oil Flow (Fig. A, H)

This DCCS673 is equipped with an adjustable oiling system. The flow of saw chain and guide bar lubrication can be set for different types of wood and cutting techniques. The saw chain and guide bar lubrication feed rate is suitable for most applications when the oil flow adjust screw 9 is in positioned in between the maximum 29 and minimum 28 positions.

To reduce the flow:

1. Using the screwdriver end of the wrench 22, twist the oil flow adjust screw 9 clockwise towards the minimum 28 position.

To increase the flow:

1. Using the screwdriver end of the wrench 22, twist the oil flow adjust screw 9 counterclockwise maximum 29 position.

Saw Chain and Guide Bar Oiling (Fig. A, H) Auto Oiling System

This chain saw is equipped with an auto oiling system that keeps the saw chain and guide bar constantly lubricated.

1. The oil level indicator 16 shows the level of the oil in the chain saw. If the oil level is less than a quarter full, remove the battery from the chain saw and refill the oil tank with the correct type of oil.
2. Always empty oil tank when finished cutting.
3. Always empty oil tank before storing this unit.

NOTE: Do not operate this chain saw without oil.

NOTE: Always use a high-quality, biodegradable bar and chain oil for proper saw chain and bar lubrication. When pruning trees, vegetable-based bar and chain oil is recommended, as mineral-based oils may harm living trees. Never use dirty, used, or contaminated oil. Doing so may damage the tool.

Filling the Oil Reservoir

1. Unscrew counterclockwise and then remove the oil cap 17. Fill the reservoir with the recommended bar and chain oil until the oil level has reached the top of the oil level indicator 16.
2. Refit the oil cap and tighten clockwise.
3. Periodically switch the chain saw off and check the oil level indicator to ensure the bar and chain are being properly oiled.

Transporting Chain Saw (Fig. A, I)

- Always remove the battery from the tool and cover the guide bar 11 with the scabbard 18 when transporting the saw.

OPERATION

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Proper Hand Position (Fig. A, J)

WARNING: To reduce the risk of serious personal injuries ALWAYS use proper hand position as shown. WARNING: To reduce the risk of serious personal injuries ALWAYS hold securely in anticipation of a sudden reaction.

DANGER: Never use the chain saw with only one hand. It is more difficult to control reactive forces.

Proper hand position requires the left hand on the front handle 2, with the right hand on the rear handle 1.

Installing and Removing the Battery Pack (Fig. A, K)

WARNING: Ensure the tool/appliance is in the off position before inserting the battery pack.

NOTE: For best results, make sure your battery pack is fully charged.

1. To install the battery pack 20 into the tool handle, align the battery pack with the rails inside the tool's handle and slide it into the handle until the battery pack is firmly seated in the tool and ensure that it does not disengage.
2. To remove the battery pack from the tool, press the battery pack release button 21 and firmly pull the battery pack out of the tool handle. Insert battery into the charger.

State of Charge Indicator (Fig. A, L)

The DCCS673 is equipped with a state of charge indicator. This will display the current level of charge in the battery during use. It does not indicate tool functionality and is subject to variation based on product components, temperature and end-user application.

• The state of charge indicator LEDs 6 will illuminate, indicating the percent of charge in the battery.
• When all four state of charge indicator LEDs 6 illuminate, the battery is fully charged.
• When one state of charge indicator LEDs 6 illuminates, charge is low and then it will flash when the battery is discharged. Remove the battery and charge it.

State of Charge Indicator LED Status

	LEVEL OF CHARGE	CHARGE INDICATORLED COLOR
	100% - 75% White
	50% - 75% White
	20% - 50% White
	≤20% White
	Low battery shutdown White and blinking.
	Battery too hot All four, red and blinking.

Overloaded Battery Warning (Fig. A, L)

All four state of charge indicator LEDs 6 will illuminate red and then blink when the battery has reached a high temperature. To clear the overloaded battery warning, allow the battery to cool down then restart the saw and begin your cut again, this time with less force. Allow the saw to cut at its own pace.

Chain Brake LED (Fig. A, L)

The DCCS673 has a chain brake LED 8. The chain brake LED 8 will illuminate red when the chain brake/front hand guard 10 is engaged. The chain brake LED 8 will not be illuminated when the chain brake/front hand guard 10 is in the "set" position.

Overload LED (Fig. A, L)

The DCCS673 has a overload LED 7. The overload LED 7 will illuminate amber and then blink when the motor or module is overloaded during operation. To clear the overload LED 7, restart the saw and begin your cut again, this time with less force. Allow the saw to cut at its own pace.

The overload LED 7 will illuminate red and then blink when the module has reached a high temperature. To clear the overload LED 7, allow the chainsaw to cool down then restart the saw and begin your cut again, this time with less force. Allow the saw to cut at its own pace.

Harness Attachment Point (Fig. A, M)

WARNING: To reduce the risk of injury from the tool falling on operators or bystanders, make sure it is supported securely when using the harness attachment point, or resting in a secure and stable location when not in use. Be sure to keep the area below clear to reduce the risk of the tool falling and striking someone or something below it.

WARNING: Before use, inspect the harness attachment point for damage. If damaged do not use, contact a DEWALT authorized service center. Call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

The DCCS673 has a convenient harness attachment point 23 that allows it to hang while not in use when an appropriate harness is connected. Ensure you follow the harness manufacturers instructions.

Operating the Chain Saw (Fig. A, J–0)

WARNING: Read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire and/or serious personal injury.

• Guard Against Kickback which can result in severe injury or death. See General Power Tool Safety Warnings and General Chainsaw Safety Warnings, and Causes and Operator Prevention of Kickback and Kickback Safety Features, to avoid the risk of kickback.
• Do not overreach. Do not cut above chest height. Make sure your footing is firm. Keep feet apart. Divide your weight evenly on both feet.
• Use a firm grip with your left hand on the front handle 2 and your right hand on the rear handle 1 so that your body is to the left of the guide bar.
• Do not hold chain saw by chain brake/front hand guard 10. Keep elbow of left arm locked so that left arm is straight to withstand a kickback.

WARNING: Never use a cross-handed grip (left hand on the rear handle and right hand on the front handle).

English

WARNING: Never allow any part of your body to be in line with the guide bar when operating the chain saw.

• Never operate while in any awkward position or on a ladder or other unstable surface. You may lose control of saw causing severe injury.
• Keep the chain saw running at full speed the entire time you are cutting.
• Allow the saw chain to cut for you. Exert only light pressure. Do not put pressure on chainsaw at end of cut.

WARNING: When not in use always have the chain that it is engaged and battery removed.

CAUTION: Maximum saw chain speed is 23.6 m/s.

Before Use

1. Inspect the chain brake/front hand guard 10 for any damage such as cracks.
2. Make sure that the chain brake/front hand guard 10 moves freely and it is attached safely to the DCCS673.

Illustration of hands operating a manual machine with a curved arrow indicating motion (no text or symbols present)

1. Place the DCCS673, with the motor off, over top of a stump or other stable organic surface.

2. Hold the rear handle 1 and let go of the chain brake/front hand guard 10. Allow the tip of the guide bar 11 to slam against the stump.

Illustration of a worker using a power manual to cut tree bark (no text or symbols)

1. Ensure the chain brake engages and would stop the saw chain 12, after the tip of the guide bar 11 contacts the stump.

Setting the Chain Brake (Fig. N)

Your chainsaw is equipped with a chain braking system which will stop the chain quickly in case of kickback.

1. To manually engage the chain brake, push the chain brake/front hand guard 10 forward until it clicks into place. The chain brake LED 8 will illuminate.
2. Pull the chain brake/front hand guard 10 towards the front handle 2 into the "set" position as shown in Fig. N. The chain brake LED 8 will not be illuminated.
3. The tool is now ready to use.

Testing the Chain Brake (Fig. A, J, N)

WARNING: Recommended that first time users should practice cutting logs on a saw horse or log cradle.

WARNING: Make sure to set chain brake before cutting.

Test the chain brake before every use to make sure it operates correctly.

1. Place the tool on a flat, firm surface. Make sure the saw chain 12 is clear of the ground.
2. Grip the tool firmly with both hands and turn the chain saw on.
3. Rotate your left hand forward around the front handle 2 so the back of your hand comes in contact with the chain brake/front hand guard 10 and push it forward, toward the workpiece. The saw chain should stop immediately. The chain brake LED 8 will illuminate.

NOTE: If saw does not stop immediately, stop use of tool and bring it to an authorized service center nearest you.

Chain Brake Reactions to Kickback

WARNING: A kickback can be very sudden and intense, which throws the guide bar and saw chain in the direction of the operator. Most kickbacks are small and do not always require that the chain brake engage.

The chain brake engages manually by pressing against your left hand as the guide bar is kicked upward or automatically by a built in safety mechanism Kickback can occur if the kickback zone of the guide bar touches an object or the workpiece as shown below.

WARNING: DO NOT allow the kickback zone of the guitar bar to touch an object or workpiece.

Diagram showing a circular object interacting with a textured surface, possibly a mechanical or geological sample (no text or symbols present)

Kickback zone

• The automatic chain brake is engaged due to the force of the kickback. If there is an intense kickback while the kickback zone is farther away from the operator, the automatic chain brake will engage by using the built in safety mechanism. The chain brake LED 8 will illuminate. The chain brake/front hand guard 10 will be in the engaged position and will need to placed in the set position to release the chain brake.
• If the kickback force is small or the kickback zone is closer to the operator, the chain brake will engage manually by pressing the chain brake/front hand guard 10 against your left hand as the guide bar kicks upward. The chain brake LED 8 will illuminate.
• If the chain brake is activated, manually or automatically, pull the chain brake/front hand guard 10 towards the front handle 2 into the "set" position as shown in Fig. N. The chain brake LED 8 will not be illuminated.

Starting the Chain Saw (Fig. S)

WARNING: Never attempt to lock a switch in the position.

Always be sure of your footing and grip the chain saw firmly with both hands with the thumb and fingers encircling both handles.

1. Ensure a fully charged battery pack 20 is installed.

2. Engage the chain brake. Push the chain brake/front hand guard 10 forward until it clicks into place.

3. To turn the unit on, push the On/Off button 5. NOTE: The unit will power off after 60 seconds if the trigger switch has not been activated. You will need to press the On/Off button 5 again.

4. Pull the chain brake/front hand guard 10 towards the front handle 2.
5. Flip the lock off lever 4 forward, and squeeze the trigger switch 3.
6. Once the unit is running, you may release the lock off lever 4.
7. In order to keep the unit running you must continue to squeeze the trigger.
8. To stop the saw chain between cuts, release the trigger. NOTE: The unit will power off if the trigger switch has not been activated within 60 seconds. You will need repeat steps 2 through 5 to start the unit.

NOTE: If too much force is applied while making a cut the saw will stop and the overload LED 7 will illuminate. To restart saw, you must release the trigger switch 3 before the saw will restart. Begin your cut again this time with less force. Allow the saw to cut at its own pace.

Common Cutting Techniques

The DCCS673 chainsaw is not intended to be used on the ground, therefore this manual does not contain instructions for felling trees, limbing and bucking trees. For instructions on these techniques when using other DEWALT chainsaws refer to the instruction manuals for those DEWALT chainsaws. For a copy of those DEWALT chainsaw instruction manuals please contact DEWALT. Call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com

WARNING: These in-tree instructions apply to LEWALT top-handle chainsaws, designed exclusively for in-tree cutting applications by certified tree service professionals specifically trained to do so in accordance with ANSI Z133 and TICA training materials.

WARNING: Blocking can result in injury. It should only be performed by a trained person.

WARNING: Recommended that first time users should reduce cutting logs on a saw horse or log cradle.

WARNING: Do not work in trees with high white conditions.

WARNING: Ensure all bystanders are clear of the fall before starting operation.

WARNING: Always keep yourself and your equipment clear of the material being removed.

CAUTION: Be sure battery is fully charged before working in a tree.

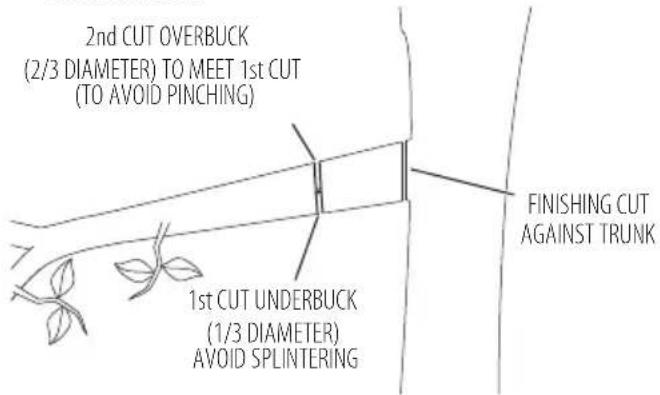

Pruning

1. Make the first cut from the under of the limb, underbuck (1/3 diameter) to avoid splintering as shown below.

2. Then make the second cut from the top of the limb, overbuck (2/3 diameter), to meet 1st cut as shown below. NOTE: The limb will fall, ensure you are clear of it before completing the cut.

3. Make the finishing cut, flush against the main trunk as shown below.

2nd CUT OVERBUCK (2/3 DIAMETER) TO MEET 1st CUT (TO AVOID PINCHING) 1st CUT UNDERBUCK (1/3 DIAMETER) AVOID SPLINTERING FINISHING CUT AGAINST TRUNK

Blocking

Removing sections from a standing tree

Before blocking is started have wedges (wood, plastic or aluminum) and a heavy mallet handy. Remove loose bark, nails, staples, and wire from the tree where the blocking cuts are to be made.

Conventional Notch

• Notching Undercut - Cut the notch 25% of the diameter of the tree block, perpendicular to the direction of the fall. Make the lower horizontal notching cut first as shown below. This will help to avoid pinching of either the saw chain or the guide bar when the second notch cut is being made. Consider conditions such as wind, tree lean, slope of the ground that could effect the direction of fall.
• Back Cut - Cut the back cut at the same level as the first horizontal notching cut. Keep the back cut parallel to the horizontal notching cut as shown below. Make the back cut so approximately 10% of the tree block remains to act as a hinge as shown below. The hinge wood keeps the tree block from falling in the wrong direction. Do not cut through the hinge.
• As the felling cut gets close to the hinge the tree block should begin to fall. If there is any chance that the tree block may not fall in the desired direction or it may rock back and bind the guide bar, stop cutting before the felling cut is complete and use wedges to open the cut and drop the tree block along the desired line of fall. When the tree block begins to fall remove the chain saw from the cut, release the trigger switch and activate the chain brake.

DIRECTION OF FALL 2 NOTCH 1 25% BACK CUT 3 10% HINGE

MAINTENANCE

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your DEWALT power tool has been designed to operate over a long period of time with minimum maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.

Cleaning

WARNING: Blow dirt and dust out of all air vents with clean, dry air at least once a week. To minimize the risk of eye injury, always wear ANSI Z87.1 approved eye protection when performing this procedure.

WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse any part of the tool into a liquid.

Saw Chain and Guide Bar

After every few hours of use, remove the sprocket cover, guide bar and chain and clean thoroughly using a soft bristle brush. Ensure oiling hole on bar is clear of debris. When replacing dull chains with sharp chains it is good practice to flip the chain bar from bottom to top.

Sprocket and Sprocket Cover (Fig. A–E, G)

CAUTION: Sharp chain. Always wear protective gloves with handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure the battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

1. Place the saw on a flat, firm surface.
2. Remove sprocket cover 13 as described in Installing the Guide Bar and Saw Chain section.
3. Wearing protective gloves, use a clean, soft bristle brush to wipe away any saw dust, sticks, vines or other debris that may have collected inside the sprocket cover 13 and around the saw chain 12 or sprocket 27.
4. Rotate the chain tension screw 15 using the flat screwdriver end of the wrench 22. Turning the screw counterclockwise allows the guide bar 11 to recede and reduces the tension on the chain so that it may be removed.
5. Wearing protective gloves, grasp the saw chain and guide bar and lift them away from the tool.

6. Wearing protective gloves, use a clean, soft bristle brush to wipe away any saw dust or other debris that may have collected on the guide bar 11 and around the saw chain 12.

7. Install the chain, guide bar and sprocket cover 13 as described in Installing the Guide Bar and Saw Chain, Replacing the Saw Chain sections and adjust chain tension properly before use as described in the Adjusting Chain Tension section.

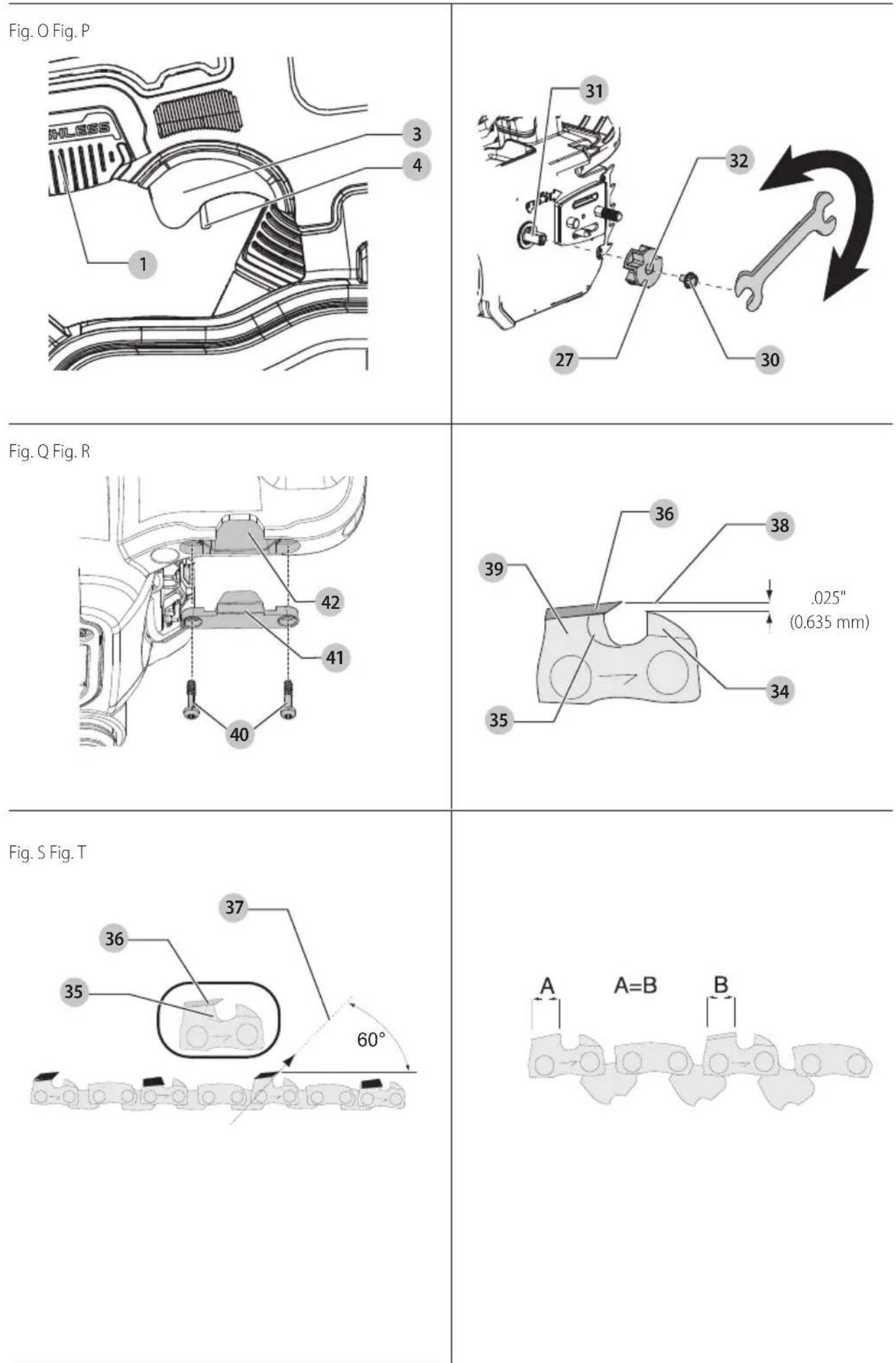

Removing and Installing the Sprocket (Fig. A–C, P)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure the battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

Replacement sprockets are available from your nearest authorized service center: DEWALT part number, NA265339.

NOTE: The sprocket bolt 30 is left-hand thread.

1. Engage the chain brake. Push the chain brake/front hand guard 10 forward until it clicks into place.
2. Remove sprocket cover 13 as described in Installing the Guide Bar and Saw Chain section.
3. Remove saw chain 12 and guide bar 11 as described in Replacing the Saw Chain section.
4. Hold the sprocket 27 in place with a pair of adjustable pliers (not included).
5. With a 10 mm wrench (not included) rotate the left-hand thread sprocket bolt 30 clockwise and remove it.
6. Lift the sprocket 27 off of the D-shaped shaft 31.
7. Clean the sprocket 27 of any debris or replace it with a new sprocket 27.
8. Install the sprocket 27. Align the D-slot 32 on the sprocket 27 on the D-shaped shaft 31.
9. Hold the sprocket 27 in place with a pair of adjustable pliers. Use a 10 mm wrench (not included) to rotate the left-hand thread sprocket bolt 30 counterclockwise.
10. Using a torque wrench, tighten the sprocket bolt 30 to 6 ft.lbs (8 Nm).
11. Follow instructions for Installing the Guide Bar and Saw Chain.

Accessories

WARNING: Since accessories, other than those acquired by DEWALT, have not been tested with this product, use of such accessories with this product could be hazardous. To reduce the risk of injury, only DEWALT-recommended accessories should be used with this product.

Recommended accessories for use with your product are available at extra cost from your local dealer or authorized service center. If you need assistance in locating any accessory, please contact DEWALT. Call 1-800-4-DEWALT (1-800-433-9258) or visit our website: www.dewalt.com.

Tool Connect™ Chip (Fig. Q)

WARNING: To reduce the risk of serious personal injury, turn unit off and remove the battery pack before making any adjustments or removing/installing attachments or accessories. An accidental start-up can cause injury.

Your tool is Tool Connect™ Chip ready and has a location for installation of a Tool Connect™ Chip.

Tool Connect™ Chip is an optional application for your smart device (such as a smart phone or tablet) that connects the device to utilize the mobile application for inventory management functions.

Refer to Tool Connect™ Chip Instruction Sheet for more information.

Installing the Tool Connect™ Chip

1. Remove the retaining screws 40 that hold the Tool Connect™ Chip protective cover 41 into the tool.
2. Remove the protective cover and insert the Tool Connect™ Chip into the empty pocket 42.
3. Ensure that the Tool Connect™ Chip is flush with the housing. Secure it with the retaining screws and tighten the screws.
4. Refer to Tool Connect™ Chip Instruction Sheet for further instructions.

Saw Chain Sharpening (Fig. A, R–T)

CAUTION: Sharp chain. Always wear protective gloves when handling the chain. The chain is sharp and can cut you when it is not running.

WARNING: Sharp moving chain. To prevent accidental operation, ensure that battery is removed from the tool before performing the following operations. Failure to do this could result in serious personal injury.

WARNING: Do not over file chain rakers 34, this will increase the risk of kickback. If the chain 12 has been sharpened more than four times, replace it.

Each time the chain 12 is sharpened, it loses some of the low kickback qualities and extra caution should be used. It is recommended that a saw chain be sharpened no more than four times.

NOTE: The cutters 35 will dull immediately if they touch the ground/dirt or a nail while cutting.

To get the best possible performance from your chain saw, it is important to keep the cutters 35 of the saw chain sharp. Follow these helpful tips for proper saw chain sharpening:

1. For best results use a 5/32" (4 mm) file and a file holder or filing guide to sharpen your saw chain. This will ensure you always get the correct sharpening angles.
2. Place the file holder flat on the top plate 36 and depth gauge of the cutter 35.
3. Keep the correct top plate 36 filing angle line of 30^ 37 on your file guide parallel with your chain (file at 60^ from chain viewed from the side) as shown in Fig. S.
4. Sharpen cutters 35 on one side of the chain 12 first. File from the inside of each cutter to the outside. Then turn your saw around and repeat the processes (2, 3, 4) for cutters on the other side of the chain.

NOTE: Use a flat file to file the tops of the rakers 38 (portion of chain link in front of the cutter 35 so they are about .025" (6.35 mm) below the tips of the cutters as shown in Fig. R.

1. Keep all cutter lengths equal as shown in Fig. T.
2. If damage is present on the chrome surface of the top plates 36 or side plates 39, file back until such damage is removed.

CAUTION: After filing, the cutter will be sharp, use extra caution during this process.

Repairs

The charger and batteries are not serviceable. There are no serviceable parts inside the charger or battery pack.

WARNING: To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustment (including brush inspection and replacement, when applicable) should be performed by a factory service center or an authorized service center. Always use identical replacement parts.

Register Online

Thank you for your purchase. Register your product now for:

• WARRANTY SERVICE: Registering your product will help you obtain more efficient warranty service in case there is a problem with your product.
• CONFIRMATION OF OWNERSHIP: In case of an insurance loss, such as fire, flood or theft, your registration of ownership will serve as your proof of purchase.
• FOR YOUR SAFETY: Registering your product will allow us to contact you in the unlikely event a safety notification is required under the Federal Consumer Safety Act.
  Register online at www.dewalt.com/account-login.

Two-Year Commercial Warranty

For warranty terms, go to www.dewalt.com/support/warranty.

To request a written copy of the warranty terms, contact: Customer Service at DEWALT Industrial Tool Co., 701 East Joppa Road, Towson, MD 21286 or call 1-800-4-DEWALT (1-800-433-9258).

LATIN AMERICA: This warranty does not apply to products sold in Latin America. For products sold in Latin America, see country-specific warranty information contained in the packaging, call the local company or see website for warranty information.

FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are missing, call 1-800-4-DEWALT (1-800-433-9258) for a free replacement.

DCCS673 TROUBLESHOOTING

Problem Solution

Unit will not start. Check battery installation.Check battery charging requirements.Press the On/Off button before squeezing the lock off lever and trigger switch.Check that chain brake is disengaged.Disengage the chain brake/front hand guard. Pull the chain brake/front hand guard towards the front handle into the "set" position as shown in Fig. N. Restart the unit.Check that lock off lever is fully pushed forward prior to moving trigger switch.
Unit shuts down in use.	Charge battery.Unit is being forced. Restart and apply less pressure.
Battery won't charge.	Insert battery into charger until red charging light illuminates. Charge up to 8 hours if battery is totally drained.Plug charger into a working outlet.Check current at receptacle by plugging in a different appliance.Check to see if receptacle is connected to a light switch that turns power off when you turn out the lights.Move charger and appliance to a surrounding air temperature of above 40 °F (4.5 °C) or below 104 °F (40.5 °C).
Bar / Chain overheated.	Refer toAdjusting Chain Tensionsection.Refer toChain Oilingsection.
Chain is loose.	Refer toAdjusting Chain Tensionsection.
Poor cut quality.	Refer toAdjusting Chain Tensionsection.NOTE: Excessive tension leads to excessive wear and reduction in life of bar and chain. Lubricate before each cut. Refer toReplacing the Saw Chain section.
Unit runs but does not cut.	Chain could be installed backwards. Refer to sections forInstalling and Removing Chain.
Unit does not oil. Refill oil reservoir.Clean guide bar, sprocket and sprocket cover. Refer toCare And Maintenancesection.

LED Indicator Guide

The section provides a list of possible LED blink patterns, the causes and corrective solutions. The user or maintenance personnel can perform some corrective actions, while others may require the assistance of a qualified DEWALT technician or your dealer.

Overload LED

ORANGE LED

Problem Solution

Unit stopped working. Unit is being forced. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

RED LED

Problem Solution

Unit module is too hot.

Unit is being forced. Let the unit rest and cool down. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

Chain Brake LED

RED LED

Problem Solution

Unit will not start. Disengage the chain brake/front hand guard.Pull the chain brake/front hand guard towards the front handle into the "set" position as shown in Fig. N. Restart the unit.If problem continues, contact DeWALT customer service representative at 1-800-4-DeWALT (1-800-433-9258).

State of Charge Indicator LEDs

BLINKING WHITE LEDs

Problem Solution

Battery pack is depleted.

Remove and replace the battery pack.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

BLINKING RED LEDs

Problem Solution

Battery is too hot. Unit is being forced. Let the unit rest and cool down. Restart and apply less pressure.Remove and replace the battery pack. Restart and apply less pressure.If problem continues, contact DEWALT customer service representative at 1-800-4-DEWALT (1-800-433-9258).

FRAnÇAis

Utilisation prévue

Illustration of hands using a mechanical device to adjust or install a component (no text or symbols visible)

Illustration of a worker using a power manual to lift a tree stump (no text or symbols)

Diagram showing a circular object with directional arrows and concentric circles, possibly illustrating a physics or engineering concept.

Zone de rebond

--- o CD.....corriente directa

10" (25 cm) DW01DTX610	10" (25 cm) DWZCSBX10
12" (30 cm) DW01DTX612	12" (30 cm) DWZCSBX12
14" (35 cm) DW01DTX614	14" (35 cm) DWZCSBX14

Illustration of hands operating a mechanical device with arrows indicating motion (no text or symbols)

Illustration of a person using a power manual to cut tree bark (no text or symbols)

Diagram showing a mechanical or electrical setup with labeled components and directional arrows indicating motion or force.

Zona de retroceso

Eje Central Lázaro Cárdenas No. 18 - Local (55) 5588 9377 D, Col. Obrera

MERIDA, YUC

Calle 63 #459-A - Col. Centro [phone]

MONTERREY, N.L.

Av. Francisco I. Madero 831 Poniente - Col. (818) 375 23 13 Centro

PUEBLA, PUE

17 Norte #205 - Col. Centro [phone]

QUERETARO, QRO

Av. San Roque 274 - Col. San Gregorio (442) 2 17 63 14

SAN LUIS POTOSI, SLP

Col. Santa Fe Alvaro Obregon,

Ciudad de Mexico, Mexico.

C.P 01210

TEL[phone]

R.F.C.BDE8106261W7

Registro en Línea

WARNING: Use of any other battery packs may create a risk of injury and fire.

NOTE: DO NOT charge when the battery pack is below 40 °F ( 4.5 °C ) or above 104 °F ( 40 °C ). Do not store or use the tool and battery pack in locations where the temperature may reach or exceed 104 °F ( 40 °C ).

QR code image containing encoded data, no visible human-readable text
