USER MANUAL Swash Ecoseat S102 Brondell

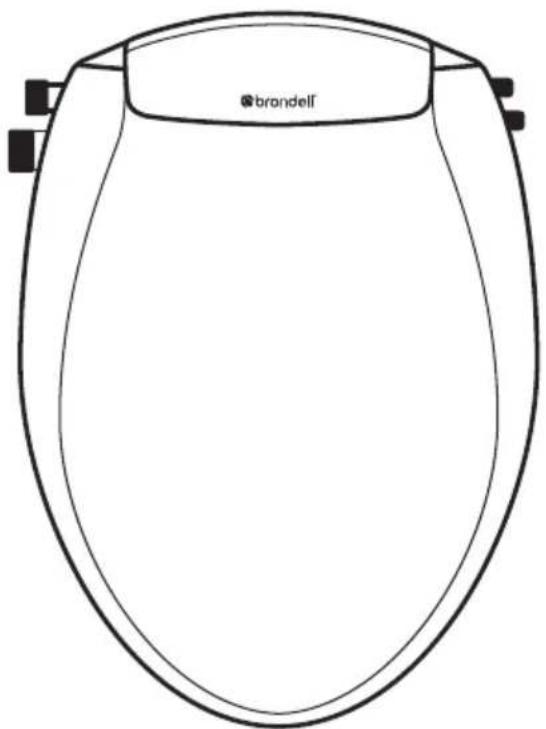

Line drawing of a toilet with a brand name tag (brondell) on the top, no other text or symbols present.

Attach Proof of Purchase to This Page

PRODUCT INSTALLATION

Installation Parts Page 5

Connecting Cold Water Supply....Page 5

Connecting Hot Water Supply .... Page 8

PRODUCT OPERATION

Swash Operation....Page 9

MAINTENANCE & TECHNICAL INFO

Technical Specifications .... Page 10

Swash Cleaning Page 11

Nozzle Cleaning....Page 11

Troubleshooting Page 12

Warranty....Page 13

Contact Page 14

Español Page 16

Français Page 31

PRODUCT INFORMATION

SAFETY INFORMATION

Use this product only for its intended use as directed in this manual.

Do not disassemble, repair or modify the product - service should only be performed by a certified Brondell representative.

Do not submerge or spray water directly on or into the product.

Do not stand or drop heavy objects on this product and do not insert any object into openings or hose.

Do not pull or stress the water supply hose.

Do not use harsh brushes or abrasive detergents to clean the product, use only mild soap and a soft cloth for cleaning.

PRODUCT FEATURES

Hygienic Dual Wash Wands

The Swash uses two hygienic wash wands: one for posterior cleansing and the other for feminine cleansing.

Non-Electric Operation

No electricity is required to use the Swash. All Swash functions are operated by the convenient wash control dial and household water pressure.

Easy Installation

No special tools, professional plumber, or electrical outlet required for installation.

Ergonomic Design

The slow-close ergonomic lid and seat are designed to ensure the most comfortable experience.

Self-cleaning Hygienic Wands

Before and after each use, the wash wands self-clean to help stay free of build-up or debris.

PRODUCT INFORMATION (cont.)

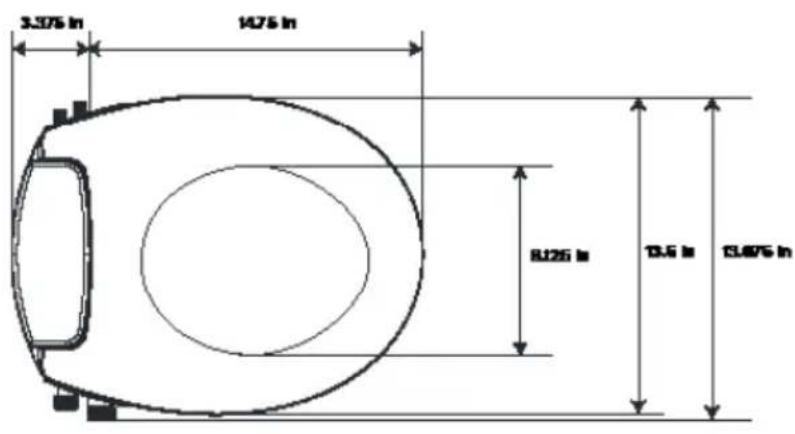

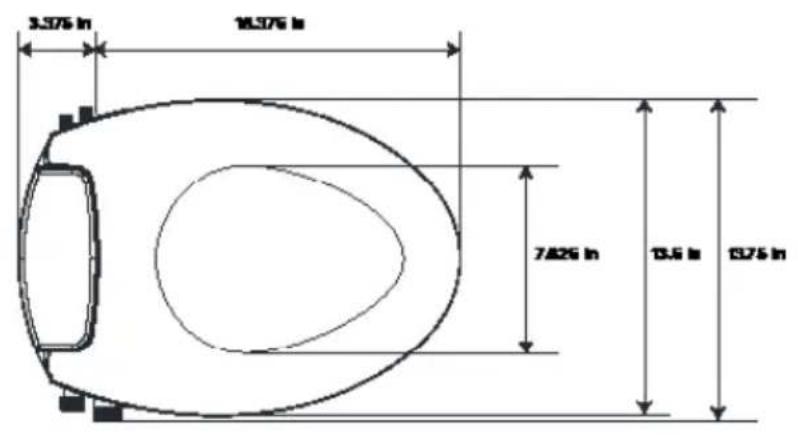

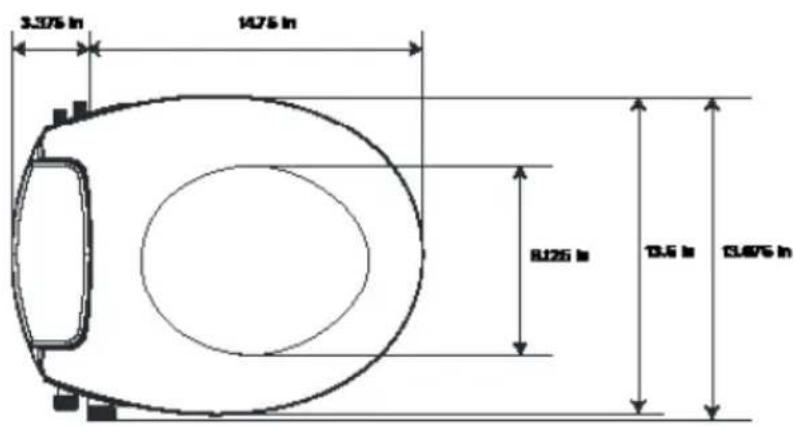

PRODUCT DIMENSIONS

Elongated Top View

3.376 in 16.376 in 7.826 in 13.6 in 13.76 in

3.375 in 1475 in 8125 in 13.6 in 13.875 in

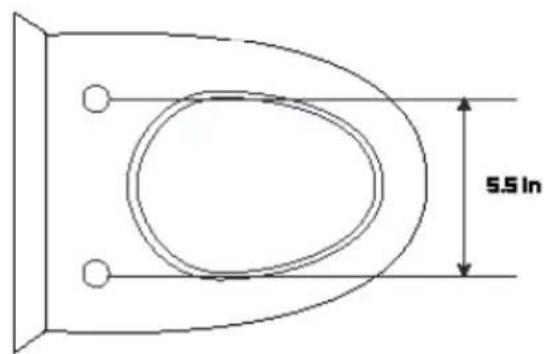

5.5 In

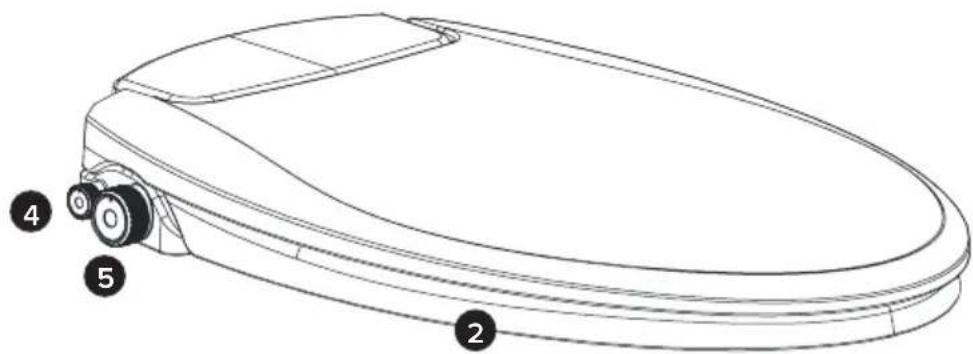

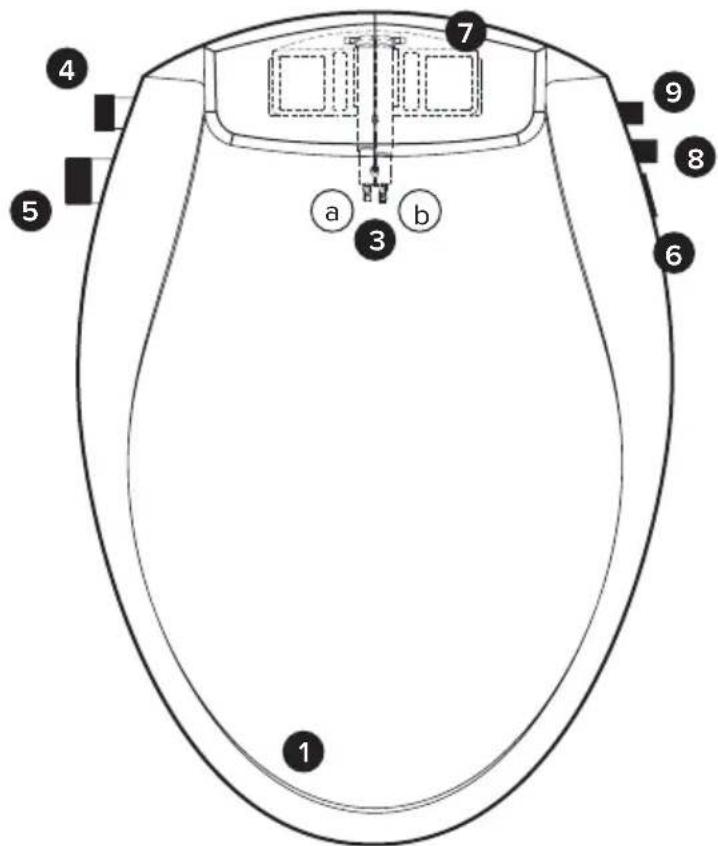

PRODUCT PARTS

1. Lid
2. Seat
3. Wash Wands

a. Posterior Wand
b. Front Wand

1. Temperature Control Dial

2. Wash Control Dial

3. Quick Release Button
4. Mounting Plate
5. Hot Water Inlet
6. Cold Water Inlet

1 2 3 4 5 6 7 8 9 a b

Technical diagram of a car seat with numbered parts labeled 2, 4, and 5

PRODUCT INSTALLATION

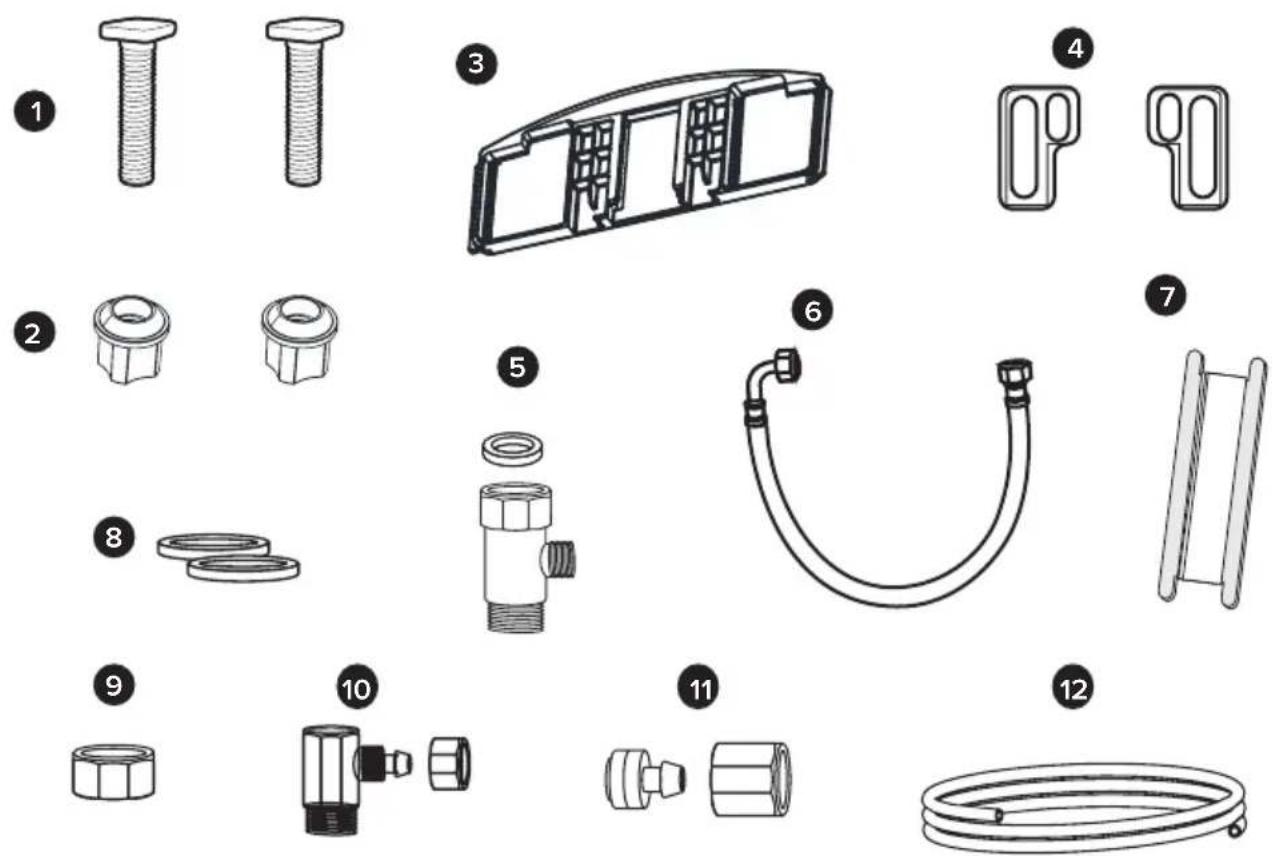

INSTALLATION PARTS

1. Mounting Bolt (2)
2. Barrel Nut (2)
3. Mounting Plate
4. Adjustable Bracket
5. Cold Water T-Valve With Washer

6. 27.5" Cold Water Braided Metal Bidet Hose

7. Teflon Tape

8. Rubber Washers
9. Hot Water Supply Cap
10. Hot Water 38 " T-Valve
11. Pressure Cap & Connector
12. Hot Water Flex Tubing

CONNECTING THE COLD WATER SUPPLY

Please read these instructions carefully before installing the Swash. Failure to do so could result in flooding, leaking or damage to the product.

1. Existing Toilet Seat Removal

a. Lift hinge covers and use a screwdriver to remove the mounting bolts.
b. Remove the toilet seat.

NOTE: Steps may vary by type of seat and toilet.

PRODUCT INSTALLATION (cont.)

CONNECTING THE COLD WATER SUPPLY (CONT.)

1. Turn off Water Supply Valve and flush toilet

a. Turn Water Supply Valve off to stop the flow of water.
b. Flush toilet and hold down handle to completely empty tank.

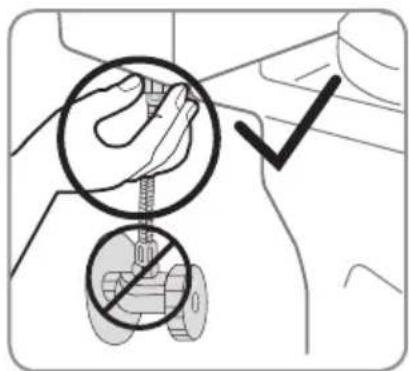

c. Disconnect water supply hose from toilet tank. Do not disconnect from the Water Supply Valve.

NOTES:

• You may wish to place a container under the tank to catch any excess water.
• Do not continue without completing the above steps.

• Failure to do so could result in flooding, leaking or damage to the Swash.

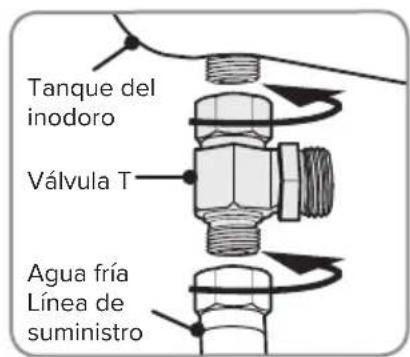

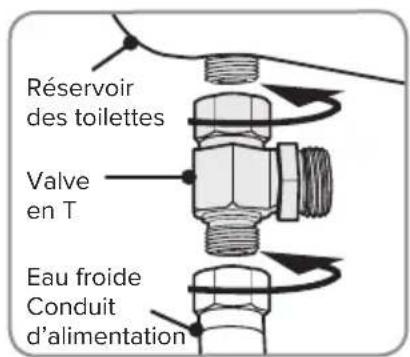

• Connect T-Valve to the Toilet Tank Fill Valve

a. Place the Rubber Washer into the T-Valve.
b. Install the T-Valve with the Rubber Washer to the incoming water connection on the bottom of your Toilet Tank.

NOTES:

• The T-Valve connects to the Fill Valve directly under your Toilet Tank - it does not connect at the wall.
• Only connect to the cold toilet water supply line.

• If your water supply line is rigid, you may need to replace it before continuing.

• Connect the Water Supply Line coming from the wall to the bottom of the T-Valve.

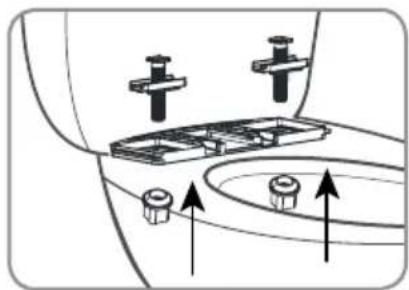

• Install Mounting Plate

a. Place Adjustable Mounting Plate over mounting holes on toilet, rubber side faces down, curved edge faces toward the toilet tank.
b. Place the Adjustable Brackets groove side down on the center of the square opening in the Mounting Plate, then insert Mounting Bolts through the Adjustable Brackets and through the bolt holes in your toilet. Be sure that the square Mounting Bolt Head is flush with the sides of the Adjustable Bracket.
c. Slide barrel nut onto Mounting Bolts under the toilet bowl and tighten to keep Mounting Plate in place.

Diagram showing hand operating a valve with no valve, indicating no valve is blocked

Step 2c

Diagram of a mechanical assembly showing a bolt and nut assembly with a downward arrow indicating force (no text or symbols)

Step 3a

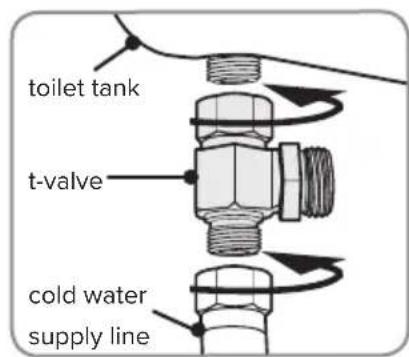

toilet tank t-valve cold water supply line

Steps 3-4

Diagram of a mechanical assembly with three bolts and directional arrows indicating movement or force (no text or symbols present)

Steps 5b & 5c

CONNECTING THE COLD WATER SUPPLY (CONT.)

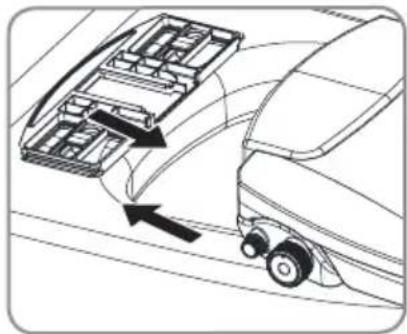

1. Attach the Swash to the Mounting Plate

a. Set the Swash flat on the toilet bowl in front of the Mounting Plate and slide seat onto plate until it is secure and "clicks" into place.
b. If the seat appears too short or too long for the toilet, adjust the Mounting Plate accordingly. To adjust the Mounting Plate, loosen Barrel Nuts underneath the toilet and slide seat forward or backwards as needed. Once the seat is lined up properly, tighten Barrel Nuts to hold in place.

NOTES:

- If you follow the mounting directions in 6b and your seat still won't mount flush with the lip of your toilet, depending on the width of your toilet's bolt spread, you can insert the bolts through the top brackets above the main brackets on your mounting plate to move your seat up another 34 inches.

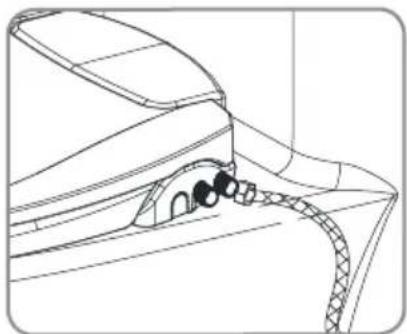

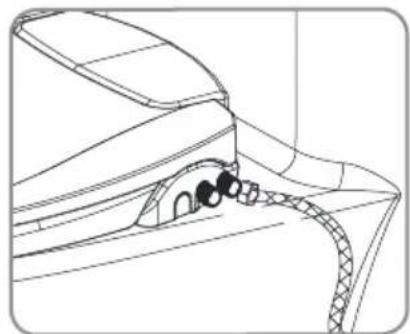

1. Connect the Bidet Hose to the Cold Water Inlet

a. Connect the Bidet Hose to the Cold Water Inlet. Hand-tighten to secure. Take care not to twist the Bidet Hose, excessively bend it, or strip the plastic screw threads when screwing the hose onto the bidet seat.

1. Connect the open end of the Bidet Hose to the T-Valve.

IMPORTANT:

• If you are only connecting the cold water supply, you must install the provided Hot Water Supply Cap - (see Page 5) over the hot water inlet on your Swash Ecoseat (see diagram).
• Failure to connect or cap the hot water inlet will result in leaking during use.
• If you wish to also connect your hot water supply, then proceed to "Connecting the Hot Water Supply" on page 8.

Diagram of a vehicle's rearview and side-mounted dashboard with no visible text or symbols

Step 6a

Technical line drawing of a mechanical component with no visible text or symbols

Step 7a

Technical diagram of a pipe fitting with a valve and connecting rod (no text or symbols)

Step 8

Pure mechanical diagram showing a bracket with an arrow pointing to a small component (no text or symbols)

PRODUCT INSTALLATION (cont.)

CONNECTING THE HOT WATER SUPPLY

1. Connect the Hot Water Supply

a. Locate the Hot Water Supply line in your bathroom under your sink/wash basin and turn the Water Supply Valve all the way off.
b. Drain the hot water line by turning the sink tap on the hot setting until no more water comes out.
c. Disconnect Hot Water Supply Hose to sink from Shut Off Valve. You may have to use a 3/8" compatible wrench or a similar tool (not supplied).

NOTES:

- You should use a small container or towel to catch any residual water from the hose.

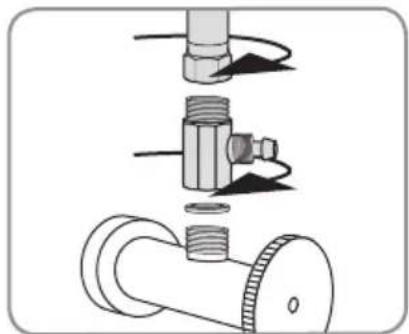

1. Install the Hot Water 38 " T-valve and the small rubber washers as needed onto the hot water shut off valve under the sink.
2. Reconnect hot water supply line to the open end (top) of the Hot Water 38 " T-valve.

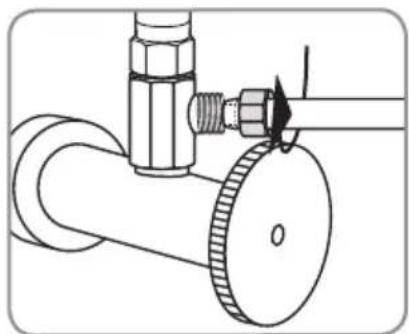

3. If it hasn't been removed already, unscrew the Pressure Cap covering the Hot Water T-valve.

a. Slide the Pressure Cap over one end of the Hot Water Flex Tubing with the inside threads facing towards the open end.
b. Push the Hot Water Flex Tubing over the Hot Water T-valve.

IMPORTANT:

• Be sure to slide the Hot Water Flex Tubing over the Pressure Connector until the tubing slides past the "lip" of the Pressure Connector and it cannot go any further.
  c. Slide the Pressure Cap down until it meets the pressure connector, then screw it securely in place.
  d. Unscrew and separate the Pressure Cap from the Connector Part. Slide the Pressure Cap, with the inside threads facing the open end, over the opposite end of the Hot Water Flex Tubing, then insert the Pressure Connector into the same end. Attach this end into the Hot Water Inlet on the bidet seat, then secure the tube in place by screwing on the Pressure Cap.

CAUTION:

- Do not overtighten the Pressure Cap. You will risk damaging the tubing.

1. Turn On Water Supply

a. Open the main water supply valve slowly and check for leaks.

Diagram of a pipe fitting with a valve and screw, showing rotational motion (no text or symbols)

Step 1c

Technical illustration of a mechanical assembly showing a valve, bolt, and housing (no text or symbols)

Step 2 & 3

Pure mechanical component diagram showing a cylindrical shaft with flanged ends (no text or symbols)

Step 4a

Technical line drawing of a mechanical valve assembly with a flanged base and adjustment knob (no text or symbols)

Step 4c

PRODUCT OPERATION

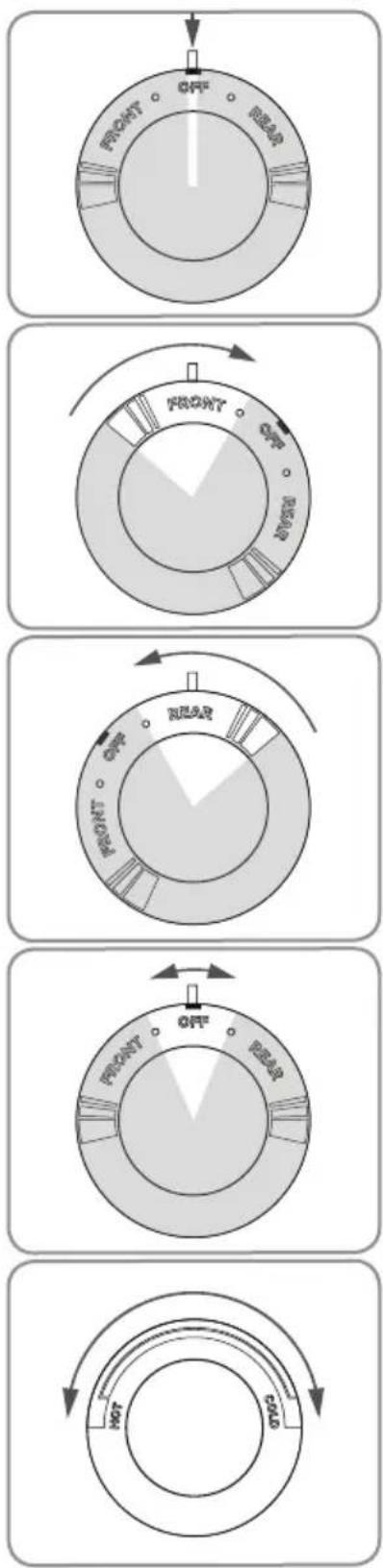

SWASH OPERATION

With the intuitive Wash Control Dial on the right-hand side of your seat, you can easily select your wash settings and water pressure using these instructions:

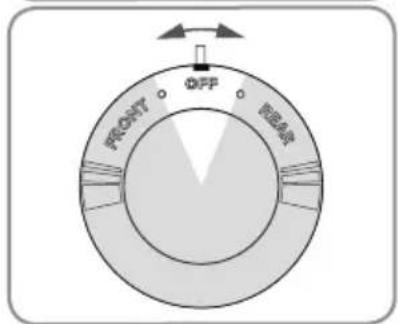

Off

To close off the valve and stop the flow of water, turn the dial back to its original center position so that the indicator hash on the dial aligns with the top notch on the body of the seat.

Front Cleansing

For front (feminine) wash, turn the dial clockwise (or roll it forward) while seated. The further the dial is turned, the stronger the water pressure will be.

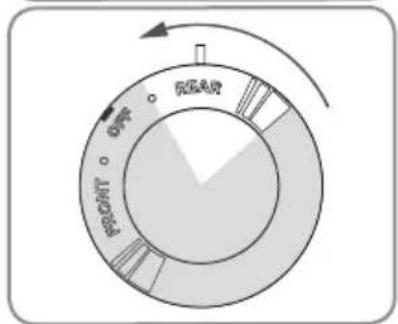

Rear Cleansing

For rear (posterior) wash, turn the dial counterclockwise (or roll it back) while seated. The further the dial is turned, the stronger the water pressure will be.

Self-Cleaning Nozzles

The nozzles will initially go through a brief self-clean as you turn the dial between front cleansing and rear cleansing and will last as long as the dial is in that position.

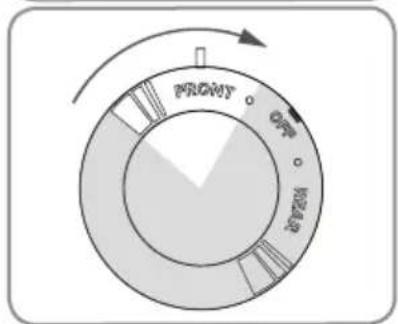

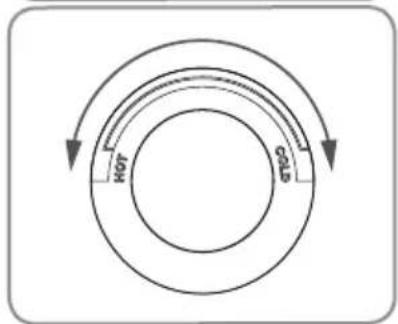

Temperature Control

There is an adjustable Temperature Control Dial next to the Wash Control Dial. Turn the dial clockwise (or roll it forward) for warmer water and turn it counterclockwise (or roll it back) for cooler water.

(Non-shaded area represents active setting.)

FRONT OFF REAR FRONT OFF REAR FRONT OFF REAR HOT CADO

PRODUCT SPECIFICATIONS

TECHNICAL SPECIFICATIONS

S102 SWASH ECOSEAT
Model	Ecoseat Dual Temperature
Supply Water Pressure	14 psi – 100 psi
Dimensions	Elongated: 14.25 in x 20.03 in x 2.55 inRound: 14.25 in x 18.47 in x 2.55 in
Weight	Elongated: 4.3 lbs / Round: 4.5 lbs
Seat / Lid Weight Limit	330 lbs / 330 lbs

MAINTENANCE

SWASH CLEANING

Use a soft, damp cloth and mild cleanser (such as dish soap, Simple Green or Windex) to wipe down the seat. DO NOT scrub or use harsh, abrasive products to clean the Swash. DO NOT use thinner, benzene, acidic chemicals, chloride, or hydrochloric acid detergent. This may result in corrosion to the metal parts, discoloration, or scratches to the bidet body.

NOTE:

- Be cautious of leaving home and beauty products in contact with the bidet seat, the result of which can be irreversible discoloration. Most stains can be removed using a 1:1 mix of rubbing alcohol and water and a soft cloth or towel. Be cautious of home and beauty products (including but not limited to various hair and air freshener sprays, lotions, body wash, skin tanners, body butters, and oils) that come in contact with the seat. Wash off any substances that come in contact with the seat as soon as possible.

NOZZLE CLEANING

To clean the nozzles, gently pull them out from inside of the seat manually and use a soft cloth or toothbrush to clean off any build up. Clean front and rear nozzles in the same manner.

TROUBLESHOOTING

If the bidet appears to be operating abnormally, please review the troubleshooting tips before calling the Brondell Service Center as most issues are easily resolved with a few simple steps. If you are unable to resolve the issue after checking the following items, please call the Service Center at 888-542-3355, Mon–Fri, 9am–5pm PST, or email us at [e-mail].

Check before continuing:

• Make sure main water supply valve is open.
- Confirm there are no leaks from hoses or water supply.

After checking items above, refer to the following troubleshooting chart for additional solutions.

Problem Possible Cause(s) Solution(s)
Low water flow or spray pressure	1. Water Supply Valve not opened fully.2. Nozzles dirty.3. External Bidet Filter.	1. Check that the Water Supply Valve at wall is fully open.2. Clean Nozzles (see maintenance section).3. If you have an External Bidet Filter like SWF44, check and replace if necessary.
Nozzles do not function properly	1. Nozzles are dirty.2. Water pressure is too low.3. External Bidet Filter.	1. Clean Nozzles (see maintenance section).2. Check Water Supply Valve at wall to fully open.3. If you have an External Bidet Filter like SWF44, check and replace if necessary.
Water leaks from areas other than the nozzles	1. Water leaking from the T-valve.2. Water leaking from the Bidet Hose connection.	1. Make sure that the Rubber Washer is inserted correctly into the T-valve and firmly tighten the connector.2. Make sure that the Bidet Hose is correctly connected and tight. Check any Rubber Washers and do not overtighten.

WARRANTY

BRONDELL products are backed by some of the most comprehensive warranties in the industry. BRONDELL warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

Swash Ecoseat Residential One-Year Limited Warranty

100% Coverage of all parts and labor for the entire product (excluding consumable filters) for the first year from original date of purchase.

Swash Ecoseat Commercial Warranty

Warranty period one year from original purchase date for all BRONDELL products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

Exclusions and Limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.

2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first year from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

• Damage or loss which occurs during shipment.
- Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
- Damage or loss resulting from sediments or foreign matter contained in a water system.
- Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.
- Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products.

1. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to Obtain Service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest BRONDELL authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355, Mon–Fri, 9am–5pm PST.

brondell®

a healthy home experience

CONTACT:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Phone: [phone]

Email: [e-mail]

Web: www.brondell.com

For questions, contact Brondell Customer Service:

1-888-542-3355, Monday – Friday, 9am – 5pm PST

MANUFACTURED BY:

Brondell

PO Box 470085

San Francisco, CA 94147-0085

Made in China

Please retain receipt records for any warranty claims.

Swash® ecoseat

MANUAL DEL USUARIO

SWASH ECOSEAT 102

Line drawing of a toilet with a brand name tag (brondell) on the top, no other text or symbols present.

ÍNDICE

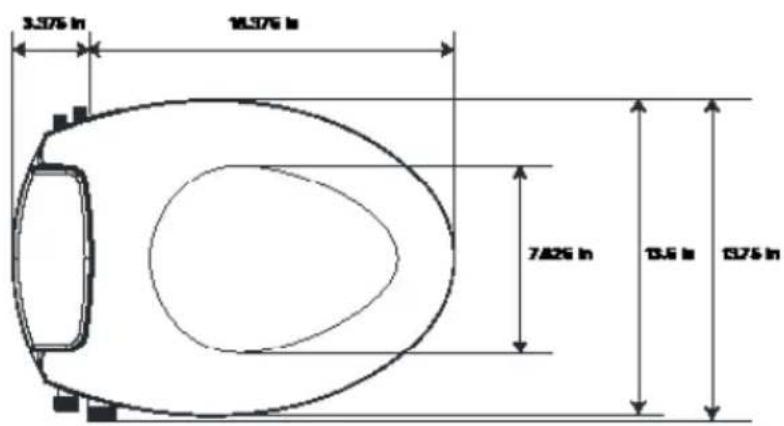

DIMENSIONES DEL PRODUCTO

Vista Superior Alargada

3.375 in 16.375 in 7.825 in 13.5 in 13.75 in

Vi

3.375 in 1475 in 8.125 in 13.6 in 13.675 in

Di
Or

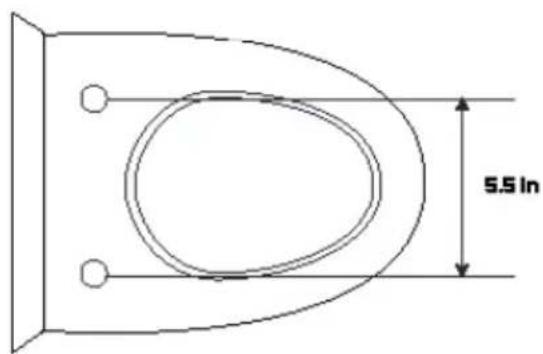

5.5 In

PARTES DEL PRODUCTO

Technical diagram of a car seat with numbered parts labeled 2, 4, and 5

Exploded view diagram of a gasifier with numbered parts including bolts, fittings, hoses, and hoses

Diagram showing hand positioning and dislocation of a tool, with checkmark indicating action

Paso 2c

Diagram of a bolt and nut assembly with a downward arrow indicating force or direction (no text or symbols)

Paso 3a

Diagram of a mechanical assembly with two bolts and directional arrows indicating movement or force (no text or symbols)

Pasos 5b & 5c

Diagram of a vehicle's rearview assembly showing internal components and directional arrows (no text or labels)

Paso 6a

Technical line drawing of a mechanical component with curved surfaces and internal features (no text or symbols)

Paso 7a

Technical diagram of a pipe fitting with a valve and connecting rod (no text or symbols)

Paso 8

Technical diagram showing a mechanical component with an arrow indicating direction (no text or symbols present)

Diagram of a valve assembly with a rotating knob and flange (no text or symbols)

Paso 1c

Technical illustration of a mechanical assembly showing a bolt, nut, and valve (no text or symbols)

Pasos 2 & 3

Pure mechanical component diagram showing a cylindrical shaft with hexagonal end caps (no text or symbols)

Paso 4a

Technical line drawing of a mechanical valve assembly with no visible text or symbols

Paso 4c

FRONT OFF Rear

PROWY OFF MINT

FRONT OFF REAR

FRONT OFF Rear

a healthy home experience

CONTACTO:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085

Line drawing of a toilet with a brand logo and label 'brondell' at the top (no other text or symbols)

SOMMAIRE

INFORMATIONS SUR LE PRODUIT

INSTALLATION DU PRODUIT

Pièces D'installation....Page 35

INFORMATIONS SUR LE PRODUIT

CONSIGNES DE SÉCURITÉ

CARACTÉRISTIQUES DU PRODUIT

INFORMATIONS SUR LE PRODUIT (suite)

DIMENSIONS DU PRODUIT

3.576 in 16.576 in 7.826 in 13.6 in 13.75 in

3.375 in 1475 in 8.125 in 13.6 in 13.675 in

5.5 In

PIÈCES DU PRODUIT

Technical diagram of a car seat with numbered parts labeled 2, 4, and 5

INSTALLATION DU PRODUIT

PIÈCES D'INSTALLATION

Exploded view diagram of a hair dryer with numbered parts including bolts, washers, connectors, and hoses

RACCORDEMENT DE L'ALIMENTATION EN EAU FROIDE

INSTALLATION DU PRODUIT (suite)

RACCORDEMENT DE L'ALIMENTATION EN EAU FROIDE (SUITE)

Diagram showing hand operating a valve with no valve, indicating no valve is blocked

Étape 2c

Diagram of a bolt being inserted into a nut, showing the bolt's center and head (no text or symbols)

Étape 3a

Diagram of a mechanical assembly with three bolts and directional arrows indicating movement or force (no text or symbols)

Étapes 5b & 5c

RACCORDEMENT DE L'ALIMENTATION EN EAU FROIDE (SUITE)

Diagram of a vehicle's rearview and side-mounted components with directional arrows indicating flow or movement (no text or symbols)

Étape 6a

Technical line drawing of a mechanical component with curved surfaces and internal components (no text or symbols)

Étape 7a

Technical diagram of a pipe fitting with a valve and connecting rod (no text or symbols)

Étape 8

Pure mechanical diagram showing a bracket with an arrow pointing to a small component (no text or symbols)

INSTALLATION DU PRODUIT (suite)

RACCORDEMENT DE L'ALIMENTATION EN EAU CHAUDE

Diagram of a pipe fitting with a valve and screw, showing motion direction (no text or symbols)

Étape 1c

Technical illustration of a mechanical assembly showing a valve, bolt, and housing (no text or symbols)

Étapes 2 & 3

Technical line drawing of a mechanical connector or fitting (no text or symbols)

Étape 4a

Technical line drawing of a mechanical valve assembly with a flanged base and adjustment knob (no text or symbols)

Étape 4c

UTILISATION DU PRODUIT

FONCTIONNEMENT DU SWASH

SPÉCIFICATIONS DU PRODUIT

a healthy home experience

COORDONNÉES:

Brondell, Inc.

PO Box 470085

San Francisco, CA 94147-0085
