FreshSpa Thinline FSP-250 - Toilet Brondell - Free user manual and instructions

Product Type	Adaptable Bidet for Toilets
Brand	Brondell
Model	FreshSpa Thinline FSP-250
Dimensions (L x W x H)	38.5 cm x 25.4 cm x 8.5 cm
Thickness	0.6 cm
Weight	0.55 kg
Power Supply	None (mechanical, no electricity or batteries)
Incoming Water Pressure	0.08 MPa to 0.8 MPa (11.6 to 116 psi)
Incoming Water Temperature	0 °C to 70 °C (32 °F to 158 °F)
Water Flow Rate	2.5 L/min (0.66 gal/min)
Main Functions	Front and rear wash, precise pressure adjustment, nozzle cleaning, stop
Nozzle Type	Dual nozzle (front and rear), hygienic retractable, self-cleaning
Material	ABS, one-piece body, ceramic internal valve
Connection	Brass T-fitting 7/8" (2.2 cm), braided metal hose 73.7 cm
Installation	Easy to install, fits toilet, all accessories included
Maintenance and Cleaning	Clean nozzle with toothbrush and mild detergent; bidet with non-abrasive cleaner
Safety	Turn off water supply if not used for extended period; set minimum pressure before activation
Spare Parts and Repairability	Adjustable brackets (2), T-valve, braided metal hose, Teflon tape; repair by authorized center
Warranty	Limited one-year residential warranty (parts and labor)
General Information	Brondell Customer Service: 1-888-542-3355

Frequently Asked Questions - FreshSpa Thinline FSP-250 Brondell

How do I install the FreshSpa Thinline FSP-250 bidet?

Remove the existing seat, turn off water supply and empty the tank. Connect the T-valve to the tank fill valve, then attach the bidet hose. Install the adjustable brackets, place the bidet on the bowl, replace the seat and tighten. Turn water back on and check for leaks.

What should I do if there is a leak after installation?

Check that all rubber washers are properly seated and connections are tight. If necessary, use the provided Teflon tape on threads. Wait 5-10 minutes after turning on water to check again.

How do I adjust the water pressure?

Turn the precision dial: towards (+) to increase pressure, towards (-) to decrease it. Always set pressure to minimum before activating wash to avoid splashing.

How do I clean the bidet nozzle?

Pull the nozzle tip and clean the spray holes with a toothbrush or soft cloth and mild detergent (e.g., dish soap). Tighten the tip occasionally. Do not drop the tip into the bowl.

Does the bidet work without electricity?

Yes, the FreshSpa Thinline is fully mechanical. It requires no electrical power or batteries. It uses the water pressure from the supply to operate.

How do I use the front or rear wash function?

Press the Front Wash button to clean the front, or Rear Wash for the rear. Press Stop to stop the spray. The nozzle self-cleans before each use.

What should I do if the water flow is weak?

Check that incoming water pressure is between 0.08 and 0.8 MPa. Ensure the water supply valve is fully open. Clean the T-valve filter if clogged.

What cleaning products should I use on the bidet?

Use a mild cleaner like Simple Green or Windex spray. Avoid abrasive or harsh products that may damage the ABS plastic.

How do I maintain the product if not used for a long time?

As a precaution, shut off the water supply at the wall if the product is not used for more than a few weeks. This prevents leakage risks.

What does the warranty cover for the FreshSpa FSP-250?

The limited one-year residential warranty covers 100% of parts and labor for manufacturing defects. It applies to the original purchaser and excludes damages due to improper installation, sediment, power surges, etc. Contact Brondell at 1-888-542-3355 for claims.

USER MANUAL FreshSpa Thinline FSP-250 Brondell

Thinline Precision Essential Bidet Attachment with Dual Nozzle FSP-250

Attach proof of purchase to this page.

Read this Owner's Manual for correct installation, use and maintenance of this product. After reading and completing installation, keep this manual in a place that is easily accessible.

Product information

2 Product features
3 Product components
4 Product dimensions

Product installation

5 Before installation
5 Installing the bidet attachment

Product information

9 Using the FreshSpa

Maintenance

9 Cleaning the FreshSpa
9 Short term non-use

Technical information

10 Product specifications
11 Warranty
12 Contact

Translations

13 Spanish
25 French

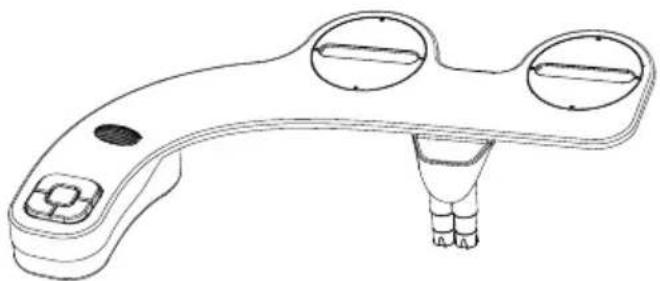

Product features

• high-quality ABS material with full body panel
• separate front (feminine) and rear wash nozzles
  hygienic retractable nozzle
• self-cleaning nozzle feature
• ambient temperature bidet wash
• precision adjustable water pressure
• ceramic-core internal valve
  high-quality metal 13 T-valve
• durable braided metal cold water hose
• no electricity or batteries required
• easy installation and adjustable toilet fit
• all accessories included for standard installation
• one-year warranty

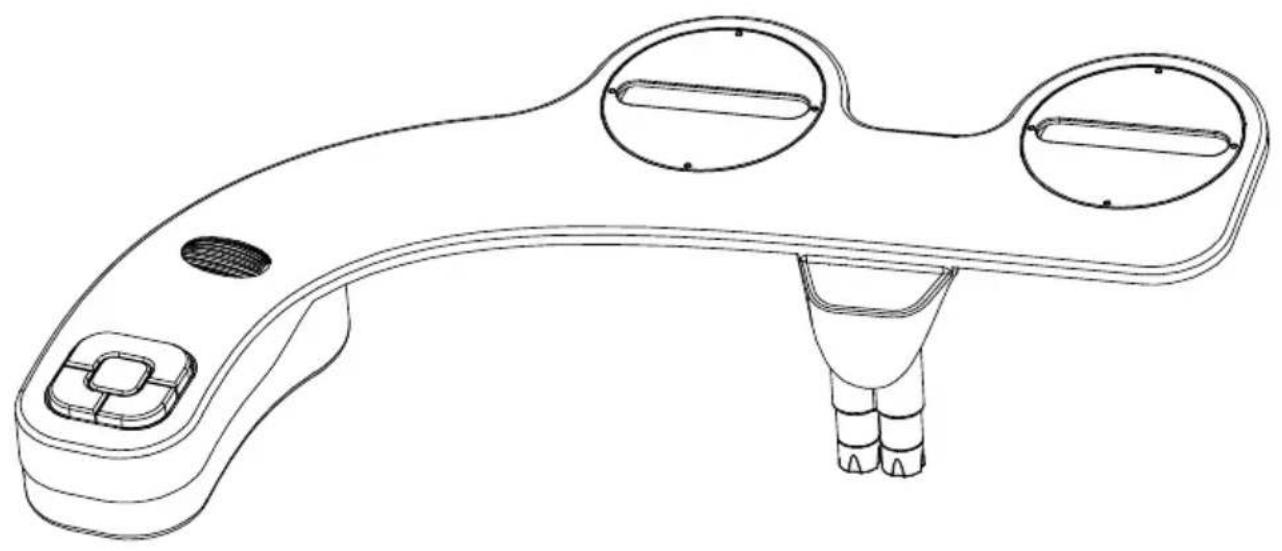

Dual nozzle bidet attachment

Adjustable mounting brackets (2)

T-Valve connector with included rubber cone washer (7 / 8^ × 7 / 8^ × 3 / 8^ )

29" braided metal bidet hose

Teflon tape

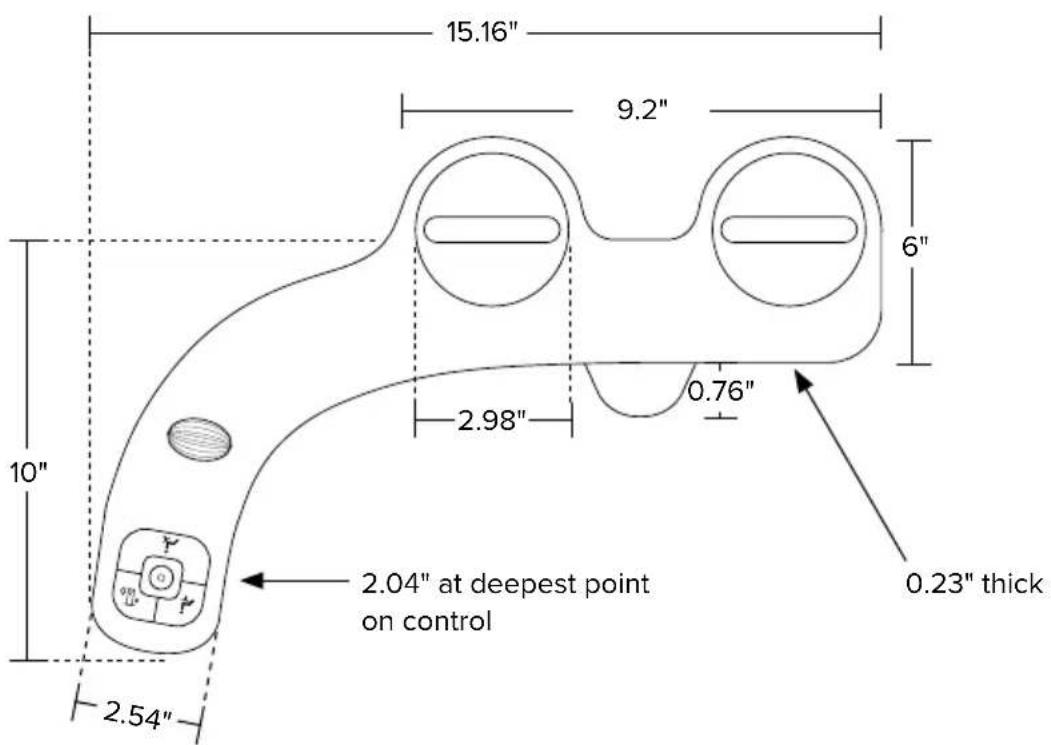

Product dimensions

Before installation

Important

Please be advised that the provided T-valve should be installed at the fill valve under the toilet tank, and NOT at the cold water supply coming from the wall.

If you do not have access to the fill valve under the toilet tank, contact Brondell Customer Service at 888.542.3355. We may be able to provide alternative options.

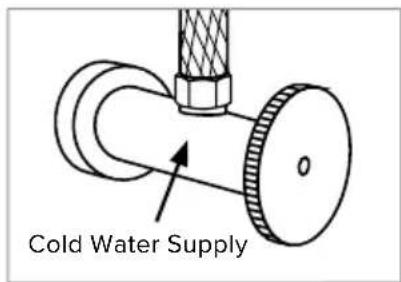

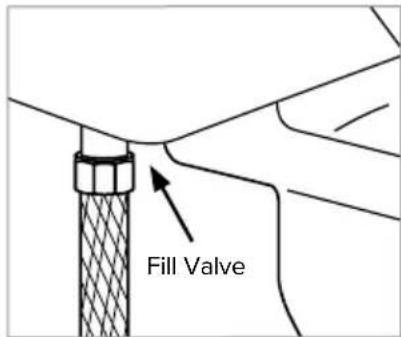

Check water supply line

Check the water supply line that connects the toilet tank fill valve to the water shut-off valve at the wall. If it is a rigid pipe, you will need to purchase a flexible water supply hose to replace it before installing the FreshSpa. The length of the hose you purchase may vary, but the top connection size should be 18 ballcock (to connect to the T-valve that you will install under the toilet tank), and the bottom connection will be 3/8 or 12 female compression (to connect at the shut-off valve at the wall).

INCORRECT

CORRECT

Installing the bidet attachment

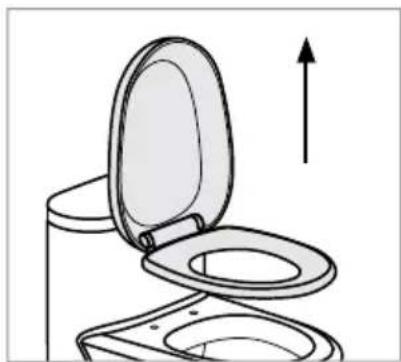

1. Remove the existing toilet seat.

a. Lift hinge covers and use flathead or Phillips head screwdriver to remove the mounting bolts. Alternatively, you may need to loosen mounting bolts underneath the seat.
b. Remove the toilet seat and set the seat, mounting bolts, and hardware aside.

1. Turn off water supply valve and flush toilet.

a. Turn off water supply at the wall to stop flow of water.
b. Flush toilet and hold down handle to completely empty toilet tank.
c. Disconnect water supply hose from the fill valve under the toilet tank.

1. Connect 18 T-valve to water supply line and fill valve under toilet tank.

a. Install the 78 T-valve with included rubber washer to the incoming water connection on the bottom of your toilet tank. Ensure the rubber washer is properly seated, tapered side up.
b. Connect the cold water supply line coming from the wall to the bottom of the T-valve.

Step 1b

Step 2c

Step 3a

Step 3b

Installing the bidet attachment

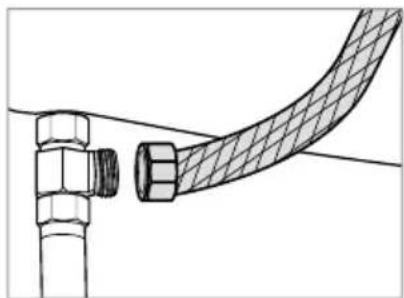

1. Connect the bidet hose to the T-valve.

a. The ends of the bidet hose are two different sizes. Determine which is the smaller of the two ends.
b. Connect the smaller end of the braided metal bidet hose to the remaining open side of the installed T-valve.

1. Install adjustable mounting brackets into the bidet attachment.

a. Line up the dots of one of the adjustable mounting brackets with the dots around one of the open mounting bracket holders.
b. Push the bracket into the bracket holder until it snaps into place.
c. Repeat steps 1 and 2 to install the other adjustable mounting bracket.

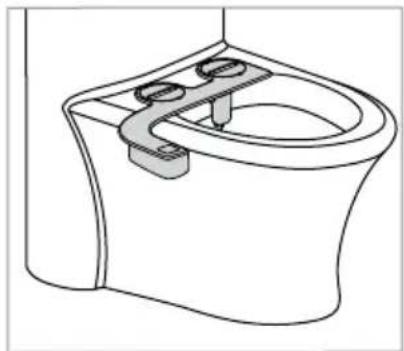

1. Install bidet attachment on toilet.

a. Place bidet attachment on the toilet with the nozzle(s) close to the back of the toilet, leaving a slight gap between the toilet and the nozzles. This will vary by toilet.

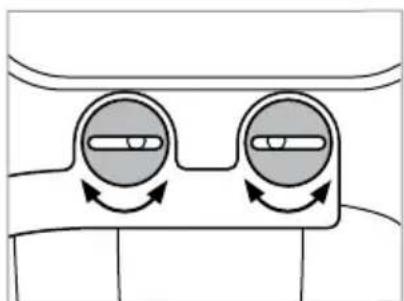

b. Make sure the adjustable brackets line up with the holes in the toilet fixture. You may need to rotate the adjustable brackets accordingly to line up properly.

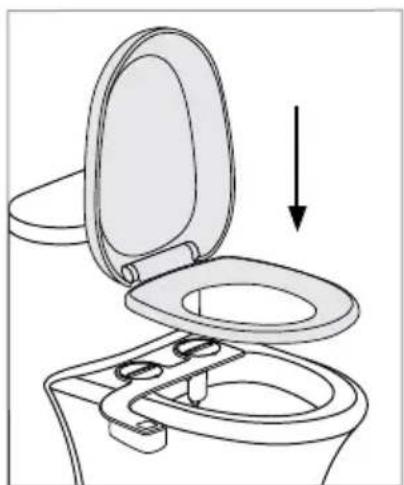

c. Replace the toilet seat on top of bidet attachment and secure using original toilet seat hardware. Make sure to tighten so that the bidet attachment and seat do not move.
d. Ensure that no buttons on the control panel are depressed to prevent water from accidentally spraying out of the toilet bowl.

Step 4b

Step 6a

Step 6b

Step 6c

Installing the bidet attachment

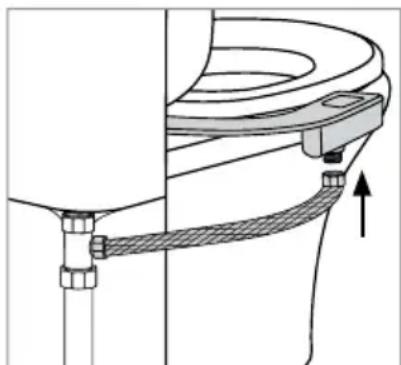

1. Connect the bidet hose to the bidet attachment. Connect open end of bidet hose to the connection underneath the bidet attachment.
2. Turn on the water supply and check for leaks.

a. Open the main water supply valve slowly and check for leaks.
b. Wait 5-10 minutes, check again and if there are no leaks, continue.

Step 7

Note: If there is any leaking, check all rubber washers and make sure all water connections are tight and secure. If necessary, you can use the provided Teflon tape (plumber's tape) for any leaking connections.

Using the FreshSpa:

To clean the bidet nozzle, push the "Nozzle Cleaning" button and water will wash over the nozzle. Push the "Off" button to turn off nozzle cleaning.

To engage a front wash, push the "Front Wash" button

To engage a rear wash, push the "Rear Wash" button

to increase the water pressure, scroll the precision wheel back towards the (+) icon
to decrease the water pressure, scroll the precision wheel forward towards the (-) icon.
- to stop the flow of water, push the "Off" button

Caution: To avoid discomfort or injury, scroll precision roller wheel to lowest pressure before initiating a wash.

Cleaning the FreshSpa:

To clean the nozzle, pull down on the nozzle cap and clean the nozzle spray holes using a toothbrush or soft cloth and mild detergent (such as dish soap). When cleaning, be careful not to drop or flush the nozzle cap. Periodically tighten the nozzle cap so it doesn't become loose with use and cleaning.

To clean the FreshSpa, use a mild cleaner such as Simple Green or Windex spray. Do not scrub or use harsh, abrasive products to clean the FreshSpa, as they may scratch the product.

Short term non-use:

If the product will not be used for more than a few weeks, you may consider shutting the water supply off at the wall for extra precaution.

Nozzle Cleaning

Front Wash

Rear Wash

Precision Wheel

Off

FRESHSPA THINLINE PRECISION ESSENTIAL BIDET ATTACHMENT WITH DUAL NOZZLE
Model	FSP-250, dual nozzle, ambient temperature
Incoming water pressure range 11.60 psi–116.03 psi / 0.08 MPa–0.8 MPa
Incoming water temperature range	32 °F–158 °F / 0 °C–70 °C
Flow rate	0.66 gal/min / 2.5 L/min
Product dimension	15.16in x 10.0in x 3.35in / 38.5cm x 25.4cm x 8.5cm
Product thickness	0.23in / 0.6cm
Product weight	1.21lbs / 0.55kg

Note: The specifications listed above are subject to change without prior notice for reasons of improving the product performance.

Brondell products are backed by some of the most comprehensive warranties in the industry. Brondell warrants that all products (excluding consumable items) shall be free from defects in material and workmanship under normal use and service.

FreshSpa FSP-250 Residential 1-year limited warranty

100% Coverage of all parts and labor for the entire product for the first year from original date of purchase.

FreshSpa FSP-250 Commercial warranty

Warranty period 1 year from original purchase date for all Brondell products. Warranties may not apply to products that are used for heavy commercial, hospital, or other high use non-residential applications.

Exclusions and limitations

1. BRONDELL warrants its products to be free from manufacturing defects under normal use and service. This warranty is extended only to the ORIGINAL PURCHASER.
2. BRONDELL's obligations under this warranty are limited to repairs or replacement, at BRONDELL's option, of products or parts found to be defective, provided that such products were properly installed and used in accordance with instructions. BRONDELL reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. BRONDELL will not charge for labor or parts in connection with warranty repairs for the first full year from date of purchase on all products except those that may be subject to commercial use limitations.

3. BRONDELL is not responsible for the cost of removal, return (shipping) and/or re-installation of products. This warranty does NOT apply to:

4. Damage or loss which occurs during shipment.

5. Damage or loss sustained through any natural or man-made causes beyond the control of BRONDELL, including but not limited to fire, earthquake, floods, etc.
6. Damage or loss resulting from sediments or foreign matter contained in a water system.
7. Damage or loss resulting from negligent or improper installation including installation of a unit in a harsh or hazardous environment.

8. Damage or loss resulting from removal, improper repair, modification of the product, or improper maintenance including damage caused by chlorine or chlorine related products

9. This warranty gives you specific legal rights. You may have other rights which vary from state to state.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY BRONDELL. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE PURCHASER. BRONDELL SHALL NOT BE RESPONSIBLE FOR LOSS OF USE OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL, FOR CONSEQUENTIAL DAMAGES OR EXPENSES INCurred BY THE PURCHASER OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTYES, INCLUDING THAT OF MERCHANTABILITY, ARE EXPRESSLY LIMITED TO THE DURATION OF THIS WARRANTY. SOME STATES DO NOT ALLOW LIMITATIONS, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

How to obtain service

To obtain repair service under this warranty, you must contact an authorized BRONDELL Service Center to obtain an RMA (Return Merchandise Authorization) number. Proof of purchase in the form of a copy of the original receipt must accompany the returned unit for the warranty to be valid. Take or ship the unit pre-paid to the closest Brondell authorized service center along with the RMA number and proof of purchase.

To obtain the RMA number and locate the BRONDELL Service Center location nearest you, please call 1-888-542-3355.
