USER MANUAL CFMK 7 A1 CRIVIT

BIKE MINI COMPRESSOR CFMK 7 A1 FAHRRAD-MINIKOMPRESSOR CFMK 7 A1 MINI-COMPRESSEUR POUR VÉLO CFMK 7 A1

GB IE NICY MT

BIKE MINI COMPRESSOR

FR BECH

MINI-COMPRESSEUR POUR VELO

FAHRRAD- MINIKOMPRESSOR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

i

DE AT CH

GB/IE/NI/CY/MT Translation of the original instructions Page 5

A 1 2 3 CRIVIT 4

B 3 CRIVIT C 5

D 6 7

Table of pictograms used....Page 6

Introduction Page 7

Intended use ...... Page 7

Package contents.... Page 8

Features...... Page 8

Technical specifications Page 9

Safety instructions Page 10

Specific safety instructions Page 14

Using the device....Page 16

Charging the mini bike compressor....Page 16

Using the mini bike compressor for the first time...... Page 16

Using the mini bike compressor....Page 17

Troubleshooting Page 18

Cleaning Page 19

Storage Page 19

Information about recycling and disposal...... Page 19

Original EC Declaration of Conformity ...... Page 21

Warranty and service information...... Page 22

Warranty conditions...... Page 22

Warranty period and statutory claims for defects...... Page 23

Extent of warranty.... Page 23

Processing of warranty claims ...... Page 23

Service...... Page 24

● Table of pictograms used
	Read the operating instructions!
	The device is only suitable for indoor operation.
	Observe warnings and safety instructions!
	Warning: Compressor system can start without warning.
	Direct current
	Note
	On/Off switch for the mini bike compressor
	Only suitable for bikes.
	Use hearing protection!
	Warning: Risk of electric shock! Danger to life!
	Do not expose the device to rain!
	Don't throw away – recycle!
	Dispose of the device and packaging in an environmentally friendly manner.
IP20	Protection class
	You are legally obliged to place devices marked as such in a collection which is separate from unsorted municipal waste. Not to be disposed of in the household waste.
	Attention! Hot surface!
	Made from recycled material.
	Packaging material made from corrugated paper
	Guaranteed sound power level of 90 decibels

Bike mini compressor CFMK 7 A1

- Introduction

Congratulations! You have chosen one of our high-quality products. Please familiarise yourself with the product before

using it for the first time. To do this, please read through the following operating and safety instructions carefully.

KEEP OUT OF REACH OF CHILDREN!

Intendeduse

The integrated compressor unit is designed exclusively for pumping up bike tyres, for example after a puncture. The pressure relief valve adapters are

not trade-approved. After pumping up bike tyres always take the shortest possible route to a service point which has a trade-approved device. Check the pressure of the bike tyres there. The device is not designed for use for anything other than the intended applications, in particular not for any type of car battery. The mini bike compressor is not designed for continuous operation to generate pressure for longer than 5 minutes at a time. Store these instructions in an easily accessible place. Ensure you hand over all documentation when passing the product on to a third party. Any use that differs to the intended use as stated is prohibited and potentially dangerous. Damage or injury caused by misuse and disregarding the above warning is not covered by the warranty or any liability on the part of the manufacturer. The device is not intended for commercial use. Commercial use will void the warranty. The product must only be started up initially by people who have been trained to do so.

• Package contents

1 Bike mini compressor
1 USB-C charging cable
1 valve adapter for Schrader valves with integrated pressure relief valve at 3 bar
1 valve adapter for Presta valves with integrated pressure relief valve at 7 bar
1 set of operating instructions

Features

PLEASE NOTE: After unpacking the product, please check that all of package contents are present and that the welding trolley is in perfect ition. Do not use the device if it is defective.

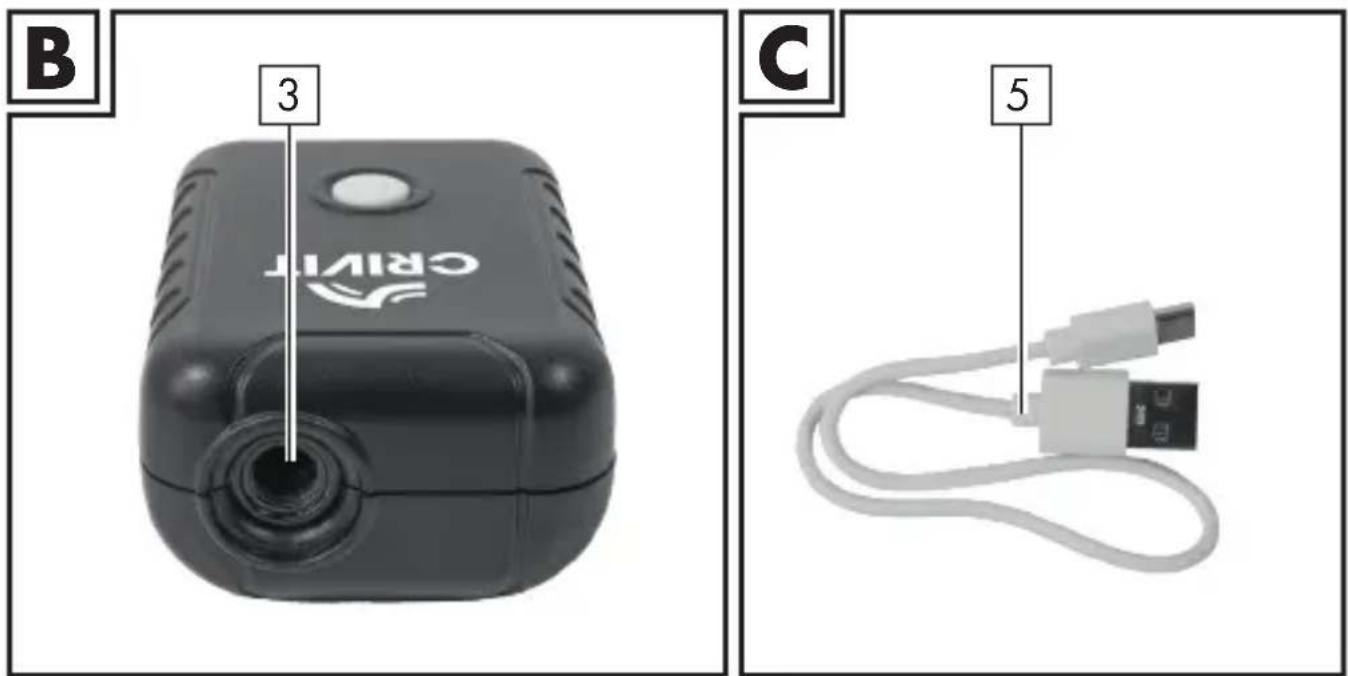

To do this see Fig. A - D:

	Bike mini compressor
	On/Off button for compressor ⏻
	Compressed air outlet
	Charge input USB-C 5 V =1A
	USB-C charging cable

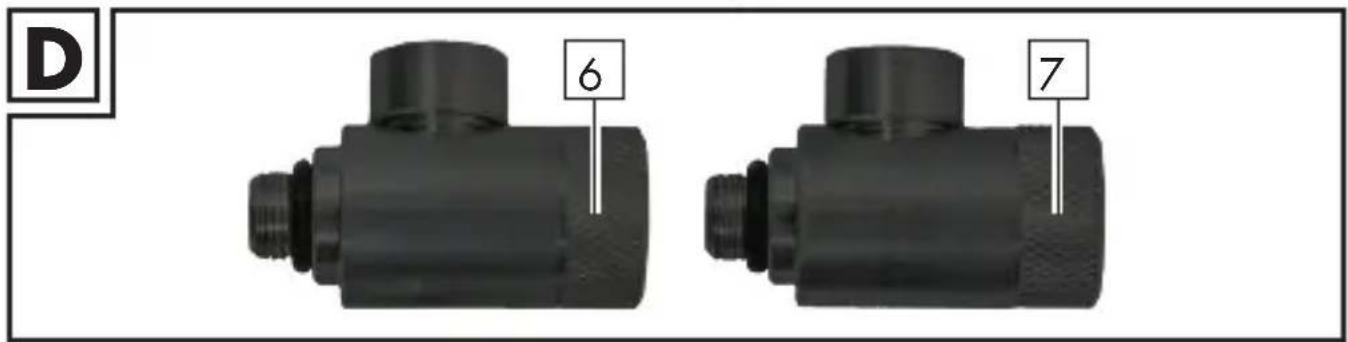

	Valve adapter for Schrader valves with integrated pressure relief valve at 3 bar
	Valve adapter for Presta valves with integrated pressure relief valve adapter at 7 bar.

PLEASE NOTE: The use of the term "product" or "device" in the following

text refers to the mini bike compressor described in these operating instructions.

• Technical specifications

Model: CFMK 7 A1
Battery type:	2 cells,type LR 902030 with 500 mAh
Battery, chemical system: Lithium polymer rechargeable battery pack
Battery capacity: 500 mAh, 7.4 V , 3.7 Wh
Charge cycles: 300
Charging time: Up to 2 hours when using a 5 V 1-A USB AC adapter
Operating temperature for compressor:	-10 °C - 45 °C
Charging temperature: -10 °C - 45 °C
Storage temperature: -10 °C - 45 °C
Voltage: 7.4 V	——
Input (charging port): 5 V 1 A	USB C——
Current draw:	max. 7 A
Maximum achievable pressure:	3 bar with Schrader valve adapter7 bar with Presta valve adapter
Continuous operation:	max. 5 min*
Air flow rate: max. 12 l / min
Engine power: 45 W
Guaranteed sound power level (LWA): 88 dB(A)
Measured sound power level (LWA): 85.8 dB(A)
Measuring uncertainty (KWA): 2.57 dB(A)
Sound pressure level (IPA): 75.0 dB(A)
Measuring uncertainty (KPA): 3 dB(A)

PLEASE NOTE: The noise emission values were determined in

accordance with EN ISO 3744:1995.

* Continuous operation: Do not operate the integrated compressor unit for more than 5 minutes without interruption. Following this, there must be a rest period of 15 minutes. Technical and visual changes may be made in the course of further development without prior notice. All dimensions, information and specifications in the operating instructions are therefore subject to change. The operating instructions cannot therefore be used as the basis for asserting a legal claim.

- Safety instructions

USE. THEY ARE A PART OF THE PRODUCT

AND MUST BE AVAILABLE AT ALL TIMES.

KEEP OUT OF REACH OF CHILDREN!

This section covers the basic safety regulations that apply when working with the device.

Personal safety:

■ This device can be used by children eight years and older and also by persons with reduced physical, sensory or mental capacities or a lack

of experience and knowledge if they are supervised or they have been instructed with regard to the safe use of the device and they understand the dangers it presents. Do not allow children to play with the product. Cleaning and day-to-day maintenance must not be performed by children without supervision.

■ Children must be supervised to ensure that they do not play with the device.

- Keep the device away from people – especially children – and pets.

In the work area, the user is responsible to third parties for damage caused by the use of the device.

■ During operation, never point the device at yourself or other individuals, and keep the device well way from your ears and eyes. There is a risk of injury!

- Do not leave the device unsupervised while running. Comply with the filling instructions for the inflatable item. The inflatable item could burst and cause serious injuries.

- Keep the device in a dry place and out of the reach of children.

This helps prevent device damage and possible personal injuries that could result from it:

Working with the device:

■ Do not use the device while driving.
- Check the device for damage before startup and only use it in perfect condition.

- Do not expose the device to rain or damp weather. Do not allow it to come into contact with water or immerse it in water. There is a risk of electric shock!

- Keep all openings of the device free during operation. Do not block the openings with your hands or fingers, and do not cover the device. There is a risk of overheating!

In hot weather, do not leave the device in the car. The device could be irreparably damaged as a result.

■ The device will become warm during use. There is a risk of burn injuries from touching the hot surfaces.

■ Take care to ensure that sand, dust and other small foreign objects cannot enter the air inlet or air outlet openings.

■ Do not operate the device near any flammable liquids or gases. Do not use the device to draw in hot fumes. Failure to comply risks causing a fire or explosion!

■ Switch the device off and remove the plug from the socket:

-if you are not using the device;
-if you are leaving the device unsupervised;
-if you are doing cleaning work;
-if the connection cable is damaged
-if foreign objects have got into the device or you notice unusual noises

■ Only use the accessories supplied and recommended by the manufacturer.
- Do not disassemble or modify the device. This device must only be repaired by a maintenance technician.
- Do not use the device in areas with a risk of explosion, e.g. near flammable liquids, gases or powders.
- Do not expose the device to any source of heat.
- Do not store in places where the temperature car exceed 45 °C.
■ Only charge in an ambient temperature between -10 °C and 45 °C.
■ Only use the charging cable delivered with the device.

This helps prevent device damage and possible personal injuries that could result from it:

CAUTION! How to avoid accidents and injuries from electric shock:

Electrical safety:

• Do not use the device if the switch cannot be switched on and off. Have damaged switches replaced.
• Do not carry the device by the cable. Do not unplug the plug from the socket by pulling on the cable. Protect the cable from heat, oil and sharp edges.
  ■ If the cable is damaged, immediately unplug it from the plug socket.

Rechargeable battery packs:

CAUTION! EXPLOSION HAZARD!

• Do not open and/or short-circuit the mini bike compressor 1. This could cause the device to overheat, ignite or explode.
• Do not expose the mini bike compressor to high temperatures. The battery could explode.
  ■ Regularly check the mini bike compressor for leakage. Leaking or damaged batteries may cause burns if they come into contact with skin. In this situation, always wear suitable safety gloves! Carefully wipe up the liquid with a cloth and avoid contact with skin and eyes. If the liquid should come into contact with your skin or eyes, immediately wash out with clean water and seek medical attention.

- Specific safety instructions

■ We recommend charging the mini bike compressor ☐ once a month.
■ A slightly increased temperature during charging is not a malfunction, but completely normal.
However, we do recommend leaving the mini bike compressor 1 to rest for 15 minutes before using.
- Protect the mini bike compressor from moisture and high temperatures, including fires.
■ Store the mini bike compressor in a dry place and protect the device from moisture and corrosion.
If you notice the mini bike compressor is leaking,

producing an unusual odour or looking deformed in any way, stop using it immediately and contact the manufacturer.

- Do not drop the mini bike compressor while it is being used.

■ The mini bike compressor is designed exclusively for bike tyres. It is not suitable for car tyres or for inflating other inflatable items. Always check the maximum permissible pressure of your bicycle tyres before inflating them. Make sure that this pressure is never exceeded.

PLEASE NOTE: The pressure relief valve adapters 6, 7 are not trade-approved. After pumping up bike tyres always take the shortest possible route to a service point which has a trade-approved device. Check the pressure of the bike tyres there.

■ During inflation, high temperatures can be produced at the air outlet. There is a risk of burn injuries!

■ 'The device must not be used while it is being charged. There is a risk of overheating.

■ The device must only be used with the valve adapters supplied with the product 6, 7. Operating it without these adapters or with third-party adapters is not permitted.

• Using the device

- Charging the mini bike compressor

The mini bike compressor can be charged with an appropriate USB A plug such as, for example, an appropriate USB AC adapter (operating peak output voltage U_out,max 5 V)

To do this connect the USB cable to the USB-C charge input of the device. Then connect the USB cable with an appropriate USB power connection or an appropriate USB plug socket.

If the On/Off button is flashing red, then the rechargeable battery pack is empty and must be charged.

During the charging process, the On/Off button flashes green. When it lights up green continuously, the rechargeable battery pack is fully charged.

PLEASE NOTE: USB AC adapter not included in the scope of delivery.

PLEASE NOTE: An undervoltage protection circuit is installed in the mini bike compressor 1 to protect the device from damage. This prevents a deep discharge of the mini bike compressor 1 and automatically switches the device off once the rechargeable battery pack is fully discharged. In this case, the device can no longer be switched on or used. Please re-charge the mini bike compressor 1, as described.

PLEASE NOTE: For safety reasons the device cannot be charged if a battery cell is defective or deeply discharged. In this case, please contact our service point.

• Using the mini bike compressor for the first time

Depending on bike valve you are using, fit either the valve adapter for the Schrader valve 6 or the valve adapter for the Presta valve 7

To do this screw the valve adapter onto the compressed air outlet 3 of the mini bike compressor 1

- Using the mini bike compressor

Presta valve:

■ Remove the cap of the Presta valve.

- Unscrew the valve of on the knurled screw slightly, in order to allow some airflow.

- With the valve adapter for Presta value fitted, put the mini bike compressor onto the valve so that it is firmly in place and level.

Schrader valve:

■ Remove the cap of the Schrader valve.

- With the valve adapter for Schrader valves fitted, put the mini bike compressor onto the valve so that it is firmly in place and level.

■ Switch the mini bike compressor on by pressing the On/Off button of the compressor 2.

As soon as approx. 3 bar is reached for Schrader valve adapter or 7 bar for Presta valve adapters ^7 , then the integrated pressure relief valve will release air.

■ Switch the mini bike compressoroff by pressing the On/Off button of the compressor 2 again.

■ Proceed as described above in reverse order, to disconnect the mini bike compressor 1 from the respective valve and closing off that valve.

ATTENTION: Use the mini bike compressor 1 with the appropriate valve adapters only on tyres, which are suitable for the pressure range which is stated on the valve adapters. Excessive pressure can damage tyres or cause dangerous accidents.

PLEASE NOTE: When disconnecting the mini bike compressor 1 from the valve, air may escape from the valve. So make sure you disconnect the device from the valve as quickly as possible. Air can also can escape from the valve if the valve adapter is fitted at an angle.

ATTENTION: During operation, the compressed air outlet and the valve adapter of the mini bike compressor which is connected to it 1 will become hot. Make sure that you do not come into contact with it during operation to avoid suffering burns. At the end of the job, wait for at least 10 minutes before you disconnect the valve adapter from the mini bike compressor 1

PLEASE NOTE:

The pressure relief valve adapters 6, 7 are not trade-approved. After pumping up bike tyres always take the shortest possible route to a service point which has a trade-approved device. Check the pressure of the bike tyres there.

Tips for use

The device is not intended for continuous operation. The device was designed to create air pressure – not an air flow. Please do not use the device for more than 5 minutes at a time, to avoid overheating and damage to the device.

Safety fuse

If the device becomes overloaded or malfunctions, the safety fuse triggers to protect the device.

Never use a fuse with a higher release current strength. There is a risk of fire!

ATTENTION: To protect people and property, an overheat protection circuit has been installed for the rechargeable battery pack in the mini bike compressor 1. This prevents an overheating of the rechargeable battery pack installed in the device and automatically switches off the mini bike compressor 1 if the battery temperature is too high. If this happens, allow the device to cool down prior to using it again.

Attention: The compressor function must not be used while the mini bike compressor 1 is being charged. There is a risk of overheating.

- Troubleshooting

● = problem
● = cause
= remedy

No reaction when the On/Off button is pressed ^2 .
- Undervoltage protection is activated for the mini bike compressor ^1
○ Charge the device as described.

- Cleaning

ATTENTION: The device must not come into contact with water or be placed in water. There is a risk of injury due to tric shock if moisture enters the device.

• Do not use cleaners or solvents. These could damage the device beyond repair.
• Keep the housing and accessories of the unit clean.
  ■ Use a damp cloth or a soft brush to clean the device and the accessories.

- Storage

• Keep the device in a dry place and out of the reach of children.
  ● Information about recycling and disposal

DO NOT DISPOSE OF ELECTRICAL TOOLS IN HOUSEHOLD WASTE! DON'T THROW AWAY - RECYCLE!

According to European Directive 2012/19/EU, used electrical devices must be collected separately for environmentally compatible recycling or recovery. The symbol of the crossed out dustbin means that this device must not be disposed of in household waste at the end of its service life. The device must be handed in at established collection points, recycling centres or waste management depots. The disposal of defective devices which you have sent in will be carried out free of charge. In addition, distributors of electrical and electronic equipment as well as food distributors are obliged to accept returned waste. Lidl provides you with return options directly in its branches and shops. Return and disposal is free of charge for you. When buying a new device you have the right to return an equivalent old device at no charge. In addition you have the option, regardless of whether you are buying a new device, to hand in (up to three) old devices at no charge, as long as the device is no larger than 25 cm in any dimension. Before returning the device please delete all personal information. Before returning, please remove batteries or rechargeable battery packs which are not enclosed by the old device, as well as bulbs, which can be removed without destroying the product and take them to a separate collection point.

Instructions for safe removal of batteries or rechargeable battery packs:

WARNING! The rechargeable battery pack may only be removed by qualified personnel! RISK OF PERSONAL INJURY THROUGH ELECTRIC SHOCK!

- Ensure that the battery is completely discharged. - The battery can be removed, once the two halves of the device have been separated from one another. The halves of the housing are connected together and also glued together and need to be separated using force.

■ Disconnect the red and black cables from the rechargeable battery pack and after that from the circuit board.

- Carefully remove the battery or the rechargeable battery pack.

■ The battery or rechargeable battery pack and device can now be disposed of separately.

Batteries containing harmful substances are labelled with the adjacent symbol, which indicates the prohibition on disposal in household waste. The abbreviations for the essential heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.

Take used batteries to a waste management company in your city or community or return them to your dealer. This satisfies your legal obligations while also making contribution to protecting the environment.

Please note the marking on the different packaging materials and separate them as necessary. The packaging materials are marked with abbreviations (a) and digits (b) with the following definitions: 1–7: Plastics, 20–22: Paper and cardboard, 80–98: Composite materials.

- Original EC Declaration of Conformity

We,

C. M. C. GmbH Holding

Responsible for documentation:

Joachim Bettinger

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

hereby take sole responsibility for declaring that the product

Year of manufacture: 2025/11

Model: CFMK 7 A1

meets the basic safety requirements as specified in the European Directives

Electromagnetic compatibility:

(2014/30/EU)

RoHS Directive

(2011/65/EU)

Machinery Directive:

(2006/42/EU)

Outdoor directive:

(2000/14/EG)

Annexe III Engine power: 45 W

Guaranteed sound power level LWA: 88 dB(A)

Measured sound power level LWA: 85.8 dB(A)

The object of the declaration described above meets the requirements of Directive 2011/65/EU of the European Parliament and of the Council of 8 June 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

This conformity assessment is based on the following harmonised standards:

EN IEC 55014-1:2021 EN IEC 55014-2:2021 EN IEC 61000-3-2-2019/A1:2021 EN 61000-3-3:2013/A2:2021 EN IEC 62841-1:2015/A11:2022 EN IEC 1012-1:2010

Joachim Bettinger - Quality assurance -

● Warranty and service information

Warranty from C. M. C. GmbH Holding

Dear Customer,

The warranty for this equipment is 3 years from the date of purchase. In the event of product defects, you have legal rights against the retailer of this product. Your statutory rights are not affected in any way by our warranty conditions, which are described below.

• Warranty conditions

The warranty period begins on the date of purchase. Please retain the original sales receipt. This document is required as your proof of purchase.

Should this product show any defect in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our discretion – free of charge. This warranty service requires that you retain proof of purchase

(sales receipt) for the defective device for the three year period and that you briefly explain in writing what the fault entails and when it occurred. If the defect is covered by our warranty, we will repair and return your product or send you a replacement. The original warranty period is not extended when a device is repair or replaced.

- Warranty period and statutory claims for defect

The warranty period is not extended by the guarantee. This also applies to replaced and repaired parts. Any damages or defects detected at the time of purchase must be reported immediately after unpacking. Any incidental repairs after the warranty period are subject to a fee.

• Extent of warranty

This device has been manufactured according to strict quality guidelines and carefully inspected before delivery.

The warranty applies to material and manufacturing defects only. This warranty does not extend to product parts, which are subject to normal wear and tear and can thus be regarded as consumable parts, or for damages to fragile parts, e.g. switches or parts made from glass.

This warranty is voided if the product becomes damaged or is improperly used or maintained. For proper use of the product, all of the instructions given in the operating instructions must be followed precisely. If the operating instructions advise you or warn you against certain uses or actions, these must be avoided in all circumstances.

The product is for consumer use only and is not intended for commercial or trade use. The warranty becomes void in the event of misuse and improper use, use of force, and any work on the device that has not been carried out by our authorised service branch.

- Processing of warranty claims

To ensure prompt processing of your claim, please follow the instructions given below.

Please retain proof of purchase and the article number (e.g. IAN) for all inquiries.

The product number can be found on the type plate, an engraving, the cover page of your instructions (bottom left), or the sticker on the back or underside of the device.

In the event of malfunctions or other defects, please first contact our service department below by phone or email. If your product is found to be defective, you can then send your product with proof of purchase (till receipt) and a statement describing what the fault involves and when it occurred free of charge to the service address given.

PLEASE NOTE: You can download this manual and many more as well as product videos and software from www.lidl-service.com.

PDF ONLINE www.lidl-service.com

With this QR code you can gain immediate access to the Lidl Service page (www.lidl-service.com) and you can open your operating instructions by entering the article number (IAN) 502367.

- Service

How to contact us:

GB, IE, NI, CY, MT

Website: www.cmc-creative.de

E-mail: [e-mail]

Phone: [phone]

Registered office: Germany

IAN 502367\_2407

Please note that the following address is not a service address. Please contact the service point given above first.

Address:

C. M. C. GmbH Holding

Katharina-Loth-Str. 15

66386 St. Ingbert

Germany

To order spare parts:

● = Problem
= Ursache
○ = Behebung

[e-mail]

[e-mail]

Telefon: [phone]

Uitrusting....Pagina 74

Technische gegevens....Pagina 75

Fiets-minicompressor CFMK 7 A1

• Inleiding

Three black-and-white icons representing waste management and recycling symbols (no text or labels)

VOER ELEKTRISCHE APPARATEN NIET AF VIA HET HUISVUIL! RECYCLING VAN GRONDSTOFFEN IN PLAATS VAN AFVALVERWIJDERING!

Cd = cadmium, Hg = kwik, Pb = lood.

Nome: Riku Service snc

Indirizzo Internet: www.riku-service.com

E-Mail: [e-mail]

Telefono: 0039 (0) 4711430103

Sede: Germania

IAN 502367\_2407
