USER MANUAL Stanwell K-4972 KOHLER

Mproduct numbers are for Mexico (i.e. K-12345M)

• Hole Cutting Equipment

Thank You For Choosing Kohler Company

Thank you for choosing Kohler Company. Your Kohler Company product reflects the true passion for design, craftsmanship, artistry, and innovation Kohler Company stands for. We are confident its dependability and beauty will surpass your highest expectations, satisfying you for years to come.

All the information in this guide is based upon the latest product information available at the time of publication. At Kohler Company, we strive to fulfill our mission of improving the level of gracious living for each person who is touched by our products and services. We reserve the right to make changes in product characteristics, packaging, or availability at any time without notice.

Please take a few minutes to review this guide. If you encounter any installation or performance problems, please call 1-800-4-KOHLER from within the USA, 1-800-964-5590 from within Canada, or 001-877-680-1310 from within Mexico.

Before You Begin

CAUTION: Riskofpersonalinjuryorproductdamage. Handle this product with care. Vitreous china can break or chip if the product is handled carelessly.

□ Observe all local plumbing and building codes.
□ Refer to local codes and manufacturer's instructions for flush valve requirements.
□ Carefully inspect the new urinal for damage.

Before You Begin (cont.)

☐ Fixture dimensions are nominal and conform to tolerances by ASME Standard A112.19.2.
□ Site preparation may require additional tools and hardware.
☐ Kohler Co. reserves the right to make revisions in the design of products without notice, as specified in the Price Book.

*Maximum rim height for ADA compliance.

**Maximum outlet height for ADA compliance.

14-1/2" (36.8 cm) 21" (53.3 cm) 22-1/8" (56.2 cm) **14-1/8" (35.9 cm) 2" NPT Tap Floor 2-1/4" (5.7 cm) Min 1-1/4" Spud 19-1/8" (48.6 cm) 27-5/8" (70.2 cm) 24" (61 cm) *17" (43.2 cm) 1/4" (6 mm) 18-1/4" (46.4 cm) 12" (30.5 cm) 40-1/8" (101.9 cm) to Floor 2" NPT Tap 6" (15.2 cm) Outlet Detail

Roughing-In (Top Spud)

- Roughing-in dimensions are identical if using an optional 3" outlet spud.

*Maximum rim height for ADA compliance. **Maximum outlet height for ADA compliance.

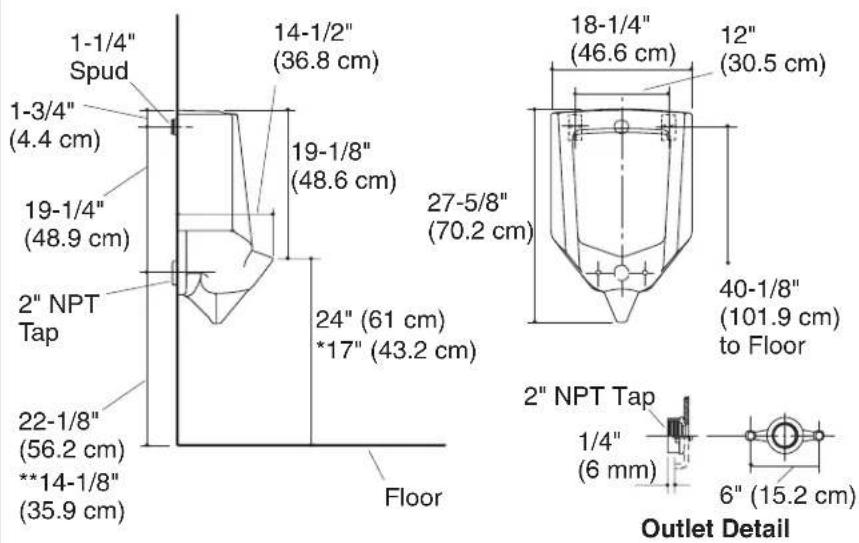

1-1/4" Spud 1-3/4" (4.4 cm) 19-1/4" (48.9 cm) 2" NPT Tap 22-1/8" (56.2 cm) **14-1/8" (35.9 cm) 14-1/2" (36.8 cm) 19-1/8" (48.6 cm) 24" (61 cm) *17" (43.2 cm) 27-5/8" (70.2 cm) 18-1/4" (46.6 cm) 12" (30.5 cm) 40-1/8" (101.9 cm) to Floor 2" NPT Tap 1/4" (6 mm) 6" (15.2 cm) Floor Outlet Detail

Roughing-In (Rear Spud)

- Roughing-In remains the same when using the optional 3" outlet spud.

1. Preparation

□ Turn the water supply off.
☐ Install or relocate the supply tubing and waste pipe as necessary to conform to the roughing-in dimensions.
□ Install the shut-off valve.
□ Install adequate support framing for the wall hangers as needed.
☐ Determine the position of the waste pipe nipple. When establishing the nipple length, take into account the length of the urinal outlet spud and the distance the female collar will thread onto the waste pipe nipple.

NOTE: Add a little extra length to the nipple to allow for gasket space.

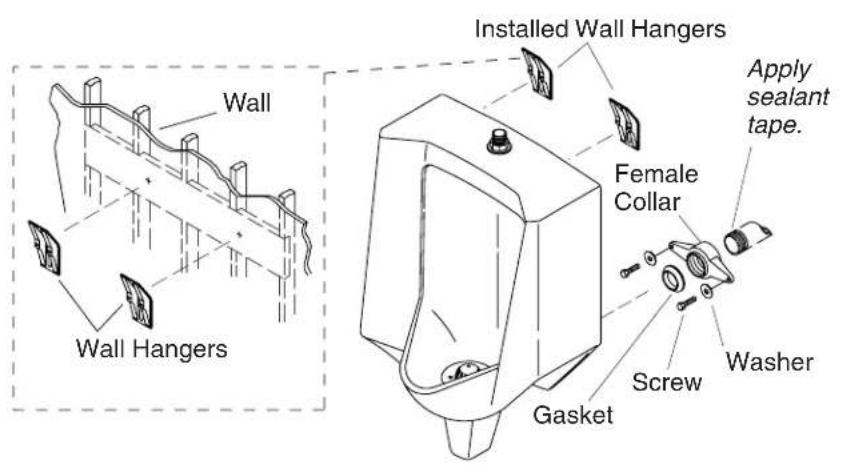

Wall Wall Hangers Installed Wall Hangers Apply sealant tape. Female Collar Screw Washer Gasket

2. Install the Urinal

CAUTION: Riskofpersonalinjuryorproductdamage.

Handle with care. Vitreous china can break or chip if the product is handled carelessly.

CAUTION: Riskofproductdamage. Do not overtighten the bolts.

□ Install the wall hangers according to the roughing-in illustration.
□ Apply thread sealant tape to the pipe threads and install the female collar to the waste pipe.
☐ Place the gasket onto the female collar with the beveled surface facing away from the collar.
□ Carefully position the urinal on the wall hangers.
- Secure the urinal to the female collar using the screws and washers provided.

3. Complete the Installation

□ Install the flush valve according to the manufacturer's instructions.
□ Connect the water supply and complete the waste pipe connections.
□ Turn on the water supply.
□ Flush and check the entire installation for leaks.
