Couture K-3480 - Toilet KOHLER - Free user manual and instructions

Type of product	Toilet (WC)
Brand	Kohler
Model	Couture K-3480
Material	Vitreous china
Color	White
Weight	Approximately 40 kg
Supply	Cold water, standard pressure (shut-off valve recommended)
Tank capacity	6 liters (estimated)
Flush type	Single (trip lever)
Main functions	Flush, integrated tank, seat (not included)
Installation	On floor flange with wax ring, 5/16" T-bolts
Water level adjustment	By threaded rod in tank
Maintenance and cleaning	Soft cloth, non-abrasive cleaner; avoid harsh products
Safety	Do not overtighten bolts (risk of porcelain cracking)
Included spare parts	Wax ring, T-bolts, bolt caps, nuts, washers
Repairability	Removable tank, easy replacement of seal or bolts
General information	User and installation manual available online; compliance with local codes

Frequently Asked Questions - Couture K-3480 KOHLER

How to install the Kohler Couture K-3480 toilet?

Installation requires removing the old toilet, cleaning the flange, placing a new wax ring, positioning the bowl on the T-bolts, then fixing the tank. Gently tighten the nuts to avoid cracking the porcelain. See the manual for complete details.

How to adjust the water level in the tank?

The water level is adjusted by turning the threaded rod of the fill mechanism: turn right to increase the level, left to decrease. The recommended level is indicated by a water line in the tank.

What to do in case of a leak around the base of the toilet?

A leak at the base may come from a poorly installed or damaged wax ring. Remove the toilet, clean off the old ring, and install a new one. Also check that the T-bolts are properly tightened without overdoing it.

What type of wax ring to use for this toilet?

Use a standard wax ring for toilets, suitable for a 3 or 4 inch flange. The manual recommends using a new ring for each installation and not lifting the bowl after placement.

How to maintain the toilet porcelain?

Clean the porcelain with a soft cloth and non-abrasive cleaner. Avoid harsh products (bleach, acids) that can damage the surface. For stubborn stains, use a specific porcelain cleaner.

Can I use an abrasive cleaner on this toilet?

No, abrasive cleaners or rough sponges can scratch and weaken the vitreous china. Use only mild products and non-abrasive cloths.

How to replace the tank bolts?

Remove the nuts and washers under the tank, take out the old bolts, and install new ones. Ensure the gaskets are in good condition and tighten moderately to avoid breakage.

What water pressure is recommended for operation?

The toilet works with standard water pressure (about 3-5 bars). A shut-off valve under the tank is recommended for maintenance. If pressure is too high, install a pressure reducer.

Is the tank compatible with a dual flush system?

The Couture K-3480 model is equipped with a standard single flush. It is not designed for dual flush. If you want to save water, consider an adapter, but check compatibility.

Where to find spare parts for this toilet?

Spare parts (gaskets, bolts, flush mechanism) are available at Kohler dealers or online. Use model number K-3480 to identify compatible parts.

USER MANUAL Couture K-3480 KOHLER

Close-Coupled Toilets

K-3422, K-3423, K-3427.

K-3429. K-3432. K-3439.

K-3452, K-3457, K-3462,

K-3465, K-3481, K-3482,

K-3484. K-3485. K-3486.

K-3591, K-14231, K-14247

Mproduct numbers are for Mexico (i.e. K-12345M)

10" Adjustable Wrench

Supply Shut-Off Valve

Tape Measure

Level

Sponge

Pipe Wrench

Tubing Cutter

Wax Seal

Safety Glasses

Plus:

• 5/16" T-Bolts w/ Nuts and Washers
• Putty Knife
• Metal File
  • 1/2" Nut Driver/Socket
• Hacksaw
• Screwdriver

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

CAUTION: Riskofpersonalinjuryorproductdamage. Handle with care. Vitreous china can break or chip if the product is handled carelessly.

IMPORTANT! Record the model number (from the label on the box) in the Homeowners Guide for reference.

□ Observe all local plumbing and building codes.
□ Carefully inspect the new toilet for damage.
☐ If the existing toilet does not have a supply shut-off valve below the tank, install one before installing the new toilet.

1. Remove the Existing Toilet

CAUTION: Riskofhazardousgases. If the new toilet is not installed immediately, temporarily place a rag in the closet flange.

□ Turn off the water supply.
□ Flush the toilet.
□ Sponge out all remaining water from the tank.
☐ Disconnect the supply shut-off valve, if present.
□ Remove the old toilet.

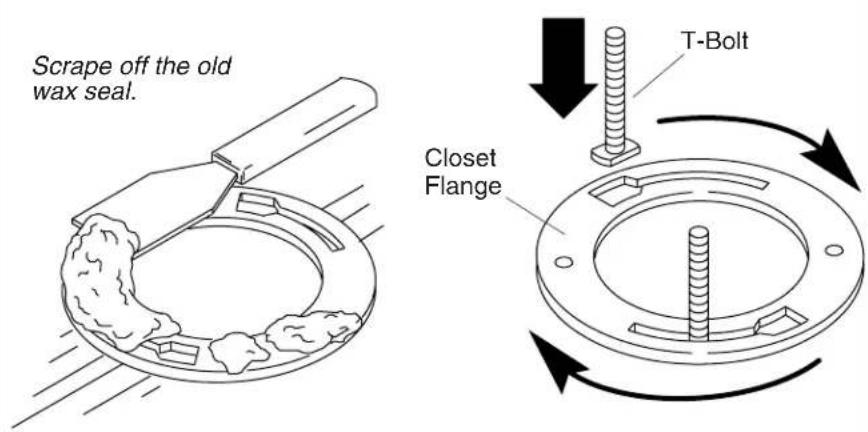

□ Remove the old wax seal from the floor with a putty knife.

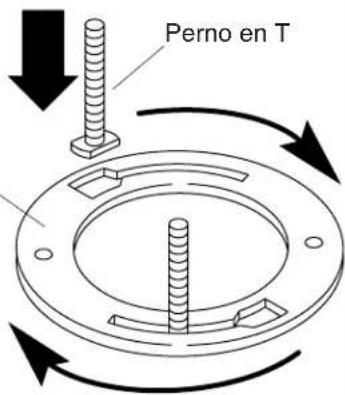

☐ Replace the old T-bolts with the new 5/16" diameter T-bolts.

2. Install the New Toilet

☐ Install or relocate the supply and outlet as necessary to conform to the roughing-in dimensions.
□ Install a supply shut-off valve.
□ Lay the toilet down onto a padded surface.
□ From the bottom of the toilet, firmly press a new wax seal around the toilet outlet.
☐ Remove the temporary rag (if used) from the toilet flange hole.
□ Align and lower the toilet over the flange and T-bolts.

IMPORTANT! Do not lift or rock the bowl after placement. If you break the watertight seal, you must install a new wax seal.

□ Apply your full body weight around the toilet to set the seal.
☐ Place the bolt cap bases over the T-bolts in the "up" position as marked.

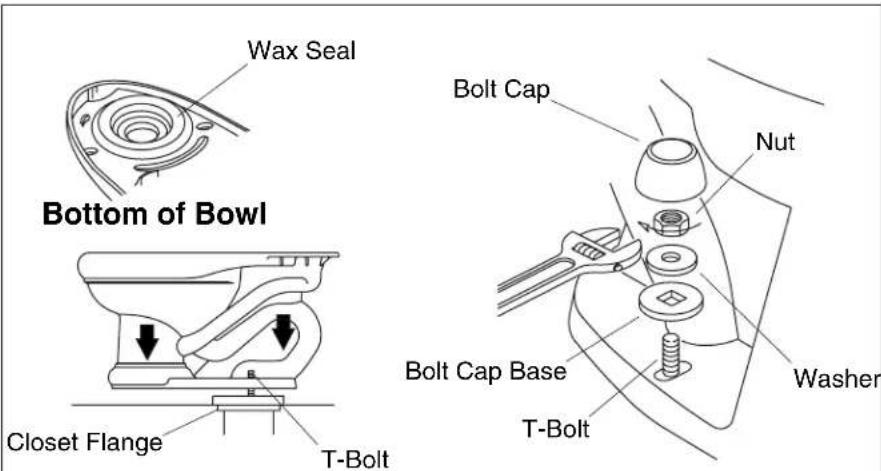

☐ Place the washers and nuts on the bolt cap bases and T-bolts.

IMPORTANT!Donotovertightenthenut.Overtightening may cause breakage or chipping of vitreous china.

□ Carefully tighten the nuts.

IMPORTANT!Riskofproductdamage.Protect the vitreous china from the saw blade when cutting off excess T-bolt length.

Install the New Toilet (cont.)

☐ Measure the length of the T-bolts from the top of the nuts. If the bolts extend 1/4"(6 mm) or more, cut off the excess.
□ Attach the bolt caps.

3. Install the Tank

IMPORTANT!Riskofproductdamage.Overtightening the tank bolts may cause breakage or chipping of the vitreous china.

□ Remove the nuts and washers from the preassembled tank bolts on the bottom of the tank.
□ Set the nuts and washers aside.

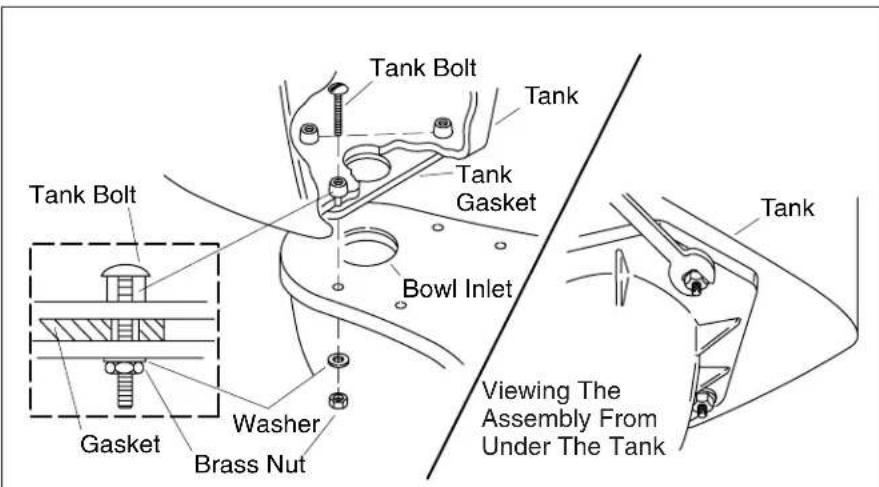

☐ Position the tank on the bowl by centering the gasket on the bowl inlet.
□ Assemble the washers and nuts to the tank bolts.
□ Tighten the nuts until snug.
□ Verify that the tank is level both left to right and front to back.
□ Make sure the nuts are tight enough to achieve a watertight seal.

4. Complete the Installation

☐ Install the trip lever if one is not already installed. Follow the instructions packed with the trip lever.

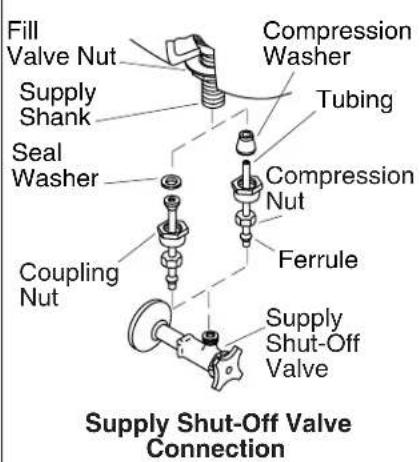

□ Connect the supply shut-off valve to the toilet supply shank.
☐ Open the supply shut-off valve slowly to check for leaks. If the connections have been properly assembled, a slight tightening of the nuts should stop leakage.
□ Install the toilet seat according to the packed instructions.
□ Carefully set the cover onto the tank.
☐ Flush the toilet several times and check all connections for leaks.
☐ Periodically check for leaks for several days following the installation.

Adjustments

□ Adjust the water level in the tank to the marked waterline.

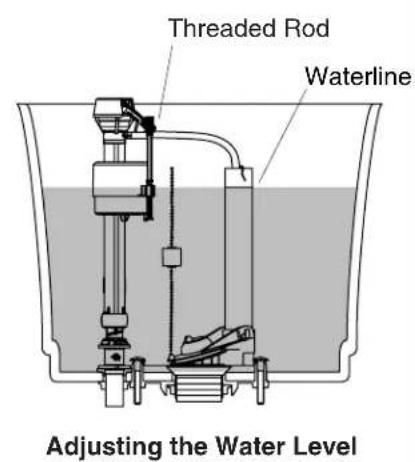

☐ Rotate the threaded rod clockwise to raise the water level or counterclockwise to lower the water level as needed.
☐ Periodically check for leaks for several days following the installation.
