Brand	Kohler
Model	Folio K-4447
Category	Toilet (WC)
Material	Vitreous china
Flush type	Direct (direct coupling)
Water supply	Supply stop valve (not included)
Approximate weight	35 kg
Installation dimensions	Refer to the connection diagram in the manual
Floor mounting system	T-bolts (5/16 inch) with nuts and washers
Seal gasket	Wax ring (provided)
Outlet type	Vertical outlet (floor flange)
Included accessories	Wax ring, T-bolts, bolt caps, tank bolts
Tools required for installation	Adjustable wrench, spirit level, screwdriver, putty knife, hacksaw, etc.
Maintenance and cleaning	Clean with a soft cloth and non-abrasive cleaner
Safety	Risk of porcelain breakage: handle with care
Replacement parts available	Wax ring, T-bolts, bolt caps, tank bolts, etc.
Repairability	Repairable (seals, bolts, flush mechanism)
Warranty	Refer to the owner's guide for details

Frequently Asked Questions - Folio K-4447 KOHLER

How to install the Folio K-4447 toilet?

Remove the old toilet, clean the flange, install a new wax ring on the toilet outlet, align the T-bolts and lower the toilet. Attach the tank then connect the water supply. Refer to the manual for detailed steps.

How to adjust the water level in the tank?

Turn the threaded rod of the fill mechanism clockwise to increase the level or counterclockwise to decrease it. The level should match the water line indicated in the tank.

What to do in case of a leak after installation?

First check the pipe connections. Retighten the nuts slightly if necessary. If the leak persists, the wax ring may be mispositioned or damaged; it must be replaced.

What tools are needed to install this toilet?

You will need a 10-inch adjustable wrench, a spirit level, a screwdriver, a putty knife, a hacksaw, T-bolts (5/16 inch), a pipe wrench, and safety glasses.

How to clean the vitreous china toilet without damaging it?

Use a mild non-abrasive cleaner and a soft cloth or sponge. Avoid products containing bleach, acid, or abrasive particles that could scratch or dull the vitreous china.

The tank is leaking at the bolts, what to do?

Unscrew the nuts on the tank bolts, check the condition of the gaskets and washers. Replace if necessary, then retighten moderately to avoid cracking the porcelain.

Can I reuse the old wax ring?

No, it is highly recommended to install a new wax ring when replacing the toilet. The old one may be deformed or damaged, compromising the seal.

How to replace the floor mounting bolts?

Remove the bolt caps, unscrew the nuts and washers. Remove the old T-bolts, insert new ones into the floor flange, then reposition the toilet following the initial installation procedure.

The toilet is not level, how to correct?

Use a spirit level to check. If the toilet is not level, you can slide shims under the base (e.g., plastic) to adjust, then seal with silicone sealant after verification.

How to avoid damaging the porcelain during installation?

Handle the toilet with care, do not slide it on a hard surface. When tightening nuts, do not force excessively to avoid cracking or breaking the vitreous china. Use appropriate tools.

USER MANUAL Folio K-4447 KOHLER

Close-Coupled Toilets

K-3422, K-3423, K-3427.

K-3429. K-3432. K-3439.

K-3452, K-3457, K-3462,

K-3465, K-3481, K-3482,

K-3484. K-3485. K-3486.

K-3591, K-14231, K-14247

Mproduct numbers are for Mexico (i.e. K-12345M)

10" Adjustable Wrench

Supply Shut-Off Valve

Tape Measure

Level

Sponge

Pipe Wrench

Tubing Cutter

Wax Seal

Safety Glasses

Plus:

• 5/16" T-Bolts w/ Nuts and Washers
• Putty Knife
• Metal File
  • 1/2" Nut Driver/Socket
• Hacksaw
• Screwdriver

Thank You For Choosing Kohler Company

We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.

Before You Begin

CAUTION: Riskofpersonalinjuryorproductdamage. Handle with care. Vitreous china can break or chip if the product is handled carelessly.

IMPORTANT! Record the model number (from the label on the box) in the Homeowners Guide for reference.

□ Observe all local plumbing and building codes.
□ Carefully inspect the new toilet for damage.
☐ If the existing toilet does not have a supply shut-off valve below the tank, install one before installing the new toilet.

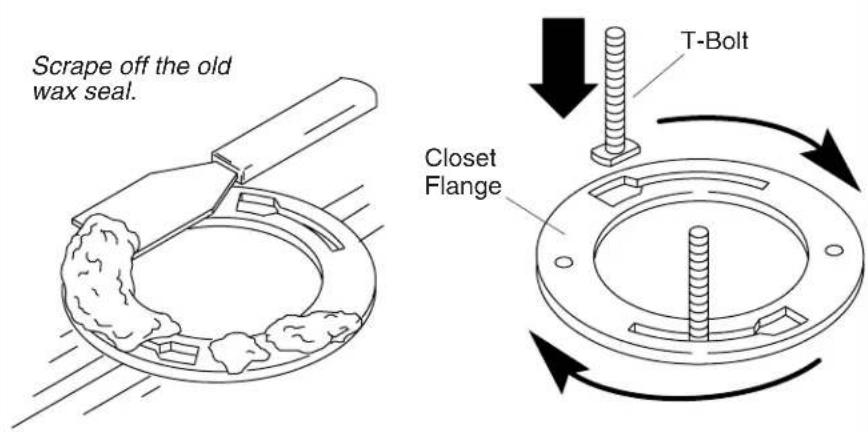

Scrape off the old wax seal. Closet Flange T-Bolt

1. Remove the Existing Toilet

CAUTION: Riskofhazardousgases. If the new toilet is not installed immediately, temporarily place a rag in the closet flange.

□ Turn off the water supply.
□ Flush the toilet.
□ Sponge out all remaining water from the tank.
☐ Disconnect the supply shut-off valve, if present.
□ Remove the old toilet.
□ Remove the old wax seal from the floor with a putty knife.
☐ Replace the old T-bolts with the new 5/16" diameter T-bolts.

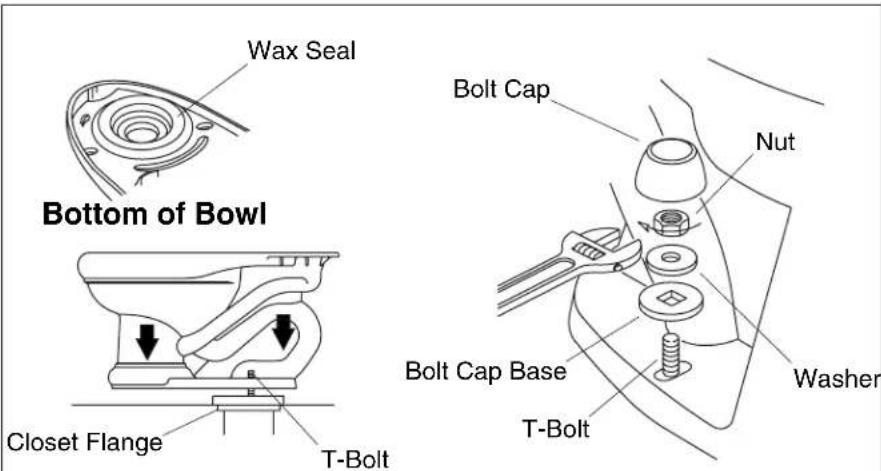

Wax Seal Bottom of Bowl Closet Flange T-Bolt Bolt Cap Nut Bolt Cap Base T-Bolt Washer

2. Install the New Toilet

☐ Install or relocate the supply and outlet as necessary to conform to the roughing-in dimensions.
□ Install a supply shut-off valve.
□ Lay the toilet down onto a padded surface.
□ From the bottom of the toilet, firmly press a new wax seal around the toilet outlet.
☐ Remove the temporary rag (if used) from the toilet flange hole.
□ Align and lower the toilet over the flange and T-bolts.

IMPORTANT! Do not lift or rock the bowl after placement. If you break the watertight seal, you must install a new wax seal.

□ Apply your full body weight around the toilet to set the seal.
☐ Place the bolt cap bases over the T-bolts in the "up" position as marked.
☐ Place the washers and nuts on the bolt cap bases and T-bolts.

IMPORTANT!Donotovertightenthenut.Overtightening may cause breakage or chipping of vitreous china.

□ Carefully tighten the nuts.

IMPORTANT!Riskofproductdamage.Protect the vitreous china from the saw blade when cutting off excess T-bolt length.

Install the New Toilet (cont.)

☐ Measure the length of the T-bolts from the top of the nuts. If the bolts extend 1/4'' (6 mm) or more, cut off the excess.
□ Attach the bolt caps.

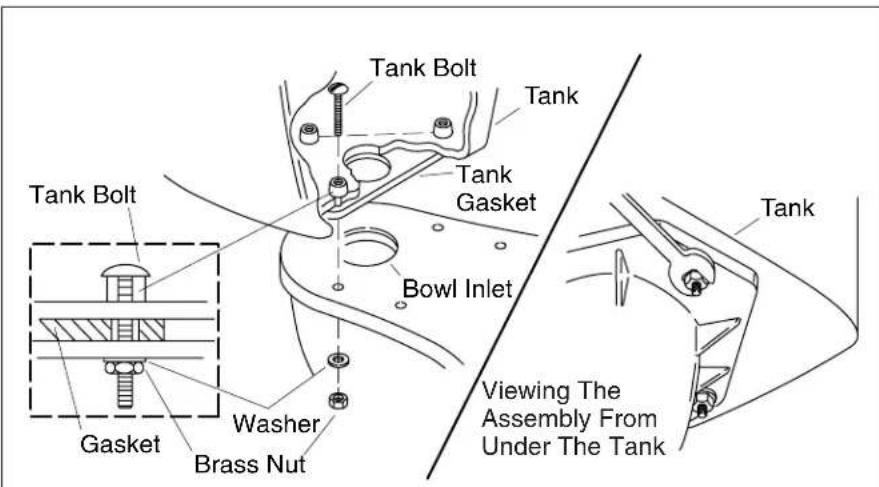

Tank Bolt Tank Tank Tank Gasket Tank Tank Bolt Gasket Washer Brass Nut Bowl Inlet Viewing The Assembly From Under The Tank

3. Install the Tank

IMPORTANT!Riskofproductdamage.Overtightening the tank bolts may cause breakage or chipping of the vitreous china.

□ Remove the nuts and washers from the preassembled tank bolts on the bottom of the tank.
□ Set the nuts and washers aside.
☐ Position the tank on the bowl by centering the gasket on the bowl inlet.
□ Assemble the washers and nuts to the tank bolts.
□ Tighten the nuts until snug.
□ Verify that the tank is level both left to right and front to back.
□ Make sure the nuts are tight enough to achieve a watertight seal.

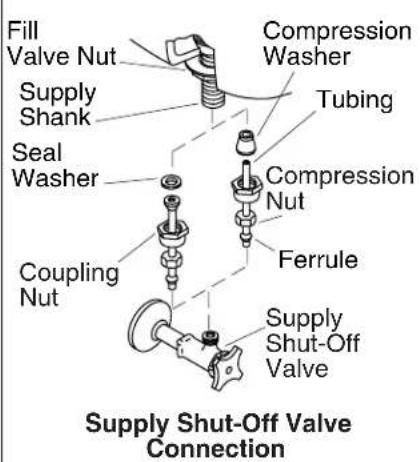

Fill Valve Nut Supply Shank Seal Washer Coupling Nut Compression Washer Tubing Compression Nut Ferrule Supply Shut-Off Valve Supply Shut-Off Valve Connection

Threaded Rod Waterline Adjusting the Water Level

4. Complete the Installation

☐ Install the trip lever if one is not already installed. Follow the instructions packed with the trip lever.
□ Connect the supply shut-off valve to the toilet supply shank.
☐ Open the supply shut-off valve slowly to check for leaks. If the connections have been properly assembled, a slight tightening of the nuts should stop leakage.
□ Install the toilet seat according to the packed instructions.
□ Carefully set the cover onto the tank.
☐ Flush the toilet several times and check all connections for leaks.
☐ Periodically check for leaks for several days following the installation.

Adjustments

□ Adjust the water level in the tank to the marked waterline.
☐ Rotate the threaded rod clockwise to raise the water level or counterclockwise to lower the water level as needed.
☐ Periodically check for leaks for several days following the installation.

Line drawing of a circular mechanical component with textured surfaces and a handle, no text or symbols present

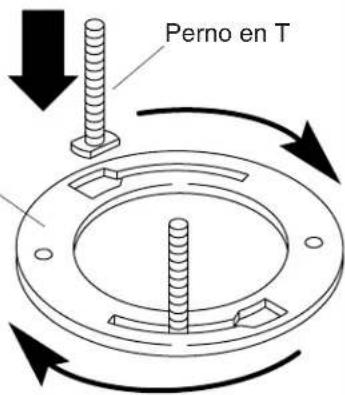

Brida de inodoros
