USER MANUAL Novita K-BD-N450US KOHLER

WARNING: Riskofelectricshock, fire, or personal injury. This product must be grounded and connected only to a dedicated, nominal 120 VAC, 60 Hz circuit protected by a minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD).

WARNING: Riskofelectricshock. Do not immerse or flush the product with water.

IMPORTANT!Riskofproductdamage.Do not install this product in a location exposed to excessive moisture where condensation might form on the product surface.

IMPORTANT!Riskofproductorpropertydamage.Pushing or pulling on the water supply connections may cause water leakage.

IMPORTANT!Riskofproductdamage.Do not supply electrical power to the unit until the plumbing installation work has been completed, as it may cause the product to malfunction.

□ Observe all local plumbing, electrical, and building codes.

☐ Only connect the seat to a drinking quality cold water supply with a pressure of 20 (139 kPa) - 80 psi (551 kPa).

CAUTION: Riskofpropertydamage. Damaged water connections may leak. Do not push or pull on the water supply connections between the seat and the water supply stop.

NOTICE: To avoid possible product malfunction, do not plug in the seat until instructed.

NOTICE: Do not install this seat in a location where: (1) water might be splashed on the product or (2) excessive moisture, high humidity levels, or condensation are present. This will avoid damage to the electronic components.

NOTICE: Do not use an extension cord with this product.

Tools and Materials

PLUS:

• Plastic Wrap
  • Common plumbing and woodworking tools and materials

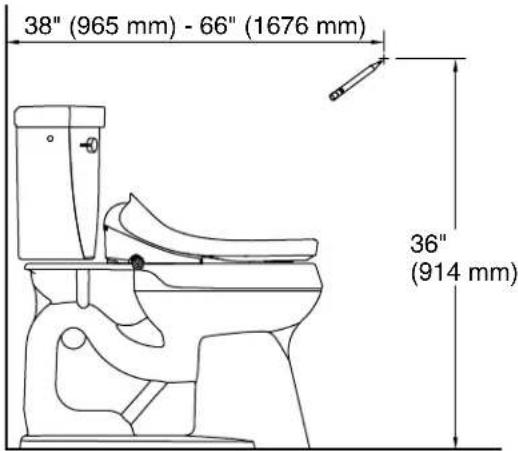

38" (965 mm) - 66" (1676 mm) 36" (914 mm)

1. Prepare the Site

WARNING: Riskofelectricshock, fire, or personal injury.

This product must be grounded and connected only to a dedicated, nominal 120 VAC, 60 Hz circuit protected by a minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD).

☐ If applicable, remove the existing toilet seat.
□ Turn off the water supply to the toilet.
☐ Flush the toilet to relieve any pressure from the water supply hose.
☐ Disconnect the water supply hose from the toilet fill valve.
□ Use a pencil to mark the remote control installation location on the wall.

Install an Electrical Outlet

□ Determine the electrical outlet location. Locate the electrical outlet within 12"(305 mm) of the toilet.

IMPORTANT! Do not plug the seat into the electrical outlet at this time.

☐ Install and ground the electrical outlet. This electrical outlet must be a dedicated, nominal 120 VAC, 60 Hz circuit protected by a minimum 15 A Ground-Fault Circuit-Interrupter (GFCI) or Residual Current Device (RCD).

Grounded Outlet Grounding Plug

Adapter Grounding Screw Tab Cover Screw

Temporary ConnectionPreferred Connection

2. Grounding Instructions

☐ This product should be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This product is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

DANGER: Riskofelectricshock. Improper use of the grounding plug can result in a risk of electric shock.

☐ If repair or replacement of the cord or plug is necessary, do not connect the grounding wire to either flat blade terminal. The wire with insulation having an outer surface that is green with or without yellow stripes is the grounding wire.
☐ Check with a qualified electrician or service personnel if the grounding instructions are not completely understood, or if in doubt whether the product is properly grounded.

NOTICE: Follow local codes when determining the connection type. The temporary connection may not be permitted by local electrical codes.

NOTICE: To avoid possible product malfunction, do not plug in the seat until instructed.

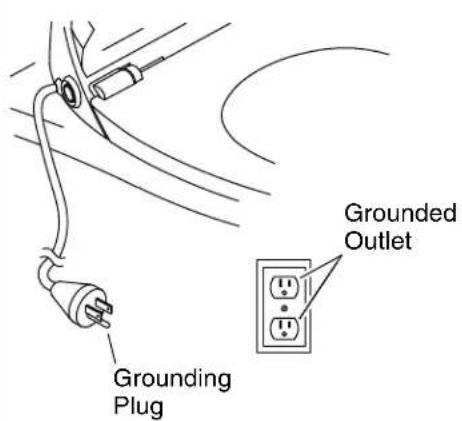

Preferred Connection

□ Connect the grounding plug into a grounded outlet that has the same configuration as the plug.

Grounding Instructions (cont.)

Temporary Connection

NOTICE: Unless the outlet cover screw is grounded through the house wiring, attaching the adapter grounding screw tab to the cover screw will NOT ground the unit. If there is any doubt whether the cover screw is grounded, have it checked by a qualified electrician or service professional.

☐ A temporary connection with a two-prong adapter may be used where local codes permit, provided the adapter is grounded.

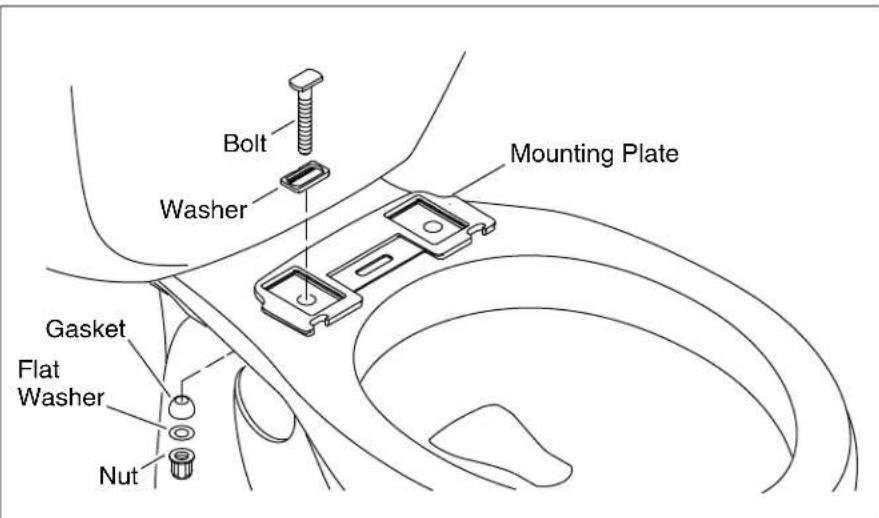

Bolt Washer Mounting Plate Gasket Flat Washer Nut

3. Install the Mounting Plate

☐ Position the mounting plate over the mounting holes on the bowl.
☐ Position the washers to rest in the mounting plate grooves.
☐ Fortoiletswiththreadedmountingholes: Insert the bolts through the washers and thread into the mounting holes. Do not fully tighten at this time.
☐ Forallotherinstallations: Insert the bolts through the washers and into the mounting holes. Thread a nut, gasket, and flat washer onto each bolt. Do not fully tighten at this time.

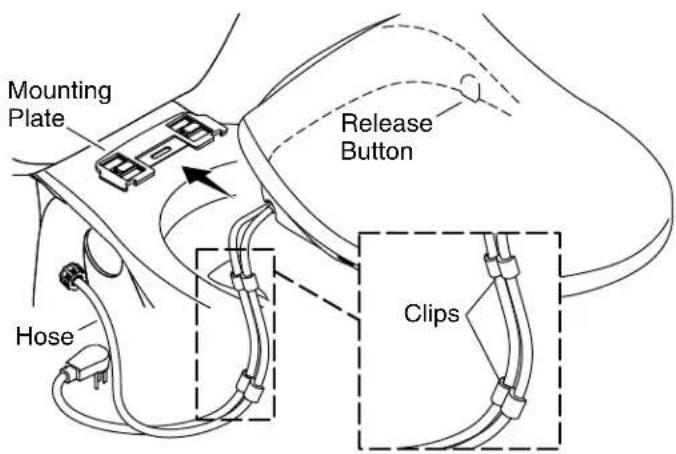

Mounting Plate Release Button Hose Clips

4. Install the Seat and Hose

Position the Seat

☐ Slide the seat onto the mounting plate until you feel it snap into place.
□ Check the positioning of the seat. Adjust the position if needed.

Adjust the Seat

□ Remove the seat by pressing in the release button and sliding the seat forward.
□ Loosen the bolts, and disengage the washers from the mounting plate.
□ Reposition the mounting plate as needed.
□ Reinstall the washers, and tighten the bolts to secure.

Install the Seat

□ Securely tighten the mounting plate bolts and nuts.
☐ Slide the seat onto the mounting plate until you feel it snap into place.

Install the Hose

IMPORTANT!Riskofproductdamage.Do not cross-thread the hose-to-seat connection.

□ Connect the seat supply hose to the cleansing seat. Do not overtighten.

Install the Seat and Hose (cont.)

☐ Use the supplied clips to attach the power cord and seat supply hose together.

Kohler Co. 9 1321455-2-A

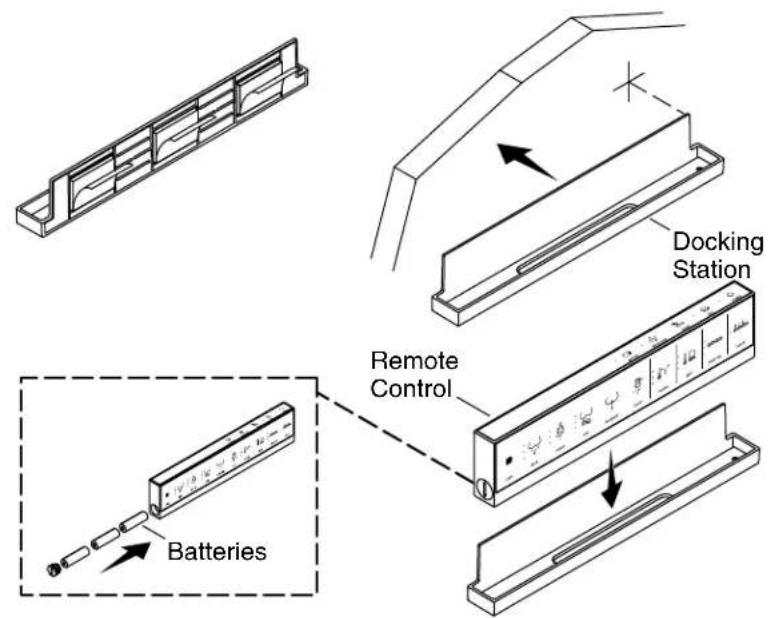

Docking Station Remote Control Batteries

5. Install the Remote Control

□ Attach the double-sided tape to the back of the docking station.
□ Peel the backing from the double-sided tape.
☐ Press the docking station onto the wall at the marked location, making sure that the holder is level.
□ Open the battery compartment on the back of the remote control, and install three AAA batteries.
□ Close the battery compartment.
☐ Position the remote control in the docking station.
☐ Check for proper operation of the remote control while you sit on the seat.

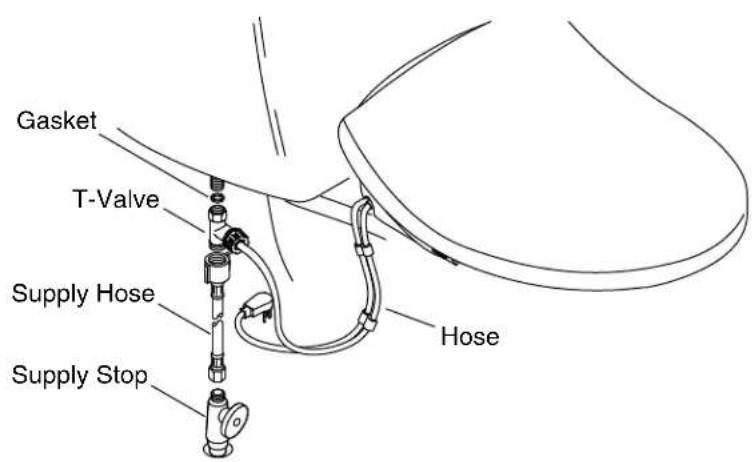

Gasket T-Valve Supply Hose Supply Stop Hose

6. Connect the Water Supply

CAUTION: Riskofpropertydamage. Do not push or pull on the water connection between the seat and the water supply stop. This will prevent water leakage.

NOTICE: Use care to avoid cross threading or overtightening the connections. Use an adjustable wrench to tighten one-quarter turn past hand tight.

□ Connect the T-valve to the seat hose.
☐ If needed, connect the supply hose to the supply stop.
□ Connect the supply hose to the T-valve.
□ Connect the T-valve to the water inlet on the toilet tank.
□ Turn on the water supply.
□ Check all connections for leaks and make any adjustments as needed.

Line drawing of a toilet with a valve and outlet, showing internal components and a downward arrow indicating a movement or force (no text or symbols present)

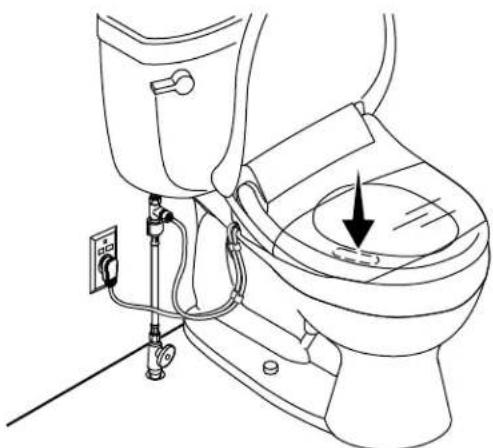

7. Installation Checkout

NOTE: Covering the seat with plastic wrap is optional. You can test the features while sitting on the cleansing seat or covering the wand with your hand.

NOTE: When testing the features, activate the sensor with your hand or by sitting on the cleansing seat.

☐ Plug the power cord into the electrical outlet. The seat will go through a power-up sequence.
□ Refer to the Homeowners Guide to test the various seat features.

Line drawing of a toilet with a wall-mounted electrical outlet and a black arrow indicating a pressure point (no text or symbols)

Line drawing of a toilet with a wall-mounted electrical outlet and a black arrow indicating a pressure point (no text or symbols)
