USER MANUAL Anatole K-2099-4 KOHLER
M product numbers are for Mexico (i.e. K-12345M)
M corresponden a Mexico (Ej.
K-12345M)
Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before you start installation. If you encounter any installation or performance problems, please don't hesitate to contact us. Our phone numbers and website are listed on the back cover. Thanks again for choosing Kohler Company.
Before You Begin
- Observe all local plumbing and building codes.
Prior to installation, unpack the new lavatory and inspect it for damage. Return the lavatory to its protective carton until you are ready to install it.
These instructions are for installing the lavatory to wood frame construction. For other installations, supply suitable bracing and fastening devices of sufficient size and strength.
The walls and floor must be square, plumb, and level.

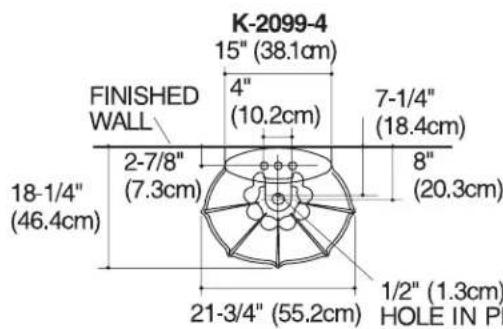

Fixture dimensions are nominal and conform to tolerances in ASME Standard A112.19.2M.
1/2" (1.3cm) D. MOUNTING HOLE IN PEDESTAL
1. Preparation
- Install the water supplies and drain piping according to the roughing-in information. Install the supply stops so the handles will not touch the pedestal when fully open.
- Install sufficient backing behind the finished wall to provide a secure material for the anchoring devices.
- Apply five self-adhesive gaskets (provided) to the top edge of the pedestal as shown.
- Mark the centerline on the floor.
Refer to the roughing-in information, and position the pedestal on the floor centerline location at the required distance from the finished wall.
Carefully lift the lavatory into place on the pedestal, and slowly move the pedestal as required to ensure proper fit in the desired location.
NOTE: The lavatory must be supported by the pedestal.
Level the lavatory, and add additional self-adhesive gaskets as needed to level.
Kohler Co. 3 1016176-2-A
Preparation (cont.)
- Locate the two lavatory anchoring holes, and mark the hole locations on the finished wall. Now mark the floor through the hole in the pedestal bottom.
Carefully remove the lavatory from the pedestal. Then move the pedestal from the area.

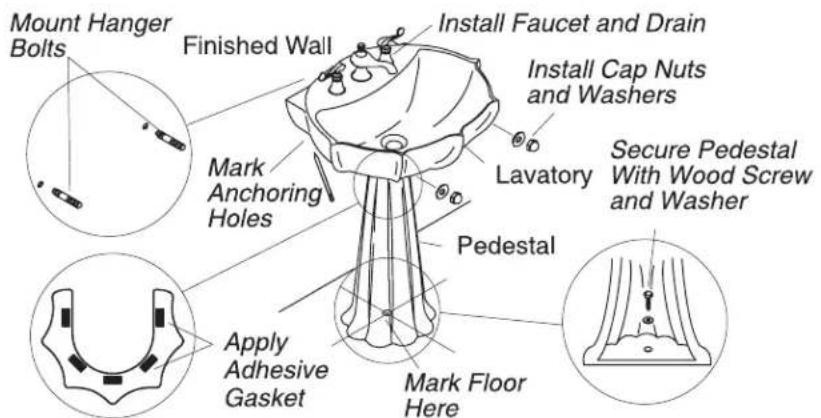

Pedestal and Lavatory Placement
2. Install the Lavatory
- Drill 1/4'' mounting holes at the marked locations on the finished wall and the floor.
NOTE: You can also use other fastening devices of sufficient size and strength.
Install the hanger bolts to the backing material so they extend
Install the faucet and drain to the lavatory according to the manufacturer's instructions. - Carefully set the lavatory on the pedestal so the hanger bolts extend through the lavatory anchoring holes.
CAUTION: Risk of product damage. Do not overtighten the cap nuts. Overtightening may damage the product.
Install the cap nuts and washers to the hanger bolts. Level the lavatory, and carefully tighten the cap nuts until snug.
- Connect and tighten the trap to the drain, and complete the water supply connections to the faucet according to the instructions packed with the faucet.
