USER MANUAL SKW 5 C1 SILVERCREST

Last Information Update

Description of the following:

Operating instructions and safety instructions

M. DE

DIGITALE KELIKENWEEGSCHAAI

Handeiding en veilicheldsaanwizingen

(1)

(c2) DIGITAL NIVICU VENIOVIA

DIGITALNIKOCHYNSKA VAHA

Simple line drawing of a rectangular container with a lid and two side legs (no text or symbols)

9. Problemlösung

https://www.targa.gmbh/downloads/conformity/486298_2501.pdf

1. Intended use....16
2. Package contents....16
3. Overview ....16
4. Technical specifications ....17
5. Safety instructions....17
6. Copyright....20
7. Before you start....20
   7.1 Activating the battery 20
8. Getting started....20
   8.1 Switching on the kitchen scales / weighting.... 20
   8.2 Weighting additional items ...... 21
   8.3 Auto power off 21
   8.4 Replacing the battery....22
9. Troubleshooting 22
   9.1 Nothing is indicated on the display....22
   9.2 "Lo" is indicated on the display and the scales switch off....22
   9.3 "Err" is indicated on the display 22
10. Maintenance/cleaning 23
    10.1 Maintenance....23
    10.2 Cleaning....23
11. Storage when not in use ....23
12. Environmental regulations and disposal information....23
13. Food-grade use 25
14. Conformity notes....25
15. Warranty and Service Information ....25

Congratulations!

By purchasing the SilverCrest SKW 5 CI kitchen scales, hereinafter referred to as the kitchen scales, you have opted for a quality product.

Before first using it, familiarise yourself with the way the kitchen scales work and read these operating instructions through carefully. Be careful to follow the safety instructions and only use the kitchen scales as described in the operating instructions and for the applications given.

Keep these operating instructions in a safe place. If you pass the kitchen scales on to someone else, make sure to give them all the relevant documents with it.

1. Intended use

These kitchen scales are used to determine the weight of food. It may not be used outdoors or in tropical climates. These kitchen scales have not been designed for corporate or commercial use. Use the kitchen scales in domestic environments for private applications only. Any other use does not correspond to the intended use. These kitchen scales fulfill all relevant norms and standards concerning CE conformity. Any modifications to the kitchen scales other than recommended changes by the manufacturer may result in these standards no longer being met. The manufacturer accepts no liability for any damage or malfunctions resulting from this. Only use accessories recommended by the manufacturer.

Observe the regulations and laws in the respective country of use.

2. Package contents

• SilverCrest SKW 5 C1 kitchen scales
• Lithium battery, CR2032
• These operating instructions

3. Overview

These operating instructions have a fold-out cover. On the inside of the cover, the kitchen scales (models A, B and C) are shown with figures indicated. The meanings of the numbers are as follows:

1 Weighting surface
2 TARE button
3 Display
4 UNIT button
5 Battery compartment (back panel)

4. Technical specifications

Operating voltage: 3 V (DC)

Battery: 1 Lithium battery, 3 V, CR2032

Weight units: g / oz / lb:oz / ml / fl.oz [adjustable]

Weighting range: max. 5 kg / 11 lb

Graduation: 1g / 0.01oz / 1ml

Auto Power Off function: yes

Operating temperature: +10°C to +40°C

The technical data and design may be changed without prior notice.

5. Safety instructions

Before you use the kitchen scales for the first time, please read the following notes and heed all warnings, even if you are familiar with handling electronic devices. Keep these operating instructions in a safe place for future reference. If you sell the kitchen scales or give them away, pass on the operating instructions at the same time. The operating instructions are an integral part of the product.

DANGER! This symbol and the word “Danger” alert you to a potentially dangerous situation. Ignoring it can lead to severe injury or even death.

WARNING! This symbol and the word “Warning” denote important information required for the safe operation of the product and for the safety of its users.

Store batteries out of the reach of children.

This symbol denotes further information on the topic.

Manufacturer's address

This symbol indicates that the kitchen scales switches on automatically when there is a load of at least 250 ~g or 0.55 ~lb on the weighting surface [1].

DANGER! These kitchen scales may be used by children of 8 years or over or by persons with physical, sensory or mental impairments or persons without sufficient knowledge or experience, providing they are supervised or they have received instructions regarding the proper use of the device and they understand the associated risks. Do not allow children to play with the kitchen scales. The product must not be cleaned or maintained by unsupervised children. Keep the packaging materials out of the reach of children. There is a risk of suffocation.

DANGER! Do not overload the kitchen scales with more than 5 kg or 11 lb. Otherwise, the kitchen scales could be damaged and there is a risk of injury.

DANGER! Make sure that no fire hazards (e.g. burning candles) are placed on or near the kitchen scales. Fire hazard!

DANGER! Insert the battery with the correct polarity. Refer to the diagram inside the battery compartment. Do not attempt to recharge any batteries and never throw the batteries into a fire. Remove the battery if the device is not going to be used for a long time. Improper use may cause explosions and danger to life. Batteries are not toys! If a battery is swallowed, seek medical help immediately. Batteries must never be

opened or deformed, as this could result in chemicals leaking out which could cause injuries. If the battery fluid comes into contact with the skin or eyes, rinse immediately with plenty of water and seek medical aid.

WARNING! If smoke, unusual noises or smells are noticed, remove the battery from the kitchen scales immediately. If this occurs, the kitchen scales should not be used before they have been inspected by authorised service personnel. Never inhale smoke from a possible device fire. inadvertently inhale smoke, seek medical attention. Smoke inhalation can be damaging to your health.

WARNING! The kitchen scales must not be damaged in order to avoid any further risks.

WARNING! Do not short-circuit the battery. Remove the battery from the device when you are not going to use it for a long period of time. If the battery has leaked, remove it to prevent damage to the kitchen scales. You can wipe off any leaked battery fluid by using a dry, absorbing cloth. Always wear protective gloves! Avoid any skin contact. If the battery fluid comes into contact with the skin or eyes, rinse immediately with plenty of water and seek medical aid.

WARNING! Non-rechargeable batteries must not be recharged.

⚠ WARNING! Do not short-circuit any battery contacts.

⚠ WARNING! Batteries must be inserted respecting the correct polarity.

WARNING! When it is empty, remove the battery from the device and dispose of safely.

WARNING! Do not expose the kitchen scales to any direct heat sources (e.g. heaters), direct sunlight or artificial light. The product must not be exposed to spray or dripping water or abrasive liquids. Do not use the kitchen scales near water. The kitchen scales must never be submerged. Make sure that the kitchen scales are not subject to excessive impacts or vibrations. Do not introduce any foreign bodies into the device. This could damage the kitchen scales.

6. Copyright

All the contents of this user manual are protected by copyright and provided to the reader for information only. Copying data and information without the prior explicit written consent of the author is strictly forbidden. This also applies to any commercial use of the contents and information. All texts and diagrams are up-to-date as of the date of printing. Subject to change without notice.

7. Before you start

7.1 Activating the battery

Remove the plastic strip from the battery compartment (5) on the bottom of the kitchen scales.

8. Getting started

A solid surface is required to measure weight correctly. Thus always place the kitchen scales on a solid, horizontal surface. Otherwise this can distort the measurement result.

8.1 Switching on the kitchen scales / weighting

- Briefly press on the weighting surface (1), applying a little pressure to switch the kitchen scales on.

But you can also, for example, place a bowl with minimum 250 g or 0.55 lb on the weighting surface [1]. The kitchen scales switches on and sets to "Zero".

- The measuring unit and/or weight unit set is shown on the display [3]. The symbols have the following meanings:

Symbol	Meaning
Tare	The function for weighting additional items has been used.
	Weight [g, oz, lb:oz]
	Liquid [ml, fl.oz]
	Milk [ml, fl.oz]

• Press the Unit button (4) to switch between measuring units and weight units.
• Place the foodstuff on the weighting surface [1].
• The measurement result is shown on the display [3].
• Remove the foodstuff from the weighting surface [1] if you don't wish to weight any more items.
• If you want to add another item, refer to the next chapter "Weighting additional items".

8.2 Weighting additional items

• Press the TARE button (2) to weight additional items.
• The kitchen scales reset to "Zero". "Tare" is also shown on the display [3].
• Add the new item(s) to be weighted. The display [3] shows the measurement result of the new items.
• Repeat this procedure if you want to weight more items. Please note that the maximum weight of 5 kg must not be exceeded.
• Remove the foodstuff from the weighting surface (1) if you don't wish to weight any more items.
• Press the TARE button (2) to stop weighting additional items.
• The kitchen scales reset to "Zero". "Tare" is no longer shown on the display [3].

8.3 Auto power off

The kitchen scales have an automatic switch-off function [Auto Power Off function]. When not using it for approx. 3 minutes, the kitchen scales switch off automatically.

Press and hold the TARE button [2] for approx. 3 seconds to switch the kitchen scales off manually.

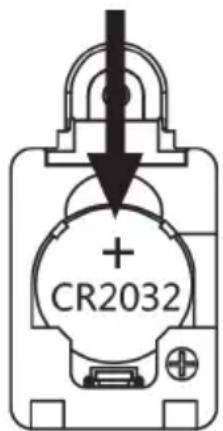

8.4 Replacing the battery

Replace the battery when it is empty. Proceed as follows:

• Place the kitchen scales on a soft surface with the weighting surface (1) facing downwards.
• Loosen the screw inside the battery compartment [5] using a suitable Phillips screwdriver.
• Remove the battery compartment cover.
• To remove the battery, push it down a bit (see the direction of the arrow in the illustration). You can then remove the battery from the holder.
• Then insert a new CR2032 lithium battery. Always pay attention to the polarity. This is indicated in the battery compartment [5], and the + symbol on the lithium battery CR2032 must be visible, as shown in the adjoining illustration.
• Insert the battery compartment [5] cover back to its original position.
• Insert and tighten the screw on the battery compartment cover.

The kitchen scales are now ready to use.

+ CR2032

Simple line drawing of a rectangular container with a lid and two side legs (no text or symbols)

9. Troubleshooting

9.1 Nothing is indicated on the display

• The battery is empty. Replace the battery with new battery of the same type. Please note the instructions in the "Replacing the battery" section.
• The battery isn't inserted properly. Please note the instructions in the "Replacing the battery" section.

9.2 "Lo" is indicated on the display and the scales switch off

- The battery is almost empty. Replace the battery with new battery of the same type. Please note the instructions in the "Replacing the battery" section.

9.3 "Err" is indicated on the display

- The weight exceeds the maximum load of 5 kg. Immediately remove the items from the weighting surface [1] to avoid damaging the kitchen scales.

10. Maintenance/cleaning

10.1 Maintenance

Repairs are required if the kitchen scales have been damaged in any way, for example if the device housing is damaged, when liquids or objects have penetrated into the kitchen scales or when the product has been exposed to rain or moisture. Repairs are also necessary if the product does not perform normally or if it has been dropped. If smoke, unusual noises or smells are noticed, remove the battery from the kitchen scales immediately. If this occurs, the kitchen scales should not be used before they have been inspected by authorised service personnel. All servicing work must be carried out by qualified specialist personnel. Never open the housing of the kitchen scales.

10.2 Cleaning

Only use a clean, slightly dampened cloth to clean the kitchen scales. Never use any aggressive liquids. For stubborn dirt, add a little detergent to the damp cloth.

11. Storage when not in use

If the kitchen scales are not to be used for an extended period, store them in a safe, clean and dry place.

• Remove the battery.
• Before storing the kitchen scales, clean the device as described in the previous chapter.

12. Environmental regulations and disposal information

		Devices marked with this symbol are subject to the European Directive 2012/19/EU. All electrical and electronic devices must be disposed of separately from household waste at official disposal centres. Avoid damage to the environment and risks to your personal health by disposing of the device properly. For further information about proper disposal, contact your local government, disposal bodies or the shop where you bought the device.
		The symbol of the crossed-out wheelie bin on conventional and rechargeable batteries indicates that they cannot be disposed of in normal domestic waste but must be disposed of separately.Where batteries contain toxic materials, the chemical symbol of the toxic material is shown underneath the symbol, with meanings as follows:- Pb: Battery contains lead- Cd: Battery contains cadmium-Hg: Battery contains mercuryYou are obliged by law to return used batteries. Old batteries can contain toxic materials which can be damaging to health or the
		environment if not properly stored or disposed of. Batteries also contain important raw materials, such as iron, zinc, manganese and nickel, which can be reused.After use, you can return the batteries to us or to a local collection point (e.g. in retail outlets or a local collection point) free of charge. Please note that batteries must be disposed of fully discharged at appropriate collection points for old batteries. If disposing of batteries which are not fully discharged, take precautions to prevent short circuits.
		Dispose of all packaging in an environmentally friendly manner. Cardboard packaging can be taken to paper recycling centres or public collection points for recycling. Any film or plastic contained in the packaging should be taken to your public collection points for disposal.
ES/PT
Only relevant for France:“Sorting made easy”The product, the accessories, the printed material and the packaging are recyclable. They are subject to enhanced manufacturer responsibility and are sorted and collected separately.
Only relevant for Spain and Portugal:Please separate the packaging material and dispose of it in the relevant collection containers according to the symbols on the packaging:
		Please note the markings on the packaging material when disposing of it, it is labelled with abbreviations [a] and numbers [b], the meanings of which are as follows:1-7: plastic / 20–22: paper and cardboard / 80-98: composite materials.
Symbol	Material	Contained in the following packaging elements for this product
		Polyethylene terephthalate
		Corrugated cardboard Sales packaging, inner box
		Paper

13. Food-grade use

This symbol designates products whose physical and chemical composition has been tested and found to be non-hazardous to health when used in contact with food in accordance with the requirements of Regulation EU 1935/2004.

14. Conformity notes

The product complies with the requirements of the applicable European and national directives. Evidence of conformity has been provided. The manufacturer has the relevant declarations and documentation.

The product complies with the requirements of the applicable national directives of the Republic of Serbia.

The complete EU declaration of conformity and, if applicable, additional declarations of conformity can be downloaded from the following link:

https://www.targa.gmbh/downloads/conformity/486298_2501.pdf

Contact address in accordance with 2023/988 Product Safety Regulation: [e-mail]

15. Warranty and Service Information

Warranty of TARGA GmbH

Dear Customer,

This device is sold with three years warranty from the date of purchase. In the event of product defects, you have legal rights towards the seller. These statutory rights are not restricted by our warranty as described below.

Warranty conditions

The warranty period commences upon the date of purchase. Please keep the original receipt in a safe place as it is required as proof of purchase. If any material or manufacturing faults occur within three years of purchase of this product, we will repair or replace the product free of charge as we deem appropriate.

Warranty period and legal warranty rights

The warranty period is not extended in the event of a warranty claim. This also applies to replaced and repaired parts. Any damage or defects discovered upon purchase must be reported immediately when the product has been unpacked. Any repairs required after the warranty period will be subject to charge.

Scope of warranty

The device was carefully manufactured in compliance with stringent quality guidelines and subjected to thorough testing before it left the works. The warranty applies to material and manufacturing faults. This warranty does not cover product components which are subject to normal wear and which can therefore be regarded as wearing parts, or damage to fragile components such as switches, rechargeable batteries or components made of glass. This warranty is void if the product is damaged, incorrectly used or serviced. To ensure correct use of the product, always comply fully with all instructions contained in the user manual. The warnings and recommendations in the user manual regarding correct and incorrect use and handling of the product must always be observed and complied with. The product is solely designed for private use and is not suitable for commercial applications. The warranty is rendered void in the event of incorrect handling and misuse, if it is subjected to force, and also if any person other than our authorised service technicians interfere with the device. No new warranty period commences if the product is repaired or replaced.

Submitting warranty claims

To ensure speedy handling of your complaint, please note the following:

- Before using your product for the first time, please read the enclosed documentation carefully. Should any problems arise which cannot be solved in this way, please call our hotline.

- Always have your receipt, the product article number as well as the serial number [if available] to hand as proof of purchase.

- If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault.

- You can find this and many more manuals, product videos and installation software available for download at www.lidl-service.com. This QR code takes you directly to the LIDL service page [www.lidl-service.com]. There, you can enter the item number (IAN) to access your operating manual.

PDF ONLINE www.lidl-service.com

Service

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

IAN: 486298_2501

Manufacturer

Please note that the following address is not a service address. First contact the service point stated above.

TARGA GmbH

Coesterweg 45

59494 Soest

GERMANY
