SPW 180 B2 - Scale SILVERCREST - Free user manual and instructions

Product Type	Kitchen Scale
Brand	SilverCrest
Model	SPW 180 B2
Color	White / Stainless Steel
Display Type	LCD, backlit
Maximum Capacity	5 kg (5000 g)
Division (Precision)	1 g
Measurement Units	g, kg, oz, lb:oz, ml, fl.oz
Tare Function	Yes
Auto‑Off	Yes, after approx. 2 minutes of inactivity
Overload Indicator	"EEEEE"
Low Battery Indicator	Yes
Power Supply	2 x AAA batteries (1.5 V)
Dimensions (approx.)	20 x 15 x 2 cm
Weight (scale only)	300 g
Platform Material	Stainless Steel
Housing Material	ABS Plastic
Care Instructions	Wipe with a damp cloth; do not immerse in water
Safety Warnings	Use on a flat, stable surface; keep away from water; not for commercial use
Spare Parts / Repairability	No user‑serviceable parts; only batteries are replaceable. Contact customer service for repairs.
Included Accessories	Instruction manual, batteries (not included in some regions)

Frequently Asked Questions - SPW 180 B2 SILVERCREST

How do I calibrate the SilverCrest SPW 180 B2 scale?

This scale is calibrated at the factory and does not require user calibration. If you suspect inaccuracy, place a known weight (e.g., a 500 g certified weight) on the scale and verify the reading. If it is off, contact SilverCrest customer service.

What is the maximum weight this scale can measure?

The maximum capacity is 5 kg (5000 g). Exceeding this will show an overload indicator 'EEEEE'.

How do I change the battery?

Open the battery compartment on the bottom, remove the old batteries, and insert two new AAA 1.5 V batteries, observing the correct polarity.

How do I clean the scale?

Wipe the surface with a soft damp cloth. Do not use abrasive cleaners or immerse the scale in water. Dry thoroughly before use.

Why does the scale show an error or 'EEEEE'?

The 'EEEEE' indicates overload. Remove the item immediately. Also check that the scale is on a flat surface and the batteries are not low.

How do I switch between measurement units?

Press the UNIT button (usually on the side or front) to cycle through g, kg, oz, lb:oz, ml, fl.oz. The unit will be displayed on the screen.

Can I use the scale to measure liquids?

Yes, select the ml or fl.oz mode. Place an empty container on the scale, tare to zero, then add the liquid. The scale will display volume based on density of water; for other liquids, accuracy may vary.

Does the scale have a tare function?

Yes, press the TARE/ZERO button to reset the display to zero with a container on the platform. This allows you to weigh ingredients without the container's weight.

Why does the scale turn off automatically?

The scale has an auto-off feature to save battery. It will turn off after approximately 2 minutes of inactivity. Press any button or place weight on the scale to wake it.

Is the scale accurate?

The scale has a precision of 1 g and is designed for home use. For best accuracy, place it on a hard, level surface, and ensure it is not near electronic interference.

USER MANUAL SPW 180 B2 SILVERCREST

User manual and service information

(1)

(No text)

Supplied items.... 3

Technical data 4

Safety instructions.... 4

Copyright 5

Prior to use....6

Inserting the battery....6

First use....7

Switching on the scales / measuring weight 7

Auto Power Off....7

Troubleshooting 8

Nothing is indicated on the LCD display 8

"Lo" is indicated on the LCD display and the scales switch off....8

"USEL" is indicated on the LCD display and the scales switch off....8

"Err" is indicated on the LCD display....8

Cleaning / maintenance 8

Environmental and disposal information....9

Disposal of batteries....9

Conformity information....9

Warranty and servicing advice 10

Introduction

Thank you for purchasing a SilverCrest product.

The SilverCrest glass bathroom scales SPW 180 B2, hereinafter referred to as glass scales, are used for the convenient and precise determination of your body weight. They are impressive with their sleek design and ease of use.

Intended use

These glass scales should not be used outdoors or in tropical climates. These glass scales are not designed for commercial use or operation in a company. Use the glass scales only for private use in living areas as any other use is not as intended. These glass scales meet all relevant norms and standards in conjunction with CE conformity. In the event of any modification to the glass scales that was not approved by the manufacturer, compliance with these standards is no longer guaranteed. The manufacturer does not accept any liability for any resulting damage or faults in such cases. Only use accessories specified by the manufacturer.

Please observe the regulations and laws in the country of use.

Supplied items

• SilverCrest glass scales SPW 180 B2
• 1 lithium battery CR2032
• These operating instructions

These operating instructions have a fold-out cover. The glass scales are illustrated with numbers on the inside cover. The numbers indicate the following:

1 LCD display
2 Tread
3 Button for setting the unit of weight
4 Battery compartment

Technical data

Operating voltage: 3V

Battery: 1 x 3V lithium battery CR2032

Battery run time: approx. 5 years (for daily operation time of 60 seconds)

Units of weight: kg / lb / st (adjustable)

Weighing range: 5kg to max. 180kg / 396lb / 28st

Graduation: 0.1kg / 0.2lb

Measuring tolerance: +/- (1% +0.1 kg/ 0.2lb) for 30kg to 180kg

Auto Power Off function: approx. 10 seconds

Dimensions (W x D x H): 300 x 300 x 20 mm

Weight: approx. 1580g including battery

Operating temperature: +10°C to +40°C

The technical data and design may be changed without notification.

Safety instructions

Before using the glass scales for the first time, always read the following instructions and pay attention to all warnings, even if you are familiar with handling electronic devices. Store these operating instructions in a safe place for future reference. If you sell the glass scales or pass them on, always include these instructions.

This symbol indicates important information for safe operation of the glass scales and the safety of the user.

This symbol indicates that one must not step on the glass scales with wet or

damp feet. The same applies if the tread is wet or damp. You could slip and injure yourself.

This symbol indicates other important information on the topic.

These glass scales can be used by children aged 8 and older and by persons with reduced physical, sensory or mental abilities or lack of experience and knowledge if they are supervised or have been instructed on the safe use of the scales and understand the resulting risks. Children must not play with the scales. Cleaning and user maintenance must not be carried out by children without supervision. Always keep plastic packaging away from children as it poses a suffocation risk.

Do not step on the glass scales with wet or damp feet or when the tread is damp. You could slip and injure yourself.

Do not overload the glass scales with more than 180kg. Otherwise, the glass scales could be damaged and there is a risk of injury.

Do not jump on the tread of the scales. It could be damaged otherwise and there is a risk of injury.

If smoke is produced, or there are any unusual sounds or smells, remove the battery immediately from the glass scales. In such cases, the scales should not be used until they have been inspected by authorised service personnel. Never inhale smoke from a potential device fire. If you have inhaled smoke, however, consult a doctor. The inhalation of smoke can be harmful.

The glass scales must not become damaged in order to prevent hazards.

⚠ Ensure that no fire sources (e.g. burning candles) are placed on or near the glass scales. It poses a fire hazard!

The glass scales must never be exposed to any direct heat sources (for example, heaters) or direct sunlight or artificial light. Also avoid contact with dripping water and splashes and corrosive liquids. Do not use the glass scales near water. In particular, the glass scales should never be submerged in liquid (do not place any items filled with liquid, e.g. vases or drinks near the scales). Also ensure that the glass scales are never subjected to excessive shocks and vibrations. Furthermore, no foreign objects may penetrate the device. Otherwise, the glass scales could be damaged.

Copyright

All information contained in these instructions is subject to copyright and is provided for information purposes only. It is only permitted to copy or duplicate data and information with the express and written consent of the author. This also includes commercial use of the content and data. The text and illustrations are based on the state of the art at the time of printing. Subject to change without notice.

Prior to use

Inserting the battery

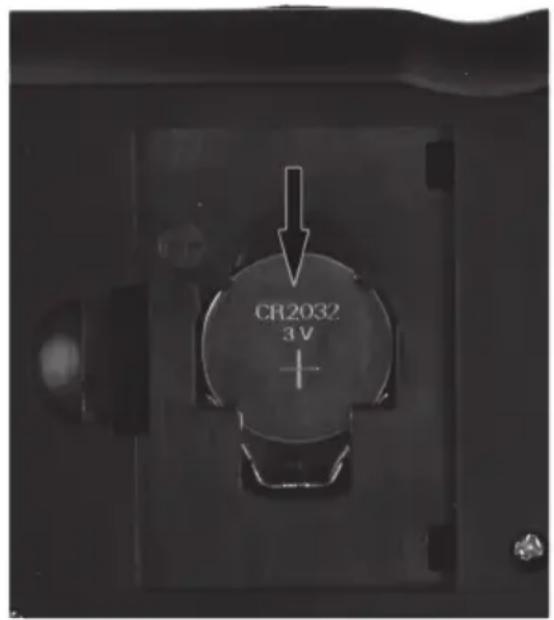

To insert the lithium battery CR2032, open the cover of the battery compartment at the rear of the glass scales by slipping your finger into the slot on the side of the battery compartment (4). Now remove the cover of the battery compartment (4) and insert the enclosed lithium battery CR2032. Pay attention to the polarity when inserting the battery. This is indicated in the battery compartment (4), and the + symbol on the lithium battery CR2032 must be visible, as shown in the adjoining illustration. Then replace the cover on the battery compartment (4). The glass scales are now ready to use.

First use

Switching on the scales / measuring weight

Due to the step on power function, the glass scales are switched on automatically when you step on the tread (2) and they start to measure your weight immediately.

In their original state, the glass scales are set to the "kg" unit of weight. To change the unit of weight, press the "Button for setting the unit of weight" (3) when the scales are switched on. The selected unit of weight is then indicated on the LCD display (1).

Stand on the tread (2) of the scales so that your weight is evenly distributed. Remain as still as possible during the weighing process as the measurement result may be distorted otherwise. The measurement result is indicated on the LCD display (1) during the weighing process. The measurement is complete when the display flashes three times.

Solid ground is required to measure weight correctly. Thus always place the glass scales on a solid, horizontal floor covering and never on carpet. This can distort the measurement result.

To obtain comparable measurement results, you should always weigh yourself if possible at the same time of day (preferably in the morning). Always weigh yourself if possible under the same conditions: on an empty stomach, after having gone to the toilet and naked.

Please note that values for the stone unit of weight are not represented as decimal values. The display is divided into two segments by a colon. Only whole numbers are displayed in the "st" unit of weight to the left of the colon. The remaining weight is displayed in the "lb" unit of weight to the right of the colon.

Example: "6:6.8 st" is shown on the display. This corresponds to 6 st and 6.8 lb.

Auto Power Off

The glass scales have an automatic switch-off function (Auto Power Off function). The glass scales switch off automatically about 10 seconds after you step off the tread (2).

Troubleshooting

Nothing is indicated on the LCD display

• The lithium battery CR2032 is empty. Replace the lithium battery CR2032 with another of the same type. In this case, please observe the instructions for inserting the battery on page 6.
• The lithium battery CR2032 is inserted incorrectly. In this case, please observe the instructions for inserting the battery on page 6.

"Lo" is indicated on the LCD display and the scales switch off

- The lithium battery CR2032 is almost empty. Replace the lithium battery CR2032 with another of the same type. In this case, please observe the instructions for inserting the battery on page 6.

"USEL" is indicated on the LCD display and the scales switch off

- An error has occurred and the scales cannot measure your weight. In this case, step off the tread (2) of the scales and step on it again. The weight measurement starts again.

"Err" is indicated on the LCD display

- Your weight exceeds the maximum load capacity of 180kg / 396lb / 28st. You should step off the tread (2) of the glass scales immediately to avoid damaging the scales.

Cleaning / maintenance

It is necessary to service the glass scales if they have been damaged in any way, for example, if the housing is damaged, if liquid or objects have penetrated the scales or if they have been exposed to rain or moisture. Servicing is also required if the scales are not working properly or have been dropped. If smoke is produced, or there are any unusual sounds or smells, remove the battery immediately from the glass scales. In such cases, the scales should not be used until they have been inspected by authorised service personnel. Only have qualified personnel carry out the maintenance work on the device. Never open the housing of the glass scales. Only use a clean, dry cloth for cleaning and never use any corrosive liquids.

Environmental and disposal information

When the crossed out wheelie bin symbol appears on a product, this indicates that the product is subject to the European Directive 2002/96/EC.

All old electrical and electronic devices must be separated from normal household waste and disposed of at designated state facilities. The correct disposal of old devices

in this manner will prevent environmental pollution and human health hazards.

For further information about proper disposal, contact your local authorities, waste disposal office or the shop where you bought the device.

Dispose of the packaging in an environmentally compatible manner. Cardboard can be put out for municipal paper collections or brought to public collection points for recycling. Films and plastic used for packaging the device are collected by your local disposal services and disposed of in an environmentally compatible manner.

Disposal of batteries

Remember to protect the environment. Used batteries should not be disposed of in domestic waste. They must be taken to a collection point for old batteries. Please note that only discharged batteries may be deposited in collection bins for portable batteries. Care must be taken to ensure that batteries that are not fully discharged do not short circuit.

Conformity information

This device meets the basic requirements and other relevant regulations of the EMC Directive 2004/108/EC as well as the RoHS Directive 2011/65/EU. The Declaration of Conformity can be found at the end of this manual.

Warranty and servicing advice

Warranty of TARGA GmbH

This device is sold with three years warranty from the date of purchase. Please keep the original receipt in a safe place as proof of purchase. Before using your product for the first time, please read the enclosed documentation or online help. Should any problems arise which cannot be solved in this way, please call our hotline. Please have the article number and, if available, the serial number to hand for all enquiries. If it is not possible to solve the problem on the phone, our hotline support staff will initiate further servicing procedures depending on the fault. Within the warranty period the product will be repaired or replaced free of charge as we deem appropriate. No new warranty period commences if the product is repaired or replaced. Consumables such as batteries, rechargeable batteries and lamps are not covered by the warranty.

Your statutory rights towards the seller are not affected or restricted by this warranty.

Service

Phone: 0207 - 36 50 744

E-Mail: [e-mail]

Phone: [phone]

E-Mail: [e-mail]

Phone: 800 - 62 175

E-Mail: [e-mail]

Phone: 800 - 92 496

E-Mail: [e-mail]

IAN: 89088

Manufacturer

TARGA

GmbH

Coesterweg 45

59494 SOEST

GERMANY

Spis treści

Wstep....12

Uruchomienie

Üzembevétel

Začetek uporabe

Uvedení do provozu

Auto-Power-off: ca. 10 Sekunden

Abmessungen (B x T x H): 300 x 300 x 20 mm

Inbetriebnahme

EU Declaration of Conformity

Address:

Targa GmbH

Coesterweg 45

59494 Soest, Germany

Product:

Bathroom Scale

Model:

Silvercrest SPW 180 B2

Identification number:

IAN 89088

The product complies with the requirements of the following European directives:

2004/108/EC

Electromagnetic Compatibility

2011/65/EU

Restriction of the use of certain hazardous substances in electrical and electronic equipment

Compliance was proved by the application of the following standards:

EMC:

EN 61000-6-3: 2007 + A1: 2011

EN 61000-6-1:2007

Rohs:

EN 62321: 2008

Year of CE marking:

2013

Soest, 10 ^th June 2013

Matthias Klauke, Managing Director
