IAN 73055 - Scale SILVERCREST - Free user manual and instructions

Product Type	Digital Kitchen Scale
Brand	SilverCrest
Model	IAN 73055
Maximum Capacity	5 kg (11 lbs)
Graduation / Precision	1 g
Dimensions (W x D x H)	20 x 15 x 2 cm
Weight	300 g
Power Supply	2 x AAA batteries (not included)
Display Type	LCD with backlight
Functions	Tare, Auto-off, Unit conversion (g, oz, ml, lb:oz)
Platform Material	Stainless steel
Overload Protection	Yes (indicated by "EEEE")
Low Battery Indicator	Yes
Auto-off Time	Approx. 60 seconds
Cleaning Instructions	Wipe with a damp cloth; do not immerse in water
Spare Parts Availability	Not available; scale is not user-serviceable
Repairability	Cannot be repaired; dispose of according to local regulations
Safety Warnings	Do not exceed maximum load; keep away from water and heat sources
Intended Use	Household weighing of food ingredients
CE Certification	Yes

Frequently Asked Questions - IAN 73055 SILVERCREST

How do I change the batteries in my SilverCrest IAN 73055 scale?

Open the battery compartment on the back, insert two AAA batteries with correct polarity, then close the cover.

What does 'EEEE' mean on the display?

The 'EEEE' error indicates overload. Remove the weight immediately to prevent damage. The maximum capacity is 5 kg.

How do I clean my SilverCrest scale?

Clean the scale with a damp cloth. Do not immerse it in water or use abrasive cleaners.

Why does my scale turn off automatically?

The scale has an auto-off function that activates after about 60 seconds of inactivity to save battery.

How do I switch between grams and ounces?

Press the unit button (usually labeled 'MODE' or 'UNIT') to cycle through units: g, oz, ml, lb:oz.

What is the accuracy of the scale?

The scale measures with a precision of 1 gram (0.1 oz).

My scale shows an unstable reading. What should I do?

Ensure the scale is on a flat, stable surface. Avoid air drafts and do not move while weighing. Check battery level if issue persists.

What should I do if the scale does not turn on?

Check if the batteries are correctly inserted or need replacement. Ensure the battery contacts are clean.

Can I weigh liquids in a container using the tare function?

Yes, place the empty container on the scale, press the tare button to zero it, then add the liquid. The display will show only the liquid weight.

Is the scale repairable if damaged?

The scale is not designed for repair. If damaged, please dispose of it according to local electronic waste regulations.

USER MANUAL IAN 73055 SILVERCREST

Operation and Safety Notes

FI

HENKILÖVAAKA

GB / IE Operation and Safety Notes Page 5

Z29777B

A

B

C

D

E

F

Bathroom Scale

- Proper use

These scales are intended for measuring the weight of people. The scales have a weighing range of up to 180 kg. The device is not intended for commercial use.

- Parts list

1 LC display
2 Platform
3 Battery compartment cover
4 Battery compartment
5 Units of weight switch

- Included items

Check that all the items are present and that the device is in perfect condition immediately after unpacking.

1 Digital Bathroom Scale
1 Battery
1 Operating instructions

● Technical information

Battery: 1 x 3 V lithium battery (CR2032-button cell) (supplied)

Platform: approx. 30 x 30 cm, safety glass

Capacity: max. 180 kg (400 lbs/28 st)

Weight increment: 0.1 kg/0.2 lb

Safety advice

This safety advice is an important part of these operating instructions and must be observed every time electrical devices are used. The advice and

instructions will help you to avoid risk of loss of life, accidents and damage. Therefore you must read carefully through the following information concerning safety and proper use.

WARNING! RISK OF LOSS OF LIFE OR ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials or the device. Otherwise there is a risk to life from suffocation. Always keep children away from the device. This product is not a toy.

Children or persons who lack the knowledge or experience to use the device or whose physical, sensory or intellectual capacities are limited must never be allowed to use the device without supervision or instruction by a person responsible for their safety. Children must never be allowed to play with the device.
CAUTION! DANGER OF INJURY! Do not load the scales beyond 180 kg. The safety glass could break and cause cut injuries
⚠️ CAUTION! DANGER OF INJURY! Do not step on to the scales with wet feet and do not use the scales if the platform is moist. You might slip.
- Protect your scales from impact, moisture, dust, chemicals and sudden changes in temperature and keep them away from sources of heat (ovens, heating radiators).
- Check the device for damage before bringing it into use. If the device is damaged do not use it.
■ Remove the battery if the device breaks down or is defective. Otherwise the battery is more likely to leak.
Never open the device housing. This could result in personal injury or damage to the device. Always have any repairs carried out at the service centre or by an electrical equipment repair specialist.
■ CAUTION! The scale bears a danger of stumbling and hence it should be stored in a way which prevents this danger.

Dangers arising from the use of batteries

WARNING! DANGER TO LIFE! Batteries are not intended to be in the hands of children. Do not leave batteries lying around. They could be swallowed by children or pets. In the event of swallowing a battery, contact a doctor immediately!

■

UTION! DANGER OF

EXPLOSION! Never recharge single-use batteries. Do not short-circuit or open them. Overheating, fire or destruction of the batteries might result. Never throw batteries into fire or water. The batteries might explode.

• Avoid extreme environmental conditions and temperatures as they may affect batteries e.g. above radiators. Otherwise the batteries are more likely to leak.
  Exhausted or damaged batteries can cause caustic burns upon contact with the skin. To avoid this, always wear suitable protective gloves in these circumstances!
• Avoid contact with the skin, eyes and mucous membranes if fluid is leaking from a battery. If you come into contact with corrosive battery fluids, flush the affected area thoroughly with clean water and contact a doctor immediately.
  ■ Remove the battery if you are not going to use the device for an extended period.
• When inserting the battery, ensure the correct polarity! This is shown in the battery compartment.
  ■ Remove a spent battery immediately from the device. There is an increased danger of leaks!
  ■ Batteries must not be disposed of in the normal domestic waste!
  ■ Every consumer is legally obliged to dispose of batteries in the proper manner!
• Keep batteries away from children; do not throw batteries in the fire, short-circuit batteries or take them apart.
  If the above instructions are not complied with, the battery may discharge itself beyond its end voltage. There is then a danger of leaking. If the battery has leaked inside your device, you should remove it immediately in order to prevent damage to the device!

Preparing for use

☐ Before first use remove the battery insulation strip.

Replacing the battery

Note: When you step on to the scales and the battery is too weak, the LC display 1 shows "Lo" (see Fig. D) and the scales switch off automatically.

☐ If you see this message, replace the exhausted battery with a new battery of the same type.
□ Open the battery compartment 4.
☐ Remove the battery compartment cover 3.
□ Remove the used battery.
☐ Insert a new battery. The "+" sign must be uppermost.
☐ Close the battery compartment by putting the battery compartment cover 3 back on and sliding it to the left until you hear it engage.

Setting the units of weight (Fig. E)

Note: the standard unit of weight is kilogram (kg). The factory default setting for the scales as supplied is "kg".

☐ Slide the conversion switch to select the unit of weight.

Switch in position 1: kilogram (kg)

Switch in position 2: stone (st:lb)

Switch in position 3: pound (lb)

Switching on your scales / measuring your weight

① Tip: Weigh yourself at the same time of day (preferably in the morning) after visiting the toilet, with an empty stomach and without clothing to ensure that your results are compatible.
Place the scales down on a solid, flat horizontal surface.

☐ Do not place the scales on a carpet, otherwise this may influence the results. If necessary you can place a board on the carpet and place the scales upon this. A solid floor covering is required in order to achieve correct weight measurements.
☐ Switch on the scales by stepping onto it.

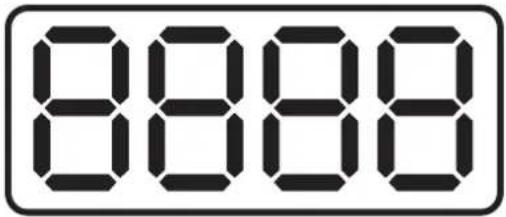

Note: First four eights appear briefly, as shown in Fig. A. This activates the vibration sensor in the scales. The scales are ready to measure your weight.

□ Place even weight on each leg.
☐ If at all possible stand on the same areas of the platform 2 each time and do not move. Moving during the weighing process can lead to discrepancies in the results.

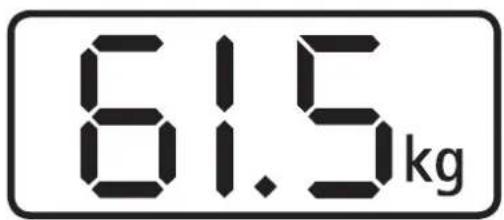

The scales will start to measure immediately. After blinking three times, the weight display will display the result, as shown in, for example, Fig. C.

Note: It shows "0.0" (see fig. B), if user steps down before blinking three times.

Note: If the scales show "Err" (see Fig. F), it signals that the scales are overloaded. Observe the maximum capacity of 180 kg (400 lbs/28 st).
☐ Step off the platform 2. The scales switch off automatically after about 15 seconds. Until then the weight measurement remains visible.

Troubleshooting

• This appliance has delicate electronic components. This means that if it is placed near an object that transmits radio signals, it could cause interference. This could be, for example, mobile telephones, walkie talkies, CB radios, remote controls and microwaves. If the display indicates a problem, move such objects away from it.
• Electrostatic charge can lead to the appliance failing. In cases of the appliance failing to work remove the batteries for a short while and then replace them.

- Cleaning

- Do not use chemical cleaners or scouring agents for cleaning the device.

□ Clean the device using a slightly moist cloth. For more stubborn dirt you can also apply a weak soap solution to the cloth.
☐ Never immerse the device in water or other liquids. Ignoring this advice may damage the device.
☐ Ensure that no water enters the device. If this does occur, then wait until the device has dried out fully before you use it again.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Faulty or used batteries must be recycled in accordance with Directive 2006 / 66 / EC. Please return the batteries and / or the device to the available collection points.

Environmental damage through incorrect disposal of the batteries!

Batteries must not be disposed off with domestic waste. They may contain toxic heavy metals and are subject to hazardous waste treatment rules and regulations. The chemical symbols of the heavy metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why you should dispose of used batteries at a local collection point.

EMC CE

Henkilövaaka

Position 2: stones (st:lb)

Position 3: (engelske) pund (lb)

Position 2: Stone (st:lb)

Position 3: Pfund (lb)

c/o Milomex Services

Hilltop Cottage

Barton Road

Pulloxhill

Bedfordshire

MK45 5HP

UK

Model-No.: Z29777A/Z29777B

Version: 04/2012

© by ORFGEN Marketing

Last Information Update · Tietojen tila · Informationsstatus

Tilstand af information · Stand der Informationen: 02 / 2012

Ident.-No.: Z29777A/B022012-3
