ERDS5-01 - Office ErgoAV - Free user manual and instructions

Product Type	Electric Sit-Stand Desk
Brand	ErgoAV
Model	ERDS5-01
Height Adjustment Range	70 - 118 cm (27.6 - 46.5 inches)
Maximum Load Capacity	70 kg (154 lb)
Maximum Travel Speed	18 mm/s
Power Supply	100 - 240 V AC, 50/60 Hz
USB Charging Ports	1 x USB-A (5 V, 2 A) and 1 x USB-C (9 V, 2 A)
Height Memories	4 presets (1, 2, 3, 4)
Collision Detection Function	Yes, with 3 adjustable sensitivity levels
Child Lock	Yes, lock/unlock the control panel
Included Components	2 packages: frame + tabletop and cabinets
Tools Required for Assembly	Electric drill, Phillips screwdriver (not included)
Maintenance and Cleaning	Wipe with a soft, damp cloth. Do not use abrasive products.
Integrated Protections	Overcurrent, undervoltage, overheating, sensor malfunction
Customer Service	[phone], Mon-Fri 8am-8pm (CST), [e-mail]
Repairability	Spare parts available upon request from the manufacturer

Frequently Asked Questions - ERDS5-01 ErgoAV

How to assemble the ErgoAV ERDS5-01 desk?

Assembly is done in two packages: one for the frame and tabletop, another for the cabinets. Follow steps 1 to 6 in the manual. Use an electric drill and a Phillips screwdriver. Do not fully tighten the bolts until all parts are aligned.

How to adjust the desk height?

Use the arrow buttons on the controller to raise or lower. Press the M button then a preset key (1,2,3,4) to save the current height. The desk moves to the saved height when you press the corresponding key.

How to reset the desk?

Lower the desk to the lowest position by holding the √ button. Release, then hold √ for 5 seconds until the display shows 'RST'. Hold √ until the current height reappears.

What to do if the desk displays an error code?

Common error codes: E01 (overcurrent): reset. E07 (sensor faulty): check motor and power cable connections. E12 (undervoltage): check power supply. H01 (overheating): wait 18 minutes before using again.

How to clean the desk?

Use a soft, slightly damp cloth. Do not use harsh chemicals or abrasives that could damage the surface.

What is the maximum load capacity?

The desk supports up to 70 kg (154 lb) evenly distributed on the tabletop.

Can the desk be used without the cabinets?

Yes, the desk can be used without the cabinets. However, the cabinets add storage drawers. They are shipped in a separate package.

How to adjust the collision detection sensitivity?

During the reset phase when 'RST' is flashing, hold the ⏰ button for 5 seconds to cycle through levels: 10.5 (high), 10.6 (medium), 10.7 (low). Release to confirm.

How to change the height display unit?

When 'RST' is flashing, hold the ② button for 5 seconds to toggle between metric (cm) and imperial (inches). The default unit is imperial.

How to contact ErgoAV customer service?

Call [phone] Monday to Friday 8am to 8pm (CST) or email [e-mail] for any questions about missing or damaged parts.

USER MANUAL ERDS5-01 ErgoAV

Electric Standing Desk Instruction Manual

VI

Line drawing of a simple office desk with front shelf and cabinet (no text or symbols)

ERDS5-01

Thank you for choosing ErgoAV!

At ErgoAV, our goal is to add value to your AV experience by providing the highest quality products and services in the industry. We offer a 5-year warranty. If you have any questions or concerns, please contact us.

ErgoAV

9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

[phone] Mon-Fri 8am - 8pm (CST)

[e-mail]

www.ergoav.com

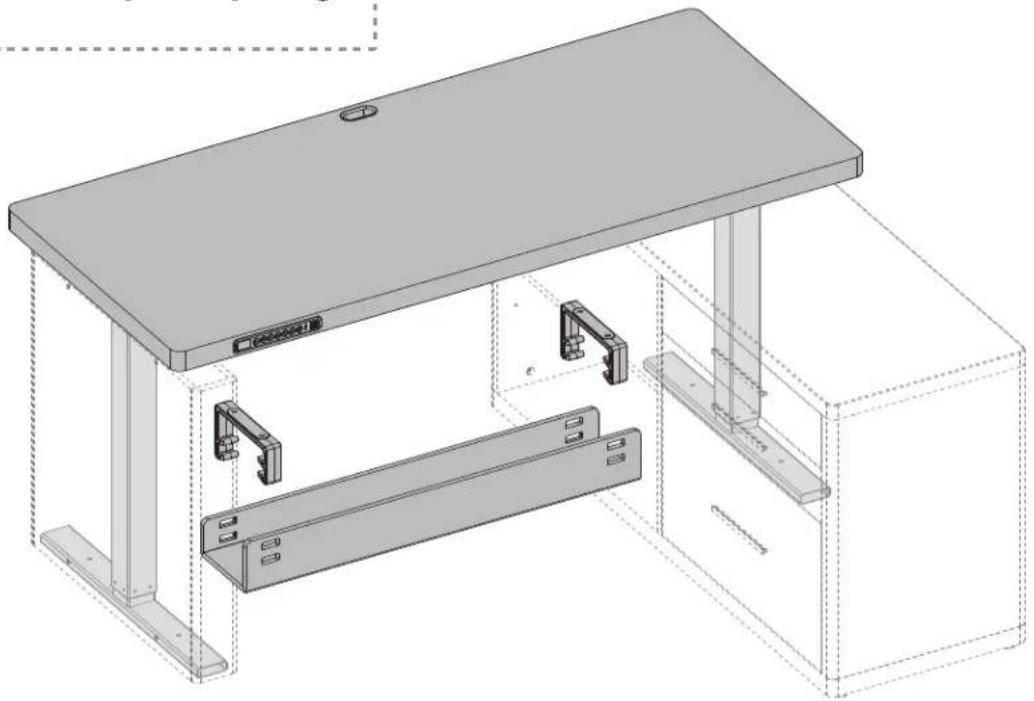

Note

The product is packed into two separate parcels. Please make sure both parcels are received before assembly.

Box for ERDT5-01 Desktop + Tray + Legs

Technical line drawing of a mechanical assembly with a top shelf and internal components (no text or symbols)

Box for ERDC5-01 Cabinets

Line drawing of a cabinet with open lid and side cabinet (no text or symbols)

Specifications

Height Adjustment Range
27.6"-46.5" (70-118cm)

Power Input
100V-240V

Max. Speed
18mm/s

Load Capacity
154 lbs / 70kg

Tools Needed (Not Included)

Electric Drill

Phillips Screwdriver

Step 1 Supplied Parts and Hardware

B x 10

Bolt M6 x 10mm

C x1

Allen Key 5/32" (4mm)

1 x 1

Wrench

K1 x 2

Set Screw

K2 x1

Rod Coupler

01 x 1

Pure line drawing of a diagonal metal rod or beam with evenly spaced notches (no text or symbols)

Crossbar

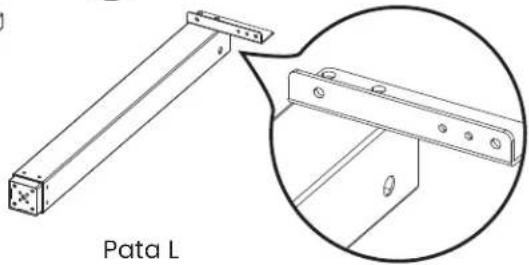

02 x 1

Technical line drawing of a L Leg bracket assembly with an inset magnified view (no text or symbols)

03 x 1

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

R Leg

Technical line drawing of a mechanical bracket component (no text or symbols)

04 x1

Transmission Rod

05 x 1

Single diagonal line on white background (no text or symbols)

Transmission Rod

06 x 2

Side Plate

07 x 1

Motor

Step 2

Supplied Parts and Hardware

A x 8

Bolt M6 x 30mm

C x1

Allen Key 5/32" (4mm)

D x 16

Bolt M6 x 14mm

08 x 2

Tray Bracket

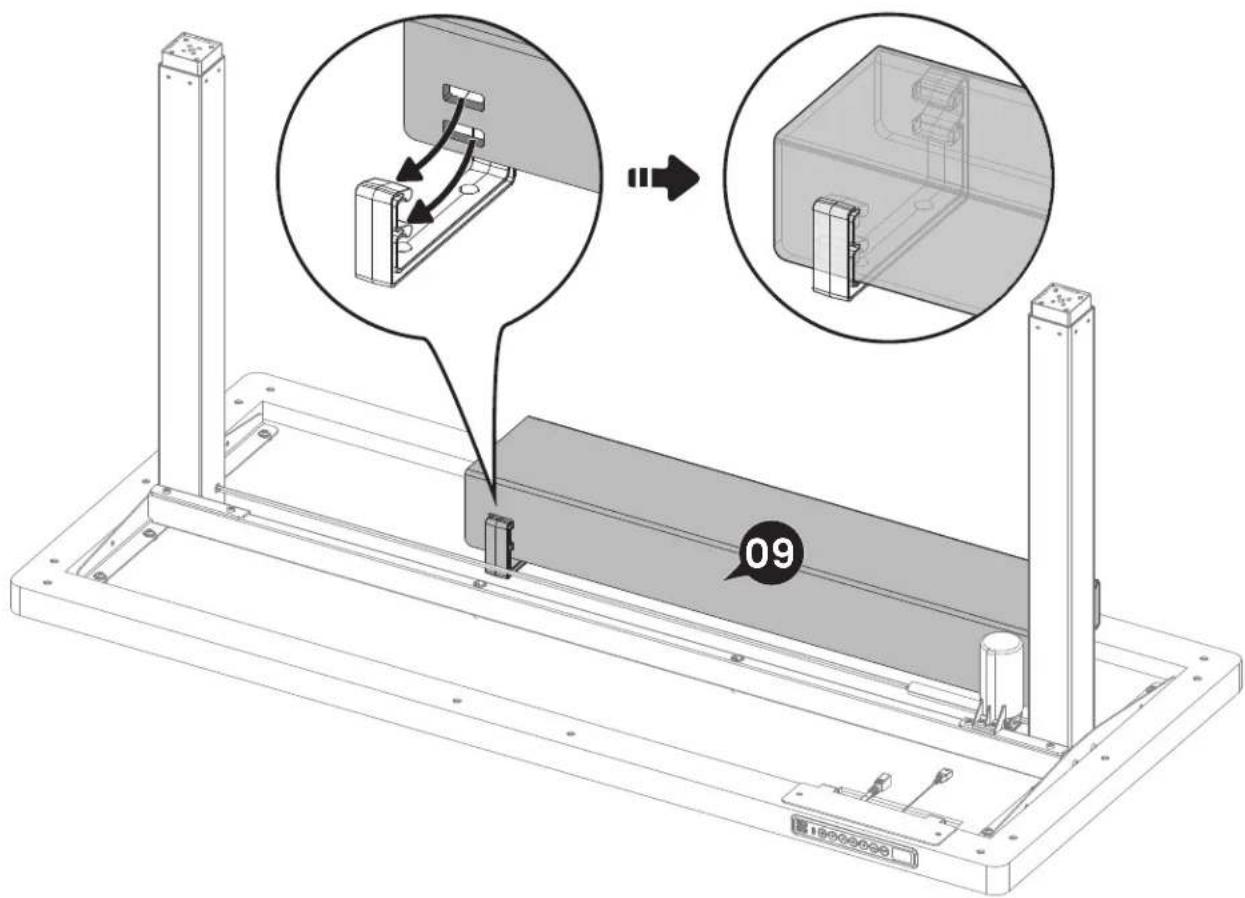

09 x 1

Cable Management Tray

10 x 2

Leg Base

12 x 1

Simple line drawing of a rectangular electronic device with a small black clip on the side (no text or symbols)

Desktop

13 x 1

Iron Bracket

14 x 1

Decorative Cabinet

Step 3

Supplied Parts and Hardware

H x 4

Cable Clip

11 x 1

Actual part may vary.

Power Cable

Step 4

Supplied Parts and Hardware

Foot Pad

Wood Dowel Pin

Cam Bolt

Cam Lock

Pure technical line drawing of a rectangular plate or casing with no text, numbers, or symbols

Bottom Panel

Right Panel

Middle Panel

Left Panel

Partition

Simple line drawing of a rectangular object with a small notch on top (no text or symbols)

Top Panel

Step 5

Supplied Parts and Hardware

Screw ST5 x 14mm

Screw ST4 x 20mm

Screw ST4 x 10mm

Iron Bracket

Shelf Support

Simple 3D rectangular shape with no text, numbers, or symbols

Back Panel

Shelf

Step 6

Supplied Parts and Hardware

x 15

Cam Bolt

x 15

Cam Lock

x4

Screw ST4 x 10mm

x 18

Screw ST4 x 35mm

x6

Bolt M4 x 18mm

x4

Bolt M6 x 8mm

x2

Small Drawer Front

x2

Left Drawer Side Panel

x2

Right Drawer Side Panel

x2

Small Drawer Back

x 3

Drawer Bottom

x 3

Drawer Bottom Rail

x 3

Drawer Handle

x1

Large Drawer Front

x1

Left Drawer Side Panel

x1

Right Drawer Side Panel

x1

Large Drawer Back

x2

Iron Bracket

x2

Round Rod

x2

Iron Sheet

Not all hardware included in this package will be used.

Contact Us

If you receive parts that are damaged, defective, or are missing parts, please contact us.

[phone] Mon-Fri 8am - 8pm (CST)

[e-mail]

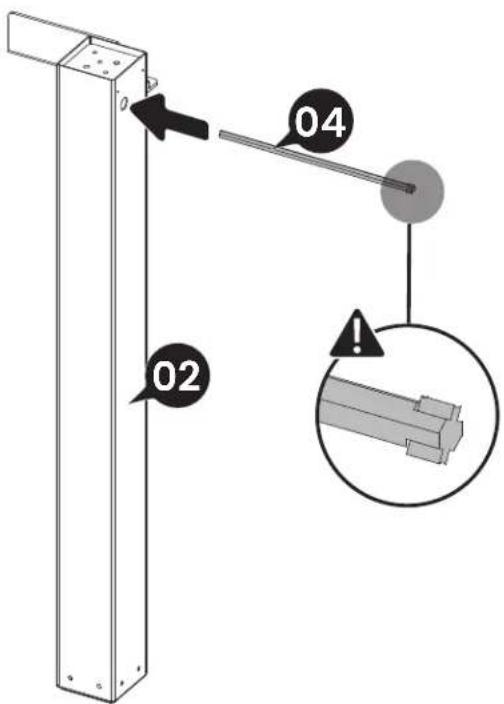

Step 1 Assembling the Frame

02 04

M6 x 10mm

x2

5/32" (4mm)

x1

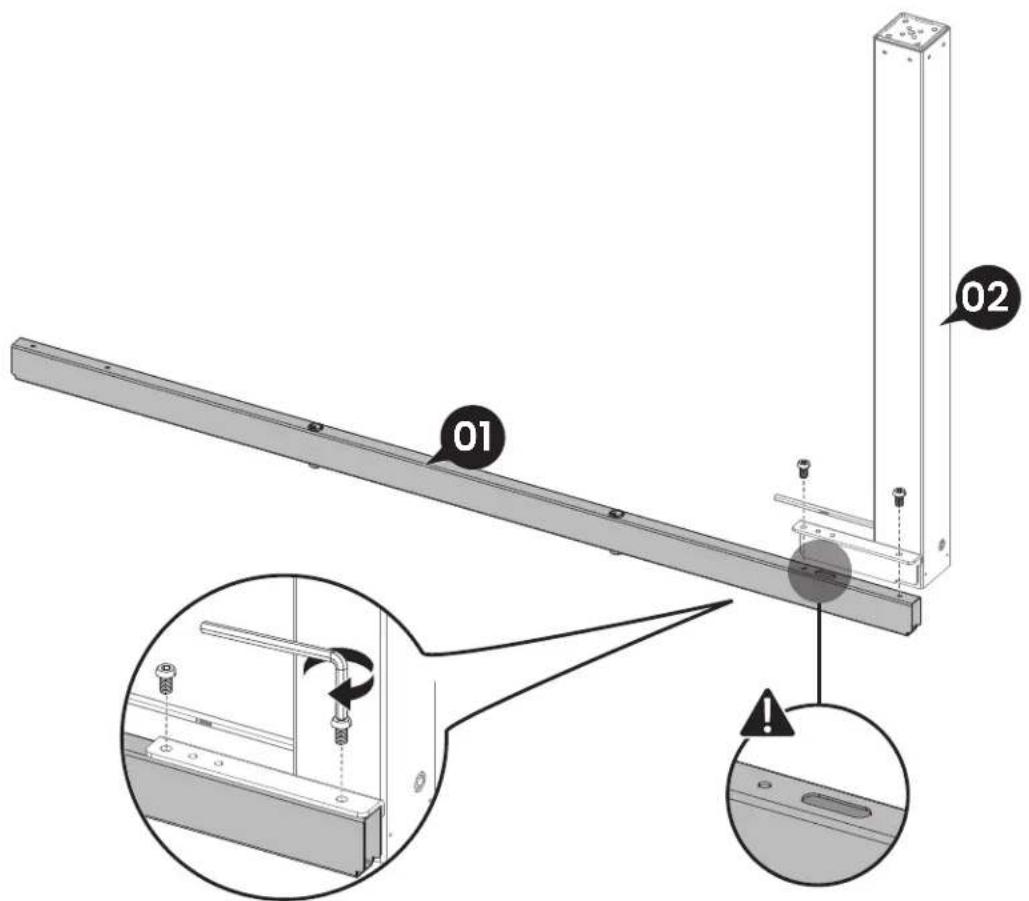

01 02

M6 x 10mm

5/32" (4mm)

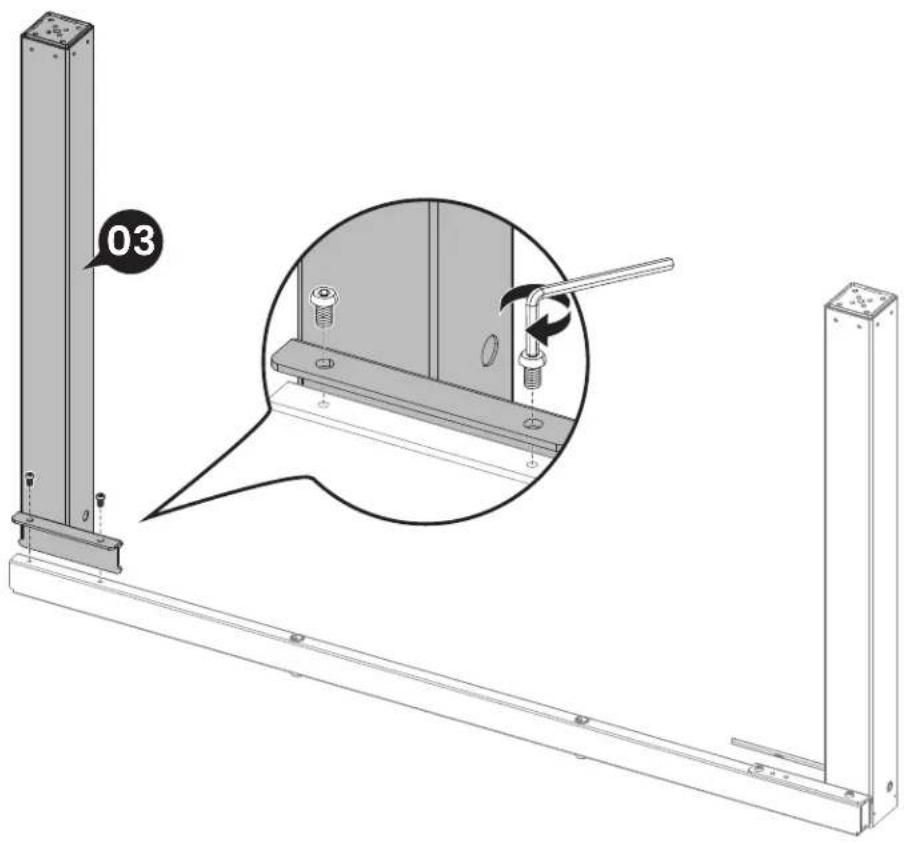

03

M6 x 10mm

5/32" (4mm)

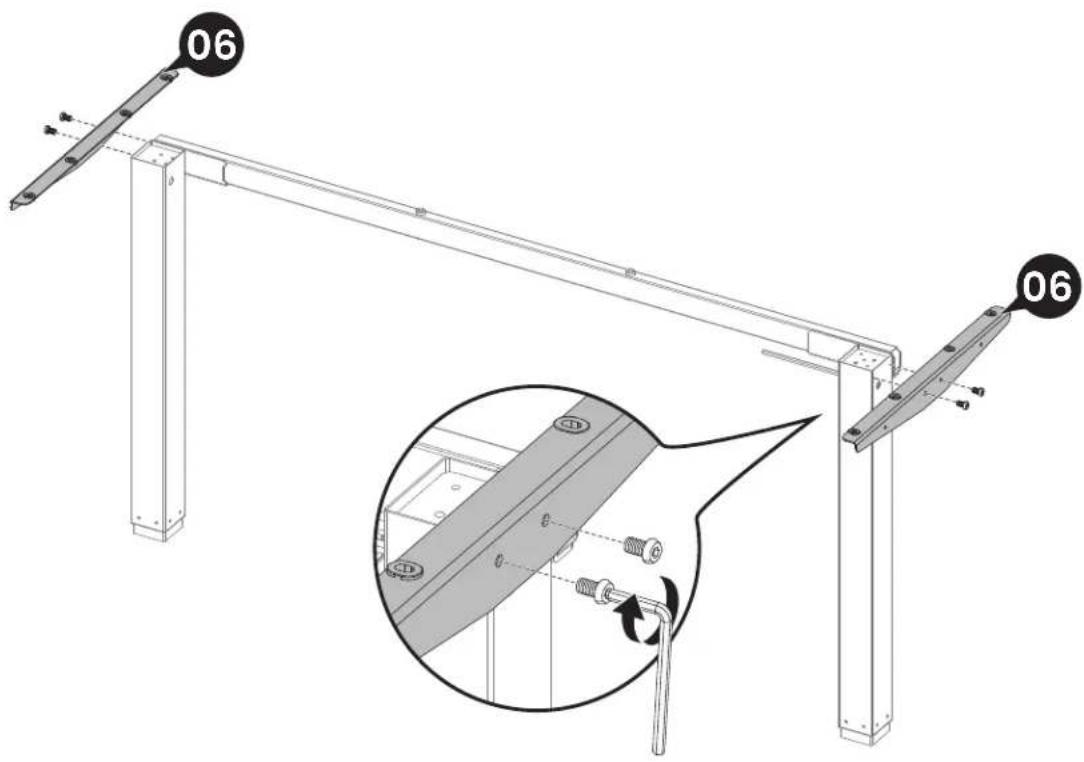

06 06

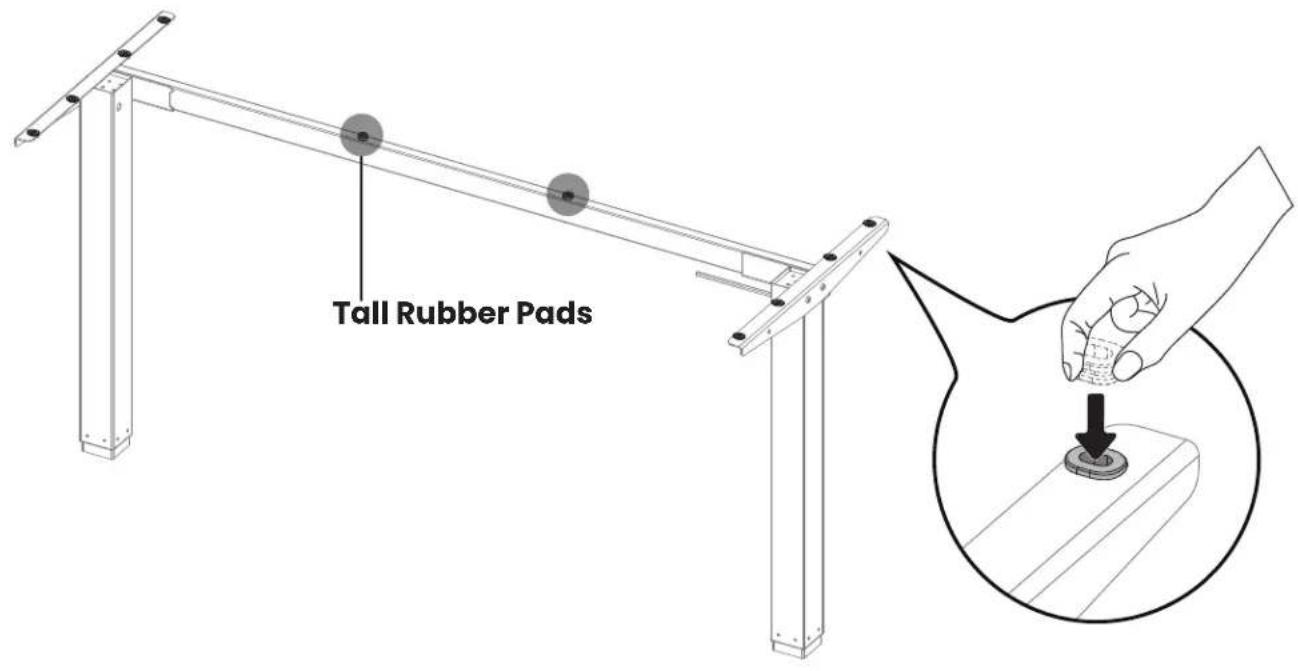

Ensure the rubber pads are attached to the frame. If any have fallen off, reattach them or use the spare rubber pads.

Tall Rubber Pads

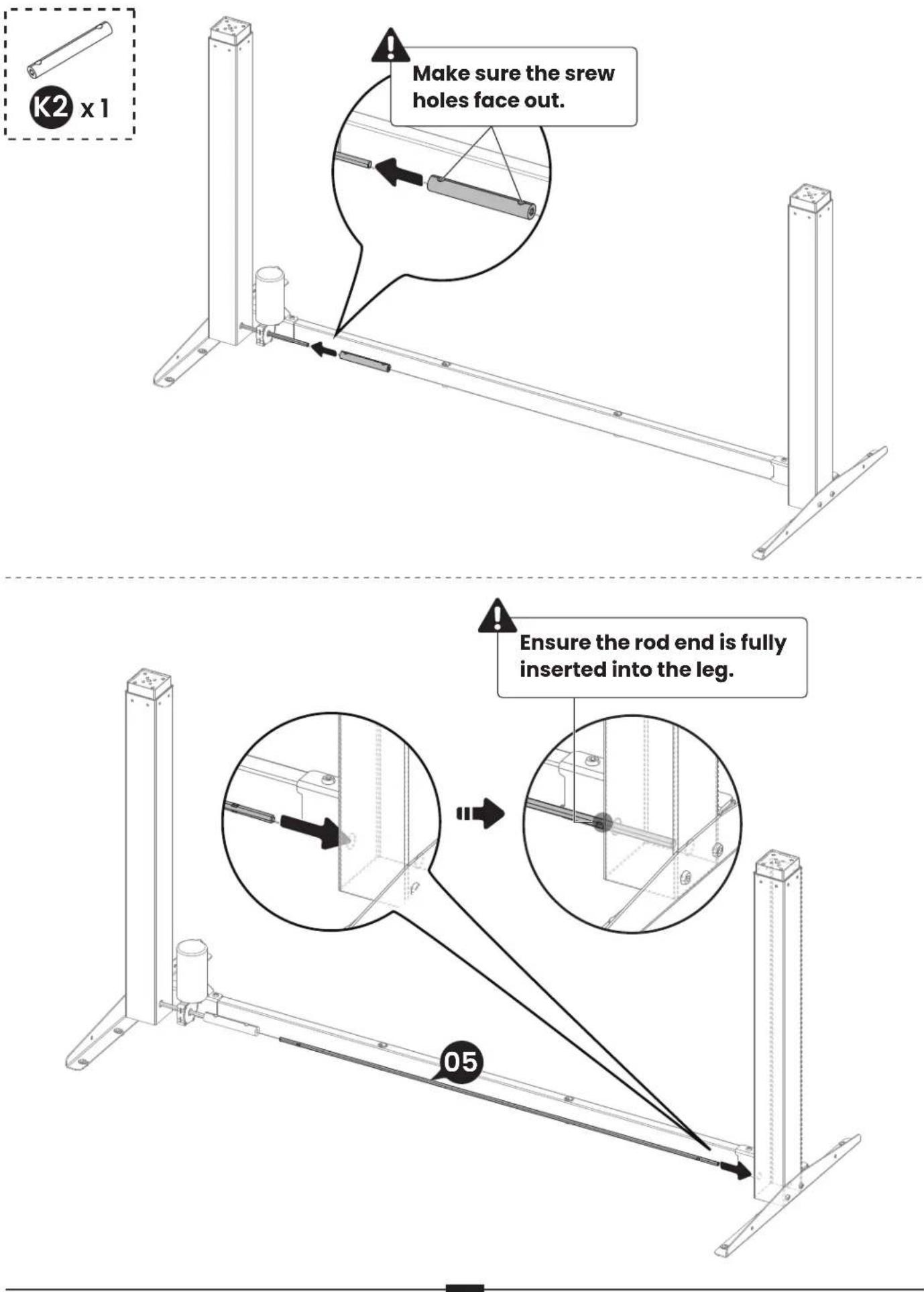

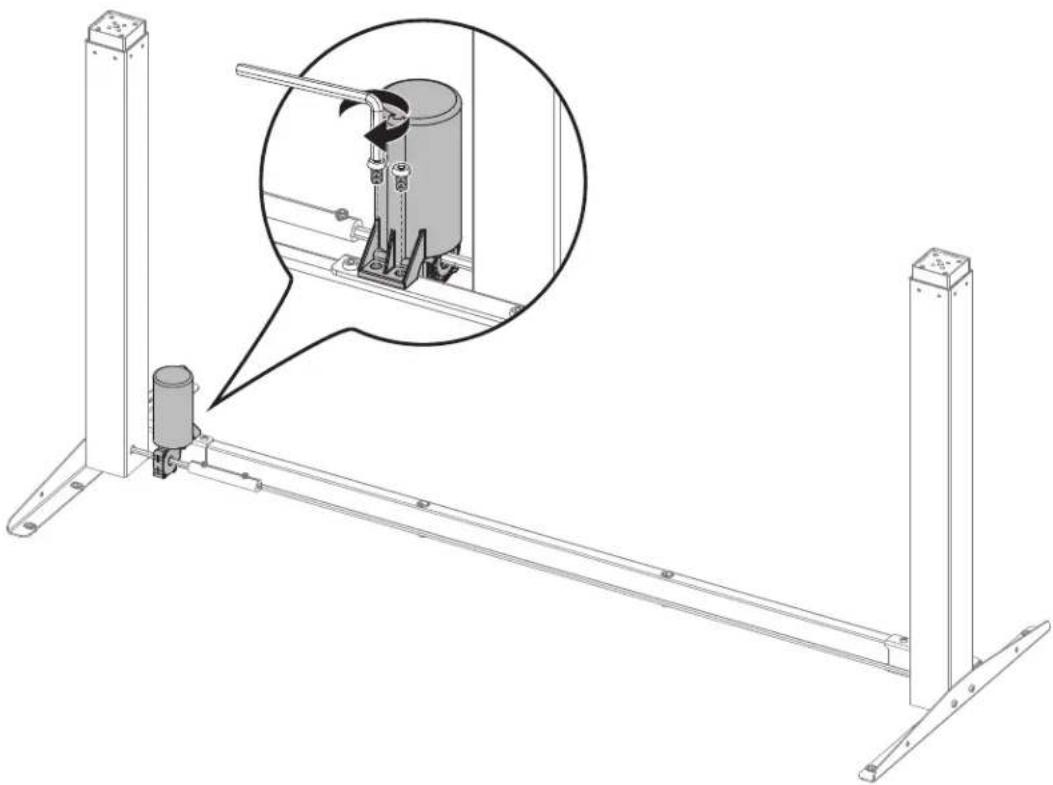

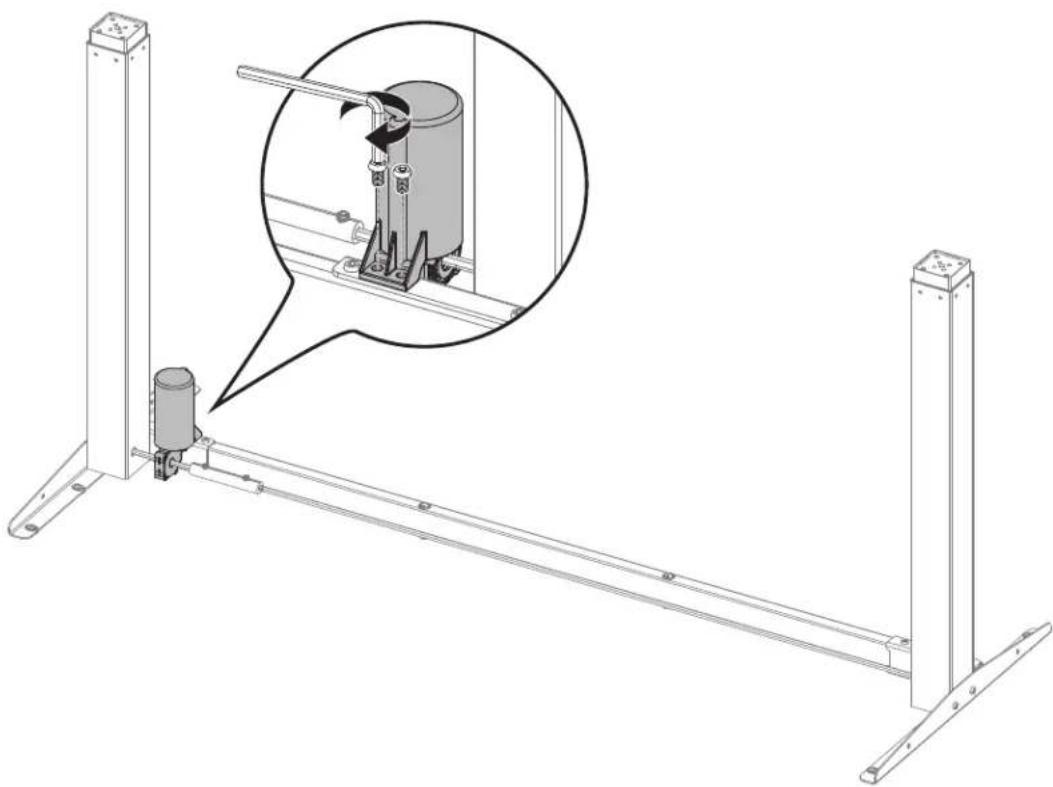

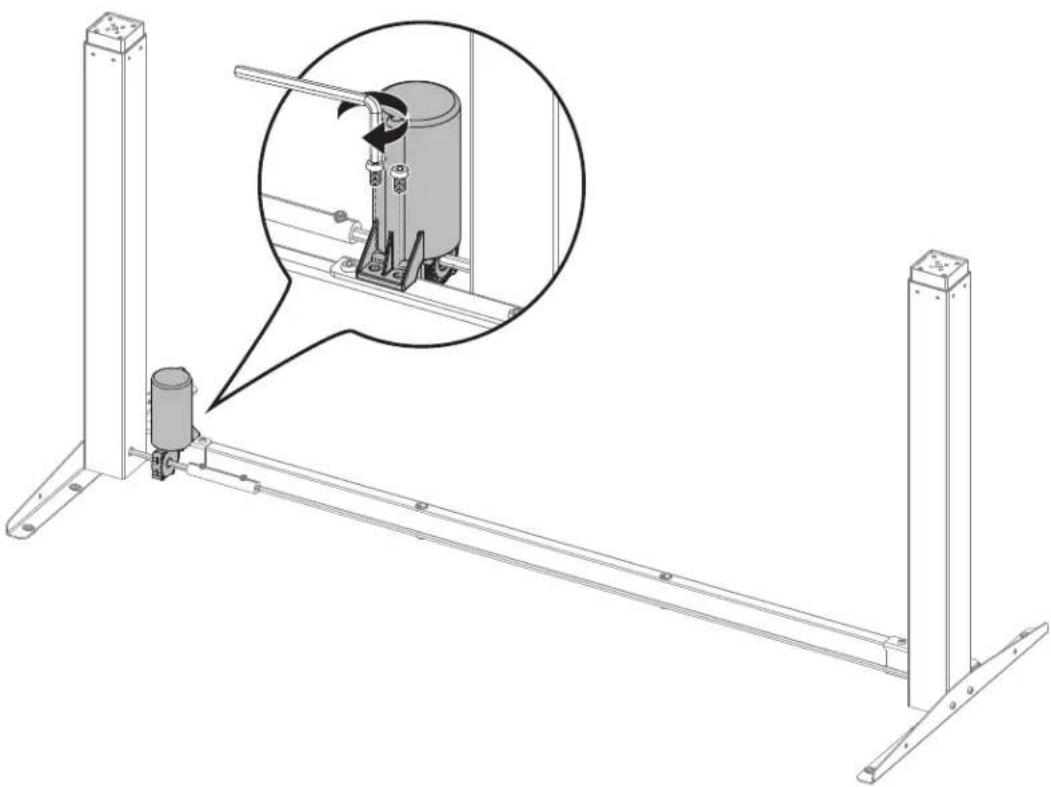

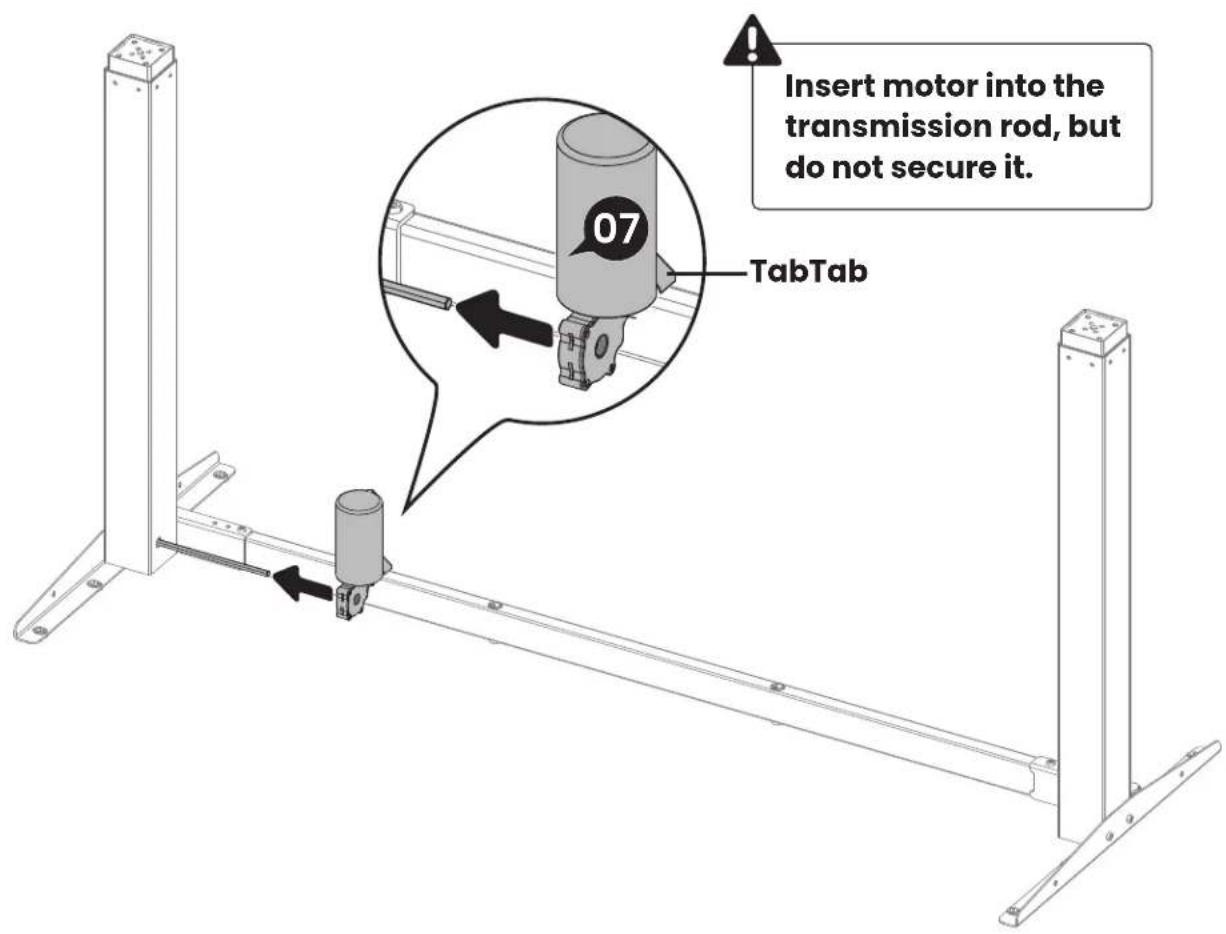

Insert motor into the transmission rod, but do not secure it. 07 TabTab

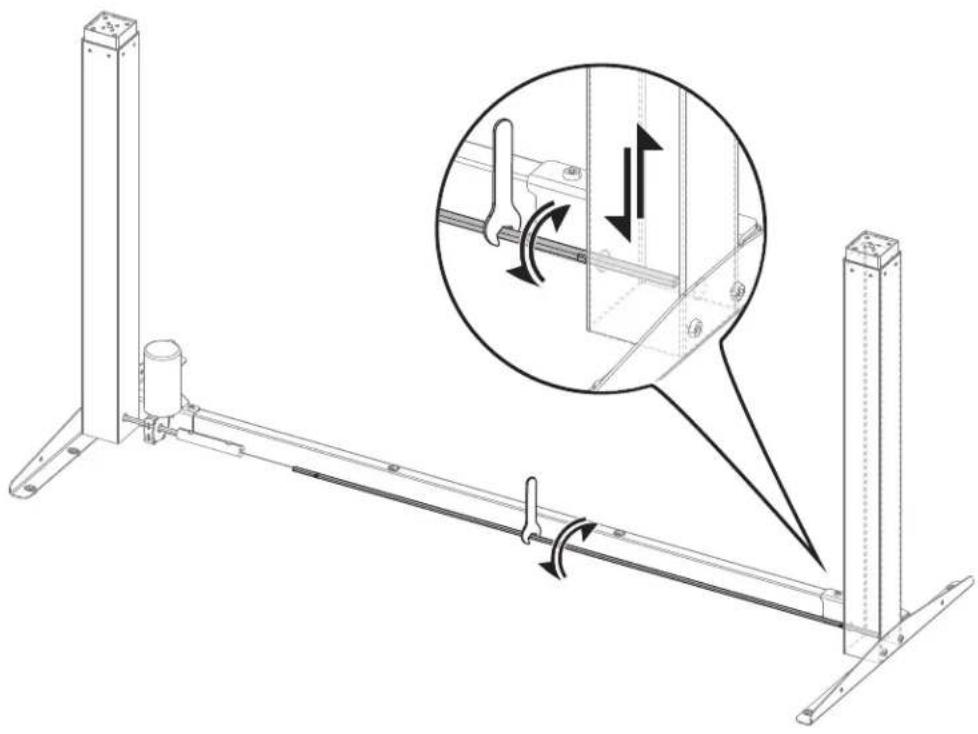

Adjust uneven desk legs if needed:

Measure the height of each leg to see if they are set at the same level. If not, turn the rod to raise or lower the leg until it's level with the leg with motor.

I x1

Technical line drawing of a mechanical support structure with an inset showing rotational motion (no text or symbols)

Diagram showing two circular warning signs with arrows and symbols, one indicating correct or incorrect action.

If the transmission rod does not fit smoothly, use the wrench to fine-tune the position.

Circular diagram showing a tool interacting with a curved line, indicating rotational motion (no text or symbols)

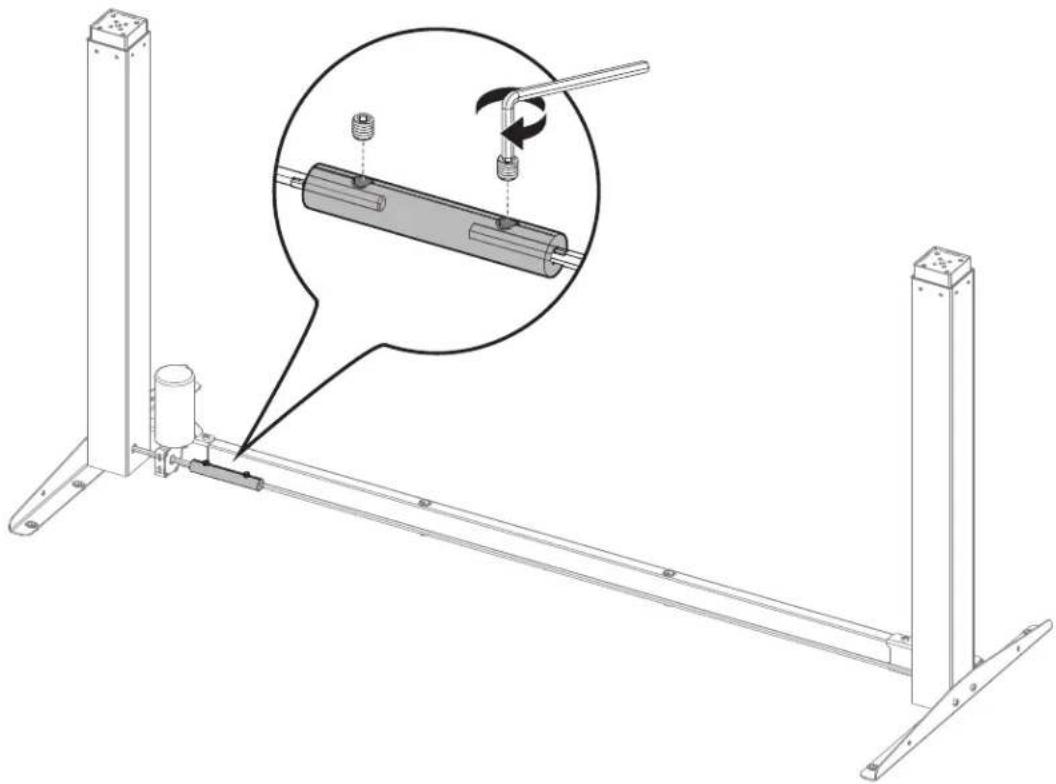

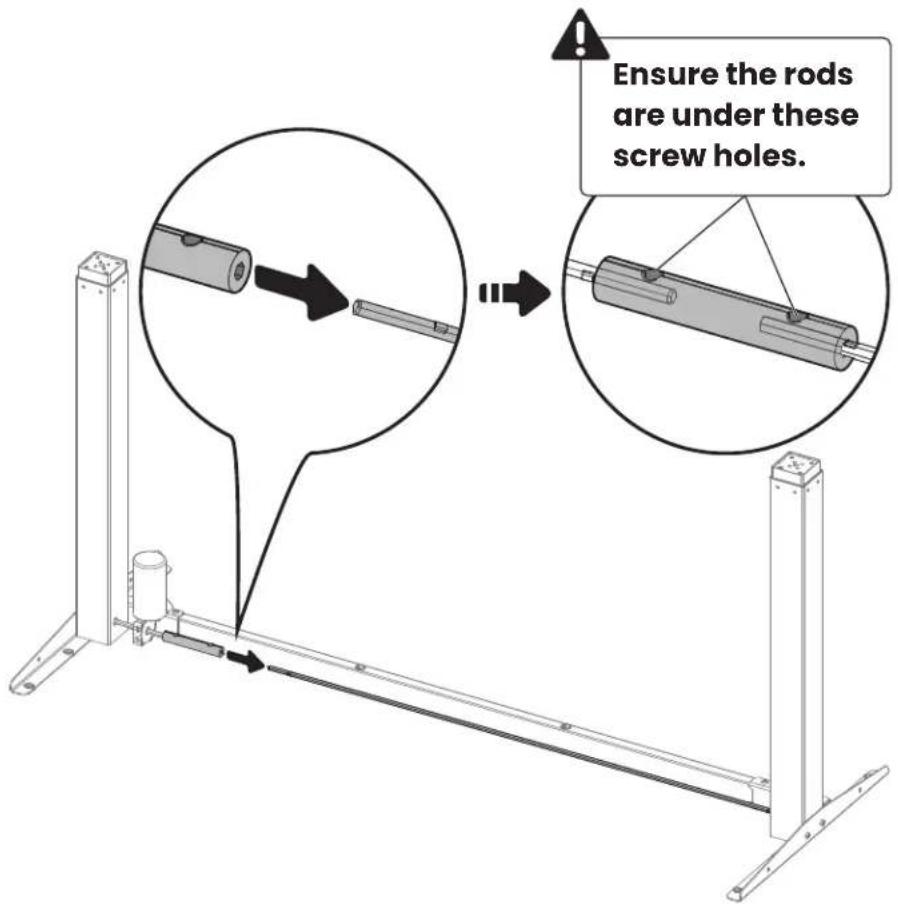

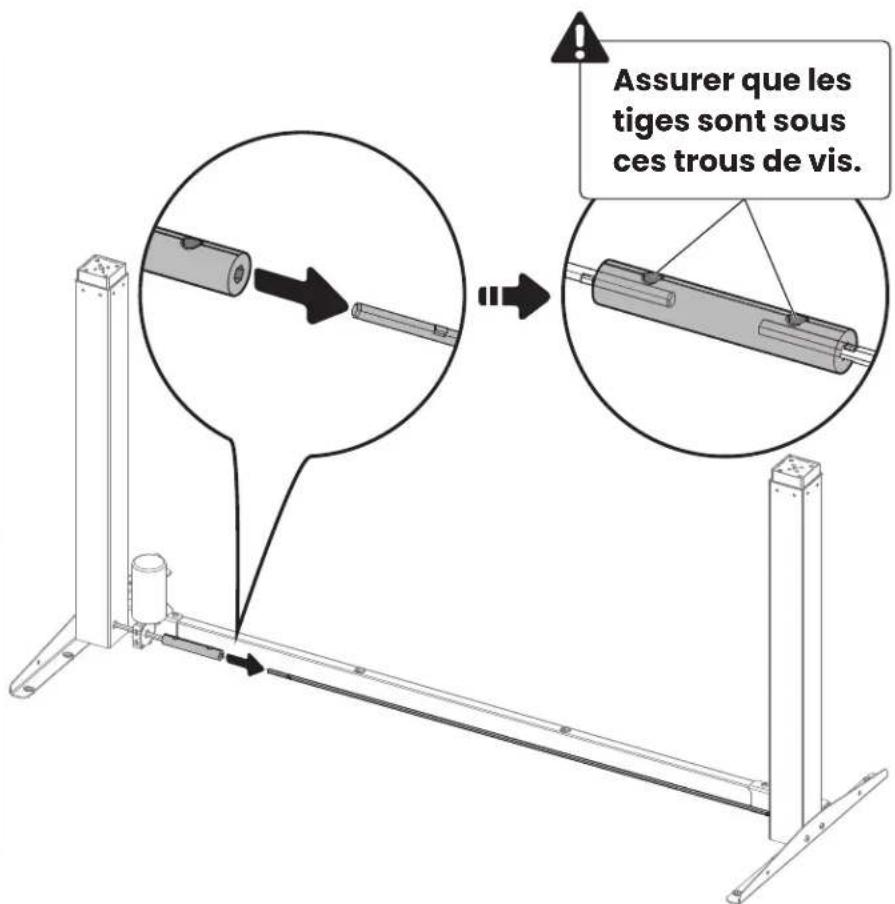

Ensure the rods are under these screw holes.

K1 x 2

5/32" (4mm)

Technical line drawing of a mechanical support structure with a magnified inset showing a component being adjusted (no text or symbols present)

M6 x 10mm

5/32" (4mm)

Technical line drawing of a mechanical support structure with a magnified inset showing internal components (no text or symbols)

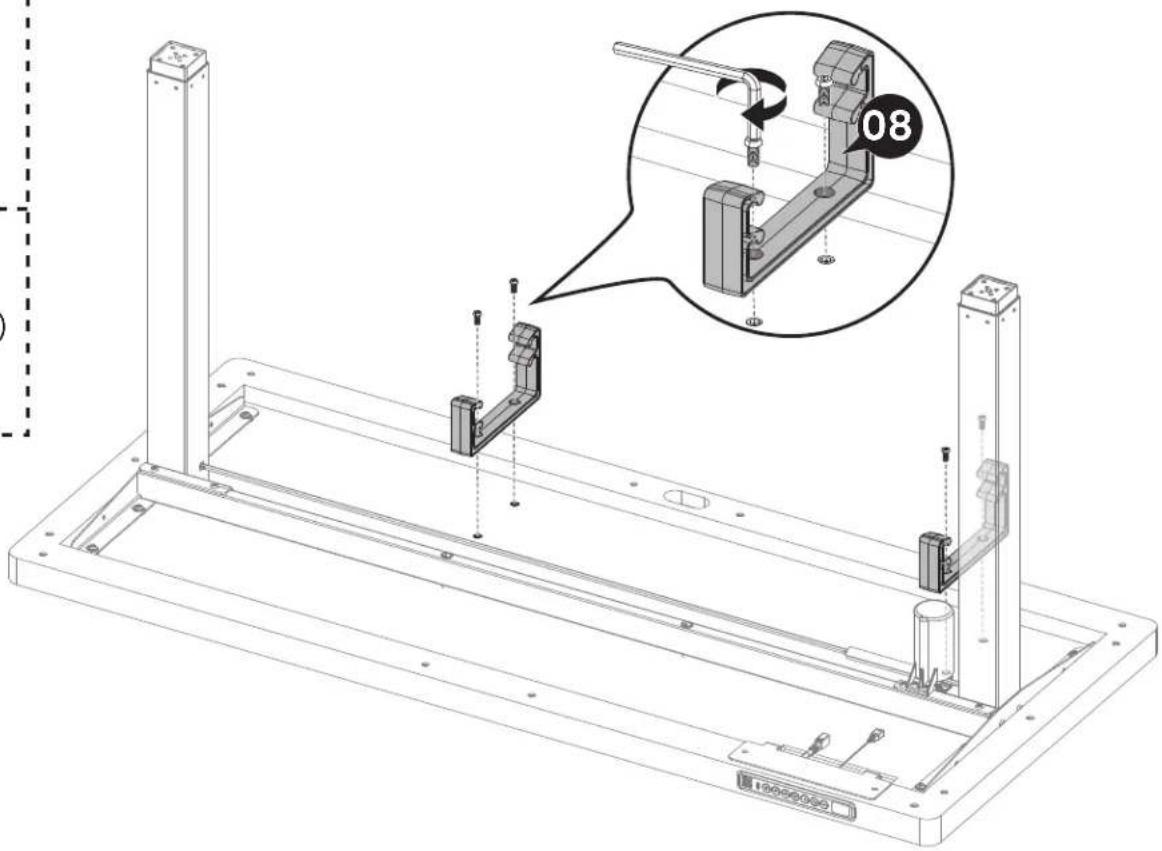

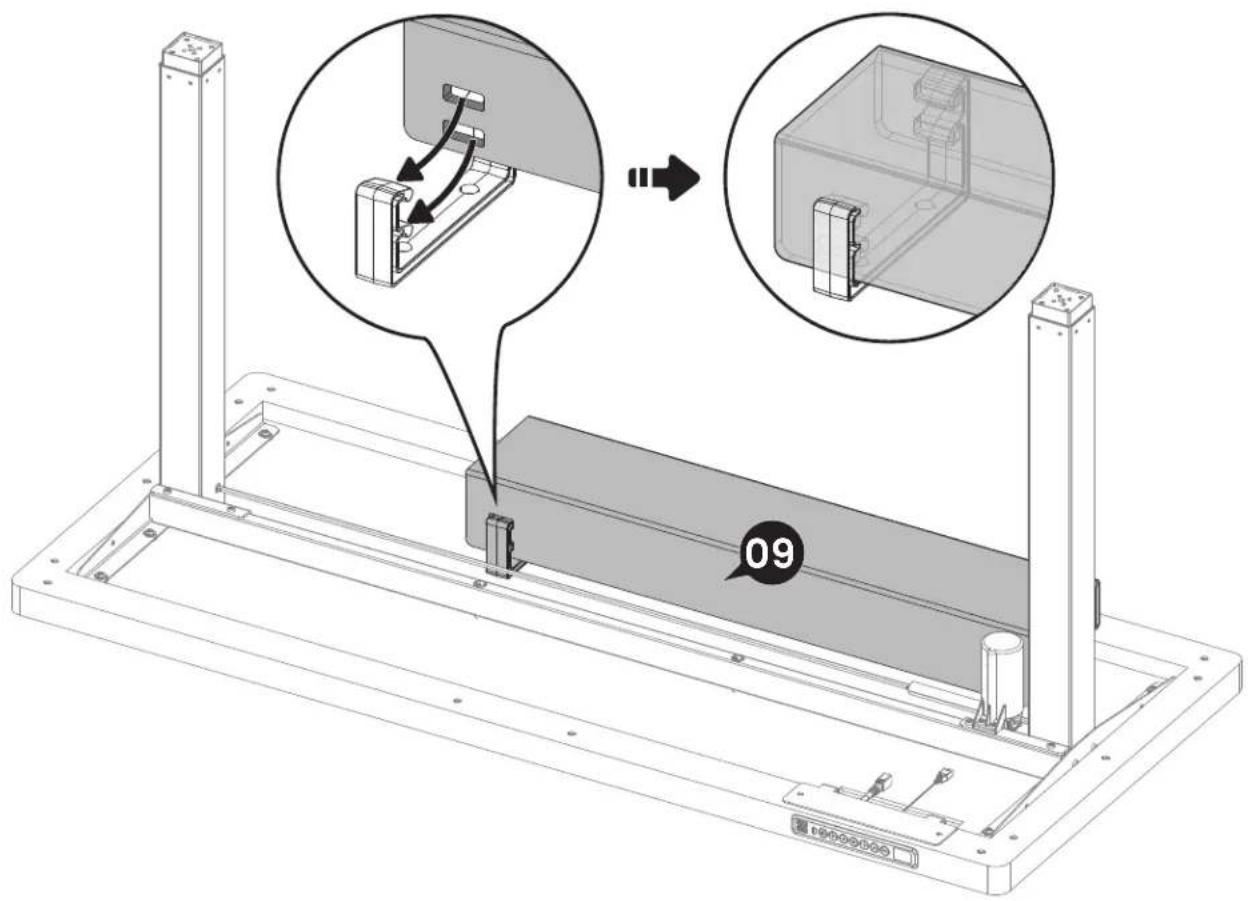

Step 2

Attaching the Desktop and Other Parts

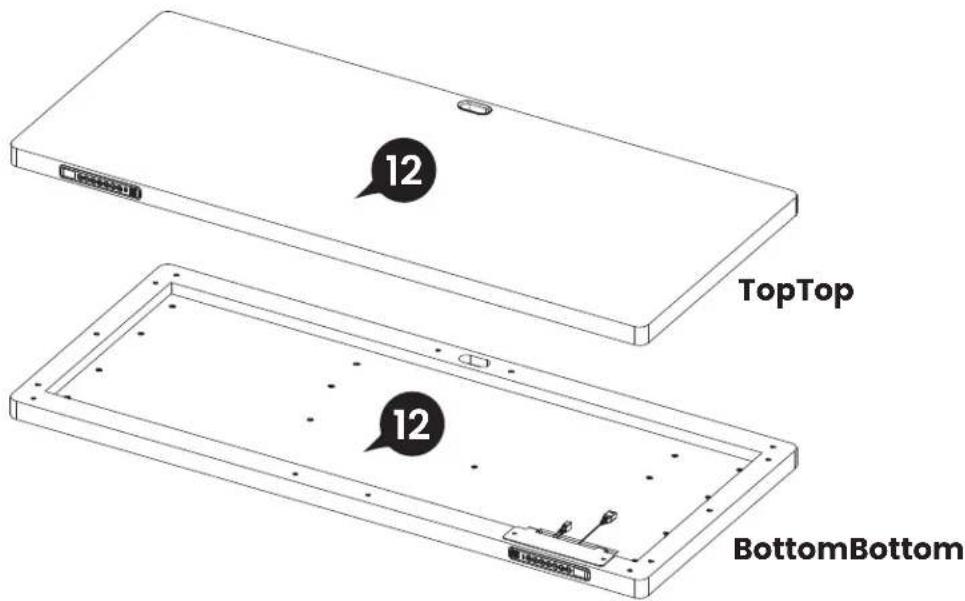

The dots below indicate pre-drilled hole locations.

12 TopTop 12 BottomBottom

M6 x 14mm

x10

5/32" (4mm)

x1

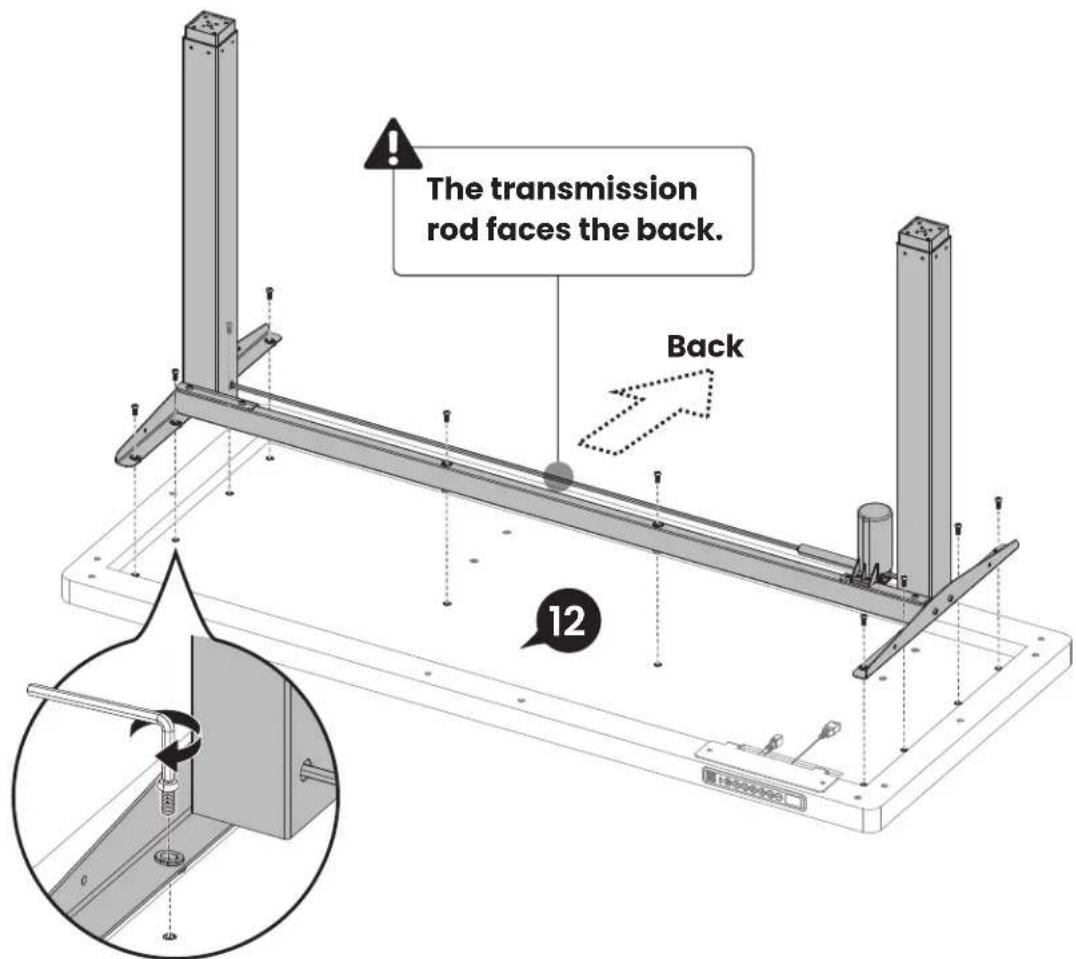

The transmission rod faces the back. Back 12

M6 x 14mm

x 4

5/32" (4mm)

x1

Technical diagram of a mechanical assembly with labeled parts and an inset showing a component detail with '08' annotation.

Technical diagram showing assembly steps with labeled components and a magnified inset of a mechanical component.

M6 x 30mm

5/32" (4mm)

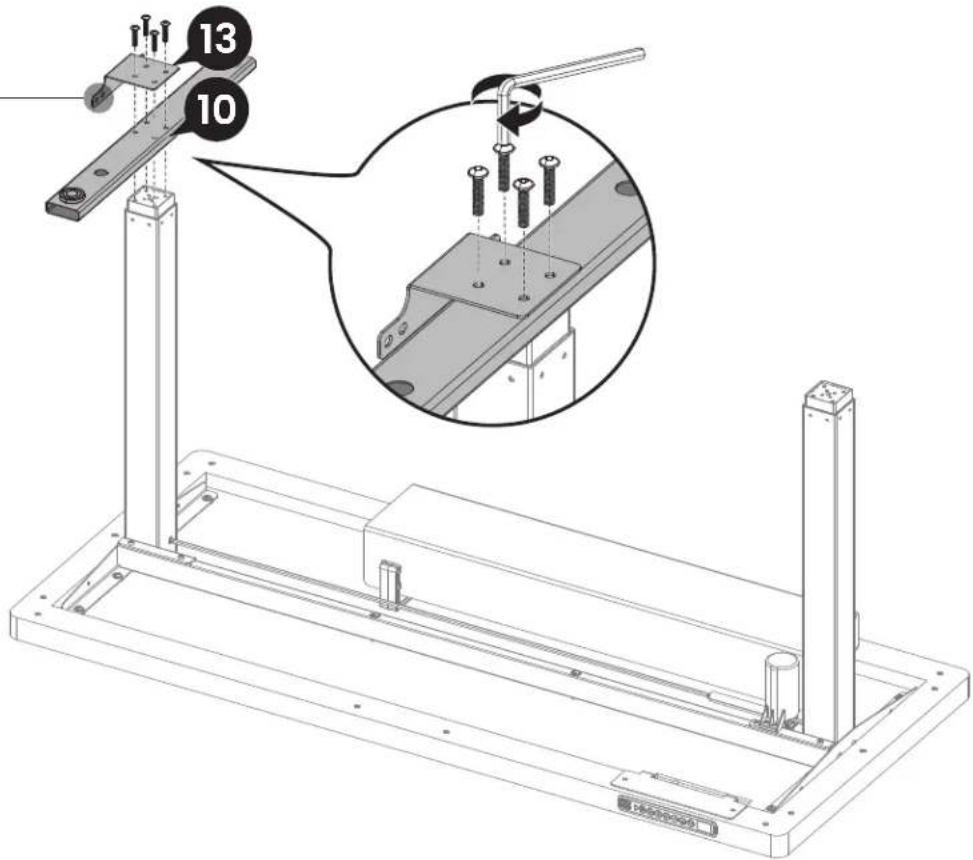

The iron bars on the side face outward.

13 10

M6 x 14mm

5/32" (4mm)

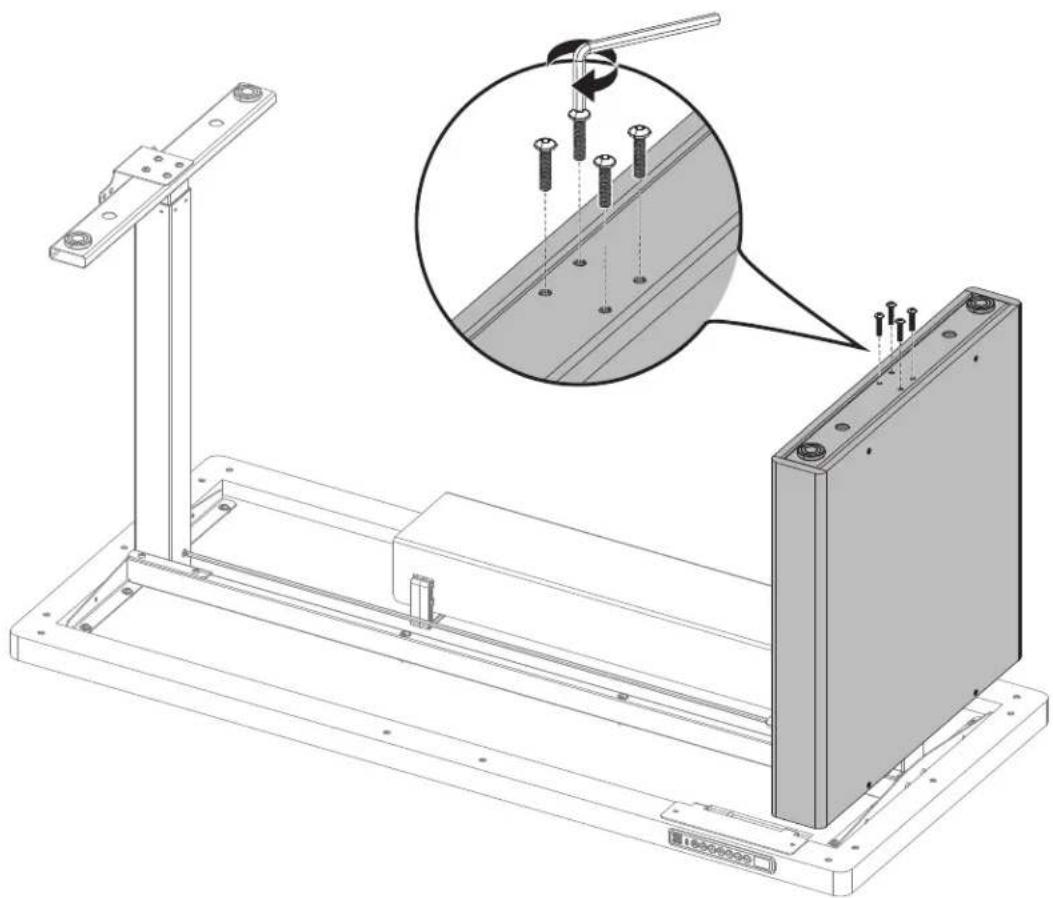

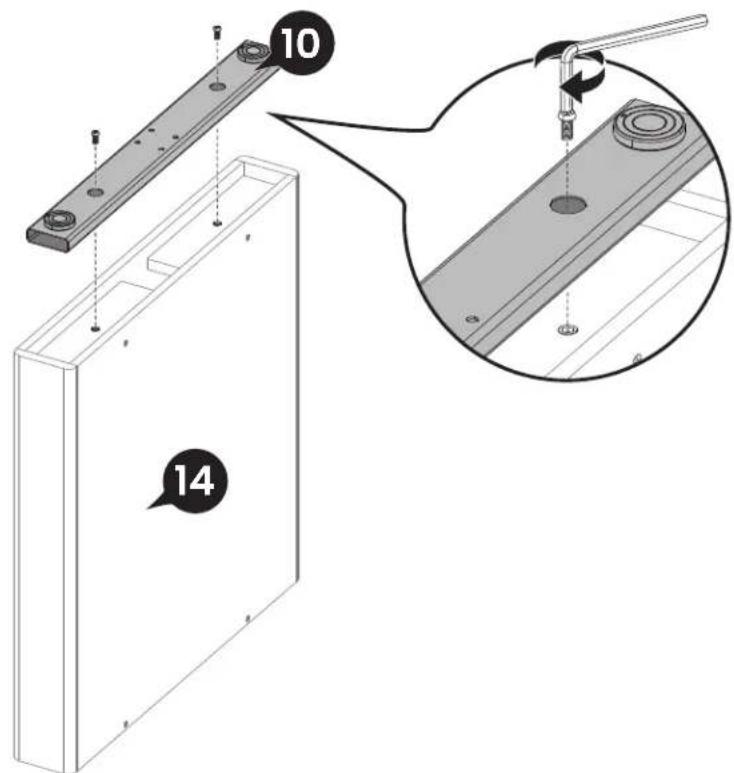

10 14

M6 x 30mm

x 4

5/32" (4mm)

x1

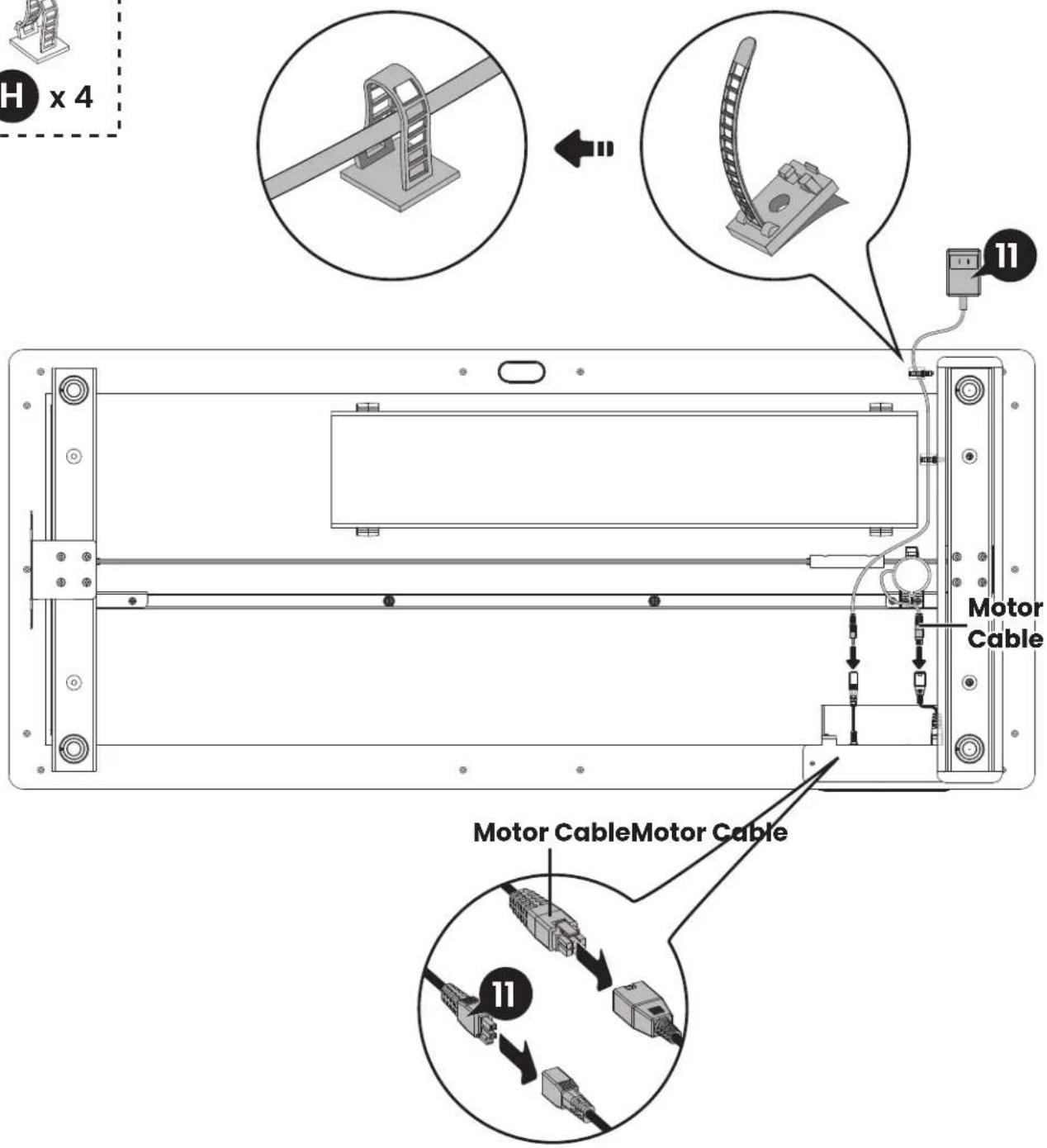

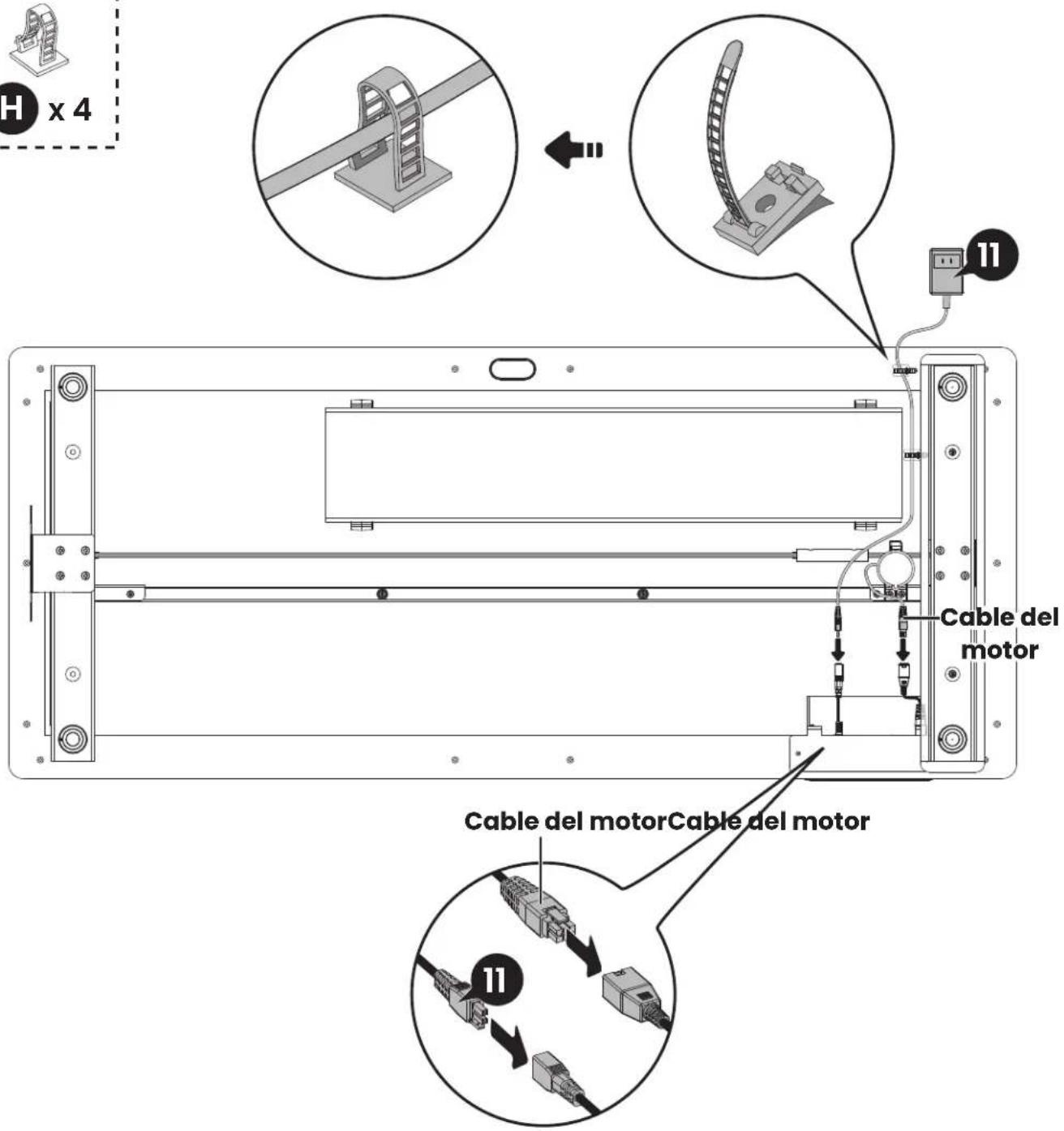

Step 3 Connecting the Cables

An example of a cable clip layout is indicated below. However, the cable clips can be arranged according to your needs.

When flipping the desk over, make sure the controller does not hit the ground, which could cause damage.

Simple line drawing of a mechanical device with a circular symbol below (no text or labels)

H x 4 Motor Cable Motor CableMotor Cable

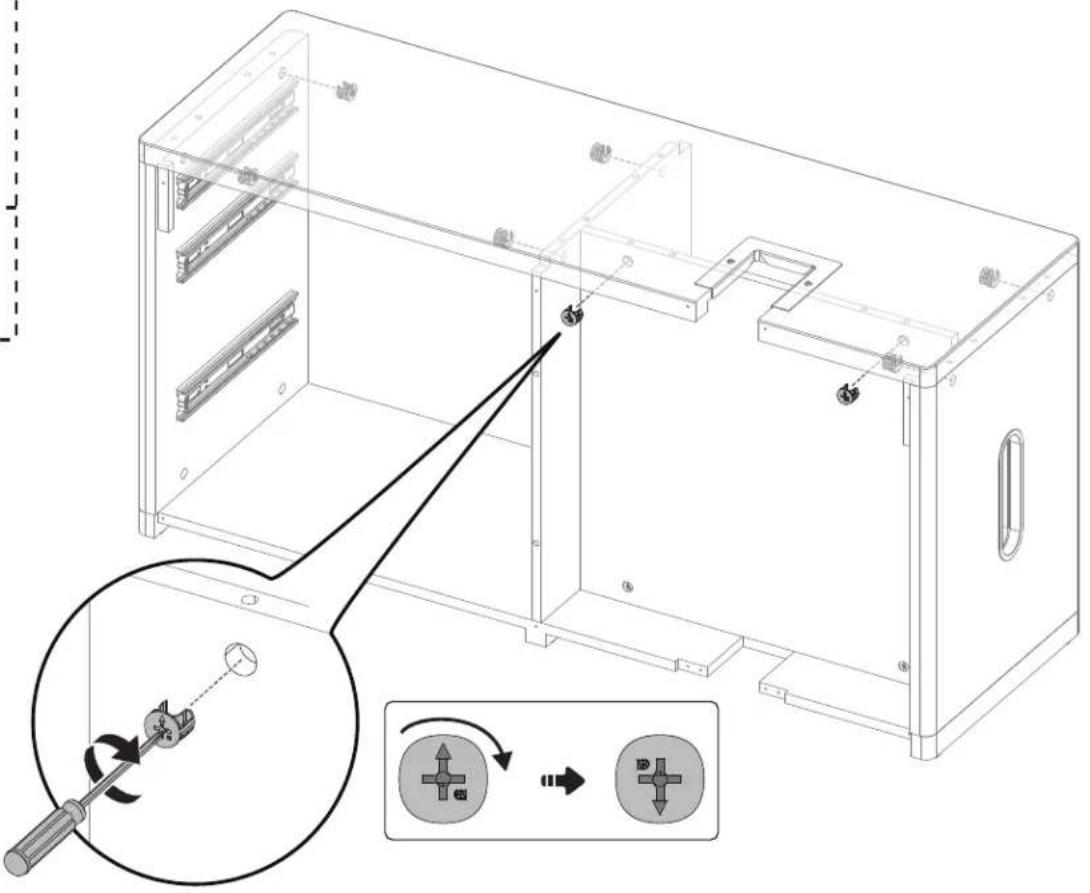

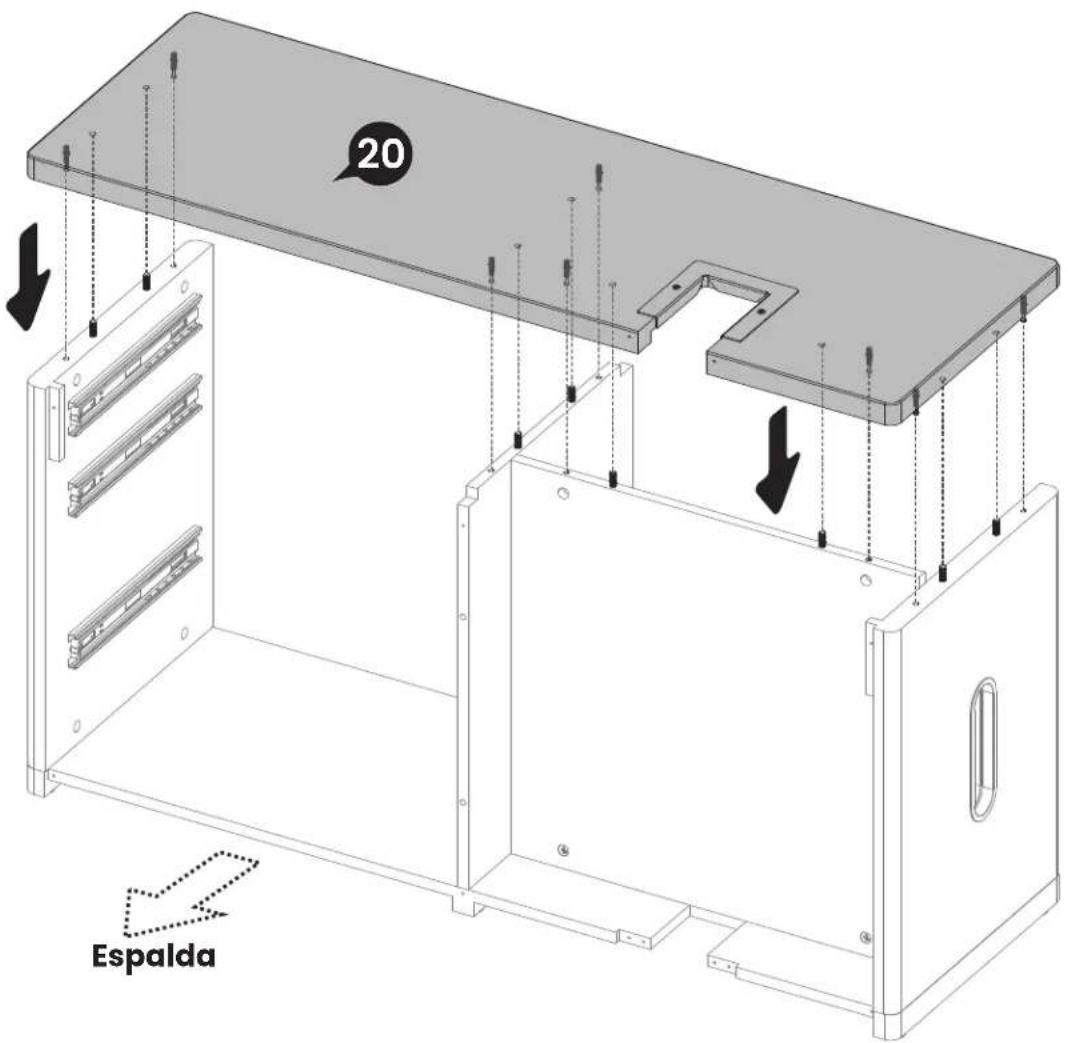

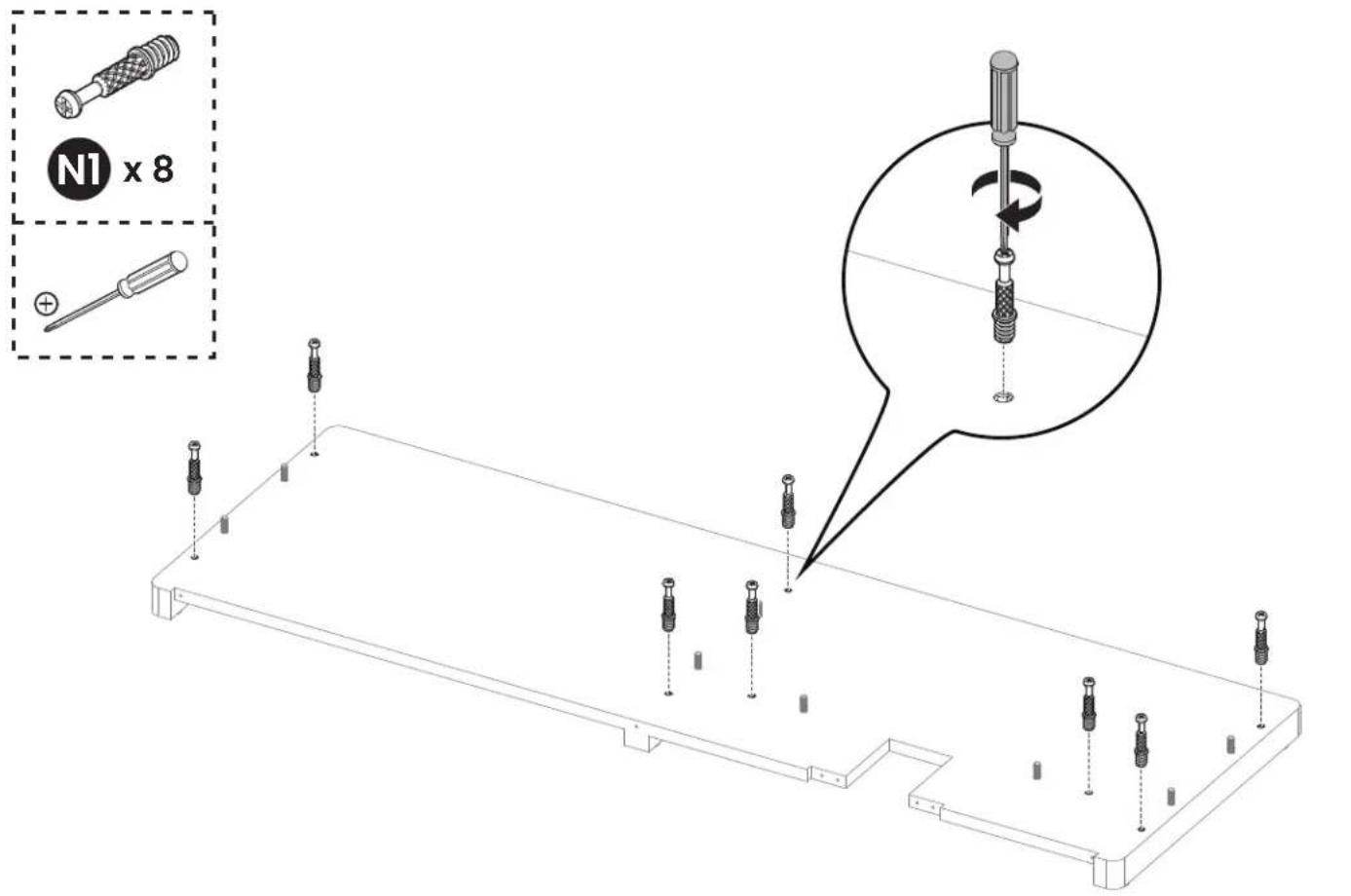

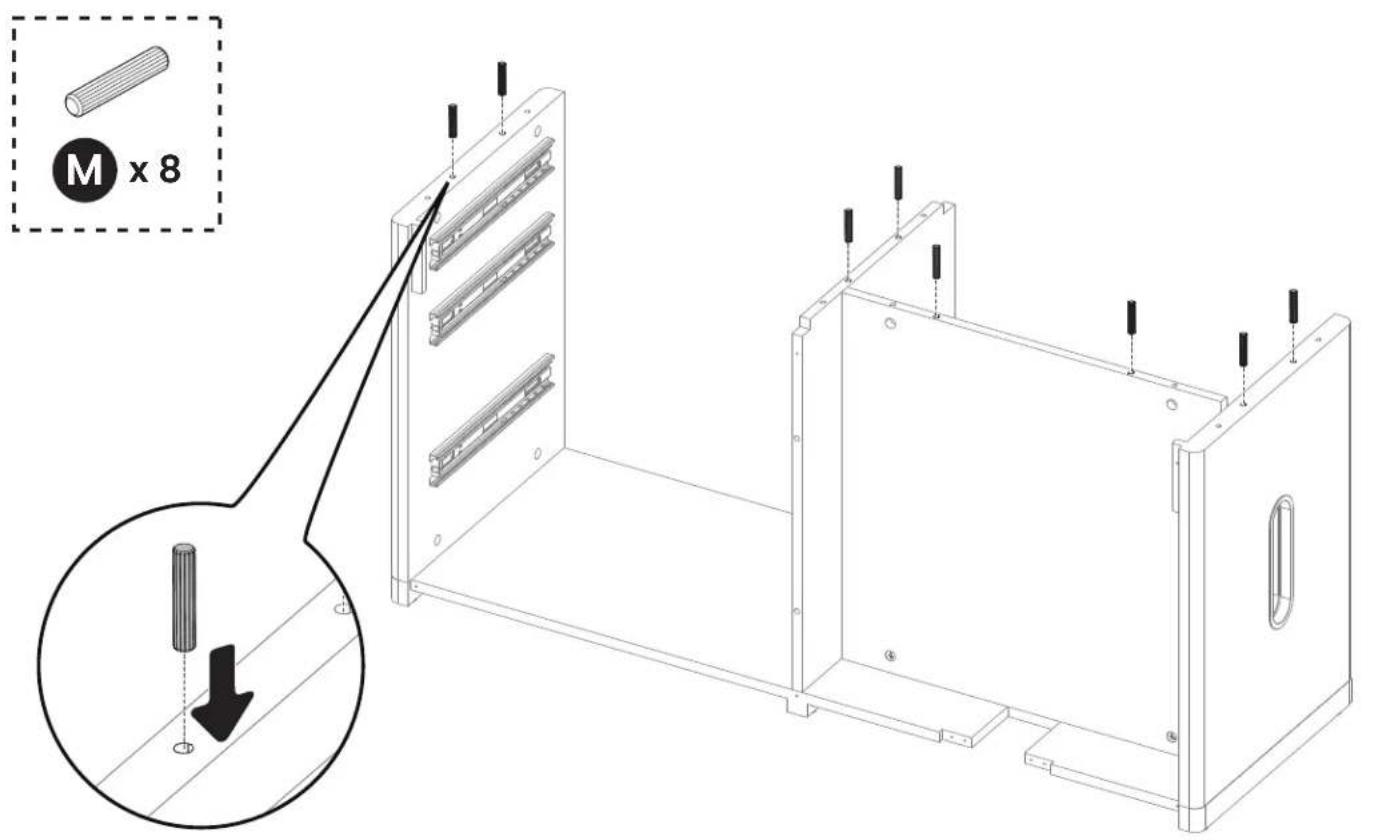

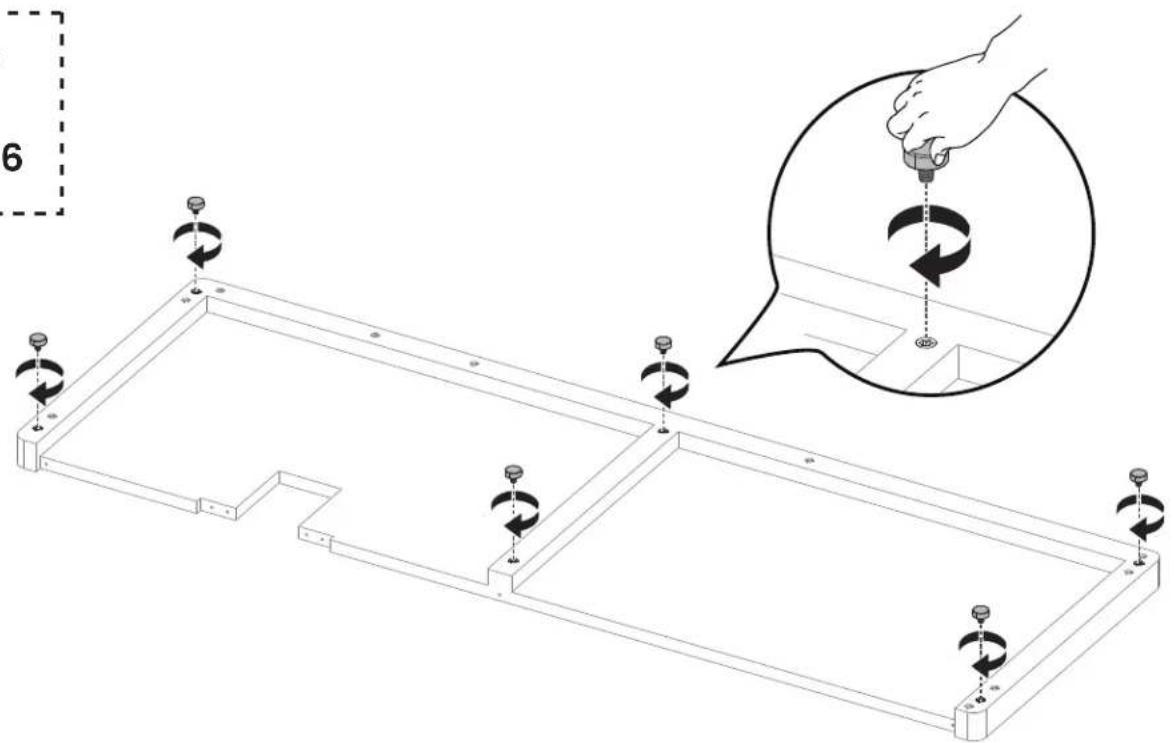

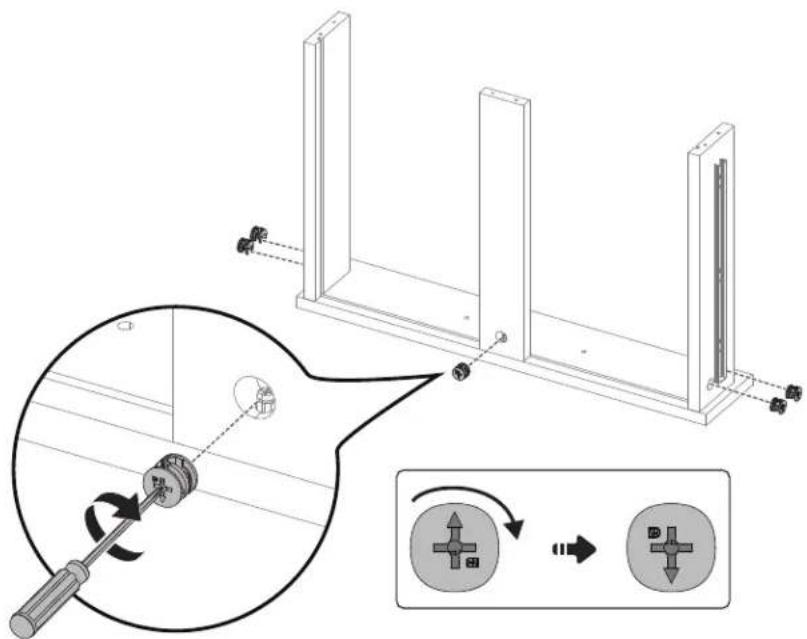

Step 4 Assembling the Cabinet

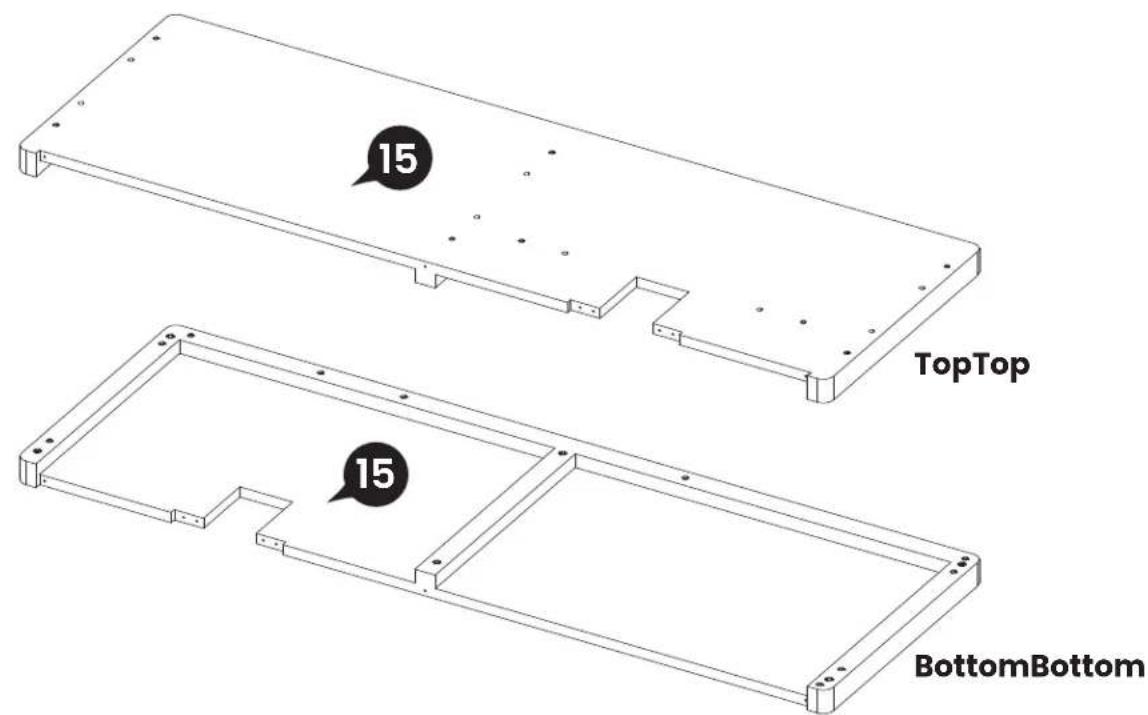

Note the difference between the top and the bottom.

15 TopTop 15 BottomBottom

L x 6

6

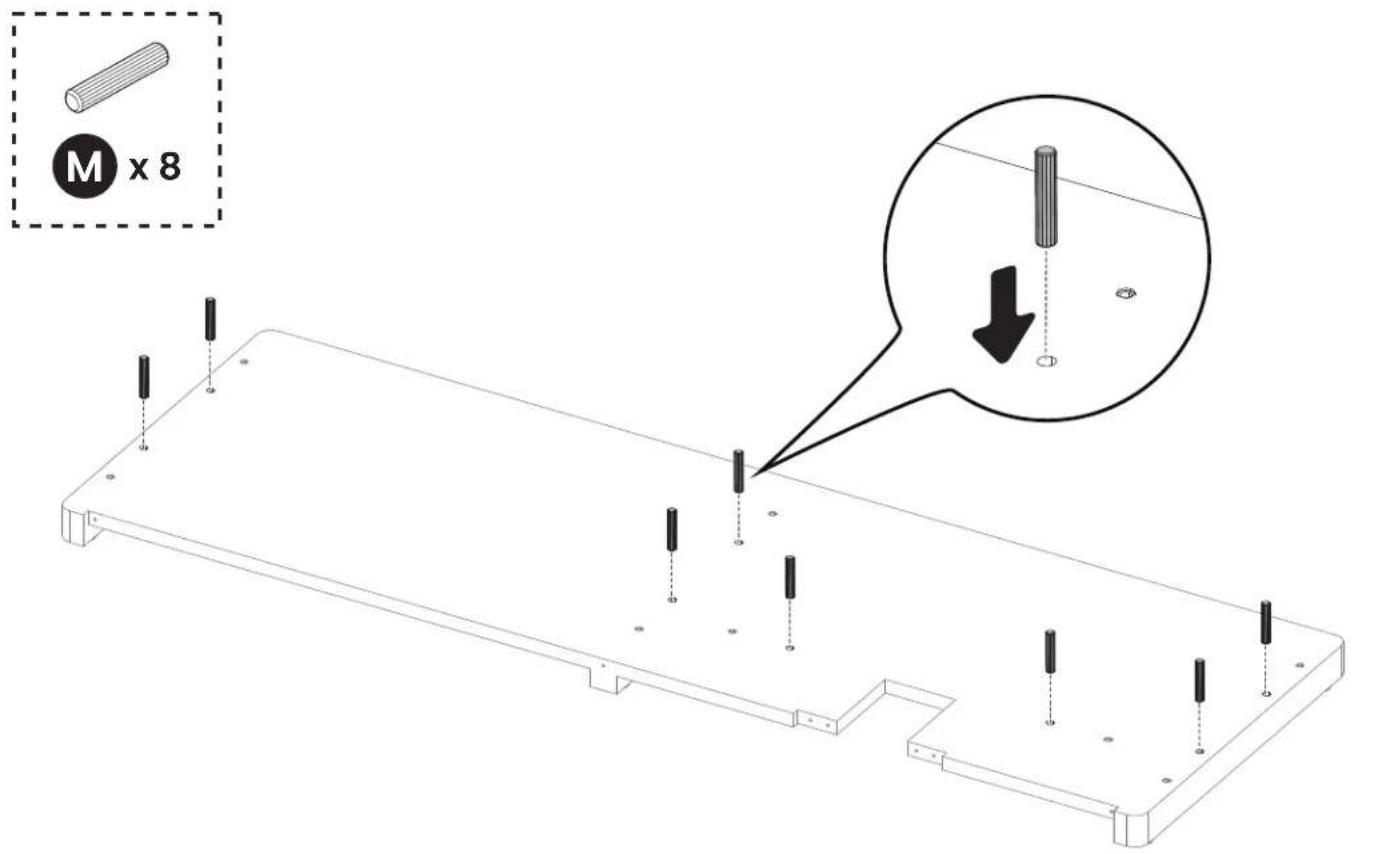

M x 8

N1 x 8

The side with small screw holes faces the back. 16 17 18 Back

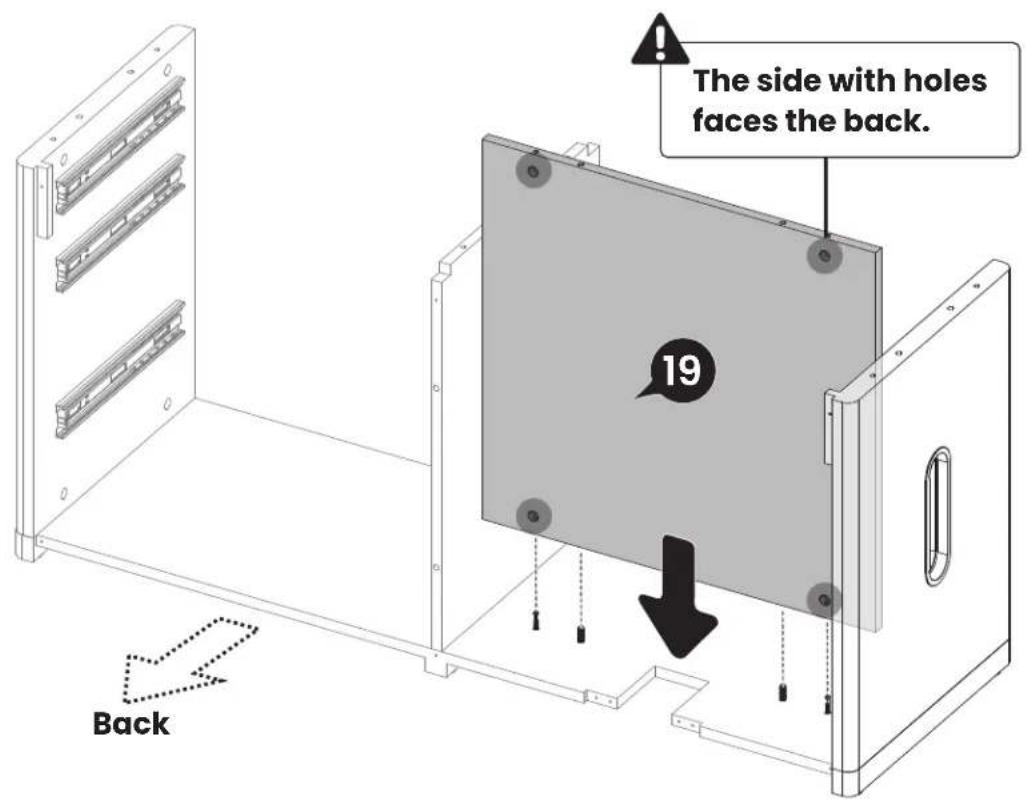

The side with holes faces the back. 19 Back

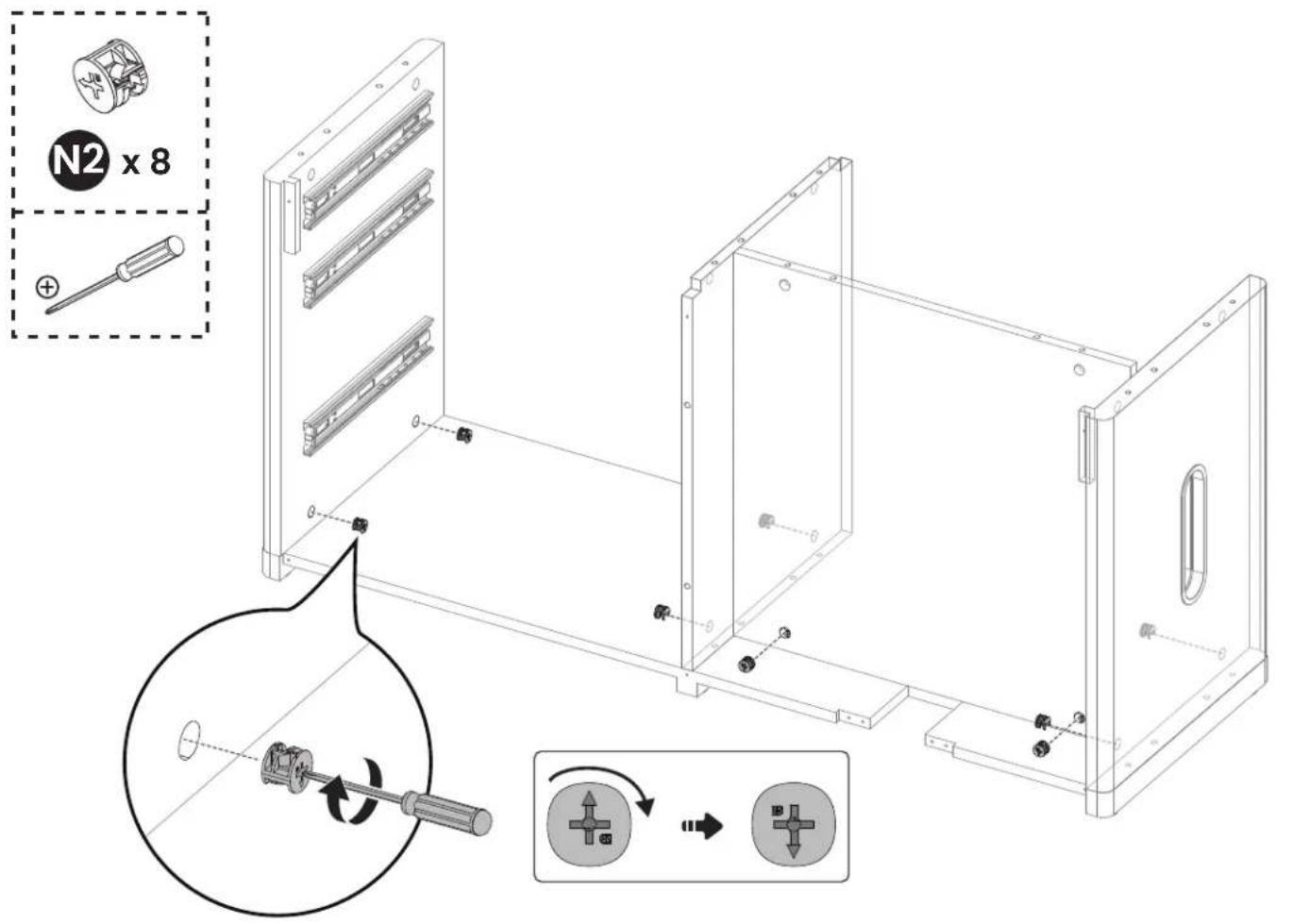

N2 x 8 +

M x 8

N1 x 8

Technical diagram showing a mechanical assembly with screw fasteners and a magnified view of the component being rotated.

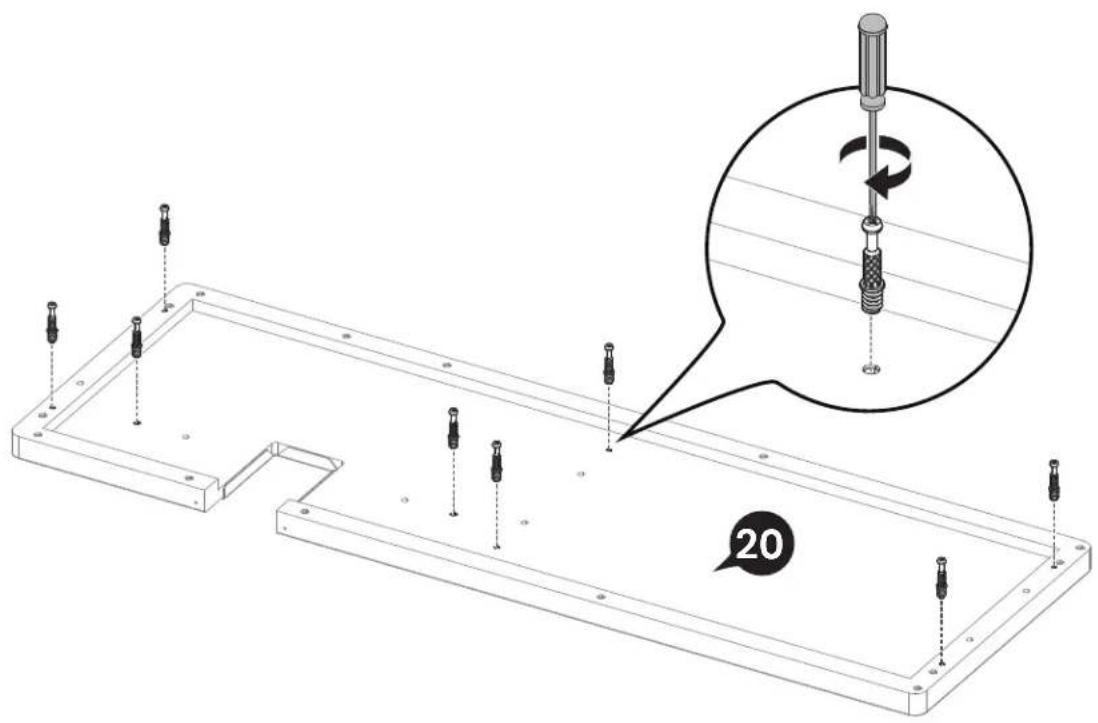

20 Back

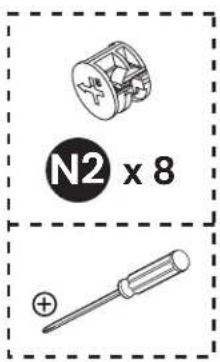

N2 x 8 ⊕

Technical diagram of an electrical enclosure with labeled components and a close-up of a screwdriver mechanism.

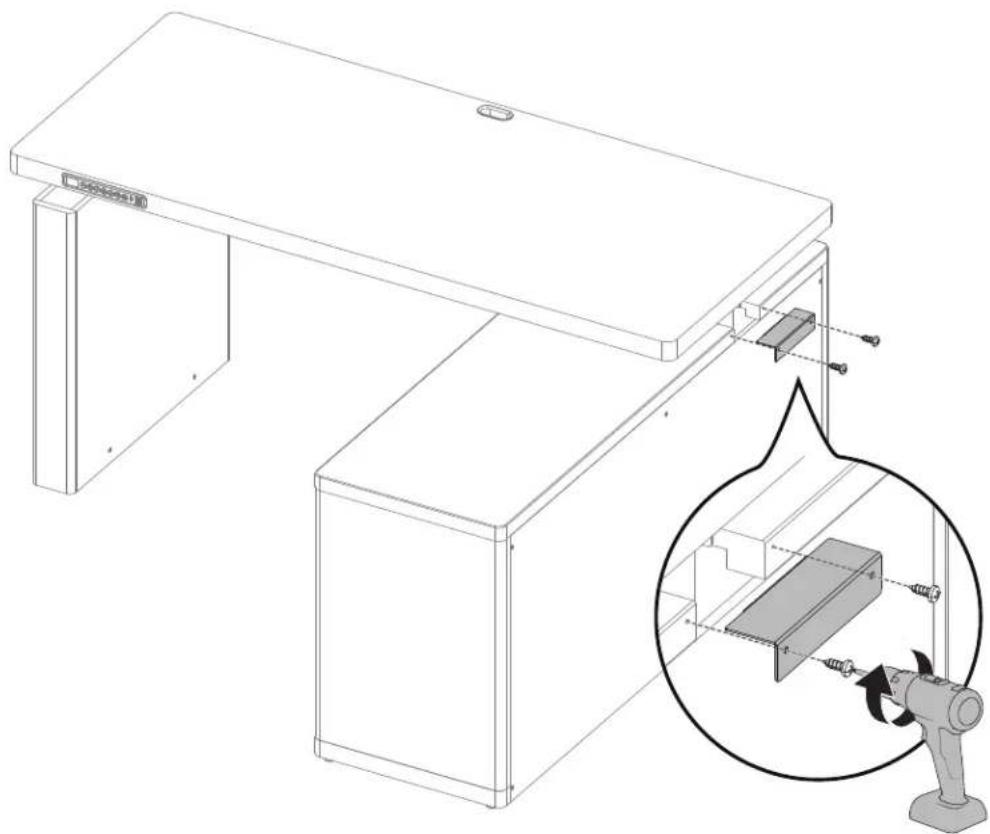

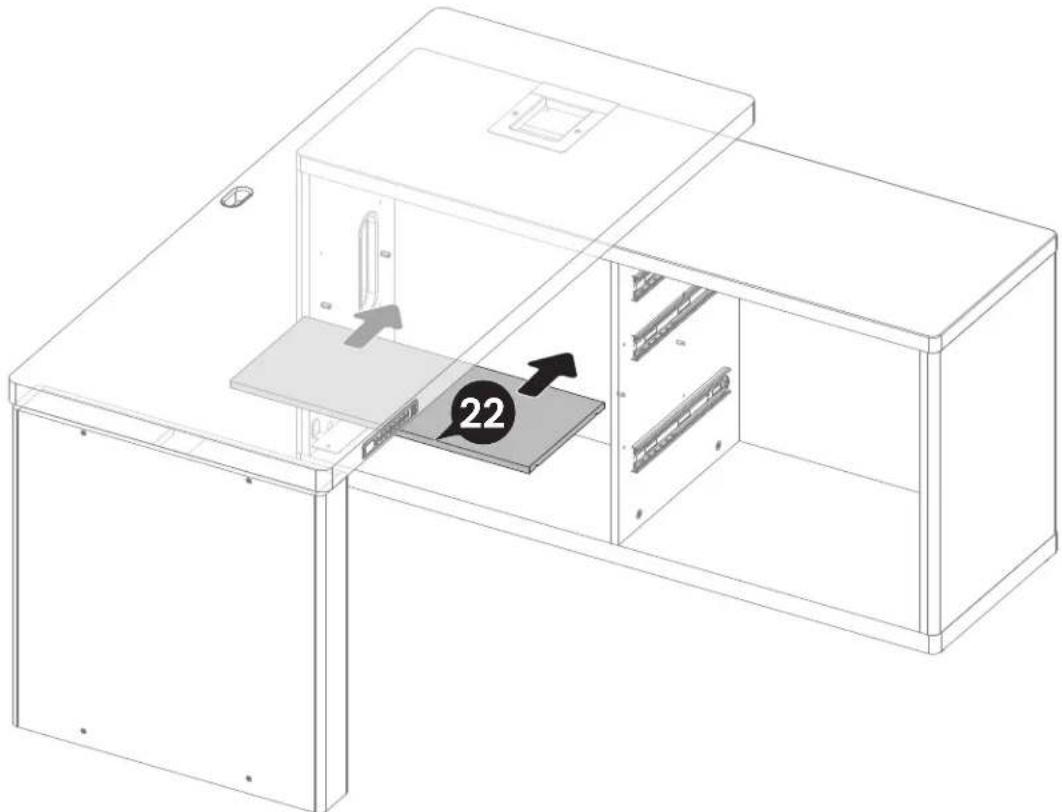

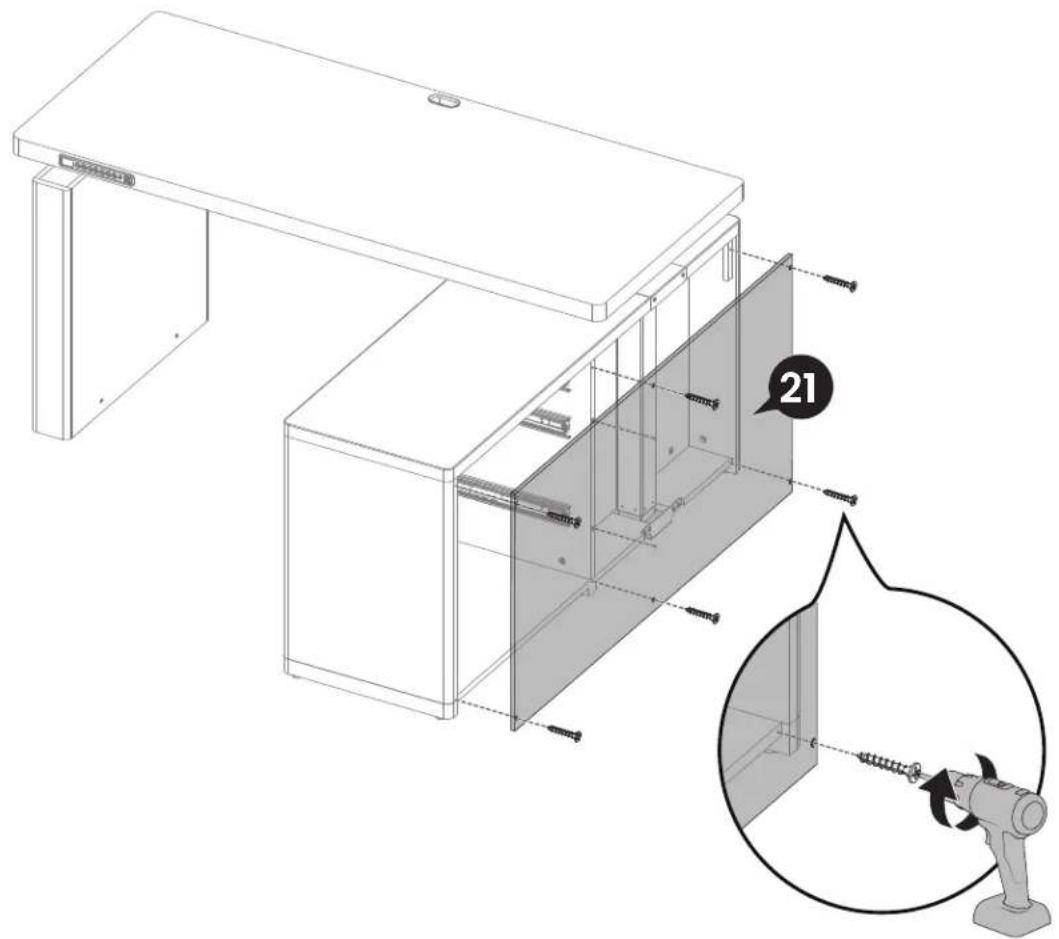

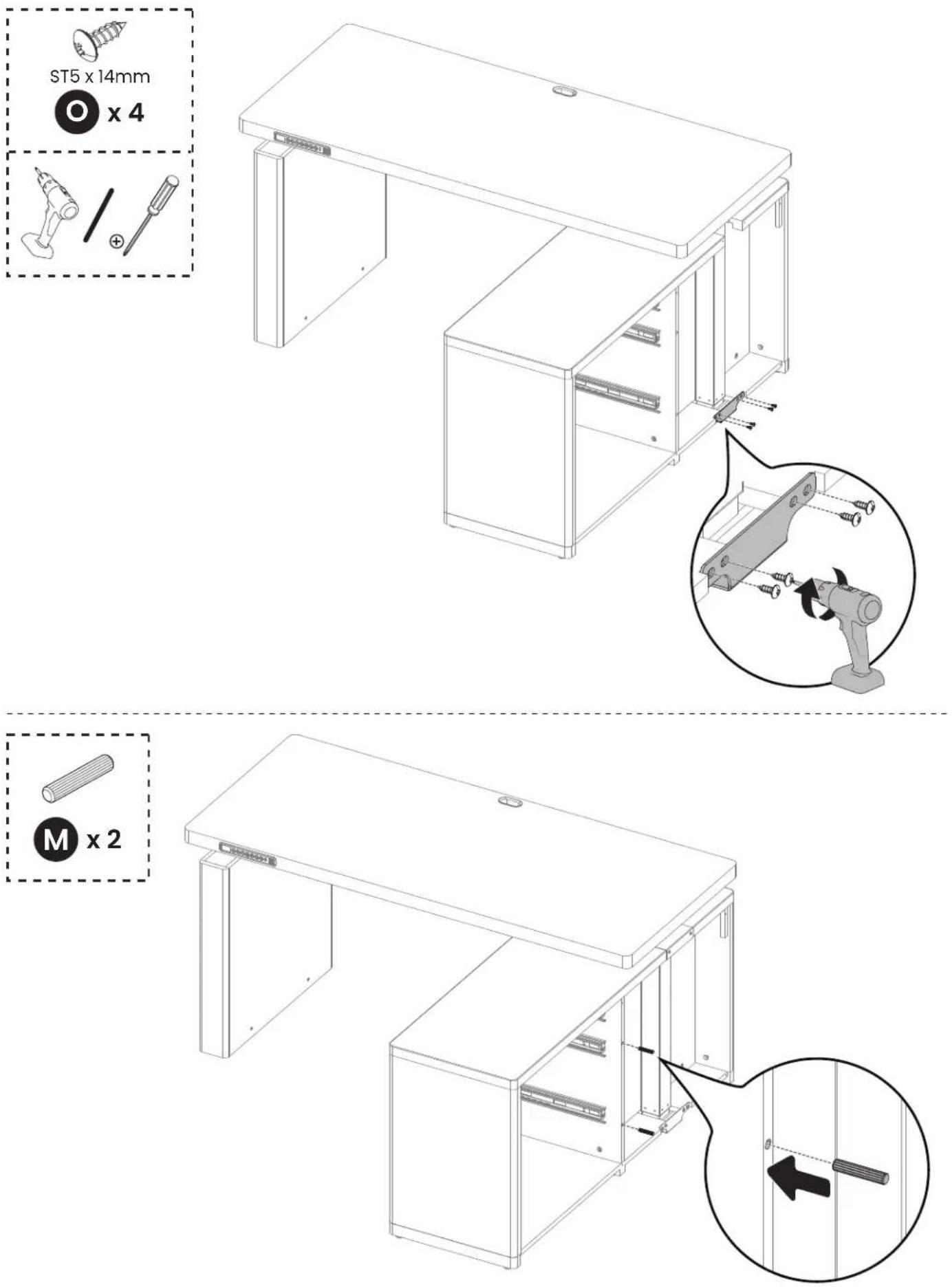

Step 5

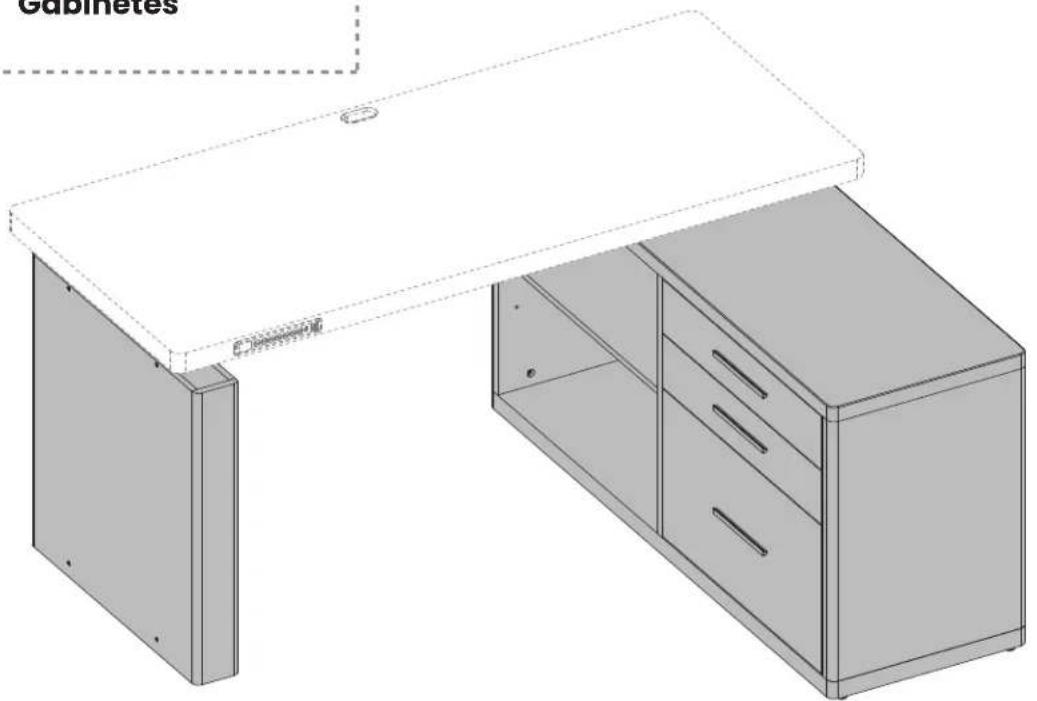

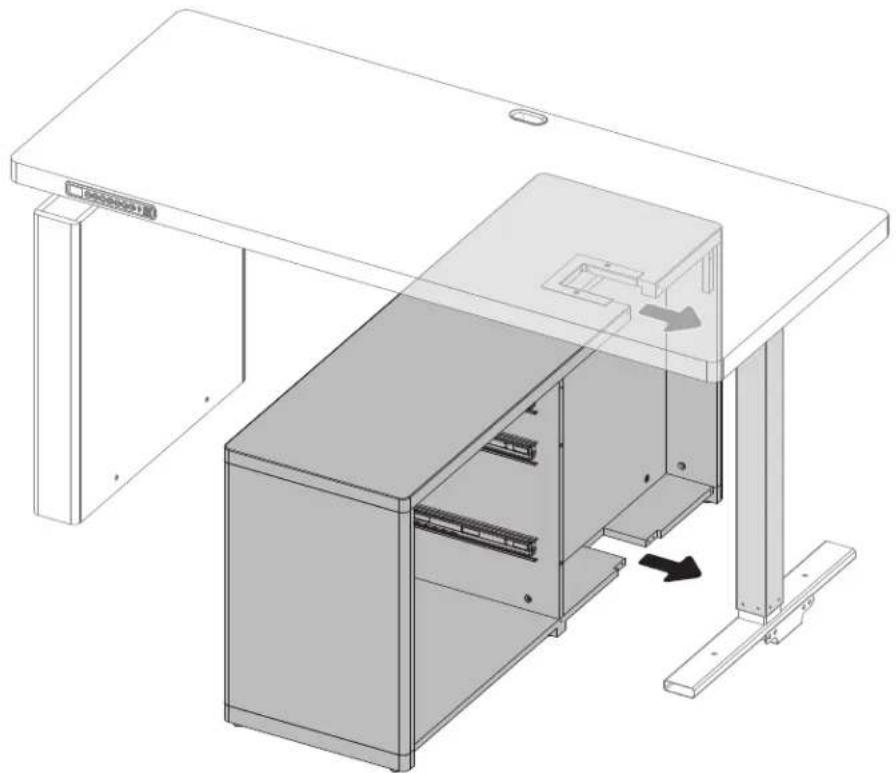

Attaching the Frame to the Cabinet

Technical line drawing of a mechanical assembly with a cabinet and mounting bracket (no text or symbols)

ST4 x 20mm

21 mm mm mm mm

ST4 x 10mm

Line drawing of a desktop desk with an inset showing a mechanical device and a close-up of the interior panel (no text or symbols)

Technical line drawing of an open industrial cabinet with internal components and a magnified inset showing a tool interacting with the door (no text or symbols present)

Technical line drawing of an open electronic device cabinet with internal components and a labeled component '22' (no text or symbols beyond the label)

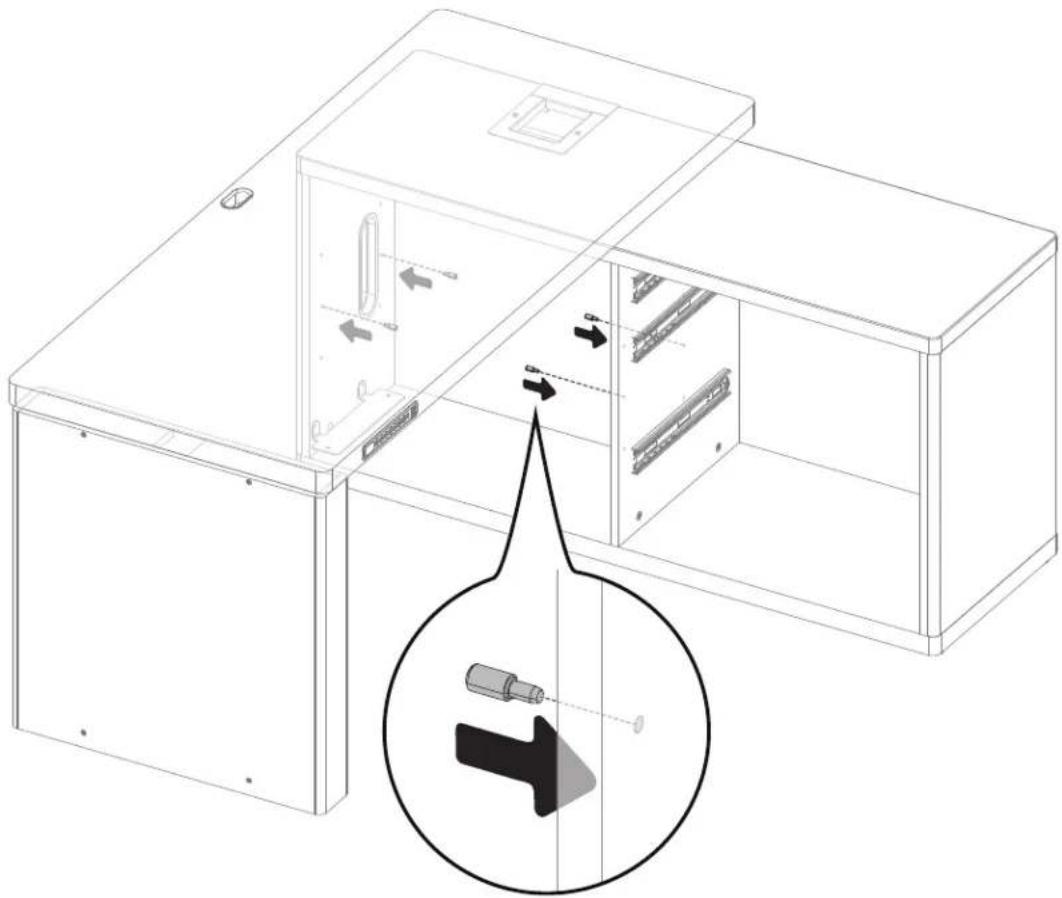

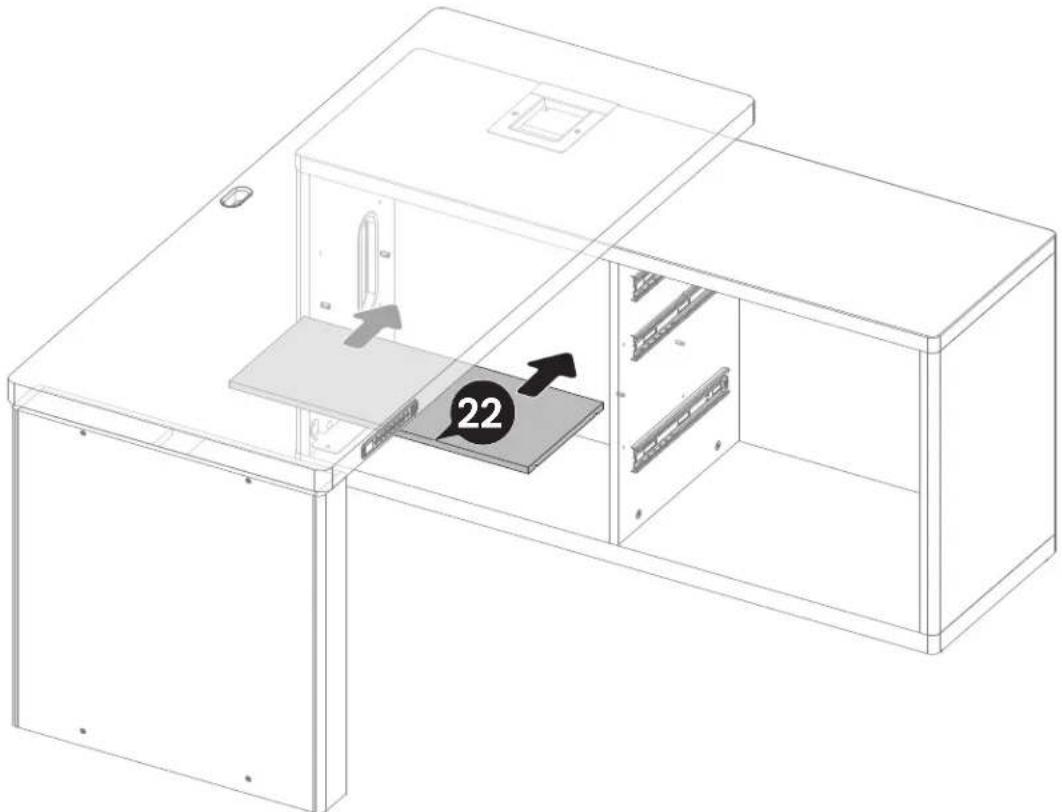

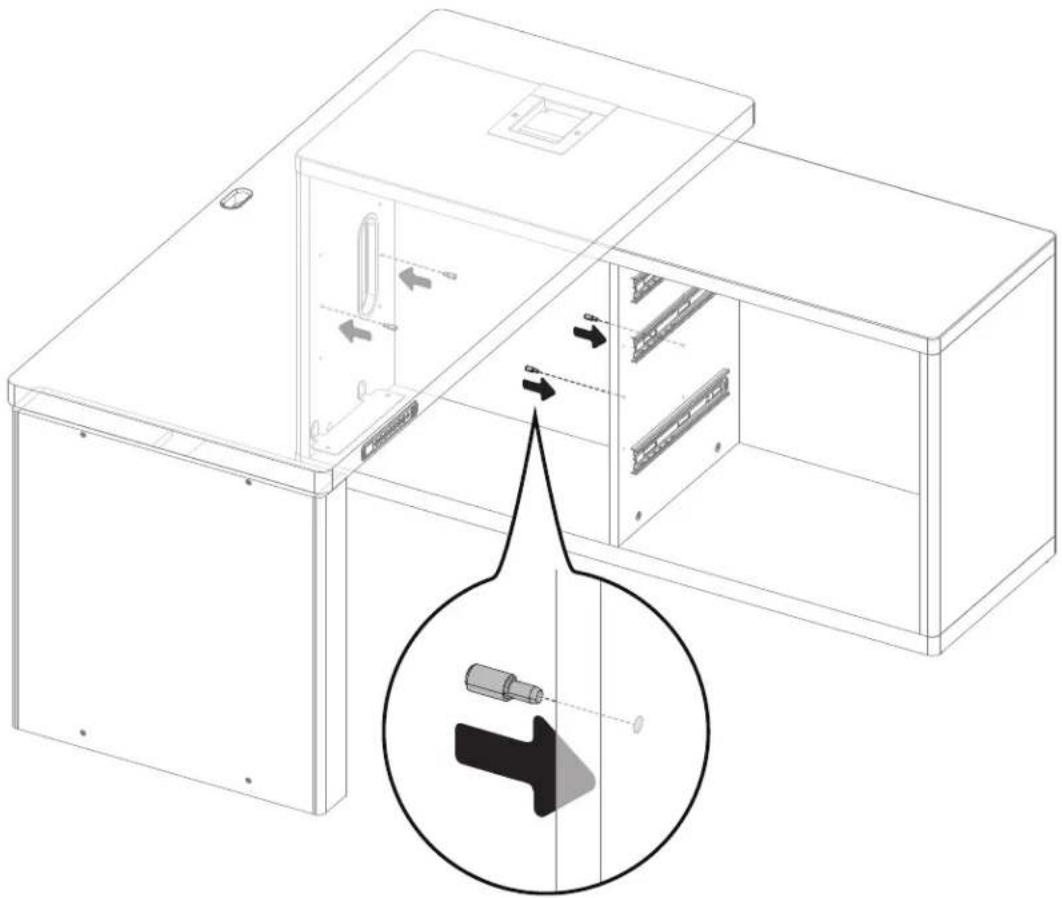

Step 6

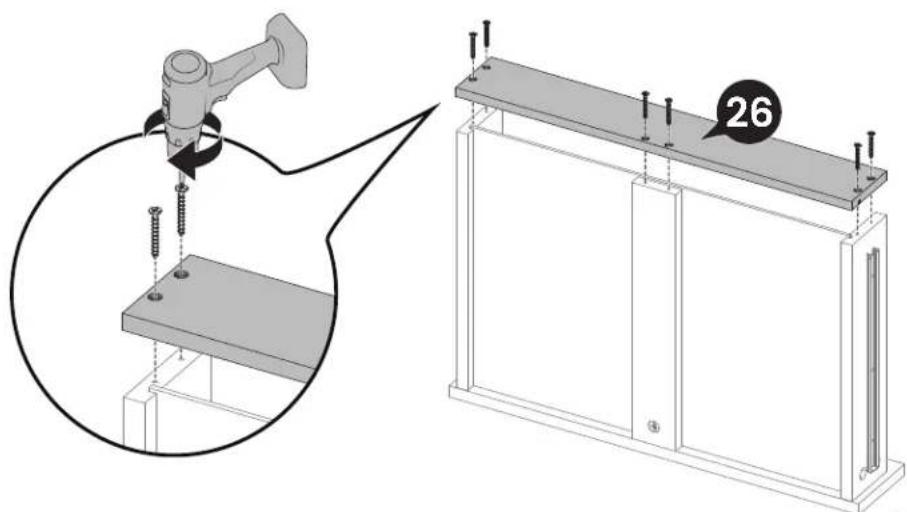

Attaching the Drawers

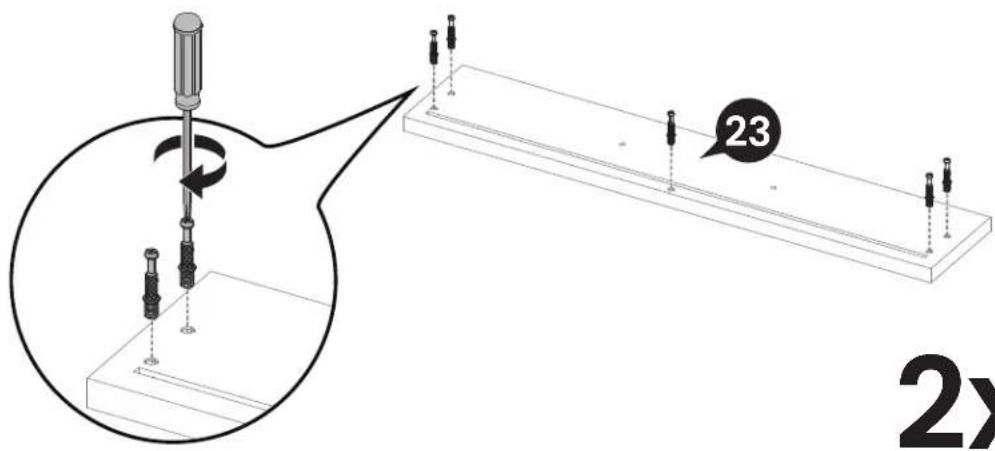

N1 x 10

23 2>

2x

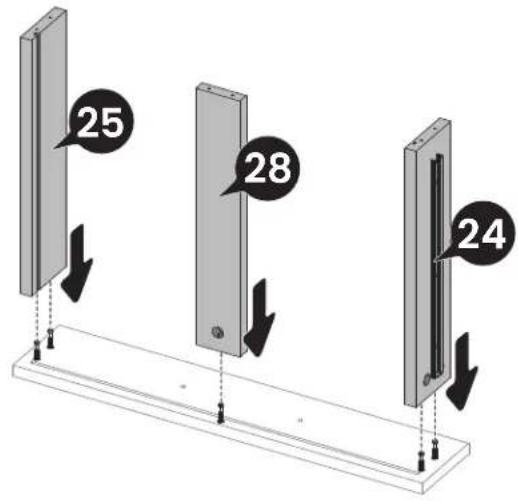

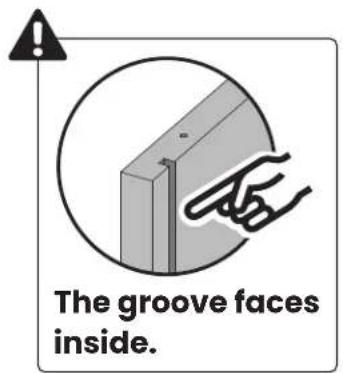

The groove faces inside.

25 28 24

2x

N2 x 10

Technical diagram illustrating a mechanical assembly with labeled components and a magnified view of the component being rotated.

2x

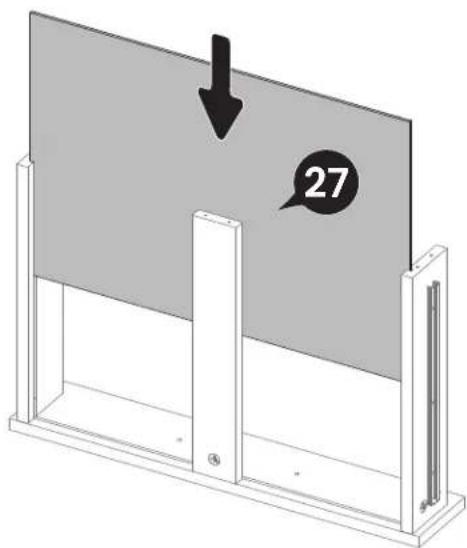

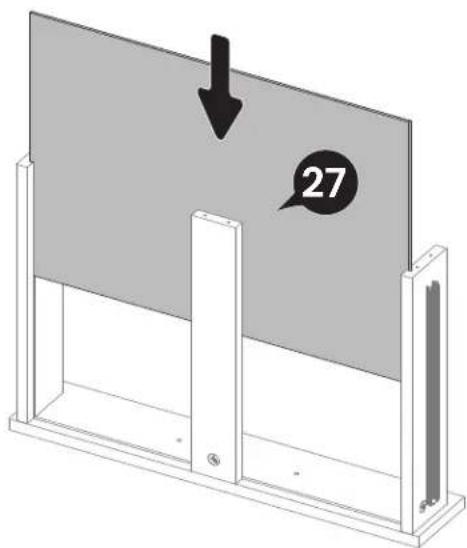

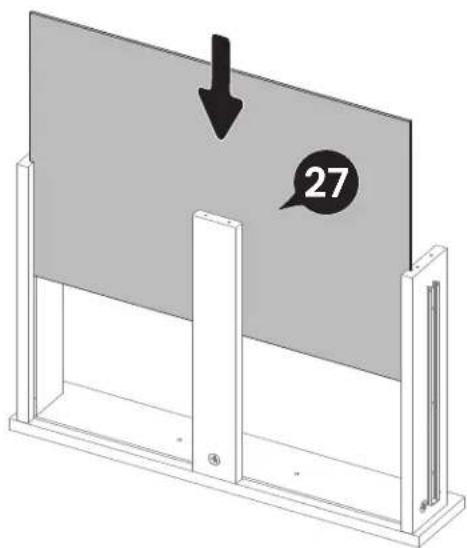

27

2x

ST4 x 35mm

x 12

Technical diagram showing a robotic arm performing a tool on a workbench, with a 26-unit component labeled.

2x

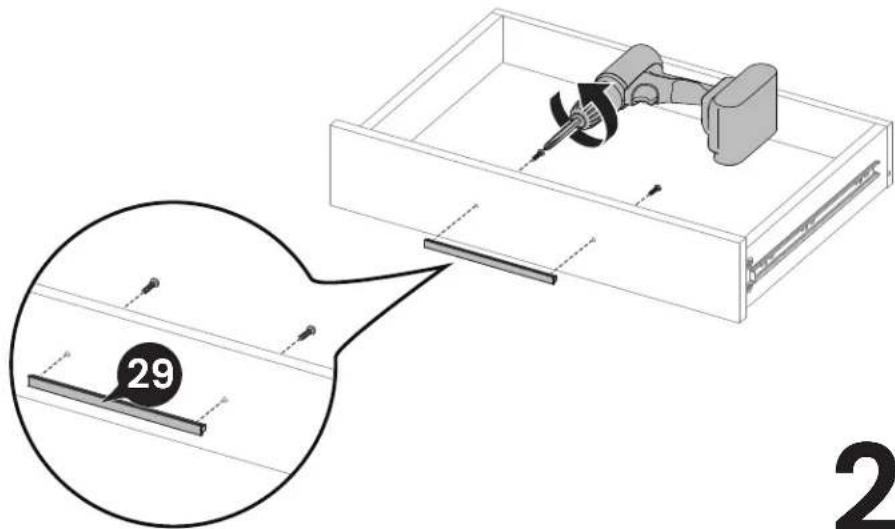

M4 x 18mm

x 4

29

2x

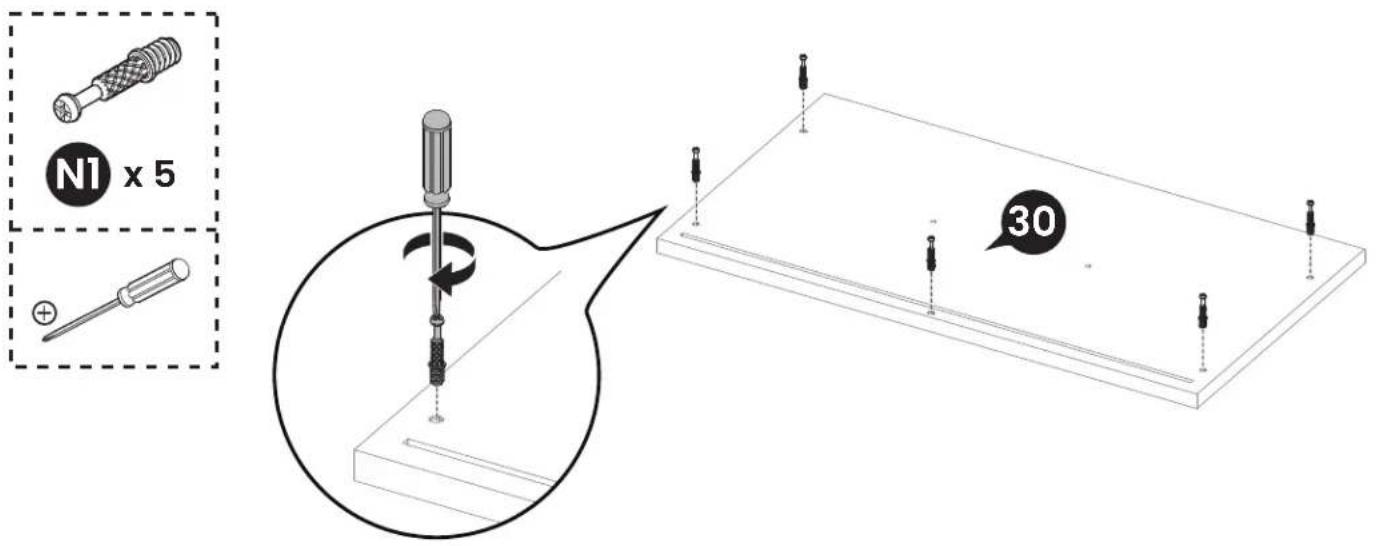

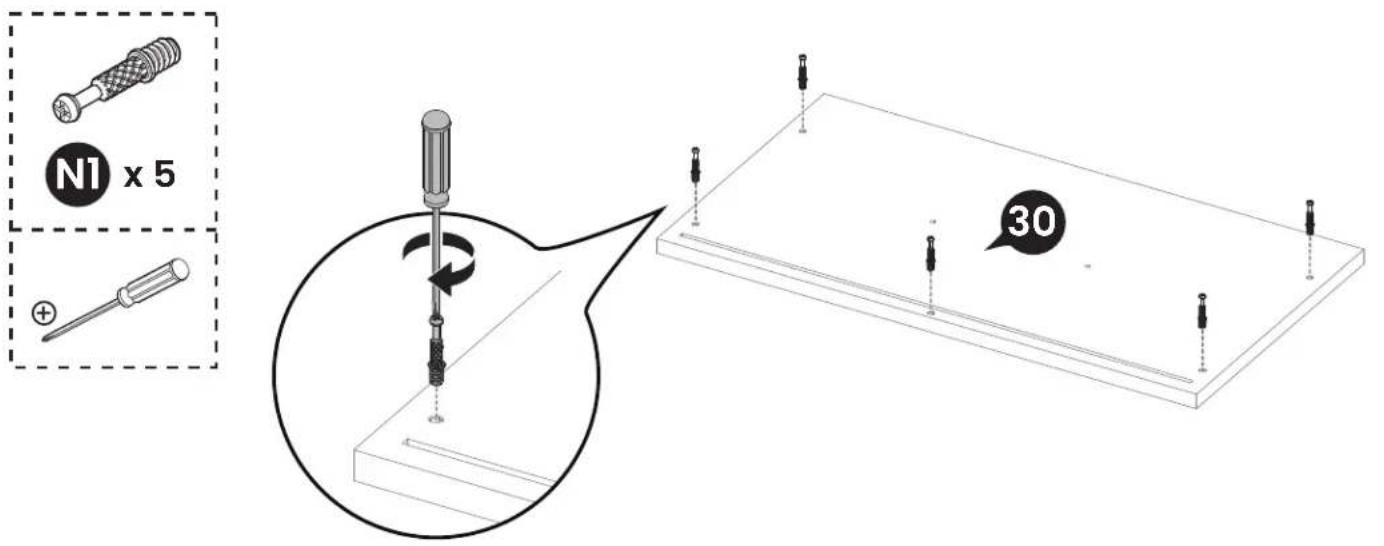

N1 x 5 30

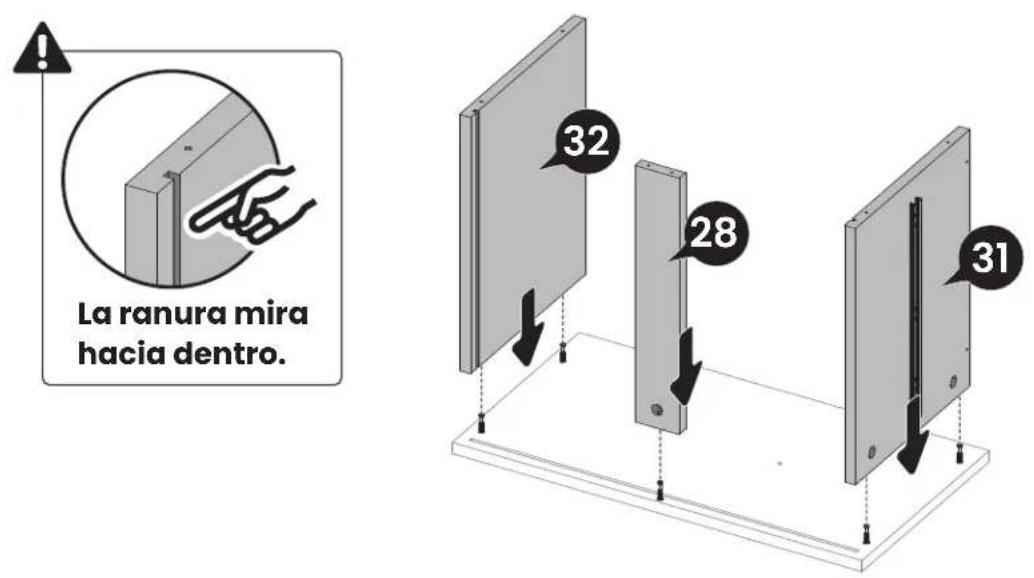

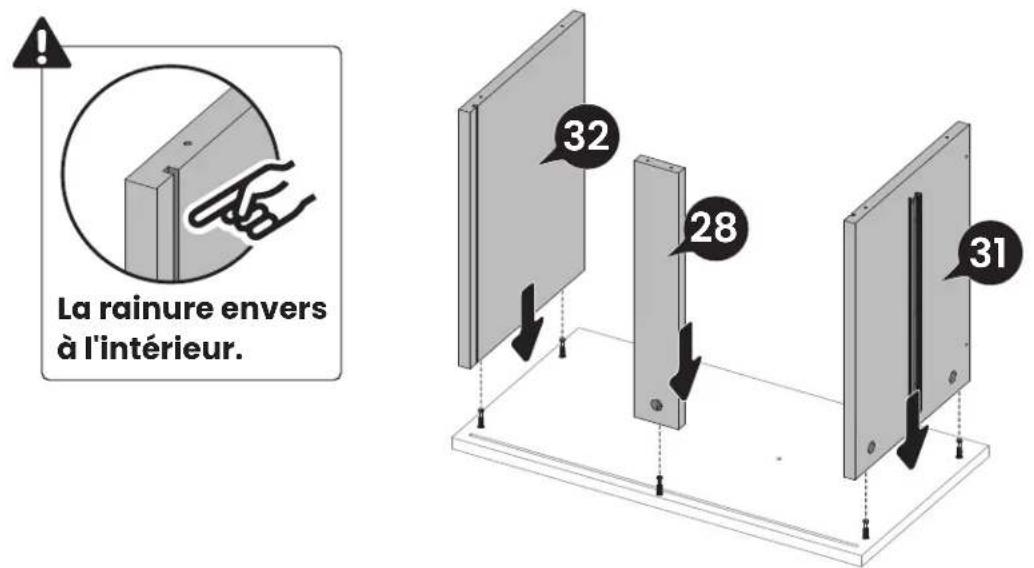

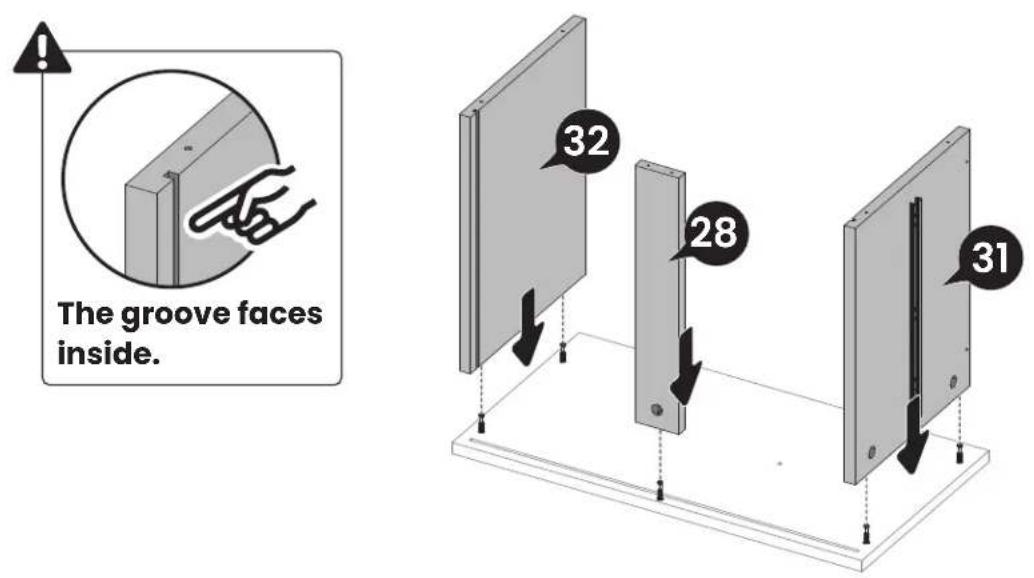

The groove faces inside. 32 28 31

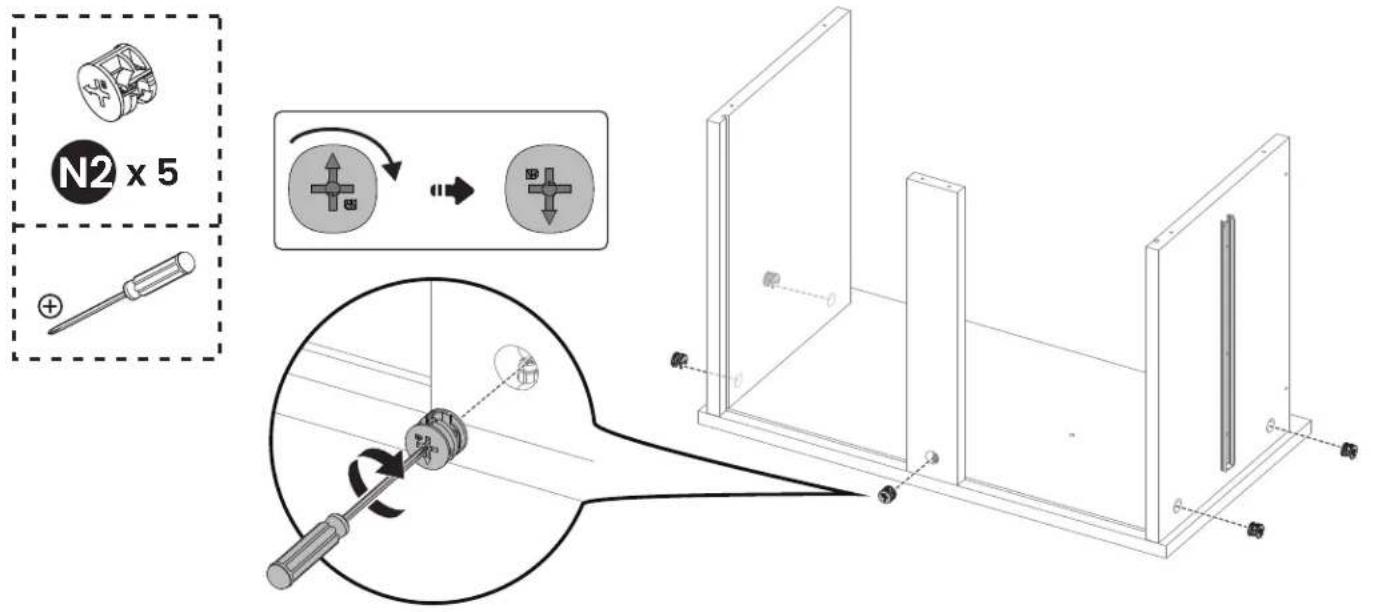

N2 x 5 +

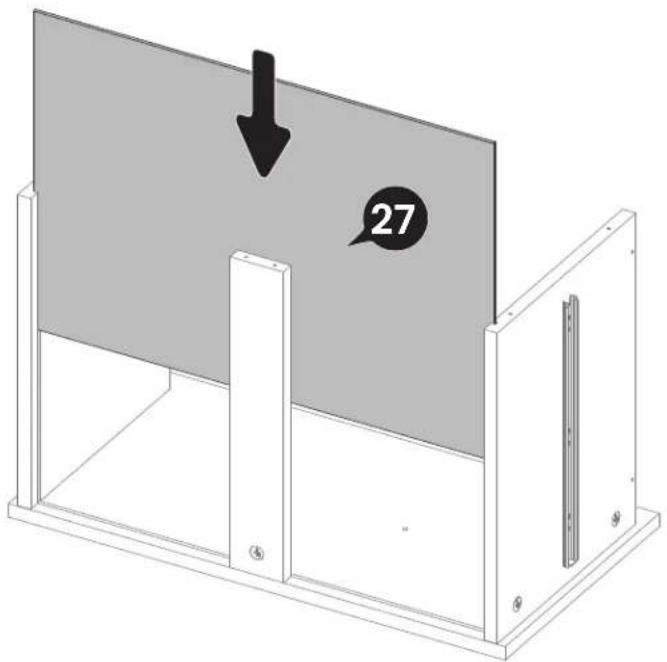

27

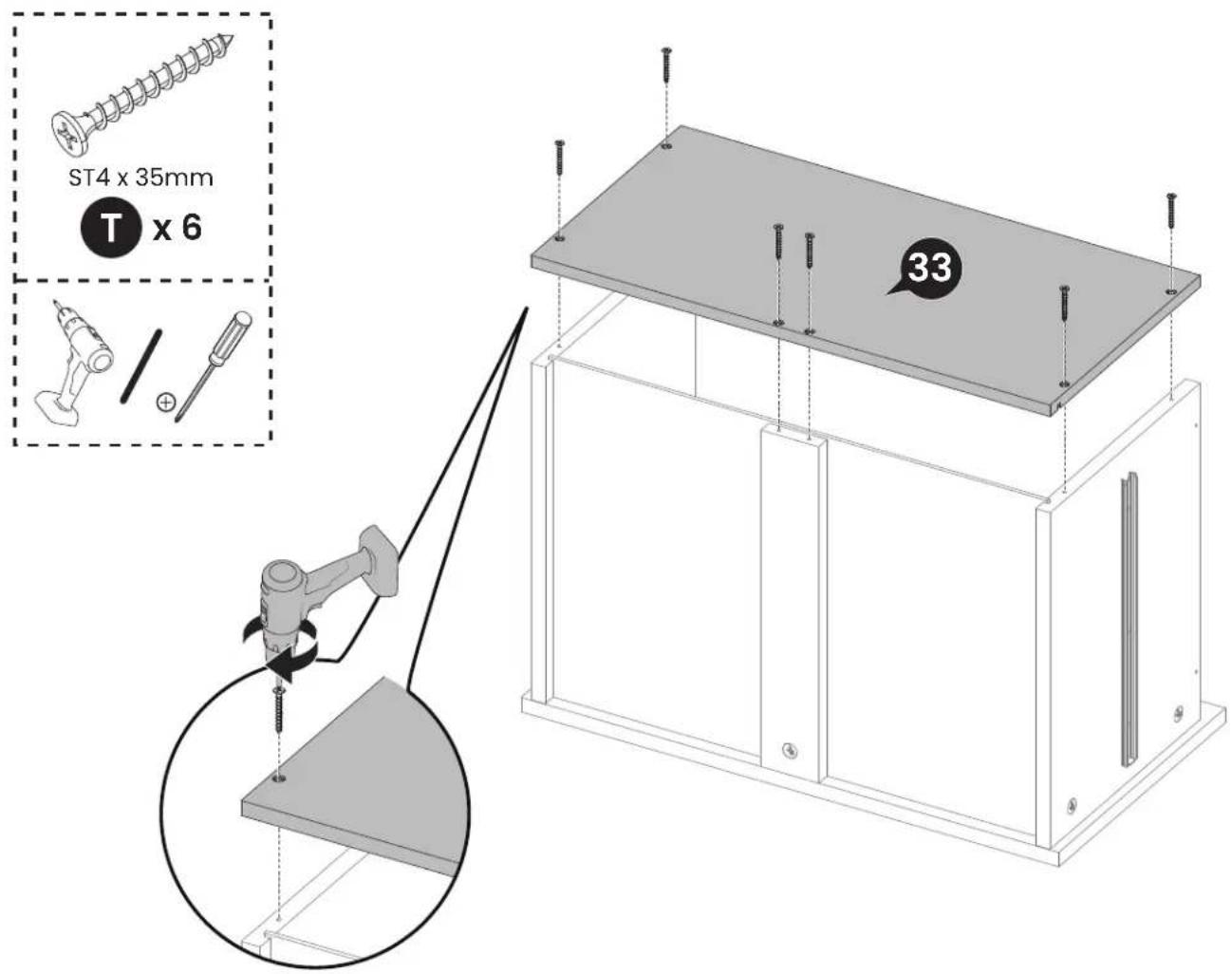

ST4 x 35mm T x 6 33

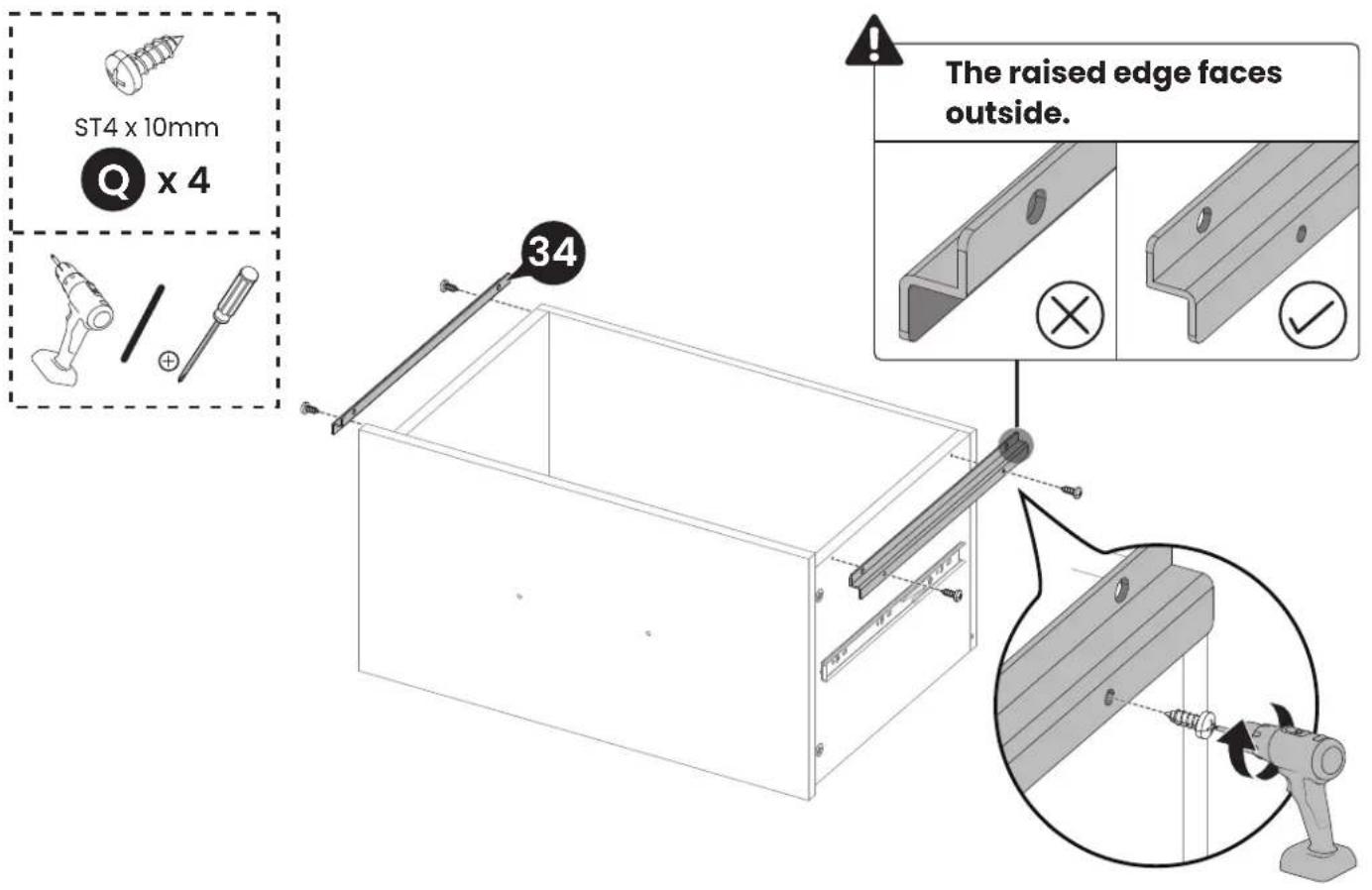

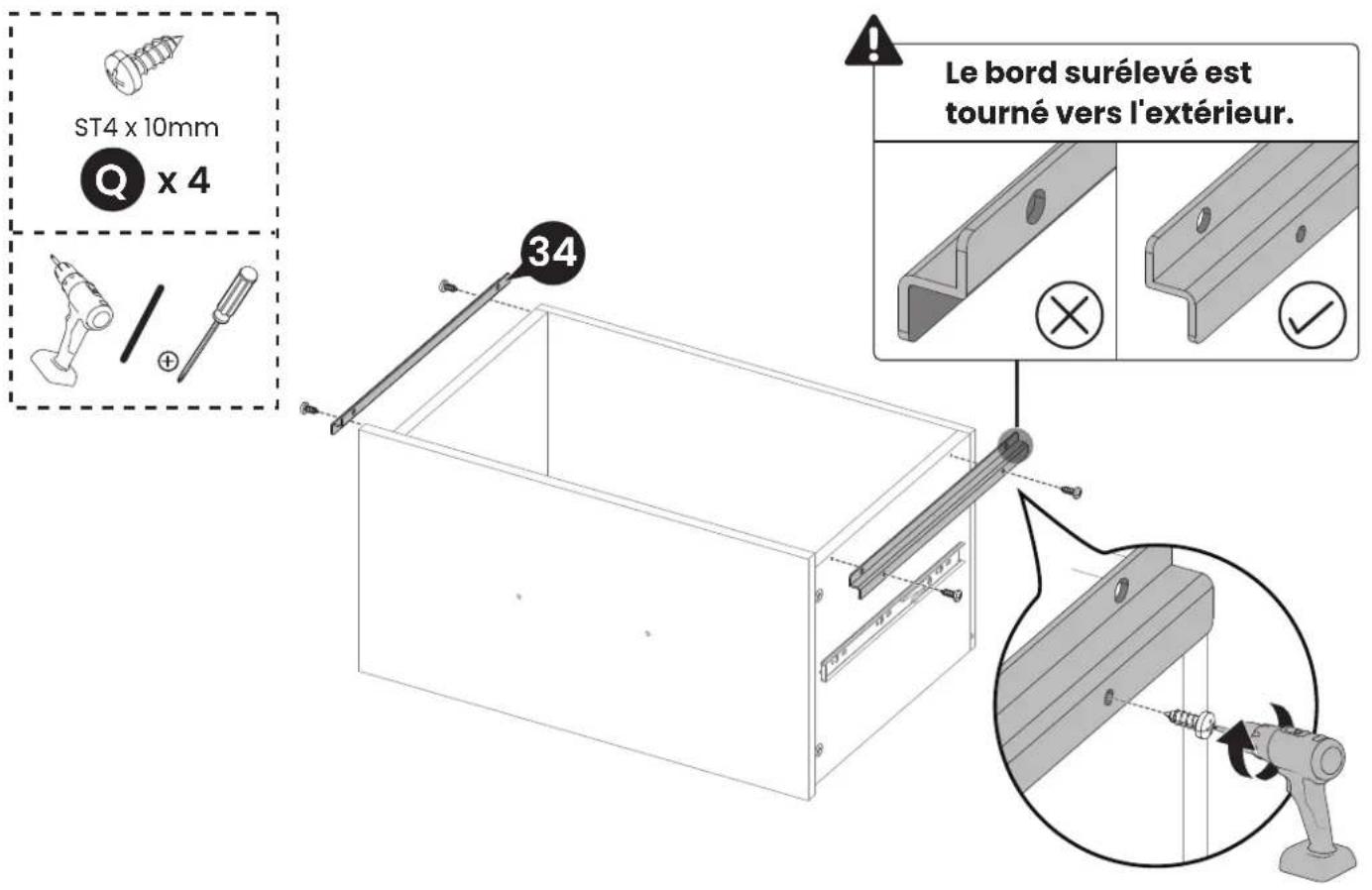

ST4 x 10mm Q x 4 34 The raised edge faces outside. The raised edge faces outside.

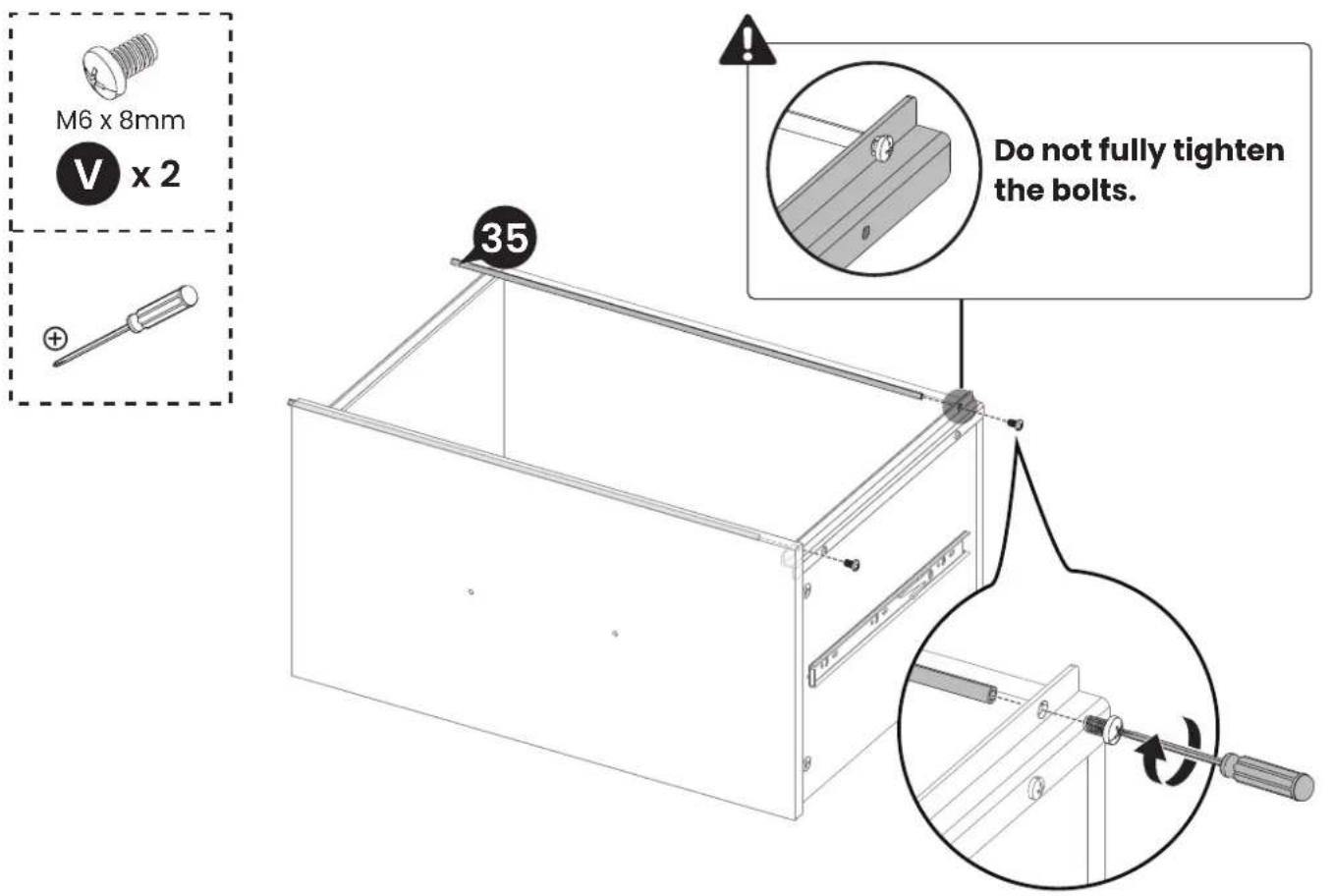

M6 x 8mm V x 2 35 Do not fully tighten the bolts.

36

M6 x 8mm

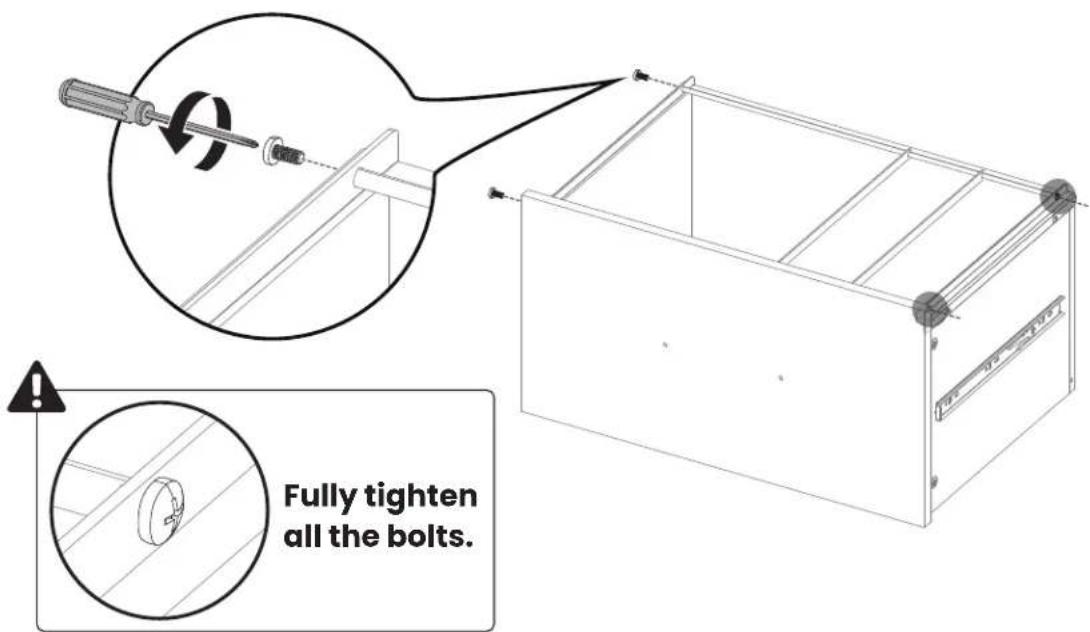

Fully tighten all the bolts.

Simple line drawing of a circular object with diagonal lines and a central ring, no text or symbols present.

Fully tighten all the bolts.

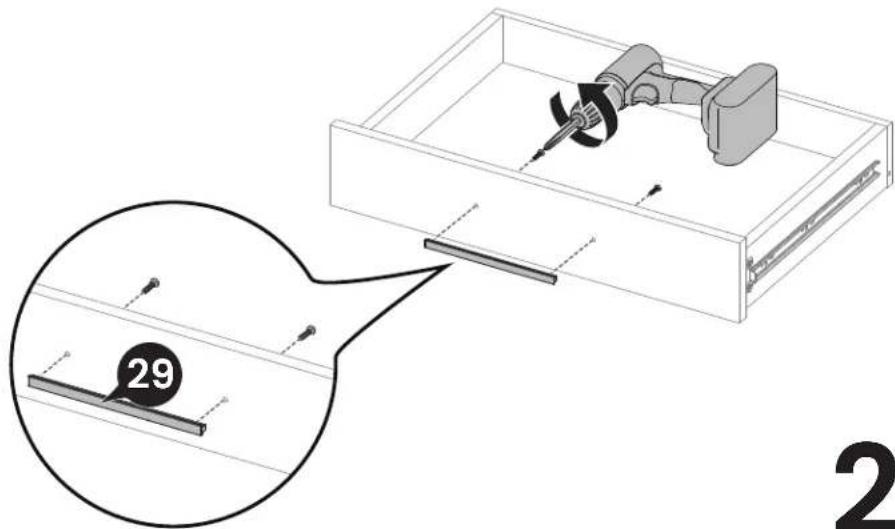

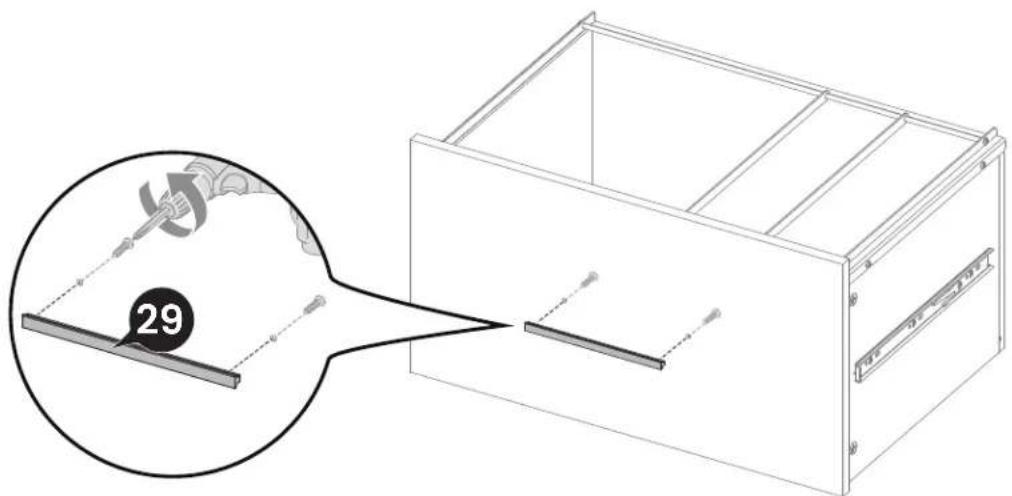

M4 x 18mm

29

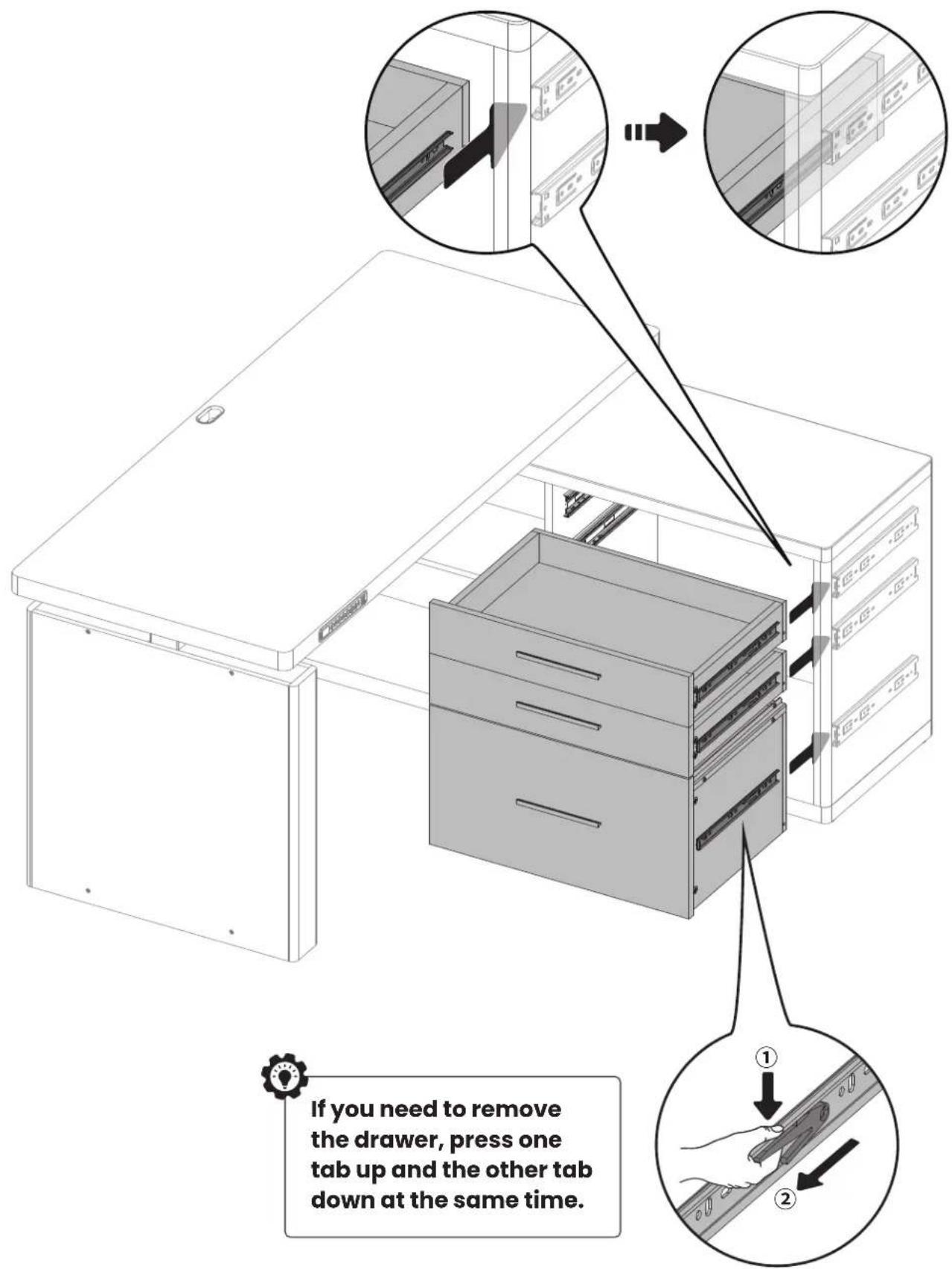

If you need to remove the drawer, press one tab up and the other tab down at the same time.

If you need to remove the drawer, press one tab up and the other tab down at the same time.

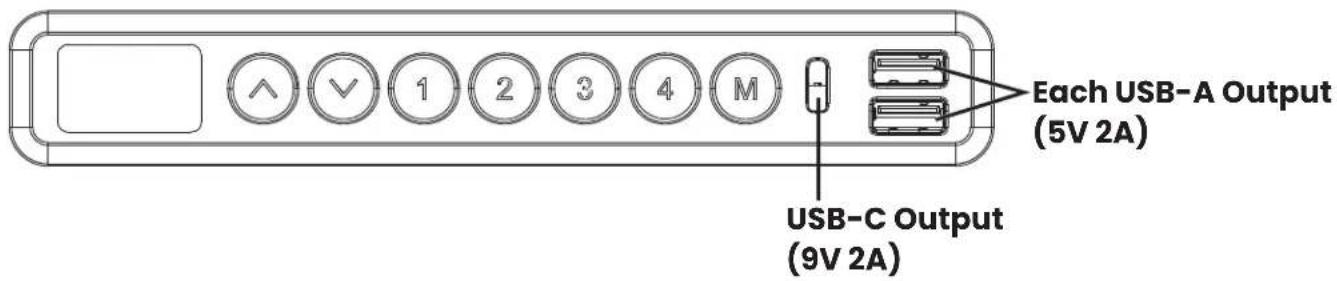

Using the Controller

Each USB-A Output (5V 2A) USB-C Output (9V 2A)

Reset before first use.

Note: Ensure that there are no obstacles when using the desk, that the desktop is not too close to the wall, and that all cables are long enough for the desk to move up and down freely. When the controller screen is off (power-saving mode), press any button to wake it before operation.

Suggestion: Set the most comfortable height when you sit down to ① and the most comfortable height when you stand up to ②. The other two presets can be set for another user or for other heights you want to use.

Raise Desk (Max height: 46.5" / 118cm)

√ Lower Desk (Min height: 27.6" / 70cm)

- Save Current Height Setting

Four heights can be saved. Press the Ⓜ button and the screen will display 'S-'. Press the ⑪, ⑧④, ○, or ○ button, the current height will be saved to that button.

- Select Height Setting

Press the ①2/3 ④ / ○ / ○ button. The desk will move to the height that was previously set for that button. Press any button to stop the desk.

Main Settings
Reset	1. Press and hold the √ button until the desk goes down to its lowest level, then release the button.2. Press and hold the √ button for 5 seconds until the screen displays 'RST', then release the button.3. Press and hold the √ button again until the screen display current height again. Reset is complete.
'RST' displays as RST on the screen.
Set Highest Limit	1. Press the Ⓜ button and the screen will display 'S-'.2. Press the ∧ button, the 'S-' will flash once on the screen, then release the button.3. Press and hold the Ⓜ button for 2 seconds until the screen display '999'. The current height will be saved as the highest limit.
Set Lowest Limit	1. Press the Ⓜ button and the screen will display 'S-'.2. Press the √ button, the 'S-' will flash once on the screen, then release the button.3. Press and hold the Ⓜ button for 2seconds until the screen display '00.0'. The current height will be saved as the lowest limit.
Clear Highest/ Lowest Limit	1. Press the Ⓜ button and the screen will display 'S-'.2. Press and hold the Ⓜ button for 2 seconds until the screen display '555'. The highest/lowest limit will be cleared.
Lock/Unlock	Press and hold the Ⓜ button for 8 seconds to turn the lock on. The screen will display 'LOC', and the buttons will be disabled. Repeat to turn the lock off.

Other Settings

To adjust the settings below, follow the reset instructions until the display flashes 'RST'. Next, follow the instructions below to adjust individual settings. After adjustment, the screen will flash 'RST' again. To exit, press and hold the √ button until the desk goes down to its lowest level and comes back up slightly. The screen will display the current height.

- Change Collision Detection Sensitivity

Press and hold the ⬆ button for 5 seconds to switch sensitivity level.

10.5: High Sensitivity

10.6: Medium Sensitivity

10.7: Low Sensitivity

Note: Sensitivity is preset to Normal (Low Sensitivity) by the factory. However, sensitivity may be adjusted if needed.

- Change Display Height Units

Press and hold the ② button for 5 seconds to switch the display height units. The default unit is imperial.

10.3: Metric (cm)

10.4: Imperial (inch)

- Change Displayed Minimum Height

Press and hold the Ⓜ button for 5 seconds. The current minimum height will flash on the screen. Press the ∧ or √ button to adjust the minimum height, then release the button. After 5 seconds, the screen will display 'RST' again.

Protection Mode Error Codes

E01	Overcurrent Protection: Input current too high. If the correct AC adapter is being used, perform a reset before continue using.
E07	Sensor Malfunction Warning: Motor safety sensor cannot be detected. Power off, check motor cable and power cable connections, power back on again, then reset.
E12	Undervoltage Protection: Input voltage too low. If the correct AC adapter is being used, perform a reset before continue using.
H01	Overheating Protection: When the motor overheats or the motor has been working continuously for too long (total 2.5 minutes in 20 minutes), it will stop operating to prevent damage from overheating. Wait at least 18 minutes or until the motor cools down before making any further height adjustment.

Please try resetting the controller if you have any issues including the following:

• Abnormal operation.
• The controller screen displays an error message.

Remarque

Technical line drawing of a mechanical assembly with a top shelf and internal components (no text or symbols)

Line drawing of a modern office desk with cabinet and shelf, no text or symbols present

Spécifications

Simple line drawing of a long rectangular object with four small protrusions at the ends (no text or symbols)

Barre transversale

02 x 1

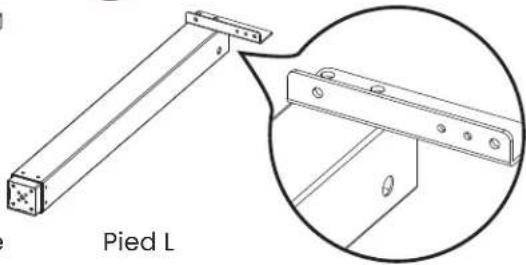

Technical line drawing of a structural bracket labeled 'Pied L', showing a close-up inset with mounting holes (no text or symbols beyond label)

03 x 1

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Pied R

Technical line drawing of a mechanical bracket component (no text or symbols)

04 x 1

Tige de transmission

05 x 1

Single diagonal line on white background (no text or symbols)

Tige de transmission

06 x 2

Plaque latérale

07 x 1

Moteur

Étape 2

Simple line drawing of a rectangular electronic device with a small black clip on the side (no text or symbols)

Bureau

13 x 1

Support en fer

14 x 1

Armoire décorative

Étape 3

Pure technical line drawing of a rectangular plate or casing with no text, numbers, or symbols

Panneau inférieur

16 x 1

Panneau droite

17 x 1

Panneau central

18 x 1

Panneau gauche

19 x 1

Partition

20 x 1

Isometric line drawing of a rectangular plate with a small L-shaped cutout (no text or symbols)

Panneau supérieur

Étape 5

Simple 3D rectangular shape with no text, numbers, or symbols

Panneau arrière

22 x 1

Etagère

Étape 6

Technical line drawing of a mechanical support structure with an inset showing rotational motion (no text or symbols)

Diagram showing a tool interacting with a curved mechanical component, enclosed in a circular frame (no text or symbols)

Technical line drawing of a mechanical support structure with a magnified inset showing a component being adjusted (no text or symbols present)

M6 x 10mm

5/32" (4 mm)

Technical line drawing of a mechanical support structure with two vertical supports and a central cylindrical component, shown with an inset magnified view (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and an inset showing a component detail with '08' annotation.

09 15000000

M6 x 30mm

5/32" (4mm)

Technical line drawing of a mechanical assembly with a vertical panel and base plate, no text or symbols present

M6 x 30mm

Technical line drawing of a mechanical assembly with mounting brackets and a close-up inset showing bolted components (no text or symbols)

Technical diagram showing a mechanical assembly with screw fasteners and a magnified view of the component being rotated.

20 Arrière

N2 x 8

Technical diagram of an electrical enclosure with labeled components and a close-up of a screwdriver mechanism.

Technical line drawing of a server rack cabinet with an open rear panel and mounting bracket (no text or symbols)

x 4

M x 2

ST4 x 20mm

Technical diagram of a cabinet with labeled dimensions and an inset showing a mechanical assembly with a 21mm height measurement.

ST4 x 10mm

Line drawing of a desktop desk with an inset showing a mechanical device and a close-up of the interior panel (no text or symbols)

Technical line drawing of an open industrial cabinet with internal components and a magnified inset showing a mechanical component (no text or symbols)

Technical line drawing of a computer case with internal components and a labeled component '22' (no text or symbols beyond the label)

Technical diagram illustrating a mechanical assembly with labeled components and a magnified view of the component being rotated.

2x

27

2x

ST4 x 35mm

x 12

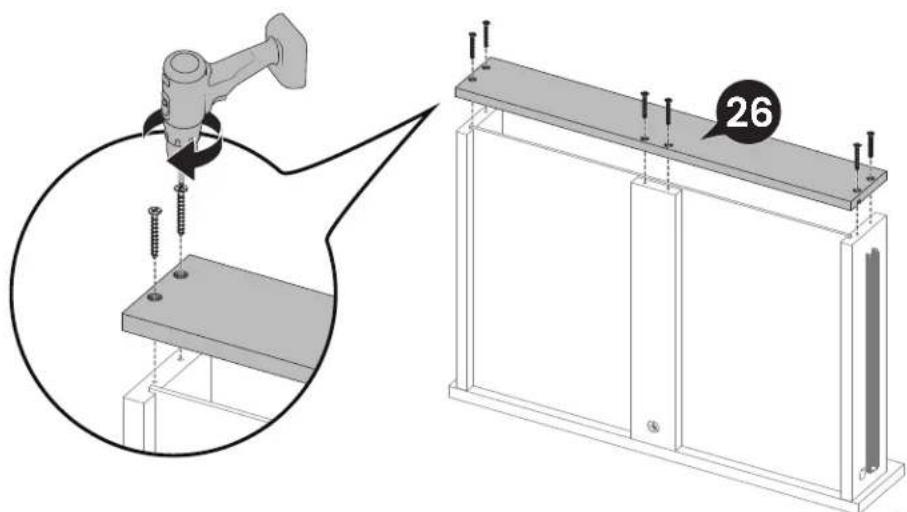

Technical diagram showing a robotic arm performing a screwdriver on a platform, with a 26-pin cabinet labeled in Chinese.

2x

M4 x 18mm

x 4

29 2

2x

N1 x 5 30

ST4 x 35 mm T x 6 33

Simple line drawing of a ring inside a circle with diagonal stripes (no text or symbols)

Technical line drawing of a cabinet or enclosure with mounting brackets and internal compartments (no text or symbols)

Caja para ERDC5-01 Gabinetes

Line drawing of a cabinet with open lid and side drawers (no text or symbols)

Especificaciones

Rango de ajuste de altura 70-118 cm (27.6"-46.5")

Simple line drawing of a diagonal metal rod or beam with four evenly spaced holes (no text or symbols)

Barra transversal

02 x 1

Technical line drawing of a mechanical bracket labeled Pata L, showing a close-up view with no text or symbols beyond the label.

03 x 1

Technical line drawing of a mechanical bracket or support structure (no text or symbols)

Pata R

Technical line drawing of a mechanical bracket component (no text or symbols)

04 x 1

Single diagonal line on white background (no text or symbols)

Simple line drawing of a rectangular electronic device with a small black component on top (no text or symbols)

Base de la pata

Escritorio

Soporte de hierro

Gabinete decorativo

Paso 3

Isometric line drawing of a rectangular metal plate with cutouts and mounting holes (no text or symbols)

Panel inferior

16 x 1

Panel derecho

17 x 1

Panel intermedio

18 x 1

Panel izquierdo

19 x 1

Partición

20 x 1

Simple line drawing of a rectangular object with a small protrusion on top (no text or symbols)

Panel superior

Simple 3D rectangular shape with no text, numbers, or symbols

Panel trasero

22 x 1

Estante

Paso 6

Technical line drawing of a mechanical support structure with an inset showing rotational motion (no text or symbols)

Diagram showing a tool interacting with a curved mechanical component, enclosed in a circular frame (no text or symbols)

Technical line drawing of a mechanical support structure with a magnified inset showing a component being adjusted (no text or symbols present)

M6 x 10mm

5/32" (4 mm)

Technical line drawing of a mechanical support structure with a magnified inset showing internal components (no text or symbols)

Technical diagram showing assembly steps with labeled components and a magnified inset of a mechanical component

M6 x 30mm

Technical line drawing of a mechanical assembly with a vertical component labeled '14' and an arrow pointing to it (no text or symbols beyond label)

M6 x 30mm

Technical line drawing of a mechanical assembly with mounting brackets and a close-up inset showing bolted components (no text or symbols)

Simple line drawing of a mechanical device with a circular symbol labeled 'H x 4' (no text or symbols on the device itself)

H x 4 Cable del motor Cable del motorCable del motor

Technical diagram showing a mechanical assembly with screw fasteners and a magnified view of the component being rotated.

20 Espalda

N2 x 8 +

Technical diagram of an electrical enclosure with labeled components and a magnified view showing tool path and component selection.

Technical line drawing of a mechanical assembly with a cabinet and mounting bracket (no text or symbols)

x4

M x 2

ST4 x 20mm

21 mm mm mm mm mm

ST4 x 10mm

Technical line drawing of a desk with an inset showing a mechanical assembly (no text or symbols present)

Technical line drawing of an open industrial cabinet with internal components and a magnified inset showing a mechanical component (no text or symbols)

Technical line drawing of an open electronic device cabinet with internal components and a labeled component '22' (no text or symbols beyond the label)

Technical diagram illustrating a mechanical assembly with labeled components and a magnified view of the component being rotated.

2x

27

2x

ST4 x 35mm

x 12

Technical diagram showing a robotic arm performing a tool on a platform, with a 26-pin cabinet labeled in Chinese.

2x

M4 x 18mm

x 4

29

2x

N1 x 5 30

ST4 x 35mm T x 6 33

Technical diagram showing a screwdriver interacting with a metal frame structure, with an inset close-up highlighting the tool (no text or symbols present)

Simple line drawing of a ring inside a circle with diagonal stripes (no text or symbols)

At ErgoAV, our goal is to provide the high-quality audio video solutions and product support that you need. If you have any questions, concerns, or feedback, please let us know!

ErgoAV
9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445
[phone] Mon-Fri 8am - 8pm (CST)
[e-mail]
www.ergoav.com
