USER MANUAL ErgoFx ERDS1-01W ErgoAV

Electric Standing Desk Instruction Manual

(A)

English pages 02-12 French pages 13-23 Spanish pages 24-34

Scan the QR code to download the APP to control the desk.

Model: ERDS1-01G

THANK YOU FOR CHOOSING THIS ERGOAV PRODUCT!

At ErgoAV, we want to add value to your AV experience by providing the highest quality products and services in the industry. If you have any concerns or comments, please contact us.

ErgoAV Customer Care

phone [phone]

email: [e-mail]

website: www.ergoav.com

address: 9501 Louisiana Ave N, #200, Brooklyn Park, MN 55445

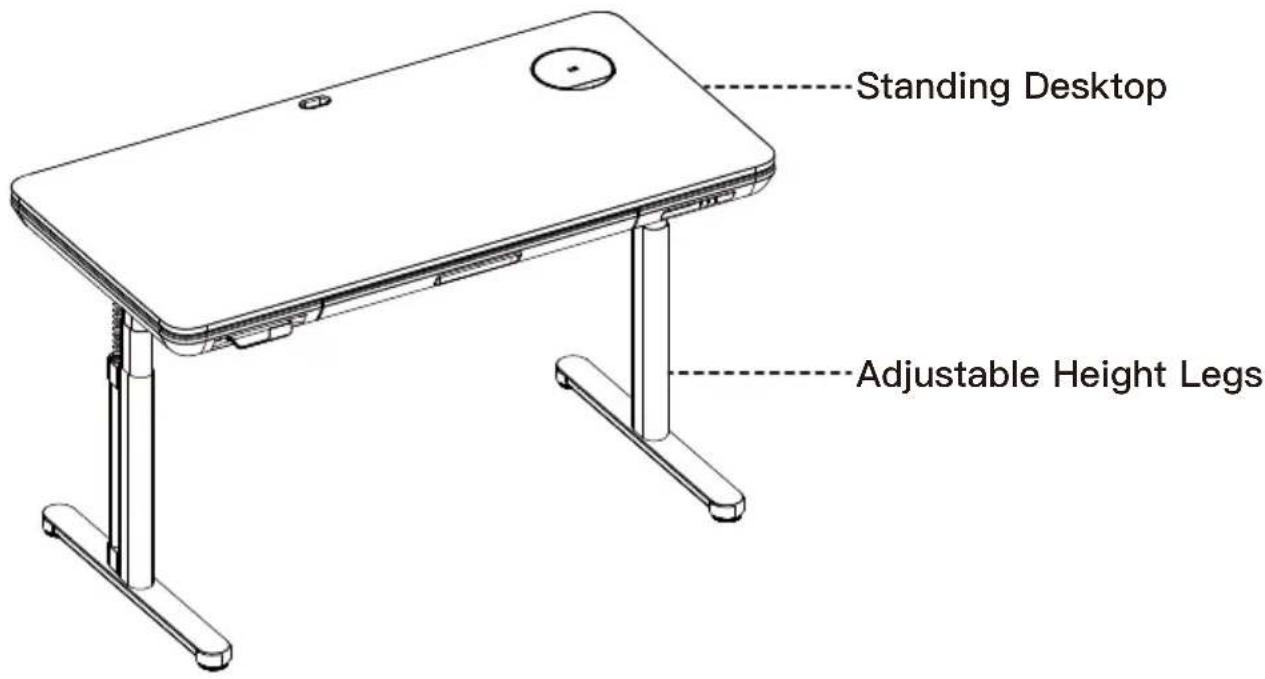

NOTE

We have packaged this standing desk into two separate parcels. Please make sure to receive both parcels before assembling the desk.

Standing DesktopBox 1 of 2

Adjustable Height Legs

Important Safety Information

• Please carefully read all instructions before attempting installation. If you do not understand the instructions or have any concerns or questions, please contact our Technical Support line at [phone] or Customer Service at [e-mail].
  CAUTION: Use with products heavier than the maximum weights indicated may result in instability causing possible injury.
• Please check whether the packaging contents are intact or damaged before assembly.
• Check whether the appearance and wires of the product are damaged. If there is any damage, please do not assemble or operate the product.
• Ensure that the product is not connected to a power source during the assembly process.
• Ensure that there are no unnecessary obstacles near the assembly area.
• Do not soak any parts in liquid, only use a dry cloth or a slightly wet cloth to clean product parts.
• Do not place any wires on a heat source.
• Be careful to avoid electric shock when plugging in the power.
• Please do not operate the desk continuously for more than two minutes to prevent damage to the motor.

Weight Restrictions

If your products weigh more, do not use this product.

WARNING

DO NOT exceed the maximum weight indicated. This desk is intended for use only within the maximum weight indicated. Use with products heavier than the maximum weight indicated may result in failure of the desk and its accessories, causing damage and or injury.

Supplied Parts and Hardware

Warning: This product contains small items that could be a choking hazard if swallowed.

Before starting assembly, verify all parts are included and undamaged. Do not use damaged or defective parts. If you require replacement parts, please contact our Technical Support line at [phone] or Customer Service at [e-mail]

• Please note: Not all hardware included in this package will be used.

Supplied Parts and Hardware

Desktop
01 x1

Left Leg
02 x1

Right Leg
03 x1

04 x2

Bolts M6 x 16
A x8

Allen Wrench
B x1

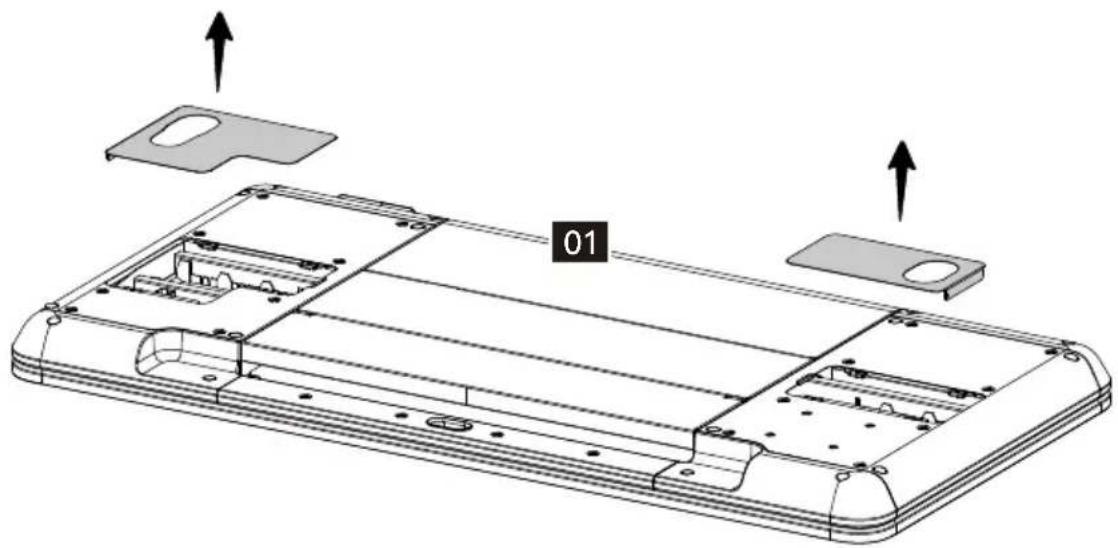

Step 1

Place the Desktop [01] assembly on a clean and flat ground, arrange it according to the diagram, and remove the covers on the left and right sides.

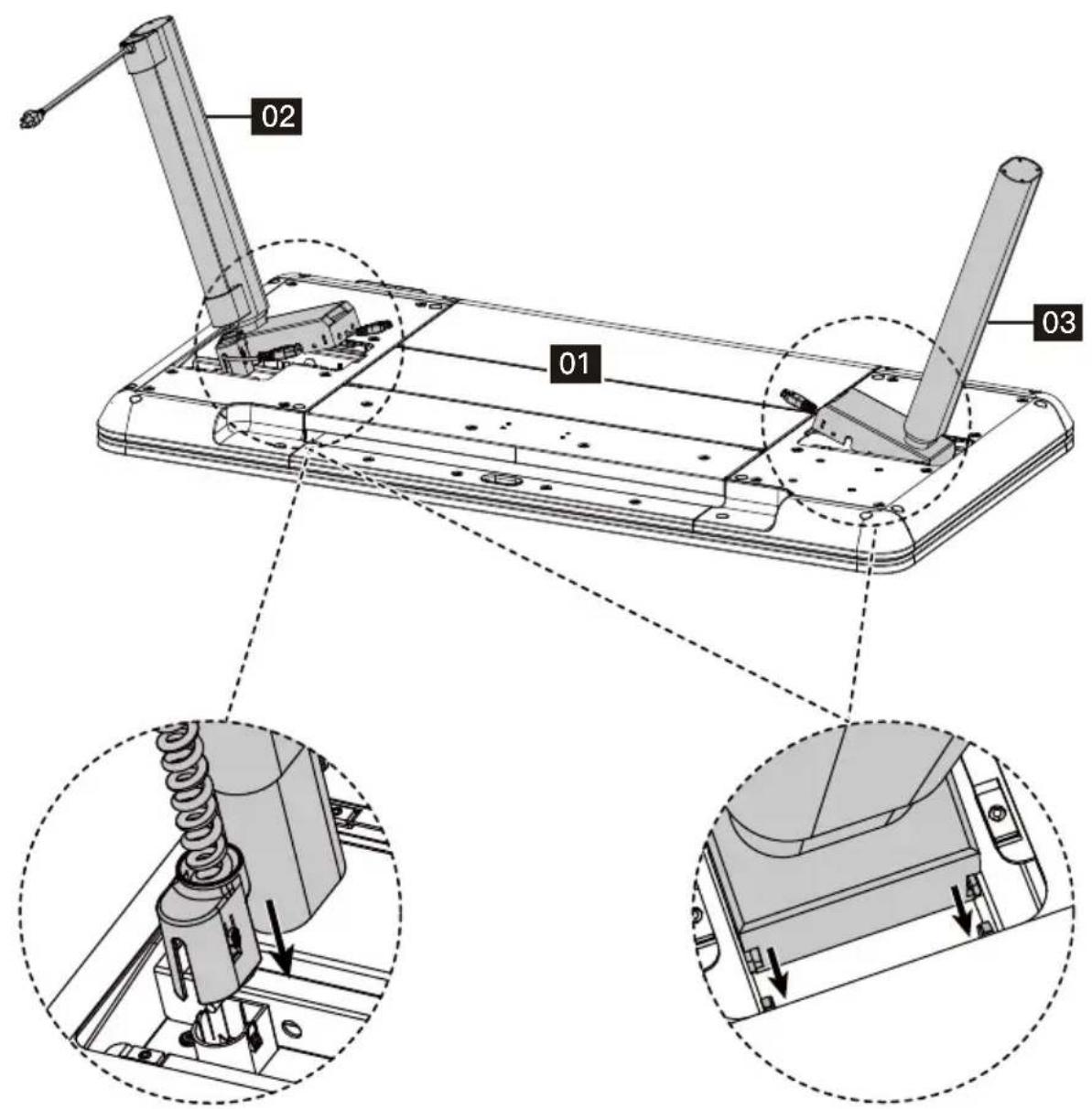

Step 2

The Legs [02]&[03] are pre-tilted according to the view, and the grooves on both sides of the rear end are used to snap into the protruding parts on both sides of the side plate. Rotate and press the legs downward. After the legs are installed, connect the power cable as shown.

Before installing the left leg, press down the power cable first.
Snap into the protruding parts on both sides of the side plate.

HEAVY! You may need assistance for this step.

When pressing down the power cable, you need a assistance to hold the table leg.

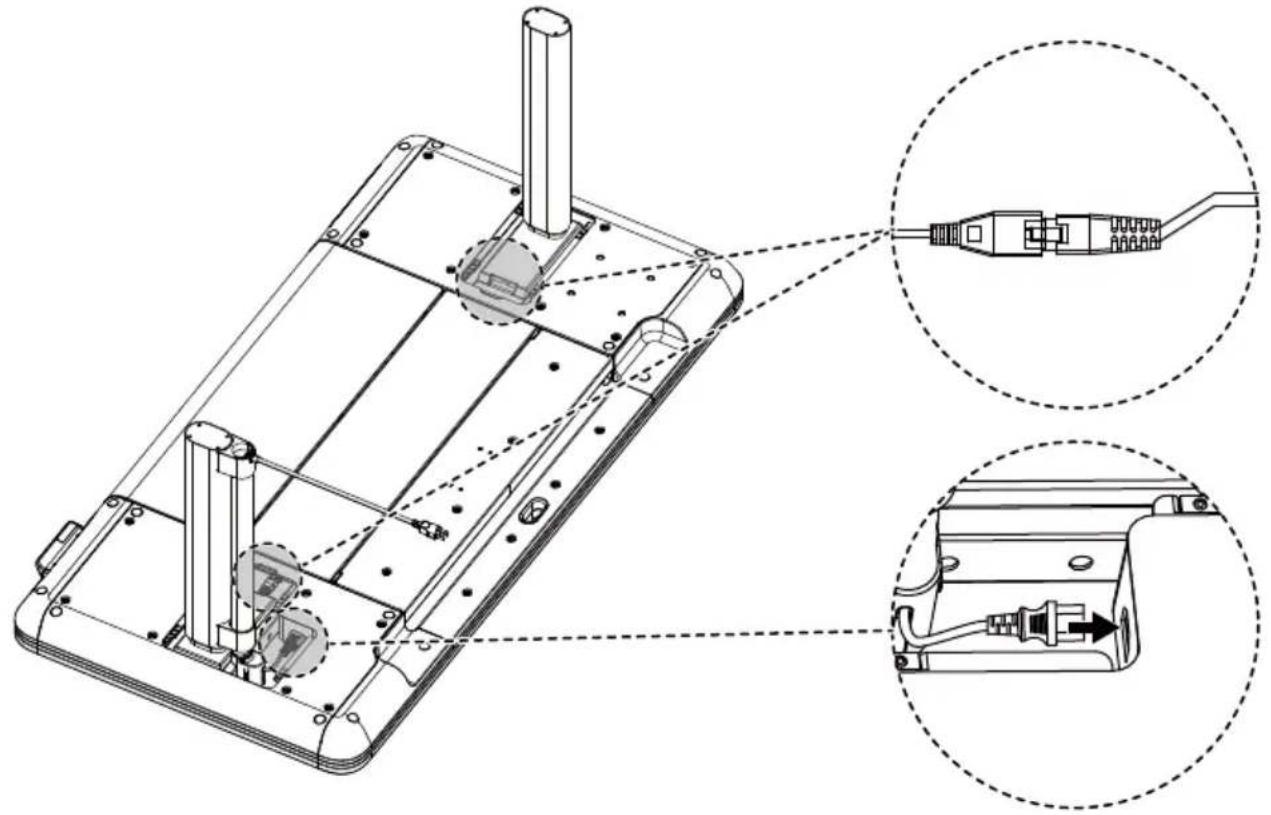

Step 3

The power cords from the left and right legs should be connected to the power cords on both sides of the desktop. Then connect the plug of the spring cable to the desktop.

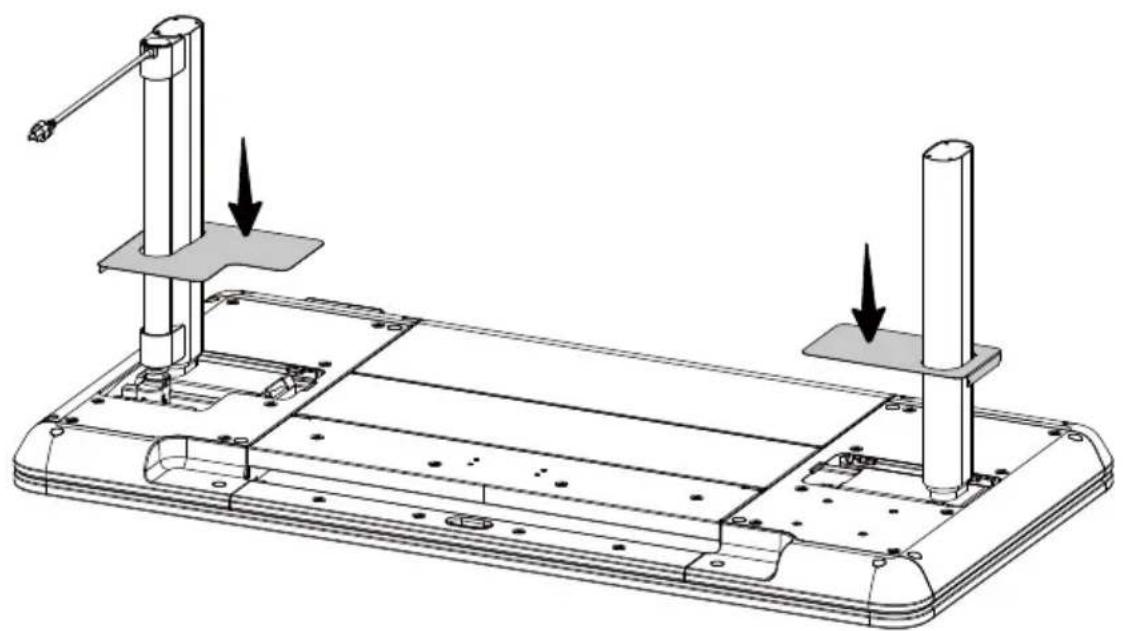

Step 4

After installing the Legs, insert the left and right cover sleeves, which will be attracted to the magnetic surface at the bottom.

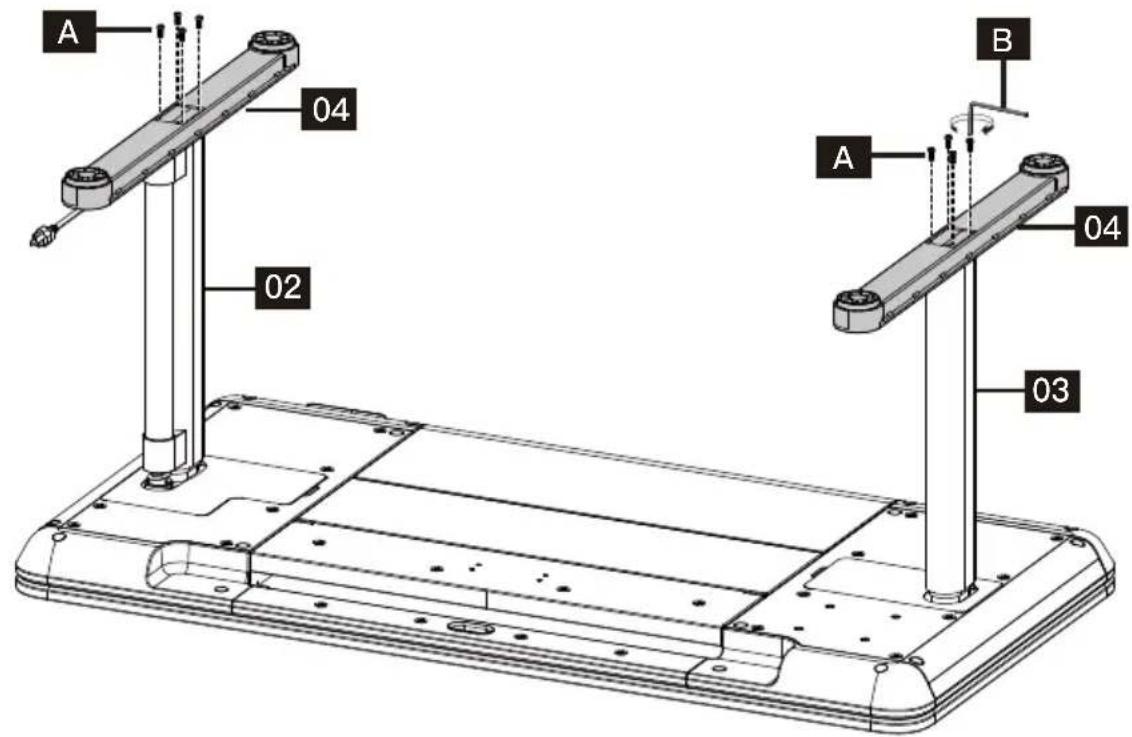

Step 5

Tighten the Bolts [A] with a Allen Wrench [B] to install the Feet [04] onto the Legs [02]&[03].

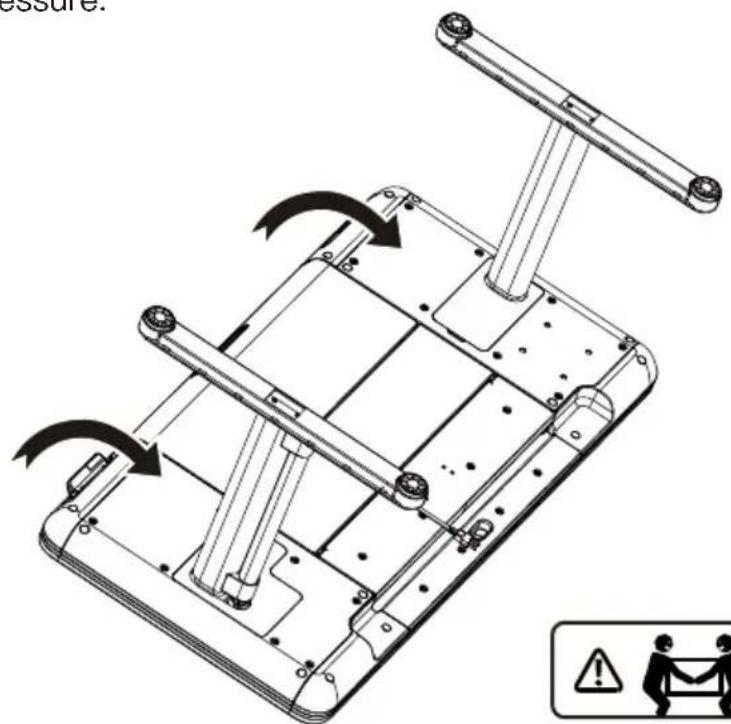

Step 6

After the installation of the table is completed, it needs to be flipped over. It is necessary to flip it from the other side of the controller to avoid damaging the controller under pressure.

HEAVY! You may need assistance with this step.

CAUTION!

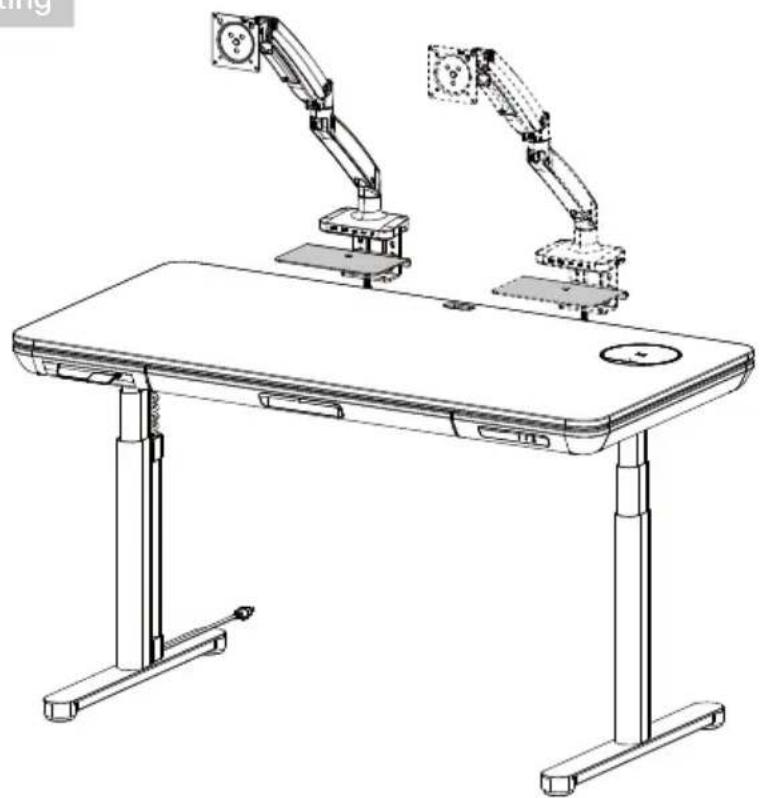

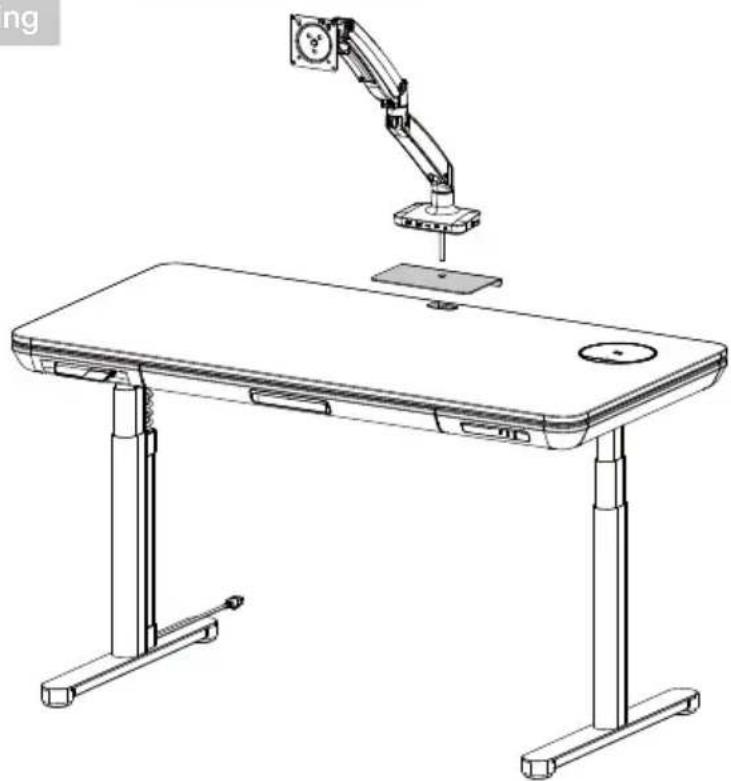

Desktop Protector Pad

For the Galaxy Glass Standing Desk, we have also provided a Desktop Protector Pad. When you need to install a monitor stand on top of the desk, please refer to the illustration below to install the Desktop Protector Pad to prevent potential damaging that may occur during the installation process of a monitor stand.

For C-Clamp Mounting

For Grommet Mounting

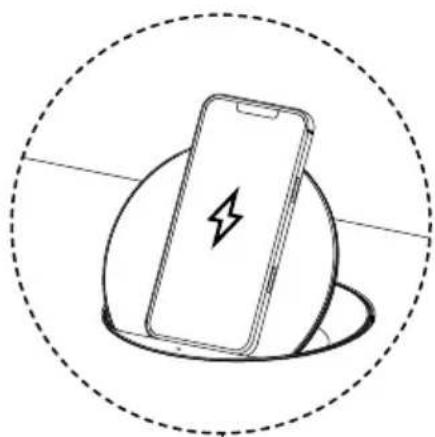

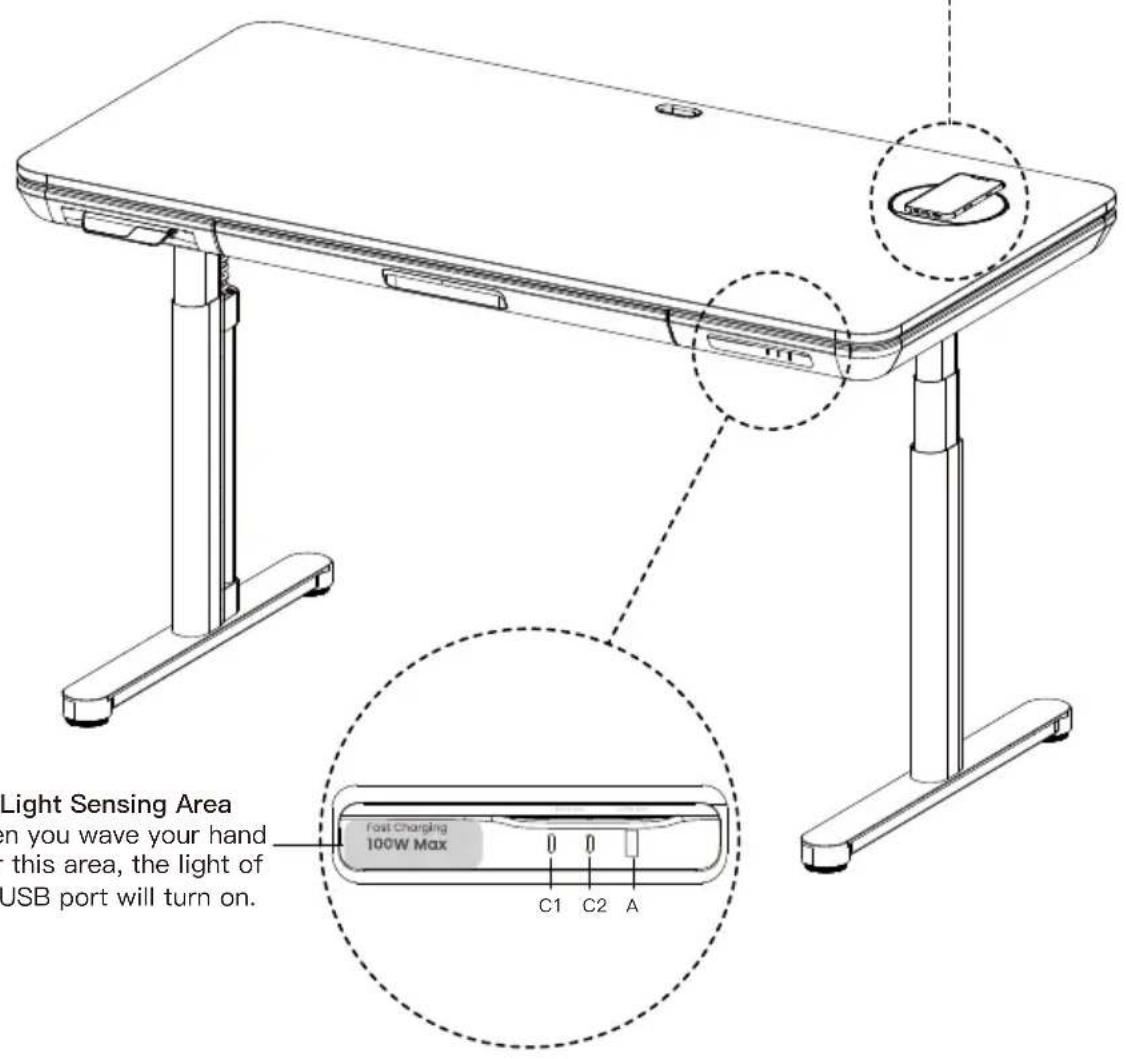

Using the Wireless Charging and USB Charger

After placing the mobile phone on the wireless charging module, the module rises 60^ and rotates 30^ clockwise horizontally, and the mobile phone automatically detects charging. When the mobile phone is removed, the wireless charging module returns to its original position.

Light Sensing Area When you wave your hand over this area, the light of the USB port will turn on.

Power Distribution of C1/C2/A Ports

	Use Two PortsUse One Port	Use Three Ports
C1/C2 Output: 100W Max	C1+C2 Output: 60W Max + 40W Max	C1+C2+A Output: 45W Max + 30W Max + 18W Max
	C1+A Output: 80W Max + 18W Max
A Output: 22.5W Max	C2+A Output: 60W Max + 22.5W Max

Sedentary Reminder Key (Left Key)

Controller

M Key (Right Key)

NOTE: If you don't understand the introduction of the standing desk controller's functions, you can scan the QR code to download the APP. The APP can also control the standing desk, giving you a smarter experience. Before using this app on Samsung phones, you need to turn off the built-in Bixby.

- Low-Power Function

If there is no operation for 10 seconds, it will enter low-power mode, and the hand controller will display ERGOAV before turning off the screen and going to sleep.

- Memory Key Function

There are two presets for the memory function. One for heights greater than 35.5" and one for lower than 35.5". After setting the memory function, double push/pull on the control panel will adjust the table to either memory height 1 or 2.

Method of setting: Press the M button located on the right-hand side of the control panel, and 心 - - - will appear. When the desk is above 35.5 inches, press and hold for M button 1 second, 心 - - 1 will appear on the screen and the current position will be saved. When the desk is below or equal to 35.5 inches, press and hold for 1 second, 心 - - 2 will appear on the screen and the current position will be saved.

- Sedentary Reminder Function

After setting the sedentary reminder time, press the button on the left side of the control panel to turn on or off the sedentary reminder function. The sedentary reminder function will not be timed when the desk height is above 39.3 inches. The sedentary reminder function will be timed when the desk height is 39.3 inches or below. After the sedentary time ends, the interface alternately displays ( ) and at 1.5-second intervals. Prompting you to raise the desk to your desired height. The sedentary reminder function can also be set on the APP.

Method of setting: Press and hold the M key for 5 seconds. After appears, enter the main menu. Toggle the control panel up or down to locate sedentary reminder function. After locating the sedentary reminder interface with press the M key to enter the corresponding submenu. Toggle the control panel up or down to set the sedentary reminder time. Once confirming the sedentary reminder time, a confirmation icon will be displayed.

- Upper and Lower Limit Function

After setting the upper and lower limit function, when you pull the control panel up to reach the set upper limit, the desk will stop rising. When you push the control panel down to reach the set lower limit, the desk will stop descending once limit is reached.

Method of setting: Press and hold the M key for 5 seconds. Enter the main menu. Toggle the control panel to reach Upper and Lower Limit Function interface with , press the M key to enter the corresponding submenu. Use the control panel to toggle up or down to the page. Once on page, select the current position as the upper MAX or lower MIN height limit. After setting a height limit, if you want to adjust the desk to the other preferred limit, re-enter the menu and repeat the process.

Control Panel Lock Function

The control panel lock function is designed to prevent accidental adjustments of the desk height through the control panel. Once the function is activated, the height of the standing desk cannot be adjusted through the control panel, but only through the APP. The control panel can be used again for adjustments after unlocking by following the steps below.

Method of setting: Press and hold the M button for 5 seconds to enter the main menu interface. Toggle the control panel up and down to display the control panel lock interface and press the M button to enter the corresponding submenu. Choose to turn on the control panel lock or turn it off.

When the control panel lock function is set successfully, the control panel will enter the lock mode after 10 seconds of inactivity. After pressing any button, the illustration appears. Follow the button unlocking sequence in the illustration to return to the height display screen.

- Reset Function

After resetting the control pad any error message on the display screen will be cleared. Once reset, the desk will be at the highest position due to reset instructions and will not return to its original height unless manually done. All previous settings (memory positions, upper and lower limit, etc.) will not be reset.

Method of setting: When an error occurs, please refer to the attachment of the manual for troubleshooting (Error Code Solutions). Then press the control pad downwards for 5 seconds, until the screen displays RESET. Once RESET is shown, the desk is in a reset state. Once in the reset state, release the control panel. After releasing it, press the control panel downwards again to start the reset. During the reset, the desk will rise to its highest position. After reaching the highest point, the reset is complete, and the screen will display the value of the desk's highest/current position.

Protection Mode Error Codes

Abnormal Code	SolutionAbnormal Description
E01	M1 Over Current Protection	Check if the load is too heavy or if there is any object blocking the rise and lowering motion of the desk. If the issues from above mentioned are worked out, long-press the down button to reset, and after the reset is completed, continue using it.
E02	M2 Over Current Protection
E03	M3 Over Current Protection
E04	M4 Over Current Protection
E05	M5 Over Current Protection
E06	M6 Over Current Protection
E07	M1 Hall Fault	Check if the legs are tightened, after eliminating the anomaly, long-press the down button to reset, and after the reset is completed, continue using it.
E08	M2 Hall Fault
E09	M3 Hall Fault
E10	M4 Hall Fault
E11	M5 Hall Fault
E12	M6 Hall Fault
E13	Communication interruption between controller A and B.	Check if the connector between the A and B controllers is disconnected. After eliminating the anomaly, long-press the down button to reset, and after the reset is completed, continue using it.
	The height difference between the two legs of the controller exceeds the set value and is not synchronized.	Check if the legs are tightened, after eliminating the anomaly, long-press the down button to reset, and after the reset is completed, continue using it.
H01	Overheat Protection (Work Mode Protection)	The controller needs to rest for a while. After the temperature drops, it can continue to be used.
