Instruction manual – English

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. Read and save these instructions. Attention: pictures in the instruction manual are for reference only.

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

3. Children shall not play with the appliance.

4. Cleaning and user maintenance shall not be made by children without supervision.

5. Children of less than 3 years should be kept away unless continuously supervised.

6. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulate and clean the appliance or perform user maintenance.

7. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

9. The heater must be installed at least 1,8 m above the floor.

10. CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

11. This appliance is intended to be used in household and similar applications.

12. Do not use outdoors. Do not use to dry clothes or any fabric.

13. The heater must not be located immediately below a socket outlet.

14. Do not use the heater if the power cord is damaged.

15. WARNING: In order to avoid overheating, do not cover the heater.

16. WARNING: The heater must not be used if the panel is damaged.

17. Do not use this heater in the immediate surroundings of a bath, a shower or a swimming pool.

1. Means "DO NOT COVER".

2. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at least 100cm away from the heater.

3. This heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint, or flammable liquids are used or stored.

4. Always unplug the appliance when not in use.

5. The appliance is hot when in use. To avoid burned, do not let bare skin touch hot surfaces.

6. The supply voltage and utility frequency, specified on the machine, need to match those of the socket that is used. The electrical socket that you are using must be to hand at all times in order to be able to remove the plug from the socket in the event of an emergency.

7. Fully extend the cord before plugging in the heater. Make sure it does not come into contact with any part

of the heater and prevent it from heating up any other way. Do not run the cord underneath carpeting; do not cover it with mats, carpet strips or similar and make sure it is not placed in any passageways. Make sure the cord cannot be stepped on and that no furniture is placed on top of it. Do not lead the cord around sharp corners and do not roll it up too tightly after use!

1. If possible, do not use an extension cord, as this causes the risk of overheating and fire. If the use of an extension cord is unavoidable, then make sure it is an undamaged, approved extension cord with a minimum diameter of 2 × 1.5 mm^2 and a minimum permissible power of 1000 Watt. To prevent overheating, always fully extend the cord!

2. Do not use the heater outdoors and do not use it in spaces, smaller than 7 m^3 .

3. Always switch the heater off, unplug it and leave to cool down before:

4. cleaning the heater

5. carrying out maintenance on the heater

6. touching or moving the heater.

7. Keep the heater clean. Dust, dirt and/or a buildup of deposits in or behind the heater are a common cause of overheating. Make sure these deposits are removed regularly.

8. The appliance (incl. cord and plug) may only be opened and/or repaired by properly authorized and qualified persons.

9. Only use this heater for its intended purpose and as described in this instruction manual.

10. Regarding the information pertaining to the installation, please refer to the below paragraph of the manual.

11. One piece of CR2025 battery is provided in the remote control.

– batteries are to be inserted with the correct polarity;
— exhausted batteries are to be removed from the appliance and safely disposed of;
- if the appliance is to be stored unused for a long period, the batteries should be removed;
– non-rechargeable batteries are not to be recharged;
– different types of batteries or new and used batteries are not to be mixed;
– the supply terminals are not to be short-circuited.

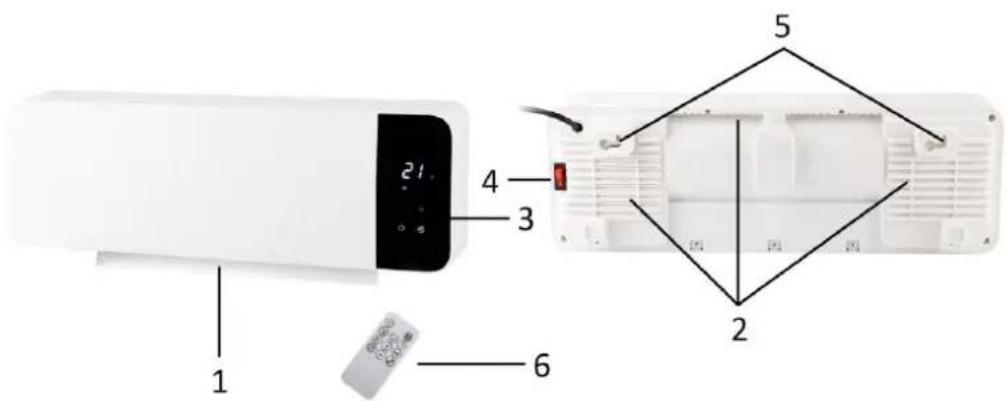

PARTS DESCRIPTION

1 21 3 4 5 2 6

1. Air outlet (with a cover)
2. Air inlet
3. Control panel and LED display
4. Power switch
5. Hanging hole
6. Remote control

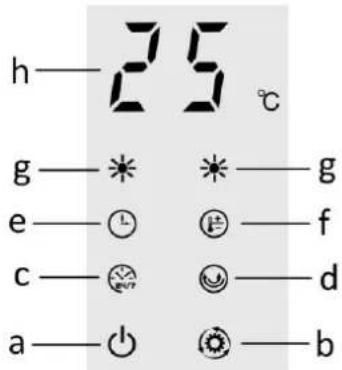

Control panel and LED display

a. On/standby button
b. Mode button (for heating/swing selection & timer setting)
c. Week timer indicator light
d. Swing indicator light
e. Timer indicator light
f. Temperature setting indicator light
g. Heating indicator light
h. Temperature/data display

h—25 °C g—* *—g e—○ ○—f c—○ ○—d a—○ ○—b

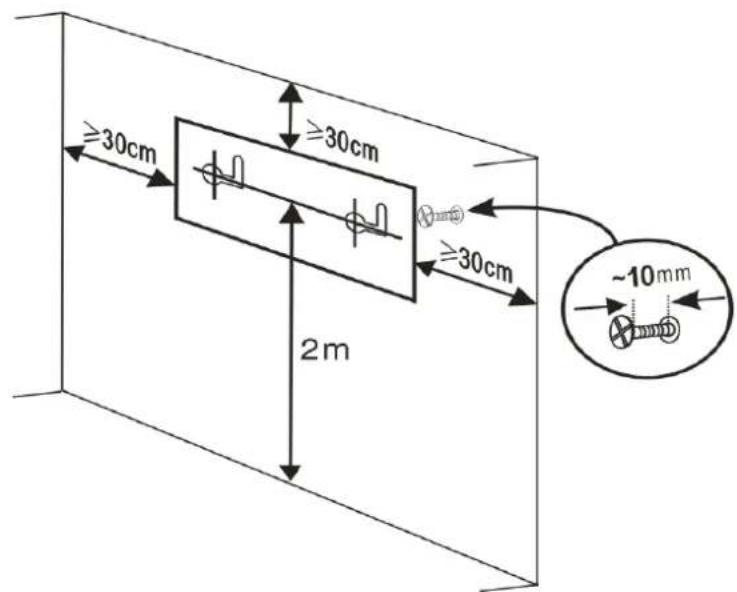

WALL MOUNTING

This heater has been designed to hang securely on the wall. Do not use it until it has been properly installed, as described in these instructions for use and never, for example, in a standing position or when leaning against something!

Two expansion bolts are provided for the wall mounting. See below drawings and follow the instructions. After the mounting, the distance between the product and ceiling / side walls should be at least 30 cm.

1. Drill two holes in a wall. The holes should be above 2 meters from the ground. The diameter of the holes should be just containing the expansion bolt, which is 6 mm. The distance between the hole centers should be 355 mm.

2. Tuck the expansion bolts into the holes. The inside bolts should protrude about 10 mm than the expansion pipes to form the pothooks.

3. To hang on the appliance, align the pothook with the spot A, then move and make the pothook stay at the spot B (arrow ①).

To remove the appliance, align the pothook from the spot B back to the spot A (arrow ②), then take off the appliance.

≥30cm ≥30cm 2m ≥30cm ~10mm

355mm

OPERATION

Plug the appliance into an appropriate electrical outlet. Press the power switch to the position "I" to connect the power. The room temperature will be illuminated on the LED display. The appliance is on standby. After use, press the power switch to the position "O" to disconnect the power.

1. Press the ON/Standby button to turn on the appliance. Press the button again to turn the appliance into standby. If the appliance has worked before with the heating function, its fan keeps working for 30 seconds with a countdown on the display. In standby, the room temperature is still displayed.

2. When the appliance is on, press the mode button repeatedly to select through five modes: low heating

without airflow swing (indicator light on), low heating with airflow swing (indicator lights and on), high heating without airflow swing (indicator lights and on), high heating with airflow swing (indicator lights, and on), and no heating & no swing (all the concerned indicator

lights off). If you don't set the desired temperature, the appliance will keep running in the mode you select.

1. Press and hold the mode button for about 3 seconds, "OH" is displayed and the timer can be set. Press the mode button repeatedly and the value cycles as "1H, 2H, 3H ... 8H, 0H, 1H ..." ("H" stands for "hour"). The setting will be confirmed after flashing for seconds, and the digital display goes back to the room temperature. When the value is set as "OH", the timer will be cancelled. When the timer is set, the timer indicator light is on. The appliance will automatically enter standby after the selected time has passed.

2. To set the desired temperature, use the remote control. Press the temperature setting button “+”, and adjust the value by buttons “+” “-”. The set temperature flashes. Press the button “OK” to confirm the set temperature, or simply wait for about 5 seconds, the LED display goes back to the room temperature, and the appliance starts working to keep the set temperature. The temperature range you can set is 18 – 45 °C.

3. To cancel the temperature setting: If you haven't set the desired temperature, press the temperature setting button again; if you have set the desired temperature, press the temperature setting button first

then press the cancel button "24/7

Note:

• When the set temperature is equal to or lower than the room temperature, the appliance stops heating.
• When the set temperature is 1-2 °C higher than the room temperature, the appliance runs in low heating.
• When the set temperature is 3 °C (or more) higher than the room temperature, the appliance runs in high heating.
• The remote control can be used for all the functions, including those that can be set on the control panel. See the table in the section "Remote control" for reference. Direct the remote control to the LED display while using it.
• This appliance also supports open window detection and week timer. See the detailed introduction below.

Remote control

This unit has a remote control. One piece of CR2025 battery will be provided with the remote control. Before starting to use the remote control, remove the plastic protection from the battery. If you want to change the battery, please refer to the instruction behind the remote control. If it is not in use for a long time, please take the battery out of the remote control. Keep button cell batteries out of reach of small children.

The functions of this appliance are mainly controlled by the remote control, whose buttons are explained in below table.

Button	Function	Explanation
	ON/Standby	Press it, the appliance is on. Press it again, the appliance enters into standby (If the appliance has worked before with the heating function, its fan keeps working for 30 seconds with a countdown on the display.). In standby, the room temperature is still displayed.
	Heating selection	Press it consecutively, you will make the appliance runs in low heating, high heating and no heating (Only the fan is working.).
	Timer setting	Press the button once or several times to set the timer from 1H to 8H ("H" stands for hour.). For example, when you set it as 3H, the appliance will automatically enter into standby after 3 hours.
	Swing selection	Press it to turn on or off the swing function. When the swing is on, the cover on the air outlet will swing slowly.
	Temperature setting	Press it to enter the temperature setting. Press buttons "+" "-" to select the desired temperature. The set temperature will flicker for several seconds and then the setting is completed, the LED will go back to the display of room temperature. The temperature range you can select is from 18 °C to 45 °C.
	Open window detection	Press this button to turn on or off the open window detection. This function can only be activated when the appliance is in heating mode or temperature setting mode.
	Week timer	Press this button to select the desired week timer mode, P1 – P5 are system settings, and P6 is free mode. This function can only be activated when the appliance is in heating mode or temperature setting mode.
	Cancel button for temperature setting mode and week timer	During the setting, directly press this button to cancel the setting. After the setting is completed, first press the temperature setting button (if you want to cancel the temperature setting) or the week timer button (if you want to cancel the week timer), then press this button.
	Value increase	Press this button to increase the value when needed.
	Value decrease	Press this button to decrease the value when needed.
	Confirmation	Press this button to confirm the value just set.

OPEN WINDOW DETECTION

Note: This function can only be activated when the appliance is in heating mode or temperature setting mode.

1. Press the open window detection button on the remote control. The temperature setting indicator light flickers. The open window detection starts after 1 minute.
2. 10 minutes as a round. The appliance will take the temperature in the beginning of each round as a checking reference, and check it every 5 minutes. If the temperature in the checking point decreases more than 8 °C than the referenced temperature, the appliance will stop heating, send out alarm for 5 seconds. Meanwhile the fan is working, the temperature setting indicator light and a code "OF" on LED flickers for 30 seconds, then the appliance goes into standby. In this case you could do by either way as follows.

1) Press the open window detection button to restart with the same working mode before the appliance stops. The open window detection will then restart too.
2) Press the ON/Standby button, the appliance will enter standby.

1. If in the checking point, the temperature decreases less than 8 °C compared to the referenced temperature, the former is the same as or higher than the latter, the appliance will keep heating and the open window detection will continue.
2. The maximum detection temperature is 51 °C . The appliance will stop running automatically when it detects the temperature reaches 51 °C .

WEEK TIMER

Note:

• This function can only be activated when the appliance is in heating mode or temperature setting mode.
- When the week timer is set, the timer for entering into standby automatically will be inactive.

To use the week timer function, please follow below steps.

1. Press the week timer button. If this is the first start-up after the power switch is pressed to "I", you need to set the current time first.

1) The LED displays “01”, press “+” “-” to select the day. “01 – 07” stand for Monday to Sunday. Press “OK” to confirm the setting. For example, it’s Friday today, then you select “05”.
2) The LED displays "00", press "+" "-" to set the hour. For example, the time now is 16:24, then you select "16" here. Press "OK" to confirm the setting.
3) The LED displays "00", press "+" "-" to set the minute. For example, the time now is 16:24, then you select "24" here. Press "OK" to confirm the setting.

Note: If you don't press "OK" within 10 seconds, the setting will fail.

1. After setting the current time, or this is a start from the standby mode, the LED display will show "P1", which is the mode code. If this is not the mode you want, press the week timer button again and again to choose a mode from "P2" to "P6". Appliance's working time is listed according to the different modes in below table.

If you press the week timer button after the display of "P6", you will exit the setting of week timer.

Mode	Monday	Tuesday	Wednesday	Thursday	Friday	Saturday	Sunday
P1	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00
P2	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	18:00-7:00^ a
P3	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	8:00-17:00	OFF	OFF
P4	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	18:00-7:00^a	OFF	OFF
P5	OFF	OFF	OFF	OFF	OFF	00:00-23:59	00:00-23:59
P6	Free mode	Free mode	Free mode	Free mode	Free mode	Free mode	Free mode
Notes:For the mode “P2” / “P4”, the stop time is at the next day.For the mode “P6”, the setting range is “00-24” (00:00 – 24:00), in which the start time must be earlier than the stop time, otherwise the setting will fail.

1. To set the working time freely, select the mode "P6", and press "OK", then follow the steps below. Please note only hour can be set, minute is not supported.

1) The LED displays "1", which stands for Monday. ("1" = Monday, "2" = Tuesday, "3" = Wednesday, "4" = Thursday, "5" = Friday, "6" = Saturday, "7" = Sunday.) Press "+" "-" to select the day you want to set. For example, you want to set Wednesday, then select the number "3".
2) The LED displays "00", which stands for the start time. If you set it as "09", it means the appliance will start work at 9:00 a.m. Press "OK" then the display shows "00" again, this time you should select the stop time. Only hour can be set too. If you set it as "16", it means the appliance will stop work at 16:00.
3) After the setting of day "7" (Sunday), press "OK" and the week timer setting is finished. The week timer indicator light will be on when the set time range includes the current time, or flash (together with other indicator lights) when the set time range excludes the current time.

Note:

• If you select one day as "00" for start and "00" for stop, then the appliance will not work on this day.
  • If you skip a certain day in the setting, then the appliance will not work on that day too.
• To cancel the week timer: If you haven't finished the setting, press the week timer button again; if you

CLEANING AND MAINTENANCE

Press the power switch to the position "O" to switch off the appliance. Remove the plug from the socket and allow the heater to cool down before cleaning or carrying out maintenance work.

• For thorough cleaning, you can take the heater off the wall. Wipe the outside of the heater regularly with a dry or slightly damp cloth.
• Do not use aggressive soaps, sprays, cleaners or abrasives, waxes, polishes or chemical solutions which can cause irreparable scratches and damage!
• Do not drop any liquid into the machine.
• Keep the appliance clean especially the air inlet and outlet.

TECHNICAL DATA:

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 2000W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer.

For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable.

Neither can we hold responsible for material damage or personal injury caused by improper use if the instruction manual is not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

This product is labelled with this crossed out wheel bin symbol in accordance with European Directive 2012/19/EU to indicate that it must not be disposed of with your other household waste.

Due to the presence of hazardous substances, mixtures or components, electrical and electronic devices that are not subject to selective sorting are potentially dangerous to the environment and

human health. Please check your local city office or waste disposal service for the return and recycling of this product.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.
