Brand	Emerio
Model	FH-120669
Product Type	Fan Heater
Heating Type	Ceramic
Power Output	2000 W
Voltage	220-240 V
Frequency	50/60 Hz
Dimensions (W x D x H)	20 x 15 x 30 cm
Weight	2.0 kg
Colour	White / Black
Material	Plastic
Heating Levels	2 (Low / High)
Fan Speed	Adjustable
Thermostat	Adjustable
Overheat Protection	Yes
Tip-over Protection	Yes
Oscillation	Yes
Timer	0-12 hours
Remote Control	Yes
Cord Length	1.8 m
Noise Level	≤ 45 dB
Suitable Room Size	Up to 25 m²
Energy Efficiency Class	Class II
Cleaning	Wipe with damp cloth
Spare Parts Availability	Contact support

Frequently Asked Questions - FH-120669 Emerio

How to clean the heater?

Use a soft damp cloth to wipe the exterior. Avoid getting water inside the unit. Do not use abrasive cleaners.

Does it have an adjustable thermostat?

Yes, the heater features an adjustable thermostat that allows you to set your desired room temperature.

Is it safe to use in a bathroom?

No, the heater is not recommended for bathrooms or any area with high humidity. Keep it away from water sources.

How does the tip-over protection work?

If the heater is accidentally knocked over, a safety switch automatically turns it off to prevent accidents.

What is the power consumption?

The maximum power consumption is 2000 W. Adjusting the heat setting will reduce consumption.

Can I paint the heater?

No, painting the heater can create a fire hazard and void the warranty. Keep it as is.

How to store the heater when not in use?

Store it in a cool, dry place. Wrap the cord loosely and keep it away from dust.

Does it come with a remote control?

Yes, a remote control is included for convenient operation from a distance.

What is the warranty period?

The heater comes with a 1-year warranty covering manufacturing defects. Check the manual for details.

How to reset after the overheat protection activates?

Unplug the heater, let it cool down for about 10 minutes, then plug it back in. It should resume normal operation.

USER MANUAL FH-120669 Emerio

Black electric heating fan device with digital display and 'emero' branding (no readable text beyond branding)

Plug-in-heater (EN)

Instruction manual – English ...... - 2 -

This product is only suitable for well insulated spaces or occasional use.

SAFETY INSTRUCTIONS

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. Children of less than 3 years should be kept away unless continuously supervised.

5. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in,

regulate and clean the appliance or perform user maintenance.

1. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present.

2. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

3. WARNING: In order to avoid overheating, do not cover the heater.

4. Do not use this heater in the immediate surrounding of a bath, a shower or a swimming pool.

5. The heating appliance must not be placed just below an electrical outlet.

1. Means "DO NOT COVER".

2. Before inserting the plug into the mains socket, please check that the voltage and frequency comply with the specifications on the rating label.

3. Disconnect the mains plug from the socket when the appliance is not in use and before cleaning.

4. Do not immerse the appliance or the mains plug in water or other liquids. There is danger to life due to electric shock!

5. Do not plug or unplug the appliance from the electrical outlet with a wet hand.

6. Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.

7. Children are unable to recognize the hazards associated with incorrect handling of electrical appliances. Therefore, children should never use electric household appliances unsupervised.

8. Never leave the appliance unattended during use.

9. This appliance is not designed for commercial use.

10. Do not use the appliance for other than intended use.
11. Humidity, dust, hair or other foreign objects should not enter the unit, if so there will be danger of fire and electrical shock.
12. Don't allow moisture and dust to enter the appliance. Don't use this heater in bathrooms or laundries. Store it in dry areas.
13. Do not use this appliance to dry or heat clothing, shoes, pipes or any other items.
14. Use the appliance in well-ventilated areas only. This heater is hot when in use, to avoid burns, do not let bare skin touch the hot surfaces. Keep combustible materials, such as furniture pillows, bedding, paper, clothes, and curtains at least 3 feet (0.9 meters) from all sides of the heater.
15. This heating device is not suitable for assembling in vehicles and machines.
16. The rotor guard shall not be disassembled/opened to clean the rotor blades.
17. To avoid the risk of fire or electric shock do not remove the housing.
18. Always ensure that hands are dry before operating or adjusting any switch on the product.

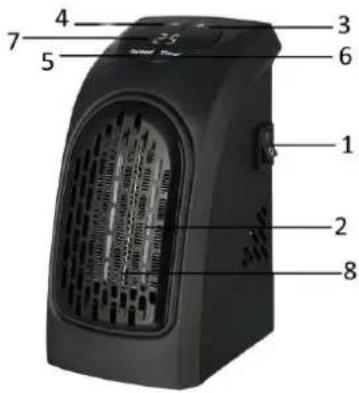

PARTS DESCRIPTION

1. Main power switch
2. Air outlet
3. Temperature setting (+)
4. Temperature setting (-)
5. Speed setting
6. Timer
7. Digital display
8. Indicator light

Operation

Note: The appliance must be positioned uprightly. The distance between the bottom of the appliance and the ground should be more than 30cm; the distance between the side of the appliance and the wall or any other object should be more than 90cm.

Plug the appliance into an appropriate electrical outlet. Pressing the power switch to position "I", the appliance begins to work and the default temperature 25^ C is shown on the display. After use, press the power switch to positon "0" to turn off the appliance.

1. Temperature setting

Press button “-” or “+” to set your desired temperature. You can choose from 15^ C to 32^ C. When you set your desired temperature, it will show in the display.

The appliance will automatically maintain the set temperature. It will switch on when the room temperature is below the setting, and switch off if it is above the setting.

2. Speed setting

Press button "Speed" to choose your desired speed: the display of "LL" is on behalf of low speed; the display of "HH" is on behalf of high speed.

3. Time setting

Press button “Timer” to set your desired working time from 0h to 12h. The set working time will flash a few seconds, and then shows the set temperature again. The appliance will shut itself off automatically when the time is up.

If you want to turn on the appliance again, you can press the main power switch to position "0", and then to position "1" again; or you can unplug the appliance directly and plug-in again; that will restart the appliance;

CAUTION

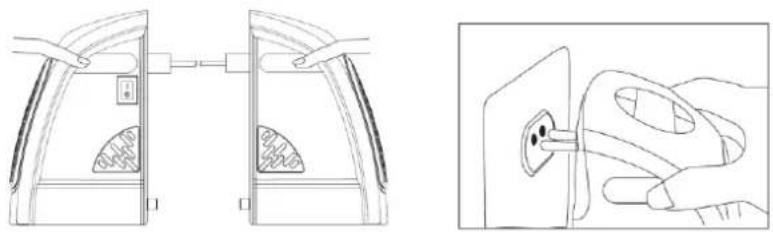

Only touch the appliance on the designated area, as below picture, when you plug the appliance in or out. Other areas many get hot during operation.

Technical line drawing showing two views of a device with internal components, connected by wires to a terminal panel (no text or symbols present)

SAFETY SYSTEM

• The appliance has a safety system which automatically switches off the unit when overheated.
- If overheating occurs, switch off the appliance, remove the appliance from the socket, and let it cool down for at least 30 minutes. Put the plug in the socket and switch on the heater.

Safety switch

The appliance is equipped with a safety switch to protect against the accidental damage. The safety switch is located inside of the appliance and will pulse-on this function voluntarily when the appliance falls over.

• Replace the appliance to an upright position; keep the feet (a) vertical and against the wall.
• Select the required function again.

Technical line drawing of a curved mechanical component with a side view and labeled section 'a' (no text or symbols beyond label)

MAINTENANCE

• The fan heater only needs regular cleaning on the outside.
• Before you clean the unit, turn off the switch. Remove the appliance form the socket and wait until the fan heater cools down completely.
• Use a damp cloth to wipe the heater housing.
• Do not use detergents, abrasive cleaning liquids or chemicals (alcohol, gasoline etc.) to clean the appliance.

TECHNICAL DATA

Operating voltage: 220-240V \~ 50-60Hz

Power consumption: 350W

GUARANTEE AND CUSTOMER SERVICE

Before delivery our devices are subjected to rigorous quality control. If, despite all care, damage has occurred during production or transportation, please return the device to your dealer. In addition to statutory legal rights, the purchaser has an option to claim under the terms of the following guarantee: For the purchased device we provide 2 years guarantee, commencing from the day of sale. If you have a defective product, you can directly go back to the point of purchase.

Defects which arise due to improper handling of the device and malfunctions due to interventions and repairs by third parties or the fitting of non-original parts are not covered by this guarantee. Always keep your receipt, without the receipt you can't claim any form of warranty. Damage caused by not following the instruction manual, will lead to a void of warranty, if this results in consequential damages then we will not be liable. Neither can we hold responsible for material damage or personal injury caused by improper use or if the instruction manual are not properly executed. Damage to accessories does not mean free replacement of the whole appliance. In such case please contact our service department. Broken glass or breakage of plastic parts is always subject to a charge. Defects to consumables or parts subjected to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the warranty and are to be paid.

ENVIRONMENT FRIENDLY DISPOSAL

Recycling – European Directive 2012/19/EU

This marking indicates that this product should not be disposed with other household wastes. To prevent possible harm to the environment or human health from uncontrolled waste disposal,

recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
