USER MANUAL VAC120 Professional BOSCH

IMPORTANT: IMPORTANT : IMPORTANTE: Read Before Using Lire avant usage Leer antes de usar

Icon of a person reading a book inside a circle (no text or symbols)

Operating/Safety Instructions Consignes de fonctionnement/sécurité Instrucciones de funcionamiento y seguridad

VAC120

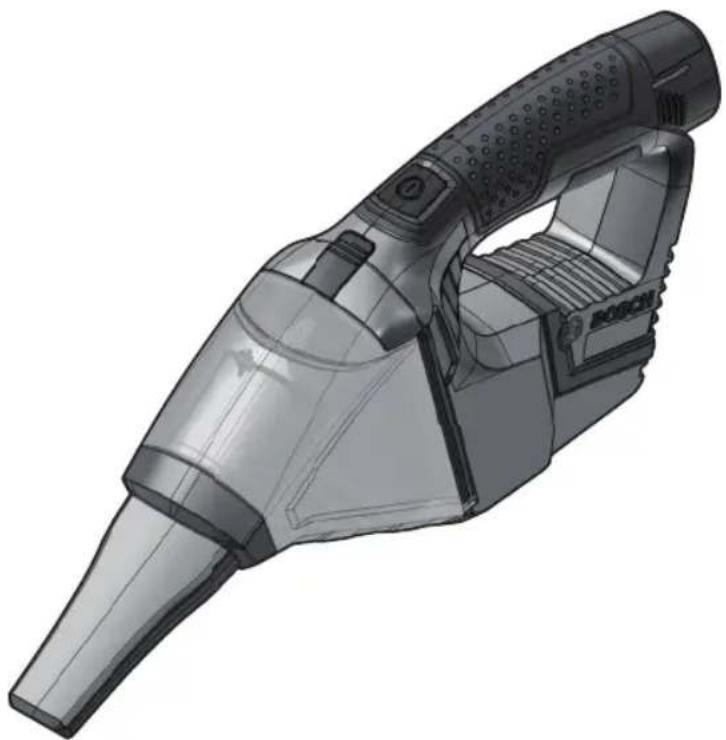

3D rendering of a Bosch vacuum cleaner with handle and control panel (no text or symbols visible)

BOSCH

Call Toll Free for Consumer Information & Service Locations

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

Keep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a

power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool.

Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.

Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

Do not overreach. Keep proper footing and balance both for you and the vacuum at all times. Use extra care when cleaning

on stairs. Proper footing and balance enables better control of the vacuum in unexpected situations.

Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.

If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Battery tool use and care

Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

Under abusive conditions, liquid may be ejected from the battery, avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

Service

Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Safety Warnings for Vacuum Cleaners

This vacuum is intended for Household use only.

• Do not allow children to operate hand vacuum as a toy. Close attention is necessary when used near children.
• Do not charge or use the unit outdoors.
• Do not use charger with damaged cord or plug. If hand vacuum is not working properly, has been dropped, damaged, left outdoors or dropped in water, return to your nearest Authorized Bosch Service Center.
• Do not abuse cord. Never carry charger or base by the cord or yank to disconnect from electrical outlet. Do not allow cord to hang over edge of table or counter or to lay on hot surfaces.

• Do not use or handle charger or vacuum with wet hands. Electric shock may occur.

• Do not put any objects in ventilation openings. Do not use with any opening blocked. Keep openings free of dust, lint, hair and anything that my reduce air flow.

• Keep exhaust away from face, eyes and hair during use.
• NEVER vacuum hot, burning, smoking or smolding materials such as hot coals, cigarette butts, matches, hot ashes, etc. Fire could result.
• Do not use to pick up flammable or combustible liquids such as gasoline or use in areas where such liquids may be present. Fire could result.
• Do not vacuum liquid or wet materials. The penetration of liquid may increase the risk of fire.
• Do not overreach. Keep proper footing and balance both for you and the

vacuum at all times. Use extra care when cleaning on stairs. Proper footing and balance enables better control of the vacuum in unexpected situations.

• Do not use without dust canister, filter and filter seal in place.
• Do not turn unit upward when cover has any fluids in it. You could short batteries and motor.
• Do not use to pick up hand objects such as nails, screws, coins, etc. Damage or injury could result.
• This hand vacuum does not have to be plugged into an electrical outlet therefore, it is always in operating condition. Be aware of possible hazards when using your hand vacuum or when changing accessories.
• Do not place hand vacuum near fire or heat. The batteries inside the pack may explode.
• Leaks from battery cells can occur under extreme conditions. If the liquid comes in contact with skin, wash immediately with soap and water, then neutralize with lemon

juice or vinegar. If liquid gets into your eyes, flush with clean water for at least 10 minutes, then seek immediate medical attention. Following this rule will reduce the risk of serious personal injury.

- Your tool is equipped with a dust canister, empty it frequently, after completion of vacuuming and before storing. Be extremely careful of dust disposal, materials in fine particle form may be explosive. Do not throw dust on an open fire. Combustion from mixture of varnishes, lacquers, polyurethane, oil or water with dust particles can occur if there is a static discharge, spark introduced in the box, or excessive heat.

WARNING

Not suitable to vacuum hazardous or toxic

substances or dusts e.g. asbestos. The filters will not be able to capture all particles and may exhaust them back into the environment.

Additional Safety Warnings

GFCI and personal protection devices like electrician's rubber gloves and footwear will further enhance your personal safety.

Do not use AC only rated tools with a DC power supply. While the tool may appear to work, the electrical components of the AC rated tool are likely to fail and create a hazard to the operator.

Keep handles dry, clean and free from oil and grease. Slippery hands cannot safely control the power tool.

Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted.

Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Ensure the switch is in the off position before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.

WARNING

Some dust created by power sanding, sawing,

grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
• Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Symbols

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol	Name Designation/Explanation
V Volts	Voltage (potential)
A Amperes Current
Hz Hertz	Frequency (cycles per second)
W Watt	Power
kg Kilograms Weight
min Minutes	Time
S	Seconds	Time
[TH27]	Diameter	Size of drill bits, grinding wheels, etc.
[H43C]	No load speed	Rotational speed, at no load
[2776]	Rated speed	Maximum attainable speed
... [H4WE]	Revolutions or reciprocation per minute	Revolutions, strokes, surface speed, orbits etc. per minute
0 [DK0A]	Off position	Zero speed, zero torque...
1, 2, 3, ... [TH2Y] I, II, III, [23Y6]	Selector settings	Speed, torque or position settings. Higher number means greater speed
0 [24HOS] [AT6T]	Infinitely variable selector with off	Speed is increasing from 0 setting
	Arrow	Action in the direction of arrow
	Alternating current	Type or a characteristic of current
[5K4A]	Direct current	Type or a characteristic of current
[Y1ZZ] [32ZW]	Alternating or direct current	Type or a characteristic of current
	Class II construction	Designates Double Insulated Construction tools.
[W36Z]	Earthing terminal	Grounding terminal
[H48Z]	Warning symbol	Alerts user to warning messages
[248G] [8320]	Li-ion RBRC seal	Designates Li-ion battery recycling program
[2AAO] [YKBK] [2457]	Ni-Cad RBRC seal	Designates Ni-Cad battery recycling program
[707C]	Read manual symbol	Alerts user to read manual
	Wear eye protection symbol	Alerts user to wear eye protection

Symbols (continued)

IMPORTANT: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

This symbol designates that this tool is listed by Underwriters Laboratories.

This symbol designates that this component is recognized by Underwriters Laboratories.

This symbol designates that this tool is listed by Underwriters Laboratories, to United States and Canadian Standards.

This symbol designates that this tool is listed by the Canadian Standards Association.

This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.

This symbol designates that this tool is listed by the Intertek Testing Services, to United States and Canadian Standards.

This symbol designates that this tool complies to NOM Mexican Standards.

Functional Description and Specifications

WARNING

Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

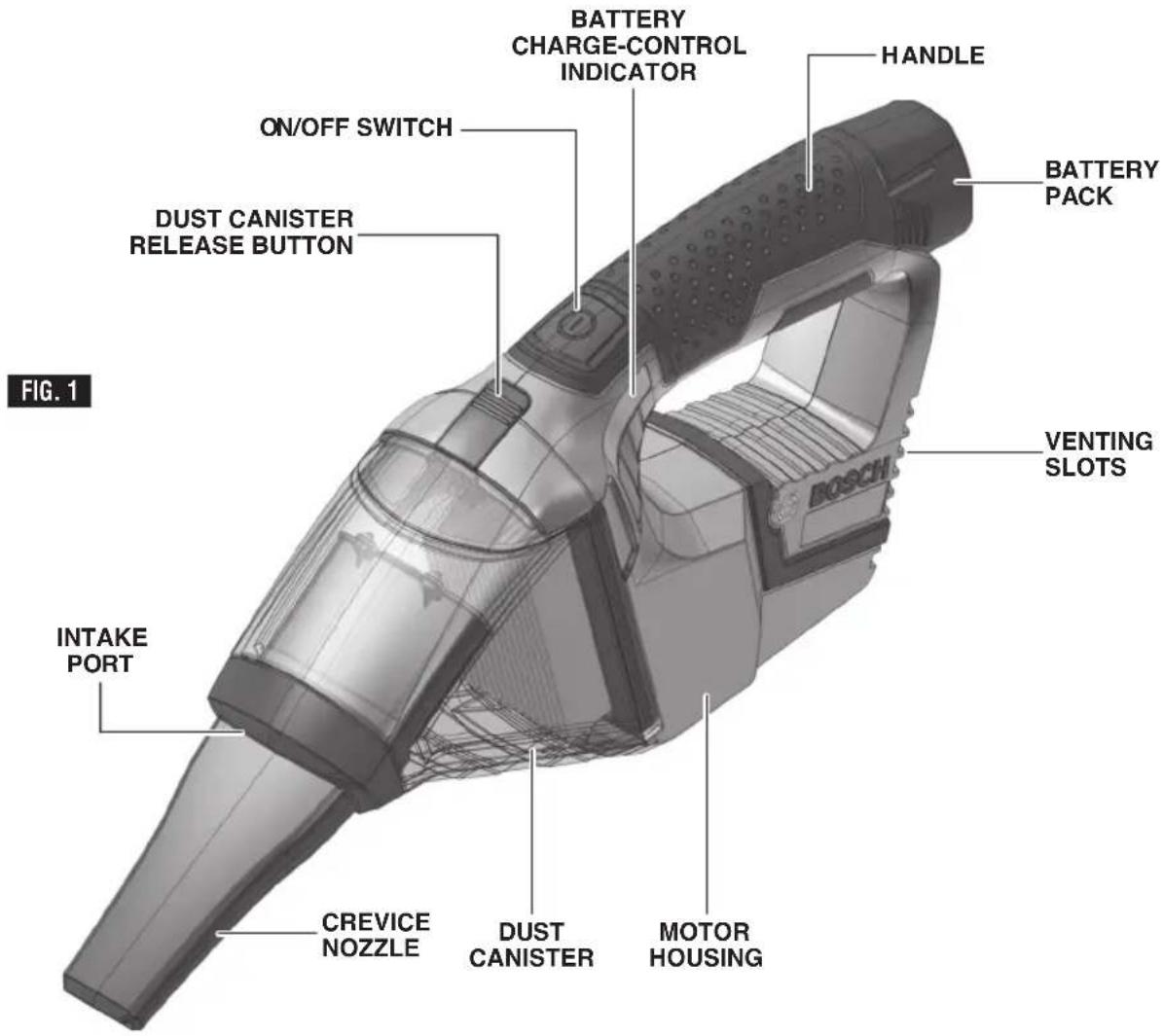

BATTERY CHARGE-CONTROL INDICATOR HANDLE ON/OFF SWITCH DUST CANISTER RELEASE BUTTON INTAKE PORT CREVICE NOZZLE DUST CANISTER MOTOR HOUSING BATTERY PACK VENTING SLOTS FIG. 1

Cordless Vacuum

Model number VAC120

Voltage rating 12 V

==

Battery Packs/Chargers

Please refer to the Charger Manual included with your tool.

NOTE: For tool specifications refer to the nameplate on your tool.

WARNING

For use only with Bosch recommended batteries. Use of any other battery packs may create a risk of injury and fire.

Assembly

WARNING

Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

INSTALLING AND REMOVING CREVICE NOZZLE

To install, firmly insert the crevice nozzle completely into the intake port on the dust chamber with the mark (shown in the illustration) facing down. (Fig. 2).

To remove, simply pull out of dust canister.

INSERTING AND RELEASING BATTERY PACK

Release battery pack from tool by pressing on both sides of the battery release tabs and pull downward (Fig. 3).

To insert battery, align battery and slide battery pack into tool until it locks into position. Do not force.

WARNING

If battery release tabs are cracked or otherwise

damaged, do not insert into tool. Battery can fall out during operation.

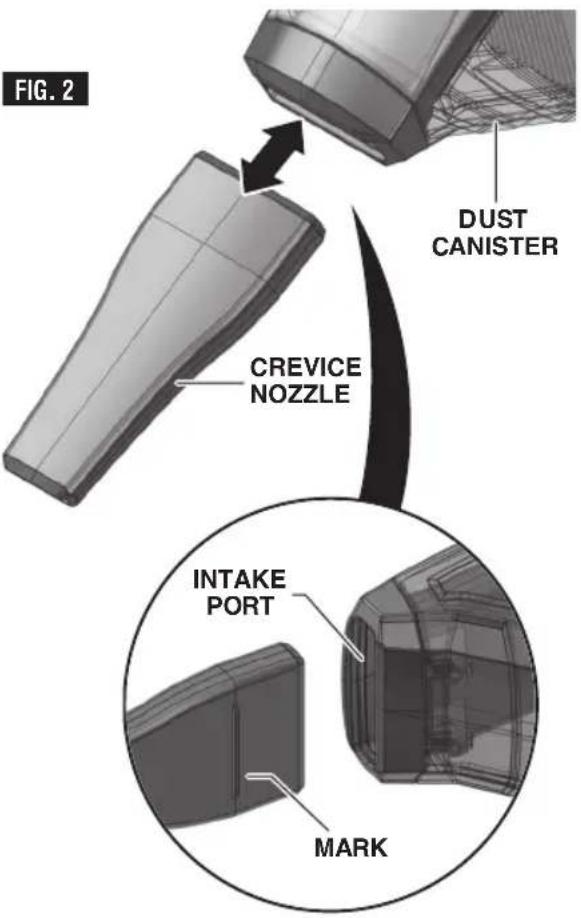

FIG. 2 CREVICE NOZZLE DUST CANISTER INTAKE PORT MARK

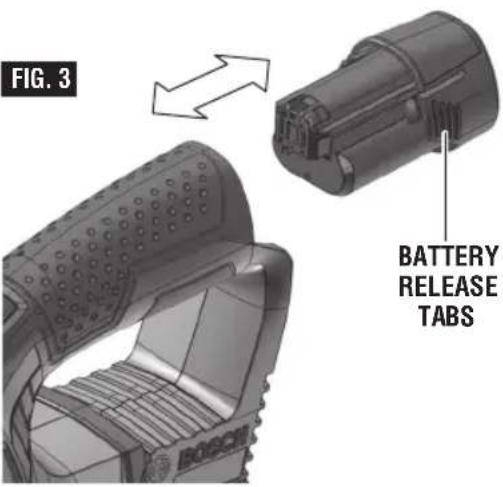

FIG. 3 BATTERY RELEASE TABS

Operating Instructions

A WARNING Disconnect battery pack from tool or place the switch in the locked or off position before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce the risk of starting the tool accidentally.

SWITCHING ON AND OFF

To save energy, only switch the vacuum cleaner on when using it.

• To switch on the vacuum cleaner, press the On/Off button.
• To switch off the vacuum cleaner, press the On/Off button again.

CLEANING THE DUST CANISTER (see figures 4 - 6)

To maintain the optimum performance of the vacuum cleaner, clean the dust canister after each use.

1. Hold the vacuum cleaner down slightly so that dust cannot fall out of the dust canister when the vacuum cleaner is opened.
2. Press release button and remove the dust canister from the motor housing.
3. Reach into the recess on the motor housing and pull the filter unit off the motor housing by the filter seal.
4. Shake/tap out the dust canister over a suitable waste bin.
5. If required, clean the dust canister with a moist cloth.

If required, clean the filter assembly (see "Cleaning the Filter Assembly", page 10).

1. Insert the filter unit with the filter seal back into the motor housing if removed for cleaning.

Afterwards, hang the dust canister at the bottom into the motor housing, apply light pressure until the dust canister can be heard to engage.

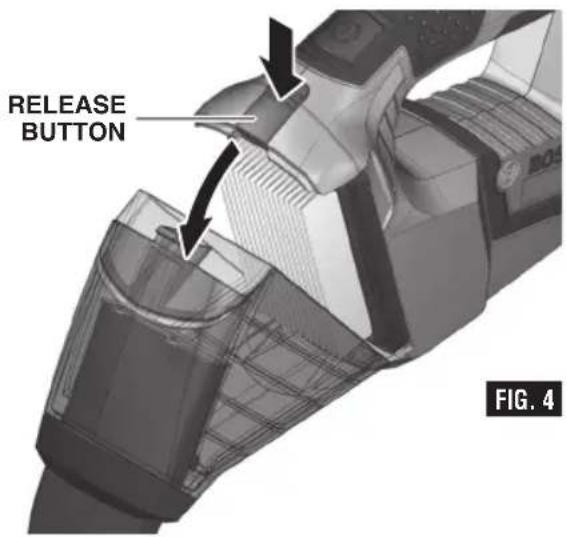

RELEASE BUTTON FIG. 4

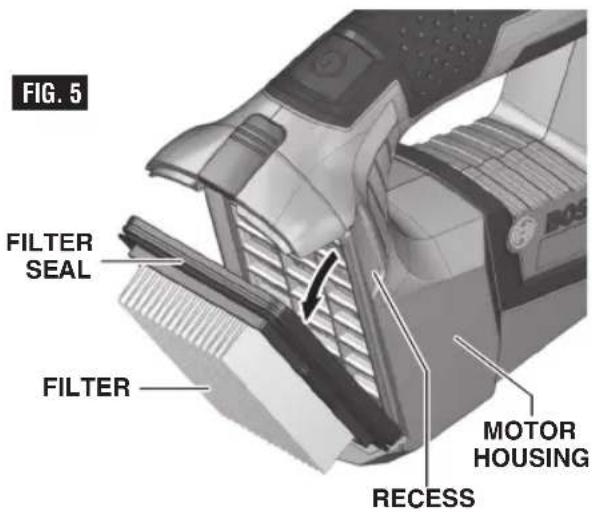

FIG. 5 FILTER SEAL FILTER MOTOR HOUSING RECESS

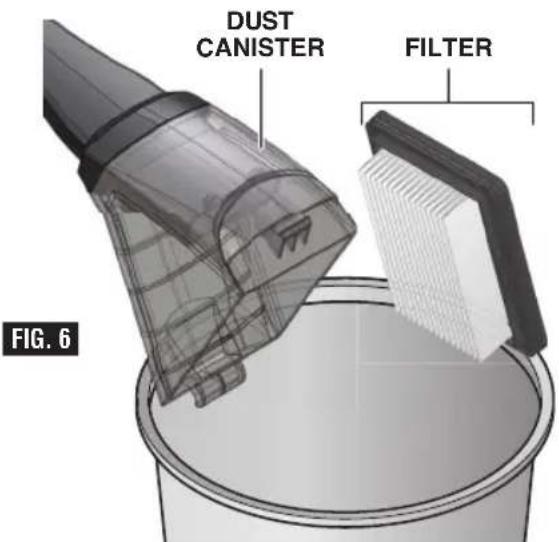

DUST CANISTER FILTER FIG. 6

CLEANING THE FILTER ASSEMBLY (see figure 7)

The filter unit must not be wet cleaned.

1. Hold the vacuum cleaner down slightly so that dust cannot fall out of the dust canister when the vacuum cleaner is opened.
2. Press dust canister release button and remove the dust canister from the motor housing.
3. Reach into the recess on the motor housing and pull the filter unit off the motor housing by the filter seal.
4. Brush down the flaps of the pleated filter with a soft broom.
5. Assembly is carried out in reverse order.

MALFUNCTIONS

In the case of insufficient vacuuming performance, check the following:

• Is the dust canister full?
  ▷See "Cleaning the Dust Canister", page 9.
• Is the folded filter clogged with dust?
  ▷See "Cleaning the Filter Assembly", page 10.
  – Is the capacity of the battery pack too low?
  ▷See battery/charger manual (included with tool).

Regular emptying of the dust canister and cleaning of the filter assembly ensures optimal vacuum capacity.

If the vacuuming performance is not achieved thereafter, take the vacuum cleaner to a Bosch authorized service center.

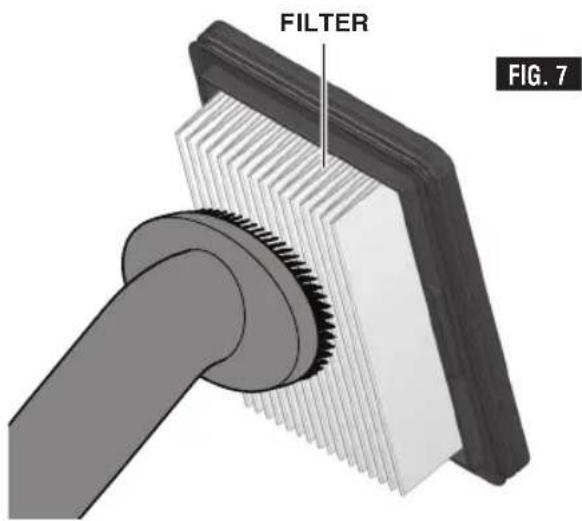

FILTER FIG. 7

Maintenance

Service

WARNING

NO USER SERVICEABLE PARTS INSIDE. Preventive maintenance performed by un authorized personnel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station. SERVICE MEN: Disconnect tool and/or charger from power source before servicing.

BATTERIES

Be alert for battery packs that are nearing their end of life. If you notice decreased tool performance or significantly shorter running time between charges then it is time to replace the battery pack. Failure to do so can cause the tool to operate improperly or damage the charger.

Long term battery storage should be in the discharged state. Battery packs last longer and re-charge better when they are stored discharged. Remember to fully recharge battery packs before using after prolonged storage.

TOOL LUBRICATION

Your Bosch tool has been properly lubricated and is ready for use.

D.C. MOTORS

The motor in your tool has been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend it be examined every six months. Only a genuine Bosch replacement motor specially designed for your tool should be used.

Cleaning

WARNING

To avoid accidents, always disconnect the tool and/or charger from the power supply before cleaning. The tool may be cleaned most effectively with compressed dry air. Always wear safety goggles when cleaning tools with compressed air.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through opening.

CAUTION

Certain cleaning agents and solvents damage

plastic parts. Some of these are: gasoline, carbon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Accessories

WARNING

The use of any other acces so ries not specified in this manual may create a hazard.

Robert Bosch Tool Corporation ("Seller") warrants to the original purchaser only, that all SKIL consumer portable, benchtop and HD and SHD Heavy Duty power tools will be free from defects in material or workmanship for a period of one year from date of purchase. SKIL Benchtop and consumer portable power tool models will be free from defects in material or workmanship for a period of ninety days if the tool is used for professional use.

SELLER'S SOLE OBLIGATION AND YOUR EXCLUSIVE REMEDY under this Limited Warranty and, to the extent permitted by law, any warranty or condition implied by law, shall be the repair or replacement of parts, without charge, which are defective in material or workmanship and which have not been misused, carelessly handled, or misrepaired by persons other than Seller or Authorized Service Station. To make a claim under this Limited Warranty, you must return the complete product, transportation prepaid, to any SKIL Factory Service Center or Authorized Service Station. For Authorized SKIL Power Tool Service Stations, please visit www.skil.com or call 1-877-SKIL-999 (1-877-754-5999).

THIS LIMITED WARRANTY DOES NOT APPLY TO ACCESSORY ITEMS SUCH AS CIRCULAR SAW BLADES, DRILL BITS, ROUTER BITS, JIGSAW BLADES, SANDING BELTS, GRINDING WHEELS AND OTHER RELATED ITEMS.

ANY IMPLIED WARRANTIES SHALL BE LIMITED IN DURATION TO ONE YEAR FROM DATE OF PURCHASE. SOME STATES IN THE U.S., SOME CANADIAN PRO V INCES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU.

IN NO EVENT SHALL SELLER BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING BUT NOT LIMITED TO LIABILITY FOR LOSS OF PROFITS) ARISING FROM THE SALE OR USE OF THIS PRODUCT. SOME STATES IN THE U.S. AND SOME CANADIAN PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE IN THE U.S., PROVINCE TO PROVINCE IN CANADA AND FROM COUNTRY TO COUNTRY.

THIS LIMITED WARRANTY APPLIES ONLY TO PRODUCTS SOLD WITHIN THE UNITED STATES OF AMERICA, CANADA AND THE COMMONWEALTH OF PUERTO RICO. FOR WARRANTY COVERAGE WITHIN OTHER COUNTRIES, CONTACT YOUR LOCAL SKIL DEALER OR IMPORTER.

GARANTIE LIMITÉE DES OUTILS ÉLECTRIQUES GRAND PUBLIC SKIL PORTATIFS, DE TABLE ET POUR USAGE INDUSTRIEL HD ET SHD

© Robert Bosch Tool Corporation 1800 W. Central Road Mt. Prospect, IL 60056-2230

Exportado por: Robert Bosch Tool Corporation Mt. Prospect, IL 60056-2230, E.U.A.

Importado a México por: Robert Bosch, S.A. de C.V., Calle Robert Bosch No. 405, Zona Industrial,

2610035086 05/14 Printed in China
