USER MANUAL TBMV2 TOTO

3 Hole/4 Hole Roman Tub Rough-in

TABLE OF CONTENTS

Thank You for Choosing TOTO! 2 Warnings 2 Common Tools Needed 3 Before Installation 3 Included Parts 3 Installation Procedure 4-6 Warranty 7 Rough-In Dimensions 20

THANK YOU FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

WARNING

For safe operation of the faucet, please observe the following: ■ Operating Pressure: · Minimum Pressure 20 psi (0.14 MPa), dynamic · Maximum Pressure 80 psi (0.55 MPa), static ■ Do not use the product at an ambient temperature below 32 °F (0 °C).

COMMON TOOLS NEEDED
Adjustable Wrench

Screwdrivers
BEFORE INSTALLATION

Observe all local plumbing codes.
Make sure the water supply is shut off.
Read these instructions carefully to ensure proper installation.
TOTReserves the right to update product design without notice.
Check to make sure you have the following parts indicated below.

IMPORTANT: This product must be installed after the deck or tub rim is finished.

INCLUDED PARTS
Valve Assembly (2X)

Diverter Assembly* (1X)

Diverter Hardware Set (1X in TBMT2) (1X in TMBV2)

Leader Hose (1X inTBMV2 only)

Copper Tube (2X)

Compression Fitting Set (2X)

Mounting Pipe for Handshower (1X in TBMV2 only)
ardware Set (2X)

• Actual product may vary in appearance depending on model.

INSTALLATION PROCEDURE - DIVERTER

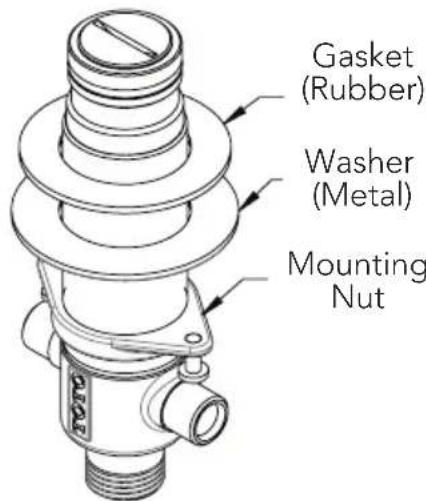

1. Thread on mounting nut to the bottom of the diverter body. Place washer and gasket as shown.

1. Pass the diverter body up through the installation hole.

Place gasket in collar groove and fasten collar to diverter body until it stops.

1. Fixate the diverter by threading the mounting nut up the diverter until hand tight. Tighten the retaining screws equally to secure.

Do not overtighten!

INSTALLATION PROCEDURE - VALVES

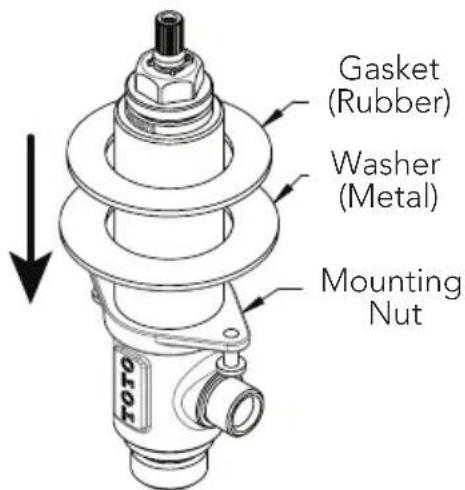

1. Thread on mounting nut to the bottom of the valve body. Place washer and gasket as shown.

INSTALLATION PROCEDURE - VALVE

2. Pass the valve up through the installation hole. Insert the O-ring and fasten the collar to the valve body until it stops. NOTE: The hot water valve has a red marking on side of body.

3. Fixate the valve by threading the mounting nut up the valve until slightly loose (need adjustability for copper pipe installation later). Do not overtighten!

4. Repeat steps 1-3 for other valve.

5. Cut copper tube to size to fit distance between valve and diverter. Place the ferrule inside compression nut and place on each end of copper tube as shown. Insert ends of copper tube into ports as shown and fasten nuts to secure. Repeat with remaining side. Finish tightening mount nuts on valves. Tighten retaining nuts equally to secure. Installation of TBMT2 is now complete. If installing TBMV2, please continue.

INSTALLATION PROCEDURE - Handshower Mount (TBMV2 ONLY)

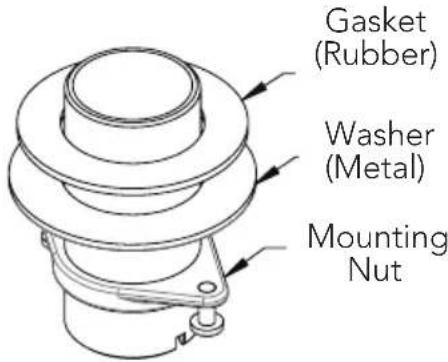

1. Thread mounting nut to the bottom of the mounting pipe body. Place washer and gasket as shown.

1. Pass the mounting pipe body up through the installation hole.

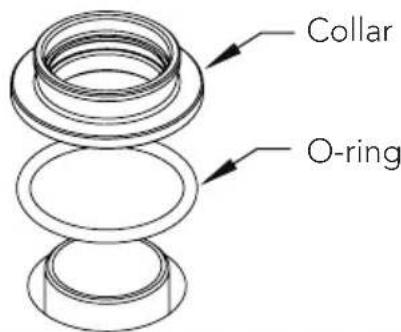

Insert the O-ring and fasten the collar to the pipe body until it stops.

1. Fixate the mounting pipe by threading the mounting nut up the pipe until hand tight. Tighten the retaining screws equally to secure.

Do not overtighten!

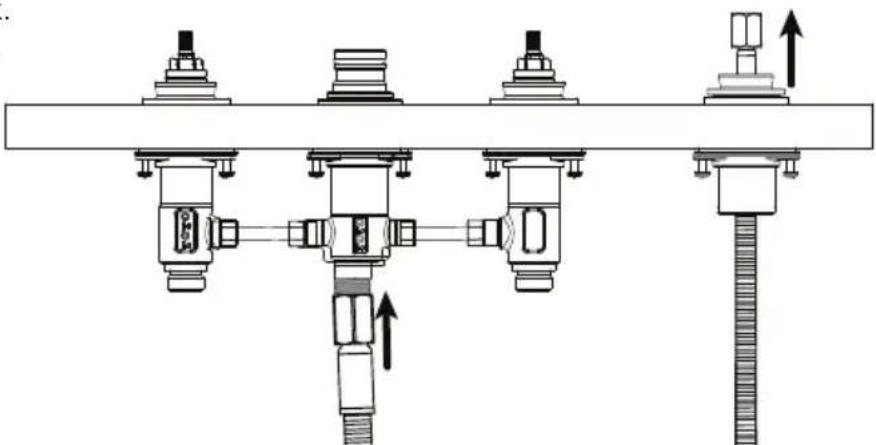

1. Fasten the leader hose to the bottom opening of the diverter.

Pass the hose up through the handshower mount. Leave end of hose above deck for future handshower installation.

Secure hose above deck.

A loop of tape will work.

1. Leave diverter plug in place while conducting leak testing.

Construction of access panel in tub surround for future service is recommended.

WARRANTY

1. TOTO® warrants its residential faucets and bathroom accessories ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.

2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.

3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCurred BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTYES, INCLUDING THAT OF MERCHANT-ABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

TOTO U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4235

Rev Date: 08/13
