Brand	TOTO
Model	Vivian TS220XW
Product Type	Three-way diverter trim
Usage	Shower / bathtub faucetry
Materials	Chrome-plated brass (estimated)
Included Parts	Handle assembly, escutcheon, collar, screw and washer, threaded extension, adapter
Installation	On pre-installed valve (TSMV), follow local plumbing codes
Required Tools	Screwdriver, adjustable wrench
Care and Cleaning	Mild soap, warm water, dry with soft cloth. Avoid abrasives, steel wool, harsh chemicals
Warranty	Lifetime for residential use, 1 year for commercial use (North, Central and South America)
Supply	Cold and hot water (as supplied)
Overall Dimensions	See pages 17-18 of the manual (not detailed here)
Handle Adjustment	Adjustable adapter by rotating one notch if necessary
Compatibility	TOTO TS series valve (model TS210X mentioned)
Certifications	Compliant with local plumbing codes

Frequently Asked Questions - Vivian TS220XW TOTO

How to install the Vivian TS220XW trim?

Make sure the water supply is turned off. Remove the plaster guard from the valve. Screw the threaded extension into the valve, attach the adapter with the screw and washer, then turn the adapter until it clicks. Place the escutcheon against the wall, tighten the collar, then slide the handle onto the adapter and tighten.

What tools are needed for installation?

A screwdriver and an adjustable wrench are sufficient.

How to clean the Vivian TOTO faucetry?

Use mild soap and warm water, rinse thoroughly and dry with a soft cloth. Never use abrasive cleaners, steel wool, or harsh chemicals.

What to do if the handle is not straight after installation?

Remove the adapter and rotate it one notch from the original position, then reassemble.

Is this trim compatible with all TOTO valves?

It is designed for TS series valves, such as model TS210X. Verify that the valve is installed correctly and that the finished wall surface is between the min and max markings on the plaster guard.

What is the warranty for the Vivian TS220XW?

TOTO warrants this residential faucet against defects in material and workmanship for the lifetime of the product for the original purchaser. For commercial use, the warranty is one year. The warranty does not cover damage due to improper installation, misuse, or abrasive cleaners.

Can I use spray cleaning products?

It is not recommended to use sprays or harsh chemicals as they can dull the finish. Use only mild soap.

Are spare parts available?

Yes, parts such as the adapter, collar, or handle can be ordered from TOTO or an authorized dealer. Refer to the manual for part numbers.

How to know if the valve is already installed correctly?

The finished wall surface should be between the min and max markings on the plaster guard. Consult the TSMV valve installation manual for details.

What to do in case of leakage after installation?

Check that all connections are tight, the adapter is properly engaged, and the collar is tightened. If the leak persists, turn off the water and contact a professional plumber or TOTO customer service.

USER MANUAL Vivian TS220XW TOTO

Three-Way Diverter Trim

Technical line drawing of a mechanical component with a central hub and concentric rings (no text or symbols)

Vivian®
TS220X
TS220XW

TABLE OF CONTENTS
Thanks for Choosing TOTO!......2Before Installation......2Common Tools Needed......2Included Parts......3Installation Procedure......3-5Care & Cleaning......5Warranty......6Rough-In Dimensions......17-18
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
BEFORE INSTALLATION
4 Observe all local plumbing codes.4 Make sure the water supply is shut off.4 Read these instructions carefully to ensure proper installation.4 TOTO reserves the right to update the product design without notice.
COMMON TOOLS NEEDED
Screwdriver	Adjustable Wrench

INCLUDED PARTS

Check to make sure that all these parts were included in your packaging:

Handle Assembly* Escutcheon*		Collar
Screw and Lock Washer	Threaded Extension	Adapter

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

1. Confirm that the valve has been installed properly.

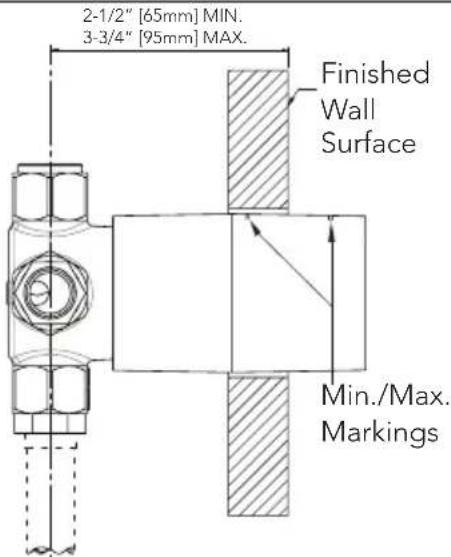

N OTE: The finished wall surface should be between the min and max markings on the plaster guard. See the TSMV installation manual for further information.

1. Remove the screw securing the plaster guard to the valve body, then pull the plaster guard outwards to remove it.

Installation Procedure (continued)

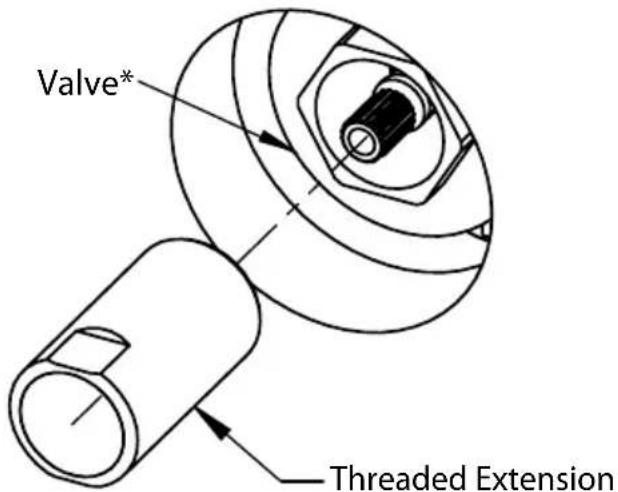

1. Use an adjustable wrench to tighten the threaded extension into the valve.

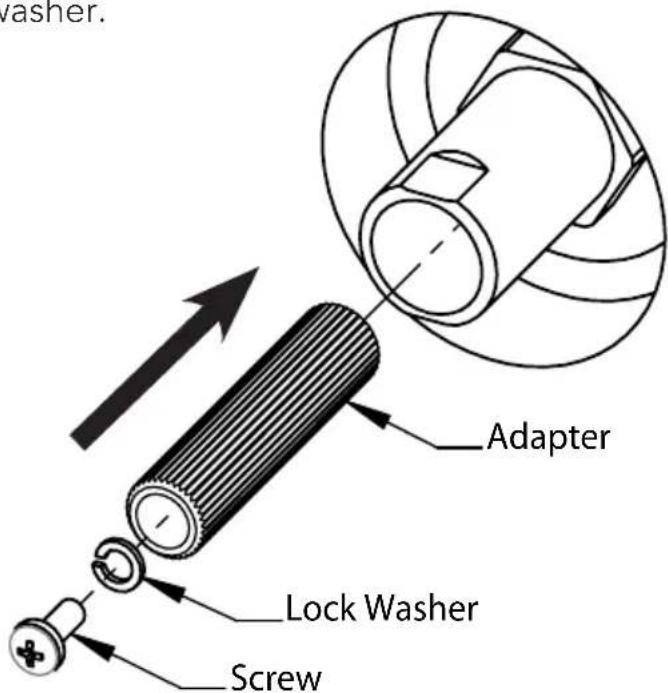

1. Secure adapter to the valve with the included screw and lock washer.

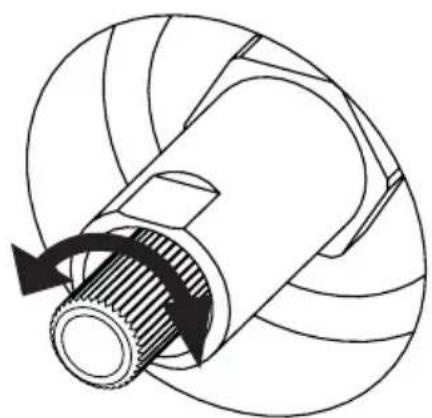

1. Turn the adapter manually until it "clicks" into the center position.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Installation Procedure (continued)

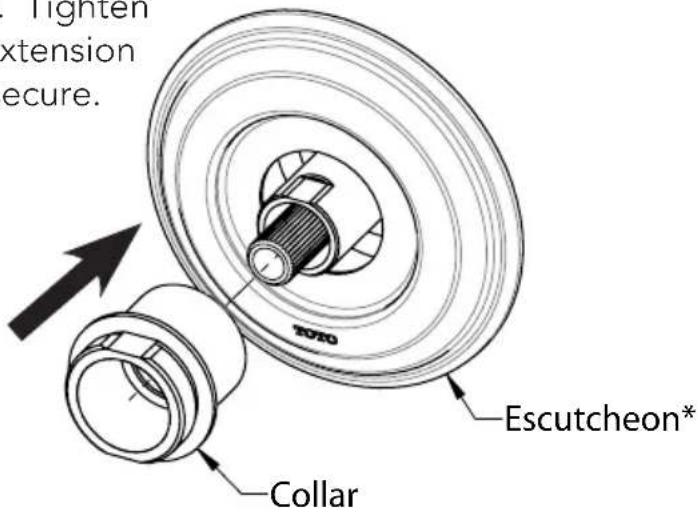

1. Hold the escutcheon against the wall with the TOTO logo at the bottom. Tighten the collar onto the threaded extension with an adjustable wrench to secure.

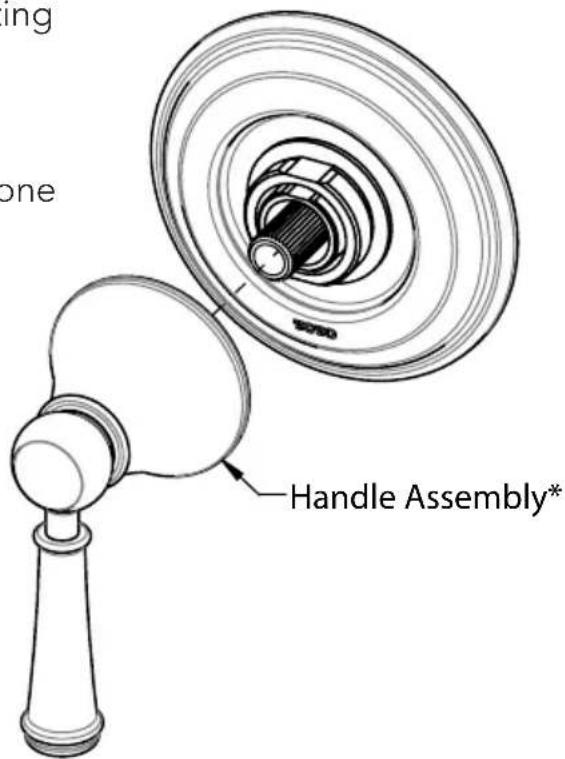

1. Slide handle assembly onto the adapter, and tighten onto the collar by rotating handle base.

If fine adjustment of handle position is desired, remove adapter, rotate one notch/tooth, and reinstall.

CARE & CLEANING

Your new shower trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

TABLE OF CONTENTS

Line drawing of a screwdriver with a pointed tip and threaded body (no text or symbols)

Desarmador

Line drawing of an adjustable wrench (no text or symbols)

Llave inglesa ajustable

INCLUÍA PARTES

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

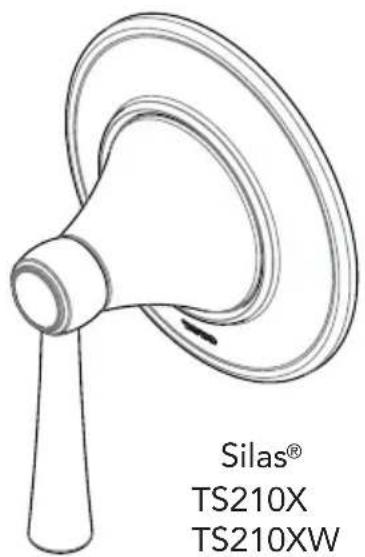

TS210XW

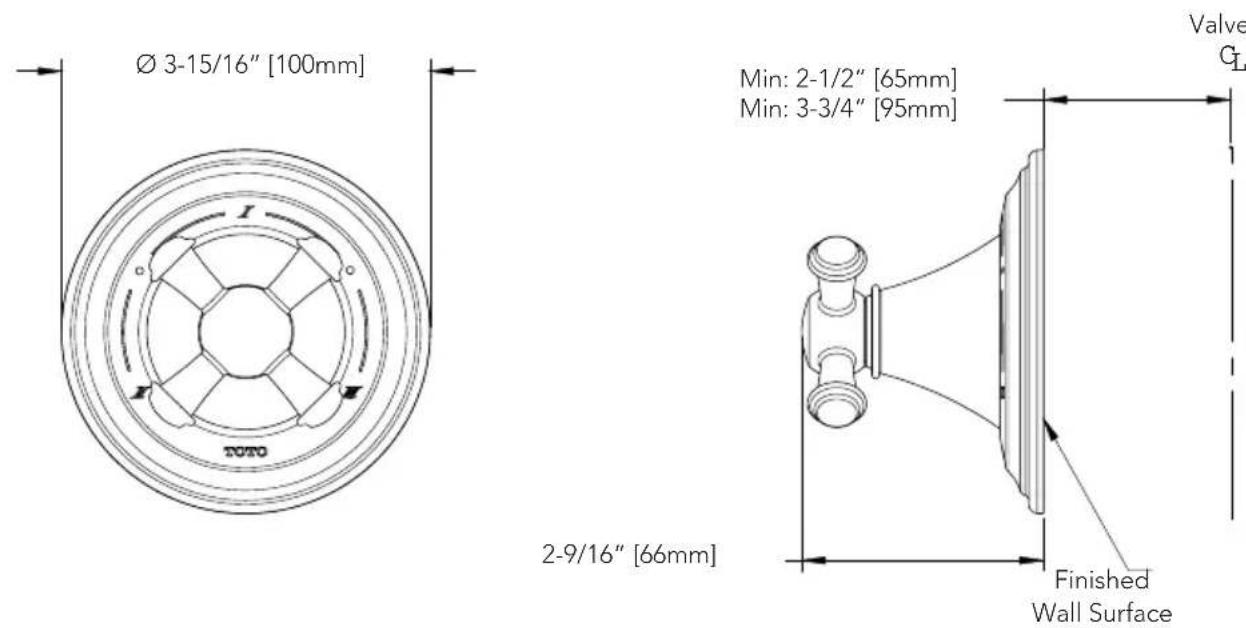

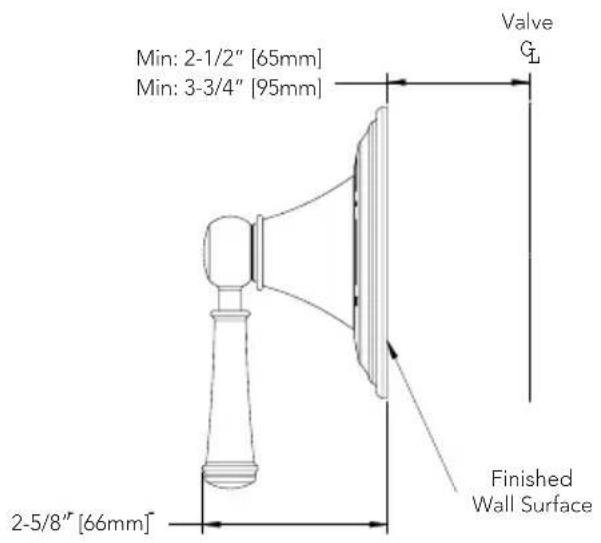

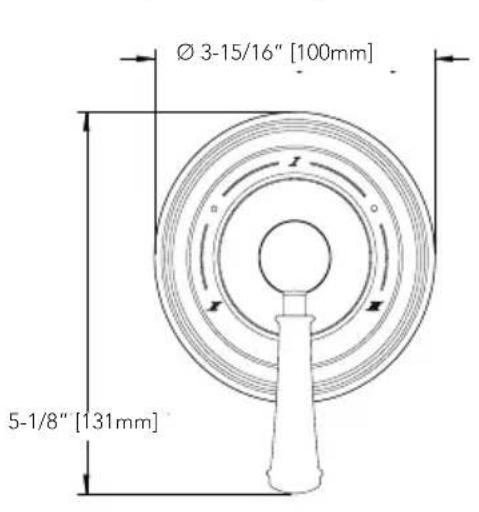

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS220X

2-9/16" [66mm]

TS220XW

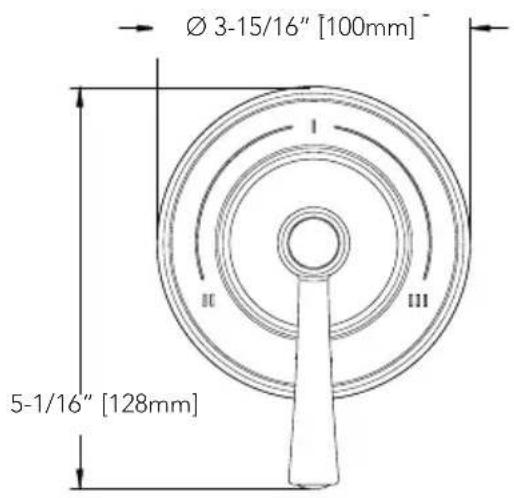

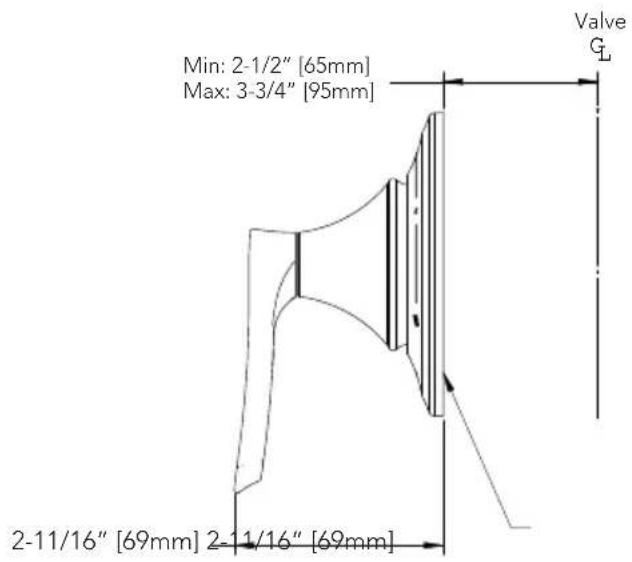

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS220X1

TS220XW1

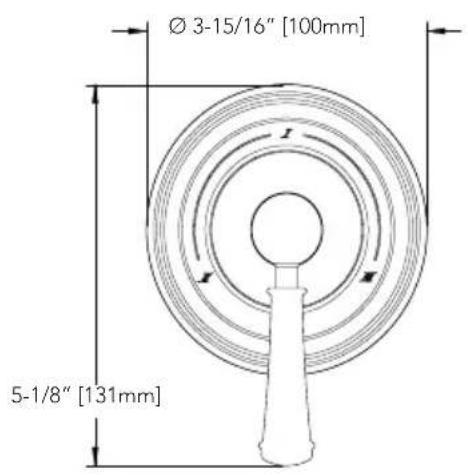

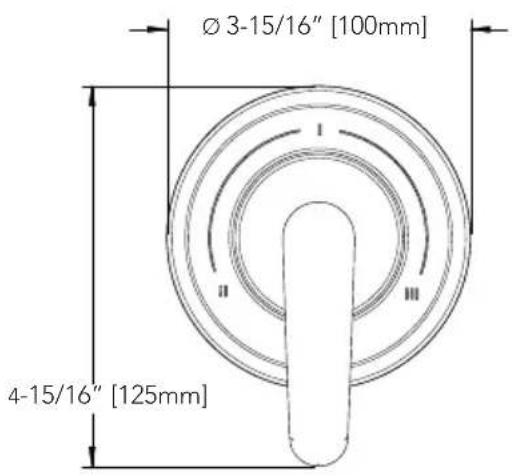

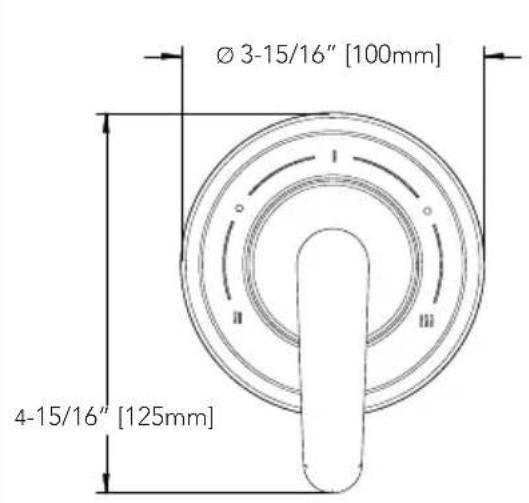

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

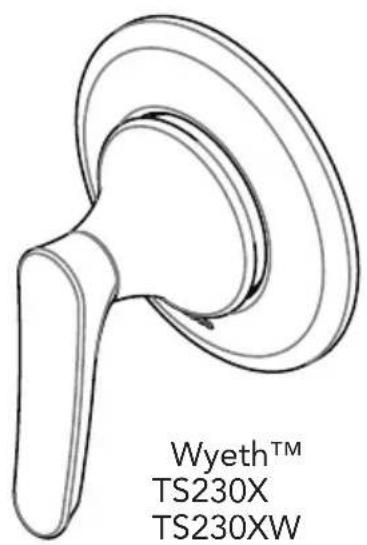

TS230X

TS230XW

TOTO®

TOTO ^® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4219

Rev D
