Vivian TS220XW1 - Faucets TOTO - Free user manual and instructions

Product Type	Three-way diverter trim for shower or bath faucet
Brand	TOTO
Model	Vivian TS220XW1
Main Material	Chrome-plated brass (estimated)
Dimensions (approx.)	Height 120 mm, width 80 mm, depth 60 mm (estimated)
Net Weight	0.4 kg (estimated)
Supply	Cold and hot water (standard pressure, no electrical supply)
Main Functions	Flow and temperature adjustment, water diversion (three-way diverter)
Compatibility	TOTO TSMV valve (not included)
Installation Instructions	Turn off water supply, follow local plumbing codes, use provided tools
Maintenance and Cleaning	Clean with mild soap, rinse with warm water, and dry with a soft cloth. Do not use abrasive cleaners or harsh chemicals.
Safety	Ensure finished wall surface is within the valve's min/max markings for proper installation.
Included Components	Handle assembly, escutcheon, collar, screw and washer, threaded extension, adapter
Repairability	Replacement parts available; limited lifetime warranty against manufacturing defects (residential use)
Warranty	Limited lifetime warranty for original owner in North, Central, and South America; 1 year for commercial use
Intended Use	Indoor, residential or commercial use (subject to warranty conditions)

Frequently Asked Questions - Vivian TS220XW1 TOTO

Does the TS220XW1 model require a specific valve for installation?

Yes, this faucet is designed to be installed with the TOTO TSMV valve (not included). Follow the valve manual instructions for proper installation.

How to install the Vivian TS220XW1 trim?

Turn off water supply, ensure finished wall surface is between 65 mm and 95 mm from the valve. Remove the plaster guard, screw in the threaded extension, attach the adapter with the screw and washer, then mount the escutcheon and handle, tightening the collar. Refer to the manual for details.

What tools are needed for installation?

Common tools needed are a screwdriver and an adjustable wrench.

How to maintain and clean the TOTO Vivian faucet?

Clean regularly with mild soap, rinse with warm water, and dry with a clean soft cloth. Do not use abrasive cleaners, steel wool, or harsh chemicals as they will dull the finish and may void the warranty.

What to do if the handle is not vertical after installation?

If the handle cannot be installed vertically, remove the adapter and turn it one tooth from its original position, then reassemble.

What is the warranty for the TOTO Vivian TS220XW1 product?

TOTO warrants this faucet against defects in material and workmanship for the product's lifetime for the original purchaser in North, Central, and South America for residential use. For commercial use, the warranty is 1 year. Proof of purchase is required.

Can I use this faucet with valves other than the TSMV?

This product is specifically designed for the TOTO TSMV valve. Using it with other valves may cause malfunction or leaks. It is recommended to follow the indicated compatibility.

Does the kit include mounting screws?

Yes, the kit includes screws and a washer to attach the adapter to the valve, as well as other necessary parts (collar, escutcheon, threaded extension).

Where can I find the complete manual in French?

The user and installation manual in PDF format is available free on notice-facile.com. You can download it from the product page.

What to do in case of malfunction or leak?

First, check that the installation is correct and all parts are tight. If the problem persists, contact a TOTO distributor or customer service at [phone] (USA) or [phone] (outside USA) for warranty assistance or repair.

USER MANUAL Vivian TS220XW1 TOTO

Three-Way Diverter Trim

Technical line drawing of a mechanical component with a central hub and concentric rings (no text or symbols)

Vivian®
TS220X
TS220XW

TABLE OF CONTENTS
Thanks for Choosing TOTO!......2Before Installation......2Common Tools Needed......2Included Parts......3Installation Procedure......3-5Care & Cleaning......5Warranty......6Rough-In Dimensions......17-18
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
BEFORE INSTALLATION
4 Observe all local plumbing codes.4 Make sure the water supply is shut off.4 Read these instructions carefully to ensure proper installation.4 TOTO reserves the right to update the product design without notice.
COMMON TOOLS NEEDED
Screwdriver	Adjustable Wrench

INCLUDED PARTS

Check to make sure that all these parts were included in your packaging:

Handle Assembly* Escutcheon*		Collar
Screw and Lock Washer	Threaded Extension	Adapter

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

1. Confirm that the valve has been installed properly.

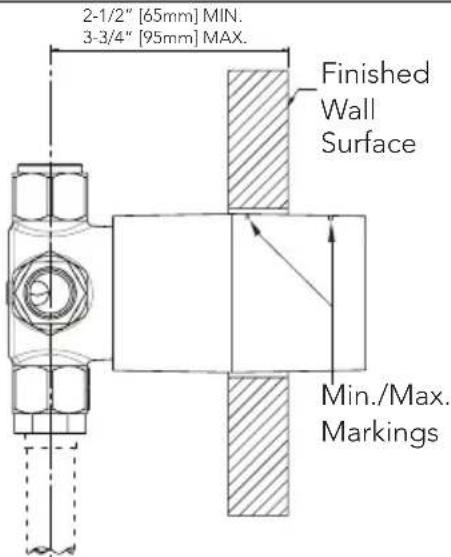

N OTE: The finished wall surface should be between the min and max markings on the plaster guard. See the TSMV installation manual for further information.

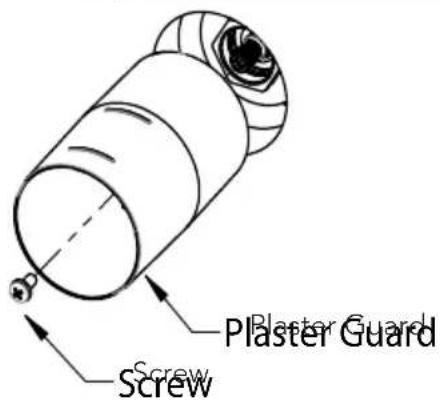

1. Remove the screw securing the plaster guard to the valve body, then pull the plaster guard outwards to remove it.

Installation Procedure (continued)

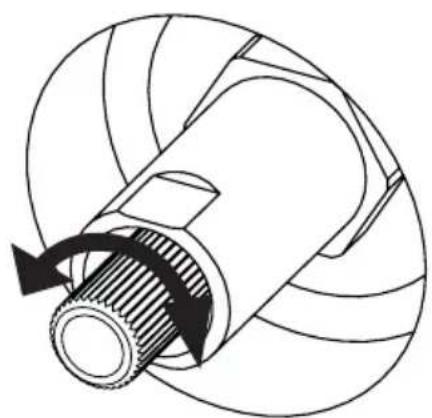

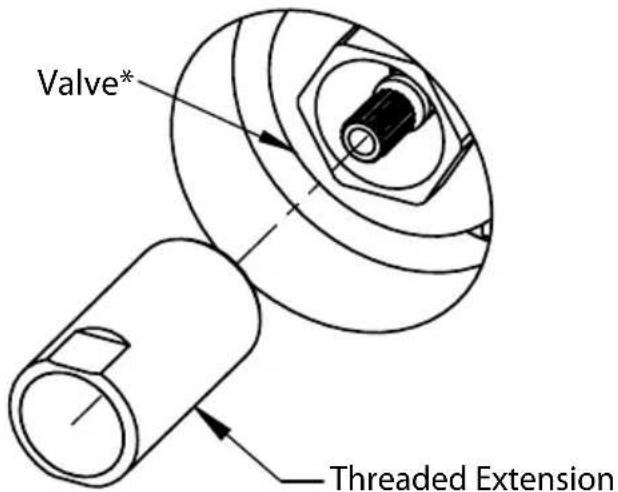

1. Use an adjustable wrench to tighten the threaded extension into the valve.

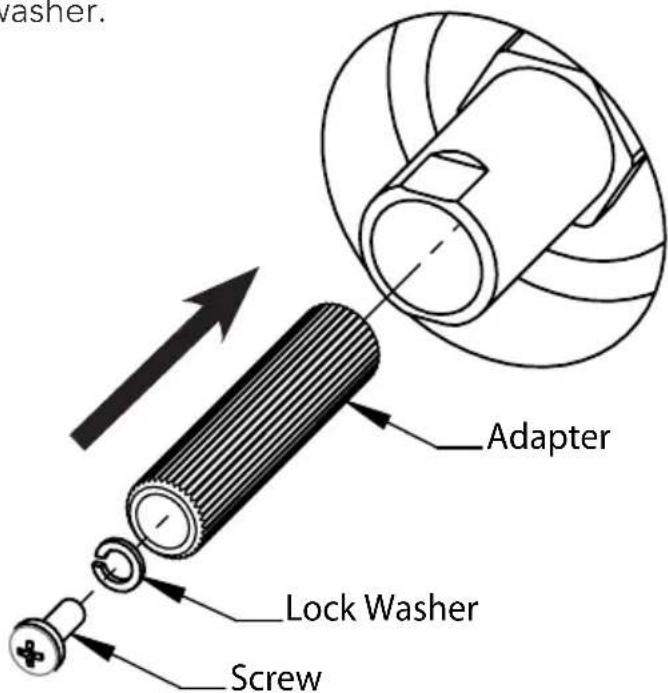

1. Secure adapter to the valve with the included screw and lock washer.

1. Turn the adapter manually until it "clicks" into the center position.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Installation Procedure (continued)

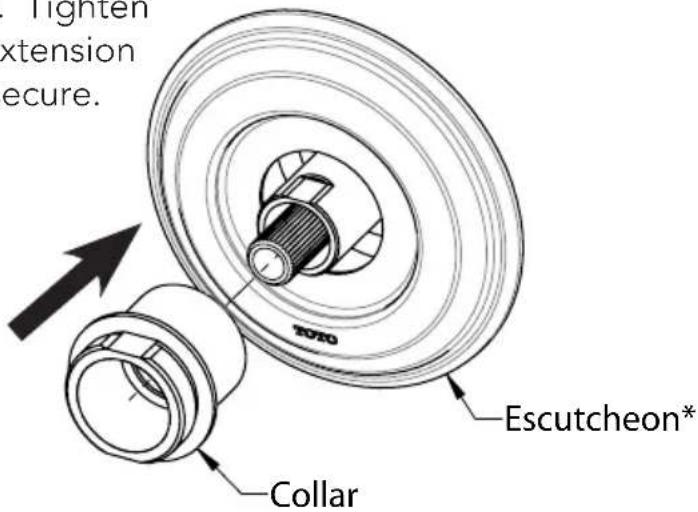

1. Hold the escutcheon against the wall with the TOTO logo at the bottom. Tighten the collar onto the threaded extension with an adjustable wrench to secure.

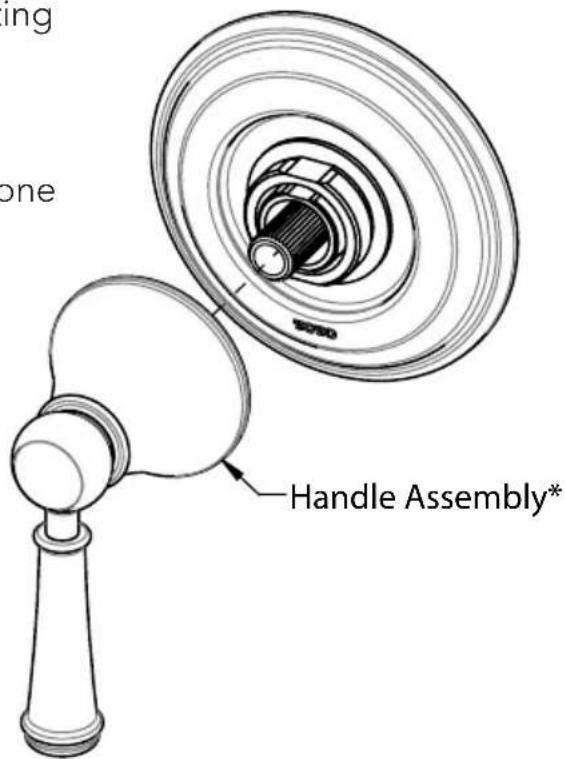

1. Slide handle assembly onto the adapter, and tighten onto the collar by rotating handle base.

If fine adjustment of handle position is desired, remove adapter, rotate one notch/tooth, and reinstall.

CARE & CLEANING

Your new shower trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

TABLE OF CONTENTS

Line drawing of a screwdriver with a pointed tip and threaded body (no text or symbols)

Desarmador

Line drawing of an adjustable wrench (no text or symbols)

Llave inglesa ajustable

INCLUÍA PARTES

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

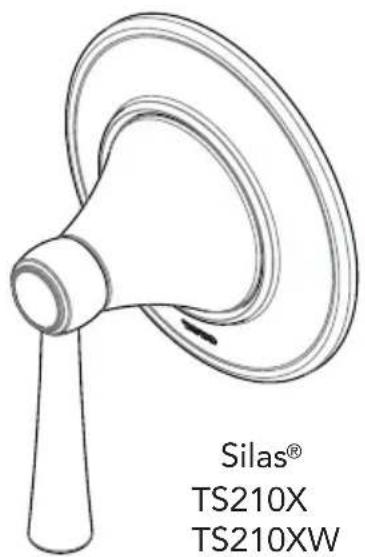

TS210XW

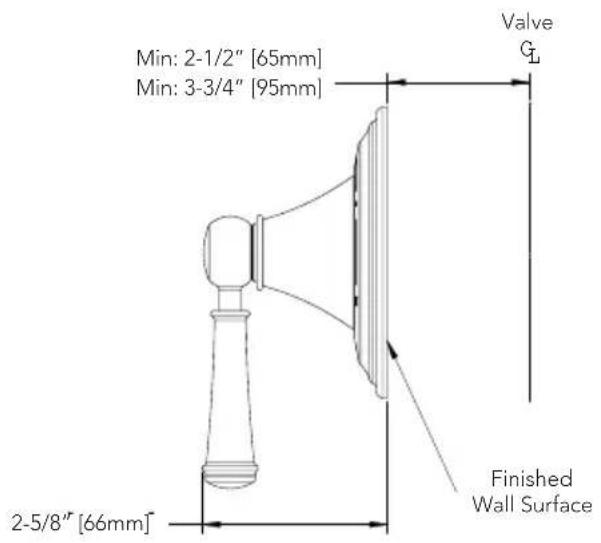

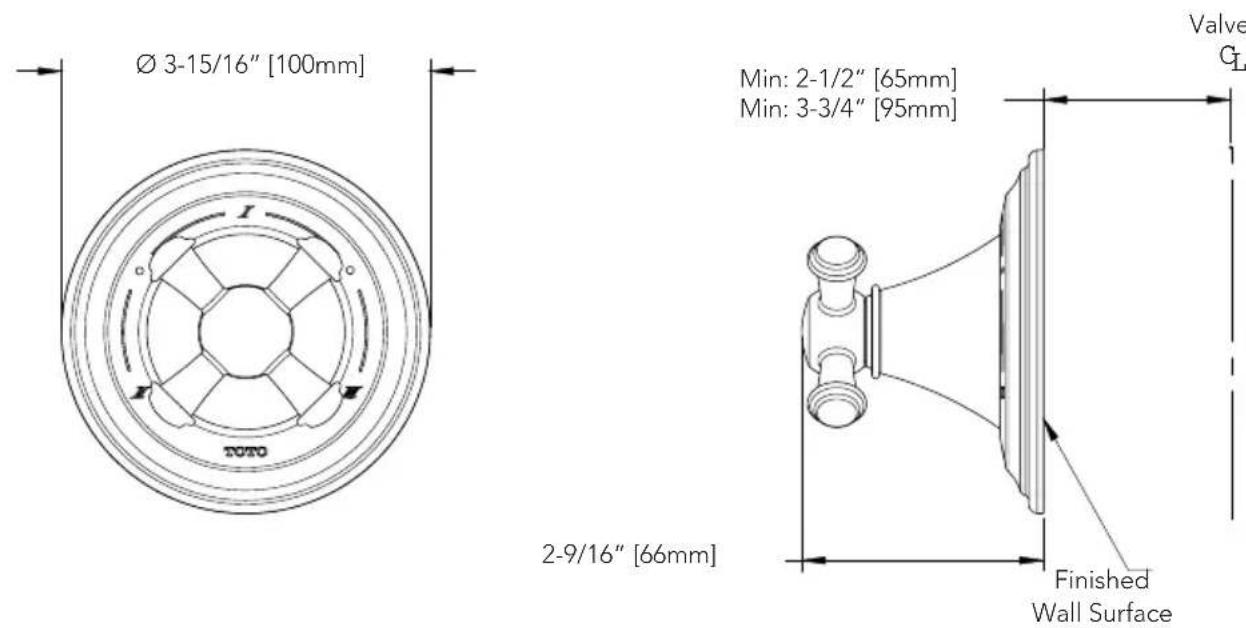

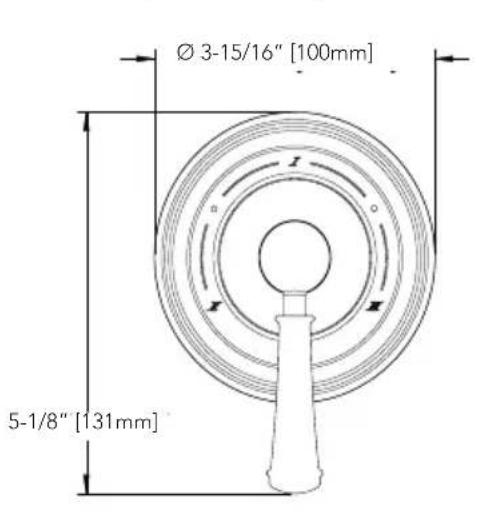

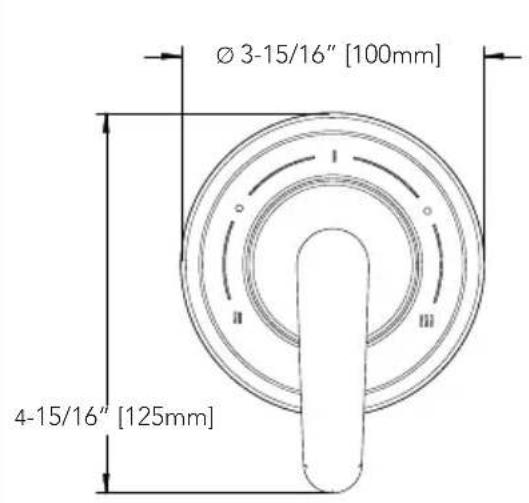

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS220X

2-9/16" [66mm]

TS220XW

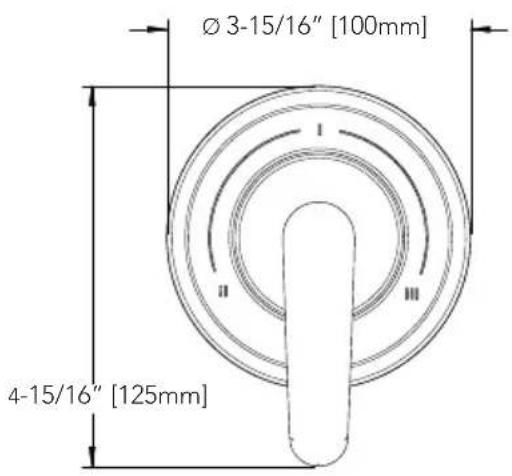

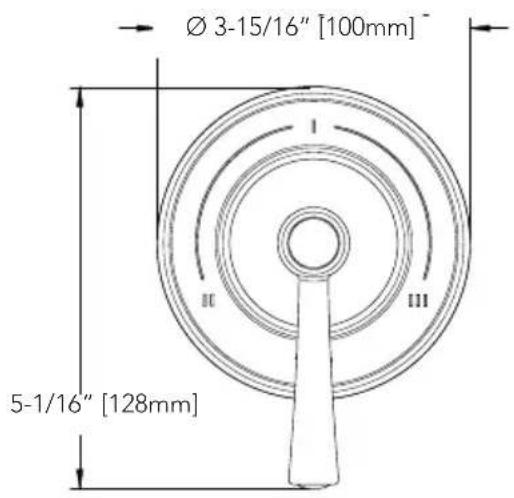

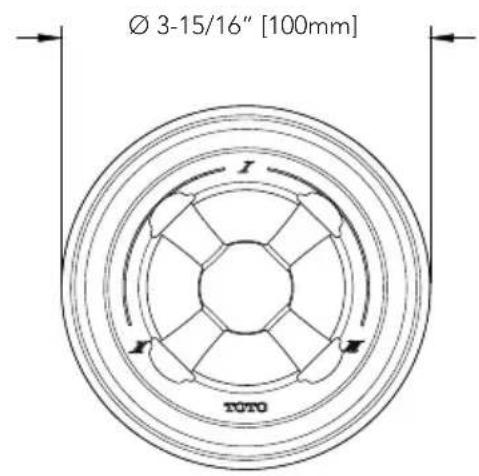

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS220X1

TS220XW1

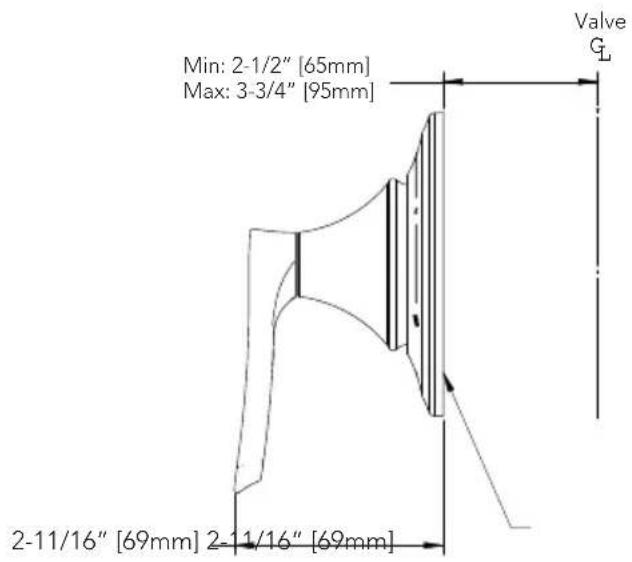

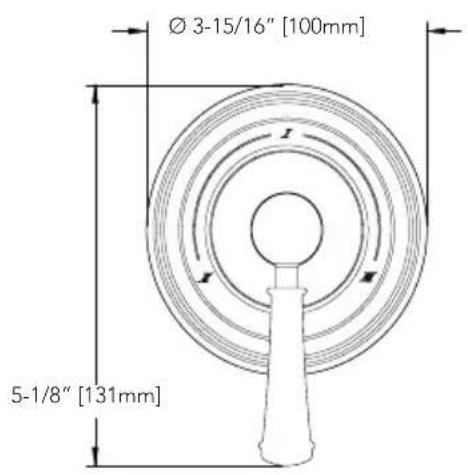

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

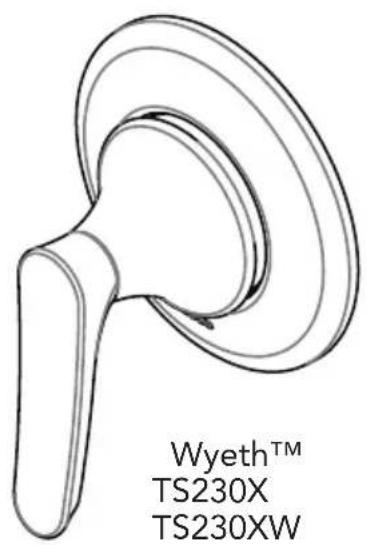

TS230X

TS230XW

TOTO®

TOTO ^® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4219

Rev D
