Brand	TOTO
Model	TBG08001U
Product type	Wall-mounted fixed spout faucet
Usage	Residential, indoor
Minimum water pressure (dynamic)	20 psi (138 kPa)
Maximum water pressure (static)	80 psi (551 kPa)
Maximum water temperature	60 °C (140 °F)
Connection	Male thread 1/2" NPT
Maximum drilling diameter	1" (25.5 mm)
Main material	Chrome-plated brass
Finish	Polished chrome
Warranty	Limited lifetime for residential use
Package contents	Spout, pipe connector with o-ring, set screws, anti-drop screws, hex wrench
Maintenance	Mild soap, hot water, soft cloth. No abrasive cleaners.
Fixing screws	Included (2.5 mm hex)
O-ring	Included on pipe connector
Minimum ambient temperature	0 °C (32 °F)
Water supply	Cold and hot water (via mixer)

Frequently Asked Questions - TBG08001U TOTO

How to install the TOTO TBG08001U wall-mounted faucet?

Turn off the water supply. Wrap Teflon tape around the shank (1/2" NPT thread) and tighten the adapter. Apply silicone sealant around the shank. Slide the spout onto the pipe connector, taking care not to damage the o-ring. Secure the main body with the set screws then the anti-drop screws.

What water pressure is required for this faucet?

The minimum dynamic pressure is 20 psi (138 kPa) and the maximum static pressure is 80 psi (551 kPa). Respect these limits for proper operation.

Can I use the faucet with hot water?

Yes, the recommended maximum water temperature is 60 °C (140 °F). Do not exceed this temperature.

How to clean the TOTO TBG08001U faucet without damaging it?

Clean regularly with mild soap, rinse with hot water and wipe with a soft cloth. Never use abrasive cleaners, steel wool or corrosive chemicals, as they will dull the finish.

What to do if the faucet leaks?

First check that the connections are properly tightened. Make sure the o-ring is not damaged. If the leak persists, contact a professional or TOTO customer service. The warranty covers manufacturing defects.

Does the warranty cover damage from hard water or limescale?

No, the limited warranty does not cover damage resulting from normal wear, such as tarnishing or limescale deposits. Regular maintenance is recommended.

What tools are needed for faucet installation?

You will need an adjustable wrench and Teflon tape. The hex wrench needed for the fixing screws is supplied with the faucet.

Is the faucet compatible with a water heater?

Yes, but make sure the hot water temperature does not exceed 60 °C (140 °F). Never connect steam directly.

How to adjust the water flow?

This wall-mounted faucet is a fixed spout; the flow is controlled by the mixer it is connected to. Make sure the mixer is compatible and works properly.

What to do if the fixing screws are too tight or loose?

Use the supplied hex wrench to adjust the set screws and anti-drop screws. Do not overtighten. Moderate tightening is sufficient to hold the faucet in place.

USER MANUAL TBG08001U TOTO

Installation and Owner's Manual

TABLE OF CONTENTS

Thanks for Choosing TOTO! ......2Care And Cleaning ......2Warnings ......2Common Tools Needed ......3Before Installation ......3Included Parts ......3Installation Procedure ......4Warranty......5Rough-In Dimensions ......18

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new tub spout is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARNINGS

For safe operation of the handshower, please observe the following:■Recommended operating pressure:• Minimum pressure......20 psi (138 kPa), dynamic• Maximum pressure......80 psi (551kPa), static■It is suggested to use the temperature below 140°F(60°C)■Do not use steam for hot water supply.■Do not use the product at an ambient temperature below 32 °F (0 °C).

COMMON TOOLS NEEDED

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench Sealing Tape

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.

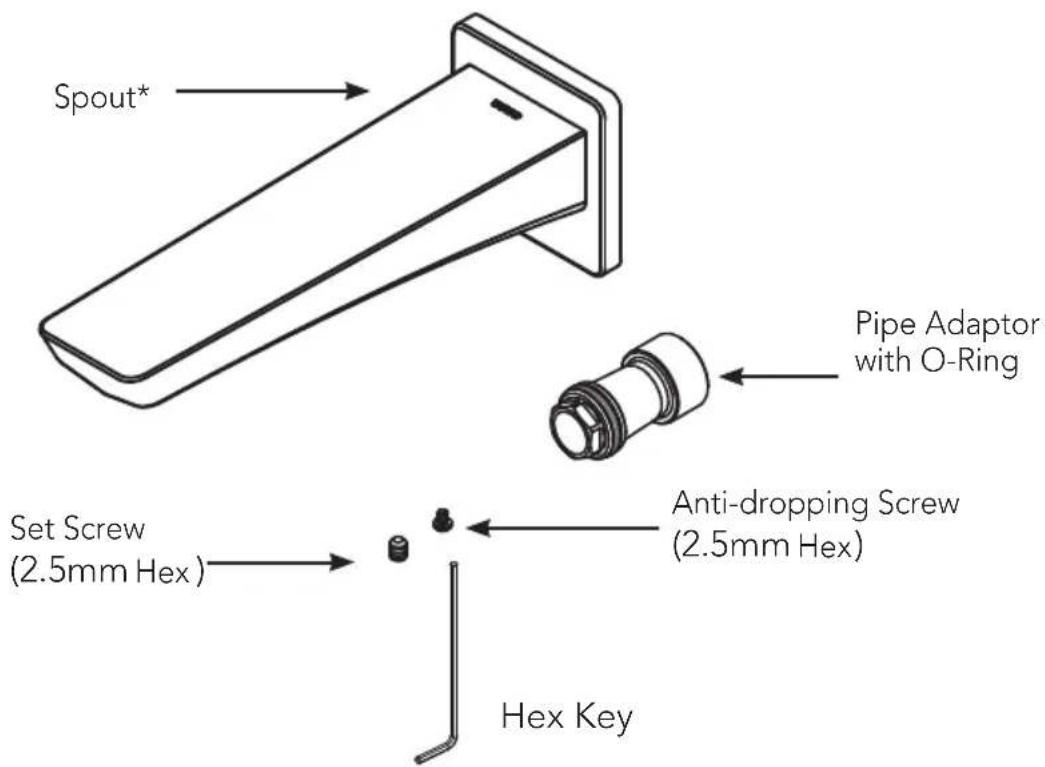

INCLUDED PARTS

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

NOTE: Thoroughly flush the water supply line prior to installation.

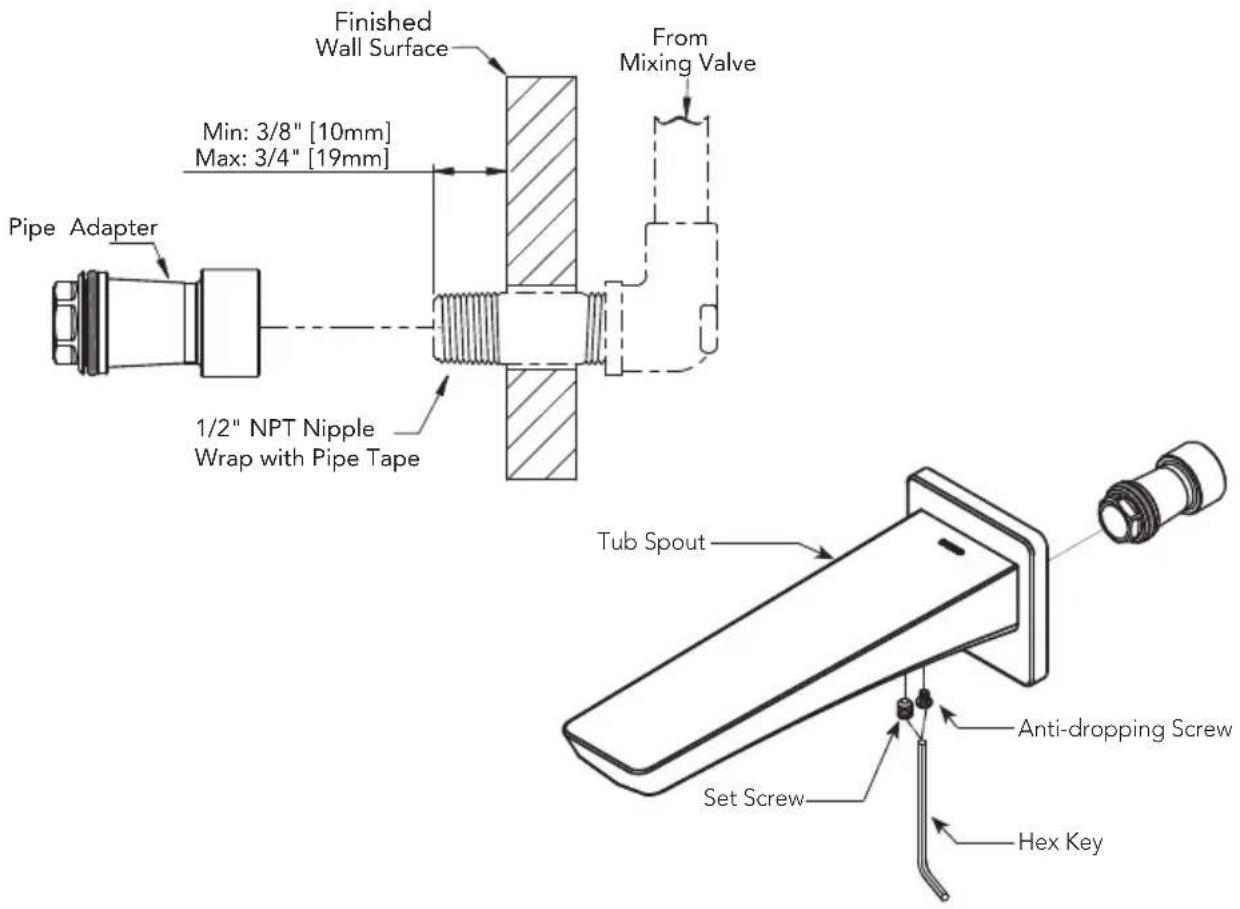

IMPORTANT!

For proper installation, a nipple with a 1/2" NPT male thread extending between 3/8" (10mm) and 3/4"(19mm) beyond the finished wall is required.

NOTE: The hole for the nipple should not be larger than 1" (25mm) in diameter.

1. Wrap pipe tape around the free end of the nipple, then thread the pipe adapter onto the nipple, taking care not to damage the o-ring.
2. Apply silicone caulk around the nipple where it exits the wall.
3. Slide the spout onto the pipe adapter, taking care not to damage the o-ring.
4. Remove the fixing screws and anti-dropping screws and then install the main body of the water outlet onto the fixed connector. Tighten sufficiently with the fixing screws and then lock tight the anti-dropping screws.

(After applying some soap water, etc on the O-ring of the fixed connector, it will be easier to assemble)

Please make sure that lock fixing screws and anti-dropping screws are secured, otherwise the spout body is in danger of falling.

WARRANTY

1. TOTO® warrants its residential faucets and bathroom accessories ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.

b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.

c. Damage or loss resulting from sediments or foreign matter contained in a water system.

d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.

e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.

f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCTOR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench (no text or symbols)

Llave Ajustable

Line drawing of an adjustable wrench (no text or symbols)

Line drawing of an adjustable wrench (no text or symbols)

TOTO U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4314

Rev A
