Brand	TOTO
Model	Connelly TS221E
Category	Plumbing - Bathtub Wall Spout
Product Type	Bathtub Wall Spout
Minimum Operating Pressure	20 psi (0.14 MPa) dynamic
Maximum Operating Pressure	80 psi (0.55 MPa) static
Minimum Ambient Temperature	32°F (0°C)
Connection	1/2" NPT male thread
Material	Chrome-plated brass (estimation)
Finish	Chrome (estimation)
Residential Warranty	Lifetime for original purchaser
Commercial Warranty	1 year from installation
Included Parts	Spout, supply fitting with O-ring, set screw, Allen key
Required Tools	Adjustable wrench, Teflon tape
Recommended Maintenance	Clean with mild soap, rinse with hot water, wipe with soft cloth
Prohibited Cleaners	Abrasives, steel wool, corrosive chemicals
Installation - Required Thread	1/2" NPT male, protrusion of 10 to 19 mm from finished wall
Installation - Maximum Hole Diameter	1" (25.5 mm)
Standards	Compliant with local plumbing codes
Intended Use	Water distribution for bathtub

Frequently Asked Questions - Connelly TS221E TOTO

How to install the Connelly TS221E wall spout?

Turn off water supply. Wrap Teflon tape on the fitting thread (1/2" NPT) and tighten the adapter. Apply silicone sealant around. Slide the spout onto the fitting and secure with set screws using the Allen key. Ensure the O-ring is not damaged.

What is the recommended water pressure for the TS221E?

Minimum dynamic pressure is 20 psi (0.14 MPa) and maximum static pressure is 80 psi (0.55 MPa).

What tools are needed for installation?

You will need an adjustable wrench and Teflon tape. Included parts include an Allen key.

How to maintain and clean the TOTO wall spout?

Clean regularly with a mild soap, rinse with hot water and wipe with a clean soft cloth. Never use abrasive cleaners, steel wool, or corrosive chemicals.

What to do in case of a leak after installation?

Check that the O-ring is correctly positioned and not damaged. Ensure the fitting is tight and Teflon tape is properly applied. If leak persists, contact TOTO.

Is the TS221E warranty transferable?

No, the lifetime warranty is limited to the original purchaser and is not transferable to a third party.

Can I use abrasive cleaners on the spout?

No, abrasive cleaners, steel wool, and corrosive chemicals will dull the finish and may void the warranty. Use only mild soap.

What is the product lifespan?

With proper maintenance, the lifespan is very long. The residential warranty covers material and workmanship defects for the product's entire life for the original purchaser.

Where can I find replacement parts for the TS221E?

Contact an authorized TOTO distributor or TOTO customer service at [phone]. You can also visit http://www.totousa.com.

What to do if water flow is low?

Check that water pressure is within the recommended range (20-80 psi). Ensure the water supply line is free of debris. Clean the spout if sediment is blocking flow.

USER MANUAL Connelly TS221E TOTO

Installation and Owner's Manual

Line drawing of a curved mechanical component with a labeled section (no text or symbols beyond the label)

Connelly™

TS221E

TABLE OF CONTENTS

Thanks for Choosing TOTO! 2Care And Cleaning 2Warnings 2Common Tools Needed 3Before Installation 3Included Parts 3Installation Procedure 4Warranty 5Rough-In Dimensions 14

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new wall spout is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

CAUTION

For safe operation, please observe the following:■ Operating Pressure:▪ Minimum Pressure ......20 psi (0.14 MPa), dynamic▪ Maximum Pressure ......80 psi (0.55 MPa), static■ Do not use the product at an ambient temperature below 32 °F (0 °C).

COMMON TOOLS NEEDED

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench

Pipe Tape

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.
■ Check to make sure you have the following parts indicated below.

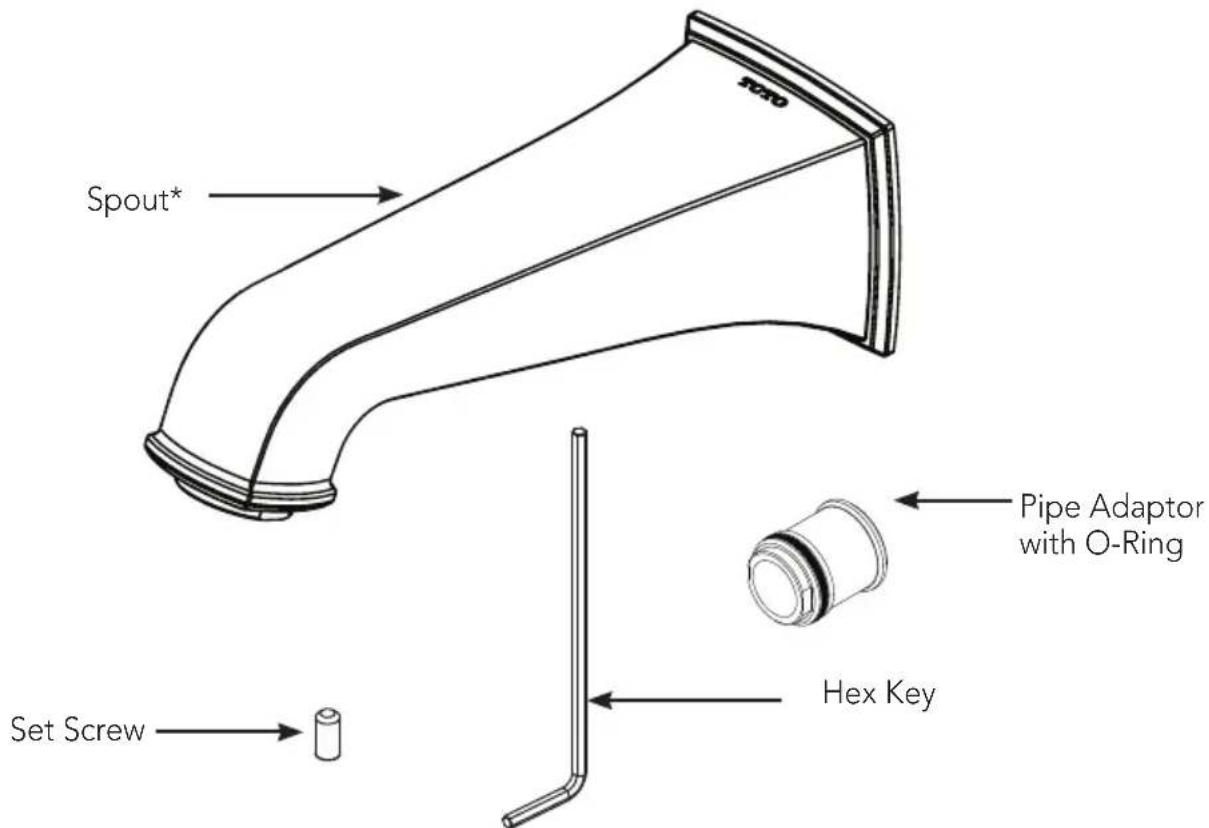

INCLUDED PARTS

Spout* Set Screw Hex Key Pipe Adaptor with O-Ring

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

NOTE: Thoroughly flush the water supply line prior to installation.

IMPORTANT!

For proper installation, a nipple with a 1/2" NPT male thread extending between 3/8" (10mm) and 3/4"(19mm) beyond the finished wall is required.

NOTE: The hole for the nipple should not be larger than 1" (25mm) in diameter.

1. Wrap pipe tape around the free end of the nipple, then thread the pipe adapter onto the nipple, taking care not to damage the o-ring.
2. Apply silicone caulk around the nipple where it exits the wall.
3. Slide the spout onto the pipe adapter, taking care not to damage the o-ring.
4. Secure the spout with the set screw.

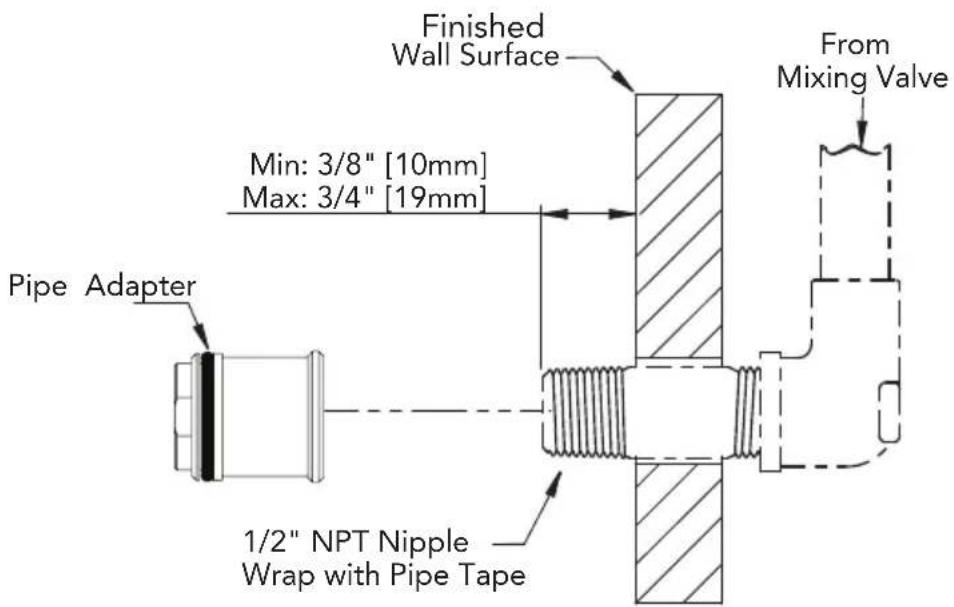

Finished Wall Surface Min: 3/8" [10mm] Max: 3/4" [19mm] From Mixing Valve Pipe Adapter 1/2" NPT Nipple Wrap with Pipe Tape

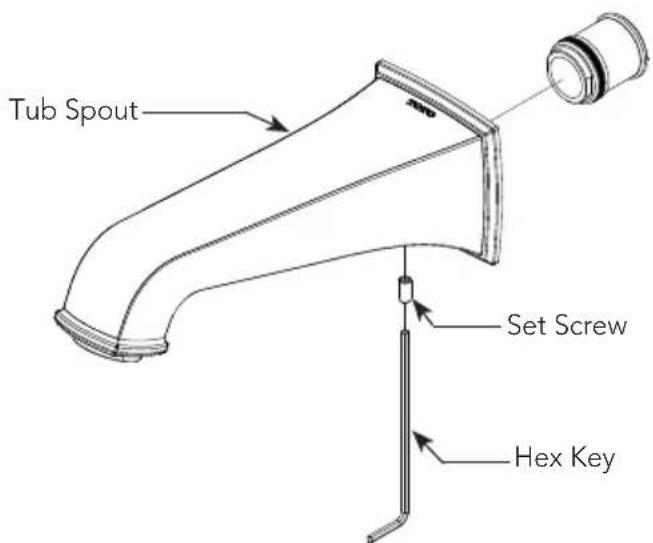

Tub Spout Set Screw Hex Key

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench with a handle and central clip (no text or symbols)

Llave Ajustable

Line drawing of an adjustable wrench (no text or symbols)

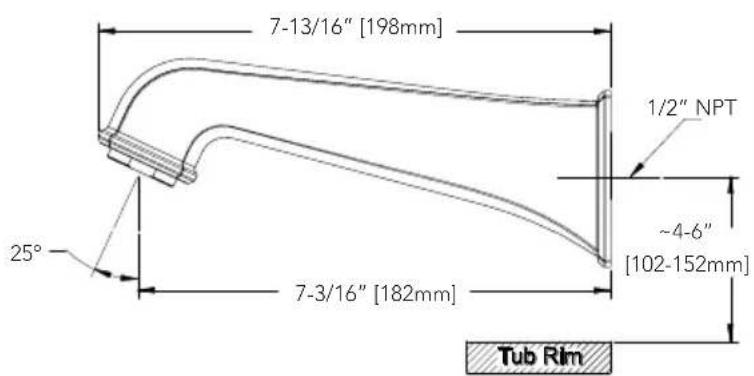

2-11/16" [68mm] 3-3/16" [81mm]

7-13/16" [198mm] 25° 7-3/16" [182mm] 1/2" NPT ~4-6" [102-152mm] Tub Rim

TOTO®

TOTO U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4231

Rev Date: 09/13
