Silas TS210DW - Faucets TOTO - Free user manual and instructions

Product Type	Lavatory Faucet
Brand	TOTO
Model	Silas TS210DW
Use	Lavatory, bathroom
Material	Chrome-plated brass
Compatibility	TOTO TSMV valve
Included Parts	Handle assembly, escutcheon, collar, screw and washer, threaded extension, adapter
Power Source	Water (water supply)
Control Type	Handle
Main Functions	Water control, wall mount installation
Maintenance	Clean with mild soap and warm water, dry with a soft cloth
Precautions	Do not use abrasive cleaners, steel wool, or harsh chemicals
Warranty	Limited lifetime warranty for residential use (from date of purchase)
Replacement Parts	Threaded extension, adapter, collar, etc. (available via TOTO)
Repairability	Repairable by a professional, spare parts available
Required Tools	Screwdriver, adjustable wrench

Frequently Asked Questions - Silas TS210DW TOTO

What tools are needed to install the Silas TS210DW faucet?

The required tools are a screwdriver and an adjustable wrench.

How to install the Silas TS210DW faucet?

Ensure the TSMV valve is properly installed and the water supply is turned off. Remove the rough-in guard, screw the threaded extension into the valve, attach the adapter with the screw and washer, then turn the adapter until it clicks. Hold the escutcheon against the wall with the TOTO logo at the bottom, tighten the collar, then slide the handle assembly onto the adapter and tighten the handle body. If the handle is not vertical, remove the adapter and turn it one tooth.

How to clean the Silas TS210DW faucet?

Clean regularly with mild soap, rinse thoroughly with warm water, and dry with a clean, soft cloth. Do not use abrasive cleaners, steel wool, or harsh chemicals.

What maintenance precautions should be followed?

Avoid abrasive cleaners, steel wool, and harsh chemicals as they tarnish the finish. Failure to do so may void the warranty.

What is the warranty of the Silas TS210DW faucet?

TOTO warrants the faucet against defects in material and workmanship for the life of the product to the original purchaser in North, Central, and South America. The warranty covers repair or replacement of defective parts, but not removal or reinstallation costs.

What should I do if the faucet handle is not vertical after installation?

Remove the adapter and turn it one tooth from its original position, then reinstall it. This adjusts the handle orientation.

What parts are included with the Silas TS210DW faucet?

Included parts are the handle assembly, escutcheon, collar, screw and washer, threaded extension, and adapter.

How to contact TOTO customer service?

For warranty service, contact a TOTO distributor or write to TOTO U.S.A., Inc., Southern Road, Morrow, Georgia 30260, or call [phone] (USA) or [phone] (outside USA).

Where can I find the dimensions of the Silas TS210DW faucet?

Rough-in dimensions are available in the installation manual provided with the product. See pages 17-20 of the manual for dimensioned diagrams.

What should I do if the faucet malfunctions?

First check the installation per the instructions. If the problem persists, contact TOTO customer service. The warranty covers defects in material and workmanship, but not damage from misuse or improper installation.

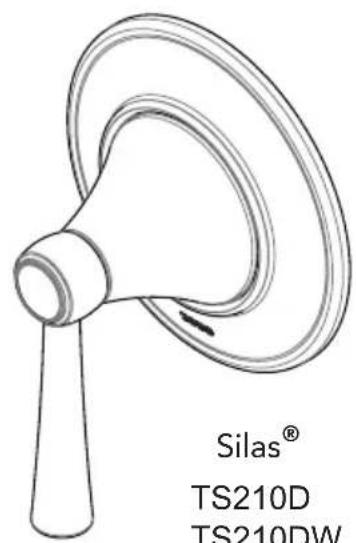

USER MANUAL Silas TS210DW TOTO

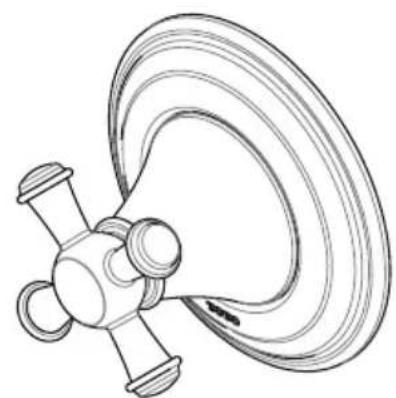

Two-Way Diverter Valve Trim

Acabado De Diversora

Garniture De Dérivation

Technical line drawing of a mechanical component with a central hub and concentric rings (no text or symbols)

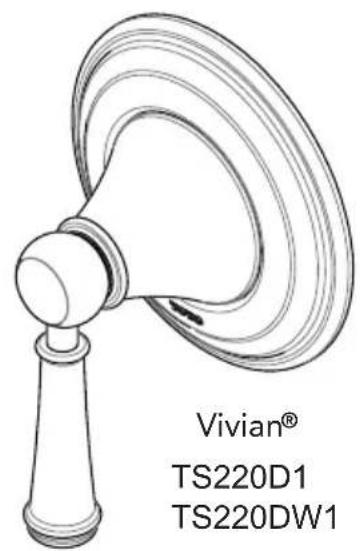

Vivian®
TS220D
TS220DW

TABLE OF CONTENTS
Thanks for Choosing TOTO!......2Before Installation......2Common Tools Needed......2Included Parts......3Installation Procedure......3-5Care & Cleaning......5Warranty......6Rough-In Dimensions......17-20
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.
BEFORE INSTALLATION
4 Observe all local plumbing codes.4 Make sure the water supply is shut off.4 Read these instructions carefully to ensure proper installation.4 TOTO reserves the right to update the product design without notice.
COMMON TOOLS NEEDED
Screwdriver	Adjustable Wrench

INCLUDED PARTS

Check to make sure that all these parts were included in your packaging:

Handle Assembly* Escutcheon*		Collar
Screw and Lock Washer	Threaded Extension	Adapter

* Actual product may vary in appearance depending on the model.

INSTALLATION PROCEDURE

1. Confirm that the valve has been installed properly.

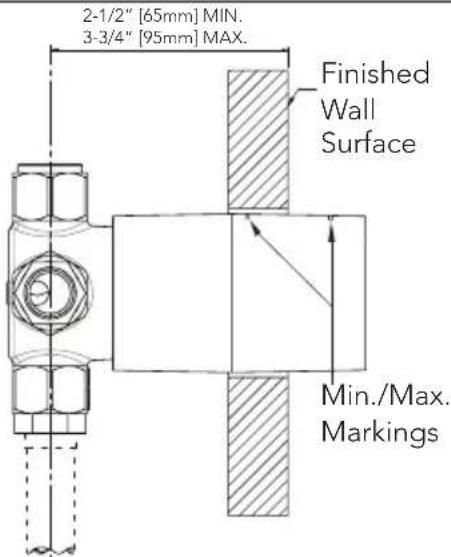

N OTE: The finished wall surface should be between the min and max markings on the plaster guard. See the TSMV installation manual for further information.

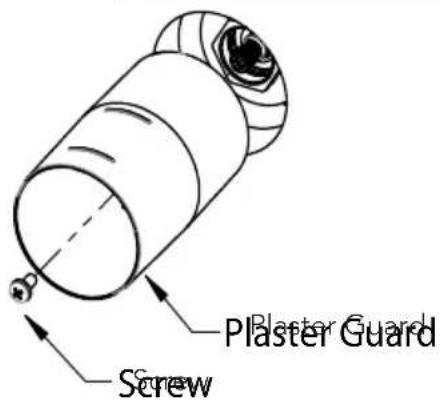

1. Remove the screw securing the plaster guard to the valve body, then pull the plaster guard outwards to remove it.

Installation Procedure (continued)

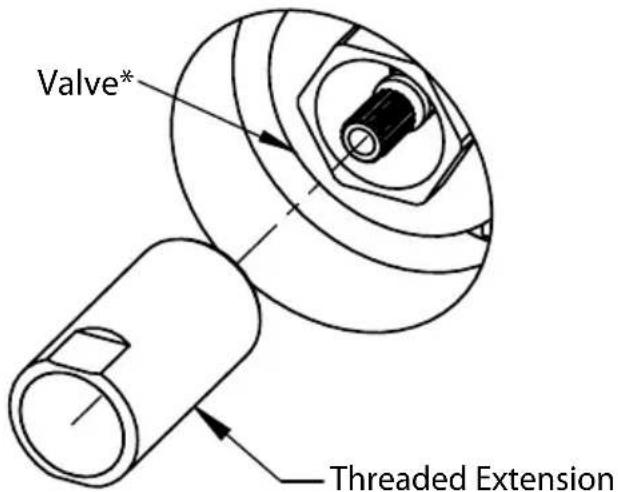

1. Use an adjustable wrench to tighten the threaded extension into the valve.

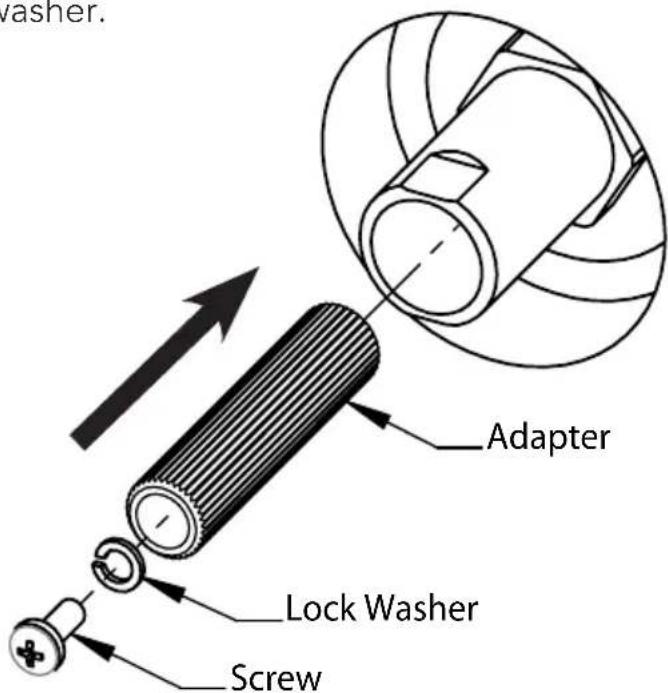

1. Secure adapter to the valve with the included screw and lock washer.

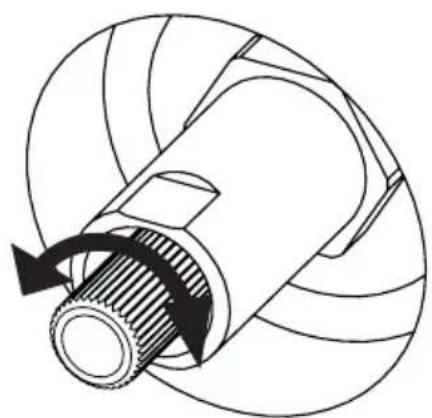

1. Turn the adapter manually until it "clicks" into the center position.

Technical line drawing of a mechanical component with rotational arrow indicating motion (no text or symbols)

Installation Procedure (continued)

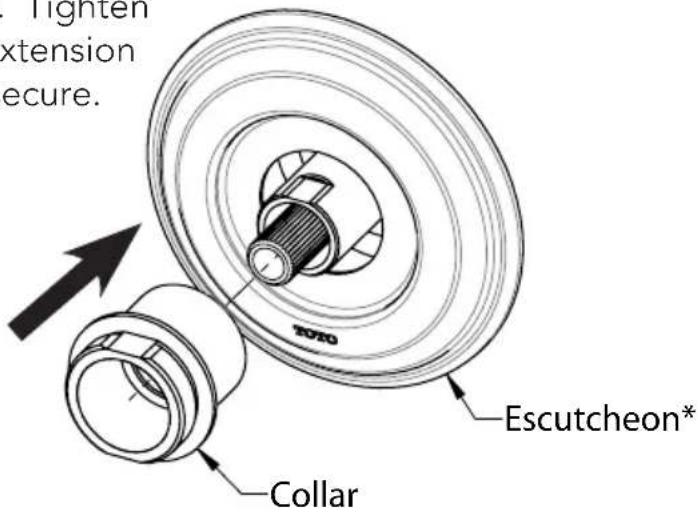

1. Hold the escutcheon against the wall with the TOTO logo at the bottom. Tighten the collar onto the threaded extension with an adjustable wrench to secure.

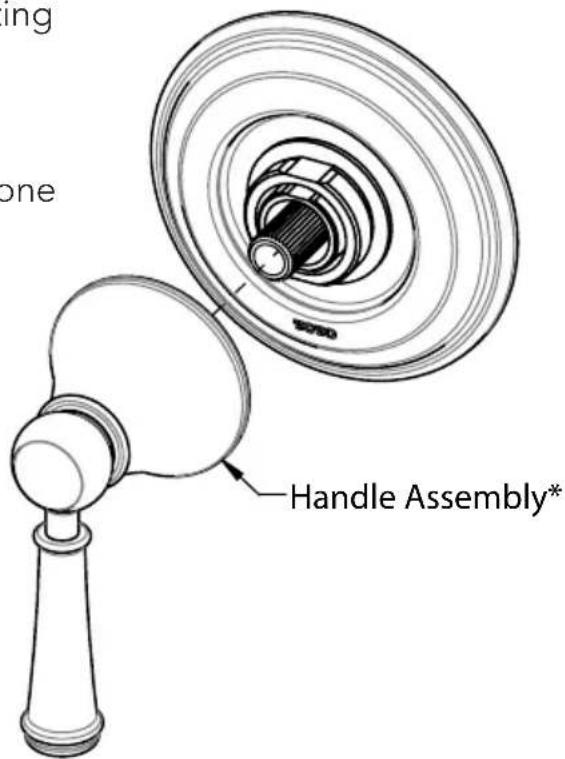

1. Slide handle assembly onto the adapter, and tighten onto the collar by rotating handle base.

If fine adjustment of handle position is desired, remove adapter, rotate one notch/tooth, and reinstall.

CARE & CLEANING

Your new shower trim is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.
4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

TABLE OF CONTENTS

Line drawing of a screwdriver with a pointed tip and threaded body (no text or symbols)

Desarmador

Line drawing of an adjustable wrench (no text or symbols)

Llave inglesa ajustable

INCLUÍA PARTES

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

Technical line drawing of a mechanical component with rotational arrows indicating motion (no text or symbols)

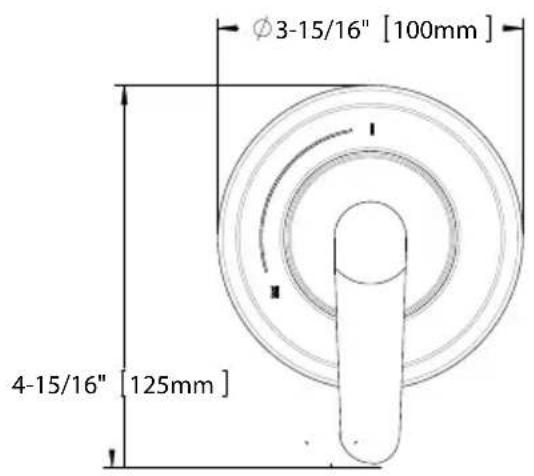

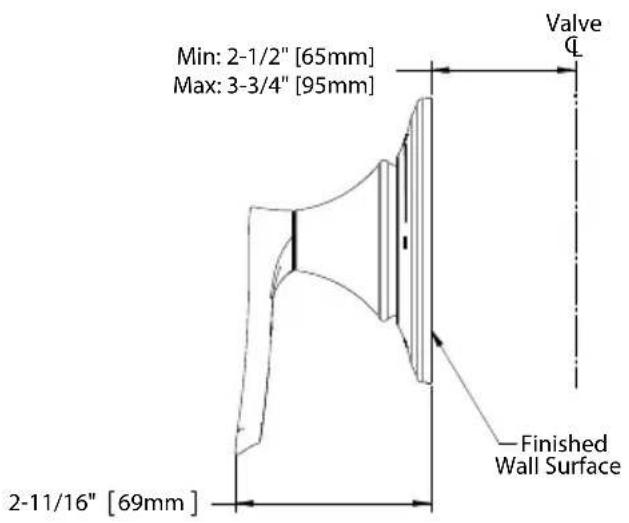

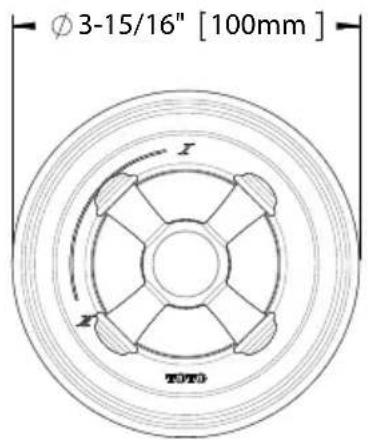

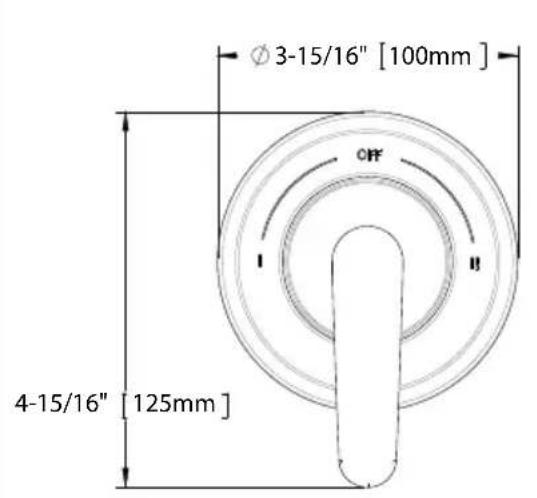

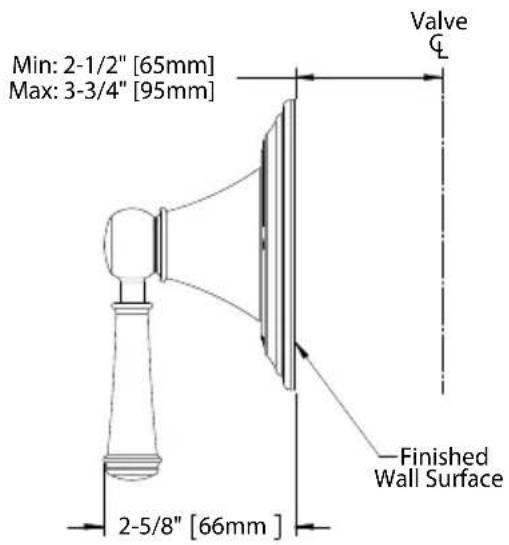

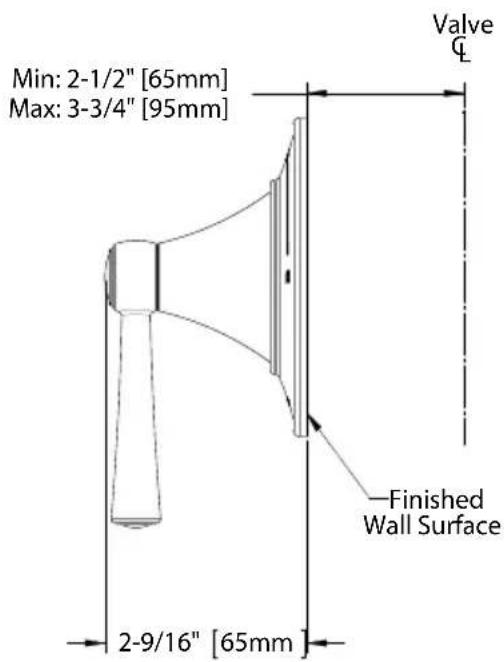

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS210D

TS210DW

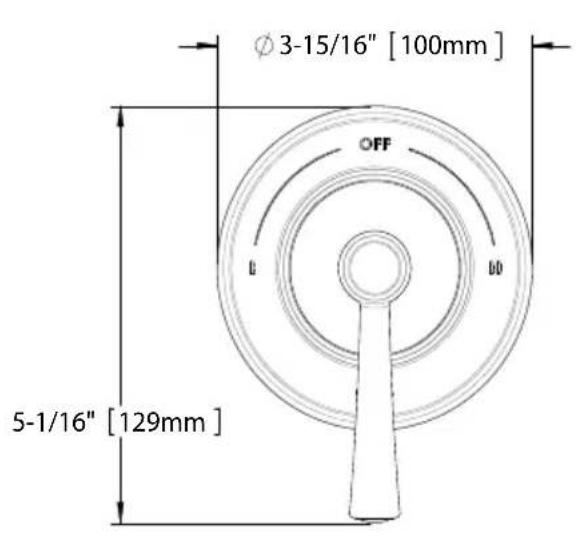

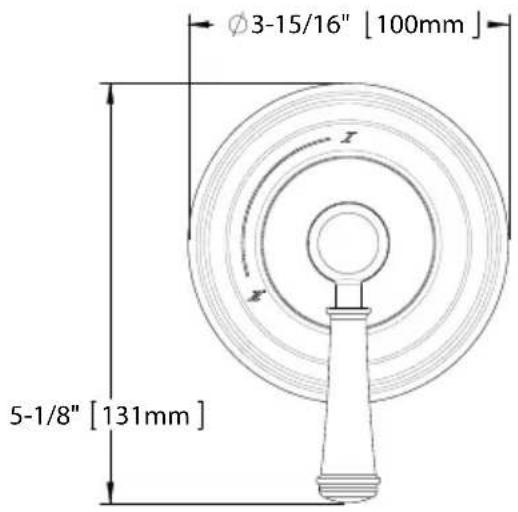

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

TS220D1

TS220DW1

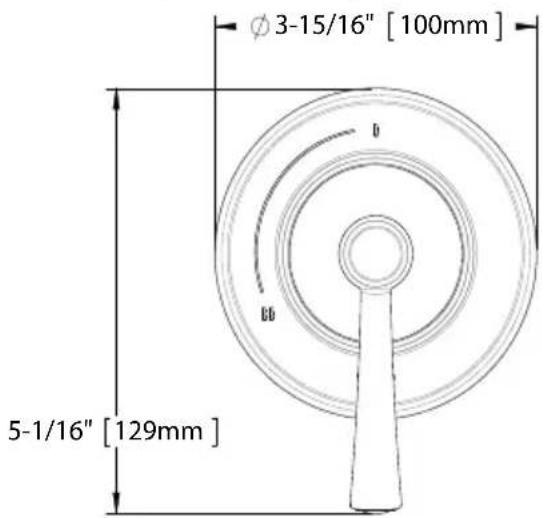

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTES

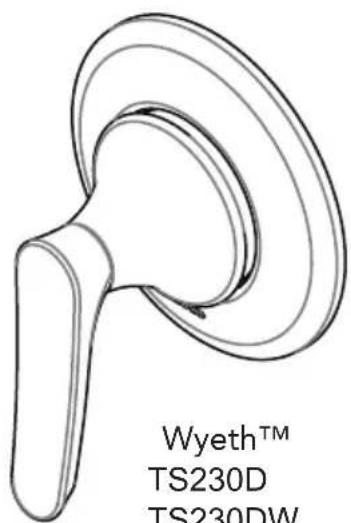

TS230D

TS230DW

TOTO®

TOTO ^® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4204

Rev D
