USER MANUAL HZ-5868 Heath Zenith

Dated receipt required for warranty replacement.

FEATURES

• Bright, energy saving LED light
- DualBrite® technology
• Automatically comes on when motion is detected.

UNPACKING

Be sure to remove all contents from packaging and verify all items are present before assembling this light fixture. This package includes the following items:

• Security Light
• Owner's Manual
• Mounting Hardware

Technical line drawing of a mechanical component with no visible text or symbols

HARDWARE INCLUDED

Note: Six mounting bracket screws are included. The installation will only require two. Discard the unused mounting bracket screws after installation.

Plastic plug #6 Mounting Bracket #8 Mounting Bracket Screw (x2) Screw (x2)

Simple line drawing of a bolt with a curved head and threaded end (no text or symbols)

Mounting Bolt Mounting Bolt (Pre-Installed in Light Fixture)

Pure diagram of a cylindrical object with three circular features and a central circle, no text or symbols present.

Simple line drawing of a screwdriver with a handle and pointed tip (no text or symbols)

Mounting Bracket Mini Screwdriver

IMPORTANT SAFETY AND INSTALLATION INFORMATION

Before installing security light, read all instructions carefully and keep owner's manual for future reference.

• WARNING: To prevent electric shock, ensure that the power is disconnected before installation.
• WARNING: Risk of fire. Keep the lamp heads at least 2 in. from combustible materials.
• WARNING: Shock hazard. For eave mounting, the center of the junction box must be located at least 4 1/2" (11.5 cm) from the outside edge of the eave.
• CAUTION: To avoid water damage and the risk of electrical shock, the motion sensor controls must be facing the ground when the installation is complete.
• CAUTION: Keep the lamp heads 30^ below horizontal to avoid water damage and electrical shock.
• CAUTION: Burn hazard. Allow the light fixture to cool before touching.
• NOTICE: Do not connect this light fixture to a dimmer switch or timer.
  • This light fixture requires 120-volts AC.
  • This light fixture must be properly grounded.
• Some electrical codes require installation by a qualified electrician.
• If you want to use Manual Mode, the light fixture must be wired through a switch.
  • This fixture is designed for outdoor installation and should be mounted to a wall or eaves.
• To achieve best results, this fixture should be mounted 8 feet (2.4 meters) above the ground. Note: If fixture is mounted higher than 8 ft. (2.4 meters), aiming the sensor down will reduce coverage distance.

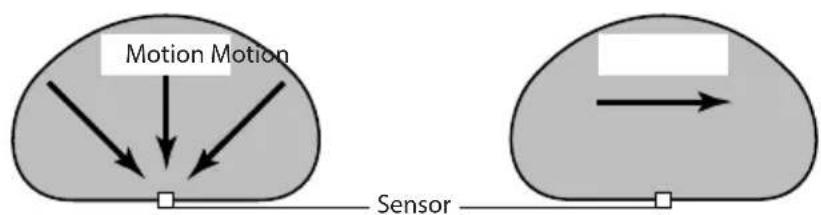

The motion sensor on this light fixture detects “motion” by the movement of heat across the coverage area. The motion sensor is more sensitive to the movement of heat moving across the coverage area and less sensitive to the movement of heat directly towards it.

Least Sensitive Most Sensitive

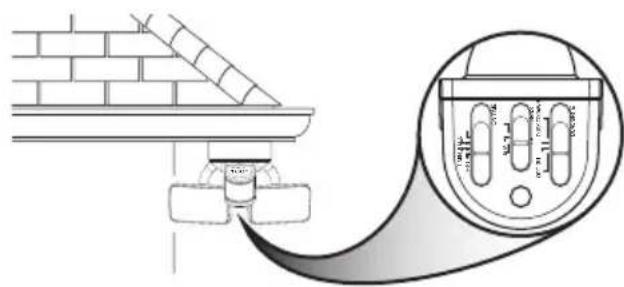

Technical diagram showing a pressure gauge and brick wall installation with labeled dimensions and components

Diagram showing a pipe installation on a brick wall connected to a meter dial (no text or symbols present)

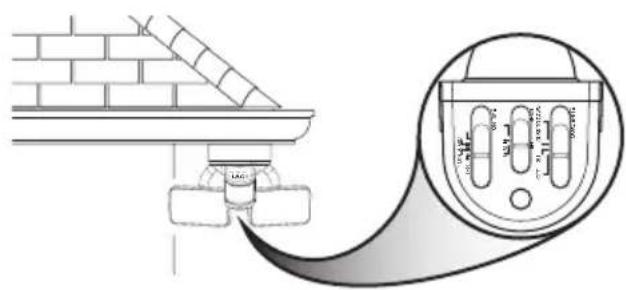

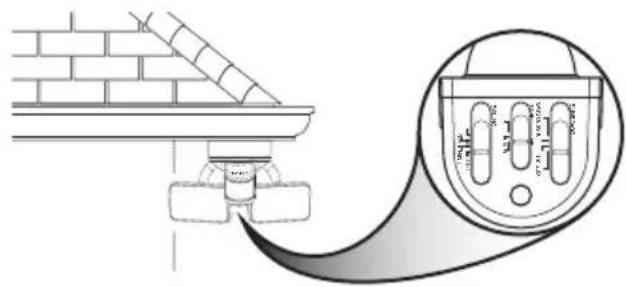

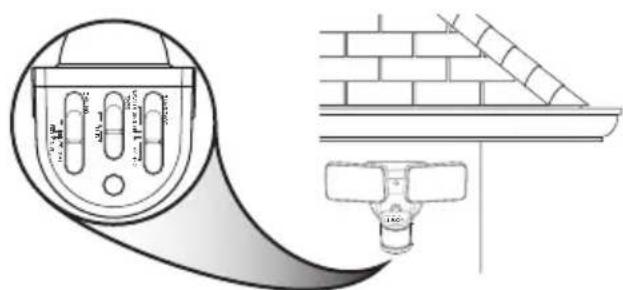

Wall Mount Eave Mount

Note: Light fixture and sensor should be mounted as shown above when installed (depending upon type of installation).

INSTALLATION

WARNING: Turn power off at circuit breaker or fuse.

Place tape over circuit breaker switch and verify power is off at the fixture.

This fixture comes with a "Easy Install" mounting plate. It is pre-assembled on the fixture for shipping.

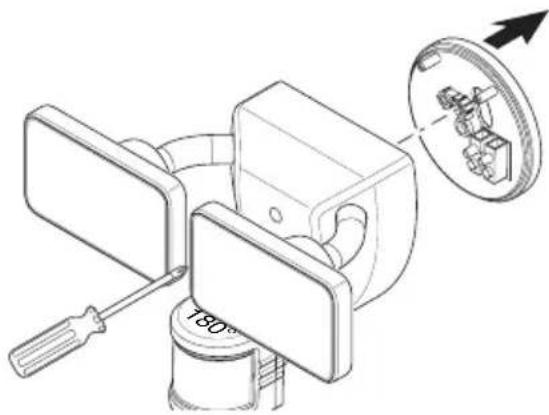

1. Unscrew the large mounting bolt connecting the light fixture to the mounting plate and remove the mounting plate (see Figure 1). The mounting bolt is designed to stay in the light fixture.

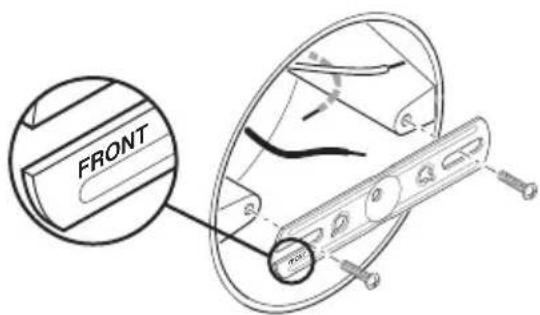

2. Install the mounting bracket with the stamped word "FRONT" facing away from the junction box (see Figure 2). Use the mounting bracket screws that best fit the junction box.
3. Route the junction box wires through the hole in the mounting plate (see Figure 3).

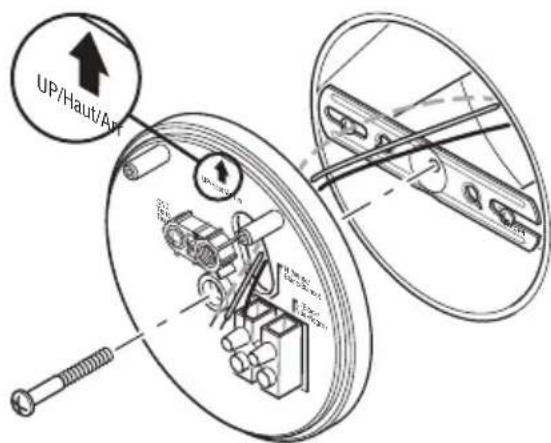

4. Place the mounting plate against the junction box (see Figure 3).

• Wall Mounted – The "UP" arrow must point upward

- Eave Mounted – The "UP" arrow must point toward the building

1. Insert the small mounting bolt through the mounting plate hole located below the threaded hole. Thread the bolt into the center hole of the mounting bracket (see Figure 3). Tighten bolt securely.

WIRING

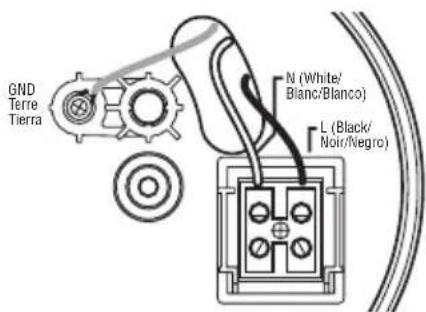

Insert the junction box wires into the side of the terminal block and around the ground screw (see Figure 4). Tighten terminal block screws and ground screw to secure wires.

• White to "N (White)"
• Black to "L (Black)"
• Bare or green ground wire to GND (ground) screw.

FINAL ASSEMBLY

1. Double check that all wiring connections are securely connected.

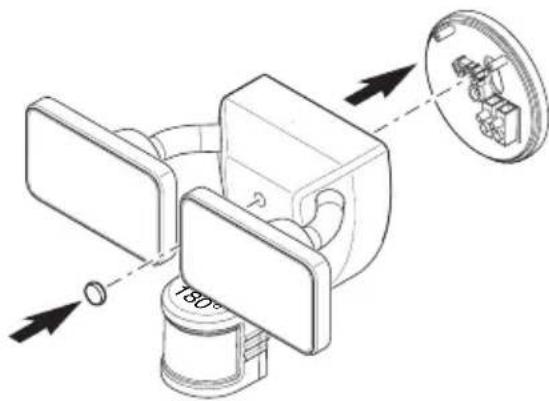

2. Align the bottom edge of the light fixture with the bottom edge of the mounting plate. Tilt the light fixture toward the mounting plate, making sure the light fixture is centered on the mounting plate.

IMPORTANT: The two pins on the rear of the light fixture must insert into the terminal block for the light to work.

1. Tighten the mounting bolt securely being careful not to overtighten (see Figure 5).

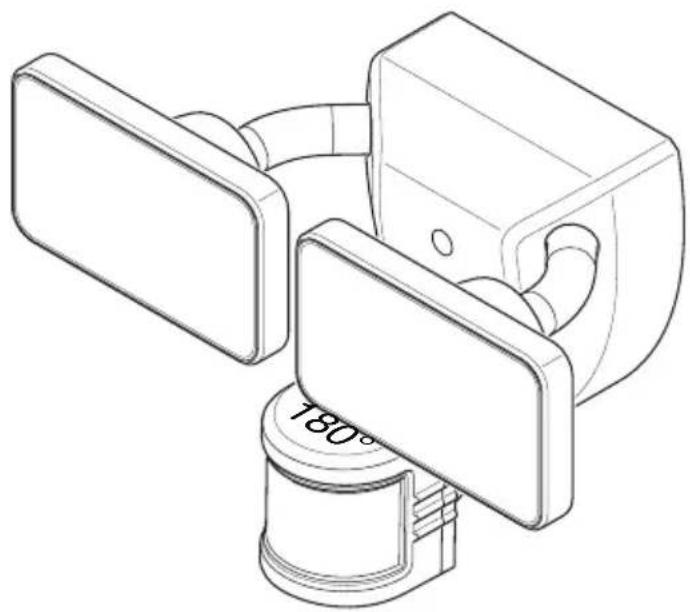

Technical line drawing of a mechanical assembly with a 180-degree angle indicator and a circular component (no text or symbols)

Figure 1

FRONT

Figure 2

UP/Haut/AF

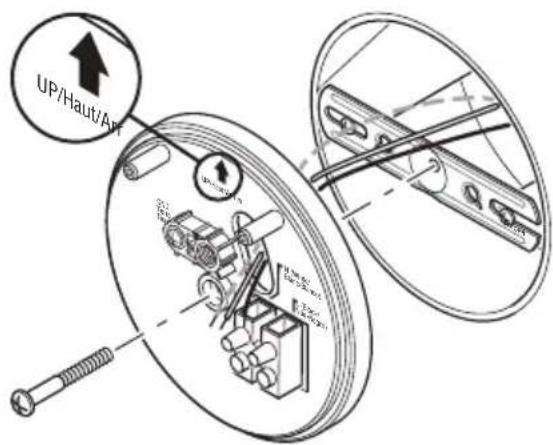

Figure 3

GND Terre Tierra N (White/ Blanc/Blanco) L (Black/ Noir/Vegro)

Figure 4

IMPORTANT:

- If wall mounted, make sure the fixture is mounted with the sensor below the lamp heads. - If eave mounted, mount the fixture with sensor facing away from the house wall. Rotate the sensor so the controls face the ground.

1. Push the plastic plug firmly into the mounting bolt hole on the light fixture (see Figure 5).

2. Caulk around mounting plate and mounting surface with silicone weather sealant (see Figure 6).

TESTING AND ADJUSTMENTS

CAUTION: To avoid water damage and risk of electrical risk, motion sensor controls must be facing the ground installation is complete.

1. Turn on the circuit breaker and light switch.

Note: The motion sensor has a 1 minute warm up period before it will detect motion. When first turned on wait 1 minute.

1. Slide the sensitivity (SENS) switch to the "LO" position, the ON-TIME switch to the TEST position, and the DUALBRITE switch to the OFF position (see Figure 7).

2. Walk through the coverage area noting where you are when the lights turn on. Also, the red LED behind the motion sensor lens will flash several times when motion is detected (see Figure 8).

3. If needed, gently grasp the motion sensor and move it from side to side or up and down to adjust the detection zone.

4. If needed, gently grasp the lamp heads and move them from side to side or up and down to adjust the light coverage area.

5. Adjust the sensitivity (SENS) switch as needed ("LO", "M", "HI"). Sensitivity set too high may increase false triggering.

FINAL SETUP

1. Set the amount of ON-TIME you want the lights to stay on after all motion has stopped (1, 5, or 20 minutes).

2. Set the DUALBRITE switch to the amount of time after dusk you want the lights on at low level (Off, 3, 6 Hrs., Dusk-to-Dawn). See DualBrite Timer section for more information.

Technical diagram of a mechanical assembly with directional arrows and a circular component (no text or symbols)

Figure 5

Diagram of a device with a lever and a screen, no text or symbols present

Figure 6

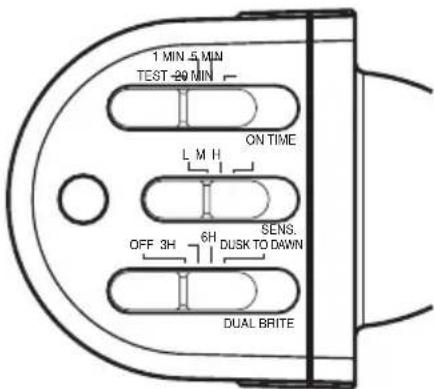

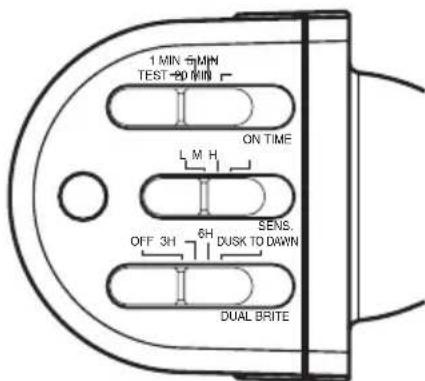

1 MIN 5 MIN TEST 40 MIN ON TIME L M H SENS. OFF 3H 6H DUSK TO DAWN DUAL BRITE

Figure 7

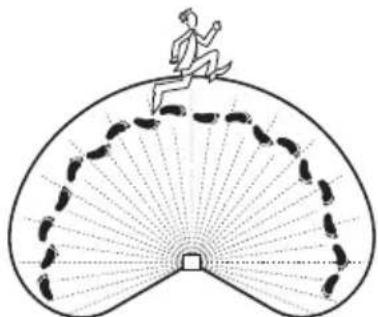

Illustration of a person running on a curved path with dashed lines indicating motion or movement (no text or symbols)

Figure 8

IMPORTANT CONSIDERATIONS

AVOID AIMING THE SENSOR AT:

- Below are examples of objects that might produce heat and may cause the motion sensor to trigger:

• Pools of Water • Air Conditioners • Dryer Vents
• Animals • Heating Vents • Automobile Traffic

If you suspect that a heat source of this type is triggering the motion sensor, reduce the sensitivity.

• Areas where pets or traffic may trigger the motion sensor.
• Nearby large, light-colored objects reflecting light may trigger the shut-off feature. Do not point other lights at the motion sensor.

SEASONAL CHANGES:

The motion sensor works by sensing temperature changes across its field of view. The closer the surrounding temperature is to a person's body heat, the less sensitive the sensor will appear. The greater the temperature difference, the more sensitive the sensor will appear. The sensitivity (SENS) switch might need to be readjusted as the outside temperature changes for the different seasons. This is a normal part of the light sensor's operation.

DUALBRITE TIMER

DualBrite mode is a selectable feature that turns the light on at a reduced (accent) level at dusk. When motion is detected, the light will increase to full bright for the amount of the ON-TIME setting (1, 5, or 20 minutes) then returns to DualBrite mode. The light will stay on at the reduced light level for the amount of time selected (Off, 3 hr., 6 hr., dusk-to-dawn) and then turn off completely. Once the DualBrite timer runs out, the light will turn ON only when motion is detected. Selecting OFF disables the DualBrite feature, however the motion sensing features will continue to work.

MANUAL MODE

Manual mode overrides the motion sensor and “ON-TIME” control so the light will operate full bright. This feature only works at night and only for one night at a time. The motion sensor will reset to motion sensing mode at 6 hours or sunrise, whichever comes first. Manual mode can be toggled on and off using a wall switch.

• To turn manual mode on, switch the light off at the wall switch for 1 to 2 seconds and then back on.
• To turn manual mode off, switch the light off at the wall switch for 1 to 2 seconds and then back on.

Simple line drawing of a hand holding a small rectangular object on a flat surface (no text or symbols)

Turn the switch OFF for 1 to 2 seconds

Simple line drawing of a hand pressing a small object on a rectangular surface (no text or symbols)

Turn the switch back ON

SPECIFICATIONS

Range ......Up to 70 ft. (21 m) [varies with surrounding temperature].

Sensing Angle....Up to 180°

Power Requirements....120 VAC, 60 Hz

Operating Modes ......TEST, MOTION ACTIVATED, and MANUAL MODE

ON-Timer....1, 5, 20 minutes

Test Timer....8 Seconds

Manual Mode Timer......Maximum 6 Hours

Sensitivity (SENS) ......“LO”, “M”, “HI”

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

CAN ICES-005 (B)/NMB-005 (B)

TROUBLESHOOTING GUIDE

SYMPTOM POSSIBLE CAUSE SOLUTION
The light will not come on. 1	Light switch is turned off.Fuse is blown or circuit breaker is turned off.Daylight turn-off (photocell) is in effect.The circuit wiring is incorrect, if this is a new installation.The motion sensor is aimed in the wrong direction.The outside air temperature is close to the same as a person's body heat.	Turn light switch on.Replace fuse or turn circuit breaker on.Recheck after dark.Verify wiring is correct.Re-aim the motion sensor to cover the desired area.Increase the “SENS” setting. See Seasonal Changes on page 5 for more information.
The light comes on during the day.	The motion sensor may be installed in a relatively dark location.The “ON-TIME” switch is in the “TEST” position.	The light fixture is operating normally under these circumstances.Set the “ON-TIME” switch to the 1, 5, or 20 minute setting.
The light comes on for no apparent reason.	The motion sensor may be sensing small animals or automobile traffic.The “SENS” switch is set too high.The “DUALBRITE” switch is in the 3 hour, 6 hour, or dusk-to-dawn setting.The outside temperature is much warmer or cooler than a person’s body heat (summer or winter).The light fixture is wired through a dimmer or timer.	Decrease the “SENS” setting or reposition the motion sensor.Decrease the “SENS” setting.The light fixture is operating normally under these circumstances.Decrease the “SENS” setting. See Seasonal Changes on page 5 for more information.Do not use a dimmer or timer to control the light fixture. Replace the dimmer or timer with a standard on/off wall switch.
The lights turn off too late in Dusk-to-Dawn setting.	The light fixture may be installed in a relatively dark location.	Relocate the light fixture or use the 3 hour or 6 hour setting.
The lights stay on continuously.	1. The motion sensor may be picking up a heat source like an air vent, dryer vent, or brightly painted, heat-reflective surface.2. The motion sensor is in manual mode.3. The light fixture is wired through a dimmer or timer.4. The light fixture is on the same circuit as a motor, transformer, or fluorescent bulb.	1. Decrease the “SENS” setting or reposition the motion sensor.2. Set ON-TIME switch to 1, 5, or 20 minutes. Follow Manual Mode instructions on page 5 to reset.3. Do not use a dimmer or timer to control the light fixture. Replace the dimmer or timer with a standard on/off wall switch.4. Install the light fixture on a circuit without motors, transformers, or fluorescent bulbs.
The lights flash on and off. 1.	Heat or light from the lamp heads may be turning the motion sensor on and off.2. Heat is being reflected from other objects and may be turning the motion sensor on and off.3. The motion sensor is in “TEST” mode and warming up.	1. Reposition the lamp heads away from the motion sensor.2. Decrease the “SENS” setting or reposition the motion sensor.3. While in TEST mode, the light only stays on for 8 seconds. Set ON-TIME switch to 1, 5, or 20 minutes.
The lights flash once then stay off in manual mode.	The motion sensor is detecting light from the lamp heads.	Reposition the lamp heads to keep the area below the motion sensor relatively dark.

TECHNICAL SERVICE

Please call 1-800-858-8501 (English speaking only) for assistance before returning product to store.

If you experience a problem, follow this guide. You may also want to visit our Web site at: www.hzsupport.com. If the problem persists, call* for assistance at 1-800-858-8501 (English speaking only), 8:00 AM to 5:00 PM CST (M-F). You may also write* to:

HeathCo LLC

P.O. Box 90045

Bowling Green, KY 42102-9045

ATTN: Technical Service

* If contacting Technical Service, please have the following information available: Model Number, Date of Purchase, and Place of Purchase.

No Service Parts Available for this Product

Please keep your dated sales receipt, it is required for all warranty requests.

FIVE YEAR LIMITED WARRANTY

This is a “Limited Warranty” which gives you specific legal rights. You may also have other rights which vary from state to state or province to province.

For a period of five years from the date of purchase, any malfunction caused by factory defective parts or workmanship will be corrected at no charge to you.

Not Covered - Repair service, adjustment and calibration due to misuse, abuse or negligence, light bulbs, batteries, and other expendable items are not covered by this warranty. Unauthorized service or modification of the product or of any furnished component will void this warranty in its entirety. This warranty does not include reimbursement for inconvenience, installation, setup time, loss of use, unauthorized service, or return shipping charges.

This warranty covers only HeathCo LLC assembled products and is not extended to other equipment and components that a customer uses in conjunction with our products.

THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY, REPRESENTATION OR CONDITION OF MERCHANTABILITY OR THAT THE PRODUCTS ARE FIT FOR ANY PARTICULAR PURPOSE OR USE, AND SPECIFICALLY IN LIEU OF ALL SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES. REPAIR OR REPLACEMENT SHALL BE THE SOLE REMEDY OF THE CUSTOMER AND THERE SHALL BE NO LIABILITY ON THE PART OF HEATHCO LLC FOR ANY SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, INCLUDING BUT NOT LIMITED TO ANY LOSS OF BUSINESS OR PROFITS, WHETHER OR NOT FORESEEABLE. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please keep your dated sales receipt, it is required for all warranty requests.

Heath Zenith

Technical line drawing of a mechanical component with no visible text or symbols

FERRETERÍA INCLUIDA

Simple line drawing of a bolt with a curved head and threaded end (no text or symbols)

Pure diagram of a cylindrical object with three circular features and a central circle, no text or symbols present.

Simple line drawing of a screwdriver with a handle and pointed tip (no text or symbols)

Diagram showing a water level sensor and a brick wall installation with labeled components

Diagram showing a wall-mounted sensor or sensor device connected to a brick wall, with a magnified view of its internal components.

Technical illustration of a mechanical assembly with a 180-degree angle and a circular component (no text or symbols)

Figura 1

FRONT

Figura 2

UP/Haut/AF

Figura 3

GND Terre Tierra N (White/ Blanc/Blanco) L (Black/ Noir/Vegro)

Figura 4

Technical diagram of a mechanical assembly with directional arrows and a circular component (no text or symbols)

Figura 5

Simple line drawing of a mechanical device with two rectangular components and a base component (no text or symbols)

Figura 6

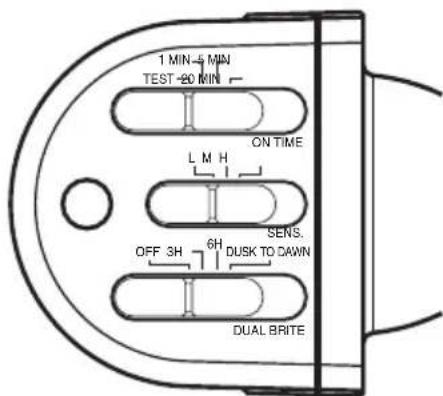

1 MIN - 4 MIN TEST - 20 MIN ON TIME L M H SENS. OFF 3H 6H DUSK TO DAWN DUAL BRITE

Figura 7

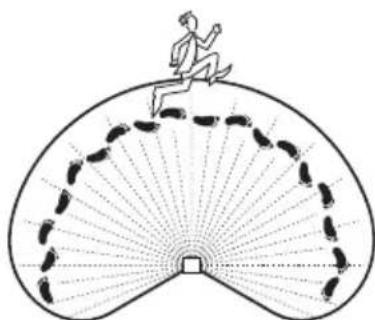

Illustration of a person running on a curved path with dashed lines indicating motion or movement (no text or symbols)

Figura 8

REGULACIÓN FINAL

Simple line drawing of a hand holding a small rectangular object on a rectangular surface (no text or symbols)

Simple line drawing of a hand pressing a small rectangular object on a flat surface (no text or symbols)

Alcance (SENS) “LO”, “M”, “HI”

Bowling Green, KY 42102-9045

ATTN: Technical Service (Servicio Técnico)

Technical line drawing of a mechanical component with no visible text or symbols

QUINCAILLERIE FOURNIE

Simple line drawing of a bolt with a curved head and threaded end (no text or symbols)

Boulon de montage

Pure diagram of a cylindrical object with three circular features and a central circle, no text or symbols present.

Support de montage

Simple line drawing of a screwdriver with a handle and pointed tip (no text or symbols)

Petit tournevis

IMPORTANTS RENSEIGNEMENTS DE SÉCURITÉ ET D'INSTALLATION

Technical diagram showing a device with internal components and a brick wall structure with a bolted joint detail.

Diagram showing a pipe installation with a brick wall and a magnified view of a device (no text or symbols present)

Technical line drawing of a mechanical assembly with a 180° angle and a circular component (no text or symbols)

Figure 1

FRONT

Figure 2

UP/Haut/Art

Figure 3

GND Terre Tierra N (White/ Blanc/Blanco) L (Black/ Noir/Vegro)

Figure 4

Technical diagram of a mechanical assembly with directional arrows and a circular component (no text or symbols)

Figure 5

Simple line drawing of a device with two rectangular components and a base device connected to a cable (no text or symbols)

Figure 6

1 MIN - 5 MIN TEST - 20 MIN ON TIME L M H SENS. OFF 3H 6H DUSK TO DAWN DUAL BRITE

Figure 7

Illustration of a person running on a curved path with dashed lines indicating motion or movement (no text or symbols)

Figure 8

RÉGLAGE FINAL

Simple line drawing of a hand pressing a small rectangular object on a rectangular surface (no text or symbols)

Simple line drawing of a hand pressing a button on a rectangular panel (no text or symbols)

Bowling Green, KY 42102-9045

ATTN: Technical Service (Service technique)
