Product type	Bicycle trailer
Brand	Klarfit
Model	Companion
Dimensions (assembled)	127 x 62 x 40 cm
Trailer dimensions (interior)	63 x 42 cm
Weight	9.4 kg
Maximum permitted load	40 kg
Recommended tire pressure	1.70 - 2.00 bar (25 - 30 PSI)
Frame materials	Steel
Hitch type	Rear axle hitch (quick release or nut)
Number of wheels	2
Safety	Red and white reflectors, safety strap, prohibition of transport of persons
Main functions	Bicycle trailer, convertible into basket mode (tongue at 90°)
Included accessories	Tongue, 2 wheels, hitch, pins, rain cover, bottom, reflectors
Optional accessories	Matching bag (ref. 10034495)
Maintenance and cleaning	Check tire pressure regularly (1.70-2.00 bar); clean with a damp cloth
Repairability	Spare parts available via manufacturer or retailer
Recommended use	Smooth roads, avoid rough terrain
Manufacturer warranty	Legal warranty; technical modifications void the warranty

Frequently Asked Questions - Companion Klarfit

What is the maximum permitted load for the Klarfit Companion trailer?

The maximum permitted load is 40 kg. Never exceed this limit for safety reasons.

Can I transport people in the trailer?

No, the trailer must not be used to transport people. It is designed only for the transport of goods.

How do I attach the trailer to my bike?

Remove the hitch from the tongue, mount it onto the bike's rear axle according to the axle type (quick release or nut). Attach the tongue to the hitch with the locking pin, then fasten the safety strap around the back of the bike frame.

What is the recommended tire pressure?

The pressure should be between 1.70 and 2.00 bar (25 to 30 PSI). Check it regularly before each use.

Can I use the trailer on rough terrain?

It is recommended to use the trailer only on smooth roads. Avoid curbs, potholes, and stony ground.

How do I convert the trailer to basket mode?

Turn the drawbar 90° upward to switch to basket mode. In trailer mode, the tongue is at a 45° angle to the side.

What to do if the hitch is not properly tightened?

If the hitch is not firmly tightened on the bike, do not use it. Contact your bike dealer for proper installation.

What accessories are supplied with the trailer?

The trailer is delivered with: frame, 2 wheels, tongue, pins, hitch, rain cover, bottom, and 4 reflectors (2 red, 2 white).

How to maintain the trailer?

Check the condition of the bike and trailer before each use. Maintain tire pressure, clean with a damp cloth and store it dry.

Can I buy spare parts?

Yes, spare parts are available. For example, a matching bag can be purchased under reference 10034495. Contact the manufacturer for other parts.

USER MANUAL Companion Klarfit

INHALTSVERZEICHNIS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Product Overview 10

Scope of Delivery 11

Assembly 12

Bike Attachment 13

Important Notes on Fastening and Use 14

Manufacturer & Importer (UK) 14

TECHNICAL DATA

Item number 10034492, 10040031, 10040088, 10040089, 10040090, 10040092

Dimensions (assembled) 127 x 62 x 40 cm

Dimensions trailer 63 x 42 cm

Weight trailer 9.4 kg

Maximum loading weight 40 kg

Maximum tire pressure 1.70 - 2.00 Bar (25 - 30 PSI)

Optional accessories In addition to the supplied accessories, a further matching bag can be purchased under article number 10034495.

SAFETY INSTRUCTIONS

• The trailer should not be loaded with more than 40 kg.
• The trailer must not be used to carry persons.
• Do not make any technical modifications to the equipment. This may result in road hazards and void the manufacturer's warranty.
• Do not use the trailer on stony, uneven terrain or in dangerous traffic situations.
• The towing bicycle must be in perfect condition. The brakes should work perfectly. A trailer (and load) will increase your braking distance.

PRODUCT OVERVIEW

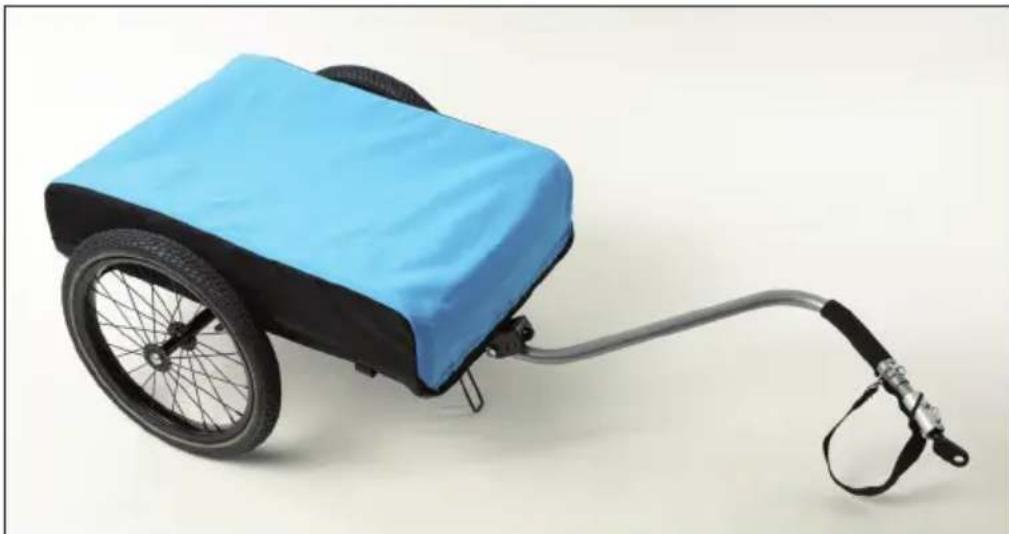

Assembled trailer with insert and rain cover

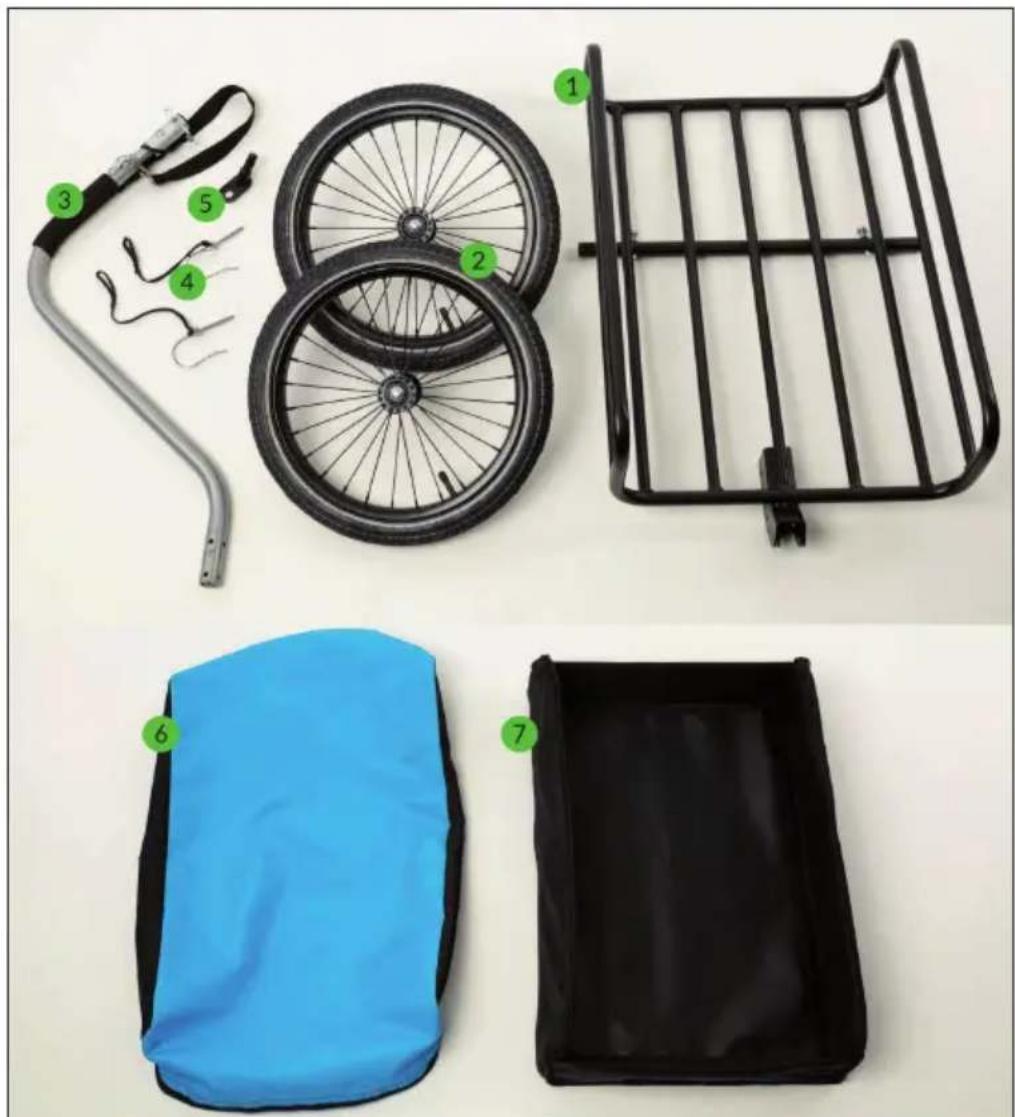

SCOPE OF DELIVERY

1 Chassis (1x) 5 Trailer hitch (1x)
2 Wheels (2x) 6 Rain cover (1x)
3 Drawbar (1x) 7 Inlet (1x)
4 Pins (2x) 8		2 red and 2 white reflectors (not shown in the picture)

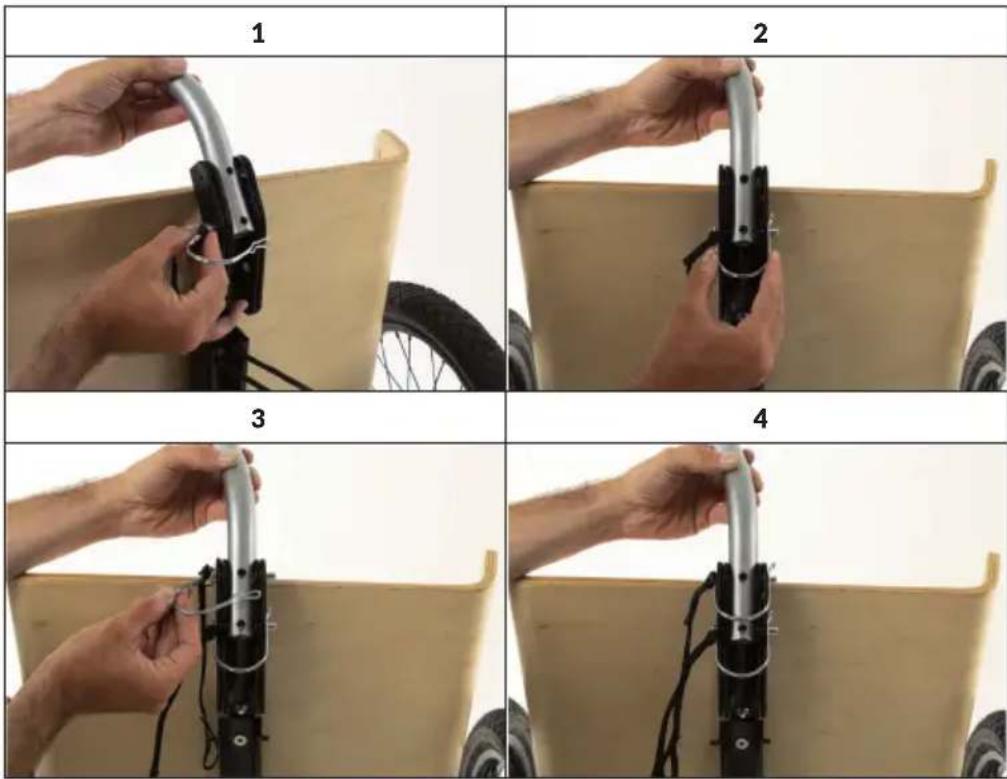

ASSEMBLY

(a) Remove the protective caps from the axle ends.

(b) Slide the wheels onto the axles. You will hear a snap sound.

(c) Insert the drawbar into the connector on the chassis and rotate it to the desired position:

- Hand trolley mode: the drawbar points upwards at 90° .

- Bicycle trailer mode: The drawbar points at an angle of 45° to the side.

(d) Insert the two locking pins through the holes to secure the drawbar to the chassis. Use spring clips to secure the connection.

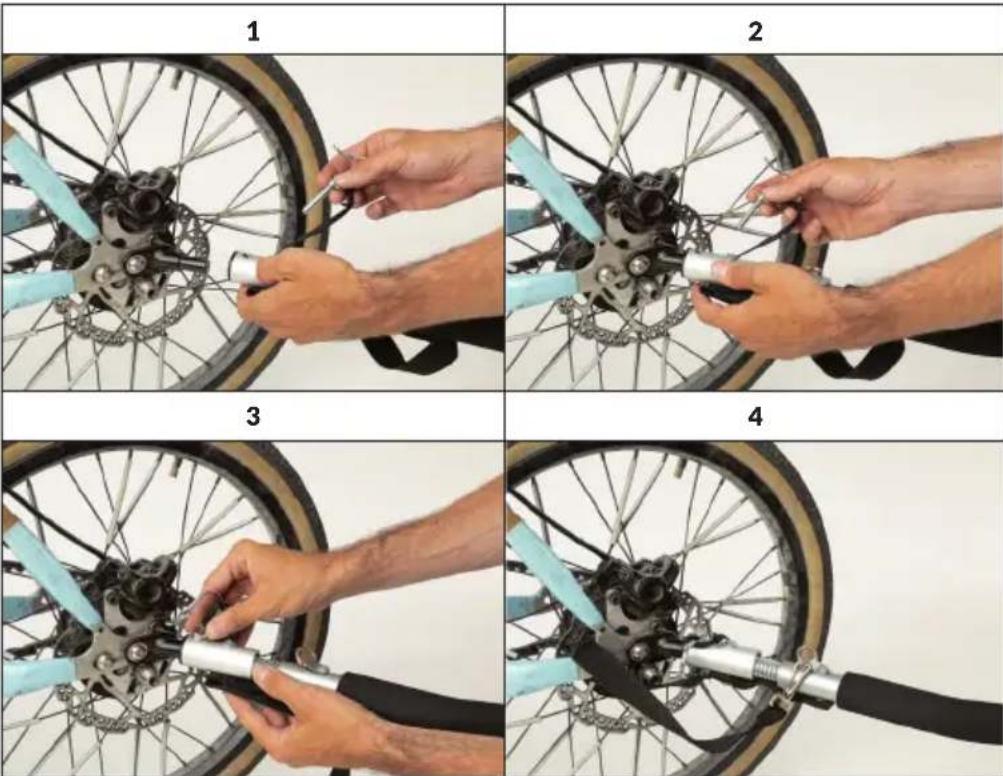

BIKE ATTACHMENT

(a) Pull the trailer hitch out of the drawbar and mount it on the rear axle of the bicycle:

• For axles with quick release: Remove the entire axle, push the axle through the trailer hitch and reattach the axle with the quick release.
• For axles that are fastened with nuts: Unscrew the nut and washer. Slide the trailer hitch onto the axle and retighten the washer and nut.
  (b) Attach the drawbar to the trailer hitch and secure the drawbar with the locking pin.
  (c) Once the drawbar is attached, pull safety belt through the rear end chain stay on the bicycle and hook it into the bracket on the drawbar.

EN

IMPORTANT NOTES ON FASTENING AND USE

Note: The connection between bicycle and trailer is the most important step in the assembly process. Make sure that the trailer is securely attached to the bicycle. If the trailer hitch cannot be securely attached or tightened to your bicycle, do not use it. Contact your bicycle dealer for help with correct installation.

• Check the condition of the bicycle and trailer before each use.
  • Always ride defensively. During use, observe local traffic regulations.
• If you have a trailer, you will need additional stopping distance.
• Practice your trailer before use until you are familiar with it.
• Make sure that your load is secured before driving. Do not exceed the maximum load weight.
• Make sure that you use a suitable bicycle. If in doubt, consult your local bicycle dealer or manufacturer.
  • After assembly and before riding, check that the hitch is fully engaged.
• Check the tyre pressure regularly. Make sure that the tyre pressure is always between 1.70 - 2.00 bar (25 - 30 PSI).
• If possible, use the trailer only on slippery roads. Avoid kerbs, potholes or uneven surfaces.
• If you drive downhill or around a bend, you must drive slower.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
