NOTE: BEFORE USING THE EQUIPMENT, PLEASE READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE. PERSONS WHO HAVE NOT READ THE INSTRUCTIONS SHOULD NOT CARRY OUT ASSEMBLY, ADJUSTMENT OR OPERATION OF THE EQUIPMENT.

SPECIFIC SAFETY PROVISIONS

• This equipment may be used by children of at least 8 years of age and by people with reduced physical and , mental capabilities and lack of familiarity with the equipmentthe equipment if supervision or instruction is provided on how use to safely so that the associated risks are understood. Children should not play with the equipment. Unsupervised children should not carry out cleaning or maintenance of the equipment
• The unit is used for occasional operation.

NOTE

• To avoid overheating, the unit.do not cover
- Keep children under 3 years of age away from the appliance unless under constant supervision.
- Children between the of ages3 and 8 can switch on/off the applianceprovided it has been placed or installed in the intended normal operating. positionChildren should be supervised at all times unless they have received instructions on how to operate the appliance. safelyChildren between 3 and 8 years of age may not connect the appliance to the power supply, adjust or clean the appliance or perform maintenance.
- Caution - some parts of the appliance can become very hot and cause burns. Particular attention should be paid to the presence of children and vulnerable persons.

INTRODUCTION

- The unit is intended for use in homes and small premises. It is not intended for use in greenhouses or construction. sitesThe heater is equipped with a safety device that will switch off the heater in the event of accidental overheating (e.g. air inlet and outlet grilles clogged, motor motor speed at too slow, no). To reset, disconnect the plug from the power supply for a few minutes, remove the cause of overheating and reconnect the deviceall

- During initial start-up, there may be a slight emission of smoke. This is normal and will disappear after a few minutes of operation.

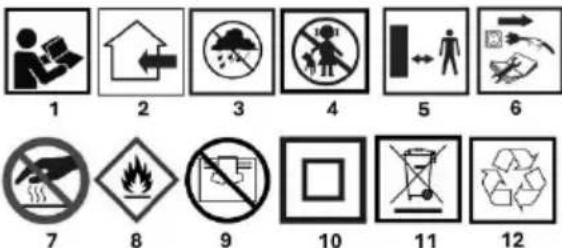

• PICTOGRAMS AND WARNINGS

1 2 3 4 5 6 7 8 9 10 11 12

1. Read the instructions carefully.
2. For indoor use
3. Protect from water and moisture.
4. Children under 3 years of age should be kept away from the appliance unless under constant supervision.
   5.Keep a safe distance
   6.Disconnect from the power supply before maintenance repair.
5. Caution: hot surface.
   8.Caution, possibility of fire
   9.Do not cover the heater openings.
   10.Second class of protection.
6. Do not dispose of with household waste.
   12.Selectively recycled

Description of graphic elements

The numbering below refers to the components of the unit shown on the graphic pages of this manual.

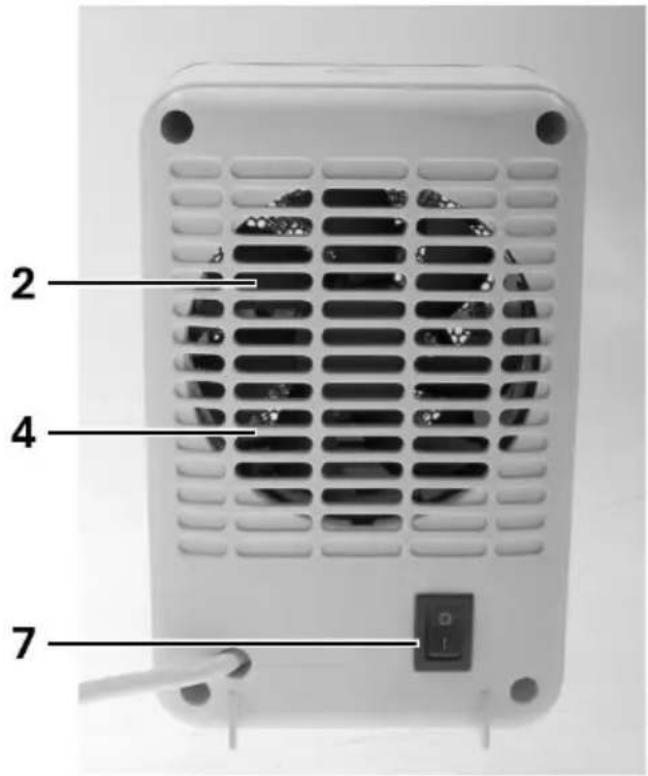

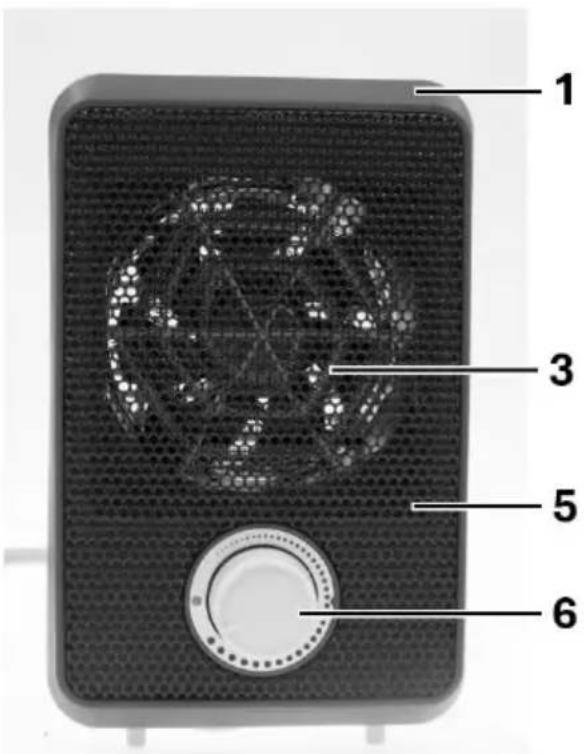

Drawing Adesignation	Description
1	Housing

2	Fan
3	Heater
4	Air intake openings
5	Heater cover
6	Control knobs
7	Switch

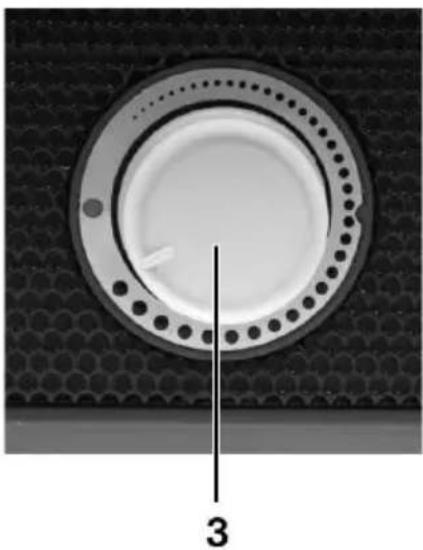

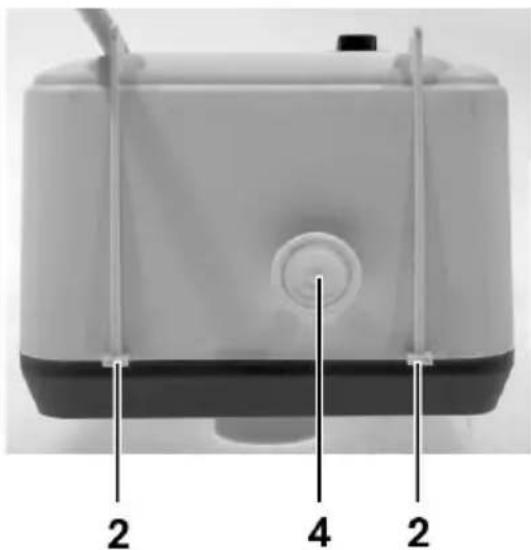

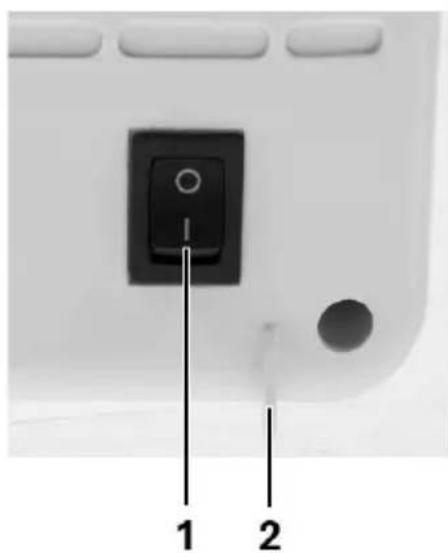

Figure B designation	Description
1	Switch
2	Legs
3	knob
4	Reset button for the thermal cut-out

Basic precautions : should be always observed when using the device

ATTENTION! The unit should be positioned so that in front of the outlet there is a minimum of 1m clearance and behind 0.5m clearance the unit.

• The unit must be not used outdoors in damp weather, in bathrooms or other wet or damp environments.
• Please note that the appliance can become very hot. Therefore, the appliance should be placed at a safe distance from flammable objects such as furniture, , curtainsetc.

- Do not cover the unit witha towel., for example,

- The appliance must not be located directly under a wall .socket

- The appliance must be not connected to the mains via a timer or programmable switch.

- The appliance must not be placed in rooms where flammable dusts, liquids or gases are used or present.

- If the appliance is connected via an extension cord, ensure that the extension cord is as possible short and fully extended

- The unit should be not used in the immediate vicinity of a bath, shower or swimming pool.

- If the power supply cable is damaged, it must be replaced by the manufacturer, its representative, service or a qualified person in order to avoid danger.

- Do not connect other devices to the same mains socket which the device is connected

- The appliance should be not left unattended. Keep children and pets away from the appliance.

- Do not place the unit on unstable, moving surfaces or where the unit can be knocked over.

- If the appliance is not used for a long time, the power supply. unplug it from Do not leave the appliance switched on unattended. When disconnecting the appliance from the mains, the plug, pull out never pull on the power .cord

- Keep the unit away from curtains, curtains or places where the air .inlet is easily blocked

- To prevent possible electric shock, never operate the appliance with wet hands or when there is water .on the power cord

- Do not dispose of electrical appliances with unsorted municipal, wasteuse separate collection. pointsContact your local authorities for information on available collection systems. If electrical appliances are disposed in landfill sites, hazardous substances can seep into the groundwater and enter the food, chaindamaging your health.

- This equipment is not intended for use by persons (including children) with reduced physical or mental capabilities or without experience unless supervision or instruction is provided regarding the safe use of the equipment so that the associated risks are understood

- Children should be supervised to ensure that they do play not with the device.

USE OF THE FAN HEATER

After unpacking the appliance, check that it has not been damaged during transport and that it contains all components! If any damage or incomplete packaging is found, contact your authorised dealer.

Do not throw away the original packaging! It can be used to store the device during transport to avoid damage.

Dispose of the packaging material properly! Children should be prevented from playing with polythene bags.

ATTENTION! Do not use the unit in rooms with a surface area of less than 4 m^2 .

• Position the appliance so that it stands on a stable surface, at a safe distance from damp areas and flammable objects.
• Connect the device to the network.
• NOTE: Always use the heater in an upright position.
• Make sure there is a safe space between the heater and furniture, curtains, etc. - 50 cm attop and sides and cm the back, 100 at the front.

Caution: do not touch the hot surface of the heater cover fig. A5. The air outlet heats up during operation (to over 80°C Celsius, 176.0°F Fahrenheit).

• To start the heaterthe, turn switch in Fig. B1 to position I (on).
• Use the knob in to set the blowing temperatureFlg. B3. Turning the knob clockwise increases the temperature. Turning counterclockwise decreases the temperature.

- Set the thermostat switch Fig. B3 to the desired position heating.

- When you feel that the room temperature is comfortable, gently turn the thermostat switch Fig. B3 counterclockwise towards minimum until the unit switches off.

- When the temperature is , loweredthe thermostat will restart the heating . elementThe unit automatically switches off the heating element on and thus maintaining a constant temperature in the room

- Remember not to after operation switch off the unit but to turn the heating knob as far to the left as possible. Let it run for 2-3 minutes on the fan alone to allow the heaters to cool down. Only after this time has elapsed can the switch in be turned down Fig. A7 to the position(off 0).

- To switch off the heater, set the Fig. B1 switch to position 0 (off).

SECURITY

The device has two types of featuressecurity :

- The first one, which will switch off the heater in case of accidental overheating (e.g. air inlet and outlet grilles clogged, motor speed too slow, missing). To reset, disconnect plugthe power, remove the cause of overheating and reconnect the unit. Press the reset button fig. B4 located on the bottom of the unit.

- The second protection works on the gravity principle, in the event of it tipping over, the power cut off automatically. will be Simply place the unit in the correct position and it will be able to start up.

CONSERVATION

- Unplug the appliance from the power supply and allow it to cool down. before cleaning The housing of the appliance gets dirty, easily so wipe it frequently with a soft sponge. Wipe any soiled part with a

sponge soaked in warm water with detergent. Then wipe the washed element with a dry cloth. Take care that water does not get inside the unit. To protect the housing, do not use solvents or strong detergents for cleaning.

• Clean the power cord and plug, then dry and pack in a plastic bag.
• Store the unit in a dry ventilated room away from children.
• Allow sufficient time for to dry before restarting the heater.
• Regularly clean the air inlets and outlets with a hoover (with regular use, at least twice a year).
• The device is best stored in its original packaging after it has cooled down.

RATING DATA

Model	90-129
Supply voltage	230V ~
Supply frequency	50-60Hz
Heating power	600W
Protection class	II
Fan	Yes
Mass	0.48 kg
Year of production	2025
90-129 means both the type and the designation of the machine

ENVIRONMENTAL PROTECTION

Electrically-powered products should not be disposed of with household waste, but should be taken to appropriate facilities for disposal. Contact your product dealer or local authority for information on disposal. Waste electrical and electronic equipment contains substances that are not environmentally friendly. Unrecycled equipment poses a potential risk to the environment and human health.

"GTX Poland Spółka z ograniczoną odpowiedzialnością" Spółka komandytowa with its registered office in Warsaw, ul. Pograniczna 2/4 (hereinafter: "GTX Poland") informs that all copyrights to the content of this manual (hereinafter: "Manual"), including among others. All copyrights to the contents of this Manual (hereinafter referred to as "Manual"), including but not limited to its text, photographs, diagrams, drawings, as well as its composition, belong exclusively to GTX Poland and are subject to legal protection pursuant to the Act of February 4, 1994 on Copyright and Related Rights (i.e. Journal of Laws 2006 No. 90 Item 631 as amended). Copying, processing, publishing, modifying for commercial purposes the entire Manual as well as its individual elements without the written consent of GTX Poland is strictly prohibited and may result in civil and criminal liability.

90-129
Parameter	Designation	Value	Unit		Parameter	Unit
Thermal power					Type of heat output/room temperature control (select one)
Nominal heat output	P_nom	0,6	kW		single level heat output, no room temperature control	Not
Minimum heat output (Indicative)	P_min	0.6	kW		two or more manual levels, no room temperature control	Not
Maximum fixed heat output	P_max,c	0,6	kW		with mechanical thermostat for room temperature control	Yes
					with electronic room temperature control	Not
Electricity consumption for own use					electronic room temperature control + daily timer	Not
In off mode	After	0	W		electronic room temperature control + weekly timer	Not
In standby mode	Psm	N/A	W		Other adjustment options (several can be selected)
In idle mode	Pidels	0	W		room temperature control with presence detection	Not
In modenetwork standby	Pnsm	N/A	W		room temperature control with open window detection	Not
Standby mode with information or status display			not		remote control option	Not
Seasonal energy efficiency of space heating in active mode	ns, on	85	%		adaptive actuation	Not
					restriction of working time	Not
					black bulb sensor	Not
					self-learning function	Not
					accuracy of control	Not
Contact details	GTX Poland Sp. z o. o. Sp. K., ul. Pograniczna 2/4, 02-285 Warsaw
