USER MANUAL 99-084 NEO tools

Technical line drawing of a mechanical component with a cylindrical shaft and two separate parts (no text or symbols)

Simple line drawing of a lamp with a base and top, no text or symbols present

Simple line drawing of a mechanical component or tool (no text or symbols)

Illustration of hands holding a tool or tool with a pen, no text or symbols present

Illustration of a hand holding a tool with a circular head and handle, no text or symbols present

Illustration of a hand holding a pipette with a downward arrow indicating force or pressure (no text or symbols)

PL

99-084

EN

99-084

Translation of the original instructions

CAUTION: BEFORE USING THE DEVICE READ THIS MANUAL CAREFULLY AND KEEP IT FOR FUTURE REFERENCE.

SAFETY

CAUTION! This device can be used by children aged 8 or above and by people with restricted physical, sensory or mental capabilities, or people who have no experience or are unfamiliar with the equipment, if they are supervised or they were given the safety instruction, and understand the risk of incorrect usage. Children are not allowed to play with the equipment. Children are not allowed to clean the equipment and perform user-level maintenance without supervision.

- Ni-MH batteries may leak, set on fire or explode when heated to high temperature or short-circuited. Do not store the batteries in a car in hot and sunny days. Do not open the battery. Ni-MH batteries

contain electronic protection devices that, if damaged, may cause fire or explosion of the battery

- In extreme conditions liquid may leak out of the battery. The liquid coming out of the battery may cause irritations or burns. When a leak is found, follow the below procedure:

• Carefully wipe the liquid with a cloth. Avoid contact of the liquid with skin and eyes.
• In case the liquid gets onto skin, immediately wash the spot abundantly with clean water, you can also neutralize the liquid with a mild acid, e.g. lemon juice or vinegar.

• When the liquid gets into eyes, wash it immediately with a lot of clean water for at least 10 minutes. Seek medical advice.

• Do not expose the battery to humidity or water.

• Do not expose the battery to fire or excessive temperature.
• Do not repair damaged batteries. Battery can be repaired only by the manufacturer or authorized workshop.
• When disposing of the worn out battery, take it to a service point where you can utilize such dangerous wastes.

TECHNICAL DATA

99-084
Mass	0,3 kg
Size	12 × 44.5 cm
Material	Glass, stainless steel, PP
Light source	SMD 3,0 - 3,2V 4800 – 5200 K (cold white)
Light flux	10 lumens
Solar panel	Polycrystal 2V 160 mA 0,32 W
Battery	1,2 V AA 600mAh Ni-MH
Charging time	6 - 8 h
Work time	Up to 8 - 10 h
Waterproof class	IP44

DESCRIPTION

1. Glass
2. Solar panel 2V 160 mA
3. SMD LED
4. AA Ni-MH 600 mAh battery
5. Stainless steel pole
6. Plastic spike

INSTALLATION

1. Unpack.
2. Gently twist the top cover.
3. Twist back the top cover.
4. Connect the spike.
5. Connect the pole.

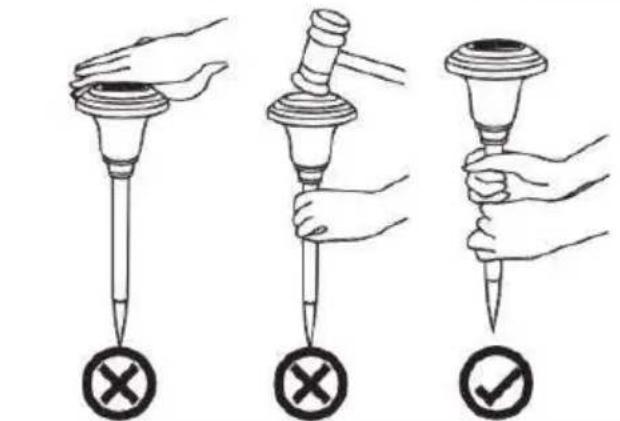

6. Insert the lamp to the ground, holding it by pole.

OPERATION

During the day, the solar panel converts the energy of the sun's rays into electricity, which is used to power the lamp at night. The lighting time depends on the place where the lamp is attached, weather conditions and the amount of light at a given time of the year.

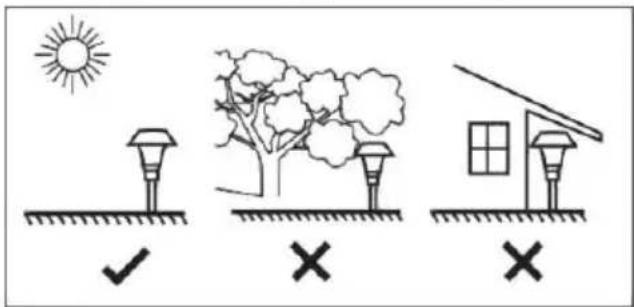

Choosing the right place

• The best efficiency is achieved in places with direct sunlight, outdoors.
• A shadow falling on the lamp will have a negative effect on its lighting time.

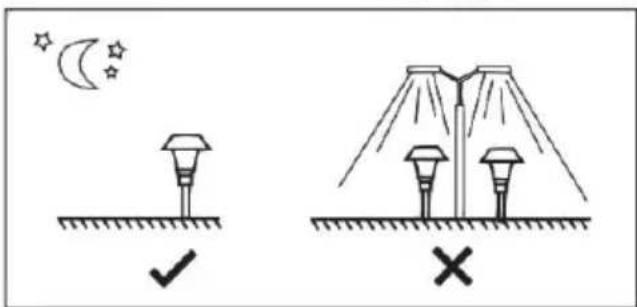

• The lamp should not be placed near any artificial light sources. They can be detected by the light sensor, which will turn the lamp off.

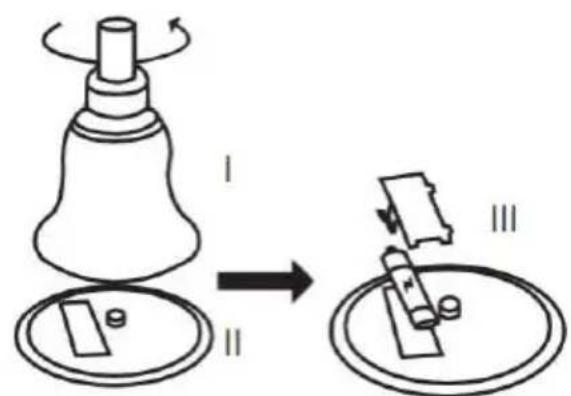

Battery replacement

• Remove the top cover (II) from the glass housing (I).
• Remove the battery cover (III).
• Replace the old battery with a fresh AA Ni-MH 600 mAh.

Notes

• The battery is charged at the factory, but it is recommended that you charge the lamp for all day before using it for the first time.
• Keep the lamp clean to allow light to enter the solar panel.

ENVIROMENT PROTECTION

Do not dispose of electrically powered products with household wastes, they should be utilized in proper plants. Obtain information on waste utilization from you seller or local authorities. Used up electric and electron equipment contains substances active in natural environment. Unrecycled equipment constitutes a potential risk for environment and human health.

Ni-MH

Do not dispose the batteries with household wastes, do not throw in fire or water. Damaged or worn out batteries should be properly recycled in accordance with applicable directive for battery disposal.

"Grupa Topex Spółka z ograniczoną odpowiedzialnością" Spółka komandytowa with seat in Warsaw at ul. Pograniczna 2/4 (hereinafter Grupa Topex) informs, that all copyrights to this instruction (hereinafter Instruction), including, but not limited to, text, photographies, schemes, drawings and layout of the instruction, belong to Grupa Topex exclusively and are protected by laws accordingly to Copyright and Related Rights Act of 4 February 2004 (ustawa o prawie autorskim i prawach pokrewnych, Dz. U. 2006 No 90 item 631 with later amendments). Copying, processing, publishing, modifications for commercial purposes of the entire Instruction or its parts without written permission of Grupa Topex are strictly forbidden and may cause civil and legal liability.
