USER MANUAL LR10 Prime MOVA

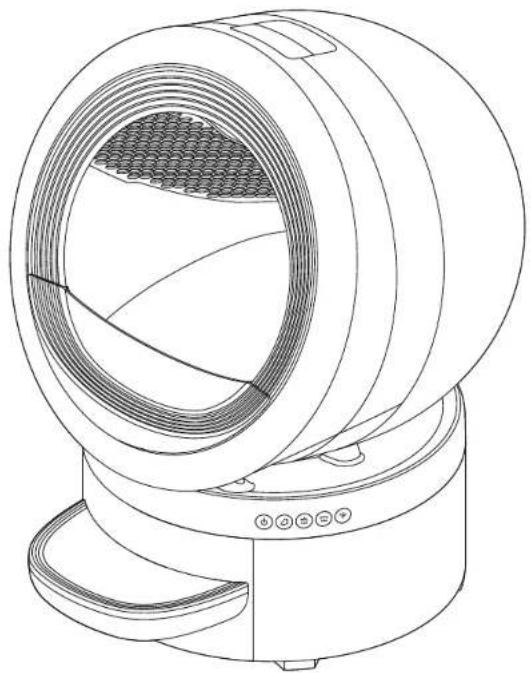

MOVA LR10 Prime Self-Cleaning Litter Box

Line drawing of a cylindrical device with mesh pattern and control buttons (no text or symbols)

Official Website: www.mova-tech.com

Manufacturer: Xingkuang Innovation Technology (Suzhou) Co., Ltd.
Made in China

The illustrations in this manual are for reference only. Please refer to the actual product.

MOVA

THANK YOU

For purchasing this self-cleaning litter box.

For more product information, please visit www.mova-tech.com

The high-quality product is engineered for optimal performance. If you have any questions on the product, please contact us: https://global.mova-tech.com/pages/contact-us

Contents

EN User Manual 1
DE Benutzerhandbuch 11
FR Mode d'emploi 21
IT Manuale d'uso 31
ES Manual de usuario 41
NL Gebruikershandleiding 51
PT Manual do utilizador 61
PL Podręcznik użytkownika 71
SV Användarhandbok 81
NO Brukerhåndbok 91
FI Käyttöohje 101
DA Brugervejledning 111
HU Használati útmutató 121

Safety Instructions

EN

Before use, please read this manual carefully and keep it for future reference.

When using this electrical appliance, always follow basic safety precautions, including the following:

Read all instructions before using (this appliance). Failure to follow warnings and instructions may result in electric shock, fire, and/or serious injury.

Warning — To reduce the risk of fire, electric shock, or injury:

Usage Restrictions

• Only use the product as described in this manual. Only use accessories recommended by the manufacturer.
• Use the appliance in a dry indoor environment, avoiding direct sunlight, rain, or humidity.
• Only use the original adapter; using other adapters may damage the product.
• Place the product on a flat surface.
• If the product will not be used for an extended period, unplug the power adapter.
• This product should only be disassembled and repaired by qualified personnel to avoid damage or potential danger.
• For any product issues, contact customer service center promptly.
• Keep the product away from direct sunlight, flammable materials, and damp locations. Avoid touching the product with wet hands.
• The device is equipped with radar and weight-sensing systems. It will immediately stop operating when a pet approaches, preventing accidental injury.
• The litter box is washable, and the entire unit can be wiped clean. However, never submerge the motor section in water to avoid damaging internal components.
• Only use the original chew-resistant nylon power cord and adapter to prevent the risk of electric shock or short circuit.
• The appliance is not intended for use by individuals (including children) with reduced physical, sensory, or mental capabilities, or lacking experience and knowledge, unless they are supervised or instructed by a person responsible for their safety regarding the proper use of the appliance.
  • Children should be supervised to ensure they do not play with the appliance.

EN Safety Instructions

Symbols

For indoor use only

Read the user manual

WEEE Information

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

Hereby, Xingkuang Innovative Technology (Suzhou) Co., Ltd. declares that the radio equipment type RLM83HE is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.mova-tech.com

The product is in compliance with UK PSTI regulations, the full text of declaration of conformity is available at the following internet address: www.mova-tech.com

For detailed e-manual, please go to https://www.mova-tech.com/pages/user-manuals-and-faqs

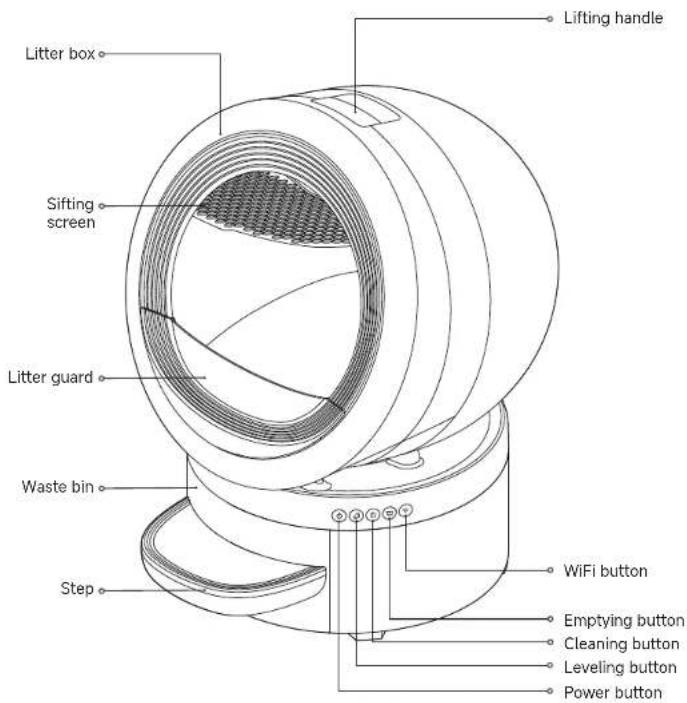

Product Introduction

Self-Cleaning Litter Box

Litter box Sifting screen Litter guard Waste bin Step Lifting handle WiFi button Emptying button Cleaning button Leveling button Power button

EN Product Usage

Cleaning Modes

Functional Mode Descriptions
Auto Cleaning Mode	Automatically starts cleaning in 10 seconds after the pet leaves. (Time customizable in the APP)
Scheduled Cleaning Mode	Set daily cleaning times and frequency via the APP. (Night mode is turned off by default)
Manual Cleaning Mode	The device is no longer cleaned automatically or on a preset schedule. Cleaning is only activated manually via the button operation on the device or APP.
Delayed Cleaning Mode	Allows you to set a delay before cleaning starts after the pet leaves.
Soft Stool Mode	Increases litter box movement and frequency to reduce waste sticking to the sides.
Do Not Disturb (DND) Mode	Nighttime cleaning disabled. Do Not Disturb period can be customized.

Button Operation

Button Function Sound Prompt
Power button	When the device is powered on, press and hold the button for 3 seconds to turn it on/off	Power on/off: one "Beep"
Leveling button/Child Lock	Short press: start litter leveling.Long press 3s: cancel leveling.Long press 7s: enable/disable child lock.	Pause/Cancel/Resume leveling: one "Beep"Child Lock on: "Do Re Mi"Child Lock off: "Mi Re Do"
Cleaning button	Short press: start/pause cleaning.Long press 3s: cancel cleaning and reset the litter box.	Pause/Cancel/Resume cleaning: one "Beep"
Emptying button	Short press: empty litter in the litter box into waste bin.Long press 3s: cancel emptying and reset the litter box.	Pause/Cancel/Resume emptying: one "Beep"
WiFi button	Long press 3s: enter Pairing Mode (white light flashes) to bind devices.	Long press WiFi Button 3s:"Beep Beep Beep"

Product Usage

Indicator Light Descriptions

Indicator Type Light Status Description
Power Indicator	Solid white Device is powered on
	Flashing red	Motor jammedWaste bin fullLitter box not installedWaste bin not installedAnti-pinch protection triggeredThe trash bag not properly fittedWeight protection activatedRadar protection activated
Cleaning/Emptying Indicator	Flashing white Cleaning/Emptying ongoing
WiFi Indicator	Solid white Connected to network
	Flashing white Ready to pair

EN Maintenance

Waste Bin Cleaning

When the APP indicates "Waste bin full", pull out the waste bin, lift the drawstring bag, and discard it.

Line drawing of a hand holding a balloon above a basket filled with a dumpling (no text or symbols)

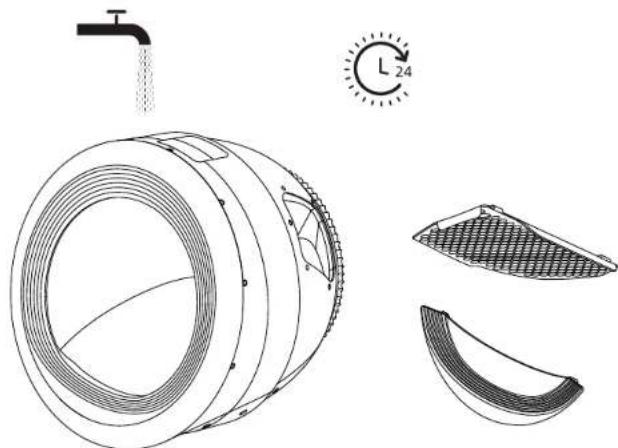

Litter Box Cleaning

Detach the litter box and rinse it with clean water. Let it air dry before reinstalling.

Technical line drawing of a cylindrical device with internal components and a water tap, showing cross-sections and part views (no text or symbols)

Note:
- It is recommended to clean once every 30 days. Remove the triple-protection pad before cleaning.

Maintenance

Cleaning the triple-protection pad

1. Remove the triple-protection pad from the bottom of the litter box, rinse it with clean water, and reinstall it into the litter box after it is completely dry.

LEFT RIGHT T L 24

Note:
- Avoid using brushes or hard objects to scrub the surface to prevent damaging the protective coating.
- Make sure the pad is completely dry before reinstallation to prevent bacterial growth.
- For optimal performance and pet health, it is recommended to clean the box every 30 days and replace the triple-protection pad every 6 months.

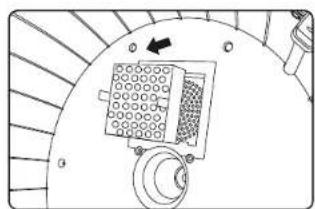

Replacing the active carbon filter

Detach the litter box, then pull the small handles on both sides of the used filter to take it out. Insert the new filter into the slot on the back cover of the main unit.

Diagram of a mechanical or electrical component with a central grid-like structure and directional arrow (no text or symbols)

Note:
- Replace the filter promptly when the APP alerts you.
· For better deodorizing and dust removal, replace the filter every 30 days or reuse it after airing it out.

EN Maintenance

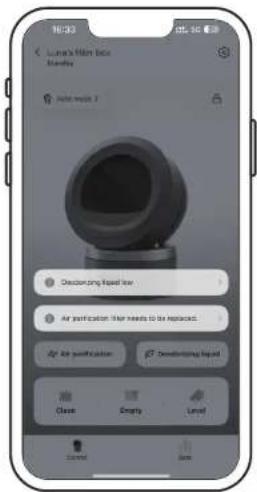

Refilling deodorizing liquid

When the APP notifies you that the deodorizing liquid is running low, please refill it in time.

16:33 Luna's Motion Box Binary Please make it Discharging Quick Low Air purification: Your needs to be replaced. Air purification Discharging Quick Clean Empty Level Cancel Help

Note:

- To maintain optimal deodorizing performance, it is recommended to refill the deodorizing liquid every 30 days (actual frequency may vary depending on usage).

Troubleshooting

When the APP displays the following errors, please refer to the table below for the corresponding solutions and confirm in the APP whether the issue is resolved. If the issue persists, please contact official customer support for assistance.

Error Message Solution
Waste bin full Empty the waste bin as soon as possible.
Waste bin not installed	Push the waste bin back into the device.
The trash bag is not properly fitted.	Make sure the entire edge of the trash bag is aligned with the waste compartment, ensuring the bag does not bulge.
Litter box not installed Please reinstall it promptly.
Anti-pinch protection triggered	Check if the anti-pinch protection switch at the waste outlet is normal. Remove obstructions manually if any.
Motor jammed	Turn off the power, check and remove any clumped litter or debris from the litter box, then restart the device.
Unusual cat toileting Please monitor your pet's health.
Weight protection activated	The protection will automatically deactivate once the weight is removed.
Radar protection activated	The protection will automatically deactivate once the moving object leaves.
APP connection failed	1. Ensure WiFi is on 2.4GHz (not 5GHz).2. Check if your WiFi name or password contains special characters. If so, re-enter it using the English input method.
The IR detector may be blocked.	Check whether the trash bag in the compartment is obstructing the IR detector.
The IR detector may be blocked.	Check whether the waste bag in the compartment is obstructing the IR detector.

Basic parameters

MOVA Self-Cleaning Litter Box LR10 Prime
Model LR10A	Rated power 18W
Rated voltage	12 V ===	Waste bin capacity	11L
Overall dimensions	552 x 583 x 764 mm	Net weight 12.9kg
Network connection 2.4GHz WiFi + Bluetooth
Applicable Range For pets weighing over 1.5 kg
Power adapter
Model KA24D	-1202000EU Rated input		100-240V- 50/60Hz0.65A Max
Rated output 12V		=== 2000mA
