HW400 - Water dispenser Sommertal - Free user manual and instructions

USER MANUAL HW400 Sommertal

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

EC-DECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards (1) in accordance with the regulations of the undermentioned Directives (2) test report (3) issuing test office (4).

FR Français:

CE-DECLARATION DE CONFORMITE

Read and understand these instructions completely before using it for the first time!

Follow the safety instructions!

Albatros International GmbH, Konrad-Zuse-Str. 3, D-54552 Nerdlen

Email: [e-mail]

THANK YOU FOR YOUR PURCHASE!

If you find this hot water dispenser as beautiful as we do, please leave an honest review on the platform where you bought it.

Before use

Before using the appliance, please check if all parts are complete/available and free from visible damage. Remove all packaging material from the device. If the contents are in complete or damaged due to faulty packaging or transportation, please contact: [e-mail]

This user manual is an integral part of the Sommertal hot water dispenser HW400 4L and provides you with important information about its intended use, installation, and operation. Please read this user manual carefully before using the appliance for the first time and keep it for future reference. Pass it on, together with the appliance, to any potential future owner.

Included in the packaging

• Sommertal hot water dispenser
• User manual

CONTENT

Safety instructions

Product description

For the first use

Important information

Maintenance

Malfunctions/display notifications

Specifications

Warranty

Recycling

Information regarding the conformity declaration

SAFETY INSTRUCTIONS

Read all instructions carefully.

• Check if the power cable, plug, and control panel are loose or damaged, or if the housing is cracked or deformed due to a hard impact. Do not use the hot water dispenser if any of the above cases occur, contact us immediately.
• Do not use the hot water dispenser if there is not enough water in it to prevent damage to the heating elements.
• The hot water dispenser is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instructions on how to use the hot water dispenser by a person responsible for their safety.
• Ensure that the hot water dispenser is operated under proper supervision if there are children around.
• Always place and operate the appliance on a flat, sturdy, clean, dry, and heat-resistant surface.
• To protect against fire, electric shock, or other personal injury, do not immerse any part of the hot water dispenser in water or any other liquid.
• Packaging materials should not be used as toys, as there is a risk of suffocation.
• Defective parts should only be replaced with original replacement parts. Only with those parts can it be guaranteed that they meet safety requirements.
• The use of parts and accessories not recommended by the manufacturer may result in injuries.
• Do not use an or near a hat gas or electric stove or in a preheated oven.
• Always handle the appliance with care. Do not place it on the edge of a table or counter to prevent it from falling. This could damage the appliance.
• Avoid touching hot surfaces when the appliance is turned on. The exterior of the appliance and the water outlet can become hat. Never tauch to check if the flowing water is hot enough; you will burn yourself with hat water.
• Avoid bums from hot steam. Do not block the steam outlet and open the lid of the water reservoir slowly when the appliance is on.
• Never place the appliance near heat-emitting devices such as ovens, gas stoves, or cooktops. Keep the appliance away from walls or other objects that can catch fire, such as curtains, towels, etc.
• Children should not play with the appliance.

Do not attempt to repair the appliance yourself in case of malfunction; the tripping of the safety mechanism in the appliance may indicate a defect that is not resolved by removing or replacing this safety feature. It is necessary to use only original parts.

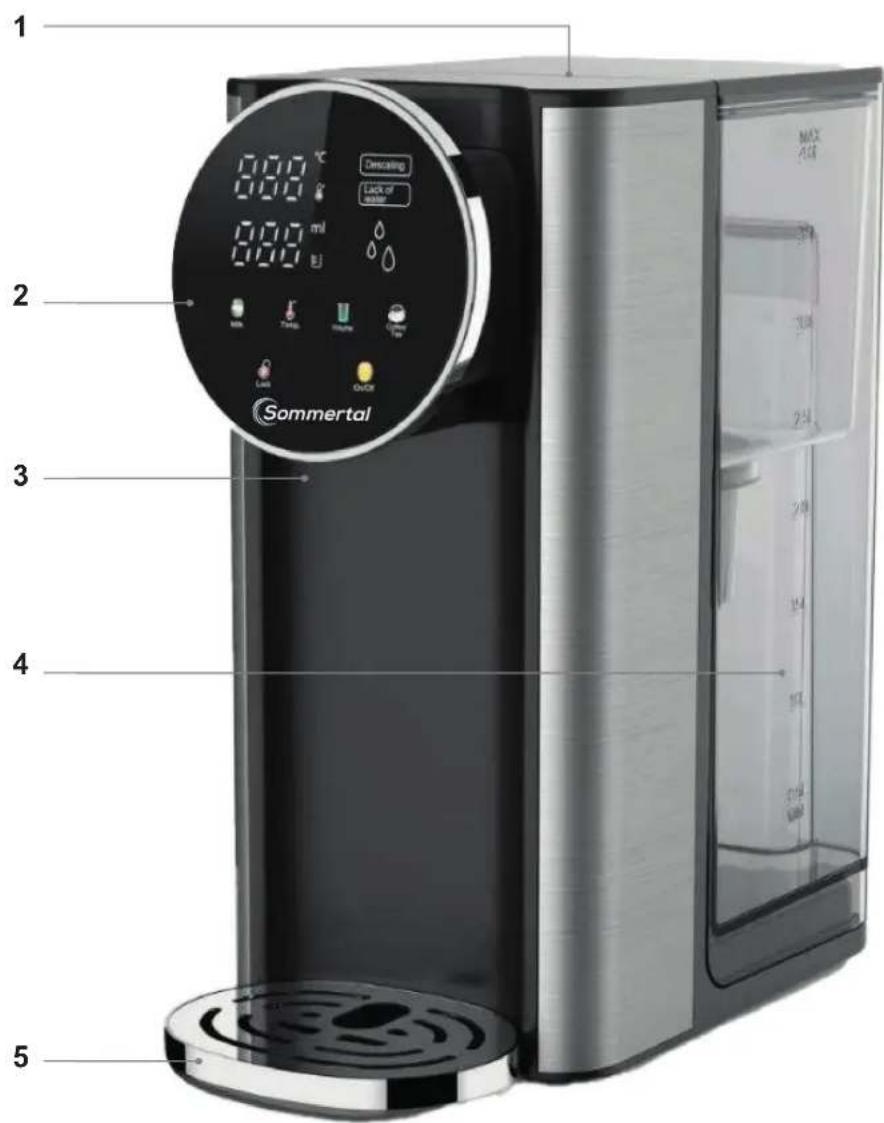

DESCRIPTION Sommertal Heiwwasserspender HW400 4L

1. Water tank cover
2. Touchdisplay
3. Sprayer
4. Water tank
5. Drip tray

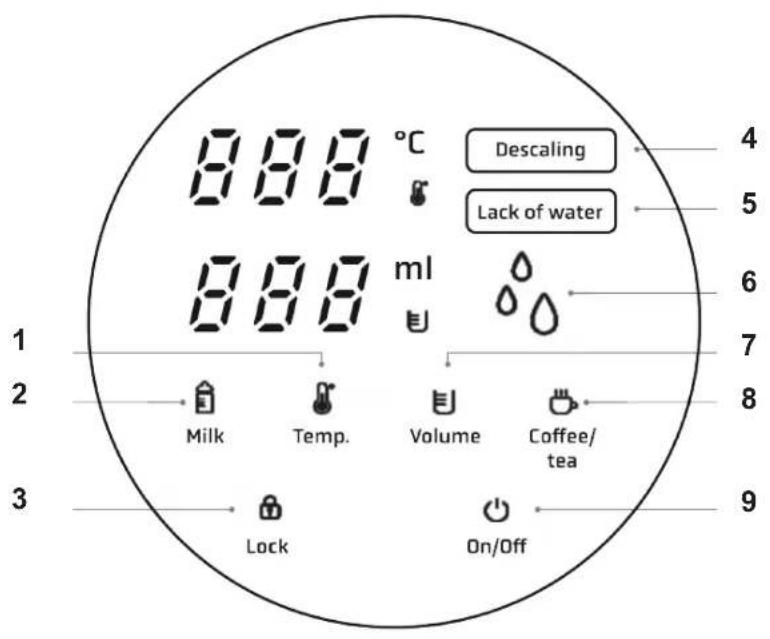

DISPLAY:

1. Temp Button: Allows you to select your desired temperature from a range of opti ons (45-100 degrees Celsius). This enables you to customize the water temperatu re according to your needs.
2. Milk: pressing this button selects the fixed mode for powdered milk, maintaining a constant temperature of 40 degrees Celsius while still providing an adjustable water volume.
3. Lock Button: Used to lock the control panel screen. Pressing it for approximately 3 seconds will unlock the panel. The appliance will automatically lock if there is no operation within 40 seconds.
4. Descaling: Once the „Descaling“ signal illuminates, it indicates that you need to clean the appliance. Please refer to step 5 for instructions on how to do so.
5. The „Lack of Water“ signal light indicates that the water level is low, and you need to refill the hot water dispenser with more water.
6. The blinking „Water droplet“ signal indicates that water will be dispensed from the appliance.
7. Volume Button: Allows you to set the appropriate water volume for dispensing.
8. Coffee/Tea Button: Pressing this button selects the fixed mode for coffee or tea, maintaining a temperature of 92 degrees Celsius. Caution: Above boiling point, wa ter may sporadically come out of the spout unevenly.
9. On/Off Button: This button is used to activate or stop the appliance's functionality. It allows you to easily control the operation of the hot water dispenser.

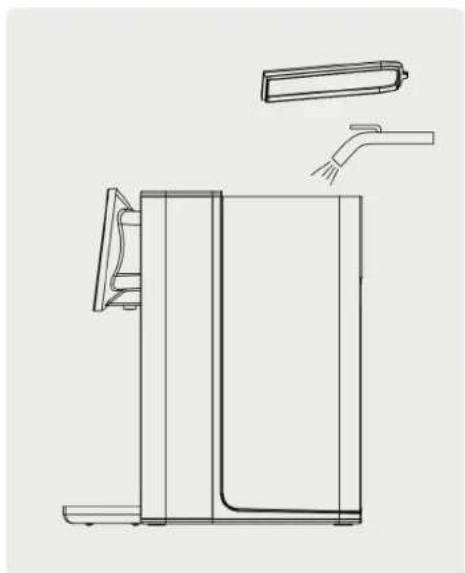

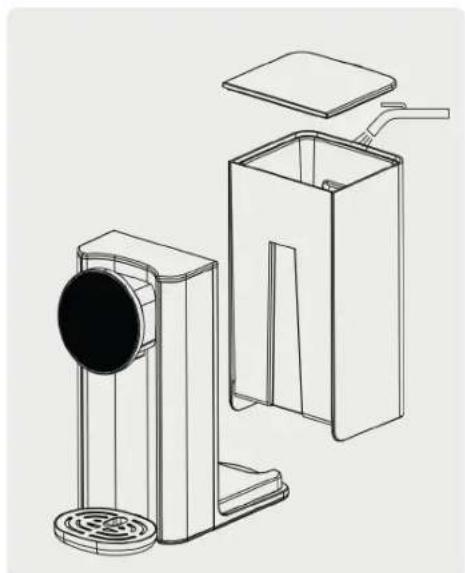

REFILL WATER

Remove the lid of the water reservoir, fill it with the desired amount of water, and then close it.

NOTE: Do not exceed the maximum water level indicated.

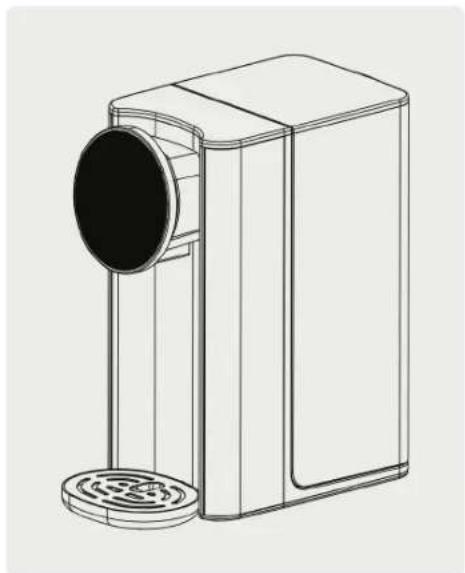

Empty the drip tray

When the drip tray is full, hold the hot water dispenser firmly with one hand and carefully lift the tray with the other hand once the tray has been cleaned, place it back in its position.

FOR THE FIRST USE:

• Ensure that the plug is connected to a suitable power outlet.
• Fill the water reservoir with clean water (1 L).
• Place your cup on the drip tray and make sure it is aligned with the spout.
• Press and hold the lock button until the display unlocks itself.
• Press and hold the volume button [+/-) for approximately 3 seconds to activate the cleaning process.

NOTE:

During the cleaning process, the water reservoir will completely empty itself. You can stop this by pressing the volume button again. Afterwards, refill the water tank with clean water, and the appliance is ready for use.

IMPORTANT INFORMATION

1. Every time you activate a mode on the hot water dispenser, it takes approximately 3-5 seconds for water to come out. Also, consider the electrical safety: the higher the water temperature, the longer it takes for the water to be dispensed.
2. Stay away from the hot water dispenser when water is being dispensed to avoid bums.
3. It is normal for the water tobe slightly intermittent when the temperature is higher than 75^
4. If you want to lock the hot water dispenser, simply wait for 40 seconds, and it will automatically lock.
5. If you want to choose a different mode, press the wrongly selected mode again to cancel it.
6. After pressing the power button to stop the water, it will stop within 3-5 seconds.
7. When selecting the "000 temperature with 000 water volume" mode, it means that the water temperature is equal to the temperature of the water in the reservoir, and you can directly ad just the water volume.
8. If the machine is not used for a long time, disconnect it and store it back in the original box after thorough cleaning to prevent moisture damage or loss of parts.
9. IMPORTANT! Only use fresh water at room temperature without additives; otherwise, it may damage the hot water dispenser.
10. T here is an anti-scratch film on the hot water dispenser; you can choose to remove it before use.

11. Make sure the screw at the bottom of the dispenser is locked before using it. Failure to da so may cause leakage.

12. To protect the pipes of the hot water dispenser, cold water will first come out for the first few seconds each time it is turned an. Therefore, discard the first cup of water after turning it an.

13. Replace the water in the water dispenser every 3-4 days.
14. To provide you with a better product experience, we have designed a delay. When you press the power button to dispense water, there is a delay of 3-5 seconds. Also, when you press the power button to stop the water, it will stop within 3-5 seconds.

MAINTENANCE :

1. Turn off the appliance and unplug it from the power outlet. Allow it to cool completely before cleaning.
2. Use water to clean the water reservoir.
3. Clean the housing with a damp cloth. Da not use any chemical cleaning agents.
4. Handle it with care at all times and place it down gently. Keep the hot water dispenser away from the edge of the table or countertop to prevent deformation or damage to its functionality if it falls from a significant height.
5. Keep the appliance away from direct sunlight when not in use for lang periods.

It is important to follow these maintenance guidelines to ensure the proper functioning and longevity of the hot water dispenser.

MALFUNCTION / DISPLAY MESSAGES :

Water is running, To completely drain hot water Stops in 3-5 seconds do not stop.

Water comes out High temperature For safety intermittently [splatters)

Device is not working Display is locked Press and hold the lock button for approximately 3 seconds

There's no water perly placed again coming out Locked Press the lock button for approximately 3 seconds

Descale warning is displayed Dirty water Clean it according to maintenance and cleaning

A low water warning is Insufficient water in the reser Fill the water reservoir displayed voir

Abnormal odor from water Dld/additive water has been Clean the reservoir and then used fill it with fresh water.

Suddenly stops working For electrical safety Disconnect the device from the power outlet for 30 seconds and then reconnect it.

SPECIFICATIONS Sommertal Hot water dispenser HW400 4L:

Rated Voltage/Frequency: 230V-50Hz

Rated Power: 2000-2300W

Capacity: 4L

Dimensions: 288(L) x 150(W) x 318(H) mm

Disposal instructions

Once an electrical product is no longer functional, it should be disposed of in a way that minimises its environmental impact, in accordance with the regulations of your local authority. In most cases, you can take such products to your local recycling centre.

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used appliance, please use the return and collection systems or contact the retailer from whom the product was purchased. This product can be recycled there in an environmentally friendly manner.

WARRANTY

EN

The components are quality products. They were designed taking into consideration the latest technical knowledge, and carefully constructed using a standard, good quality material.

The warranty period is 24 months from the time of handover, which must be confirmed through a sales receipt, invoice or delivery note. Within the warranty period, any functional defects in the components will be fixed by our customer service team if these can be shown to be the result of a material defect that has arisen despite prudent handling in accordance with our operating instructions.

The warranty will include repairing defective parts or providing properly functioning replacements free of charge and at our discretion. Any parts that are replaced will become our property. The repair or replacement of individual parts does not result in an extension to the warranty period, nor is there a new warranty period for the specific components affected. There is no separate warranty period for built-in spare parts. We offer no warranty for damage or defects affecting components or their parts if these are caused by excessive use, or incorrect handling or maintenance. The same applies for failure to follow the operating instructions and for the installation of spare parts or accessories not listed in our range. Warranty claims shall be void in the event of interference or modifications to components by unauthorised individuals.

The warranty does not cover parts that are subject to natural wear and tear. In the event of a warranty claim, fault, need for a spare part or accessory, please contact the customer support centre specified here:

Customer support centre:

Albatros International GmbH

Konrad-Zuse-Str. 3

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Subject to modification.

Model:

Purchased at:

In (town/city, street):

Buyer's name:

Street, building number:

Postcode, town/city:

Telephone:

Date, signature:

Fault description:

D Deutsch

Nerdlen, 29.10.2024
