USER MANUAL WK50 Sommertal

Line drawing of a rectangular oven with internal shelves and cooling fins (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

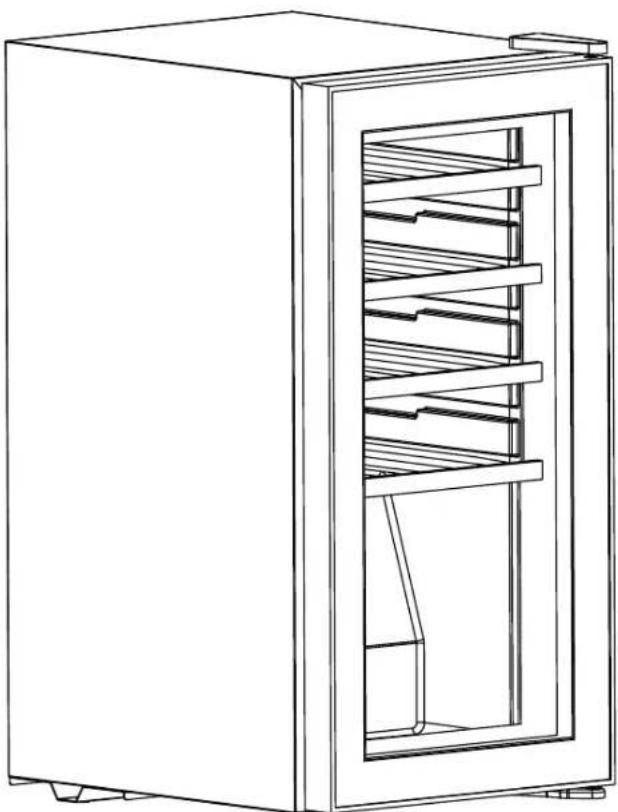

Wine cooler model WK50

Operating instructions

VAR.ID.: 4461

Line drawing of a rectangular oven with internal shelves and a handle (no text or symbols)

Thank you for purchasing our wine cooler & drinks cooler.

Please read and follow all safety rules and operating instructions before use.

Albatros International GmbH, Konrad-Zuse-Str. 3, D-54552 Nerdlen (Germany)

[e-mail] | www.albatros-shop.de

EN

Before use

Remove the outer and inner packaging.

Leave the wine cooler upright for approx. 2 hours before connecting the wine cooler to the power supply so that the refrigerant can flow into the compressor. Clean the inside surface with a soft cloth and warm water.

This product is suitable for home use and similar applications, such as

• Kitchen areas, shops, offices and other working environments
  • Hotels, motels and other residential environments
  • Catering and similar applications

Position your wine refrigerator

This product is designed for the storage of wine or beverages.

Place your wine refrigerator on a base that is stable enough to support it when fully loaded. The appliance uses a flammable refrigerant. Therefore, do not damage the cooling pipes during transport.

The wine cooler must be kept away from direct sunlight and heat sources (cooker, heater, radiator, etc.). Direct sunlight can impair the coating and the heat source can increase power consumption.

Extremely cold ambient temperatures can also cause the appliance to malfunction.

Avoid placing the refrigerator in a damp place.

Please note

Store the wine in sealed bottles; do not overload the cabinet. Only open the door when necessary.

Do not cover the shelves with aluminium foil or other materials that could hinder air circulation.

If the wine refrigerator is stored for long periods, it is advisable to keep the door half open and allow air to circulate in the cabinet to prevent condensation, mould or odours. If the mains cable is damaged or badly worn, it must be replaced by the manufacturer or an electrician and must not be replaced by yourself.

1. Caution: Keep the ventilation clear.
2. Warning: Do not use mechanical devices to speed up the defrosting process.
3. Warning: Do not damage the cooling circuit.

Ambient temperature

This product is designed for operation at the ambient temperature specified on the rating plate.

Climate type Ambient temperature (°C)
SN +10 to +32
N +16 to +32
ST +16 to +38
T +16 to +43

Operating your wine cooler and setting up the temperature control

Control panel

88

Power switch: Press and hold the buttons - + for 5 seconds to switch the device on or off.

°C/°F switch: Press °C/°F to change the temperature display between Celsius and Fahrenheit.

Temperature setting button: Press this button before setting the temperature.

The first time it is pressed, the screen flashes and displays the set temperature. After 5 seconds, the measured internal temperature is displayed. Press this button ▲ to increase the set temperature, press this button ▼ to decrease the set temperature.

Display window: LED display showing the set temperature or the actual indoor temperature.

Lighting button: Press this button to switch the interior lighting on or off.

Setting range for the temperature of the wine cooler:

The temperature setting can be adjusted between 5^ C and 20^ C.

Please note

If the device is switched off, you must wait 3 to 5 minutes to the device. If you have to try to restart before this delay, the appliance will not start. There is a difference between the actual temperature and the displayed temperature for a few minutes when the appliance is used for the first time or not used for a longer period of time.

Open and clean the wine refrigerator

Remove the outer and inner packaging material.

Before using the appliance for the first time, please leave it upright for two hours to allow the coolant to disperse. Clean the inner surface with a soft cloth and warm water.

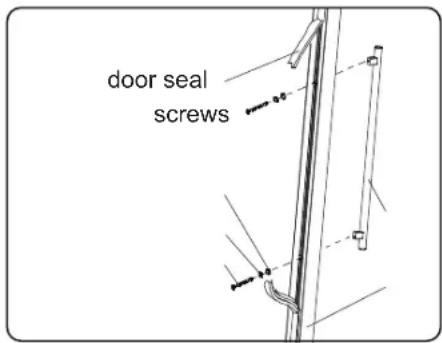

Carry out the following steps to install the door handles supplied with the appliance:

Step 1: Remove the screws in the door.

Step 2: Insert the screws through the holes in the handle.

Step 3: Tighten the screws.

Door security lock

The keys are enclosed with this manual.

Insert the key into the lock and turn it anti-clockwise to unlock the door. Lock the door in the opposite direction. Please keep the keys in a safe place.

door seal screws

Maintenance and servicing

Clean your wine refrigerator

Switch off the power supply unit, pull out the mains plug and then remove all objects, including the compartment.

Wash the inner surface with warm water and a mild solution.

Wash the shelves with a mild detergent solution.

When cleaning the controller area or electrical components, wring out excess water from the sponge or cloth.

Wash the housing with warm water and a mild liquid detergent.

Rinse it clean and then dry it with a clean, soft cloth.

Power failure

Most power failures are resolved within a few hours, and if you do not open the door too often and for too long, this should not affect the temperature of the appliance.

Holiday mode

If the appliance will not be used for some time, remove the contents and switch off the appliance.

Clean and dry the interior thoroughly. To avoid odours and mould, leave the door slightly open.

Move your wine cooler

Remove loose objects from the wine refrigerator (e.g. shelf) or secure loose objects with foam.

Close the door. Ensure that the device remains in an upright position during transport.

Blankets or similar objects can also be used to protect the outside of the device.

Problem solutions

You can easily solve many of the common problems with wine cabinets and save potential service costs.

Try the following suggestions to see if the problem is solved.

Problem The possible causes
Wine cooler does not work Power not plugged in. Check the fuse.
Insufficient cooling of the wine refrigerator	Check the settings for the temperature control.The ambient temperature may require higher settings.The door is not fully closed.The door seal is not seated correctly.
LED lamp does not work	No electricity.Check circuit breaker and fuse.The operating switch is set to „OFF“.
Noises	A gurgling noise can be caused by the flow of refrigerant, which is normal.The wine cooler is not standing upright.
The door cannot be closed normally	The wine cooler is not standing upright.The door is not installed correctly.The seal is dirty.The frame is not suitable.

Technical data – WK50

wine storage capacity 18 bottles
removable shelves 4
temperature range 5 ~ 20 °C
defrosting semi-automatic
activated carbon filter no
reversible door hinge no
product size (w x d x h) mm 345 x 450 x 692 mm
net weight (kg) 22 kg
total volume (l) 45 l
energy efficiency class F
climate class (temperature range) N-ST
energy consumption (kilowatt hours/day) 0,250
Energy Efficiency Index (EEI) 119
annual energy consumption in kwh 93
airborne acoustics emission class C
sound LwA (equivalent continuous sound level dB(A) re 1 pW)	37
power supply	220-240 V ~ / 50 Hz
consumption of LED light for indoor use (watts)	0,7 W
power consumption (watts)	55 W
Current (A)	0,6 A
compressor	GMCC-PZ40F1B
type of refrigerant	R600a

EC DECLARATION OF CONFORMITY

We declare under our sole responsibility that the following product

Sommertal wine cooler model WK50

complies with the standards, in accordance with the provisions of the directives

with a test report issued by the test centre.

Here is the link to the EC Declaration of:

https://ce.albatros-international.eu/4461.pdf

DISPOSAL INSTRUCTIONS

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Once an electrical product is no longer functional, it should be disposed of in a way that minimises its environmental impact, in accordance with the regulations of your local authority. In most cases, you can take such products to your local recycling centre.

Recycling - European Directive 2012/19/EU

This labelling indicates that this product should not be disposed of with other household waste.

To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used appliance, please use the return and collection systems or contact the retailer from whom the product was purchased. This product can be recycled there in an environmentally friendly manner.

WARRANTY EN

The components are quality products. They were designed taking into consideration the latest technical knowledge, and carefully constructed using a standard, good quality material.

The warranty period is 24 months from the time of handover, which must be confirmed through a sales receipt, invoice or delivery note. Within the warranty period, any functional defects in the components will be fixed by our customer service team if these can be shown to be the result of a material defect that has arisen despite prudent handling in accordance with our operating instructions.

The warranty will include repairing defective parts or providing properly functioning replacements free of charge and at our discretion. Any parts that are replaced will become our property. The repair or replacement of individual parts does not result in an extension to the warranty period, nor is there a new warranty period for the specific components affected. There is no separate warranty period for built-in spare parts. We offer no warranty for damage or defects affecting components or their parts if these are caused by excessive use, or incorrect handling or maintenance. The same applies for failure to follow the operating instructions and for the installation of spare parts or accessories not listed in our range. Warranty claims shall be void in the event of interference or modifications to components by unauthorised individuals.

The warranty does not cover parts that are subject to natural wear and tear. In the event of a warranty claim, fault, need for a spare part or accessory, please contact the customer support centre specified here:

Albatros International GmbH

Konrad-Zuse-Str. 3

D-54552 Nerdlen (Germany)

Phone: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Subject to modification.

Model:

Purchased at:

In (town/city, street):

Buyer's name:

Street, building number:

Postcode, town/city:

Telephone:

Date, signature:

Fault description:
