USER MANUAL YMXT-XC40-5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Sliding Door Set

Model:YMXT-XC40-5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Sliding Door Set

Model:YMXT-XC40-5

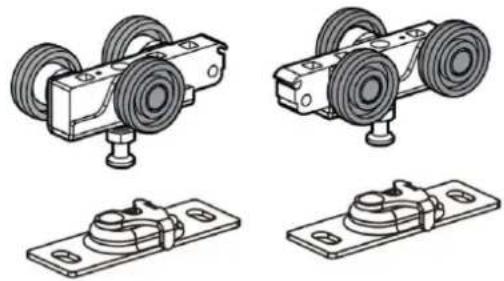

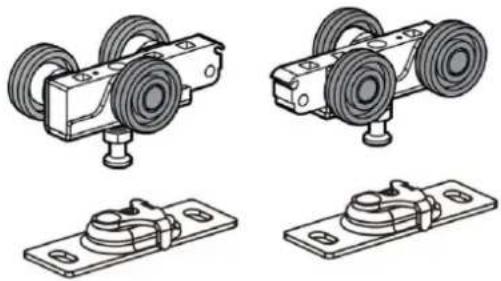

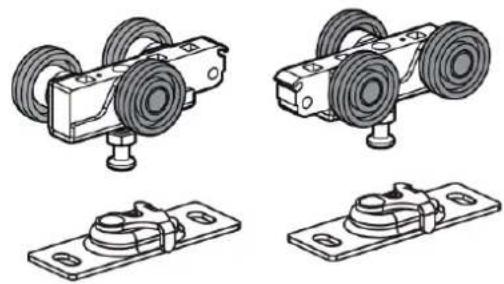

Technical line drawings of two mechanical components with wheels and mounting brackets (no text or symbols)

Technical line drawings of three different mechanical components: a two-hinged roller, a flat plate with a bolt, and a rectangular housing (no text or symbols present)

Pure technical line drawing of a structural beam or panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Sliding Door Set.

- Please read all of the instructions before using it. The information will help you achieve the best possible results.

The products carried in this catalog may be different in color than the actual item.

SAVE THESE INSTRUCTIONS

WARNING:

Ensure Health and Safety, local authority and general workshop practice

regulations are adhered to when using tools.

* DO NOT use tools if damaged.
* Maintain tools in good and clean condition for best and safest performance.
* Wear suitable clothing to avoid snagging. Do not wear loose jewellery and tie back long hair.
* Account for all tools and parts being used.
* If working off the vehicle, ensure that the workplace is secure and stable.
* Do Not use these tools if you are tired or under the influence of alcohol, drugs or intoxicating medication.
* PERSONAL SAFE TY WARNING!

Always Wear personal protective equipment.

*PERSONA L PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side protection for the eyes. Eye protection equipment should comply with CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work performed.

2. Wear gloves that provide protection based on the work materials or to reduce the effects of tool vibration.

Assembly and Use

PRE INSTALLATION-

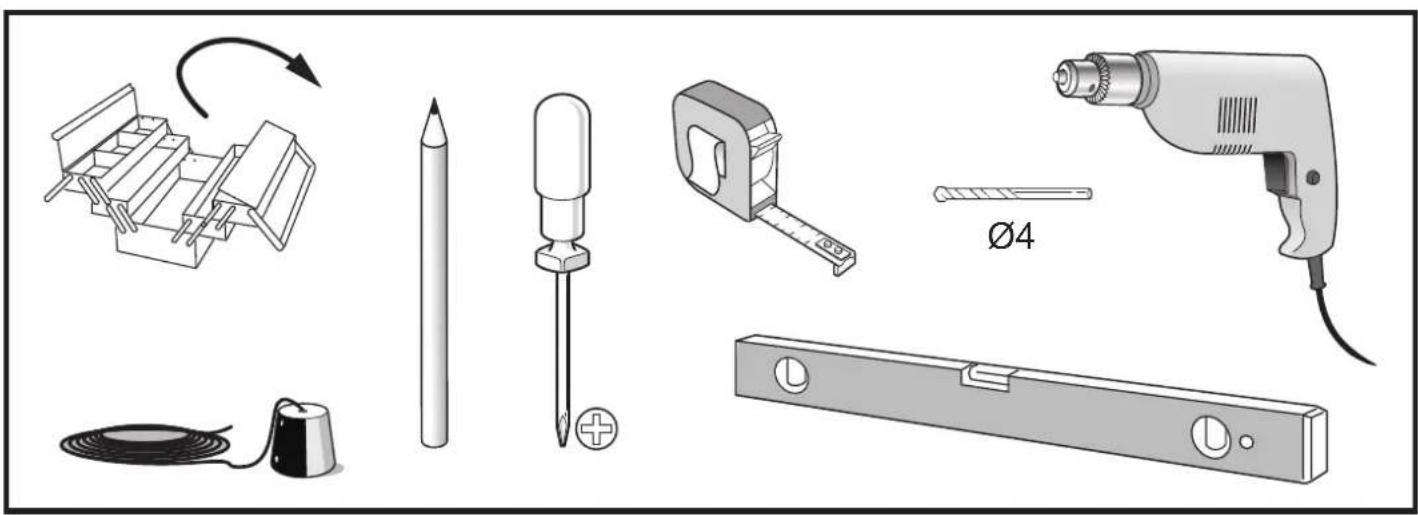

TOOLS REQUIRED

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and dial indicator (no text or symbols present)

HARDWARE INCLUDED

	(x1)ST4.2x32(x9)(x4) ST5.5x32 (x8) (x1)ST4.2x19 (x2)
(x1) ST4.2x19 (x3) (x1)

INSTRUCTIONS

SLIDING DOOR HARDWARE

Fits 35 and 45mm thick wood door each door max weight 150lbs

PREPARE OPENING CAREFULLY: MAKE SURE CORNERS ARE SQUARE, HEADER IS LEVEL AND JAMBS ARE STRAIGHT.

2 Door : 2x Door width-1"

Technical line drawing of a mechanical assembly with two shafts and housing (no text or symbols)

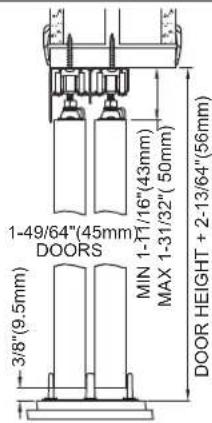

1-49/64"(45mm) DOORS MIN 1-11/16"(43mm) MAX 1-31/32"(50mm) 3/8"(9.5mm) DOOR HEIGHT + 2-13/64"(56mm)

1 Mount Track to Header: Cut track to fit opening. insert Hangers into track and mount to header with 1-1/4"(32mm) #8 pan head screws.


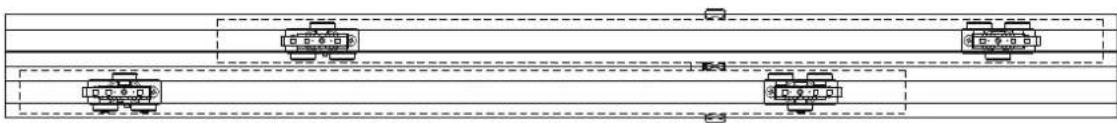

NOTE: Alternate hanger wheel assemblies in track to provide even pressure.

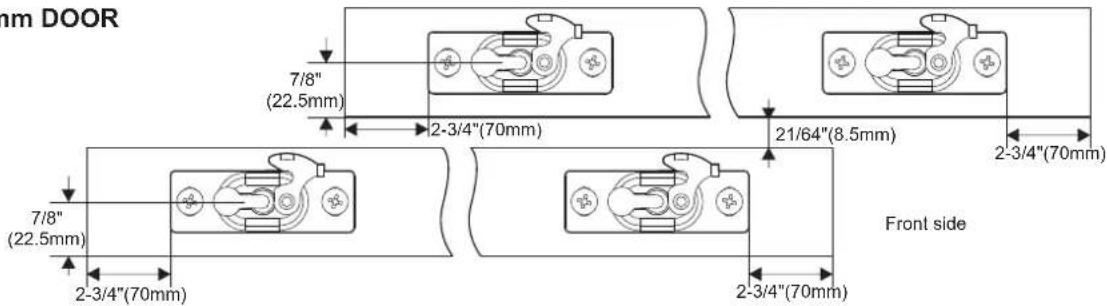

2 Mount Hanger Plates to Door: Fasten door plates to top of door, 2-3/4"(70mm) from each edge.
45mm DOOR

7/8" (22.5mm) 2-3/4"(70mm) 21/64"(8.5mm) 2-3/4"(70mm) 7/8" (22.5mm) 2-3/4"(70mm) Front side 2-3/4"(70mm)

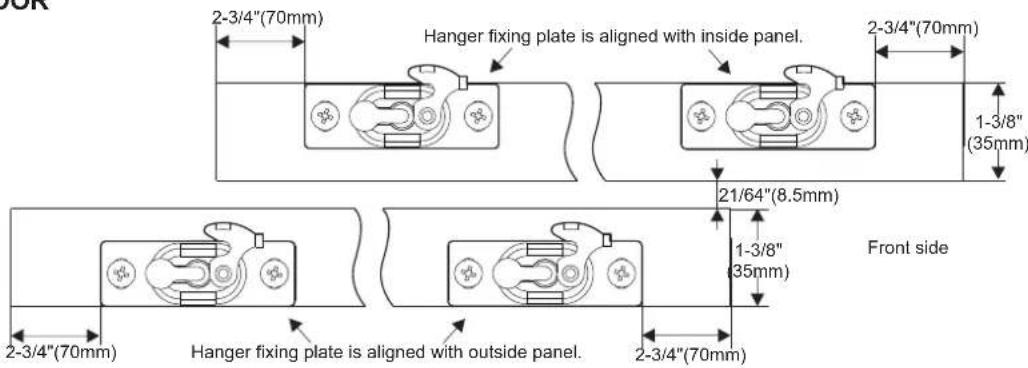

35mm DOOR

2-3/4"(70mm) Hanger fixing plate is aligned with inside panel. 2-3/4"(70mm) 1-3/8" (35mm) 21/64"(8.5mm) 1-3/8" (35mm) Front side 2-3/4"(70mm) Hanger fixing plate is aligned with outside panel. 2-3/4"(70mm)

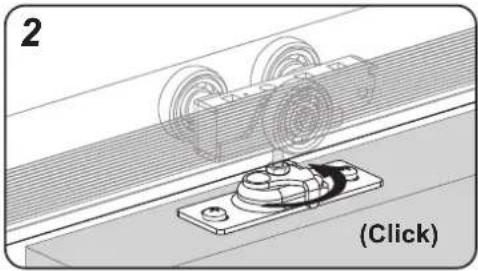

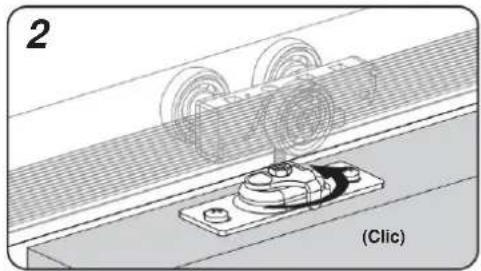

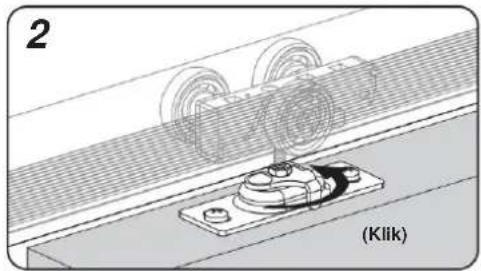

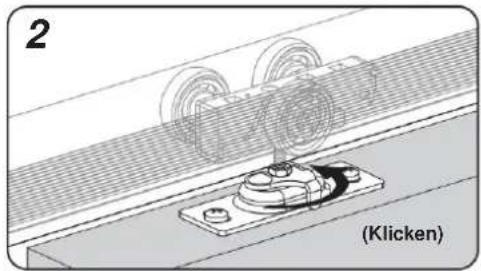

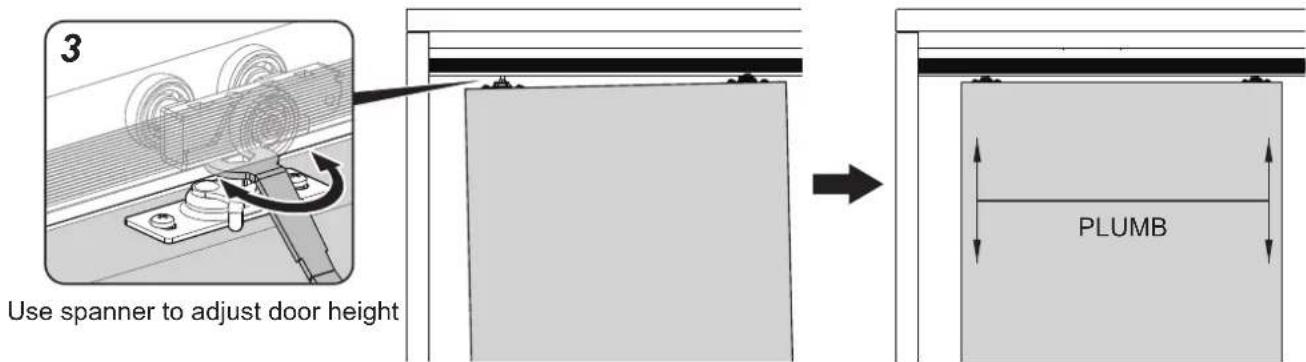

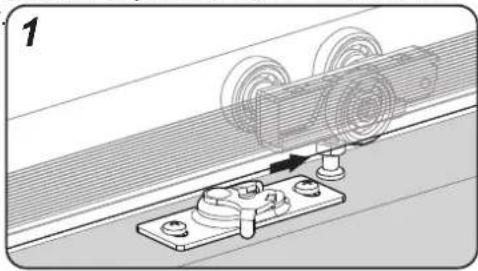

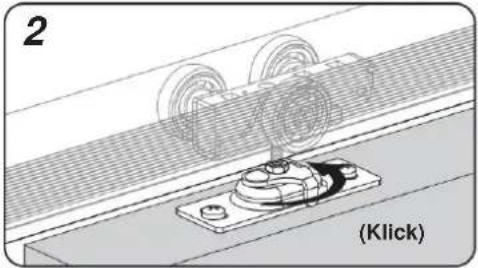

3 Hang Door on front leg of track first. Slide pivot pin of hanger into socket and lock into place with clip. Check for smooth travel.

Repeat with rear door.

Mechanical assembly diagram showing a sliding mechanism with pulleys and mounting base (no text or symbols)

Mechanical assembly diagram showing a sliding mechanism with pulleys and a button labeled (Click), no text or symbols present.

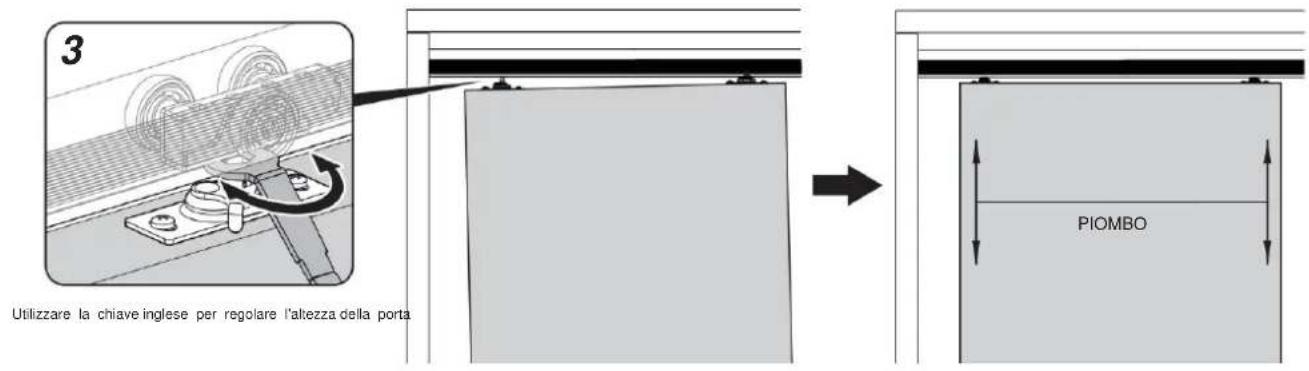

3 Use spanner to adjust door height PLUMB

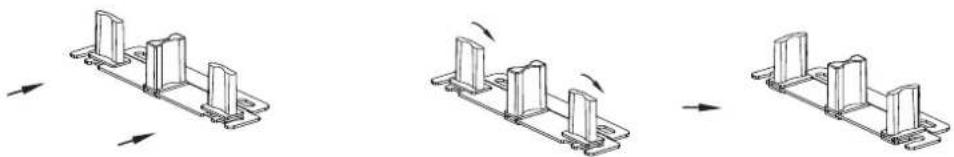

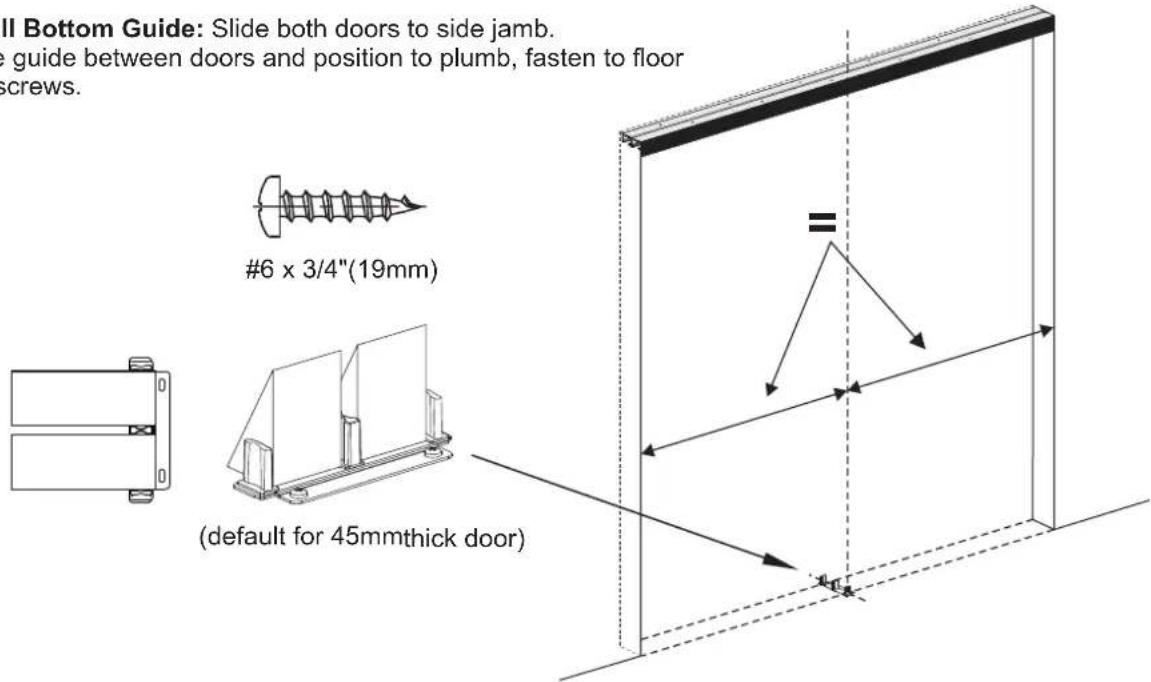

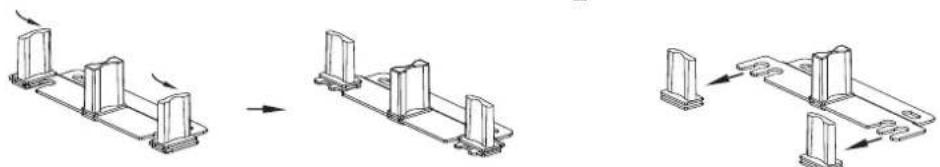

4 Install Bottom Guide: Slide both doors to side jamb. Place guide between doors and position to plumb, fasten to floor with screws.

II Bottom Guide: Slide both doors to side jamb. e guide between doors and position to plumb, fasten to floor screws. #6 x 3/4"(19mm) (default for 45mmthick door)

Floor guide installation instruction for 35mm thick wood door :

1

Pure mechanical assembly diagrams showing progressive assembly of two parts with arrows indicating motion (no text or symbols)

3

Three sequential line drawings of mechanical components or assemblies, showing progressive assembly or alignment (no text or symbols)

5 Adjust Hangers, if necessary, to plumb doors with jambs.

ADJUSTING NUT

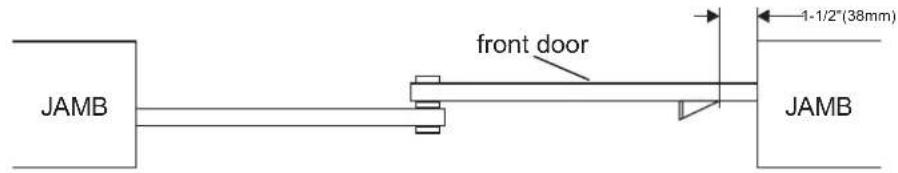

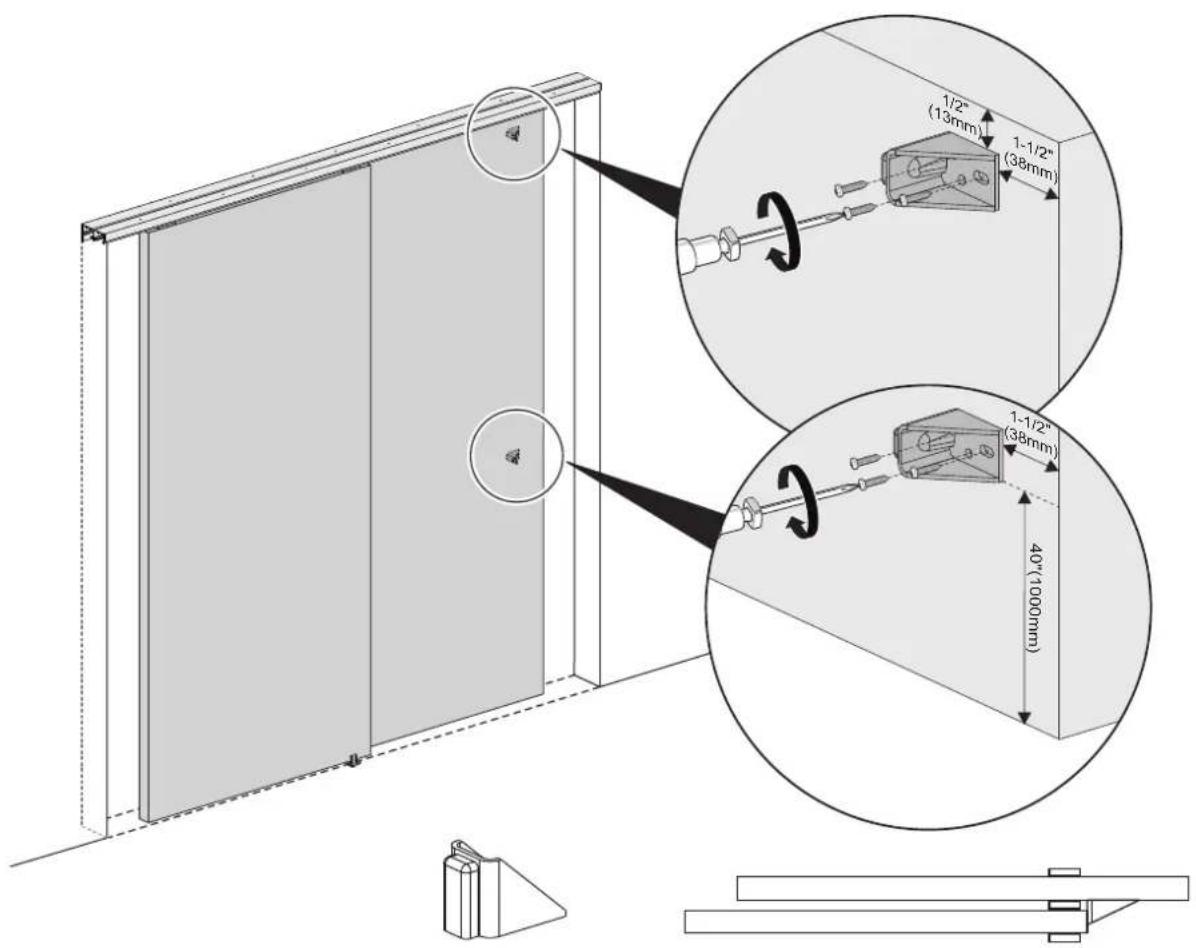

6 Install Stop: Attach Stop on rear of front door 1-1/2"(38mm) from door edge, 1/2"(13mm) from top (Hollow Core) or 40"(1000mm) from bottom (Solid Core) doors.

JAMB front door 4-1/2"(38mm) JAMB

1/2" (13mm) 1-1/2" (38mm) 1-1/2" (38mm) 40"(1000mm)

Maintenance

1. Avoid prolonged exposure to the sun to avoid aging.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho

Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of four different mechanical components with no visible text or symbols

Technical line drawings of four different mechanical components: a sliding contactor, a mounting bracket, a roller-mounted housing, and a flat plate (no text or symbols present)

Pure technical line drawing of a structural beam or panel (no text or symbols)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

SPRZĘT W ZESTAWIE

	(4 szt.) ST4.2x19 (x2)(x3)ST3x252(x8)(x1)
(x1)	(x1)ST4.2x19 (3 szt.)

INSTRUKCJE

Technical line drawing of a mechanical assembly with two symmetrical components connected by a shaft (no text or symbols)

1-49/64"(45mm) DRZWI 368mm(3.5)

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a rotating wheel and base plate (no text or symbols)

Pure mechanical component diagram without any text, numbers, or symbols

4

NAKRETKA REGULACYJNA

Technical diagram showing assembly of a wall-mounted device with dimensional annotations and component views

Konserwacja

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Pure technical line drawing of a structural beam or panel (no text or symbols)

www.vevor.com/support

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

HARDWARE INKLUSIVE

	(x4) ST5.5x32 (x8)(x1)ST4.2x32(x9)	ST4.2x19 (x2) (x1)
(x1) ST4.2x19 (x3)	(x1)

ANWEISUNGEN

Technical line drawing of a mechanical assembly with two shafts and housing (no text or symbols)

1.49/54 Zoll (45 mm) TÜREN 300 mm(20%)TÜRHÖHE m)

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a sliding mechanism with pulleys and a labeled component (Klicken), no readable text or symbols beyond label.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

4

→

EINSTELLMUTTER

Technical diagram showing assembly of a wall-mounted device with dimensional annotations and component views

Wartung

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of four different mechanical components with no visible text or symbols

Technical line drawings of four different mechanical components with no visible text or symbols

Pure technical line drawing of a structural beam or panel (no text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

MATÉRIEL INCLUS

	(x4) ST5.5x32 (x8)(x1)ST4.2x32(x9)	ST4.2x19 (x2) (x1)
(x1) ST4.2x19 (x3)	(x1)

INSTRUCTIONS

Technical line drawing of a mechanical assembly with two symmetrical components connected by a shaft (no text or symbols)

1-48/64" (45 mm) PORTES 100mm x 50mm 100mm x 50mm

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a rotating component mounted on a base plate, labeled (Cliquez), with no readable text or symbols.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

4

ECROU DE REGLAGE

Technical diagram showing assembly of a wall-mounted device with dimensional annotations and component views

Entretien

A/S YH Consulting Limited Bureau 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of four different mechanical components with no visible text or symbols

Technical line drawings of four different mechanical components with no visible text or symbols

Pure technical line drawing of a structural beam or panel (no text or symbols)

HULP NODIG? NEEM CONTACT METONS OP!

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

INBEGREPEN HARDWARE

	(x4) ST5.5x32 (x8)(x1)ST4.2x32(x9)	ST4.2x19 (x2) (x1)
(x1) ST4.2x19 (x3)	(x1)

INSTRUCTIES

SCHUIFDEURBESLAG Past op houten deuren van 35 en 45 mm dik

elk deur max gewicht 150lbs

BEREID HET OPENEN ZORGVULDIG VOOR: ZORG ERVOOR DAT DE HOEKEN HAAKS ZIJN, DE BOVENKANT WATERPAS STAAT EN DE STIJLEN RECHT ZIJN.

Technical line drawing of a mechanical assembly with two symmetrical components connected by a shaft (no text or symbols)

B13/64"(56m) 1-49/64"(45mm) DEUREN B0819.5 + DPOGTE

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a rotating component mounted on a base plate, labeled (Klik), with no readable text or symbols.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

4

→

AFSTELMOER

Technical diagram showing assembly of a wall-mounted device with dimensional annotations and component views

Onderhoud

Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Kantoor 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of four different mechanical components with no visible text or symbols

Technical line drawings of four different mechanical components with no visible text or symbols

Pure technical line drawing of a structural beam or panel (no text or symbols)

BEHÖVER HJÄLP? KONTAKTA OSS!

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

HÅRDVARA INGÅR

(x1) ST5,5x32 (x8)(x4)ST4,2x32(x9)		ST4,2x19 (x2) (x1)
(x1) ST4,2x19 (x3)	(x1)

INSTRUKTIONER

Technical line drawing of a mechanical assembly with two shafts and housing (no text or symbols)

1-49/64" (45 mm) DÖRRAR 3.8"mm(62.5)

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a rotating component mounted on a base plate, labeled (Klick), with no readable text or symbols.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

4

→

JUSTERINGSMUTTER

Technical diagram showing assembly of a wall-mounted device with dimensional annotations and component views

Underhåll

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of four different mechanical components with no visible text or symbols

Technical line drawings of four different mechanical components with no visible text or symbols

Pure technical line drawing of a structural beam or panel (no text or symbols)

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

HARDWARE INCLUIDO

	(x4) ST5.5x32 (x8)(x1)ST4.2x32(x9)	ST4.2x19 (x2) (x1)
(x1) (x1) ST4.2x19 (x3)

INSTRUCCIONES

Technical line drawing of a mechanical assembly with two shafts and housing (no text or symbols)

1-49/64" (45 mm) PUERTAS 367mm/9.5 MUSTUERA/50m

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a roller support mechanism with pulleys and a labeled component (Hacer clic), no readable text or symbols beyond labels.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

4

TUERCA DE AJUSTE

Technical diagram showing assembly of a wall-mounted device with dimensional annotations and component views

Mantenimiento

C/O YH Consulting Limited Oficina 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawings of four different mechanical components with no visible text or symbols

Technical line drawings of four different mechanical components with no visible text or symbols

Pure technical line drawing of a structural beam or panel (no text or symbols)

Illustration of various electrical components including a screwdriver, screwdriver, power tool, and motor (no text or symbols)

HARDWARE INCLUSO

(x1) ST5.5x32 (x8)(x4)ST4.2x32(x9)		ST4.2x19 (x2) (x1)
(x1) ST4.2x19 (x3)	(x1)

ISTRUZIONI

Technical line drawing of a mechanical assembly with two shafts and housing (no text or symbols)

1-49/64" (45 mm) PORTE 3-8 mm(0.5)

Mechanical assembly diagram showing a rotating component mounted on a base plate (no text or symbols visible)

Mechanical assembly diagram showing a rotating component mounted on a base plate, labeled (Clic), with no readable text or symbols.

Pure technical line drawing of a mechanical bracket assembly without any text, numbers, or symbols

4

Technical diagram showing mechanical assembly with dimension annotations and component views

Manutenzione

C/O YH Consulting Limited Ufficio 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
