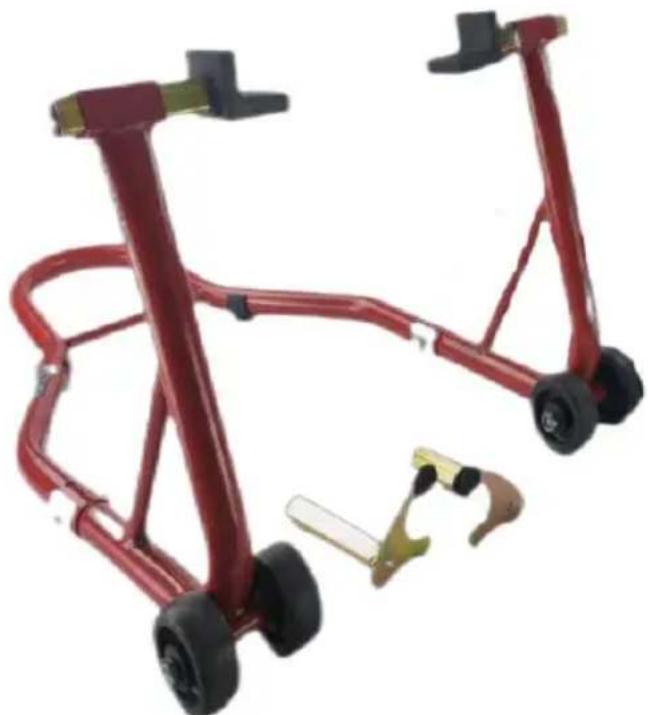

Product Type	Rear wheel stand for motorcycle (dirt, motocross)
Brand	Vevor
Model	TD-003-05R
Maximum load capacity	850 lb (385 kg)
Stand height	13.8 inches (35 cm)
Main material	Heavy-duty steel
Estimated weight	Approximately 12 kg
Number of wheels	4 (with brakes?)
Included adapters	Spool adapters (for swingarm) and fork adapters (for spools)
Main use	Lift the rear wheel of dirt and motocross motorcycles for maintenance
Assembly	Detailed instructions provided; requires wrenches and basic tools
Safety	Read manual before use; do not use under influence; keep out of reach of children
Maintenance	Clean regularly, check tightness of fasteners
Warranty and support	Technical support via www.vevor.com/support; electronic warranty certificate
Spare parts	Available on request from Vevor support
Repairability	Standard hardware; interchangeable parts
Additional feature	Compatibility with dual swingarm and motorcycle spools

Frequently Asked Questions - TD-003-05R Vevor

How to assemble the Vevor TD-003-05R stand?

Follow the steps in the manual: insert the main rear wheel tube into the support tube, secure with M8 screws and fixing plates. Install the wheels with M10 screws, washers and nuts. Then insert the L or U forks according to the chosen adapter type. Use appropriate tools (wrenches) to tighten all fasteners.

What is the maximum load capacity of this stand?

The maximum load capacity is 850 lb (approximately 385 kg), which suits most dirt and motocross motorcycles.

How to use the spool adapters?

Loosen the screws on top of the frame, position the motorcycle so that the rear wheel is centered, adjust the position of the spool adapters to match the width of the dual swingarm, tighten the screws. Lift the stand by the handle, slide it under the swingarm, then press down to lift the wheel. Make sure the adapters are in full contact.

How to use the fork adapters?

Loosen the screws, place the motorcycle centered, adjust the position of the fork adapters to match the motorcycle spools, tighten. Lift the stand by the round handle, place the adapters just under the spools, then press down to lift the rear wheel. Check for good contact.

What tools are needed for assembly?

You will need wrenches suitable for M8 and M10 screws, as well as sockets or adjustable wrenches. The manual recommends using standard tightening tools.

Is this stand suitable for my motorcycle?

The stand is designed for dirt and motocross motorcycles. It works with dual swingarms (spool adapters) or with spools (fork adapters). Check dimension compatibility before use.

How to maintain the Vevor TD-003-05R stand?

Clean parts regularly with a dry cloth. Check tightness of all screws and nuts before each use. Store in a dry place away from moisture.

Where to find spare parts?

Contact Vevor technical support via www.vevor.com/support. Spare parts (screws, nuts, adapters) can be ordered directly from the manufacturer.

Can I use this stand for other types of vehicles?

This stand is specifically designed for dirt and motocross motorcycles. Use on other vehicles (scooters, bicycles) is not recommended for safety reasons.

How to contact Vevor technical support?

Go to www.vevor.com/support for technical assistance or to request an electronic warranty certificate. You can also ask questions via the online form.

USER MANUAL TD-003-05R Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DIRT BIKE STAND

MODEL: TD-003-05R ( RE)

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brand

VEVOR®

DIRT BIKE

STAND

Model: TD-003-05R (RE)

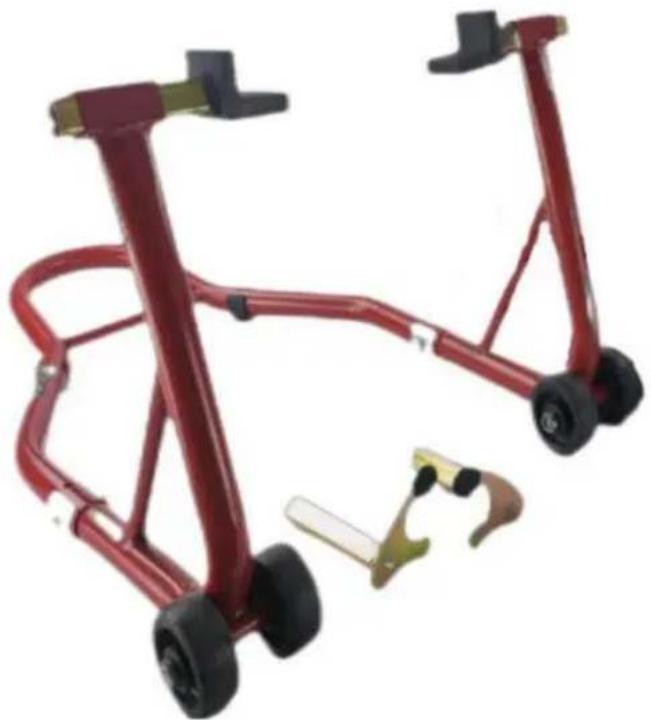

Red bicycle steering wheel with black wheels and metal clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

SAFETY PRECAUTIONS

Warning - To reduce the risk of injury, user must read in manual carefully.

• Read and understand this entire manual before assembling, installir operating, or servicing this product. Failure to follow these warning and instructions can cause death, personal injury or damage to valuable property.
• Adhere to all Department of Transportation (D.O.T.) requirements when using this product.
• Use common sense when working. Stay alert and concentrate when setting up and using this product. Never work while under the inf of alcohol, drugs or medications.
• While assembling and using this product keep work area clean ar well lighted. Keep spectators and children out of the work area.
• Dress appropriately. Never wear loose fitting clothing or jewelry wr working. Contain long hair, and keep hair, clothing and gloves aw from moving parts.
  ● Always keep this stand away from children.
• Check the stand is in good condition before using it.

SPECIFICATIONS

Model Series	TD-003-05R ( RE)
Maximum Load Capacity (lbs)	850
Support height (inch)	13.8

PRODUCT PARAMETERS

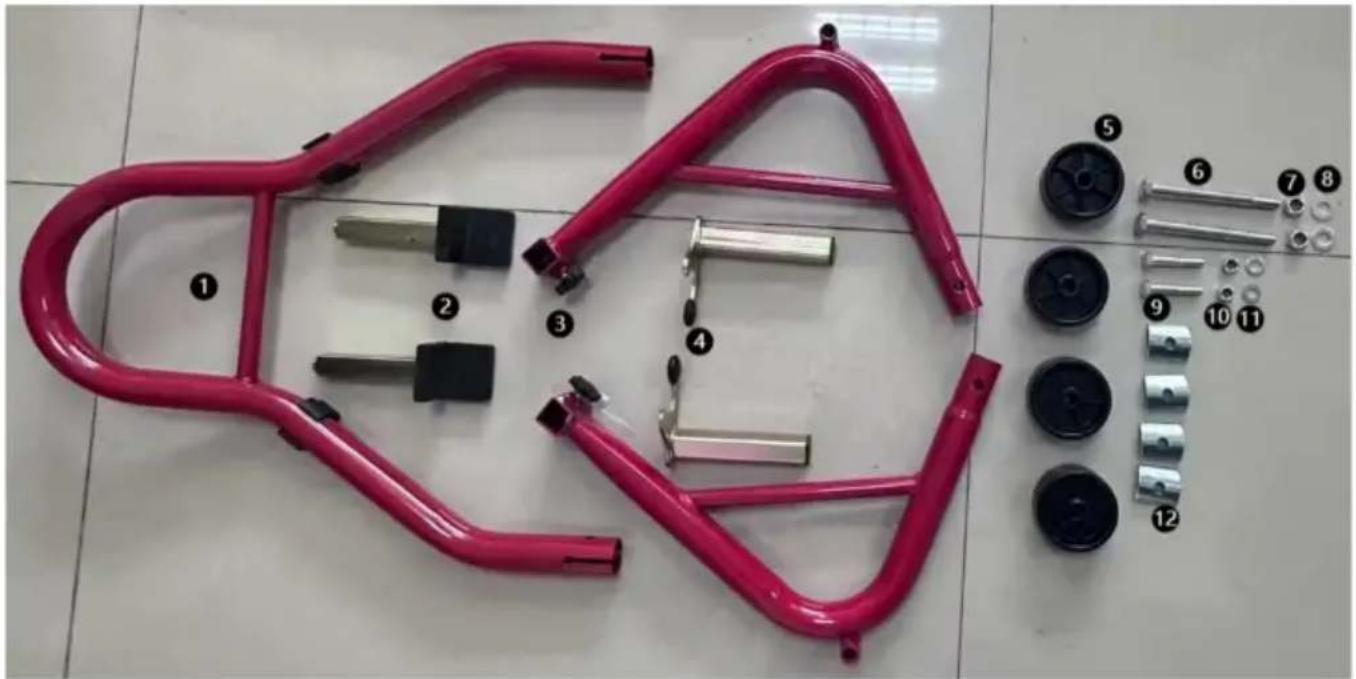

Exploded view of a pink automotive brake system with numbered parts (1–12), no visible text or symbols on the components themselves.

SN	Description	Qty
1	Rear - wheel main tube	1
2	L - shaped fork	2
3	Rear - wheel support tube	2
4	U - shaped fork	2
5	Wheel	4
6	Screw M10×110mm	2
7	Washer d10mm	2
8	M10 nut	4
9	Screw M8×45mm	2
10	Washer d8mm	2
11	M8 nut	2
12	Fixing plate	4

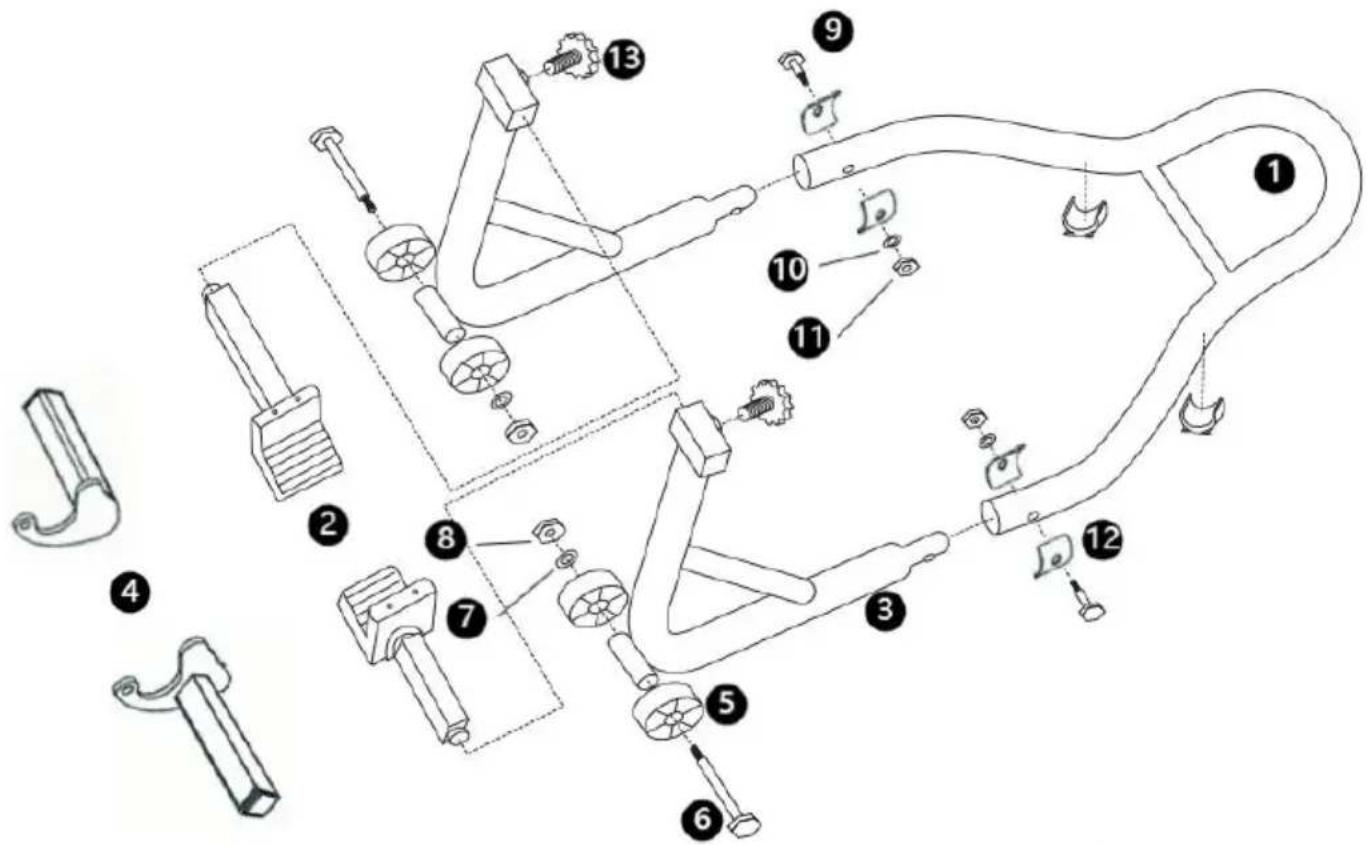

INSTALLATION INSTRUCTIONS

Prepare all the accessories and tools required according to the parts

For the rear wheel bracket:

Step 1: Insert part 1 into 3, and then use screws 9, 12, 10, and 1 tightly with tools.

Step 2: Install parts 5, 6, 7, and 8 onto 3 in sequence, and lock t with tools.

Step 3: Insert part 2 or 4 into 3, and then fix it with part 13.

PRODUCT DESCRIPTION

Assembling Instructions

A. Assemble the wheels on both sides of the frame and then insert frame pieces.

B. Place M8 screws through the holes of clamping pieces and the fr and make sure that the connecting part is covered with clamping

pieces on both sides. Then add washers and use tools to tighten the lock - nuts.

C. Loosen the screws on both sides on the top of the frame with v insert the correct adaptors (paddle adaptors or fork adaptors) which can fit your motorcycle.

Operation Of the Stand With Paddle Adaptors

A. Loosen the screws on the top so that the position of adaptors can be adjusted.
B. Roll the stand and make sure your motorcycle rear wheel is in the middle of the frame.
C. Adjust the position of the paddle adaptors to match the width of motorcycle dual swing arm and then tighten the screw with plastic.
D. Raise the stand with the handle and move the stand to where it under the swing arm, then press down the stand in order to raise motorcycle rear wheel. Make sure the paddle adaptors are snug up against the swing arm.

Operation of the Stand with Fork Adaptors

E. Loosen the screws on the top so that the position of adaptors can be adjusted.
F. Roll the stand and make sure your motorcycle rear wheel is in the middle of the frame.
G. Adjust the position of the fork adaptors to match the width of your motorcycle bobbins on both sides and then tighten the screw with plastic.
H. Raise the stand with the round handle and move the stand to which fork adaptors are right under the bobbins, then press down the start order to raise your motorcycle rear wheel. Make sure the fork adams are snug up against the bobbins.
