TX-SS-04 - Bike accessory Vevor - Free user manual and instructions

Product Type	Rear Bike Basket
Brand	Vevor
Model	TX-SS-04
Maximum Load Capacity	50 lb (approx. 22.7 kg)
Approximate Dimensions	40 x 30 x 25 cm
Approximate Weight	1.5 kg
Power Supply	None (mechanical accessory)
Materials	Steel or alloy (not specified)
Color	Black (typical)
Mounting	On rear rack, screws and zip ties included
Included Accessories	Basket, rain cover, net, key, screws/nuts/washers, wrapping tapes, hex key
Compatibility	Bikes with standard rear rack (not compatible with thick seats)
Main Functions	Transporting goods, groceries, luggage
Maintenance and Cleaning	Wipe with a damp cloth; check and tighten screws every 3 months
Safety	Do not exceed 50 lb; wear gloves during installation; keep children and pets away
Spare Parts and Repairability	Standard screws and nuts; no specific parts indicated
General Information	Technical support and warranty: www.vevor.com/support

Frequently Asked Questions - TX-SS-04 Vevor

How to install the Vevor TX-SS-04 basket on my bike?

Place the basket on the rear rack of your bike. Choose the four appropriate holes among the eight at the bottom of the basket according to the width of your rack. Insert the screws with nuts and washers clockwise and tighten firmly. Reinforce with zip ties for extra security.

What is the maximum weight the basket can support?

The maximum load capacity is 50 lb (approx. 22.7 kg). Do not exceed this limit to avoid any risk of damage or accident.

Is the basket compatible with all bikes?

The basket is designed for bikes with a standard rear rack. It is not compatible with bikes that have thick seats or without suitable mounting points. Check compatibility before purchase.

How to maintain the basket?

Clean the surface with a damp cotton cloth. Every 3 months, check that the screws are not loose and tighten them if necessary. Wear gloves during initial installation to avoid injury.

Is the rain cover waterproof?

Yes, the basket comes with a rain cover to protect its contents from the weather. Make sure it is securely attached for optimal protection.

What tools are included with the basket?

The box contains: a basket, a rain cover, a net, a key, 8 screws/nuts/washers, 2 long mounting pieces, 85 wrapping tapes, and an L-shaped hex key.

Can the basket be mounted on the front of the bike?

No, this model is specifically designed to be installed at the rear, on the rear rack. Front mounting could compromise stability and safety.

What to do if a part is missing?

Contact Vevor customer service via www.vevor.com/support to get the necessary replacement parts. Keep the proof of purchase.

How to use the provided net?

The net attaches over the basket to keep items in place, especially if the contents exceed the edges. Secure it tightly to the corners or intended rings.

Is there a warranty on this product?

Yes, Vevor offers an electronic warranty. For any claims, visit www.vevor.com/support with your warranty certificate and proof of purchase.

USER MANUAL TX-SS-04 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

Car Basket

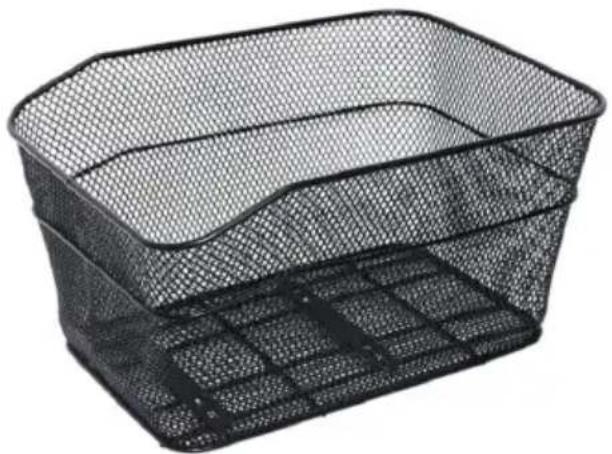

MODEL: TX-SS-04

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: TX-SS-04

Black mesh basket with grid pattern, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product It is the Owner's responsibility to ensure that all users of this product are fully aware of all warnings and precautions.

Please read all instructions before using this product.

1. Keep children and pets away from the product while using it. Chil should not use it. The product. No adult supervision.
2. Please check the installation and product size on the reading page make sure your car fits.
3. Do not place items that exceed the maximum load bearing capacit
4. Fasten the screw periodically. Wear gloves when installing the scre the first time.

Note: The maximum load of the basket cannot exceed 50lbs

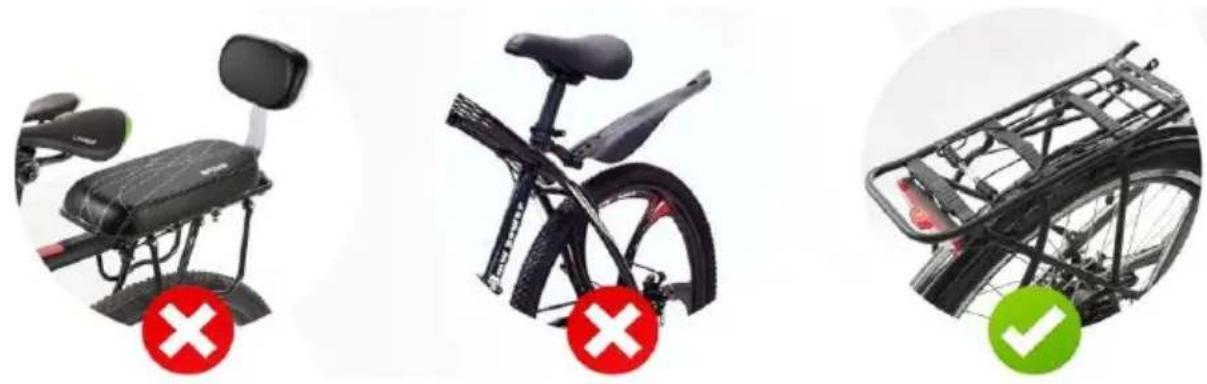

PLEASE CHECKCOMPATIBILITYBEFORE PURCHASE

our bike basket is not compatible with bicycles that have thick seats mounting points

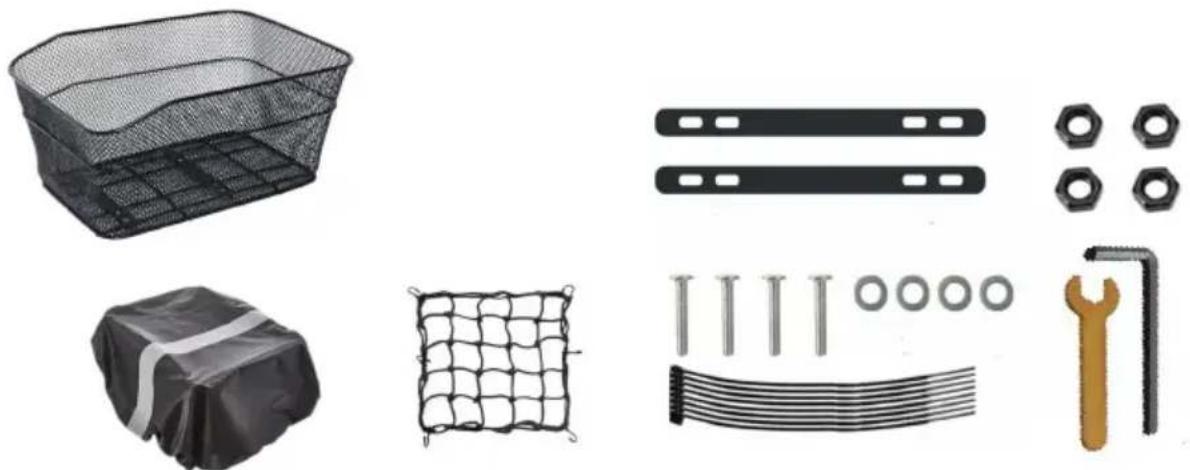

Part List

1. Basket*1 2. Net *1
2. Rain cover *1 4. Install long piece *2
3. Screws, nuts, gaskets * 4 each 6. Rolling tape *8
4. Wrench *1 8. L-shaped hexagonal key *1

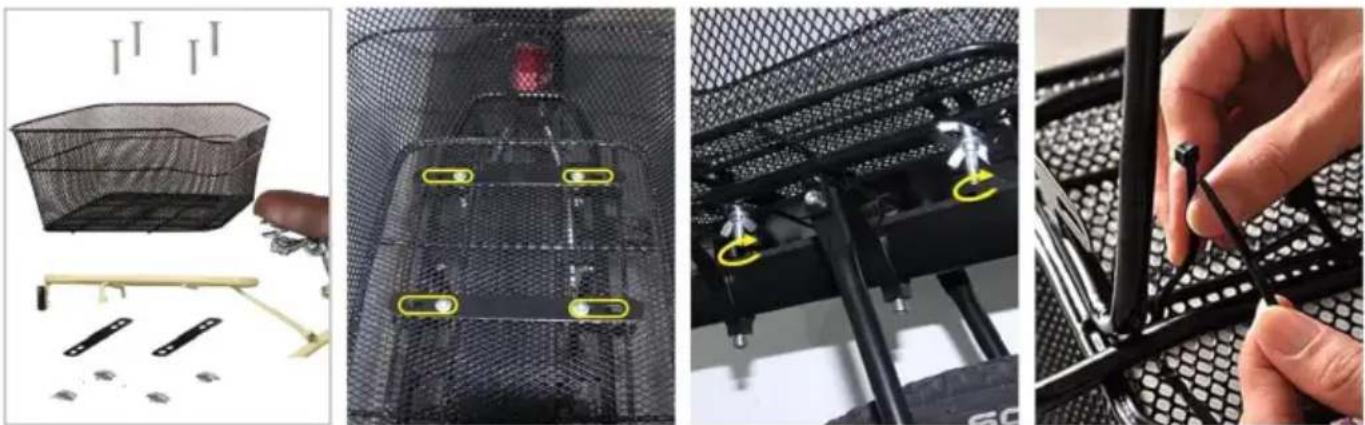

assembly

1. Put the basket on the rear rack of your bike, then use the mour hardware in this order.
   2.There are 8 holes in the bottom of basket, choose the right four h according to the width of your rear rack.
2. Clockwise twist. Screw the thread tight.
3. Finally, reinforced again with cable zip ties.

Cleaning and disinfection

1. Wipe the surface with a wet cotton cloth.
2. Check the screws regularly every 3 months for loosening and tight the screws

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black mesh basket with grid pattern, no text or symbols visible

BESOIN D'AIDE? CONTACTEZ-NOUS!

Liste des pièces

Illustration of a mesh basket with internal compartments (no text or symbols)

Black fabric wrapped in white strips, no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

Autokorb

MODELL: TX-SS-04

Black mesh basket with grid pattern, no text or symbols visible

Stückliste

Illustration of a mesh basket with internal compartments (no text or symbols)

Black wrapped object with white band, no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black mesh basket with grid pattern, no text or symbols visible

Elenco delle parti

Illustration of a mesh basket with internal compartments (no text or symbols)

Black fabric wrapped in white strips, no visible text or symbols

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black mesh basket with grid pattern, no text or symbols visible

Lista de piezas

Illustration of a mesh basket with no text or symbols

Black fabric wrapped in white strips, no visible text or symbols

Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

Black mesh basket with grid pattern, no text or symbols visible

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Lista części

Illustration of a mesh basket with internal compartments (no text or symbols)

Black fabric wrapped in white strips, no visible text or symbols

Pure electrical circuit lines without any symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

Black mesh basket with grid pattern, no text or symbols visible

HULP NODIG? NEEM CONTACT MET ONS OP!

Onderdelenlijst

Illustration of a mesh basket with internal compartments (no text or symbols)

Black fabric wrapped in a white band, no visible text or symbols

1. Mandje*1
2. Regenhoes *1
3. Schroeven, moeren, pakkingeA elk 6. Rolband *8

4. Moersleutel *1

5. Netto *1

6. Installeer lang stuk *2
7. L-vormige zeskantsleutel *1

montage

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black mesh basket with grid pattern, no text or symbols visible

BEHÖVER HJÄLP? KONTAKTA OSS!

Dellista

Illustration of a mesh basket with a handle and grid pattern (no text or symbols)

Black wrapped object with white band, no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support
