Splošna opozorila

When using the vacuum cleaner always observe the following basic safety precautions: Carefully read this instruction manual and only use the appliance in accordance with the instructions herein. Before using the appliance for the first time, remove all protective film or plastics. // Never leave the appliance unattended during use. // Before using the appliance, carefully assemble all of its parts. // Only use the appliance indoors and in dry areas. // Only use the appliance with the parts recommended by the manufacturer. // Do not use the appliance if it has been dropped, if it is damaged, if it has been kept outdoors, or if it has been dropped or immersed in a liquid. // Regular cleaning can extend the appliance's useful life. // Make sure your hair, loose parts of your garments, fingers or other parts of the body do not come into contact with the vents or moving parts of the appliance. // The appliance complies with all required standards regarding electricity, and radio interference regulations. // The appliance is not intended to be used by children and persons with impaired physical or mental abilities. This appliance may be used by children aged 8 years and more, and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they are supervised during the use of the appliance or if they have been provided relevant instructions regarding the use of the appliance in a safe way, and they understand the hazards involved. Keep children under supervision while they are using the appliance and make sure they do not play with it. // Children should not perform any cleaning or maintenance tasks on the appliance, unless they are older than 8 years, and they do so under supervision. // Switch off the appliance after use.

Danger

Do not immerse the main unit/appliance housing or the charging base in water or any other liquid and do not rinse them under running water.

Special warnings

Before connecting the appliance or the charging base with the power cord to the power mains, make sure the indicated voltage matches the voltage of the power mains in your home. // Do not used a damaged vacuum cleaner or a damaged charging base (or adapter – depending on your vacuum cleaner model). // If the charging base (or adapter) is damaged, replace it only with an original spare part in order to avoid danger. // A transformer is integrated into the adapter. Removal and replacement of adapter with another one are not allowed as this may lead to a dangerous situation. // Only charge the vacuum cleaner with the supplied adapter and charging base. The adapter may heat up during charging. This is a normal occurrence. (Depending on your model, if it has an adapter.) // Switch off the appliance during charging. // Never use the vacuum cleaner without filters or filtering unit in place. // The exhaust vents may not be blocked during vacuum cleaning. // Only use the appliance for household purposes and indoors. // Keep the suction vents clean and free in order to ensure optimum and unimpeded suction power of the appliance. It is highly recommended to regularly clean the open parts of the suction hose, and to remove dust, hair, or anything else that may block the airflow. // Before cleaning the support or the charging base, unplug it from the power socket. // Never use the vacuum cleaner to clean up embers or filings, cigarette butts, matches, liquids (e.g. water, carpet cleaning foam), or sharp or pointed objects (broken glass

etc.). // Keep the suction tube or the open part of the appliance away from your face and body. // Never use the appliance to vacuum construction material (such as fine sand, lime, cement powder, toner dust etc.). This can cause damage to the appliance.

Problems and solution

Problem	Possible reason	Solution
Not working.	The battery is dead.The handy VC is not assembled correctly.	Charge.Assemble the handy VC correctly.
Suction power has decreased.	The dust cup is full.Block in filter.Block in the air inlet tunnel or on the roller of electrical brush.	Pour out the dust.Clean or change filter.Clean the electrical brush.
The VC is not charging.	The charger is not connected on socket.The connector of charger is not connected to the hole of base body.The handy VC is not assembled to the body.	Connect the charger on socket.Connect the charger with base body of VC.Assemble the handy VC on body.
Use very short time after charging.	Not enough charging time.The battery is aging.	Charge according to instruction.Change the battery.

Environment

not throw away the appliance with the normal household waste at the end of its life. Hand it in at an official collection point for recycling. By doing this, you help to preserve the environment.

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). This guideline is the frame of a European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

Guarantee & service

If you need information or if you have a problem, please contact the Hisense Customer Care Centre in your country (the phone number is in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, go to your local Hisense dealer or contact the Service department of Hisense domestic appliances.

Note: The warranty on the battery of vacuum cleaner is 12 months.

For personal use only!

For easier transport, some appliance parts are packed separately and safely placed in the main packaging unit. // Before first use, read and follow the instructions for assembly and safe use. // The appliance is intended for dry vacuuming in a domestic environment for domestic use.

PARTS

1 Housing with the motor, battery and dust container
2 Suction hose
3 Motorised floor brush
4 Nozzle with bristles
5 Longer narrow nozzle
6 Wall bracket
7 Adapter

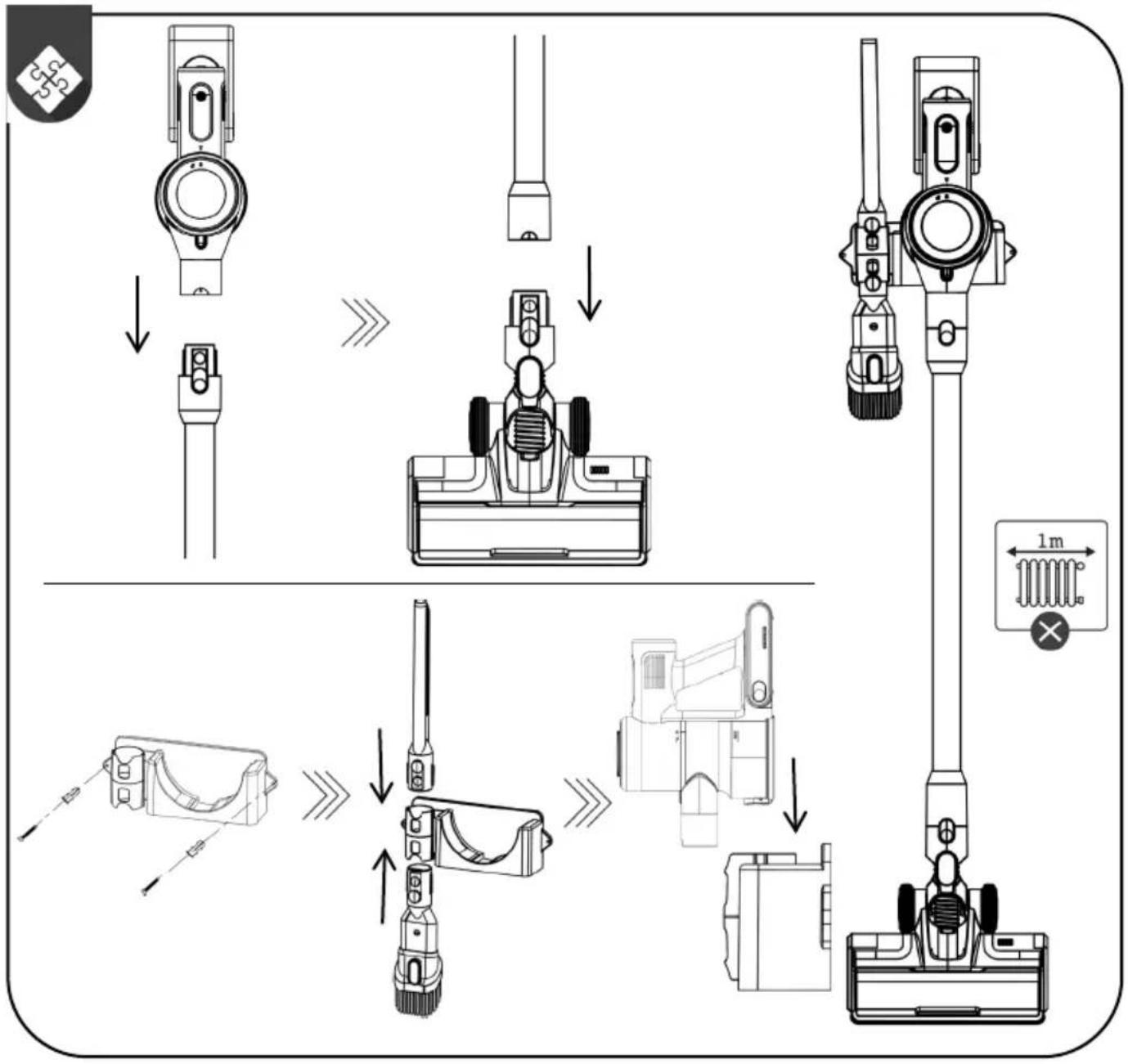

ASSEMBLY

If the battery is not yet installed in the housing, insert it carefully, following the pictorial instructions. // Connect the upper part of the hose to the motor unit and the lower part to the floor brush. The installation is correct when the appliance is inserted fully into the slots (you hear a slight click, no matter which setting you are using).

A wall bracket is also included to store the vacuum cleaner and attachments. // Follow the attached pictorial instructions for mounting the wall bracket. // Keep the wall bracket at least 1 metre away from any heat sources. // Attachments can be stored on the lower part of the wall bracket. // The bracket allows you to safely store the vacuum cleaner, so it is ready for use at any time. // Due to its shape, the appliance is not self-standing.

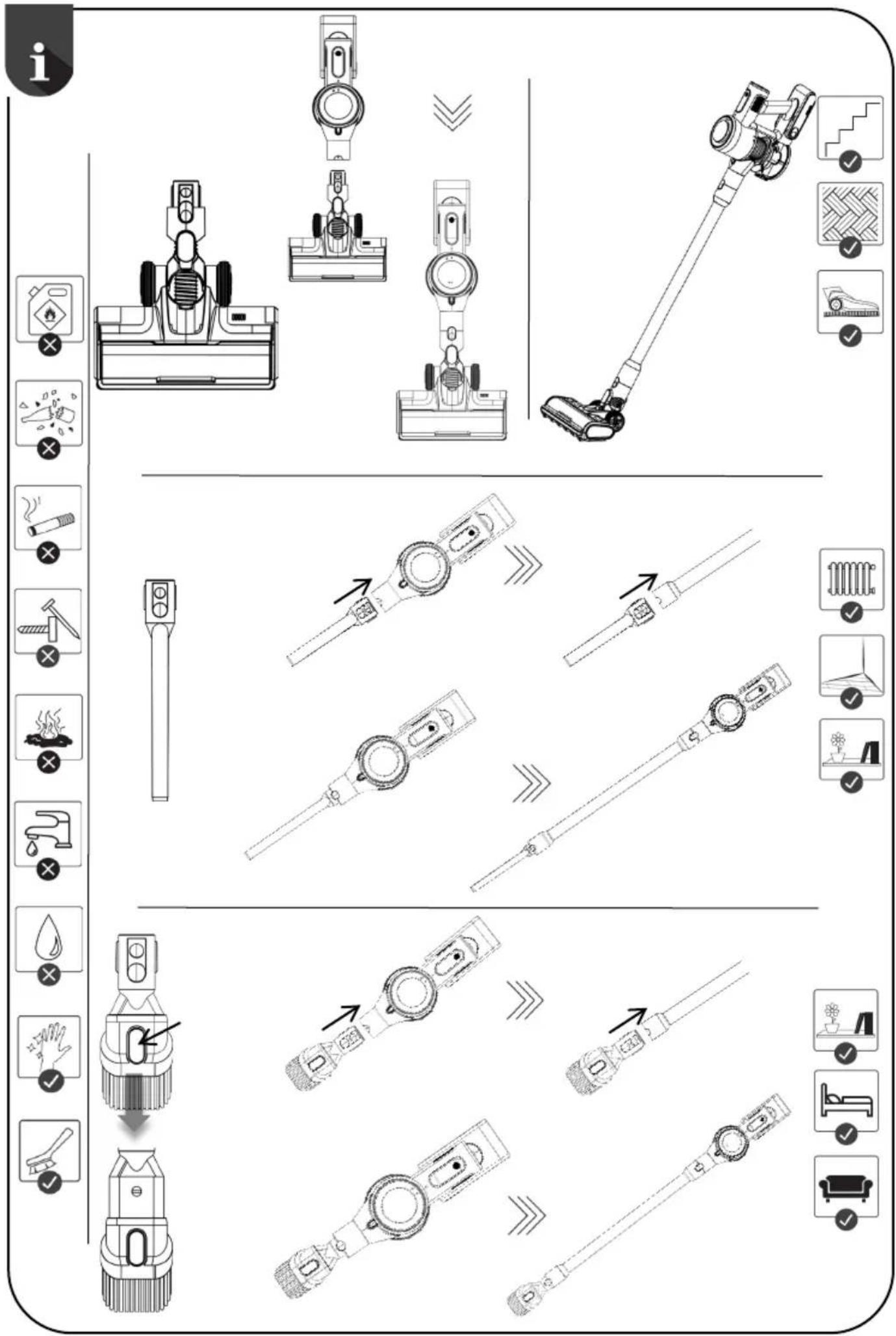

USAGE

The vacuum cleaner is not intended for liquids, glass, cigarette butts, or burning or sharp objects, any of which may cause damage to the appliance.

Brushes and attachments fit both the hose and the motor unit. // By pressing the button on the brushes and attachments, you can freely switch between them. They are intended for various uses. They are attached correctly when you hear a short click.

• The floor brush is used for vacuuming all (dry) floor surfaces. Do not try to vacuum carpets with a high pile as the fibres may become entangled in the roller brushes and damage the vacuum cleaner.
• The narrow nozzle is intended for vacuuming narrower and more difficult-to-reach parts (corners, armchairs, cobwebs, space behind the radiator ...).
  – Nozzle with bristles (suitable for frames, drawers, etc.).
• The wall bracket is used for storing the vacuum cleaner. // There is a small opening at the back of the motor unit where you attach it to the wall bracket. // Ensure the wall bracket is positioned at least 1 metre away from any heat sources.

OPERATION

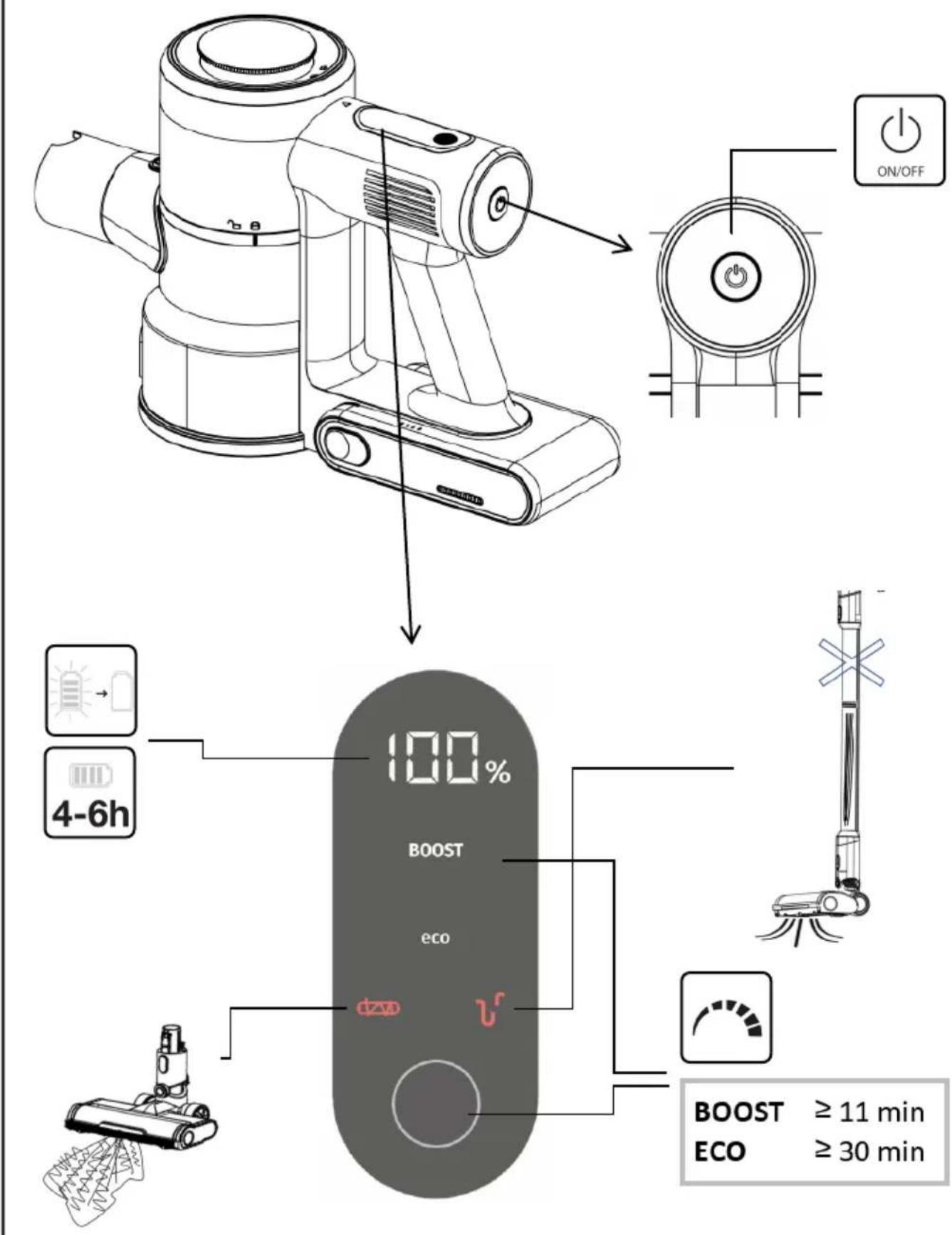

There is an on/off button on the handle of the handheld unit.

The display shows various functions:

• The appliance has a digital battery charge display. It digitally displays the battery charge during use or charging.
• The crossed-out roller icon appears if an object gets stuck in the brush. // When this icon lights up, the vacuum cleaner turns off to prevent damage to the appliance. // In this case, the object in the brush must be removed. // After removing the object, the light will no longer be illuminated when the appliance is switched back on again.
• Icon on the display showing that the dust container is full (whether your appliance has this function depends on whether you chose this at the time of purchase. The quick-start guide will show whether or not your appliance has this function). The dust container full icon lights up when the vacuum cleaner no longer detects air flow. When this icon lights up, the vacuum cleaner turns off to prevent damage to the appliance. Remove the object in the hose, brush or in the dust container. // After removing the object, the light will no longer be illuminated when the appliance is switched back or again.
• When selecting the speed, the display shows the remaining vacuuming time before the battery will run out. // The vacuum cleaner has two speeds: ECO (battery saving, maximum running time on a single charge), and BOOST (short running time on a single charge, maximum suction power)

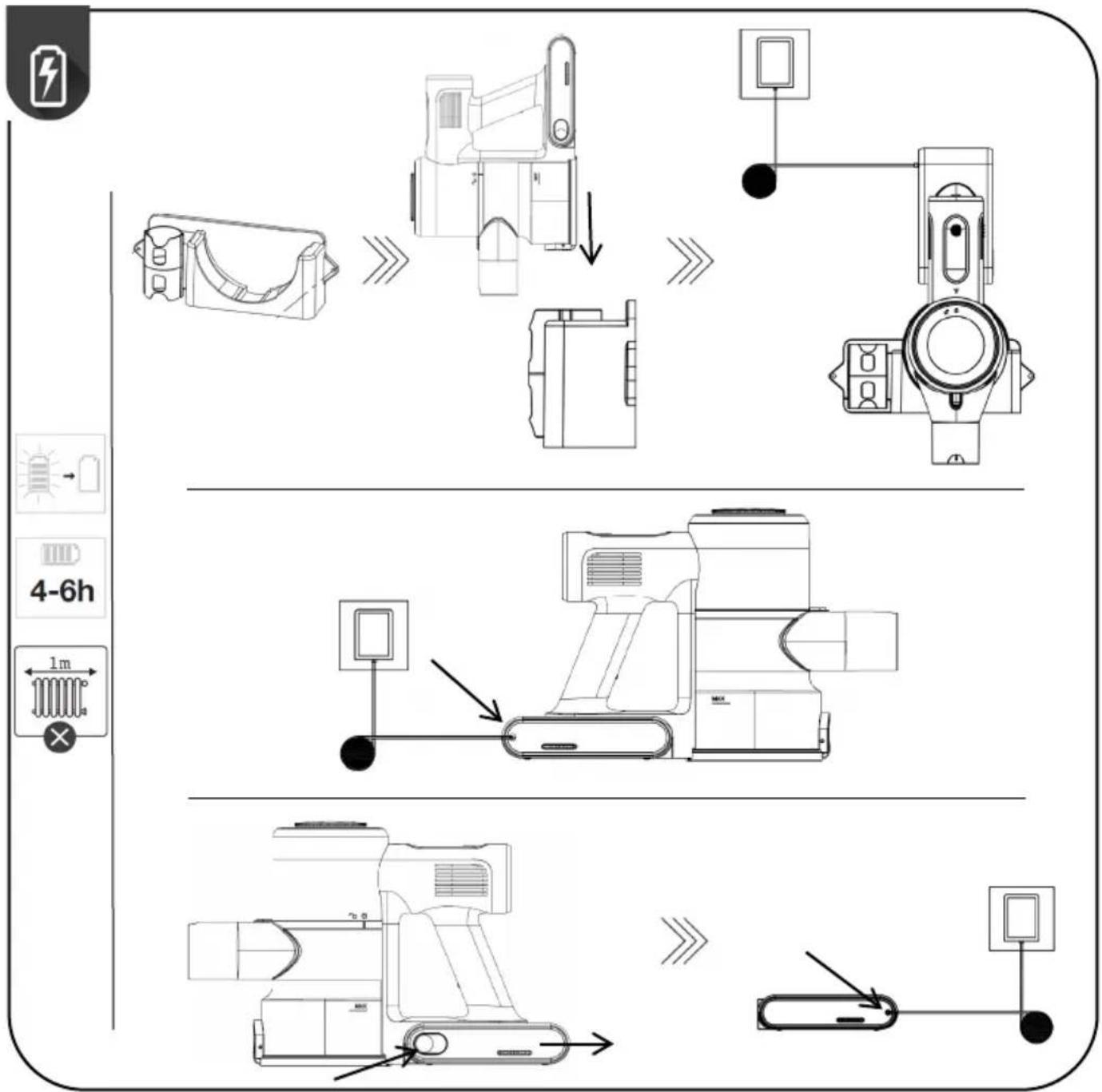

CHARGING

Charge the vacuum cleaner at least 1 metre away from any heat sources. // The appliance cannot be switched on while charging.

The adapter for the vacuum cleaner charging cable is included in the pack. // Insert the charging adapter into the battery compartment. // The battery can be charged either on the wall bracket or separately from the motor unit. // Remove the battery by pressing the button and pulling it out of the slots. // When charging separately, care must be taken to charge the battery at least 1 metre away from any heat sources. // To correctly place the battery back on the motor unit, it must be correctly aligned with the slots (check both sides). When installed correctly, you will hear a slight click.

During charging, the battery percentage level will appear on the display.

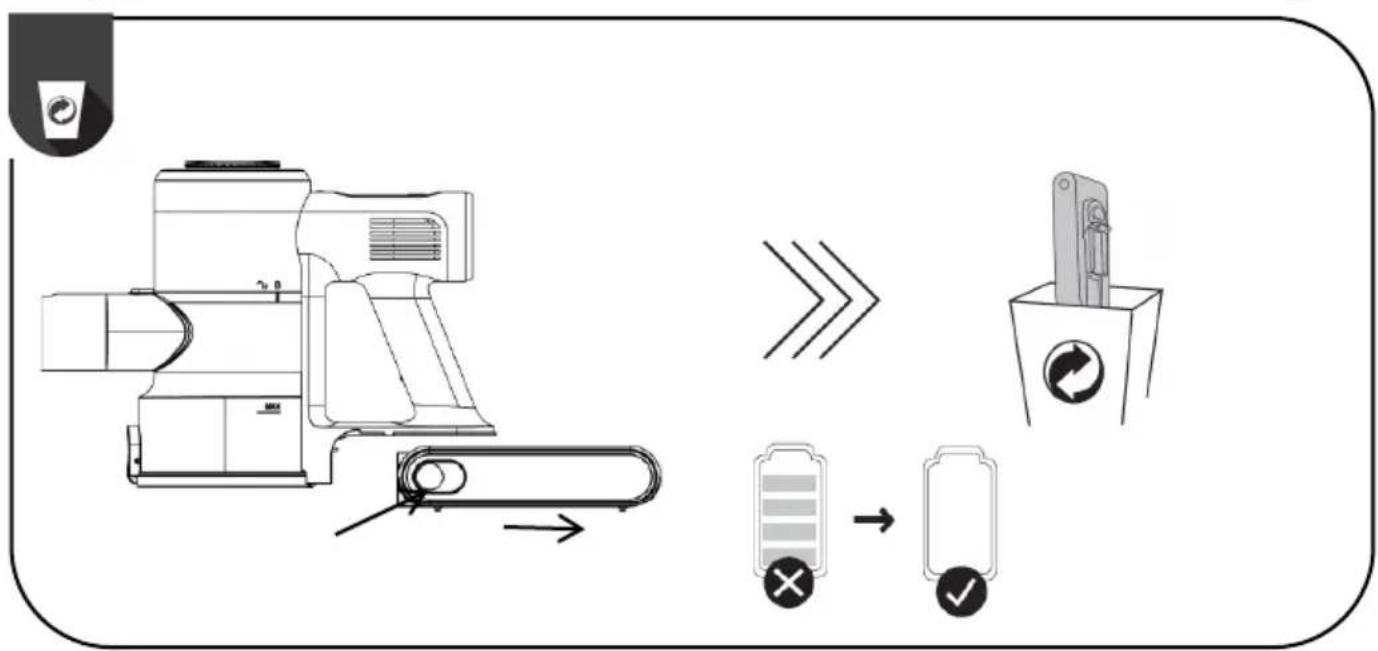

DISPOSAL OF THE APPLIANCE

If you want to replace the appliance or you no longer need it, you should also think about protecting the environment. The battery must be removed before disposing of the vacuum cleaner. // To safely remove the battery, make sure that the battery has completely discharged. If the appliance does not have a removable battery, please follow the instructions in the booklet. // Follow the pictorial instructions to properly dispose of the battery.

DUST CONTAINER AND FILTERS

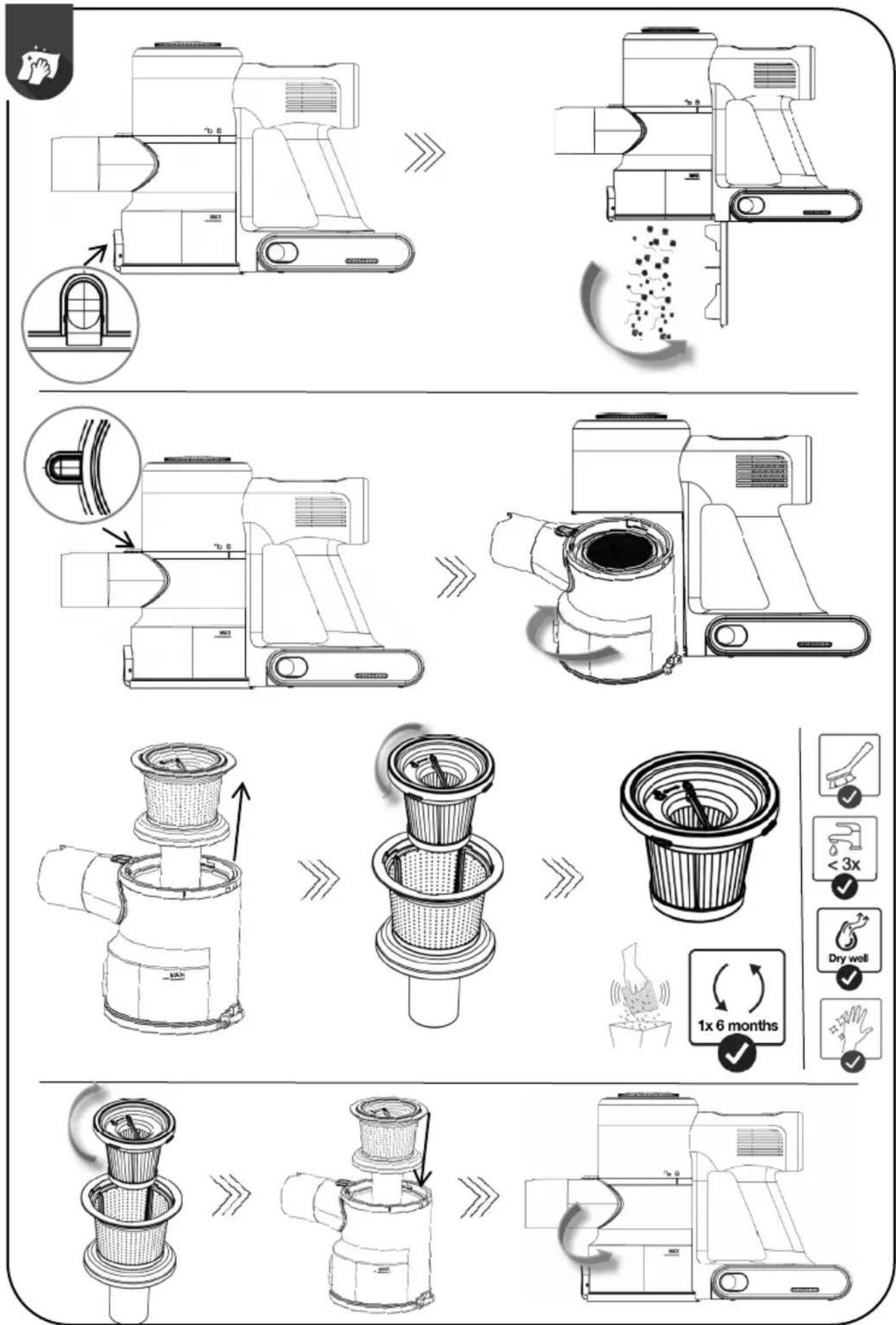

1 Dust container and filters

Emptying the dust container

Press the button on the front of the dust container. // The dust container opens and can be cleaned. // Be careful only to open this part above a waste bin.

Removing the dust container from the motor unit

Remove the hose from the motor unit. // To remove the dust container, press the button located on the top of the dust container, ie. just above the part where the vacuum cleaner hose connects to the motor unit. // There is a symbol at the side between the container and the motor unit indicating how to unlock and lock the dust container. // Turn the dust container and remove it from the motor unit. // Remove the filter housing from the dust container. // To remove the filter, observe the unlock and lock icons. // Shake and gently brush the filter to remove any dirt that has accumulated on it during vacuuming. // Rinse the filter no more than three times and gently squeeze it. // Allow it to dry thoroughly before reuse (at least 24 hours).

You can also wash the dust container and the filter housing. // Before reuse they must be completely dry (allow to dry for at least 24 hours). // Be careful not to soak the front part of the dust container where the hose is connected to avoid damaging the connection.

2 Replacing the external filter

There is an external filter on the upper part of the motor unit. // For safe removal, observe the unlock and lock icons. // Remove the filter lid and turn the vacuum cleaner upside down. // The filter will fall out of the vacuum cleaner. // Shake and gently brush the filter to remove any dirt that has accumulated on it during vacuuming. // Rinse the filter no more than three times and gently squeeze it. // Allow it to dry thoroughly before reuse (at least 24 hours).

3 Replacing the filter

If you notice that the filter is damaged, replace it immediately. With regular use, we recommend replacing the filter every 6 months to ensure the longest life of the vacuum cleaner.

FLOOR BRUSH

There is a button on the bottom of the brush to remove the roller. Pull the pin out and, on the same side, pull the roller out from the slot. // The roller itself is designed so that when vacuuming, hair and other debris rotates towards the centre of the brush. This way it is less likely to damage the roller itself. // Because most of the hair collects in the middle of the roller, it will be easier to clean. // Wipe the underside of the housing with a cloth. // Clean the suction hose of the brush. // Shake the roller on the brush and carefully cut off any dirt and hair that has accumulated in the designated slot on the brush with scissors. // Do not pull at the hair, so as not to damage the bristles on the roller. // // Reinsert the roller into the brush. // The roller is correctly positioned when a slight click is heard and the side pin is securely attached to the brush housing.

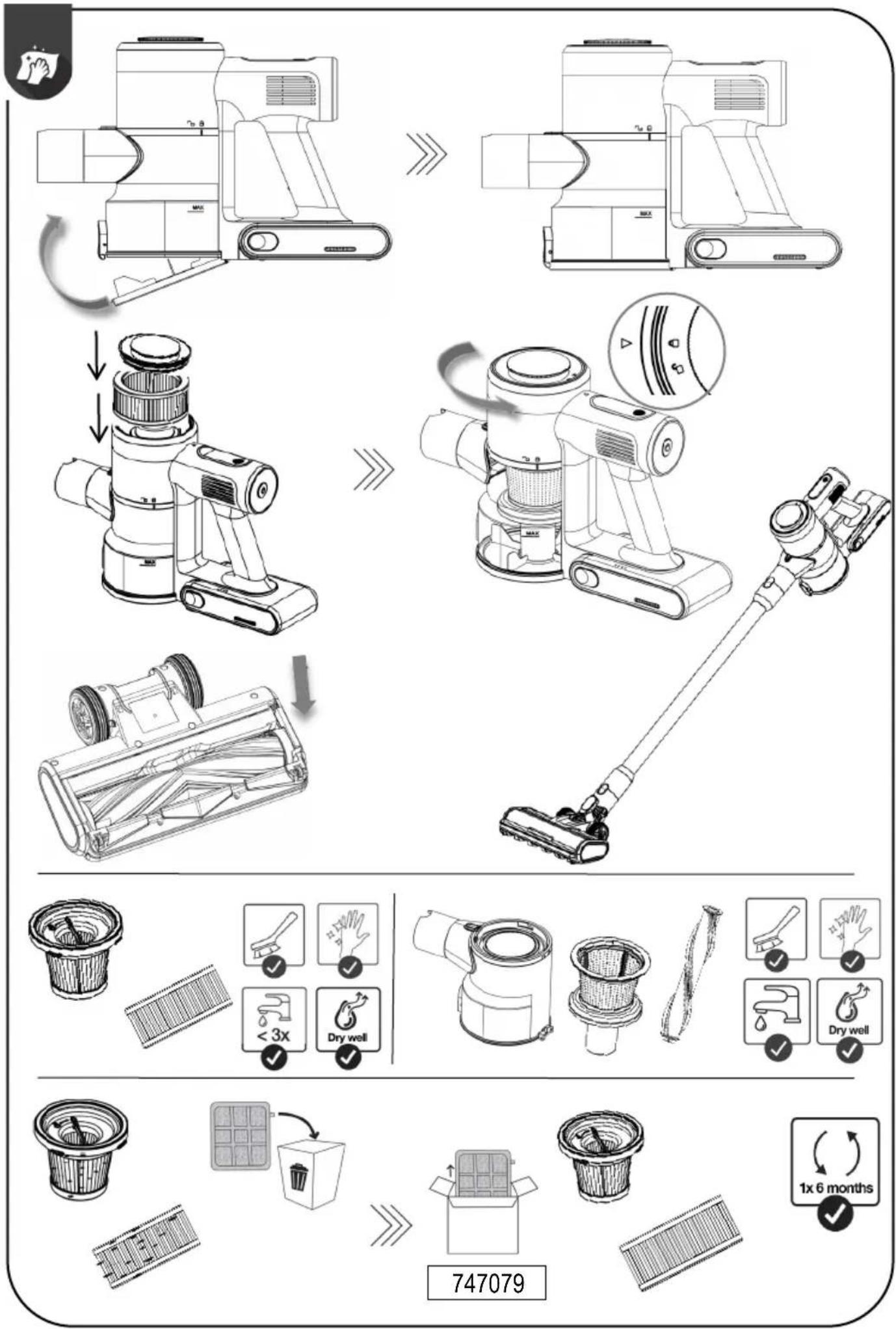

ASSEMBLY FOR REUSE

Insert the cleaned roller back into the brush. Push the part with the narrow end into the opening and insert the part with the "handle" back into the original part of the brush. The roller is correctly positioned when a slight click is heard.

Before reassembling the dust container, check that all components are completely dry. Damp parts may cause a malfunction in the vacuum cleaner. // Insert the filter correctly into the filter housing and observe the icons to ensure proper fastening. // It is set correctly when it clicks into place. // If the filter housing is correctly installed, the lower part of the dust container will close easily, such that it will not require force. // If you try to force it closed, you could damage the bottom of the dust container. // Reinstall the filter on the upper part of the motor unit correctly. // The filter is correctly positioned when all the lock arrows are lined up.

Place the dust container correctly back onto the motor unit. Observe the locking arrows. // A gentle click will be heard when it is in the correct position. // If this is not successful, repeat the process.

REPLACING THE FILTER

To prolong the life of your appliance, it is recommended to clean the filter regularly after each use, and to change it every 6 months of regular use.

ERROR CODES

In case of an error, the error symbol appears on the display.

Fault code	Fault display code Possible cause	Solution
E0	The dust container is full and is blocking the air flow	Empty the dust container or remove objects from the inlet or hose.
E1	The floor brush cannot run properly due to debris stuck in the roller	Remove the debris stuck in the roller brush and restart the motor unit.
E2	Short motor test	Please contact our after-sales service centre for repair.
E3	Brush short circuit	Please contact our after-sales service centre for repair.
E4	Main motor overcurrent	Please contact our after-sales service centre for repair.
E5	The battery discharge temperature is too high. Procedure	Wait until the battery temperature returns to normal.
E6	Cell damage NTC detection failure	Please contact our after-sales service centre for repair.
EE	The charger voltage does not conform to the original configuration	Replace the original charger.
EF	Overcurrent detection during charging, possibly caused by overdischarge of battery	Please contact our after-sales service centre for repair.
If the above issues persist, they must be addressed.		Please contact our after-sales service centre for repair.
