USER MANUAL PKO 248 A1 PARKSIDE

natural_image Exterior view of a black outdoor air compressor unit (no signage or text visible on body)

PARKSIDE PKO 248 A1 - 1

text_image PDF ONLINE parkside-diy.com

COMPRESSOR PKO 248 A1 KOMPRESSOR PKO 248 A1 COMPRESSEUR PKO 248 A1

GB IE NI CY MT DE

COMPRESSOR

Operating and Safety Instructions.

Translation of Original Operating Manual.

FR BE CH NL

COMPRESSEUR

Before reading, unfold the page with the illustrations and then familiarise yourself with all the functions of the product.

DE AT CH

text_image Technical diagram of a portable electric pump with numbered components labeled 5, 9, 10, and 11.

PARKSIDE PKO 248 A1 - COMPRESSEUR - 1

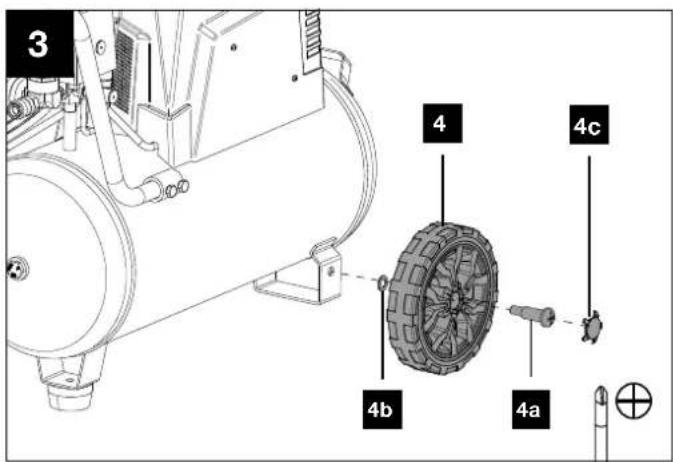

text_image 3 4 4c 4b 4a

4
PARKSIDE PKO 248 A1 - COMPRESSEUR - 2

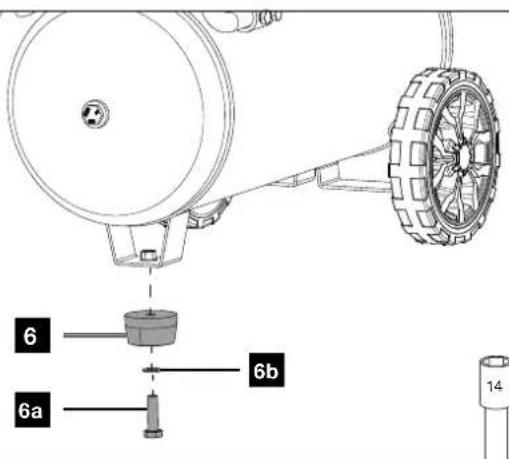

text_image 6 6a 6b 14

PARKSIDE PKO 248 A1 - COMPRESSEUR - 3

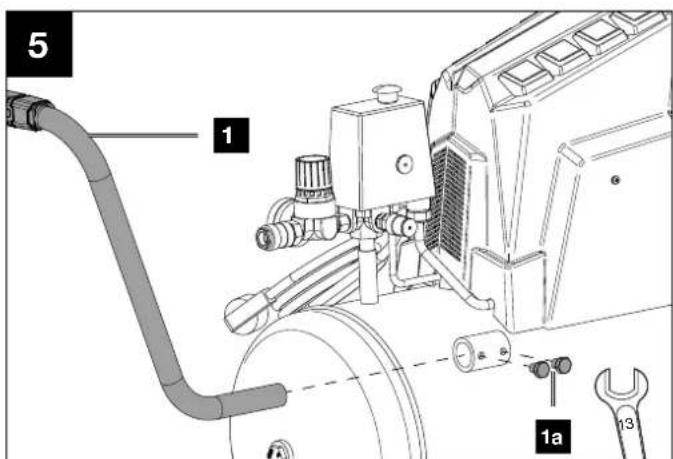

text_image 5 1 1a 13

PARKSIDE PKO 248 A1 - COMPRESSEUR - 4

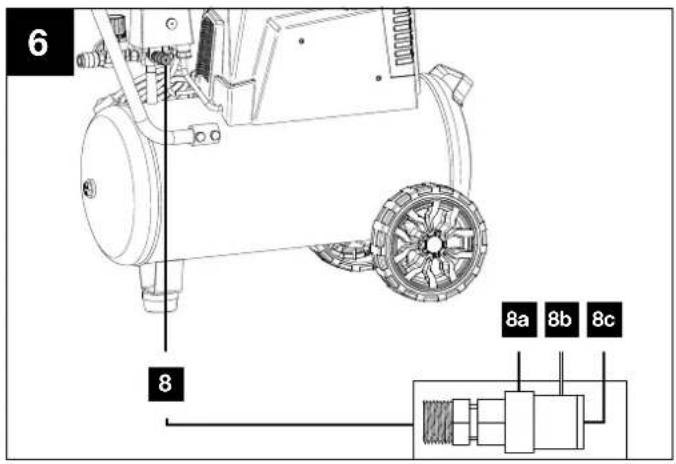

text_image 6 8 8a 8b 8c

PARKSIDE PKO 248 A1 - COMPRESSEUR - 5

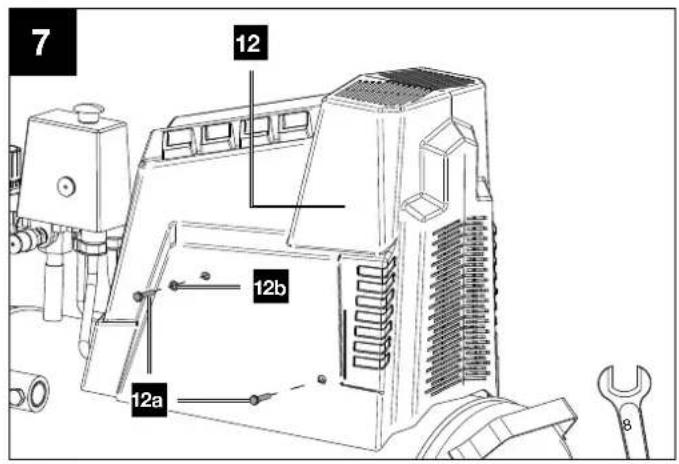

text_image 7 12 12b 12a 8

PARKSIDE PKO 248 A1 - COMPRESSEUR - 6

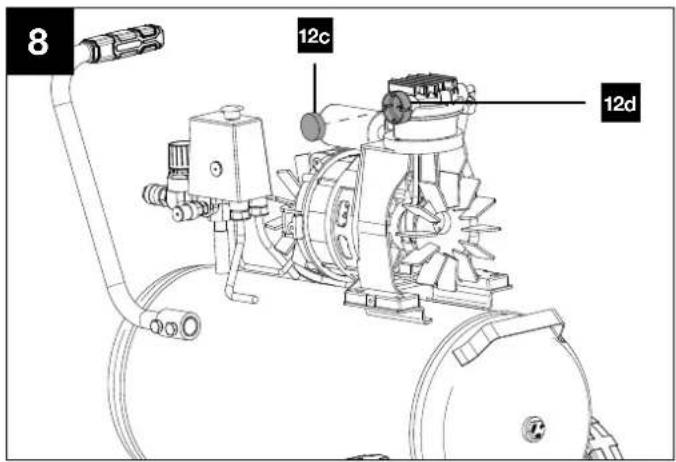

text_image 8 12c 12d

Table of contents: Page:

  1. Explanation of the symbols on the device ....2
  2. Introduction....3
  3. Device description (Fig. 1 - 8) ....3
  4. Scope of delivery....3
  5. Proper use....3
  6. Safety instructions....4
  7. Technical data....6
  8. Before commissioning....6
  9. Assembly and operation....7
  10. Electrical connection....7
  11. Cleaning, maintenance and storage....8
  12. Transport 9
  13. Disposal and recycling....9
  14. Troubleshooting....10
  15. Warranty certificate .... 11
  16. Exploded view....122
  17. Declaration of conformity....124

1. Explanation of the symbols on the device

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 1

Before commissioning, read and observe the operating manual and safety instructions!

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 2

Wear hearing protection. Excessive noise can result in a loss of hearing.

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 3

Warning against hot parts!

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 4

Warning against electrical voltage.

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 5

Warning! The equipment is remote-controlled and may start-up without warning.

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 6

Do not expose the machine to rain. The device may only be stationed, stored and operated in dry ambient conditions.

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 7

Specification of the guaranteed sound power level in dB.

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 8

On/off switch.

PARKSIDE PKO 248 A1 - Explanation of the symbols on the device - 9

Pressure regulator.

2. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

  • Improper handling,
    • Non-compliance with the operating manual,
    • Repairs carried out by third parties, unauthorised specialists,
  • Installing and replacing non-original spare parts,
  • Application other than specified,
  • Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you familiarise yourself with your power tool and teach you how to use it for its intended purpose.

The operating manual include important instructions for the safe, proper and economic operation of the power tool, for avoiding danger, for minimising repair costs and downtimes and for increasing the reliability and extending the service life of the power tool.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the power tool in your country.

Keep the operating manual package with the power tool at all times and store it in a plastic cover to protect it from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work. The power tool may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

3. Device description (Fig. 1 - 8)

  1. Transport handle
    1a. M8x10 screws
  2. Pressure switch
  3. On/off switch
  4. Wheel
    4a. Fillister head screw

4b. Washer
4c. Wheel cap
5. Drain screw for condensate
6. Foot
6a. Screw
6b. Washer
7. Pressure vessel
8. Safety valve
8a. Drain nut
8b. Safety connection
8c. Drain nut cap
9. Pressure regulator
10. Quick coupling (regulated compressed air)
11. Pressure gauge (set pressure can be read off)
12. Motor housing
12a. Screws for motor housing
12b. Washers
12c. Filter element
12d. Air filter housing
13. Compressed air hose (not included in the scope of delivery)
13a. Plug nipple
13b. Quick coupling

4. Scope of delivery

1x Transport handle
2x M8x10 screws
1x feet
2x wheels
2x wheel caps
2x Fillister head screw
3x washers
1x operating manual

5. Proper use

The compressor is designed to generate compressed air for compressed-air driven tools which can be driven with an air volume of up to approx. 180 l/min (e.g. tire inflator, blow-out pistol and paint spray gun). Due to the limited air output it is not possible to use the compressor to drive tools with very high air consumption (for example orbital sanders, die grinders and hammer screwdrivers).

The compressor may only be operated in a dry and well ventilated indoor space.

The machine may only be used in the intended manner. Any use beyond this is improper. The user/operator, not the manufacturer, is responsible for damages or injuries of any type resulting from this.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

6. Safety instructions

General power tool safety warnings

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a. Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not use the cable for another purpose, for example, carrying or hanging the power tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or coiled cables increase the risk of an electric shock.
e. If you work with an electric tool outdoors, only use extension cables that are also suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock. Only use approved and appropriately identified extension cables for use outdoors. Only use cable reels in the unrolled state.
f. If operating a power tool in a damp location is unavoidable, use a residual current circuit breaker with a trigger current of 30 mA or less to protect the power supply. Use of an RCD reduces the risk of electric shock.

Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.

b. Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Carrying electric tools with your finger on the switch or connecting power tools to the power supply when they are already switched on invites accidents.
d. Remove any adjusting tools or spanners/keys before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.
e. Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. When working outdoors, rubber gloves and anti-slip footwear is recommended. Tie long hair back in a hair net.
g. If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Use of dust extraction can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

a. Do not overload the device. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.
These precautionary measures will prevent the electric tool from starting unintentionally.
d. Store idle power tools out of the reach of children. do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. Unused electric tools should be stored in a dry, elevated or closed location out of the reach of children.
e. Maintain power tools and attachments. Check whether moving parts function properly and do not get stuck and whether parts are broken or are damaged and thus adversely affect the electric tool function. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits etc. in accordance with these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Service

a. Only have your power tool repaired by qualified specialists and only with original spare parts. This ensures that safety of the electric tool is maintained.

Safety instructions for compressors

Attention! The following basic safety measures must be observed when using this compressor for protection against electric shock, and the risk of injury and fire.

Read and observe these instructions before using the device.

Safe work.

  1. Take care of your tools

  2. Keep your compressor clean in order to work well and safely.

  3. Follow the maintenance instructions.
  4. Check the connection cable of the electric tool regularly and have it replaced by a recognised specialist when damaged.
  5. Check extension cables regularly and replace them when damaged.

  6. Pull the connector out of the socket

- When the electric tool is not in use or prior to maintenance and when replacing tools such as saw blades, drills, cutters.

  1. Check the electric tool for potential damage

  2. Protective devices or other parts with minor damage must be carefully inspected to ensure that they function correctly and as intended prior to continued use of the electric tool.

  3. Check whether the moving parts function faultlessly and do not jam or whether parts are damaged. All parts must be correctly mounted and all conditions must be fulfilled to ensure fault-free operation of the electric tool.
  4. Damaged protective devices and parts must be properly repaired or replaced by a recognised specialist workshop, insofar as nothing different is specified in the manual.
  5. Do not use any faulty or damaged connection cables.

  6. Attention!

- For your own safety, only use accessories and additional equipment that are indicated in the operating manual or have been recommended or indicated by the manufacturer. Use of other tools or accessories that those recommended in the operating manual or in the catalogue could represent a personal danger to you.

  1. Replacing the connection cable
  2. If the connection line is damaged, it must be replaced by the manufacturer or an electrician to avoid danger. There is a risk of electric shock.
  3. Inflating tyres
  4. Check the tyre pressure immediately after filling using a suitable pressure gauge, e.g. at a petrol station.
  5. Street-legal compressors in construction site operation
    Ensure that all hoses and fixtures are suitable for the maximum permissible working pressure of the compressor.
  6. Set-up location
  7. Only set up the compressor on a flat surface.
  8. In case of pressures above 7 bar, it is recommended to equip supply hoses with a safety cable (e.g. a wire rope).
  9. Avoid over-stressing the piping system by using file hose connections to prevent kinking.

Additional safety instructions

Observe the corresponding operating manuals of the respective compressed air tools / compressed air attachments! The following general warnings must also be observed.

Safety instructions for working with compressed air and air blow guns

  • Ensure there is sufficient distance to the product, at least 2.50m , and keep the compressed air tools / compressed air attachments away from the compressor during operation.
  • Compressor pump and lines reach high temperatures during operation. Touching them will cause burns.
  • The air drawn in by the compressor must be kept free of impurities that can cause fires or explosions in the compressor pump.
  • When disconnecting the hose coupling, hold the coupling piece of the hose firmly with your hand. This will ensure that you avoid injuries caused by the hose recoiling.
  • Wear safety goggles and a respirator when working with the compressed air pistol. Dusts are harmful to health! Foreign objects or blown off parts can easily cause injuries.
  • Do not blow on people or clean clothing whilst on the body with the air blow gun. Danger of injury!

Safety instructions when using spraying attachments (e.g. paint sprayers)

  • Keep the spray attachment away from the compressor when filling so that no liquid comes into contact with the compressor.
  • Never spray in the direction of the compressor when using the spraying attachments (e.g. paint sprayers). Moisture can lead to electrical hazards!

opeEadimot process any paints or solvents with a flash point below 55 °C. Risk of explosion!

  • Do not heat up paints or solvents. Risk of explosion!
  • If harmful liquids are processed, filter devices (face masks) are required for protection. Also observe the information on protective measures provided by the manufacturers of such substances.
  • The information and labelling of the hazardous substances ordinance affixed to the outer packaging of the process materials must be observed. If necessary, take additional protective measures, in particular wear suitable clothing and masks.

- Do not smoke during the spraying process or in the working area. Risk of explosion! Paint vapours are also highly flammable.

- Fireplaces, naked flames lights or sparking machinery must not be present or operated.

- Do not store or consume food or drinks in the work area. Paint fumes are harmful to health.

- The working area must be larger than 30m^3 and sufficient air exchange must be ensured during spraying and drying.

- Do not spray into the wind. Always observe the regulations of the local police authorities when spraying flar hazardous spraying materials.

- Do not use media such as white spirit, butyl alcohol and methylene chloride in conjunction with the PVC pressure hose. These media destroy the pressure hose.

- The work area must be separated from the compressor so that it cannot come into direct contact with the working medium.

Operation of pressure vessels

- Anyone who operates a pressure vessel must keep this in good working order, operate and monitor it correctly, perform the necessary maintenance and servicing works immediately and implement safety measures as required according to the circumstances.

- The regulatory authority can instruct necessary monitoring measures in individual cases.

- A pressure vessel must not be operated if it exhibits a defect that poses a danger to personnel or third parties.

- Check the pressure vessel for rust and damage each time before use. The compressor shall not be operated if the pressure vessel is damaged or rusty. If you discover damage, please contact the customer service workshop.

Store the safety instructions safely.

Residual risks

Comply with the stipulated maintenance and safety instructions in the operating instructions.

Remain attentive at all times when working, and keep third parties at a safe distance from your work area.

Even when the device is being used properly, there will always be certain residual hazards that cannot be completely ruled out. The following potential hazards can arise due to the type and design of the device:

- Unintentional starting up of the product.

- Damage to hearing if the stipulated hearing protection is not worn.

- Dirt particles, dust etc. can get irritate the eyes or face despite wearing safety goggles.

• Inhaling swirled up particles.

⚠ Warning!

This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

7. Technical data

Mains connection....230 V \~ 50 Hz

Engine power 1100 W

Operating mode....S1

Compressor speed....2850 rpm

Pressure vessel volume....approx. 24 l

Operating pressure....approx. 8 bar

Theo. Suction power ....approx. 137 l/min

Effective delivery quantity at 7 bar .... approx. 50 l/min

ableffective delivery quantity at 4 bar.... approx. 70 l/min

Effective delivery quantity at 1 bar .... approx. 85 l/min

Sound pressure level L_PA 70.5 dB

Measured sound power level L_WA 90.5 dB

Guaranteed sound power level L_WA 93 dB

Uncertainty K_PA/WA 2.39 dB

Protection class....IP30

Device weight.....approx. 20.5 kg

Max. installation altitude (above sea level)....1000 m

The noise emission values have been determined in accordance with EN ISO 3744:1995.

Wear hearing protection.

Excessive noise can result in a loss of hearing.

8. Before commissioning

- Open the packaging and carefully remove the device.

- Remove the packaging material, as well as the packaging and transport safety devices (if present).

- Check whether the scope of delivery is complete.

- Check the device and accessory parts for transport damage.

- If possible, keep the packaging until the expiry of the warranty period.

⚠️ DANGER

The device and the packaging are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

- Before connecting the machine, make certain that the data on the type plate matches with the mains power data.

- Check the device for transport damage. Report any damage immediately to the transport company which was used to deliver the compressor.

- The compressor must be installed close to the consumer.

- Long air lines and supply cables (extension cable) should be avoided.

- Ensure that the intake air is dry and dust-free.

- Do not install the compressor in a damp or wet room.

- The compressor may only be used in suitable rooms (with good ventilation and an ambient temperature from +5^ to 40^ ). There must be no dust, acids, vapours, explosive gases or inflammable gases in the room.

- The compressor is suitable for use in dry rooms. It must not be used in areas where splashed water is present.

- The compressor may only be used outdoor briefly when the ambient conditions are dry.

- The compressor must always be kept dry and must not be left outdoors after work is complete.

9. Assembly and operation

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

You require the following for assembly:

1x open-ended spanner 13 mm

1x open-ended spanner, 8 mm

1x socket spanner, 14 mm

1x Phillips screwdriver

(not included in the scope of delivery)

9.1 Fitting the wheels (fig. 3)

- Fit the wheels (4) provided as shown.

9.2 Mounting the foot (Fig. 4)

- Fit the foot (6) provided as shown in.

9.3 Mounting the transport handle (Fig. 5)

- Fit the supplied transport handle (1) as shown. Use the M8x10 screws (1a) provided and a 13 mm open-ended spanner (not included in the scope of delivery).

9.4 Mains power connection

- The compressor is equipped with a mains cable with an earthed plug. This can be connected to any mains socket 230 V\~50 Hz with an earth contact and that is protected at 16 A.

- Before you use the machine, make sure that the mains voltage is the same as the operating voltage and the machine power on the rating plate.

- Long supply cables, extensions, cable reels, etc. cause a drop in voltage and can impede motor start-up.

- At low temperatures below +5^ , sluggishness may make starting difficult or impossible.

9.5 On/Off switch (fig. 1)

- Pull the on/off switch (3) upwards to switch on the compressor.

- Press the on/off switch (3) down to switch off.

9.6 Adjusting the pressure (fig. 1, 2)

- The pressure at the manometer (11) is adjusted with the pressure regulator (9).

- The pressure set can be utilised by connecting to the quick-coupling (10).

- The pressure set can be read off at the pressure gauge (11).

9.7 Setting the pressure switch (fig. 1)

- The pressure switch (2) is set at the factory.

Cut-in pressure approx. 7.8 bar

Switch-off pressure approx. 10 bar

9.8 Fitting the compressed air hose (not included in the scope of delivery) (Fig. 1, 2)

- Connect the plug nipple (13a) of the compressed air hose (13) to the quick coupling (10). Then attach the compressed air tool to the quick coupling (13b) of the compressed air hose (13).

9.9 Thermal protector

The thermal protector is built into the device.

If the thermal protector has tripped, proceed as follows:

- Pull out the mains plug.

- Wait about two to three minutes.

- Plug the device in again.

- If the device does not start, repeat the process.

- If the device does not start again, switch the device off and on again using the on/off switch (3).

- If you have carried out all of the steps above and the device still does not work, contact our service team.

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer's mains connection as well as the extension cable used must also comply with these regulations.

When working with spray attachments and during temporary use outdoors, the device must be connected to a residual current circuit breaker with a trigger current of 30 mA or less.

10.1 Important information

In the event of overloading, the motor will switch itself off. After a cool-down period (time varies) the motor can be switched back on again.

10.2 Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

- Pressure points, where connection cables are passed through windows or doors.

- Kinks where the connection cable has been improperly fastened or routed.

- Places where the connection cables have been cut due to being driven over.

• Insulation damage due to being ripped out of the wall outlet.

- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

10.3 AC motor

- The mains voltage must be 230-V50 Hz.

- Extension cables up to 25 m long must have a cross-section of 1.5 ~mm^2 .

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Data of machine type plate
• Data of motor type plate

11. Cleaning, maintenance and storage

⚠ Attention!

Pull out the mains plug before carrying out any cleaning or maintenance work! Danger of injury due to electric shocks!

⚠ Attention!

Wait until the device has cooled down completely! Danger of burning!

⚠ Attention!

Depressurise the device before carrying out any cleaning or maintenance work! Danger of injury!

11.1 Cleaning

  • Keep the device as free of dust and dirt as possible. Rub the device clean with a clean cloth or blow it off with compressed air at low pressure.
  • We recommend that you clean the device directly after every use.
  • Clean the device at regular intervals using a damp cloth and a little soft soap. Do not use aggressive cleaning agents or solvents; they could attack the plastic parts of the device.
    Make sure that no water can penetrate the device interior.
  • The hose and injection tools must be disconnected from the compressor before cleaning. The compressor must not be cleaned with water, solvents or similar.

11.2 Maintaining the pressure vessel (fig. 1)

Attention!

To ensure a long service life for the pressure vessel (7), drain off the condensate after each use by opening the drain screw (5).

Release the vessel pressure beforehand (see 11.6.1).

Open the drain screw (5) by turning it anti-clockwise (looking at the screw from the bottom of the compressor).

In order to drain the condensation water completely out of the pressure vessel (7), it must be tilted slightly to the side so that the drain screw (5) is the lowest point.

Then close the drain screw (5) again (turn it clockwise). Check the pressure vessel (7) for rust and damage each time before use.

The compressor shall not be operated if the pressure vessel (7) is damaged or rusty. If you discover damage, please contact the customer service workshop.

Instructions on the disposal of condensate:

Dispose of the condensate in accordance with local and national environmental regulations. Ensure that it is not discharged into the wastewater system.

11.3 Safety valve (Fig. 6)

The safety valve (8) is set to the maximum permissible pressure of the pressure vessel (7). It is not permitted to adjust the safety valve (8) or to remove the connection lock (8b) between the drain nut (8a) and its cap (8c). In order for the safety valve (8) to function properly when needed, it must be actuated every 30 operating hours and at least 3 times a year. Turn the perforated exhaust nut (8a) anti-clockwise to open it and use your hands to pull the valve rod outwards over the perforated exhaust nut (8a) to open the outlet of the safety valve (8). Now, the valve audibly releases air. Then, tighten the exhaust nut (8a) clockwise again.

11.4 Air filter cleaning (Fig. 7, 8)

The air filter prevents dust and dirt being sucked in. It is necessary to clean this air filter at least every 300 operating hours. A blocked air filter significantly reduces the compressor power.

To remove the filter insert (12c), unscrew the screws (12a) and washers (12b) from the motor housing (12). Use an 8 mm open-ended spanner for this (not included in the scope of delivery). Then take off the motor housing (12).

You can now remove the filter insert (12c). Carefully tap out the filter insert (12c) and the filter housing (12d). These components must then be blown out with compressed air (approx. 3 bar) and reassembled in reverse order.

11.5 Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables.

Wearing parts*: Air filter

* may not be included in the scope of delivery!

11.6 Storage

⚠ Attention!

Disconnect the mains plug, vent the device and all connected compressed air tools. Store the compressor in such a way that it cannot be used by unauthorised persons.

⚠ Attention!

Store the compressor only in dry locations that are inaccessible for unauthorised persons. Do not tilt the unit, only store it upright!

11.6.1 Releasing excess pressure

Release overpressure in the compressor by switching off the compressor and using up the compressed air still in the pressure vessel (7), e.g. with a compressed air tool running at idle or with an air blow gun.

12. Transport

Use the transport handle (1) to transport the device, and drive the compressor with it.

When lifting the compressor, note its weight (see Technical data).

Ensure that the load is well secured when transporting the compressor in a motor vehicle.

13. Disposal and recycling

Notes for packaging

PARKSIDE PKO 248 A1 - Notes for packaging - 1

PARKSIDE PKO 248 A1 - Notes for packaging - 2

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act (ElektroG)

PARKSIDE PKO 248 A1 - Notes on the electrical and electronic equipment act (ElektroG) - 1

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

  • Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.
  • Owners or users of electrical and electronic devices are legally obliged to return them after use.
  • The end user is responsible for deleting their personal data from the old device being disposed of!
  • The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.
  • Waste electrical and electronic equipment can be handed in free of charge at the following places:

- Public disposal or collection points (e.g. municipal works yards)

- LIDL offers you return options directly in the markets. Return and disposal are free of charge.

- Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.

Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

  • If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.
    • These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

shops and

14. Troubleshooting

The compressor does not start.Mains voltage not present. Check cable, mains plug, fuse and socket.Mains voltage too low. Avoid extension cables that are too long. Use extension cables with sufficient conductor cross-section. Outdoor temperature too low. Do not operate at outside temperatures below +5°C.Motor is overheated. Allow the motor to cool down. If necessary, remedy the cause of the overheating.
The compressor starts but there is no pressure.The safety valve leaks. Contact your local service centre. Only allow qualified personnel to carry out repairs.The seals are damaged. Replace the seals, have defective seals replaced at a specialist work-shop.Drain screw for condensate leaking. Tighten the screw by hand. Check the seal on the screw and replace if necessary.
Compressor running, pressure shown on the manometer, but tools are not running.Hose connections leaking. Check compressed air hose and tools, replace if necessary. Quick-coupler leaking. Contact your local service centre. Only allow qualified personnel to carry out repairs.Pressure set too low at pressure regulator. Turn up the pressure regulator further.

15. Warranty certificate

Dear Customer,

All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. Of course, if you would prefer to call us then we are also happy to offer our assistance under the service number printed below. Please note the following terms under which guarantee claims can be made:

  • These guarantee terms cover additional guarantee rights and do not affect your statutory warranty rights. We do not charge you for this guarantee.
  • Our guarantee only covers problems caused by material or manufacturing defects, and it is restricted to the rectification of these defects or replacement of the device. Please note that our devices have not been designed for use in commercial, trade or industrial applications. Consequently, the guarantee is invalidated if the equipment is used in commercial, trade or industrial applications or for other equivalent activities. The following are also excluded from our guarantee: compensation for transport damage, damage caused by failure to comply with the installation/assembly instructions or damage caused by unprofessional installation, failure to comply with the operating instructions (e.g. connection to the wrong mains voltage or current type), misuse or inappropriate use (such as overloading of the device or use of non-approved tools or accessories), failure to comply with the maintenance and safety regulations, ingress of foreign bodies into the device (e.g. sand, stones or dust), effects of force or external influences (e.g. damage caused by the device being dropped) and normal wear resulting from proper operation of the device.

The guarantee is rendered null and void if any attempt is made to tamper with the device.

- The guarantee is valid for a period of 3 years starting from the purchase date of the device. Guarantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fitted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fitted. This also applies when an on-site service is used.

- In order to assert your guarantee claim, please contact the service partner shown below. If the complaint is within the guarantee period, we will provide you with a return slip, with which you can return your defective device free of charge to us. It would help us if you could describe the nature of the problem in as much detail as possible. If the defect is covered by our guarantee then your device will either be repaired immediately and returned to you, or we will send you a new device.

Of course, we are also happy offer a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address.

15.1 Processing of warranty claims

To ensure that your request is processed quickly, please follow the instructions below:

  • Please have the receipt and article number (e.g. IAN 465616_2404) ready as proof of purchase for all enquiries.
  • Please refer to the type plate on the product, an engraving on the product, the title page of your instructions (bottom left) or the sticker on the back or underside of the product for the article number.
  • If functional faults or other defects occur, first contact the service department named below by telephone or e-mail.
  • You can then send a product recorded as defective to the service address provided to you free of charge, enclosing the proof of purchase (receipt) and stating what the defect is and when it occurred.
  • You can view and download these and many other manuals at parkside-diy.com. This QR code will take you directly to parkside-diy.com. Select your country and use the search mask to search for the operating instructions. Enter the article number (IAN) 465616_2404 to access the operating instructions for your article.

Service contact (GB):

Name: Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Tel: 00800 4003 4003

E-Mail: service.GB@scheppach.com

Location: Great Britain

Service contact (CY):

Name: GEORGE C SOLOMONIDES

& SON LTD

PO.BOX 56236 / 169, LEONTIOS A'

GR - 3022 LIMASSOL/CYPRUS

Tel: 00800 4003 4003

E-Mail: service.CY@scheppach.com

Location: Cyprus

Service contact (IE):

Name: Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Tel: 00800 4003 4003

E-Mail: service.IE@scheppach.com

Location: Great Britain

Service contact (IT):

Name:TeleMarComEuropean

Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Tel: 00800 4003 4003

E-Mail: service.IT@scheppach.com

Location: Germany

Service contact (NI):

Name: Forest Park & Garden

Coed Court, Taffsmead Road

Treforest, Ind. Estate,

Pontypridd CF375SW

Tel: 00800 4003 4003

E-Mail: service.NI@scheppach.com

Location: Great Britain

PARKSIDE PKO 248 A1 - Service contact (NI): - 1

text_image PDF ONLINE parkside-diy.com

Inhalt:

Seite:

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Geachte klant,

Servicecontact (NL):

Naam: TeleMarCom European Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Telefoon: 00800 4003 4003

E-mail: service.NL@scheppach.com

Servicecontact (BE):

Naam: TeleMarCom European Services GmbH

Am Ziegelweiher 24

DE - 61130 Nidderau

Telefoon: 00800 4003 4003

E-mail: service.BE@scheppach.com

Günzburger Straße 69

Günzburger Straße 69

89335 Ichenhausen, Germania

Egregio cliente,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazníku,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Kedves Ügyfelünk!

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny Kliencie,

Günzburger Straße 69

D-89335 Ichenhausen, Tyskland

Kære kunde,

text_image Exploded view diagram of a mechanical assembly with numbered parts for identification

EU Declaration of Conformity

Translation of the original EU Declaration of Conformity

Article name: COMPRESSOR - PKO 248 A1

Nom d'article: COMPRESSEUR - PKO 248 A1

Art.-Nr. / Art. no. / Numéro d'article: 3906170975 - 3906170980; 39061709915; 39061709959

Standard references:

EN 1012-1:2010; EN 62841-1:2015+AC:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 50581:2012; EN 286-1:1998/A1:2002

This declaration of conformity is issued under the sole responsibility of the manufacturer.

* The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: Tobias Ihle

Günzburger Str. 69, D-89335 Ichenhausen

PARKSIDE PKO 248 A1 - EN 1012-1:2010; EN 62841-1:2015+AC:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 50581:2012; EN 286-1:1998/A1:2002 - 1

CE

SCHEPPACH GMBH

Günzburger Str. 69

D-89335 Ichenhausen

PARKSIDE PKO 248 A1 - EN 1012-1:2010; EN 62841-1:2015+AC:2015; EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 50581:2012; EN 286-1:1998/A1:2002 - 2

FSC

www.fsc.org

MIX

Table of contents Click a title to access it
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : PARKSIDE

Model : PKO 248 A1

Category : Compressor
