USER MANUAL WKS 7000 SCHEPPACH

Firewood rocker circular saw

Translation from the original instruction manual

FR

Scie á bùches á chevalet

GB Firewood rocker circular saw

FR Scie á bùches á chevalet

Fig. 1

Fig.2

Fig. 4

Fig. 3
Fig. 5

400V

Hersteller

Included in delivery

Firewood rocker circular saw WKS 7000

Jaw Spanner

Adjustment pin

Operating instructions

Technical data

Machine WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WKS 7000 WGS 1905101902 1905101903 1905101904
Article number 1905101901 1905101902 1905101903 1905101904
Total length mm 1270 1270 1270
Total breadth mm	730	730	730	730
Total height mm	1130	1130	1130	1130
Rocker support mm	670	670	670	670
Saw blade	CV	CV	HW	HW
Saw blade Ø mm	700	700	700	700
Weight kg	98	108	98	108
Operating data:
Cutting height for round wood	min. 60 / max. 240	min. 60 / max. 240	min. 60 / max. 240	min. 60 / max. 240
Cutting height for turning cuts	max. 250	max. 250	max. 250 max. 250
Cutting height for fire wood	max. 380x240	max. 380x240	max. 380x240	max. 380x240
Motor:
Kind of motor	230 V / 50 Hz	400 / 50 Hz	230 V / 50 Hz	400 V / 50 Hz
Input power P1 kW	2,1	5,2	2,1	5,2
Output power P2 kW	1,5	3,58	1,5	3,58
Motor speed 1/min	1400	1400	1400	1400
Mode of operation	S6 40%	S6 40%	S6 40%	S6 40%
Rated current A	9,5	10	9,5	10

Noise level parameters

According to EN 23748 for the acoustic power level or EN 31202 (error tolerance k3 calculated according to appendix A.2 for EN 31204) for the sound pressure level in a place of work based on the noise emission value based on the working conditions listed in ISO 7904 appendix A amount to the following:

Acoustic power level in dB

when idling Lwa = 105 dB(A)

in operation Lwa = 107 dB(A)

Sound pressure level on working site in dB

when idling Lwa = 95 dB(A)

in operation Lwa = 97 dB(A)

The values listed are emission values and do not necessarily correspond to the assured workplace values.

Although there is a correlation between emission and immission levels, this does not give a certain indication as to whether additional safety measures are necessary or not. Factors in a given

workplace can influence the immission level, such as the properties of the workroom, other noise sources, for example the number of machines and other kinds of work going on nearby. Reliable working values can vary from country to country. This information should nonetheless allow the user to evaluate dangers and risks.

General instructions

1. After the machine has been unpacked, check all parts for possible damage during transportation. Any complaints should be made immediately to the transport company.
2. Later complaints will not be recognized.
3. Check that the delivery is complete.
4. Before using the machine, get acquainted with the operating instructions.
5. For wearing and replacement parts only use original parts. You can get replacement parts at scheppach dealers.
6. Use our article number when placing an order.

NOTE:

The manufacturer of this equipment is not responsible for damages on this equipment or brought about by this equipment according the currently-applicable product liability law when:

1. It is not used properly;
2. When the operating instructions are not followed.
3. When repairs have been made by a third-party not authorized to do them.
4. When "not original scheppach replacement parts" have been used.
5. When the machine is not "used appropriately".
6. When the electrical unit does not function, when the regulations for electrical current

and the VDE ordinances 0100, DIN 57113/VDE 0113 have not been followed.

We recommend:

Read through the whole text of the operating instructions before assembling or starting up the machine.

These operating instructions should make it easier for you to understand your machine and use it in appropriate ways.

The operating instructions contain important instructions as to how you can use your machine safely, expertly and in an economical way, how you can avoid dangers, save repair costs, limit down time and increase the reliability and life of the machine.

In addition to the safety regulations in the operating instructions, you must follow all the regulations in your country governing safety for the operation of this machine. The operating instructions should be protected in a plastic cover against dirt and dampness and kept near the machine. They must be read carefully

ly and followed by anyone who is going to operate the machine. The machine may only be operated by people who have been instructed in how to use the machine and advised of potential dangers. The given minimum age must be complied with. In addition to the instructions regarding safety in the operating instructions, and the particular regulati

ons of your own country regarding the operation of wood-working machines, please follow the generally recognized technical rules.

In these operating instructions we have used this symbol to indicate passages that relate to your safety:

General safety instructions

Pass along the safety instructions to all people who work with the machine.
The operators must be at least 18 years old. Trainees must be at least 16 years old, and may only operate the machine under supervision.
- Do not distract persons operating the machine.
- Keep children away from the machine when it is plugged in.
- Wear clothes that fit close to the body. Remove jewellery, rings and watches.
- Follow all safety and danger-avoiding instructions related to the machine and make sure they are in a legible condition.
- Be careful when working: there is a danger of injury to fingers and hands by the rotating cutting blade.
- When operating the machine, make sure to take regular pauses.
- When operating the machine, wear safety shoes and protective clothing.

• Make sure that when the machine is set up it is standing securely on solid ground.
• There should be no rubble around the machine.
• Check the electrical wires. Do not use damaged cables. See the section on the electrical connection.
• Check the motor and tool rotational direction. See the section on the electrical connection.
• Installation, repairs and maintenance work on the electrical installation may only be done by a specialist.
• Turn off the machine to deal with problems. Pull out the plug.

• When the operator leaves the workplace, (s)he must turn off the motor and unplug the machine.
  Even when the machine must only be moved a small distance, it should be unplugged from any external source of current! Before starting up the machine again, plug it in to the source of power again.

• If the customer wishes to provide a mains supply, then a ground fault interrupter secured with a rated current level of a maximum 30mA is required.

• Electrical connection cables must correspond to the appropriate VDE and DIN regulations as well as the local EVE rules.
• Only use connection cables with the tag H 07 RN. All connection cables are required to have tagging indicating their type.
• Only carry out modifications, adjustment, measurement and cleaning work on the machine when the motor is turned off. Pull out the plug and wait until the rotating parts have come to a stop.
• All protective and safety equipment must be immediately reassembled on the machine after repair or maintenance work has been completed.
• Only use well-sharpened, crack-free and intact saw blades.

Appropriate use

The saw for fire wood is made only to be used with the tools for wood working.
- The machine corresponds with the valid EU machine directives.
The machine is made for operation in one shift. The switch-on time is h. 6 - 40%
- The saw is constructed for cross-section sawing for fire wood with a maximum length of 1 meter and a minimum diameter of 60~mm .
- Regardless of the diameter of the wood, only one piece can be put on the jack at a time.

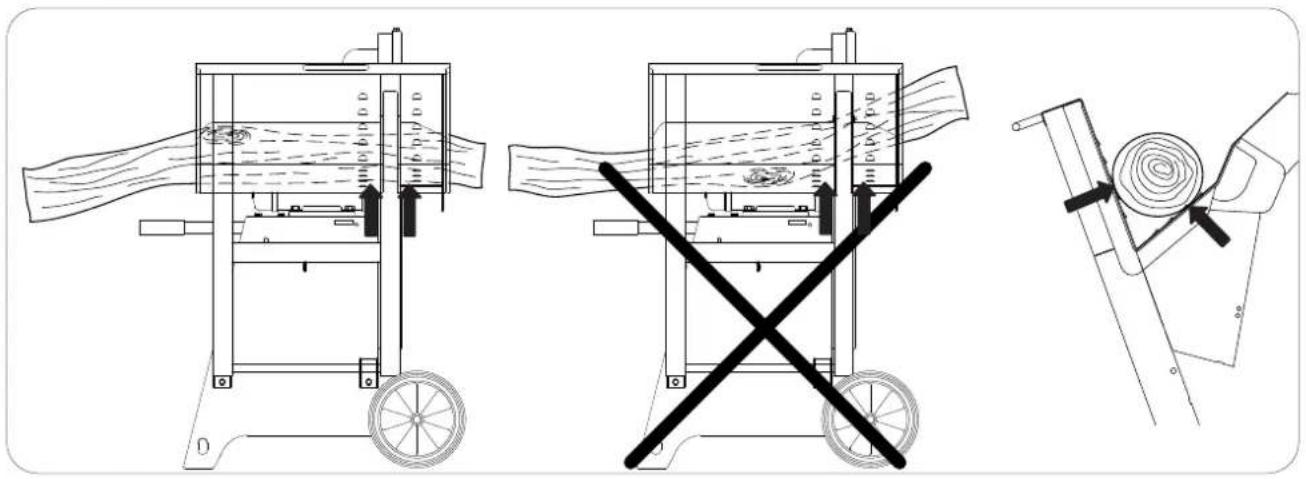

- The wood must always be placed so that both sides of the saw blade are in the vee of the jack (Fig. 1).
- Follow all safety and danger instructions on the machine.
- Keep all the safety and danger instructions on the machine complete and in a legible condition.

• If the machine is used in a closed room, then it must be attached to an exhaust unit.
• Only use the machine when it is in a technically perfect condition, and only use it appropriately with attention to safety and sources of danger, according to the operating instructions! In particular defects that could influence the safety of the unit must be immediately attended to!
• The manufacturer's safety, operation and maintenance regulations must be followed as well as the relevant values listed in the technical data.
• Follow all applicable accident avoidance regulations and also those generally recognized safety procedures.
• The machine may only be used by experienced persons; it may only be maintained or repaired by those who understand it and who have been informed of potential dangers.

Independent changes made to the machine remove it and any damage resulting from the use of the machine from the manufacturer's guarantee.

• The machine may only be used with the manufacturer's original parts and tool
• Any use beyond this is considered to be inappropriate. Any damages which result from this are not the responsibility of the manufacturer but rather the operator carries the full liability risk.
  Only saw blades may be used that correspond to the European Norm EN 847-1.
  Make sure there is adequate lighting.
• Make sure that when the machine is set up, it is stable and stands on firm ground.
  Make sure there is no rubble around the machine.
• If there is no exhaust unit present, then the machine can only be used outdoors.

Danger symbols / Instructions

Before start-up read the operating instructions

Use ear protection and protective glasses

Wear safety boots

Only for EU countries!

Do not throw electrical tools in the rubbish bin!

According to the European directive 2002/92/EG about electrical and electronic refuse and the implementation of national law, used electrical tools must be collected and brought to an environmentally correct recycling station!

Residual risks

The machine has been built according to the highest level of technology and the recognized safety rules. Nonetheless, residual risks remain when working with it.

• Danger of injury to fingers and hands due to the rotating saw blade when the work piece is led into the machine incorrectly.
• Health danger due to wood dust or saw dust.

Always wear personal protective clothes such as eye protection and a dust mask.
- Health danger due to noise. When working the acceptable noise level is exceeded. Always wear personal protection equipment such as ear protection.
- Danger due to electrical current when electrical connective cables that do not conform to

safety regulations are used.

• In addition, in spite of all care, other, non-obvious residual risks remain.
• Residual risks can be minimized when the "safety information," and the "appropriate use" chapters as well as the operating instructions as a whole are followed.

Transportation

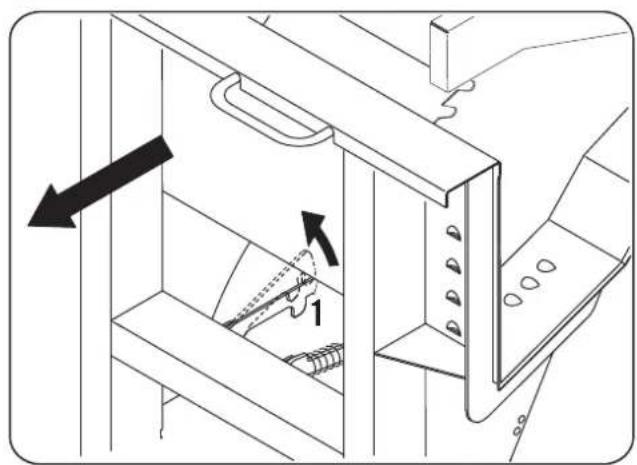

In order to transport the circular jig-saw, lock in the jig block. (Fig. 3)

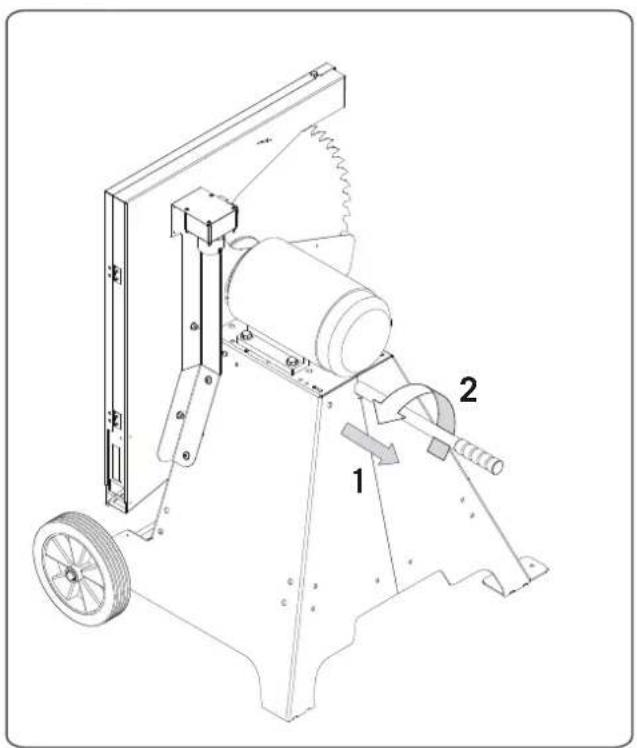

Push the transport handle into the machine body and turn the handle (Fig. 2) (Secured by the screw head in the transport handle).

The machine can now be picked up by the transport handle to lift and move it.

Start-up

• Before start up, follow all safety instructions.
• All protective and assisting equipment must be assembled.
• Only carry out modifications, adjustment, measurement and cleaning work on the machine when the motor is turned off. Pull out the plug and wait until the rotating parts have come to a stop.
• The saw is constructed for cross-section sawing for fire wood with a maximum length of 1 meter and a minimum diameter of 60~mm .
• Regardless of the diameter of the wood, only one piece can be put on the jack at a time.

Technical check before beginning operation

• Put the wood in the jack.
• With both hands on the handle of the jack, swing it to the saw blade.
• Then bring the jack back into the starting position.
• Do not hold the wood that is to be sawed in place with your hands.

Maintenance

• Only do maintenance, overhaul and cleaning work or attend to malfunctions when the motor is turned off (pull out the plug!).

Changing the saw blade

• The saw blade can only be changed when the machine is positioned for cutting fire wood.

• Open the side lid.

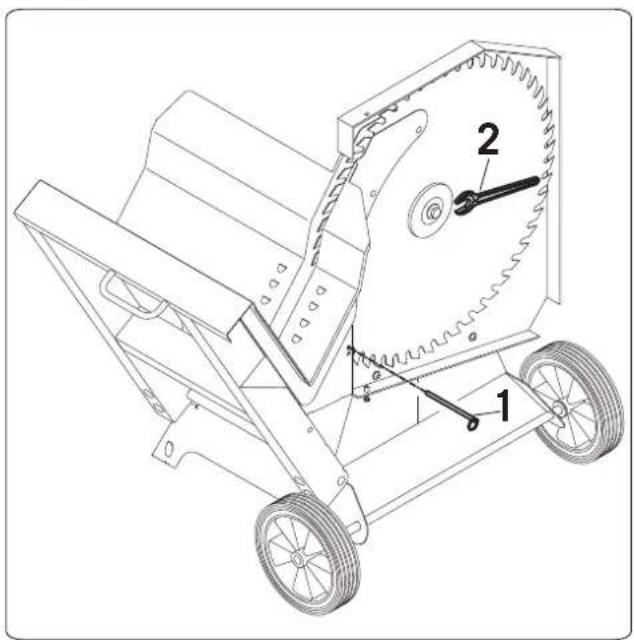

• Push the adjustment rod (Fig. 5 position1) though the lower saw blade protector to adjust the saw blade.

• Loosen the saw blade with the jaw spanner (Fig. 5 position 2) that comes with the machine.
• Remove the saw blade flange and change the saw blade.
• Assemble the new saw blade and tighten it well.

Electrical connections

• Plug in the machine to a source of electrical current with a CEE plug. The input cable must be secured to 16 A.
• Using the main switch, turn on the machine: the saw starts up.

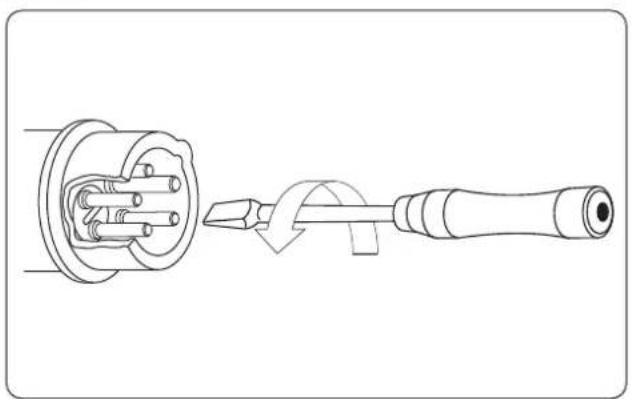

• Check the rotational direction! If necessary, change the polarity. (Fig. 4)
• When it is switched off, the saw is decelerated within 10 seconds.

The installed electrical motor is ready for operation. The connection corresponds to the appropriate VDE and DIN regulations. The connection to the source of power by the customer as well as any extension cables used must also correspond to these regulations or the local EVU (European Association for Accident Research and Analysis) regulations.

Motor-braking assistance

The brakes decelerate the drive motor of the saw within 10 seconds. If braking takes longer than 10 seconds, the machine may no longer be operated, since the brakes are defective. The machine must then be immediately disconnected from a source of electrical currency. Only an electrician can deal with this problem.

Operating mode/ Duty cycle

The electrical motor conceived for a duty cycle of S6 - 40%.

S6 = continuous operation with intermittent load

40% = based on 10 min. with 4 min. load, 6 min idling

If the motor is overtaxed it automatically shuts down since there is a thermostat coil in the motor coils. Following a cool-down phase (varying length of time) the motor can be restarted.

Damaged electrical cables

There is often damage to the insulation on electrical cables.

Possible causes:

• Pressure points, when cables are led through window or door cracks.
• Bending points, due to incorrect fastening or cable positioning.
• Damage to the insulation due to ripping the lead out of the wall plug.
• Cracks due to insulation aging.
• Do not use defective electrical cables and they are life-threatening due to defective insulation!

Check electrical cables regularly for damage. Make sure that when the cables are being checked they are not plugged into the source of current. Electrical connections must conform to the appropriate VDE and DIN regulations as well as the local EVE regulations. Only use cables of the type H 07 RN. A label with the type is required to be on the cable.

• Extension cables up to 25 meters long must have a cross-section of 1.5mm^2 those longer than 25 meters a cross-section of 2.52.
  The mains supply must be secured up to 16 ampere.

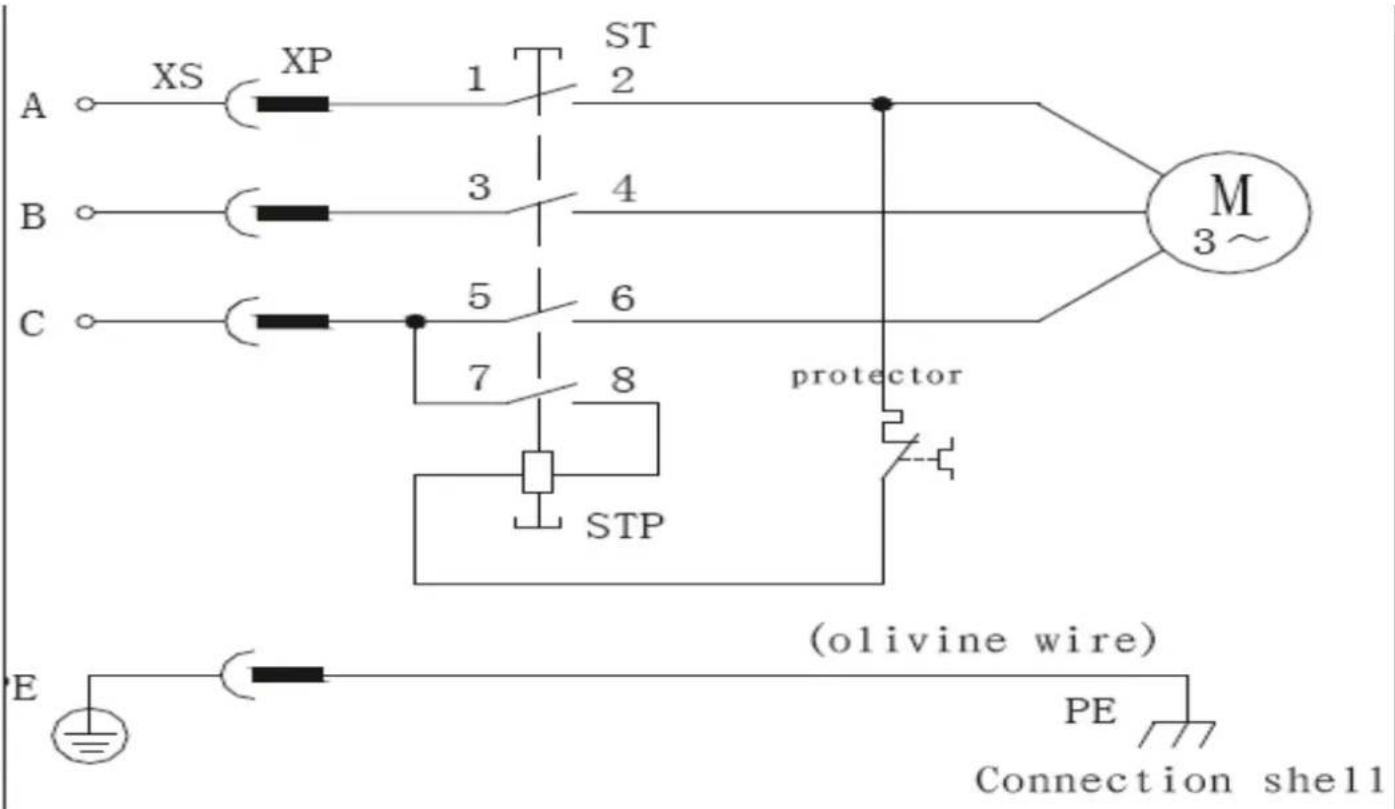

Three phase motor

The mains supply must have 380± 420V/50Hz .
The mains supply and extension cables must be five core = 3P + N + SL
- Extension cables up to 25 meters long must have a cross-section of 1.5mm^2
The mains supply must be secured up to 16 ampere.
- When the machine is moved or plugged in for the first time, the rotational direction must be checked and, if necessary, the polarity changed.

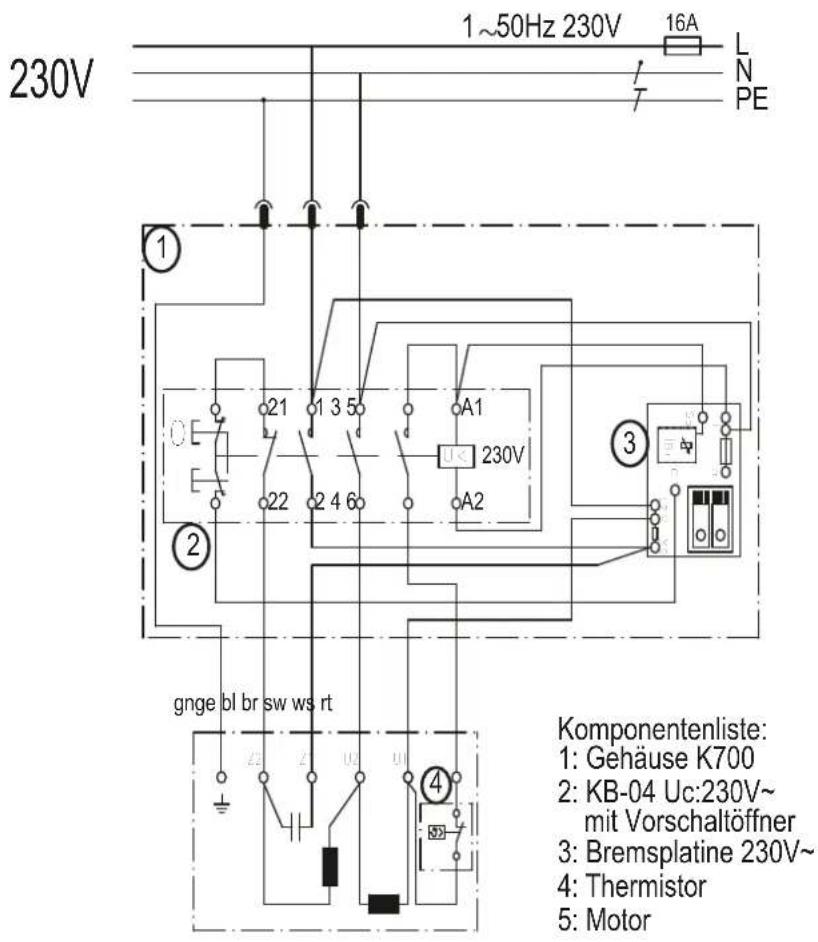

Alternating current motor

The mains supply must have 220÷ 240V/ 50 Hz.
- Extension cables up to 25 meters long must have a cross-section of 1.5mm^2 , those longer than 25 meters a cross-section of 2,5 mm^2 .
The mains supply must be secured up to 16 ampere.

Connections and repairs to the electrical equipment should only be done by an electrician. For further questions please give the following information:

• Motor manufacturer, motor type
  Kind of current used
  Data on the machine type label
  Data regarding the electrical connections
  When returning the motor, please always send in the complete drive unit with the electrical connections.

Trouble shooting

When dealing with problems with the machine, unplug it!

Only specialized electricians may do electro-technical maintenance!

Problem Possible	Cause Solution
Motor does not start a) no curren	a) Check the safety fuse
	b) Switch or compensator defective b) Have an electrician check the unit
	c) Electrical extension cables defective	c) Unplug the machine, check the cables and, if necessary replace them
Incorrect motor rotational direction	Incorrectly installed Change the rotational direction via the CEE plug
When switched off the saw does not brake	Braking unit defective Replace the braking unit
Saw blade jams	a) The wood is pushed into the saw too quickly	a) Push the wood in more carefully
	b) saw blade is dull b) Use a new saw blade from the scheppach offerings

In case of problems which you cannot solve yourself, please consult sheppach's customer service department.

EC Declaration of Conformity

We hereby declare, Scheppach Fabrikation von

The fact that the equipment described below because of their design, construction and sold by us conforms conforms to the relevant provisions of the following EC directives.

If a change on the machine, this declaration loses its validity.

The machine corresponds to the tested model.

Designation of machinery: Firewood rocker circular saw

To comply with regulations: Exclusively for working wood

Type of machine: WKS 7000 (Art.No.1905101901 / 1905101902 / 1905101903 / 1905101904)

Relevant EC Directives

EC

Machinery

Directive

2006/42/EC,

EC Low Voltage Directive 2006/95/EC,

EC

EMC

Directive

2004/108/EC.

Applied harmonized EN 60204-1,EN 847-1,EN 1870-6,EN ISO 12100

European standards:

Enabled to: EC-type examination, Test Report No.:

Reference: LSV-EG-2012/103

Günzburger Straße 69

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrica

tion within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantle FR
