USER MANUAL CJS25-20Li SCHEPPACH

Black and white photo of a 20V electrical shaver tool with visible circuitry and mounting base (no text or symbols on the device itself)

CJS25-20Li

DE	PENDELHUBSTICH SÄGEOriginalbedienungsanleitung	4
GB	JIGSAWTranslation of original instruction manual	16
FR	SCIE SAUTEUSE PENDULAIRETraduction des instructions d'origine	26
PL	WYRZYNARKAPrzekład z oryginału instrukcji obsługi	38
CZ	PŘÍMOČARÁ PILAPřekład originálního návodu k obsluze	50
SK	Priamočiara kyvadlo vá pílaPreklad originálu návodu na obsluhu	61
HU	Kirakós játékAz eredeti használati utasítás fordítása	72

1 2 3 4 Schappach 20V 2.0 AI 18 17 16 15 14 13 12 9 6 11 Schoppach

Person operating a manual sewing machine with a gloves, no visible text or symbols on the machine or background.

Close-up of a mechanical device with a tool and labeled component '21' (no readable text or symbols beyond label)

Close-up of a hand using a power tool on a wooden base, no visible text or symbols

Close-up of a robotic device with a gloved hand and mechanical components, no visible text or symbols

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Explanation of the symbols on the equipment

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

	Caution - Read the operating instructions to reduce the risk of inquiry
	Wear ear-muffs! The impact of noise can cause damage to hearing.
	Wear a breathing mask! Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
	Wear safety goggles! Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
MAX 40°C	Protect rechargeable batteries from temperatures over 40°C
Li-Ion	Do not throw rechargeable batteries away with household waste

Table of contents: Page:

1. Introduction...... 18
2. Device description.... 18
3. Technical data 18
4. Scope of delivery.... 18
5. Unpacking 18
6. Construction....19
7. Safety information 19
8. Additional Safety Warnings 21
9. Intended use....23
10. Installation 23
11. Cleaning 24
12. Storage....24
13. Maintenance....24
14. Troubleshooting....25
15. Disposal and recycling 25

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

we wish you a pleasant and successful working experience with your new scheppach machine.

Note:

According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• improper handling,
  • non-compliance with the instructions for use,
• repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare parts,
• improper use,
• failures of the electrical system due to the non-compliance with the electrical specifications and the VDE 0100, DIN 57113 / VDE 0113 regulations

Recommendations:

Read the entire text of the operating instructions prior to the assembly and operation of the device.

These operating instructions are intended to make it easier for you to get familiar with your device and utilize its intended possibilities of use.

The operating instructions contain important notes on how to work safely, properly and economically with your machine and how to avoid dangers, save repair costs, reduce downtime, and increase the reliability and working life of the machine.

In addition to the safety regulations contained herein, you must in any case comply with the applicable regulations of your country with respect to the operation of the machine.

Put the operating instructions in a clear plastic folder to protect them from dirt and humidity, and store them near the machine. The instructions must be read and carefully observed by each operator prior to starting the work. Only persons who have been trained in the use of the machine and have been informed on the related dangers and risks are allowed to use the machine. The required minimum age must be met.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of wood working machines must be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

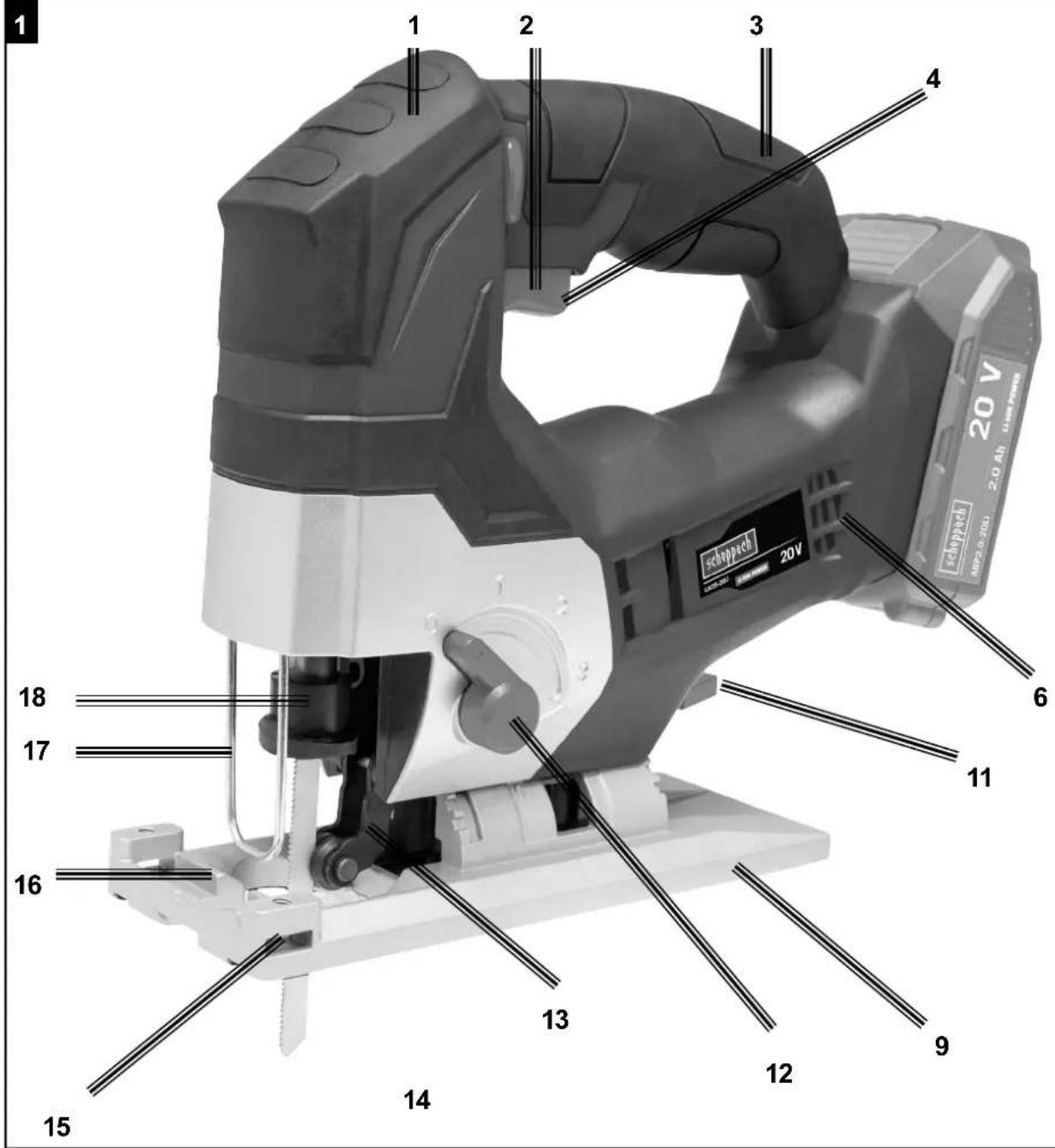

2. Device description (fig. 1, 2)

1. Pommel grip
2. ON / OFF switch (with stop)
3. Housing
4. Oscillation speed setting wheel
6. Ventilation grill
9. Base plate, light metal
11. Clamp screw
12. Pendulum action switch
13. Guide roller
14. Saw blade
15. Guide fence openings (with locking screws)
16. Chip guard
17. Contact guard
18. Quick-release chuck
19. Guide fence
20. Allen key

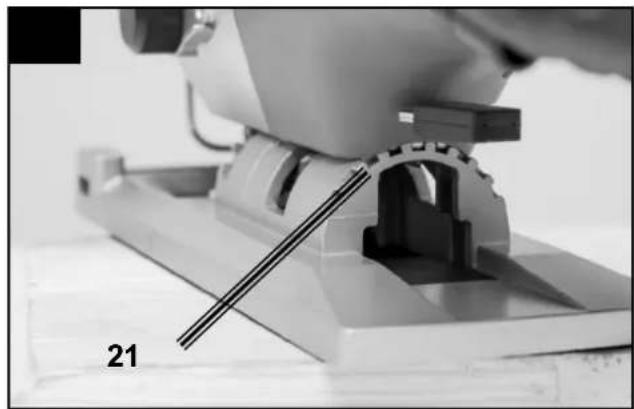

21. Stop pin (see Fig. B)

3. Technical data

Motor power supply: 20 V

Rated speed: 2500 min-1

Stroke length: ca. 25 mm

Subject to technical changes!

Noise and vibration

⚠ Warning: Noise at the workplace can exceed 85 dB (A). In this case, noise protection measures are necessary for the user (wear hearing protection!).

Noise output in dB

sound power level L_wA 99 dB(A) (EN ISO 3744) sound pressure level L_pA 99dB(A) (EN ISO 11201) uncertainty K_wal/pA 3 dB(A)

Vibration value

Vibration a_h 3,327 m/s ^2

Uncertainty K_h 1,5 m/s ^2

4. Scope of delivery

1 Jigsaw including
1 Guide fence
1 Operating instructions
1 Saw blades for wood
1 Saw blade for metal

5. Unpacking

• Open the packaging and remove the device carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the device and accessory parts for transport damage. Inform the transport agent immediately of any faults. Later complaints cannot be considered.
• If possible, store the packaging until the warranty period has expired.
• Familiarize yourself with the machine with the help of the operating instructions manual before using it.
• Use only original parts for accessories as well as consumables and spare parts. Spare parts can be obtained from your scheppach retailer.
• Please quote our article numbers as well as type and production year in all your orders.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

6. Construction

Warning!

Always remove the battery pack before making adjustments to the equipment.

Be sure to read the following information before you put the cordless equipment into operation:

7. Safety information

⚠ WARNING Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Keep all the safety advice and instructions in a safe place for future reference! The term “electrical tool” used in the safety advice refers to electrical tools powered by mains electricity (by means of a mains lead) and electrical tools pow-

ered by rechargeable batteries (without a mains lead).

1. Workplace safety

a) Keep your working area clean and well lit. Un- tidy or poorly lit working areas can lead to accidents. b) Do not work with the device in potentially ex- plosive environments in which there are inflam- mable liquids, gases or dusts. Electrical power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while you are operating the electrical tool. Distractions can cause you to lose control of the device.

2. Electrical safety

To avoid danger to life from electric shock:

a) The mains plug on the device must match the mains socket. The plug must not be modified in any way. Do not use an adapter plug with devices fitted with a protective earth. Unmodified plugs and matching sockets reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radiators, ovens and refrigerators with any part of your body. There is an increased risk of electric shock if your body is earthed.
c) Keep the device away from rain or moisture. Water entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for which it was not intended, e.g. to carry the device, to hang up the device or to pull the mains plug out of the mains socket. Keep the mains lead away from heat, oil, sharp edges or moving parts of the device. Damaged or tangled mains leads increase the risk of electric shock.
e) When working outdoors with an electrical power tool always use extension cables that are also approved for use outdoors. The use of an extension cable suitable for outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if operating the electrical power tool in a moist environment is unavoidable. The use of an RCD reduces the risk of electric shock.

3. Personal safety

a) Remain alert at all times, watch what you are doing and always proceed with caution. Do not use the device if you are tired or under the influence of drugs, alcohol or medication. One moment of carelessness when using the device can lead to serious injury.
b) Wear personal protective equipment and always wear safety glasses. The wearing of personal protective equipment such as dust masks, non-slip safety shoes, safety helmets or ear protectors, appropriate to the type of electrical power tool used and

work undertaken, reduces the risk of injury.

c) Avoid unintentional operation of the device. Check that the electrical power tool is switched off before you connect it to the mains, pick it up or carry it. Accidents can happen if you carry the device with your finger on the ON / OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you switch the device on. A tool or spanner left attached to a rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position. Keep proper footing and balance at all times. By doing this you will be in a better position to control the device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves clear of moving parts. Loose clothing, jewellery or long hair can become trapped in moving parts.
g) If vacuum dust extraction and collection devices are fitted do not forget to check that they are properly connected and correctly used. The use of these devices reduces the hazard presented by dust.

1. Careful handling and use of electrical power tools

a) Do not overload the device. Always use an electrical power tool that is intended for the task you are undertaking. By using the right electrical power tool for the job you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is defective. An electrical power tool that can no longer be switched on and off is dangerous and must be repaired.
c) Pull the mains plug out of the socket before you make any adjustments to the device, change accessories or when the device is put away. This precaution is intended to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power tools are kept out of reach of children. Do not let anyone use the device if he or she is not familiar with it or has not read the instructions and advice.

Electrical power tools are dangerous when they are used by inexperienced people.

e) Look after the device carefully. Check that moving parts are working properly and move freely. Check for any parts that are broken or damaged enough to detrimentally affect the functioning of the device. Have damaged parts repaired before you use the device. Many accidents have their origins in poorly maintained electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to control.

g) Use the electrical power tool, accessories, inserted tools etc. in accordance with these instructions and advice, and the stipulations drawn up for this particular type of device. In doing this, take into account the working conditions and the task in hand. The use of electrical power tools for purposes other than those intended can lead to dangerous situations.

8. Additional Safety Warnings

Safety advice relating specifically to this device Avoiding the danger of injury, fire and damage to your health:

• Securely support the workpiece. Use clamps or a vice to grip the workpiece firmly. This is much safer than holding it in your hand.
• Always switch on the electrical power tool before placing it against the workpiece. There is also the risk of kickback.
• Keep your hands away from the area of the saw blade. Do not grip the underside of the workpiece. Contact with the saw blade (14) may result in the risk of injury.
• Make sure that the base plate (9) lies on the workpiece when sawing.
• If a dangerous situation arises, pull the mains plug immediately out of the mains socket.
• Always work with the mains lead leading away from the rear of the device.

Warning! Noxious fumes! Working with harmful / noxious dusts represents a risk to the health of the person operating the device and to anyone near the work area. Wear protective glasses and a dust mask!

• Do not saw materials containing substances harmful to health.
• Do not saw materials containing asbestos. Asbestos is a known carcinogen.
• When sawing wood and in particular when working on materials that give rise to dusts that are hazardous to health, the device must be connected to a suitable dust extraction device.

• Make sure you have adequate ventilation.

- Do not work on moistened materials or damp surfaces.

- Switch off the electrical power tool after completing each stage of work but do not withdraw the saw blade (14) from the cut until after it has come to a standstill.

- After switching off do not brake the saw blade (14) by pressing it sideways against an object. It could cause the saw blade (14) to be damaged, break or initiate a kickback.

- Use only undamaged, defect-free saw blades. Dis-

torted or blunt saw blades can break or cause a kickback.

• Always keep the device clean, dry and free of oil or grease.

Original accessories / attachments

- Use only the accessories and attachments detailed in the operating instructions. The use of inserted tools or accessories other than those recommended in the operating instructions could lead to you suffering an injury.

Information on the rechargeable battery

1. The battery pack of the rechargeable device is not charged when delivered. It is therefore necessary to charge the battery before first commissioning.

2. For optimum battery capacity avoid deep discharge cycles! Charge your battery frequently.

3. Store your battery in a cool place, ideally at 15^ C and with at least 40% charge.

4. Lithium-ion batteries are subject to natural ageing. The rechargeable battery must be replaced no later than when its capacity is just 80% of the capacity in new condition! Weakened cells in an aged battery pack are no longer able to cope with the high capacity requirements and therefore constitute a safety risk.

5. Do not throw old rechargeable batteries into an open fire. Risk of explosion!

6. Do not ignite or burn rechargeable batteries.

7. Do not deep discharge rechargeable batteries! Deep discharge damages the battery cells. The most frequent cause of deep discharge in battery packs is lengthy storage or a lack of use of partially discharged rechargeable batteries. End the working process as soon as the capacity is notably reduced or the protection electronics trigger. Only store the rechargeable battery after fully charging.

8. Protect rechargeable batteries or device from overloading! Overloading quickly leads to overheating and cell damage inside the rechargeable battery housing, without overheating being externally visible.

9. Avoid damage and impacts! Replace rechargeable batteries immediately if these fall more than one metre or if they have been exposed to hefty impacts, even if the battery pack housing appears undamaged. The battery cells inside may be seriously damaged. Also observe the disposal instructions here.

10. With overloading or overheating, the protective shut-down integrated in the device switches off for safety reasons. Attention! Do not actuate the on/off switch again if the protective shut-down has switched the device off. This can lead to

damage to the rechargeable battery.

1. Only use original rechargeable batteries. The use of other batteries can lead to injuries, explosion and a risk of fire.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool

Information on the charging unit and charging process

1. Observe the data provided on the type plate of the charging unit. Only connect the charging unit to the mains voltage provided on the type plate.

2. Protect the charging unit and cable from damage and sharp edges. Have damaged cables replaced by an electrician immediately.

3. Keep the charging unit, rechargeable batteries and rechargeable device out of reach of children.

4. Do not use damaged charging units.

5. Do not use the charging unit supplied to charge other rechargeable devices.

6. The rechargeable battery pack will heat up with heavy loads. Leave the rechargeable battery pack to cool down before starting the charging process.

7. Do not over-charge rechargeable batteries! Observe the maximum charging times. These charging times only apply to discharged batteries. Inserting a charged or partially charged rechargeable battery multiple times leads to overloading and cell damage. Do not leave rechargeable batteries in the charging unit for multiple days.

8. Never use or charge rechargeable batteries if you suspect that they were last charged more than 12 months ago. The probability is high that the rechargeable battery is already dangerously damaged (deep discharge).

9. Charging at a temperature of less than 10^ C leads to chemical damage to the cell and can result in a fire.

10. Do not use rechargeable batteries that have heated up during charging, because the battery cells could be dangerously damaged.

11. Do not use rechargeable batteries that are bulging or deformed, or that exhibit unusual symptoms (out-gassing, hissing, crackling, etc.)

12. Do not discharge the rechargeable battery fully (recommended final discharge level max. 80%). Fully discharging leads to premature ageing of

the battery cells.

1. Never leave batteries to charge unsupervised!

Residual risks

The machine has been built according to the state of the art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the „safety instructions“ and the „Proper use“ are observed along with the whole of the operating instructions.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this manual.. This ensures that your machine performs optimally.
• Hands may never enter the processing zone when the machine is in operation.

9. Intended use

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the equipment's potential hazards.

It is also imperative to observe the accident prevention regulations in force in your area.

The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes.

The machine may be used only with original accessories and original tools of the manufacturer.

The safety-, workplace- and maintenance specifications of the manufacturer as well as the dimensions specified in the technical data must be observed.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

10. Installation

IMPORTANT!

You must fully assemble the appliance before using it for the first time!

Note: Use a suitable coolant, e.g. cutting oil. This improves the endurance and increases the service life of the metal saw blade.

Saw blades are available which have been optimally designed for particular tasks. You can use any of these saw blades provided they have the correct shank fitting (single lug shank).

Mounting / replacing saw blades

Warning ! Pull the mains plug out of the socket before you carry out any task on the device, otherwise there may be risk of injury.

• Turn the quick-release chuck (18) and hold it in the turned position.
• Press the selected saw blade (14) up to the stop in the quick-release chuck (18). The saw blade (14) should then engage.
  • The saw blade (14) must lie in the guide roller (13).
• Release the quick-release chuck (18). The chuck must then return to its original position. The saw blade (14) is then locked in place.

Attaching the guide fence

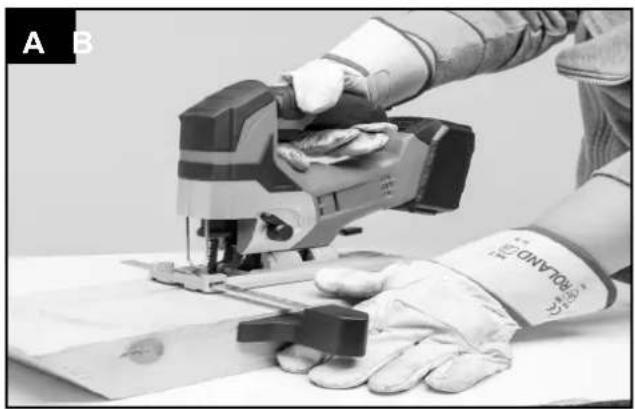

The guide fence (19) can be attached on the left or right side of the device (see fig. A).

• Release the two locking screws of the fence guide openings (15).
• Slide the guide fence (19) into the fence guide openings (15).
• Re-tighten the two locking screws.

Operation

Setting the cutting angle

• Release the clamp screw (11) using the Allen key (20).
• Set the cutting angle 0^ / 15^ / 30^ / 45^ (left / right) on the base plate (9). The embossed marking for each recessed line indicates the cutting angle setting. The housing has a stop pin (21) (see fig. B) which must engage in the appropriate recessed line.
• Tighten the clamp screw (11) using the Allen key (20).

Setting the speed

• Set the desired speed using the oscillation speed setting
• If possible always determine the optimum setting beforehand by carrying out a practical test.

Setting the pendulum action

You can set the pendulum movement of the saw blade (14) using the pendulum action switch (12). By having no pendulum action (setting "0") you can produce fine, clean cut edges. Turn off the pendulum action for thin workpieces. With the pendulum action activated (settings 1 – 3) you can cut through the workpiece at increasingly quicker rates..

- If possible always determine the optimum setting beforehand using a practical test.

Switching on:

- Push the ON / OFF switch (2) into position "I" and ensure it engages.

Switching off:

- Press the rear part of the ON / OFF switch (2).

To ensure that the Li battery pack provides long service you should take care to recharge it promptly. You must recharge the battery pack when you notice that the power of the cordless equipment drops.

Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
- Kinks where the connection cable has been improperly fastened or routed.
- Places where the connection cables have been cut due to being driven over.
- Insulation damage due to being ripped out of the wall outlet.
- Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage

regularly. Make sure that the connection cable does not hang on the power network during the inspection. Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „

The printing of the type designation on the connection cable is mandatory.

11. Cleaning

Danger!

Always pull out the battery pack before starting any cleaning work.

Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

12. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C. Store the electrical tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture. Store the operating manual with the electrical tool.

13. Maintenance

There are no parts inside the equipment which require additional maintenance.

Connections and repairs

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
- Machine data - type plate
• Machine data - type plate

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Grinding discs, carbon brushes

* Not necessarily included in the scope of delivery!

14. Troubleshooting

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
Device does not start	Battery empty Check the battery, have it repaired by a certified elec-trician if necessary
	On/off switch defective Repair by an authorised service centre
	Motor defective Repair by an authorised service centre
Motor stops during operation	Battery empty Charge battery
	Battery not inserted correctly Re-insert battery
	Battery defective Clean contacts, replace original battery
Reduced power	Battery depleted Replace battery
	Battery not fully charged Charge battery

15. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be used of at a designated collection point. This can, for example, by handing it in at an authorised setting point for the recycling of waste electrical electronic equipment. Improper handling of the equipment may have negative consequences of environment and human health due to potential hazardous substances that are often contained electrical and electronic equipment. By properly using of this product, you are also contributing to the effective use of natural resources. You can inform information on collection points for waste management from your municipal administration, public waste disposal authority, an authorised body for disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the laser before disposing of the machine and the batteries.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Vážení zákazníci,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt vásárló!

Exploded view diagram of a mechanical assembly with numbered parts for identification

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
X	2014/35/EU		2014/68/EU		90/396/EC		Annex V
X	2014/30/EU	X	2011/65/EU*				Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body: Notified Body No.:
X 2006/42/EC
		Annex IVNotified Body:Notified Body No.:Certificate No.:				2010/26/EC
						Emission. No:

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
X	2014/35/EU		2014/68/EU		90/396/EC
X	2014/30/EU	X	2011/65/EU*

Standard references:

EN 60745-1; EN 60745-2-3; EN 60335-1; EN 60335-2-29; EN 62233; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registar: Fabian Bücheler

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
