USER MANUAL X-PRO MINOX

Black binoculars with metallic bezel against a red background (no text or symbols visible)

BEDIENUNGSANLEITUNG | INSTRUCTION MANUAL | MODE D'EMPLOI | MANUAL DE INSTRUCCIONES | ISTRUZIONI D'USO | HASZNÁLATI ÚTMUTATÓ | INSTRUKCJA OBSŁUGI | РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ

MINOX FERNGLAS X–PRO

8×42 | 10×42

FERNGLAS I BINOCULARS I JUMELLES I PRISMÁTICOS I BINOCOLO I TÁVCSŐ I LORNETKA I БИНОКЛЬ

WILLKOMMEN BEI MINOX

zero waste solutions

Close-up of a black kitchen blender with red directional arrows indicating compression or shift (no text or symbols)

EINSTELLUNGEN

Close-up of black binoculars with red directional arrows indicating motion (no text or symbols)

WARTUNG UND PFLEGE

With these binoculars from MINOX you have chosen a product of the highest optical quality and precision engineering.

These instructions are intended to help you make optimum use of the performance spectrum of your MINOX binoculars.

We wish you lots of fun and perfect vision at all times.

CONTENTS

Welcome to MINOX....12

Safety rules 13

Disposal....13

General instructions for use 13

Getting to know your binoculars....14

Scope of supply.... 15

Settings....15

Focussing 16

Maintenance and care....16

Troubleshooting 17

Serial number....17

Service....18

Warranty provisions 18

Extended MINOX warranty service ....19

Technical data 20

SAFETY RULES

Never use these binoculars to look directly into the sun or a strong source of light, as this can seriously damage your eyes.

Always keep the removable parts out of the reach of children as there is a risk they may swallow them.

Never expose these binoculars to extended periods of sunlight without protection. The lenses can act as a burning glass and can damage components within the binoculars or in their vicinity.

DISPOSAL

interzero°

zero waste solutions

Comply with all national and local instructions and statutory regulations for disposal. Dispose of all recyclable packaging in an environmentally responsible manner in accordance with interzero® principles.

We are members of the interzero® Association.

Blaser Group GmbH

Ziegelstadel 1

88316 Isny

Phone: [phone]

Fax: [phone]

Before using your binoculars, check that they are working correctly and they offer a clear view.
■The binoculars are waterproof to IPX7.
■Protect your binoculars against heavy impacts.
■Never attempt to dismantle your binoculars or to remove parts except as described in this instruction manual.
Before putting the binoculars into storage after use, dry them thoroughly then store them in a dry place with good ventilation.
- Avoid exposing your binoculars to direct sunlight for long periods of time.

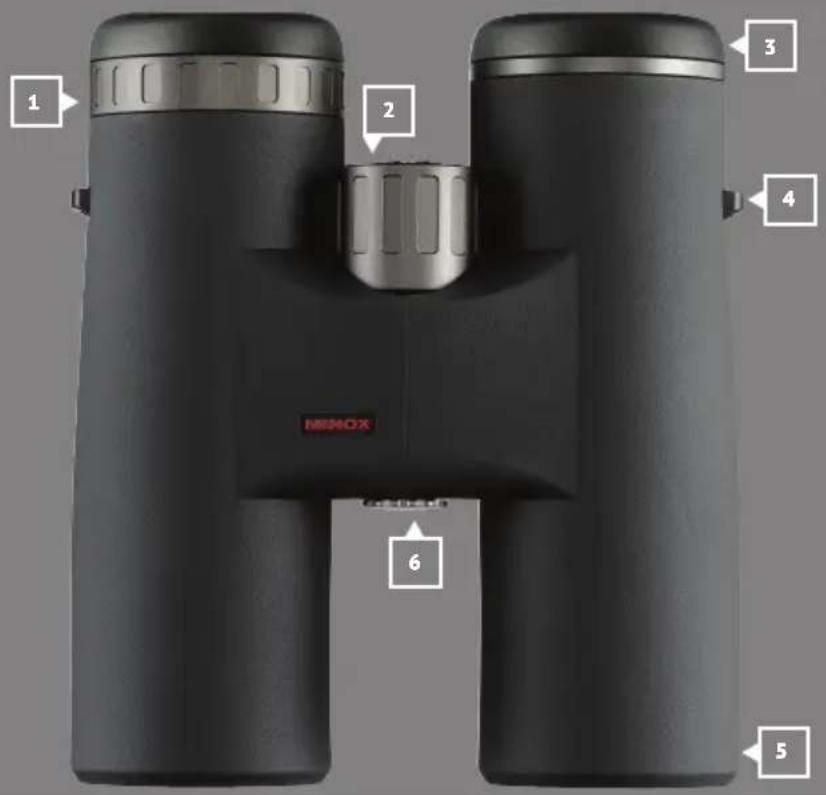

GETTING TO KNOW YOUR BINOCULARS

1 2 3 4 MEMOX 6 5

1 | Dioptre adjustment
2 | Focussing ring
3 | Eyepiece with adjustable eyecups
4 | Rings for the carrying strap
5 | Lens
6 | Connection to a base support

SCOPE OF SUPPLY

MINOX binoculars
■yepiece and lens protection caps
■arrying strap
■ag
ens cleaning cloth
■nstruction manual

Close-up of a black kitchen blender with red directional arrows indicating rotation (no text or symbols)

SETTINGS

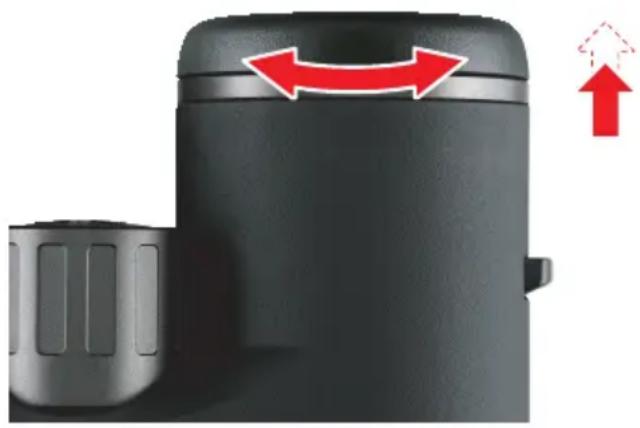

Ideal for users who wear glasses

To ensure that even people who wear glasses have an optimum field of vision, the MINOX X–PRO are equipped with adjustable eyecups.

Use without glasses

Users who do not wear glasses should turn the eyecups on both eyepieces anticlockwise until they click into place. In this position the binoculars are at the correct distance from the eye.

Use with glasses

Users who wear glasses should leave the eyecups on both eyepieces in the original position (delivery state) or turn the eyecups clockwise until they click into place. This allows you to see the entire field of vision without annoying clipping of the edges.

The correct pupil spacing

Please look through the eyepieces of your binoculars and fold the tubes in or out until both fields of view form a common circular image.

FOCUSSING

In order to achieve optimum sharpness of the image, the lenses of the binoculars must be adjusted to the individual visual performance of your eyes. Please proceed as follows:

1. First aim at a distant stationary object. Keep your right eye closed and turn the central drive until the object you are observing is in optimum focus for your left eye.
2. Now aim at the same object, close your left eye and turn the dioptre adjustment ring on the right eyepiece until you achieve the optimum focus for your right eye.
3. Your MINOX binoculars are now individually adjusted to the visual performance of your eyes.
4. To view different objects at different distances, you will always need to adjust the focus. From now on, please only use the central drive to achieve this.

Black binoculars with red directional arrows indicating rotational movement (no text or symbols)

MAINTENANCE AND CARE

Notice: Do not make any modifications to the binoculars other than those described in these instructions, as this may impair the water-tightness and mechanical functions. When using running water to clean the binoculars, take care not to use a strong jet, as the resulting pressure can impair the water-tightness.

Dirt will impair the brightness of images on your MINOX binoculars. We therefore recommend you remove finger marks, dust and other dirt from the surfaces of the lenses and eyepiece using a soft hair brush and/or the optics cleaning cloth supplied. When the binoculars are not in use, the lenses should be protected from damage and dirt by protective caps or the equivalent. Do not allow the lenses and seals of the binoculars to come into contact with oil or solvents. Therefore protect your product from cleaning agents. When using commercially available optical cleaning agents to clean the lenses, follow the manufacturer's instructions. Cleaning cloths and cleaning sticks must be clean and free of foreign bodies, as these can damage the surface when rubbed against the lenses. Coarse soiling can be rinsed off under running water. Clean the lenses with a soft cloth (cleaning cloth for optics).

The lenses should be cleaned only if they are dirty enough to affect the image.

TROUBLESHOOTING

Problems with the image

A circular image without vignetting is not achieved during observation.

This may be due to the pupil of the user being out of alignment with the eyepiece of the binoculars. Correct your head posture and the position of your eyes and the binoculars. The eyecup may possibly be positioned inappropriately for whether the user is wearing glasses. Correcting the setting of the eyecups: If wearing glasses, turn the eyecup back clockwise; if not wearing glasses, turn the eyecup out anti-clockwise. Other possibilities include incorrect focusing, lack of dioptre compensation, or incorrect pupil spacing. Check these options by following the instructions on page 5–6. This is how to achieve an optimum image.

Internal fogging

Internal fogging can be caused by damaged seals and the penetration of moisture.

This is usually caused by improper handling and is therefore excluded from the warranty. In the event of fogging of the internal lenses, take your binoculars to an authorised MINOX dealer or send them to MINOX Customer Service for repair.

Fogging of the external lens surfaces

Fogging of the external lens surfaces generally occurs in the event of major temperature changes and high humidity; it does not constitute a defect.

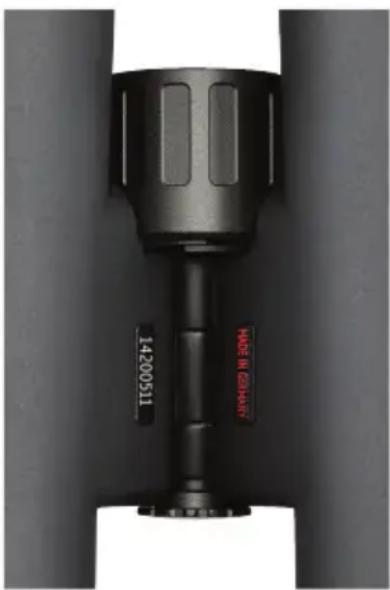

SERIAL NUMBER

You will find the individual serial number on the back of the bridge your MINOX binoculars.

14200511 MADE IN Germany

SERVICE

In order to avoid unnecessary costs and delays, before you send in your MINOX binoculars first read all the user information and troubleshooting suggestions. If a repair is necessary, follow these instructions on how to send your binoculars directly to MINOX Customer Service or to your authorised dealer:

1. Pack your binoculars with sufficient packaging material to protect them against damage.
2. Send your binoculars to:

In Germany:

In all other countries please send your MINOX binoculars to the MINOX authorised distributor.

WARRANTY PROVISIONS

By purchasing these MINOX binoculars you have acquired a product that has been made and tested to particularly strict quality standards. The statutory guarantee for this product is 2 years from the date of sale by an authorised dealer in accordance with the following provisions:

1. During the guarantee period, complaints due to production defects are corrected free of charge and at our discretion by repair, replacement of defective parts or exchange with a product of the same type in perfect working order. Further claims of any kind and for whatever legal reasons relating to this guarantee are excluded.
2. Guarantee claims are invalid if the defect concerned is due to improper handling – which can also include the use of third party accessories, due to intervention by unauthorised persons and repair shops or if the fabrication number has been made illegible.
3. Warranty claims can only be made by submitting a machine-written proof of purchase issued by an authorised dealer.
4. If you wish to make a claim under warranty, please send the MINOX binoculars together with the original machine-written proof of purchase and a description of the complaint to MINOX GmbH Customer Service or to a dealer in your country.

Extended MINOX warranty service

This MINOX product is covered by an extended warranty service of 10 years from the date of purchase for mechanical and optical aspects (excluding electrical aspects and add-on parts). The following regulations are applicable to the extended warranty service:

1. In the event of faults due to defective materials or processing, during the warranty period MINOX will accept liability for the materials costs, it being understood that at its sole discretion the product or the defective component may be refurbished, repaired or replaced.
2. The warranty service does not affect your statutory rights. If a warranty claim is made after the end of the production cycle, MINOX reserves the right to repair the defective product or to replace it with an equivalent product.
3. MINOX will not accept liability for repairs not performed by MINOX, nor for damage arising from improper use, negligence, accidents or other intervention in the product by persons not authorised to do so. The warranty lapses if the damage arises from the use of add-on parts or accessories not approved by MINOX. The warranty lapses if the damage occurs due to the elements such as natural catastrophes, flood, storm, hail or fire. The warranty also lapses if the damage occurs during wartime or during a conflict situation.
4. Wearing parts such as eyecups, carrying straps, rubber parts, protective caps, batteries and the like are not covered by the MINOX extended warranty service.
5. The MINOX extended warranty service is valid only if when

a claim is made under warranty the invoice carrying the date of purchase and showing the serial number can be submitted. Products for which no such proof of purchase can be submitted are excluded from the warranty service, unless the equipment can be identified by its serial number. In that case, please contact MINOX Customer Service before returning the equipment.

1. The general conditions of business (gcb) of the Blaser Group GmbH can be viewed at:

https://www.minox.com/de/Informationen/AGB/

TECHNICAL DATA

X–PRO 8×42 10×42
Magnification 8× 10x
Entry lens [mm] 42 42
Exit lens [mm] 5.25 4.2
Field of view at 1,000 m [m] 154 130
Field of vision for users who wear glasses [%] 100 100
Pupillary diameter [mm] 18 18
Pupillary spacing [mm] 56 - 76 56 - 76
Close focussing distance [m]	1.5	1.5
Dioptre adjustment [dpt]	±4 ±4
Twilight number	18.3 20.5
Transmission [%]	≥90	≥90
Functional temperature [°C]	-25 to +55	-25 to +55
Nitrogen filling	Yes	Yes
Watertight [m]	Yes, 1 (for 30 min) (IPX7)	Yes, 1 (for 30 min) (IPX7)
Weight [g]	≤899	≤875
Dimensions (HxW*xD) [mm] 152 × 120 × 67 156 × 123 × 67
Order no.	80120455	80120456

*at 65 mm pupil distance
