USER MANUAL Barossa 29 Uno Klarstein
Handwerkerstr. 11
15366 Dahlwitz-Hoppegarten
Deutschland
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Dear customer,
Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.
Safety Instructions 28
Installation 31
Product description 33
Control panel and operation 34
Getting started 37
Energy saving recommendations 39
Cleaning and care 40
Troubleshooting 41
Product data sheet 42
Product data sheet 44
Product data sheet 46
Disposal Considerations 48
Manufacturer & Importer (UK) 48
TECHNICAL DATA
| Article number 10041397 | 10041395 10041396 | ||
| Volume 88 L 95 L 204 L | |||
| Capacity | 29 bottles (750 ml) | 32 bottles (750 ml) | 66 bottles (750 ml) |
| Power supply 220-240 V | ~ 50 Hz | ||
SAFETY INSTRUCTIONS
- This appliance is not intended to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Supervise children to ensure that they do not play with the device.
- Children over 8 years as well as mentally, sensory and physically impaired persons may only use the device if they have been informed in detail about the functions and safety precautions by a supervisor responsible for them beforehand and understand the associated risks. Children must not play with the device. Cleaning and maintenance work must not be carried out by children without supervision.
- If the power cord is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to avoid a hazard.
- To avoid a hazard due to instability of the unit, it must be fixed according to the instructions.
- When setting up the device, make sure that the power cord is not pinched or damaged.
- Make sure that there are no multiple sockets or power supply units on the back of the device.
- Make sure that the ventilation openings in the housing of the unit or in the built-in cabinet are not blocked.
- Do not use mechanical devices or other means to speed up the defrosting process unless they are expressly recommended by the manufacturer.
- The refrigerant circuit must not be damaged.
- Do not use electrical appliances in the beverage cooling compartments of the appliance unless they are specifically recommended by the manufacturer.
- Do not store explosive substances in the unit, such as spray cans with flammable propellant.
-
This appliance is intended for use in households and similar environments. These include:
-
Staff kitchens in shops, offices and other work environments
- Farms, hotels, motels and other residential establishments
- Guest houses that offer breakfast (Bed & Breakfasts)
- Catering and similar non-retail applications
• Children aged 3 to 8 may fill refrigerators with food and remove food.
To avoid contamination of beverages, please follow the instructions below:
- Opening the door for too long can cause a significant temperature rise in the compartments of the appliance.
- Regularly clean surfaces that may come into contact with drinks. Clean the water drain regularly.
- Clean the water tanks (if present) if they have not been used for 48 hours. Flush the water system connected to a water supply (if any) if no water has been drawn for 5 days.
- If you are not using the refrigerator for a longer period of time, switch it off, let it defrost, clean it and dry it. Leave the door open to prevent mould from forming in the appliance.
Note: This unit contains the refrigerant Isobutane (R600a), a natural gas that has high environmental compatibility, but is fl ammable. Although it is fl ammable, it does not damage the ozone layer or increase the greenhouse effect. The use of this refrigerant results in a slightly higher noise level of the unit. In addition to the compressor noise, you can hear the flow of refrigerant. This is unavoidable and has no negative effect on the performance of the device. Be careful during transport to avoid damage to the refrigerant circuit. Refrigerant leaks can irritate the eyes.

WARNING
When using, during maintenance and when disposing of the appliance, pay attention to the left symbol located on the back or on the compressor of the appliance. This symbol warns you of possible fi res. There are fl ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fi re during use, maintenance and disposal.
Special notes on correct use
- This device is intended exclusively for the storage of wine.
- This appliance is not intended for use as a built-in appliance unless explicitly stated in the instructions.
• This appliance is not suitable for freezing food. - The racks were pre-set to allow the most efficient use of energy.
Note: It is recommended to set the temperature to 12 °C . If the temperature is set too high, the wine may spoil. If the temperature is set too low, the power consumption could increase.
Special notes on the shelves
- The shelves have been pre-set to allow the most efficient use of energy.
- Only use the shelves provided by the manufacturer.
- Never block the holes in the shelves or use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
- We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.
Notes on ambient temperature
Install this unit in a location where the ambient temperature corresponds to the climate class indicated on the unit's rating plate.
| SN Low | This cooling unit is intended for use at ambient temperatures of 10-32 °C. | |
| N Moderate | This cooling unit is intended for use at ambient temperatures of 16-32 °C. | |
| ST Subtropical | This cooling unit is intended for use at ambient temperatures of 16-38 °C. | |
| T Tropical | This cooling unit is intended for use at ambient temperatures of 16-43 °C. | |
The ambient temperature influences the internal temperature of the wine refrigerator. For optimal operation of the wine refrigerator, we recommend an ambient temperature of 23^ C to 25^ C.
INSTALLATION
Before first use
Let the unit stand for 24 hours before first use to allow the coolant to disperse. Leave the door open during this time to allow production-related odours to dissipate.
Note: All models without front ventilation or ventilation slots on the front are not built-in appliances and must be free-standing.
Location
The place where you place the unit should:
- be resilient and well ventilated.
- be away from direct sunlight and heat sources.
- not be too damp, such as bathrooms or washrooms.
• have a level floor.
• have a standardised electrical connection.
• have a socket outlet with overvoltage protection. - be far away from microwaves, as their interference could have a negative effect on the unit.
Furthermore, the ambient temperature in the room should be neither very cold nor very warm. Cold and heat can possibly have a negative effect on the function, so that the desired interior temperature is not reached.
Setting up
- Remove all packaging material from and around the refrigerator.
- Position the refrigerator so that the plug is accessible at all times. Disconnect the mains cable and place the unit in its final location. Place it so that the compressor is free and not in contact with other objects or walls.
- Level out any small unevenness in the floor before filling the unit. Use the adjustable feet for this purpose. To do this, turn the back feet completely in and compensate for the slant with the front two feet.
Note on built-in appliances
- All appliances with ventilation slots on the front are suitable for installation, but must not be installed in completely closed enclosures.
- Built-in appliances draw air in on the right side of the ventilation frame (some models also on the back) and let it out again via the ventilation frame at the front.
- Like many electrical appliances, the wine refrigerator has many sensitive parts that can be damaged by a power failure or lightning strike. Your connections should therefore be equipped with surge protection.
- If you install the appliance in a frame with a door, there must be a ventilation opening at the bottom of the door. In hot climates, slots with a minimum dimension of 40 mm x 200 mm must also be provided at the top of the rear or at the top of both sides of the enclosure to allow cool air to enter. A minimum of 30 mm space must be left to the rear wall of the frame. The ventilation slot should not be placed on a side where another appliance, such as an oven, is already located.
PRODUCT DESCRIPTION
Model 10041397 & 10041395
| 10041397 10041395 | |||
![]() | |||
| 1 Glass door 4 Door hinge | |||
| 2 Wooden shelf 5 Display | |||
| 3 Handle 6 Adjustable feet | |||

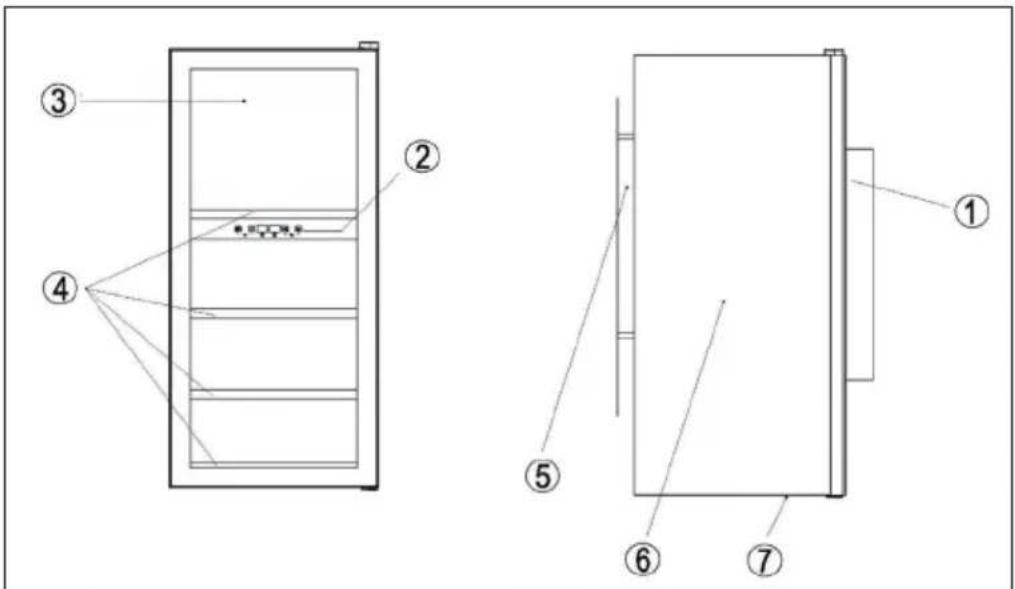

| 2 Control panel 6 Housing | ||
| 3 Glass door 7 Base | ||
| 4 Wooden shelf |
- Press the LIGHT button to switch the light on or off.
- Press the UP button to increase the temperature by 1^ (1 °F).
- Press the DOWN button to decrease the temperature by 1^ (1 °F).
- Press the °C/°F button to switch between the display in °C and °F.
Note: If no button is pressed within about 12 seconds, the control panel buttons are locked. To unlock the buttons again, press and hold the UP and DOWN buttons for about 5 seconds until you hear a beep. This unlocks the control panel again.
Setting the temperature
The wine refrigerator has a single compartment. The temperature can be set between 4 °C and 18 °C (39 °F and 65 °F). For storing red wines, we recommend that you set the temperature between 12-18 °C (55-64 °F). For storing white wines and champagne, we recommend that you set the temperature between 4-12 °C (39-55 °F). In general, we recommend setting the wine refrigerator to 12 °C.
Notes on the shelves
- The shelves are fully adjustable to fit different shapes and sizes of wine bottles.
- To avoid damaging the door seal, make sure the door is fully open before pulling out the shelves.
- The shelves are set at the factory to make the most efficient use of energy for cooling.
Model 10041396
| 1 | 2 | 3 | 4 | 5 | 6 |
| 1 LIGHT button 4 Lower zone display | |||||
| 2 ZONE SELECTION button 5 UP Button | |||||
| 3 Upper zone display 6 DOWN button | |||||
Setting the temperature
The appliance has two temperature zones. For each zone, the temperature range can be set between 5 °C and 18 °C (40 °F and 65 °F).
Note: The temperature selected for the lower zone must always be higher than that of the upper zone. For optimal performance, the difference between the two zones should be at least 4 °C.
How to use your appliance
- Press and hold the LIGHT + ZONE SELECT buttons simultaneously to switch the unit on or off.
- Press and hold the LIGHT button for 5 seconds to switch between the display in °C or °F.
Setting the individual temperature zones
The temperature of the upper zone and the lower zone must be set individually.
- Press the ZONE SELECT button to select the zone for which you want to set the temperature. The display for the upper and lower zone shows the temperatures in degrees.
- Press the ZONE SELECT button once, the display for the upper zone will start to flash. Press the UP and DOWN buttons to set the temperature.
- Press the ZONE SELECT button again, the display for the lower zone will start to flash. Press the UP and DOWN buttons to set the temperature.
- Press the LIGHT button to switch the light on or off.
Notes on the display indications
The appliance is designed to display the set temperature. To display the current temperature, press the UP button for 5 seconds. After another 5 seconds, the set temperature is displayed again.
If the display flashes, it means that the temperature in the zone differs by more than 5^ C from the set temperature. The flashing display ensures that the temperature does not rise or fall unnoticed, possibly affecting the quality of the wine.
GETTING STARTED
Before the first operation
Remove all the packaging material. Leave the appliance upright for at least 4 hours before inserting the power cord into the socket. This reduces the possibility of malfunction due to improper handling during transport. Clean the inner surfaces with lukewarm water and a soft cloth.
Before switching on
- Make sure that the appliance is installed by a qualified person in accordance with the operating instructions.
- After setting up the appliance, wait four hours before plugging it into the power socket. This allows the refrigerant to be completely distributed in the refrigerant circuit again.
- Clean the outside of the appliance and the removable accessories with a mild soap solution and water before first use.
- Clean the inside of the appliance with a solution of sodium bicarbonate and water. Dry the inside of the appliance and the accessories properly after cleaning.
- You may notice a strange smell when switching on the appliance for the first time. This is normal and the smell disappears as soon as the appliance starts to cool down.
During initial use
Note: When using the appliance for the first time or when switching the appliance on again after a long time, there may be a difference of a few degrees between the temperature you have set and the temperature displayed on the screen. This is normal. If the appliance has been on for a few hours, the temperature will adjust.
- When you switch on the appliance for the first time, the unit's compressor runs continuously until the appliance has cooled down.
- The appliance door should be opened as seldom as possible during cooling.
- If the appliance has been switched off or the power plug has been disconnected from the mains socket, wait at least 5 minutes before switching it on again or reconnecting the power plug to the mains socket.
Filling the appliance
- The appliance is ideal for storing wine bottles that correspond to the size and shape of 0.75 litre Bordeaux. It is possible to store larger bottles of wine. However, care must be taken that the appliance door can be closed properly.
- Before closing the door, always make sure that it is not blocked by a wine bottle.
- If you place several wine bottles in the appliance at the same time, it takes longer for the individual wine bottles to be cooled.
- The number of bottles that can be placed in the appliance varies depending on the size and shape of the wine bottles.
- The maximum number of wine bottles that can be stored is based on standard 0.75 litre Bordeaux wine bottles.
Storage recommendations
| Wine type Temperature Celsius Temperature Fahrenheit | ||
| Red wine 15 - 18 °C 58 - 65 °F | ||
| White wine 9 - 14 °C 48 - 57 °F | ||
| Sparkling wine/champagne | 4 - 8 °C 39 - 47 °F | |
- The most important thing when storing wine is that the storage temperature remains continuously stable.
- Vibrations, temperature fluctuations, light exposure and humidity are factors that can cause wine to spoil. Proper storage not only preserves the quality of the wine, but also improves its aroma, flavour and complexity as it matures.
- Wine that is stored at a higher temperature matures faster. Wines that are stored at more than 18 °C lose flavour and aroma.
- If wine is stored at too low a temperature, this can lead to the development of harmful residues. A humidity of 60% - 70% is ideal to prevent corks from shrinking.
- After a wine bottle has been opened, the wine comes into contact with air. It is therefore recommended to store the remaining wine upright in the bottle to minimise the surface area that comes into contact with air.
- Once a wine bottle has been opened, white wines can still be drunk for 2 days and red wines for 3 days, as long as the bottle has been sealed. Make sure that the wine bottle has been closed tightly again.
- Special stoppers that keep wine and champagne fresh are available for purchase in most wine shops.
- Provided that white wine is stored correctly, it can be kept for up to 2 years. Full-bodied red wines can be stored for up to 10 years and dessert wines for up to 20 years.
ENERGY SAVING RECOMMENDATIONS
- The shelves have been pre-set to allow the most efficient use of energy.
- Use only the shelves provided by the manufacturer.
- Never block the holes in the shelves and do not use any other types of shelves that have not been approved by the manufacturer, which may cause poor cooling or increase energy consumption.
- We recommend that you use the shelves as shown so that the energy is used as efficiently as possible.
The unit's thermostat is electronic and allows the temperature to be set between 5-12°C / 12-18°C. For wine storage, it is recommended to set the appliance to 12°C. This temperature can be adjusted according to the type of wine stored. Setting the temperature above 12°C will reduce the energy consumption of the unit. If the temperature is set below 12°C, the energy consumption of the appliance will increase.
CLEANING AND CARE
Cleaning the appliance
- Switch off the appliance first and disconnect the power cord from the mains socket.
- Remove all the contents.
- Wipe the inside with a damp cloth dipped in lukewarm water with a little washing-up liquid.
- Make sure the rubber seal on the door is clean so that the appliance remains efficient.
- The exterior of the wine refrigerator should be cleaned with a mild detergent.
- Dry the inside and outside with a soft cloth.
- Dust and anything else that clogs the exhaust vents will reduce the cooling capacity of the appliance. If necessary, vacuum the exhaust air opening.
Decommissioning in the event of absence
- First switch off the appliance. Then disconnect the power cord from the power outlet.
- Remove all the contents.
- Clean the appliance.
- Leave the lid on slightly to prevent condensation, mould or odours from forming.
Installation at another location
- First switch off the appliance. Unplug the power cord.
- Remove all the contents.
- Secure all loose items with tape.
- Tape up the doors.
Energy saving recommendations
The wine refrigerator should be placed in the coolest place in the room, away from appliances that generate heat, heating pipes and direct sunlight. Make sure that the door is properly closed when the wine refrigerator is switched on.
Important note on replacing the LED light bulb
Do not replace the LED lamp yourself. It must be replaced by the manufacturer or its customer service.
TROUBLESHOOTING
| Problem Possible cause and solution | |
| The appliance is not working. | It is not plugged in. |
| It is switched off. | |
| The fuse is out or blown. | |
| The appliance is not cold enough. | Check the temperature settings. |
| The environment requires a lower setting. | |
| The door was opened too often. | |
| The door is not closed properly. | |
| The door seal does not seal properly. | |
| The light doesn't work. | The appliance is not plugged in. |
| The fuse is out or blown. | |
| The light bulb is broken. | |
| The light switch is set to "off". | |
| The appliance goes on and off frequently. | The room temperature is higher than usual. |
| There are many bottles in the appliance. | |
| The door was opened too often. | |
| The door is not closed properly. | |
| The temperature is not set correctly. | |
| The door seal does not seal properly. | |
| Vibrations Check if the appliance is level. | |
| The appliance is very loud. | The coolant is circulating. Noises that occur as a direct result of this are not a defect, but normal. |
| After each cooling cycle, you hear a gurgling sound because there is still coolant in circulation. | |
| The contraction and expansion of the inner walls can cause cracking. | |
| The appliance is not level. | |
| The door does not close properly. | The appliance is not level. |
| The door was turned upside down and not fitted properly. | |
| The seal or the magnet are damaged. | |
| The shelves stick out too far. | |
PRODUCT DATA SHEET
Information according to Regulation (EU) No 2019/2016
| Manufacturer's name or trade mark: Klarstein | ||||
| Manufacturer's address: Wallstrasse 16, 10179 Berlin, Germany. | ||||
| Article number: 10041395 | ||||
| Type of cooling device: | ||||
| Low-noise device: no Construction type: free-standing | ||||
| Wine storage cabinet: yes Other cooling device: no | ||||
| General product parameters: | ||||
| Parameter Value Parameter Value | ||||
| Dimensions(mm) | Height 840 | Total volume(in dm3 or L) | 95Width 482 | |
| Depth 470 | ||||
| EEI 171 Energy efficiency class | G | |||
| Airborne sound emissions (in dB(A) re 1 pW) | 43 | Airborne sound emission class | D | |
| Annual energy consumption (in kWh/a) | 140 Climate class: | extendedmoderate, moderate | ||
| Minimum ambient temperature (in °C) for which the cooling device is suitable | 10 | Maximum ambient temperature (in °C) for which the cooling device is suitable | 32 | |
| Winter circuit | No | |||
| Compartment parameters: | |||||
| Compartment type | Compartment parameters and values | ||||
| Volume of the compartment (in dm3 or l) | Recommended temperature setting for optimised food storage (in °C) These settings must not conflict with the storage conditions set out in Table 3 of Annex IV | Freezing capacity (in kg/24h) | Defrost type (automatic defrost = A, manual defrost = M) | ||
| Pantry compartment no - - - | |||||
| Wine storage compartment | yes | 95.0 12 - A | |||
| Cellar compartment no - - - | |||||
| Fresh food compartment no | - - - | ||||
| Cold storage compartment | no | - - - | |||
| Zero stars or ice maker compartment | no | - - - | |||
| One-star compartment no | - - | ||||
| Two-star compartment no | - - | ||||
| Three-star compartment no | - - - | ||||
| Four-star compartment no | - - | ||||
| Two-star compartment no | - - | ||||
| Variable temperature compartment | - - - | ||||
| For wine storage cabinets | |||||
| Number of standard wine bottles 36 | |||||
| Light source parameters: | |||||
| Light source type - | |||||
| Energy efficiency class - | |||||
| Minimum term of the warranty offered by the manufacturer: 24 months | |||||
| Further information: | |||||
| Web link to the website of the manufacturer where the information specified in point 4(a) of the Annex to Commission Regulation (EU) 2019/2019 can be found: www.klarstein.de | |||||
PRODUCT DATA SHEET
Information according to Regulation (EU) No 2019/2016
| Manufacturer's name or trade mark: Klarstein | ||||
| Manufacturer's address: Wallstrasse 16, 10179 Berlin, Germany. | ||||
| Article number: 10041396 | ||||
| Type of cooling device: | ||||
| Low-noise device: no Construction type: free-standing | ||||
| Wine storage cabinet: yes Other cooling device: no | ||||
| General product parameters: | ||||
| Parameter Value Parameter Value | ||||
| Dimensions(mm) | Height 1 235 | Total volume(in dm3 or L) | 204Width 540 | |
| Depth 540 | ||||
| EEI 190 Energy efficiency class | G | |||
| Airborne sound emissions (in dB(A) re 1 pW) | 40 | Airborne sound emission class | C | |
| Annual energy consumption (in kWh/a) | 170 Climate class: | extendedmoderate, moderate | ||
| Minimum ambient temperature (in °C) for which the cooling device is suitable | 10 | Maximum ambient temperature (in °C) for which the cooling device is suitable | 32 | |
| Winter circuit | No | |||
| Compartment parameters: | |||||
| Compartment type | Compartment parameters and values | ||||
| Volume of the compartment (in dm3 or l) | Recommended temperature setting for optimised food storage (in °C) These settings must not conflict with the storage conditions set out in Table 3 of Annex IV | Freezing capacity (in kg/24h) | Defrost type (automatic defrost = A, manual defrost = M) | ||
| Pantry compartment no - - - | |||||
| Wine storage compartment | yes | 204.0 12 - A | |||
| Cellar compartment no - - - | |||||
| Fresh food compartment no | - - - | ||||
| Cold storage compartment | no | - - - | |||
| Zero stars or ice maker compartment | no | - - - | |||
| One-star compartment no | - - | ||||
| Two-star compartment no | - - | ||||
| Three-star compartment no | - - - | ||||
| Four-star compartment no | - - | ||||
| Two-star compartment no | - - | ||||
| Variable temperature compartment | - - - | ||||
| For wine storage cabinets | |||||
| Number of standard wine bottles 79 | |||||
| Light source parameters: | |||||
| Light source type - | |||||
| Energy efficiency class - | |||||
| Minimum term of the warranty offered by the manufacturer: 24 months | |||||
| Further information: | |||||
| Web link to the website of the manufacturer where the information specified in point 4(a) of the Annex to Commission Regulation (EU) 2019/2019 can be found: www.klarstein.de | |||||
PRODUCT DATA SHEET
Information according to Regulation (EU) No 2019/2016
| Manufacturer's name or trade mark: Klarstein | ||||
| Manufacturer's address: Wallstrasse 16, 10179 Berlin, Germany. | ||||
| Article number: 10041397 | ||||
| Type of cooling device: | ||||
| Low-noise device: no Construction type: free-standing | ||||
| Wine storage cabinet: yes Other cooling device: no | ||||
| General product parameters: | ||||
| Parameter Value Parameter Value | ||||
| Dimensions(mm) | Height 830 | Total volume(in dm3 or L) | 88Width 43 | |
| Depth 480 | ||||
| EEI 171 Energy efficiency class | G | |||
| Airborne sound emissions (in dB(A) re 1 pW) | 44 | Airborne sound emission class | D | |
| Annual energy consumption (in kWh/a) | 139 Climate class: | extendedmoderate, moderate | ||
| Minimum ambient temperature (in °C) for which the cooling device is suitable | 10 | Maximum ambient temperature (in °C) for which the cooling device is suitable | 32 | |
| Winter circuit | No | |||
| Compartment parameters: | |||||
| Compartment type | Compartment parameters and values | ||||
| Volume of the compartment (in dm3 or l) | Recommended temperature setting for optimised food storage (in °C) These settings must not conflict with the storage conditions set out in Table 3 of Annex IV | Freezing capacity (in kg/24h) | Defrost type (automatic defrost = A, manual defrost = M) | ||
| Pantry compartment no - - - | |||||
| Wine storage compartment | yes | 88.0 12 - A | |||
| Cellar compartment no - - - | |||||
| Fresh food compartment no | - - - | ||||
| Cold storage compartment | no | - - - | |||
| Zero stars or ice maker compartment | no | - - - | |||
| One-star compartment no - - - | |||||
| Two-star compartment no - - - | |||||
| Three-star compartment no | - - - | ||||
| Four-star compartment no - - - | |||||
| Two-star compartment no - - - | |||||
| Variable temperature compartment | - - - | ||||
| For wine storage cabinets | |||||
| Number of standard wine bottles 28 | |||||
| Light source parameters: | |||||
| Light source type - | |||||
| Energy efficiency class - | |||||
| Minimum term of the warranty offered by the manufacturer: 24 months | |||||
| Further information: | |||||
| Web link to the website of the manufacturer where the information specified in point 4(a) of the Annex to Commission Regulation (EU) 2019/2019 can be found: www.klarstein.de | |||||
DISPOSAL CONSIDERATIONS
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Cher client, chère cliente,
FICHE DE DONNÉES PRODUIT
FICHE DE DONNÉES PRODUIT
PO Box 1145
Oxford, OX1 9UW
United Kingdom
Estimado cliente:
| 2 Panel de control 6 Carcasa | ||
| 3 Puerta de cristal 7 Pata | ||
| 4 Estante de madera |
PO Box 1145
Oxford, OX1 9UW
Reino Unido
Gentile cliente,
Symbol of a trash bin crossed with a diagonal line, no text or numbers presentPRODUTTORE E IMPORTATORE (UK)
Produttore:
Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.
Berlin Brands Group UK Ltd
PO Box 1145
Oxford, OX1 9UW
United Kingdom

area
| Category | Value | |---|---| | 1 | 100 | | 2 | 100 | | 3 | 100 | | 4 | 100 | | 5 | 100 | | 6 | 100 | | 7 | 100 | | 8 | 100 | | 9 | 100 | | 10 | 100 | | 11 | 100 | | 12 | 100 | | 13 | 100 | | 14 | 100 | | 15 | 100 | | 16 | 100 | | 17 | 100 | | 18 | 100 | | 19 | 100 | | 20 | 100 | | 21 | 100 | | 22 | 100 | | 23 | 100 | | 24 | 100 | | 25 | 100 | | 26 | 100 | | 27 | 100 | | 28 | 100 | | 29 | 100 | | 30 | 100 | | 31 | 100 | | 32 | 100 | | 33 | 100 | | 34 | 100 | | 35 | 100 | | 36 | 100 | | 37 | 100 | | 38 | 100 | | 39 | 100 | | 40 | 100 | | 41 | 100 | | 42 | 100 | | 43 | 100 | | 44 | 100 | | 45 | 100 | | 46 | 100 | | 47 | 100 | | 48 | 100 | | 49 | 100 | | 50 | 100 | | 51 | 100 | | 52 | 100 | | 53 | 100 | | 54 | 100 | | 55 | 100 | | 56 | 100 | | 57 | 100 | | 58 | 100 | | 59 | 100 | | 60 | 100 | | 61 | 100 | | 62 | 100 | | 63 | 100 | | 64 | 100 | | 65 | 100 | | 66 | 100 | | 67 | 100 | | 68 | 100 | | 69 | 100 | | 70 | 100 | | 71 | 100 | | 72 | 100 | | 73 | 100 | | 74 | 100 | | 75 | 100 | | 76 | 100 | | 77 | 100 | | 78 | 100 | | 79 | 100 | | 80 | 100 | | 81 | 100 | | 82 | 100 | | 83 | 100 | | 84 | 100 | | 85 | 100 | | 86 | 100 | | 87 | 100 | | 88 | 100 | | 89 | 100 | | 90 | 100 | | 91 | 100 | | 92 | 100 | | 93 | 100 | | 94 | 100 | | 95 | 100 | | 96 | 100 | | 97 | 100 | | 98 | 100 | | 99 | 100 | | Note: The actual values in the 'Value' column are not provided in the code. I have used the label 'The Region' to represent the 'Region'. The values are estimated based on the provided code.
