Ceres 10031662 - Wine cellar Klarstein - Free user manual and instructions

Product type	Wine cooler
Brand	Klarstein
Model	Ceres 10031662
Net volume	16 L
Temperature range	8 °C to 18 °C
Power supply	220–240 V ~ 50–60 Hz
Power	50 W
Refrigerant	R600a (Isobutane)
Interior lighting	Yes, LED
Temperature display	Yes (red/green LED)
Temperature adjustment	Yes, mechanical
Shelves	Multiple shelves included
Ventilation	Fan grille
Adjustable feet	Yes
Door gasket	Magnetic
Defrost type	Manual
Automatic lighting on opening	Yes
Interior fan	Yes
Compressor protection	5-minute wait before restart
Child safety	Adult supervision required for children

Frequently Asked Questions - Ceres 10031662 Klarstein

How do I adjust the temperature of the wine cooler?

Use the temperature adjustment button (mark 2) to adjust between 8°C and 18°C. The LED display flashes to indicate operation.

What to do if the appliance does not cool sufficiently?

Check the temperature settings, make sure the door is properly closed and that the ventilation openings are clear. Lower the temperature if the environment is hot.

How do I clean the interior of the wine cooler?

Unplug the appliance, empty the contents, clean with a damp cloth and warm water with a little mild detergent. Dry the walls carefully.

The interior light does not turn on, what to do?

Check the power supply, the fuse, and the position of the light switch. If the bulb is defective, have it replaced by a professional.

Why does the appliance make gurgling noises?

This is normal. The circulating refrigerant produces gurgling sounds. It is not a defect.

How do I defrost the wine cooler?

Defrosting is manual. Unplug the appliance, remove the bottles, leave the door open until the ice melts, then clean the interior.

Can I install the wine cooler in an unheated garage?

No, the ambient temperature must comply with the operating range. Avoid places that are too cold or too hot to ensure proper operation.

How to save energy with this wine cooler?

Place the appliance in a cool location, avoid opening the door frequently, and ensure good ventilation around the appliance. Set the thermostat to the minimum necessary.

What to do if the door does not close properly?

Check that the appliance is level (adjustable feet), that the shelves are not blocking, and that the door gasket is clean and intact.

Can I store drinks other than wine?

Yes, as long as the temperature is suitable. The 8-18°C range is suitable for various wines and drinks, but not for perishable items requiring colder refrigeration.

USER MANUAL Ceres 10031662 Klarstein

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

CONTENT

Safety Instructions 12

Product Overview 14

Use and Operation 15

Cleaning and Care 16

Troubleshooting 17

Hints on Disposal 18

Declaration of Conformity 18

TECHNICAL DATA

Item number 10031662
Power supply 220-240 V ~ 50-60 Hz
Power cosumtion 50 W
Temperature Range 8-18 °C
Volume 16 L

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged.

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

- Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

- Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Defrost the freezer at least once a month because too much frost may affect refrigeration.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is flammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special notes

• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

- A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fires. There are flammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fire during use, maintenance and disposal.

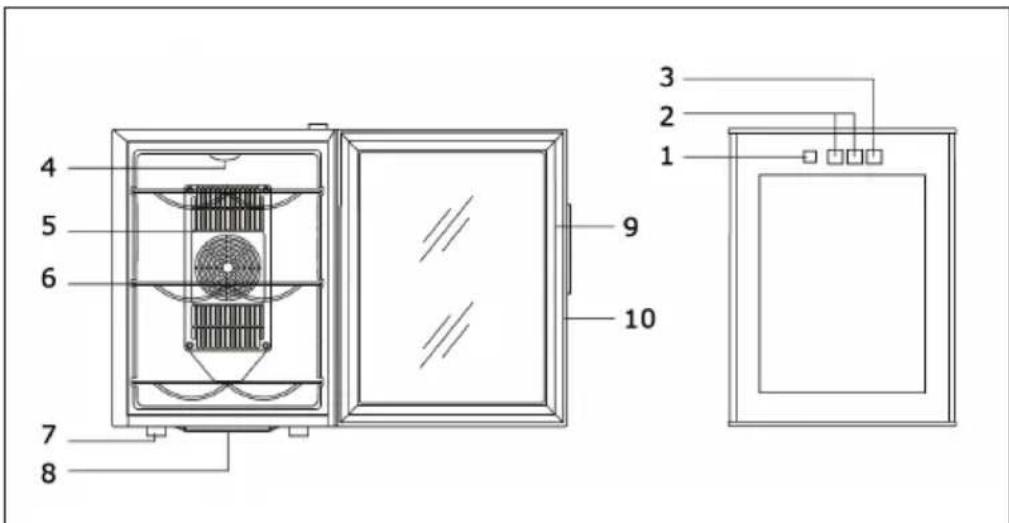

PRODUCT OVERVIEW

1	Temperature Display	6	Shelf
2	Temperature Adjust Knob	7	Foot
3	Light Switch	8	Water Box
4	Interior Light	9	Magnetic Seal
5	Cool Fan Cover	10	Door Frame

USE AND OPERATION

Before first Use

• Clean the appliance, and be thorough, especially in the interior (see „Cleaning and Care“).
• In case the interior accessories are not correctly placed, rearrange them as described in chapter „Product Description“.

Tips for Energy Savings

• Try not to open the door too often, especially when the weather is wet and hot.
• Once you open the door, close it as soon as possible.
• Every now and then check if the appliance is sufficiently ventilated (adequate air circulation around the appliance).
• Set thermostat from higher to lower settings as soon as possible {depends on how loaded the appliance is ambient temperature etc).
• Before loading the appliance with packages of fresh foods, make sure they are cooled to ambient temperature. For hot foods, please cool to room temperature before placing it in the cooler.

Operation

When the cooler works with full power, the two LEDs on the circuit board will flash. The red one shows the power input status. The green one shows the output status of the cooling system. Meanwhile the fan inside the cooler begins to work. When the door is opened, the light under the temperature adjuster will turn on automatically. The temperature range for cooler is 8^ C to 18^ C. When the temperature is set on one certain point and the temperature inside reaches this point, the automatic temperature control system begins to work and the cooling system goes into linear temperature keeping status.

Note: Wait 3-5 minutes before restarting if you unplug the cooler. The unit may fail to operate properly if restarted too quickly.

CLEANING AND CARE

Cleaning the Unit

• First switch off the unit and disconnect the power plug from the socket. Remove the entire contents.
• Wash the interior with a damp cloth dipped in lukewarm water with a little detergent.
• Make sure that the rubber seal on the door is clean so that the unit remains powerful.
• The exterior of the wine refrigerator should be cleaned with a mild detergent.
  • Dry the inside and outside with a soft cloth.
• Dust and anything else that blocks the exhaust air openings will reduce the cooling capacity of the unit. If necessary, suck off the exhaust air opening.

Shutdown in absentia

• Turn off the unit first. Then disconnect the power plug.
• Remove the entire contents.
• Clean the unit.
• Keep the lid open slightly to prevent condensation, mould or odours.

Installation at another Location

• Turn off the unit first. Disconnect the power plug.
• Remove the entire contents.
• Secure all loose objects with adhesive tape.
• Tape the doors shut.

Energy Saving Tips

The wine refrigerator should be placed in the coolest place in the room, away from appliances that emit heat. heating pipes and direct sunlight. Make sure the door is properly closed when the wine refrigerator is on.

TROUBLESHOOTING

Problem Possible Cause and Suggested Solution
Wine cellar does not operate.	Not plugged in.
	The appliance is turned off.
	The circuit breaker tripped or the fuse is broken.
Wine cellar is not cold enough.	Check the temperature control setting.
	External environment may require a higher setting.
	The door is opened too often.
	The door is not closed completely.
	The door gasket does not seal properly.
The light does not work.	Not plugged in.
	The circuit breaker tripped or a blown fuse.
	The bulb is out of order.
	The light button is "OFF".
Turns on and off frequently.	The room temperature is hotter than normal.
	A large amount of contents has been added to the Wine cellar.
	The door is opened too often.
	The door is not closed completely.
	The temperature control is not set correctly.
	The door gasket does not seal properly.
Vibrations. Check to assure that the Wine cellar is level.
The Wine cellar seems to make too much noise.	The rattling noise may come from the flow of the refrigerant, which is normal.
	As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Wine cellar.
	Contraction and expansion of the inside walls may cause popping and crackling noises.
	The Wine cellar is not level.
The door will not close properly.	The Wine cellar is not level.
	The door was reversed and not properly installed.
	The gasket is faulty (magnet or rubber is spoiled).
	The shelves are out of position.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

643/2009/EC (ErP)

1060/2010/EU (ErP)
