Brand	Klarstein
Model	Vinamour 48 Uno
Product type	Freestanding wine cellar
Capacity	128 L (48 standard bottles)
Dimensions (H x W x D)	83 x 54 x 54 cm
Weight	Approx. 45 kg
Power supply	220-240 V ~ 50-60 Hz
Energy efficiency class	G
Annual consumption	144 kWh
Noise level	41 dB (A)
Temperature range	4°C to 18°C
Cooling type	Compressor (R600a)
Defrost	Manual
Interior lighting	LED, with switch
Number of shelves	8 wooden shelves
Door	Solid, with handle and lock
Display and control	Digital touch panel, adjustment in 1°C increments
Adjustable feet	Yes
Maintenance	Interior cleaning with warm water, regular manual defrosting
Safety	Grounded outlet required, flammable refrigerant R600a, do not install in a built-in cavity
Warranty	24 months

Frequently Asked Questions - Vinamour 48 Uno Klarstein

What is the ideal temperature for storing wine in this cellar?

The recommended temperature is 12°C. Too high a temperature damages the wine, too low a temperature increases power consumption.

How many bottles can the wine cellar hold?

The cellar can hold up to 48 standard bottles (total capacity 128 L).

How to adjust the temperature?

Use the + and - buttons on the control panel to adjust the temperature in 1°C increments. The display alternates between °C and °F using the dedicated button.

Can I install this wine cellar as built-in?

No, this appliance is designed for freestanding installation only. It must be installed with a minimum clearance of 10 cm on the sides and back for ventilation.

How to clean the interior of the cellar?

Unplug the appliance, remove the bottles and clean with a soft cloth dampened with warm water. Dry thoroughly before putting back into service.

What to do if the cellar does not cool enough?

First check that the appliance is properly plugged in and the fuse has not blown. Make sure the set temperature is correct and the ventilation openings are not obstructed.

The interior light no longer works, what to do?

Contact customer service to have the LED light repaired or replaced. Do not attempt to repair it yourself.

How to unlock the door?

Insert the provided key (in the manual pouch) into the lock and turn it counterclockwise. To lock, turn clockwise.

Can I store food other than wine?

This appliance is exclusively intended for wine storage. It is not suitable for freezing or storing perishable food.

What refrigerant is used and is it dangerous?

The refrigerant is R600a (Isobutane), a flammable natural gas. It is environmentally friendly but requires keeping the appliance away from ignition sources. In case of a leak, ventilate the room.

USER MANUAL Vinamour 48 Uno Klarstein

INHALTSVERZEICHNIS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 16

Installation 18

Product Description 19

Use and Operation 19

Care and Cleaning 20

Troubleshooting 21

Product Data Sheet 22

Disposal Considerations 24

Manufacturer & Importer (UK) 24

TECHNICAL DATA

Item number 10045818
Power supply 220-240 V ~ 50-60 Hz
Volume 128 L
Temperature range 4-18 °C

SAFETY INSTRUCTIONS

- Check that the voltage of the power supply in your home is the same as the voltage shown on the rating label of this product.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep ventilation opening, in the appliance enclosure or in the built-in structure, clear of obstruction.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

• Do not damage the refrigerant circuit.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- It is recommended to check regularly the supply cord for any sign of possible deterioration, and the appliance should not be used if the cable is damaged

- To avoid injury or death from electrical shock, do not operate the appliance with wet hands, while standing on a wet surface.

- It is not recommended to use this refrigerator with an extension cord or power board. Please ensure that the appliance is plugged directly into the electrical outlet.

- When positioning the appliance, ensure that there is at least a 5 cm clearance at the sides and a 10 cm clearance at the back as this is the main outlet for heat. This will allow for adequate ventilation.

- Do not place hot food or drink into the refrigerator before it cools down to room temperature.

- Close the door immediately after putting in any items so the inside temperature will not rise dramatically.

- Keep appliance away from any heat source or direct sunlight.

- To fix stably, the appliance must be placed on a flat and solid surface. It should not be laid on any soft material.

• Do not place any other appliance on top of the refrigerator, and do not wet it.

- Do not store something like ether, methanol, gasoline, which is easy to evaporate burn or explode.

• Do not use outdoors or in wet conditions.

- Never pull the cord to disconnect it from the outlet. Grasp the plug and pull it from the outlet.

- Keep the cord away from heated surfaces.

- This appliance has been incorporated with a grounded plug. Please ensure the wall outlet in your house is well earthed.

- Connect your refrigerator to an independent electrical socket and use a safe ground wire.

- Defrost the freezer at least once a month because too much frost may affect refrigeration.

- Turn on electricity only 5 minutes later after electricity goes off. Otherwise, the compressor may be damaged.

This appliance contains the coolant isobutane (R600a), a natural gas which is environmentally friendly. Although it is fl ammable, it does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable, and does not have any adverse effect on the performance of the appliance. Care must be taken during the transportation and setting up of the appliance that no parts of the cooling system are damaged. Leaking coolant can damage the eyes.

Special notes

• Children between the ages of 3 and 8 are allowed to load and unload the appliance.
• When positioning the unit, make sure that the power cord is not pinched or damaged.
• Make sure that there are no multiple sockets or power supplies on the back of the unit.

To avoid contamination of food, please follow the instructions below:

- A prolonged opening of the door can lead to a significant rise in temperature in the compartments of the appliance.

WARNING

When using, servicing and disposing of the unit, pay attention to the left symbol on the rear of the unit or on the compressor. This symbol warns of possible fi res. There are fl ammable substances in the refrigerant lines and in the compressor. Keep the appliance away from sources of fi re during use, maintenance and disposal.

Notes on correct use

• This device is intended exclusively for the storage of wine.
• This appliance is not intended for use as a built-in appliance unless explicitly mentioned in the instructions.
  • This appliance is not suitable for freezing food.
• The shelves have been installed in advance to allow the most efficient use of energy.

Note: It is recommended to set the temperature to 12 °C. If the temperature is set too high, the wine may spoil; if the temperature is set too low, a lot of electricity is consumed.

INSTALLATION

- This appliance is designed to be free standing only, and should not be recessed or built-in.

- Place your unit on a floor that is strong enough to support the unit when it is fully loaded.

• To level your unit, adjust the leveling legs at the bottom of the unit.

- This appliance is NOT designed to be installed inside of a cabinet where the front is covered by any type of door.

- Allow 10 cm of space between the top, back and sides of the unit, which allows the proper air circulation to cool the compressor and condenser.

- Locate the unit away from direct sunlight and sources of heat (stove, heater, radiator, etc.).

- Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

- Avoid locating the unit in moist areas.

- Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Avanti Products service center.

- After plugging the appliance into a wall outlet, allow the unit to cool down for 2-3 hours before placing food in the APPLIANCE compartment.

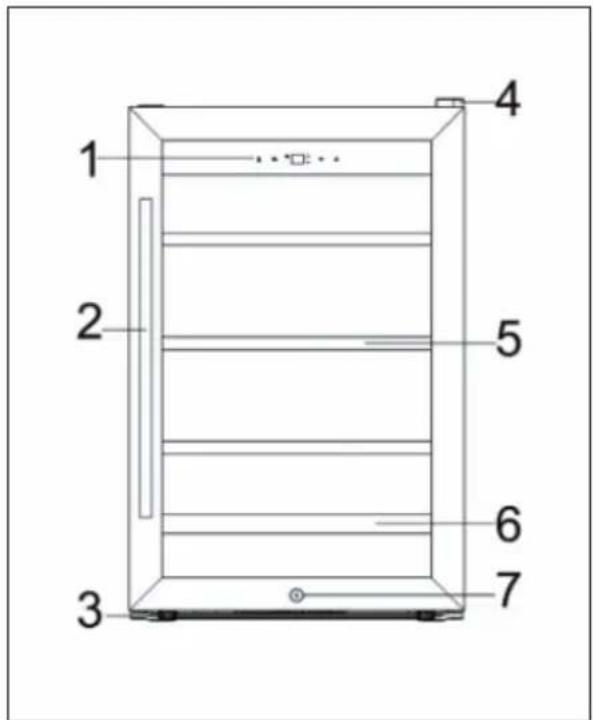

PRODUCT DESCRIPTION

1 Control Panel
2 Handle
3 Adjustable Foot
4 Cover
5 Wooden shelf
6 Guard Bar
7 Lock

USE AND OPERATION

Before Using Your Beverage Cooler

Remove the exterior and interior packing. Before connecting the beverage cooler to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from improper handling during transportation. Clean the interior surface with lukewarm water using a soft cloth.

Installing Your Beverage Cooler

This beverage cooler is designed to be free standing only, and should not be recessed or built-in. Adjust the feet to keep the beverage cooler level. Locate the beverage cooler away from direct sunlight and sources of heat (stove, heater, radiator). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Ambient temperature below 5 °C or above 32 °C will hinder the performance of this appliance.

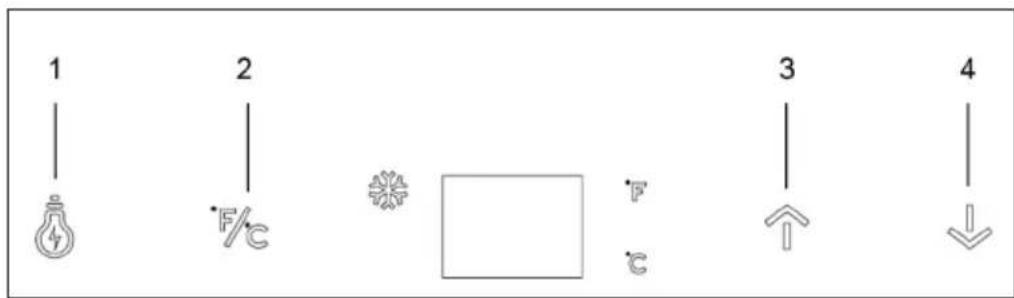

Control Panel and Key Functions

1 LIGHT BUTTON: To turn the inner light on or off.

2 SELECTOR DISPLAY: Choose to display temperatures in Celsius or Fahrenheit.

3 TEMPERATURE SET BUTTON (UP BUTTON) : Used to increase (warm) the set temperature by 1 °C or 1 °F.

4 TEMPERATURE SET BUTTON (DOWN BUTTON): Used to lower (cool) the set temperature by 1 °C or 1 °F.

Door lock

Your unit is provide with a lock and key combination. The keys are located inside the plastic bag that contains the owner's manual. Insert the key into the lock and turn it counterclockwise to unlock the door. To lock the door do the reverse operation making sure the metal pin is engaged completely. Remove the key and place it in a secure place for safekeeping.

CARE AND CLEANING

NOTE: Turn off the unit, and unplug it from the wall outlet before maintenance or cleaning to avoid electric shock.

Cleaning

• Remove all contents.
• Wash the inside with a damp warm cloth soaked in lukewarm water.
• Be sure to keep the door gasket (seal) clean to keep the unit running efficiently.
• The outside of the beverage cooler should be cleaned with mild detergent and warm water.
  • Dry the interior and exterior with a soft cloth.
• Dust or anything else blocking the vent may hinder the cooling efficiency of the appliance. Vacuum the vent if necessary

Vacation Time

• Turn off the beverage cooler first and then unplug the unit from the wall outlet.
• Remove all the contents.
• Clean the appliance.
• Leave the lid open slightly to avoid possible formation of condensation, mold, or odors.
• Short vacations: Leave the beverage cooler operating during vacations of less than three weeks.
• Long vacations: If the beverage cooler will not be used for several months, remove all content and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly: blocking it open if necessary.

Moving Your Appliance

• Turn off the beverage cooler first and then unplug the unit from the wall outlet.
• Remove all the contents.
• Securely tape down all loose items inside your appliance.
• Tape the doors shut.

TROUBLESHOOTING

Problem Possible Cause
Wine cooler do not operate. Not plugged in. The circuit breaker tripped or a blown fuse.
Wine cooler is not cold enough. Check the temperature control setting.
The light does not work. Check the service center.
Vibrations. Check to assure that the beverage cooler is level.
The beverage cooler seems to make too much noise	The beverage cooler is not level.
	Check the fan.
The door will not close properly. Beve	Average cooler is not level.
	The doors were reversed and not properly installed.
	The seal is weak.

PRODUCT DATA SHEET

Information according to Regulation (EU) No. 2019/2016

Supplier's name or trademark: Klarstein
Supplier's address: Wallstraße 16, 10179 Berlin, DE
Model identifier: 10045818
Type of refrigerating appliance:
Low-noise appliance: No D		design type: freestanding
Wine storage appliance: Yes		Other refrigerating appliance:		No
General product parameters:
Parameter Value Parameter		Value
Overall dimensions (mm)	Height 830		Total volume (dm3 or L)	128
	Width	540
	Depth	540
EEI		171	Energy efficiency class	G
Airborne acoustical noise emissions (dB(A) re 1 pW)		41	Airborne acoustical noise emission class	C
Annual energy consumption (kWh/a)		144Climate class:		extended temperate, temperate,
Minimum ambient temperature (°C), for which the refrigerating appliance is suitable		10	Maximum ambient temperature (°C), for which the refrigerating appliance is suitable	32
Winter setting		No

Compartment Parameters:
Compartment type		Compartment parameters and values
		Compartment volume (dm3 or L)	Recommended temperature setting for optimised food storage (°C) These settings shall not contradict the storage conditions set out in Annex IV, Table 3	Freezing capacity (kg/24h)	Defrosting type (auto-defrost=A, manual defrost=M)
Pantry No - - - -
Wine storage	Yes	128.0	12	-	A
Cellar No - - - -
Fresh food No - - - -
Chill No - - - -
0-star or icemaking No - - - -
1-star	No - - -
2-star	No - - -
3-star	No - - -
4-star	No - - -
2-star section	No - - -
Variable temperature compartment	-	- - - -
For wine storage appliances
Number of standard wine bottles			48
Light source parameters:
Type of light source			-
Energy efficiency class			-
Minimum duration of the guarantee offered by the manufacturer: 24 months
Additional information:
Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.klarstein.co.uk

DISPOSAL CONSIDERATIONS

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
