MS520 - Grass trimmer Stahlmann - Free user manual and instructions

Product type	Petrol grass trimmer and brush cutter
Brand	Stahlmann
Model	MS520
Dimensions (L x W x H)	98 x 31 x 39 cm
Weight	6.8 kg
Power source	2-stroke oil-fuel mixture (40:1)
Engine	Single-cylinder 2-stroke, 51.7 cc, 9600 rpm
Fuel tank capacity	1.2 L
Cutting width (grass)	420 mm
Cutting width (brush)	255 mm
Cutting tools	3-tooth blade and nylon head (line Ø2.4 mm)
Sound pressure level (LpA)	96.7 dB(A)
Sound power level (LwA)	111 dB(A)
Vibration (ah)	7.5 m/s²
Main functions	Cutting grass, weeds, small shrubs up to 10 mm in diameter
Maintenance	Clean air filter, fuel filter, spark plug, grease gearbox every 25 h
Safety	Safety switch, protective guard, engine stop, danger zone 15 m
Spare parts	Blade, nylon head, cutting line, spark plug, filters, belt, etc.
General information	Professional or domestic use, two-handle fork grip, recoil start

Frequently Asked Questions - MS520 Stahlmann

What fuel mixture to use for the Stahlmann MS520?

Use a mixture of unleaded petrol and high-quality 2-stroke engine oil in a 40:1 ratio (petrol/oil). Do not use 4-stroke engine oil.

How to start the engine of the MS520 brush cutter?

Place the machine on a flat surface. Open the fuel valve, close the choke, pull the starter cord. Once started, gradually open the choke and let it warm up for 2-3 minutes.

What is the maximum engine speed?

The maximum engine speed is 9600 rpm, with idle set at 3000 ± 300 rpm.

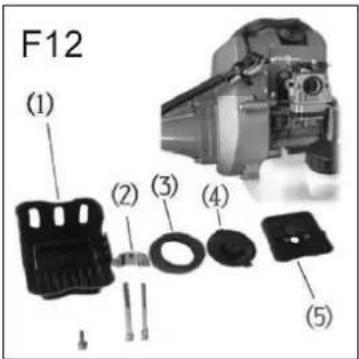

How to maintain the air filter?

Remove the filter cover, take out the filter element, clean it in warm soapy water, dry it completely before reinstalling. Replace if damaged.

What protective equipment to wear when using?

Wear a helmet, safety glasses, face shield, sturdy gloves, non-slip boots, and hearing protection.

How to install the cutting blade?

Place the adjusting washer on the shaft, then the blade (groove aligned), the outer support, the cap, and tighten the left-hand thread nut using the provided tensioning wrench.

What is the safety distance to keep around the machine?

A 15-meter zone around the brush cutter is considered dangerous. Keep children, bystanders, and helpers away.

How to store the machine at the end of the season?

Empty the fuel tank, run the engine until it stops, remove the spark plug, add 1-2 ml of 2-stroke oil, pull the starter, replace the plug. Clean, apply anti-rust oil, and store in a dry place.

What to do if the blade hits a hard obstacle?

Immediately stop the engine and check if the blade is damaged (cracks, deformations). Replace if necessary before continuing.

Where to find spare parts for the MS520?

Contact your authorized Stahlmann dealer or consult the manual for part references. Common parts like blade, cutting line, and filters are available at distributors.

USER MANUAL MS520 Stahlmann

Konrad-Zuse-Str. 3, D-54552 Nerdlen, Germany

[e-mail]

RESPECTEZ LES CONSIGNES DE SECURITÉ

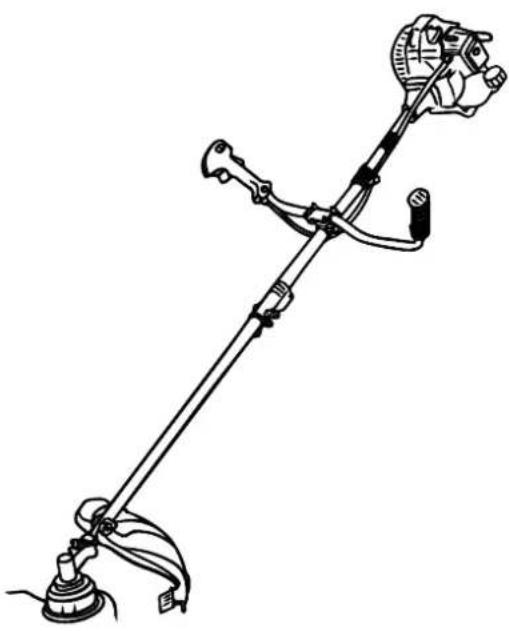

Grass Trimmer and Brush Cutter

Article: MS520
Var. ID.: 4118

EN Original instructions

Caution

Before operating our petrol lawn mower, please read this manual carefully to understand the proper use of your unit.
Keep this manual available.

Albatros International GmbH Konrad-Zuse-Str.3,D-54552 Nerdlen, Germany [e-mail]

SAFETY FIRST

Instructions contained in warnings within this manual marked with a symbol concern critical points which must be taken into consideration to prevent possible serious bodily injury, and for this reason you are requested to read all such instructions carefully and follow them without fail.

This machine can be used with the cutting line as a grass trimmer and with the cutting knife as a brush cutter.

When using the cutting line, the machine is intended as a grass trimmer only for cutting grass or light weeds.

When using the cutting knife, the machine is a brush cutter intended for cutting strong grass, strong weeds and light shrubs up to a diameter of max. 10 mm.

This machine is not intended for cutting hedges or the like for which the machine/cutting tool must be lifted from the ground.

Other materials like clay, soil, steel etc. must not be processed.

NOTES ON TYPES OF WARNINGS IN THE MANUAL

WARNING

This mark indicates instructions, which must be followed in order to prevent accidents, which could lead to Serious bodily injury or death.

IMPORTANT

This mark indicates instructions, which must be followed, or it leads to mechanical failure, breakdown, or damage

NOTE

This mark indicates hints or directions usefully in the use of the product.

Contents

1. PARTS LOCATION
2. WARNING LABELS ON THE MACHINE
3. SYMBOLS ON THE MACHINE
4. SAFETY PRECAUTIONS
5. SETUP
6. FUEL
7. OPERATION
8. SPECIFICATIONS

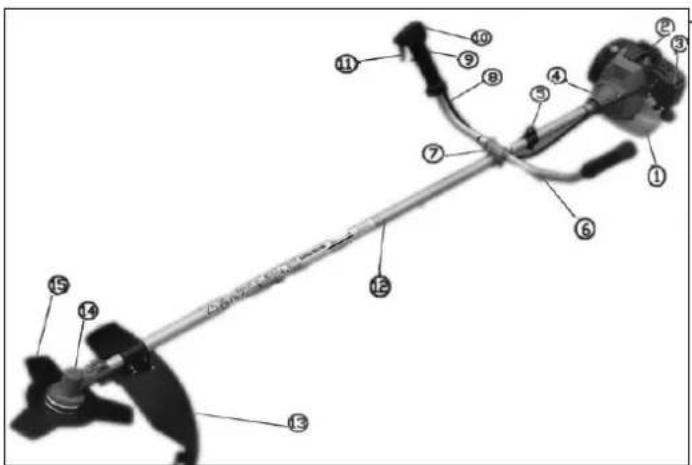

1. PARTS LOCATION

1. Fuel tank
2. Starter
3. Air cleaner
4. Housing
5. Hanging hook
6. Handle
7. Handle bracket
8. Throttle cable
9. Throttle interlock
10. Engine switch
11. Throttle trigger
12. Shaft
13. Blade guard
14. Gear case
15. Blade

Owner manual
1

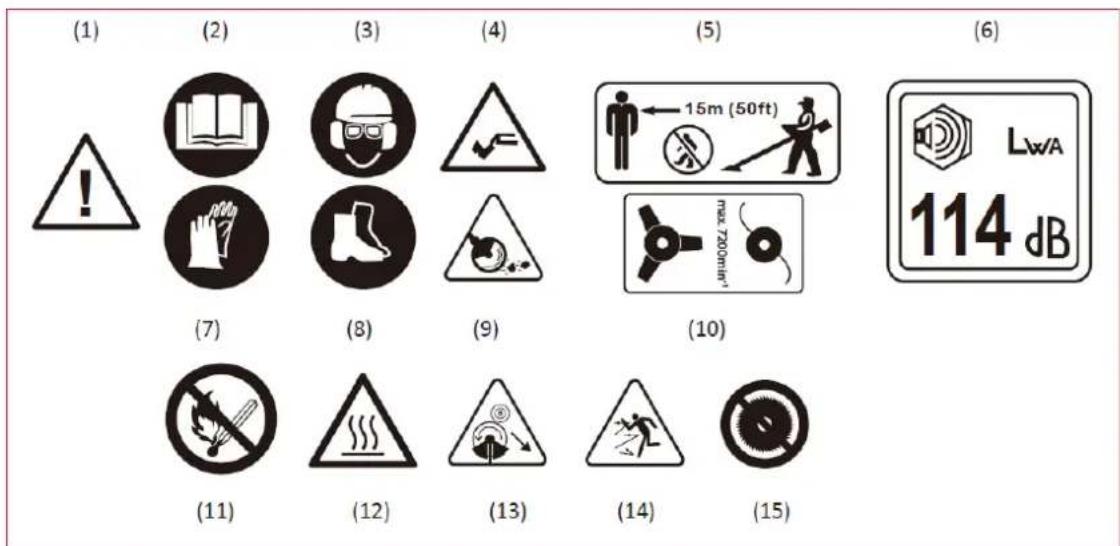

2. WARNING LABELS ON THE MACHINE

(1) Warning! / Attention!
(2) Read owner's manual before you operating this machine.
(3) Wear head, eye and ear protection.
(4) When blade or string head is working, keep your feet away from the blade or string head.
(5) Keep all children, bystanders and helpers at least 15 meters away from the grass trimmer.
(6) The sound power level complies with the 2000/14/EC standard.
(7) Wear heavy-duty gloves to protect your hands.
(8) Wear safety boots to protect your feet.
(9) When blade or string head is working, keep your hand away from the blade or string head.
(10) Maximum rotational frequency of the spindle
(11) Fuel is flammable. Do not smoke or use monkey fire in places where fuel is handled or stored.
(12) Hot surfaces will burn fingers or palms.
(13) Beware of blade thrust.
(14) Beware of thrown objects.
(15) Indicates that the machine must not be used with a saw blade.

IMPORTANT

If warning seals peel off or become soiled and impossible to read, you should contact the dealer from which you purchased the product to order new seals and affix the new seal in the required location.

3. SYMBOLS ON THE MACHINE

For safe operation and maintenance, symbols are shown on the machine. According to these indications, please be careful not to make a mistake.

(a). The port to refuel the "MIX GASOLINE" POSITION: FUEL TANK CAP
(b). The direction to close the choke POSITION: AIR CLEANER COVER
(c). The direction to open the choke POSITION: AIR CLEANER COVER

4. SAFETY PRECAUTIONS

BEFORE USING THE MACHINE

Read this owner's manual carefully to understand how to operate this unit properly.

This product has been designed for use in cutting grass, and cutting brushes, it should never be used for any other purpose.

You should never use this grass trimmer when under the influence of alcohol, when suffering from the exhaustion or lack of sleep when suffering from drowsiness as a result of having taken cold medicine, or at any other time when a possibility exists that your judgment might be impaired or that you might not be able to operate the grass trimmer properly and in a safe manner.

Avoid running the engine indoors. The exhaust gases contain harmful carbon monoxide.

Never use your grass trimmer under circumstance like those described below:

1. When the ground is slippery or when other conditions exist which might make it not possible to maintain a steady posture while using the grass trimmer.
2. At night, at times of heavy fog, or at any other times when your field of vision might be limited and it would be difficult to gain a clear view of the area.
3. During rain storms, during lightning storms, at times of strong or gale-force winds, or at any other times when weather conditions might make it unsafe to use this product.
4. When using this product for the first time, before beginning actual work, learn to handle the grass trimmer from skilled worker.
5. Lack of sleep, tiredness, or physical exhaustion result in lower attention spans, and this in turn leads to accidents and injury. Limit the amount of time over which

the grass trimmer is to be used continuously to somewhere around 30 40 minutes per session, and take 10 20 minutes of rest between work sessions. Also try to keep the total amount of work performed in a single day under 2 hours or less.

1. Be sure to keep this manual handy so that you may refer to it later whenever any questions arise.
2. Always be sure to include this manual when selling, or otherwise transferring the ownership of this product.

1. Never allow children or anyone unable to fully understand the instructions given in this manual to use this grass trimmer.

WORKING GEAR AND CLOTHING

A. When using your grass trimmer, you should wear proper clothing and protective equipment as follows.

(1) Helmet
(2) protection goggles or face protector
(3) Thick work gloves
(4) Non-slip-sale work boots
(5) Ear protectors

B. And you should carry with you things as follows.

1. Attached tools and files
2. Properly reserved fuel

3. Spare blade

4. Things to notify your working area (warning signs)

5. Whistle (for collaboration or emergency)

6. Hatchet at saw (for removal of obstacles)

C. Never use your grass trimmer when wearing shirt with loose cuffs, when wearing sandals, or when barefoot.

Some noise pollution from this device is unavoidable. Move noisy work to approved and designated times. Limit working time to what is necessary. For your personal protection and protection of nearby persons, appropriate hearing protection must be worn.

Prolonged use of the trimmers exposes the operator to vibration and can cause circulatory problems ("white finger"). To reduce this risk, wear gloves and keep hands warm. If any symptom of the "white finger" is detected, consult a doctor immediately. Symptoms include: numbness, loss of sensitivity, tingling, itching, pain, loss of strength, change in color or condition of the skin. Usually these symptoms affect the fingers, hands or pulse. At low temperatures the danger increases. Plan your work so that the use of equipment that generates strong vibrations is spread over several days.

WARNING CONSIDERING HANDLING OF FUEL

a. The engine of this product is designed to run on a mixed fuel, which contains highly flammable gasoline. You should never store cans of fuel or refill the fuel tank in any place where there is a boiler, stove, wood fire, electrical sparks, welding sparks, or any other source of heat or fire which might ignite the fuel.

b. Smoking while operating the grass trimmer or refilling its fuel tank is extremely dangerous. Always be sure to keep cigarettes away from the grass trimmer at all times.

C. When refilling the tank always turn off the engine first and take a careful look around to make sure that there are no sparks or open flames anywhere nearby before refueling.
d. If any fuel spillage occurs during refueling, use a dry cloth to wipe up spills before turning the engine back on again.
e. After refueling, screw the fuel cap back tightly onto the fuel tank and then carry the grass trimmer to a spot 3m or more away from where it was refueled before turning on the engine.

THINGS TO CHECK BEFORE USING YOUR GRASS TRIMMER.

a. Before beginning work, look around carefully to get a feel for the shape of the land, or grass to be trimmed and whether or not there are any obstacles, which might get in the way while working,

and remove any obstacles, which can be cleared away.

b. The area within perimeter of 15m of the person using the grass trimmer should be considered a hazardous area into which no one should enter while the grass trimmer is in use, and when necessary yellow warning rope, warning signs should be placed around the work area. When work is to be performed simultaneously by two or more persons, always check the presence and locations of others so as to maintain a distance of each person sufficient to ensure safety.

c. Make sure that there are no loose screws or bolts, fuel leaks, ruptures,

dents, or any other problems, which might interfere with safe operation. Be especially careful to check that there is nothing wrong with the blades or with the string head by which the blades are attached to the grass trimmer.

d. Never use blades that are bent, warped, cracked, broken or damaged in any way.
e. Keep the blade always sharp.
f. Filling the cutting edges, keeping the end corners sharp.
g. Check the bolt to fasten the blade and be sure the blade turns smoothly without abnormal noise.

NOTE ON STARTING THE ENGINE

1. Take a careful look around to make sure that no obstacles exist within a perimeter of 15m or less around grass trimmer.
2. Place the body of the grass trimmer onto the ground in a flat clear area and hold it firmly in a place so as to ensure that neither the blades nor the throttle come into contact with any obstacle when the engine starts up.

1. Place the throttle into the idling position when starting the engine.
2. After starting up the engine, if the blades continue to rotate even after the throttle has been moved fully back, turn off the engine and check the throttle wire and other parts.

■ KICK BACK SAFETY PRECAUTIONS

A dangerous reaction may occur when the spinning blade contacts a solid object in the critical area. It is called kick back. As a result, the operator can lose control of the unit, which can cause serious injury.

Avoid kickback: observe the safety precaution below strictly.

1. Before beginning work, clear your working area and remove grasses around the obstacles.
2. While using your grass trimmer, do not grip other parts except the handles.
3. When using your grass trimmer, always fully concentrate. If you need to, rest or stop for a short period place the throttle into the idling position.
4. When using your grass trimmer, do not let the unit get closer to your feet nor anisette above

your waist.

NOTE ON TRANSPORTATION

1. Make sure an appropriate blade cover is in place.
2. When transporting by car, fix the unit firmly using a rope. Do not transport by bicycle or motorcycle because it is dangerous.
3. Never transport the grass trimmer over rough roads over long distances without first removing all fuel from the fuel tank, as doing so might cause fuel to leak from the tank.

OPERATION SAFETY PRECAUTIONS

1. Grip the handles of the grass trimmer firmly with both hands. If you suspend the work, place the throttle into the idling position.
2. Always be sure to maintain a steady, even posture while working.
3. Maintain the speed of the engine at the level required to perform cutting work, and never raise the speed of the engine above the level necessary.
4. If the grass gets caught in the blade during operation, or if you need to check the unit or refuel the tank. Always be sure to turn off the engine.

1. If the blade touches a hard object like a stone, immediately stop the engine and check for damage to the blade. If so, replace the blade with a new one.
2. If someone calls out while working, always be sure to turn off the engine before turning around and entering into a conversation.
3. Never touch the spark plug or plug cord while the engine is operating. Doing so may result in being subjected to an electrical shock.

4. Never touch the muffler. Spark plug, or other metallic parts of the engine while the engine is in operation or immediately after shutting down the engine. Doing so may result in serious burns.

5. When you finish cutting in one location and wish to continue working in another area turn off the engine and turn the unit away from yourself so that the blade faces away from your body.

MAINTENANCE SAFETY PRECAUTION

1. Perform the maintenance and checking operations described in this manual at regular intervals. If any parts must be replaced or any maintenance or repair work not described in this manual must be performed, please contact a representative from the nearest authorized servicing dealer for assistance.
2. Under no circumstances should you ever take apart the grass trimmer or alter it in any way. Doing so might result in the grass trimmer becoming damaged during operation or the grass trimmer

becoming unable to operate properly.

1. Always be sure to turn off the engine before performing any maintenance or checking procedures.
2. When sharpening, removing, or reattaching the blade always uses proper tools and equipment to prevent injury.
3. When replacing blade or any other parts or when replacing the oil or any lubricants, always be sure to use only products which have been certified by for use with the grass trimmer.

5. SET UP

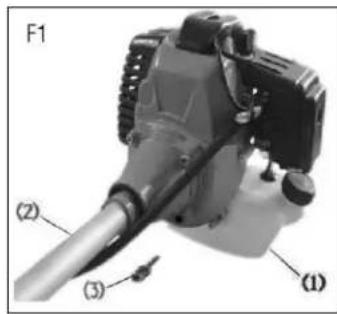

ENGINE AND MAIN PIPE

Align the main pipe and the fuel tank, using attached 4 socket screws. secure the connection firmly with equal force. (F1)

(1) Fuel tank
(2) Main pipe
(3) Bolt

- HANDLE

1. Loosen the 4 bolts on the handle bracket. (F2)
2. Insert the right handle (throttle lever is attached) and the left handle assembly into the bracket and retighten the bolts securely. (F2)

(1) Handle bracket
(2) Right handle
(3) Bolt
(4) Left handle
(5) Engine side

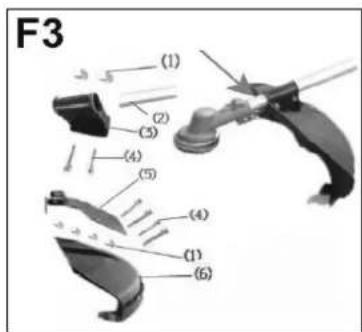

SAFETY GUARD

Attach the safety guard to the gear case and fix it up with the clamp and 6 bolts (M5*25) securely. (F3)

(1) Nut

(2) Pipe
(3) Clamp
(4) Bolt
(5) Junction panel
(6) Safety guard

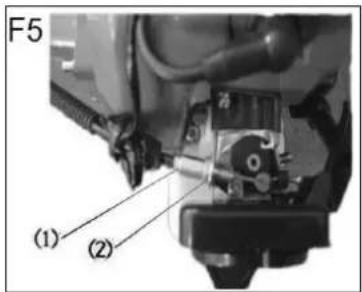

ADJUSTING TH THROTTLE CABLE

1. After releasing the throttle lever. Pull the throttle wire.
   Thenormal play is 1 or 2mm when measured at the carburetor side end.
2. If the play is short or long. Take off the air cleaner cover, loosen the lock nut and adjust the play. (F5)
   (1) Adjust nut.
   (2) Lock nut.

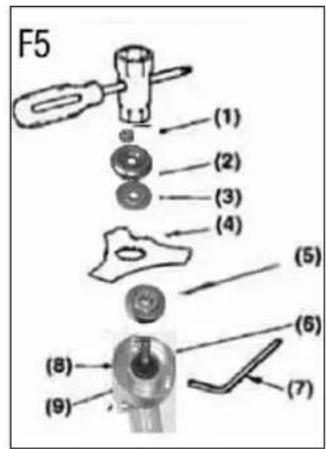

INSTALLING THE METAL BLADE(F5)

1. Set the inner holder to the gear shaft, and turn to fix with the attached L-shaped bar.

2. Put the blade on the inner holder with letters to the gear case, and match correctly the hole of the blade to the projection of the inner holder.

3. Set the outer holder to the gear shaft with the hollowed face to the blade.

1. Put the attached boll cover on the outer holder and secure it with the bolt (left screw) together with the spring washer and the washer.

(1) Nut
(2) Protection cover
(3) Flang spindle
(4) Blade Brush 3 tooth
(5) Ring
(6) Holder
(7) Spanner
(8) Inner bolder
(9) Gear case

INSTALLING THE NYLON CUTTER(OPTION)(F6)

1. Place the bracket (1) correctly on the gearbox shaft (2).
2. Fasten the nylon head (3) on the gearbox shaft by manually tightening it.

NOTE

Keep bolts and washers to install the blade carefully so as not to lose them.

(1) Gear case
(2) Bolt
(3) Nylon cutter
(4) Nylon cord

6. FUEL

WARNING

• Gasoline is very flammable. Avoid smoking or bringing any flame or sparks near fuel.
• Wipe up all spills before starting the engine.
  Make sure to stop the engine and allow it to cool before refueling the unit.

• Keep open flames away from the area where fuel is handled or stored.

• Your model uses a two-stroke engine. Do not use oil intended for 4-stroke engines, as this can lead to contamination of the spark plugs, blockage of the exhaust opening, or seizing of the piston rings.

• Mixed fuels which have been left unused for a period of one month or more, may clog me carburetor or result in the engine failing to operate property. Put remained fuel into an airtight container and keep it in the dark and cool room.

Mix a regular grade gasoline (leaded or unleaded, alcohol-free) and a quality-proven motor oil for air-cooked 2 cycle engines.

RECOMMENDED MIXING RATIO

GASOLINE 40:OIL 1

7.OPERATION

STARTING THE ENGINE

• Before starting the engine, inspect the entire unit for loose fitting or fuel leaks, and the cutting attachment is properly installed and securely fastened.

• place the unit on a flat, firm place. Keep the cutting head clear of everything around it.

• turn the cap to the fuel tank to make sure that it is fixed on tightly. (F7)

(1) cap
(2) fuel tank

1. Open the fuel tank cock. (F8)
2. Move the choke lever to the closed position. (F8)

(1) Choke lever
(2) Close
(3) Open

When restarting immediately after stopping the engine, move the choke lever to the open position.

1. While holding the unit firmly, pull out the starter rope quickly. (F9)
2. After the engine has started, open the choke gradually.
3. Allow the engine to run for 2 to 3 minutes to warm up.

STOPPING THE ENGINE

1. Return the throttle lever to the idling position.
2. Push the engine switch button.

EQUIPPING THE HARNESS

1. Equip the attached harness. (F10)

2. Turn on the engine, return the throttle lever to the lowest speed position, and put the harness hook to the hanging part of the machine.

3. Adjust the length of the harness so that the blade may be parallel to the ground in the working position. In order to prevent slack during operation, turn up to ensure the extra length of the band and not loose.

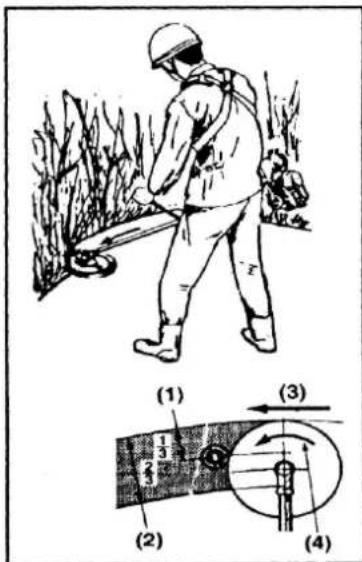

CUTTING OPERATION

METAL BLADE USAGE

Always cut by guiding the head from your right to left.
A metal blade cut best up to the point 1/3 from the edge. Use that area for cutting shrubs, tough and thick weeds. For cutting young grass, you can use up to 2/3 from the tip of blade.
Adjust the engine speed according to the cutting objects. Cut the young grass at middle speed, and cut shrubs or tough and thick weeds of high speed.

(1) For branches and trees
(2) For grass and weeds
(3) Direction of cutting
(4) Direction of rotation

IMPORTANT

Operating at low speed makes it easier for grass, weeds, or twigs to become caught up in the blades, and also it makes the shaft and clutch wear down more quickly.

NYLON CUTTER USAGE

Nylon cord consumes large power, please note that the engine rotation speed in operation should be 50% as large as when using metal blade.
Nylon cutter cut grass with the power of cord rotation. If you try to cut grass for the length of cord at one time, rotation speed becomes lower due to resistance and you cannot cut well. In case of large resistance, get the nylon cutter away from grass once, make the rotation speed higher, and cut a small amount of grass at one time.
If you try to cut grass by swinging the grass trimmer in the reverse way (from left to right), scraps fly in the direction away from the body. You can avoid getting your clothes dirty.

8. MAINTENANCE

BLADE

Sharpen each cutting edge and make sure the bottom corner is rounded. (F11)
Do not cool the blade with water in case of using grinder. It may cause cracks on blade.

AFTER 25 HOURS OF

AIR CLEANER

Check and clean the filter element in warm, soapy water as required. Dry completely before installing. If the element is broken or shrunk, replace with a new one. (F12)

(1) Cover
(2) Clamp
(3) Element
(4) Screen
(5) Body

IMPORTANT

A clogged air filter may increase fuel consumption while cutting down the engine power.

Operating the grass trimmer without the air filter or with a deformed filter element will quickly ruin the engine.

FUEL FILTER

Take the filter out of the fueling port using a small wire hook. Disconnect the filter assembly from the fuel pipe and unhook the retainer to disassemble it. Clean the components with gasoline.

IMPORTANT

A clogged fuel filter may cause poor acceleration of the engine.

SPARK PLUG

Remove and inspect the spark plug and clean the electrodes as necessary with brush.

The spark gap should be adjusted to 0.6 0.7mm (F13)

INTAKE AIR COOLING VENT

Heck the intake air-cooling vent and the area around the cylinder cooling fins, and remove any waste, which has attached itself to the grass trimmer.

IMPORTANT

Note that failing to do so could cause the muffler to become overheated, and that this in turn could cause the grass trimmer to overheat.

GEAR CASE

Supply multi-purpose grease at every 25 hours of use. Remove the cutter holders to arrange for old grease to exit. (F14)

AFTER 25 HOURS OF

■ MUFFLER

1. Remove the muffler, insert a screwdriver into the vent, and wipe away any carbon buildup. Wipe away any carbon buildup on the muffler exhaust vent at the same time.
2. Tighten all screws, bolts, and fittings.
3. Check to see if any oil or grease has worked its way in between the clutch lining, and if it has wiped it away using oil-free, lead-free gasoline.
4. Remove the float cabin of the carburetor and clean the inside.

ADJUSTING CARBURETOR

IMPORTANT

An incorrect adjustment may cause damage to your unit. If the engine does not run well after adjusting the carburetor, please contact the retailer where you purchased the product.

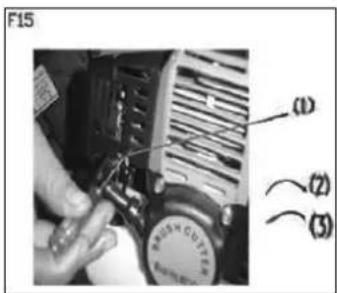

IDLE ADJUSTMENT SCREW(F15)

This is the screw to adjust the engine rotation when the throttle lever is set to the lowest speed position. I you turn right(clockwise) rotation increase, and left (counterclockwise) decreases. In case the blade continues to rotate or engine stops when you return the throttle lever completely to the original position, make readjustment.

(1) Idle adjustment screw
(2) High
(3) Low

1. Brush off any dirt from the machine, check for any damaged parts, if you find any damage ensure a full repair before the next use.
2. Extract fuel from the tank, and loosen the drain screw of the float cabin to extract fuel, turn on the engine, and leave it running until it stops naturally.
3. Remove the spark plug and put in 1 2cc of 2 cycle oil in the engine. Draw the starter rope 2 3 times, set the plug back, and stop it at the contraction position.
4. Apply anti-rust oil to the metal parts such as the throttle wire, put the cover on the blade, and keep it indoors avoiding dampness.

9. SPECIFICATION

Name/Type Specification		Grass Trimmer and Brush Cutter
		MS520
Handle Type		Bike
Power Transmission Method		Automatic centrifugal clutch, spiral gear
Applied Blade		3T; thickness 1.4mm
Blade Rotation Direction		Counter clockwise (from operator's view)
Outward Size(L*W*H)(cm)		98*31*39
Weight(kg)		6.8
Engine	Importer	Albatros International GmbH
	Type	Single cylinder air cooling 2-cycle gasoline engine
	Displacement volume(cm3)	51.7
	Power(kW)	1.5
	Engine Speed	9600 min-1
	Idle Speed	3000±300 min-1
	Carburetor	Piston valve
	Starting Method	Recoil starter
	Stopping Method	Sparking Circuit Primary Short
	Fuel Used	Lubricating oil mixed gasoline (mixing rate 40:1)
	Lubricating Oil Used	2-cycle engine oil
	Fuel tank capacity(L)	1.3
	Shaft diameter	Φ26mm
As a grass trimmer	Cutting width	Φ420mm
	Trimmer drawstring	280cm x Φ2.4mm
	LpA (Sound pressure level per EN ISO 22868)	96.7 dB(A)/K=3dB(A)
	LwA (Sound power level per EN ISO 22868)	111.0 dB(A)/K=3 dB(A)
	Vibration per EN ISO 11806-1	ah = 7.5 m/s2, K = 1.5 m/s2
As a brush cutter	Cutting width	Φ255mm
	Center hole	25.4mm
	LpA (Sound pressure level per EN ISO 22868)	96.2 dB(A)/K=3 dB(A)
	LwA (Sound power level per EN ISO 22868)	110.4 dB(A)/K=3 dB(A)
	Vibration per EN ISO 11806-1	ah = 7.5 m/s2, K = 1.5 m/s2
	Blade	BC-3T

D Deutsch

CE-DECLARATION DE CONFORMITE

EC-DECLARATION OF CONFORMITY

We herewith declare in our sole responsibility that this product complies with the following standards (1) in accordance with the regulations of the undermentioned Directives (2) test report (3) issuing test office (4)

Petrol Grass Trimmer and Brush Cutter MS520

Brand: STAHLMANN

Var. ID.: 4118

Serial No.: 2312000001............2312999999

(1) EN ISO 11806-1: 2022; AfPS GS 2019:01 PAK; EK9-BE-55 V2; EK9-BE-56 V4; EK9-BE-92 rev. 1; EK9-BE-98(v2); EN ISO 14982: 2009
(2) 2006/42/EC; 2014/30/EU; 2000/14/EC Annex V & 2005/88/EC; (EU) 2016/1628; (EU) 2018/989
(3) SHES220801585902; SHEM231000628501; 18-00929-CX-SHA-01
(4) SGS Fimko Ltd; SGS-CSTC Standards Technical Services Co., Ltd.; TÜV SüD Auto Service GmbH
(5) Guaranteed sound power level: 114dB(A)
(6) Sound power level: as a grass trimmer, 111.0 dB(A) k = 3 dB(A); as a brush cutter, 110.4 dB(A) k = 3 dB(A)

EN Importer and responsible for technical documents

Authorized person for the compilation of the technical documentation:

Nerdlen, 24.11.2023 Ralf Bunzel, Procurement Manager

Albatros International GmbH, Konrad-Zuse-Str. 3, 54552 Nerdlen, Germany
