D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

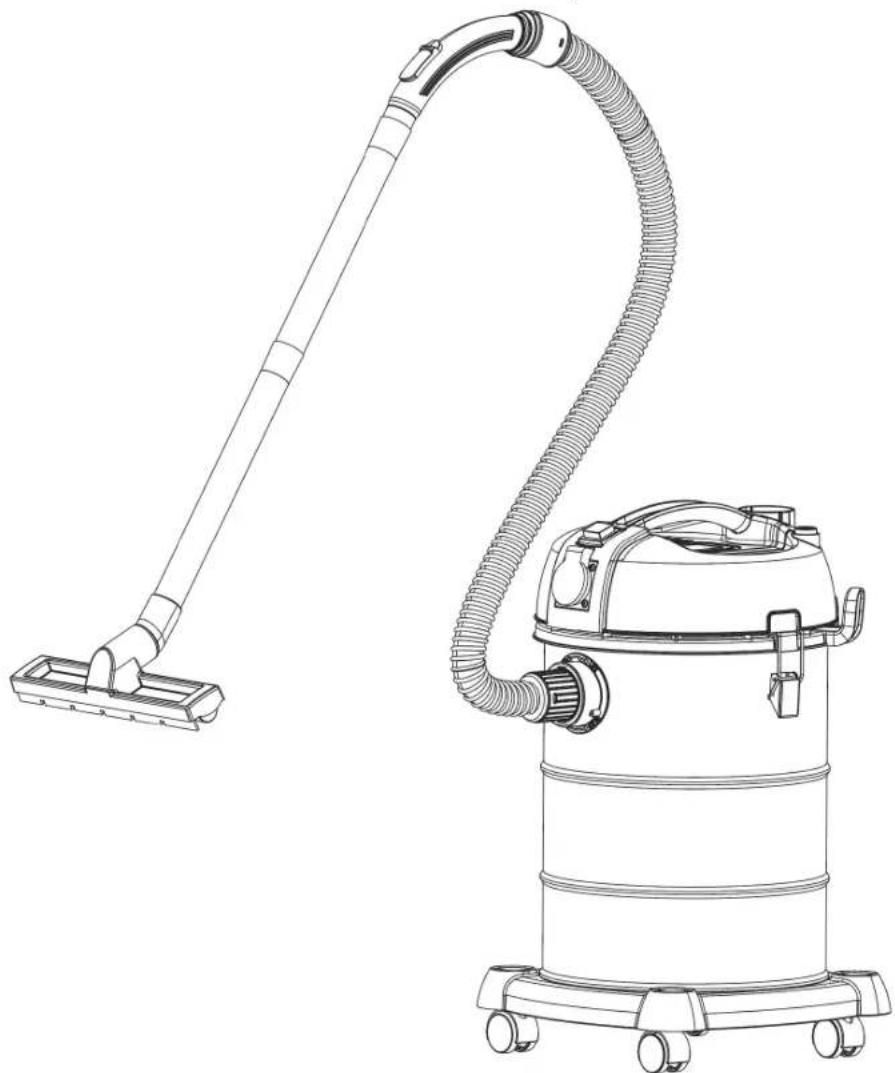

Wet and dry vacuum cleaner

Model: VAC3300

User manual

VAR.ID.: 4239

EN

Read and understand these instructions completely before using it for the first time!

Follow the safety instructions!

Line drawing of a vacuum cleaner with coiled hose and control panel (no text or symbols)

Congratulations on your purchase of this high-quality product. Please read these operating instructions carefully before using the appliance. It contains important information on safety, operation and maintenance of the appliance. If you have any further questions, please contact our customer service.

Safety instructions

• Do not vacuum up any sharp-edged, hot or glowing materials.
• The appliance should not be exposed to heat.
• Disconnect the mains plug from the socket after use and before cleaning. Pull the plug, not the mains cable, to disconnect the appliance from the mains.
• Do not insert any objects into the openings. Do not use the appliance if an opening is blocked. Keep the appliance free of dust, fluff, hair, etc.
• Do not use the hoover without a dust container or dust filter.
• Do not vacuum up flour, cement, etc. to avoid overloading.
• The appliance may only be cleaned with a dry or damp cloth; it must never be immersed in water. Do not use solvents for cleaning.
• This appliance is intended for domestic use only and not for commercial applications.
• Avoid the nozzle or brush touching the surface of the furniture.
• Do not use the power cord to carry the appliance. Do not pull the power cord over sharp edges.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.
• This appliance can be operated normally at 50 Hz or 60 Hz. The frequency does not need to be set.

Content:

Safety instructions

Description and illustration of the device

Installation

Operation

Cleaning and care

Fault description

Technical data

Disposal instructions

Warranty and guarantee

EC-DECLARATION OF CONFORMITY

Description of the device:

• Powerful and compact.
• Wet & dry
• Multiple air filter system guarantees hygienic cleaning.
• With special blower function.
• Easy to use and space-saving storage.
  • Air flow control on the handle.
• Swivelling wheels make moving and walking easier.
• Wide range of accessories.

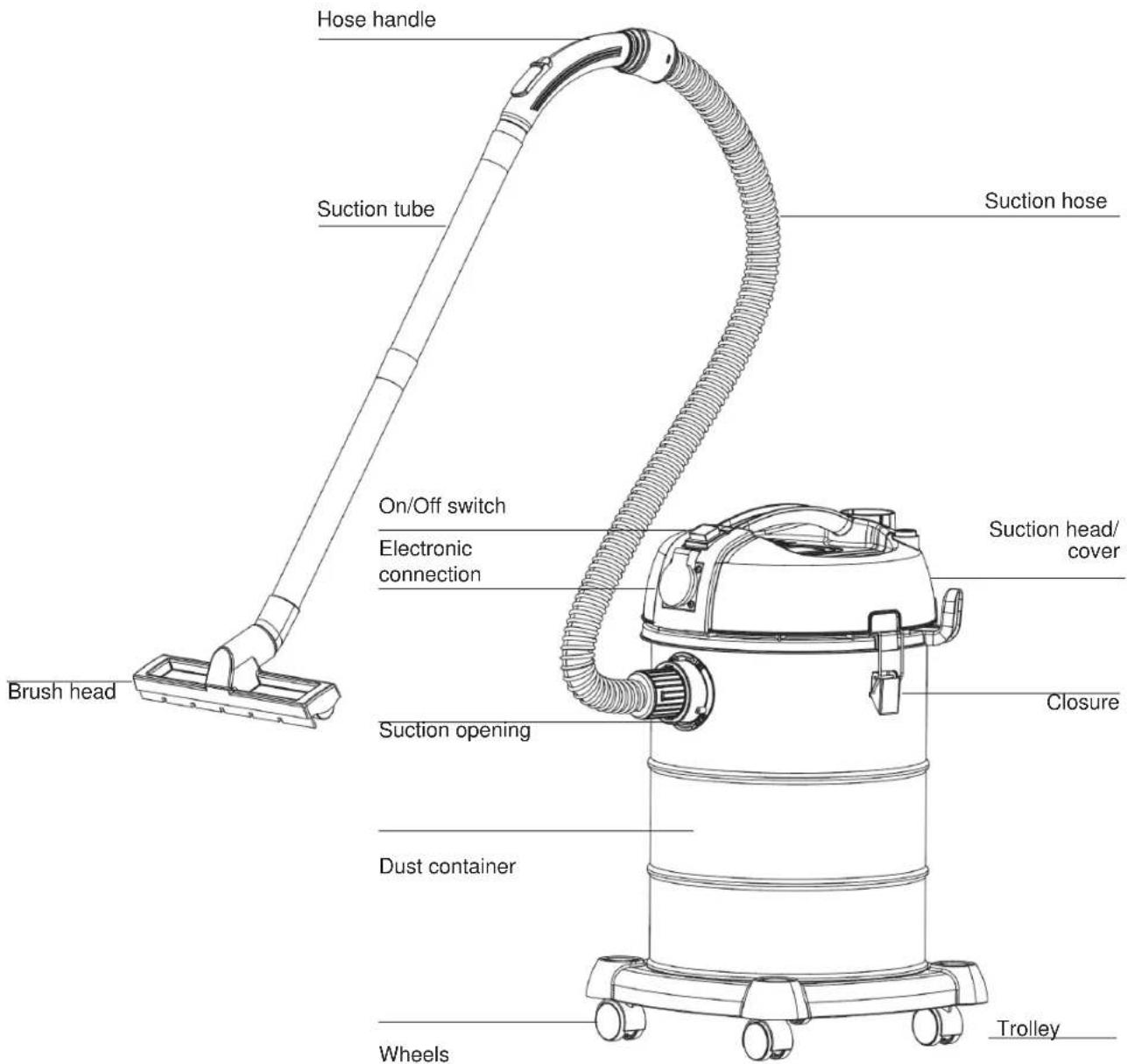

Illustration of the device:

Hose handle Suction tube On/Off switch Electronic connection Suction opening Dust container Wheels Brush head Suction hose Closure Suction head/cover Trolley

Installation:

The wheels are mounted on the underside of the dust container.

HEPA-Filter:

Carefully insert the HEPA filter into the suction head.

Dust bag:

Carefully place the dust bag on the suction pipe

Dust container:

Close the dust container with the cover

Suction hose:

To use the flexible suction hose, insert the end of the hose into the suction opening. Make sure that it is locked in the correct position.

Technical line drawing of a mechanical component with multiple cylindrical components and mounting holes (no text or symbols)

Line drawing of a portable water heater with handle and control panel (no text or symbols)

Illustration of a vacuum cleaner with a coiled cable and directional arrow (no text or symbols)

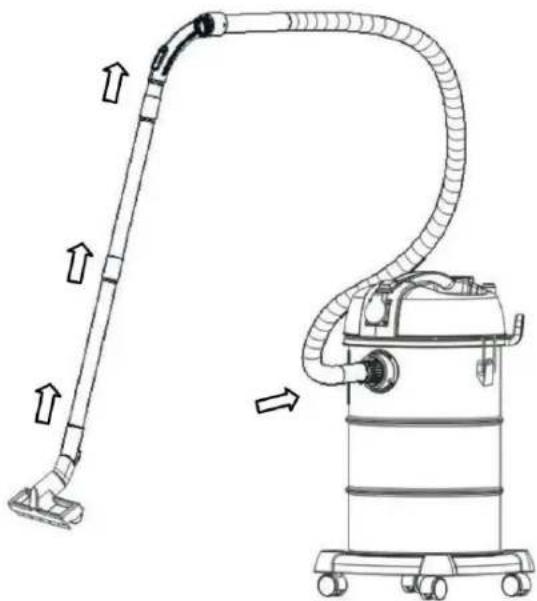

Attach the desired accessories to the vacuum cleaner.

Accessories:

Select the desired accessory (brush or nozzle) and attach it to the suction pipe.

Line drawing of a vacuum cleaner with attached hose and control panel (no text or symbols)

Operation:

Before operating the appliance, make sure that the HEPA filter is inserted correctly.

Please replace the HEPA filter with a sponge if you want to vacuum a lot of water.

REPLACE

Before using the appliance, make sure that the suction hose is correctly attached to the dust container, otherwise the appliance could be damaged.

Illustration of a vacuum cleaner with a wavy line indicating airflow or discharge (no text or symbols)

Unwind the power cable.

I If you want to use additional power tools, insert the plug of the power tool into the existing socket on the vacuum cleaner. (Max. load of the socket: 2000W)

The vacuum cleaner switches on automatically when the power of the connected device is more than 500W and the switch on the suction head is switched to II

Connect the device and switch it on.

Unplug the device after use

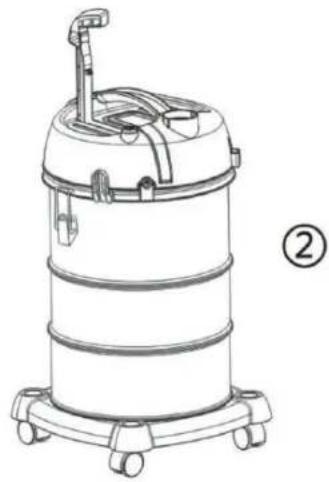

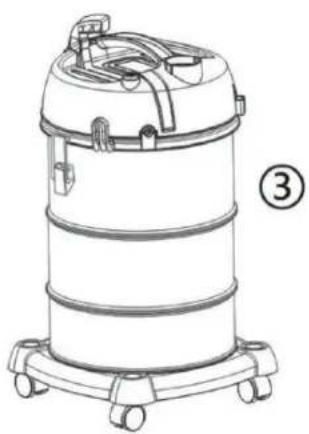

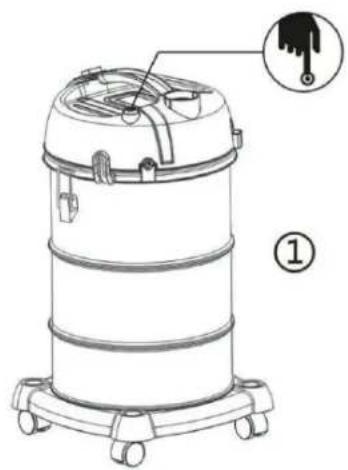

Blower function:

To use the fan function of your device, plug in the suction hose from the side opening on the motor head into the upper opening on the motor head. Then turn on the device as described previously.

Please clean the filter if you feel that the suction power becomes weaker after some time in operation.

Technical line drawing of a vacuum cleaner with labeled component (1), no text or symbols present

Line drawing of a vacuum cleaner with labeled part (2), no text or symbols present

Line drawing of a vacuum cleaner with labeled part (3), no text or symbols present

Cleaning and care:

Dust bag:

Opening the dust container Opening the dust container

HEPA Filter:

Removing the dust bag Removing the HEPA filter

Emptying the dust bag

Clean the HEPA filter, by tapping out the dust.

Inserting the new dust bag

Emptying the dust container

Close the hoover again

Wash the HEPA filter with water if necessary.

Dry the HEPA filter

Close the hoover again

Error description:

Before contacting our service centre, please check the following points:

Problem Possible cause Remedy

Device does not switch on	- The mains cable is not firmly plugged into the socket- Socket damaged- Appliance not switched on	- Connect the appliance firmly- Check the socket outlet- Switch on the appliance
Suction power decreases	- Device clogged- Dust filter must be cleaned must be cleaned- Dust container not closed correctly- Filter clogged	- Remove the blockage- Clean the dust filter- Attach the dust container correctly to the hoover- Clean the filter

Technical data:

Nominal voltage: 220-240V AC

Nominal frequency: 50/60Hz

Nominal power: 1300W

Nominal power for socket outlet: ≤2000W

Disposal instructions

Once an electrical product is no longer functional, it should be disposed of in a way that minimises its environmental impact, in accordance with the regulations of your local authority. In most cases, you can take such products to your local recycling centre.

Symbol of a trash bin with crossed lines indicating no waste or restriction, and a solid black rectangle below (no text or labels)

Recycling - European Directive 2012/19/EU

This marking indicates that this product should not be disposed of with other household waste. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used appliance, please use the return and collection systems or contact the retailer from whom the product was purchased. This product can be recycled there in an environmentally friendly manner.

WARRANTY

The components are quality products. They were designed taking into consideration the latest technical knowledge, and carefully constructed using a standard, good quality material.

The warranty period is 24 months from the time of handover, which must be confirmed through a sales receipt, invoice or delivery note. Within the warranty period, any functional defects in the components will be fixed by our customer service team if these can be shown to be the result of a material defect that has arisen despite prudent handling in accordance with our operating instructions.

The warranty will include repairing defective parts or providing properly functioning replacements free of charge and at our discretion. Any parts that are replaced will become our property. The repair or replacement of individual parts does not result in an extension to the warranty period, nor is there a new warranty period for the specific components affected. There is no separate warranty period for built-in spare parts. We offer no warranty for damage or defects affecting components or their parts if these are caused by excessive use, or incorrect handling or maintenance. The same applies for failure to follow the operating instructions and for the installation of spare parts or accessories not listed in our range. Warranty claims shall be void in the event of interference or modifications to components by unauthorised individuals.

The warranty does not cover parts that are subject to natural wear and tear. In the event of a warranty claim, fault, need for a spare part or accessory, please contact the customer support centre specified here:

Customer support centre:

Albatros International GmbH

Konrad-Zuse-Str. 3

D-54552 Nerdlen (Germany)

Tel: [phone]

Fax: [phone]

www.albatros-international.de

[e-mail]

Subject to modification.

Model:

Purchased at:

In (town/city, street):

Buyer's name:

Street, building number:

Postcode, town/city:

Telephone:

Date, signature:

Fault description:

EC declaration of conformity

We declare, on our sole responsibility, that the product STAHLMANN Industrial vacuum cleaner ID: 4239, as detailed below, is in compliance with the standards, in accordance with the provisions of the guidelines with the inspection authority issuing the inspection report.

Here is the link to the EC declaration of conformity:

https://ce.albatros-international.eu/4239.pdf
