| Product type | Cable railing post |
| Brand | Vevor |
| Model | HR-006 |
| Material | Stainless steel |
| Color | Black |
| Total height | 1067 mm |
| Post section | 50 x 50 mm |
| Inclination angle | 30° |
| Number of holes | 12 |
| Hole diameter | 10.5 x 15 mm (oval) |
| Hole spacing | 80 mm |
| Main use | Installation of cable railings for indoor and outdoor |
| Rust resistance | High (stainless steel) |
| Maintenance and cleaning | Low maintenance, clean with a damp cloth |
| Safety | Keep out of reach of children, read manual before use |
| Spare parts and repairability | Replacement parts available from the manufacturer |
| Package contents | 1 post, 1 square cover, anchor bolts, brackets, hex and open end wrenches, self-tapping screws |
Frequently Asked Questions - HR-006 Vevor
User questions about HR-006 Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fastening accessory in PDF format for free! Find your manual HR-006 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HR-006 by Vevor.
USER MANUAL HR-006 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

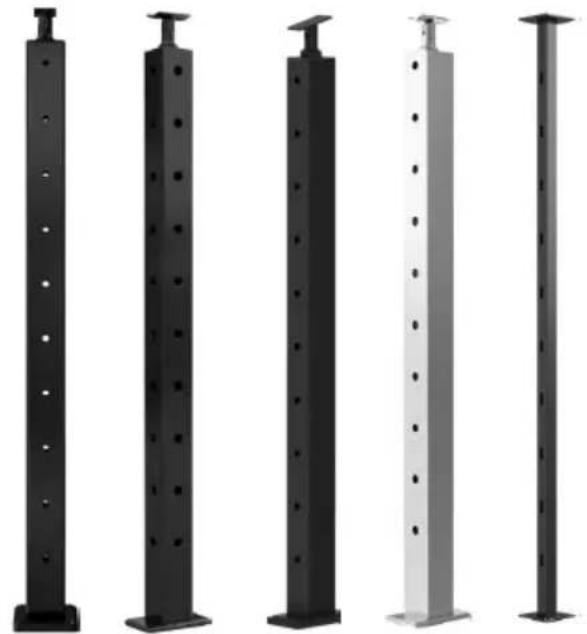

CABLE RAILING POST
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/
HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014
HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/
HR-022/HR-023
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/ HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
2.Product capabilities apply to properly and completely assembled products only. - Please keep small spare parts out of children's reach, it is not a toy not allow children to play.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
SAVE THESE INSTRUCTIONS

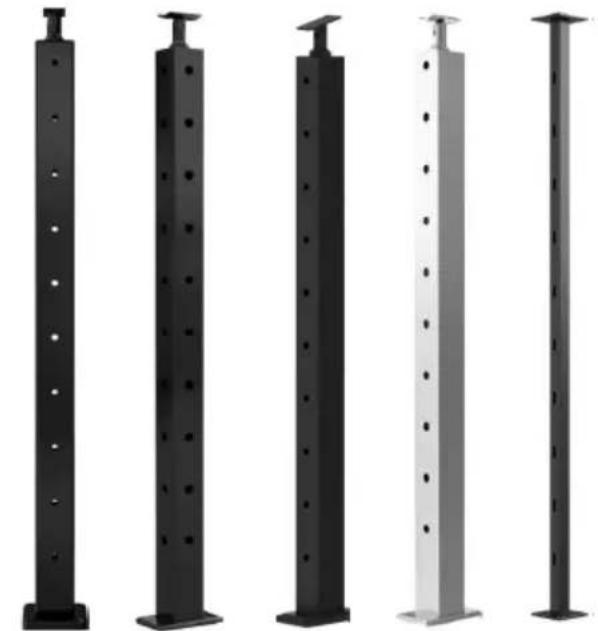

MAIN FEATURES
This product is mainly used for column installation of wire functions and decorative accessories.
VEVOR's Cable Railing Post is made of all stainless steel materials, has great resistance to rust and corrosion. It will work for long life t interior and exterior railings with low maintenance. Please note that it recommended for coastal projects.
We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.
INSTALLATION INSTRUCTION

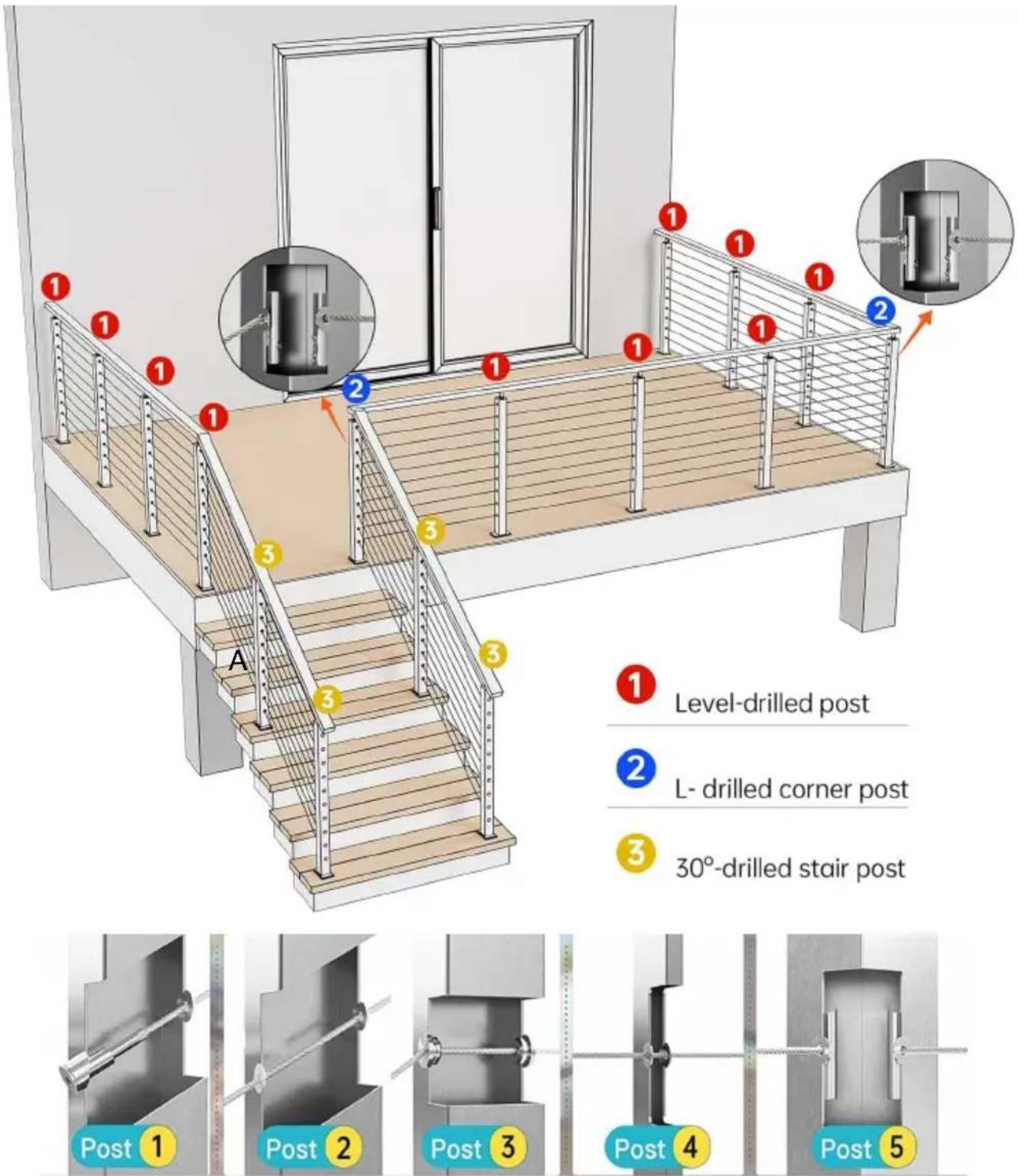

Installation indication and Applicable post
Applicable to all engineering installation scenarios.
Note: This product only includes the column and its installation fasten excluding wire rope, Cable Railing Kit, handrail.

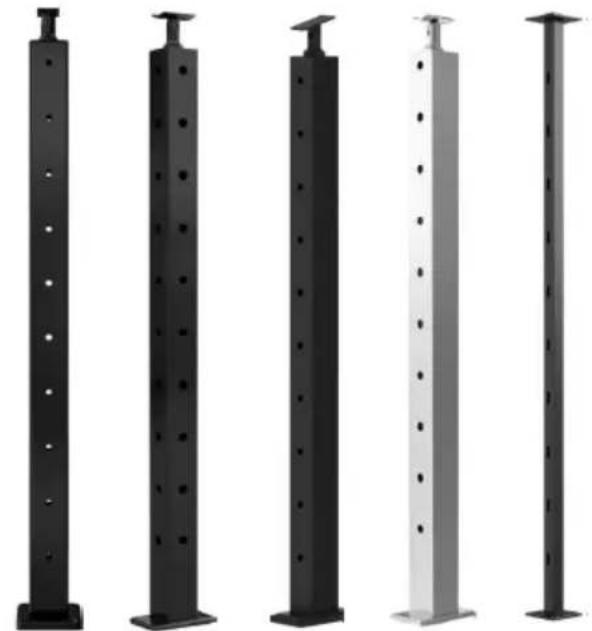

PRODUCT INFORMATION

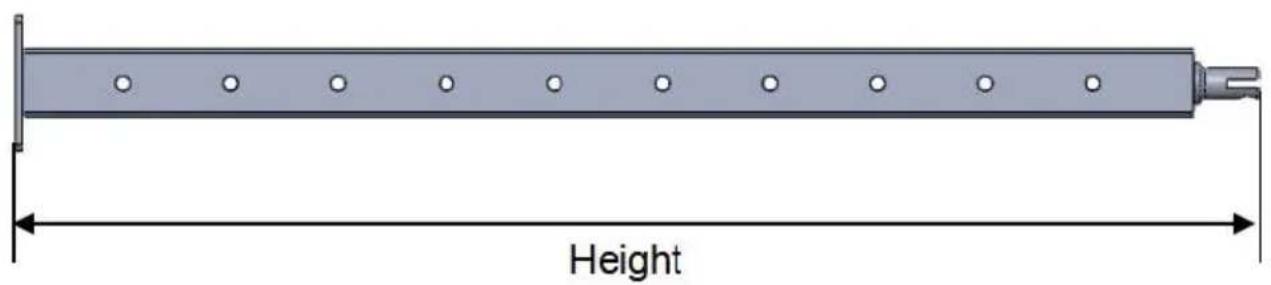

| Model | Drilled | Heigth (mm) | Drilled number | Hole diameter (mm) | Pitch of holes (mm) | Section size (mm) | Color | Include (pcs) |
| HR-001 | level | 1067 | 12 | φ10.5 | 80 | 50*50 | Black | 4 |
| HR-002 | level | 914 | 10 | φ10.5 | 80 | 50*50 | Black | 4 |
| HR-003 | level | 1067 | 12 | φ8 | 80 | 30*50 | Black | 4 |
| HR-004 | level | 914 | 10 | φ8 | 80 | 30*50 | Black | 4 |
| HR-005 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Silver | 1 |
| HR-006 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-007 | L | 1067 | 12 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-008 | Non | 914 | / | / | / | 50*50 | Black | 1 |
| HR-009 | level | 914 | 10 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-010 | 30° | 914 | 10 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-011 | L | 914 | 10 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-012 | level | 914 | 10 | φ10.5 | 80 | 50*50 | Silver | 1 |
| HR-013 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-014 | L | 1067 | 12 | φ8 | 80 | 30*50 | Black | 1 |
| HR-015 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-016 | L | 914 | 10 | φ8 | 80 | 30*50 | Black | 1 |
| HR-01 7 | Non | 914 | / | / | / | 38*38 | Black | 1 |
| HR-01 8 | level | 1067 | 12 | φ8 | 80 | 30*50 | Black | 1 |
| HR-01 9 | Non | 1067 | / | / | / | 50*50 | Black | 1 |
| HR-02 0 | level | 914 | 10 | φ8 | 80 | 30*50 | Black | 1 |
| HR-02 1 | level | 1067 | 12 | φ10.5 | 80 | 50*50 | Black | 1 |
| HR-02 2 | level | 914 | 10 | φ8 | 80 | 30*50 | Silver | 1 |
| HR-02 3 | level | 1067 | 12 | φ10.5 | 80 | 50*50 | Silver | 1 |
PACKAGE INCLUDE
| No | Components | Picture | QTY | ||||
| Fit model | |||||||
| HR-001/HR-002 | HR005~HR012/HR-019/HR-021/HR-023/ | HR-003/HR-004 | HR-013~HR-016/HR-018/HR-020/HR-022/ | HR-017 | |||
| 1 | post | 4 | 1 | 4 | 1 | / | |
| / | / | / | / | 1 | |||
| 2 | Square cover | 4 | 1 | / | / | / | |
| 3 | Rectangular cover | / | / | 4 | 1 | / | |
| 4 | anchor bolt | 16 | 4 | 16 | 4 | 4 | |
| 5 | Curved bracket | 4 | 1 | 4 | 1 | / | |
| 6 | Horizontal bracket | 4 | 1 | 4 | 1 | / | |
| 7 | hex wrench | 4 | 1 | 4 | 1 | 1 | |
| 8 | Open end wrench | 4 | 1 | 4 | 1 | 1 | |
| 9 | Tapping screw | 8 | 2 | 8 | 2 | 4 | |
| 10 | Plastic cover | / | / | / | / | 1 | |
INSTALLATION
For concrete or wood floor

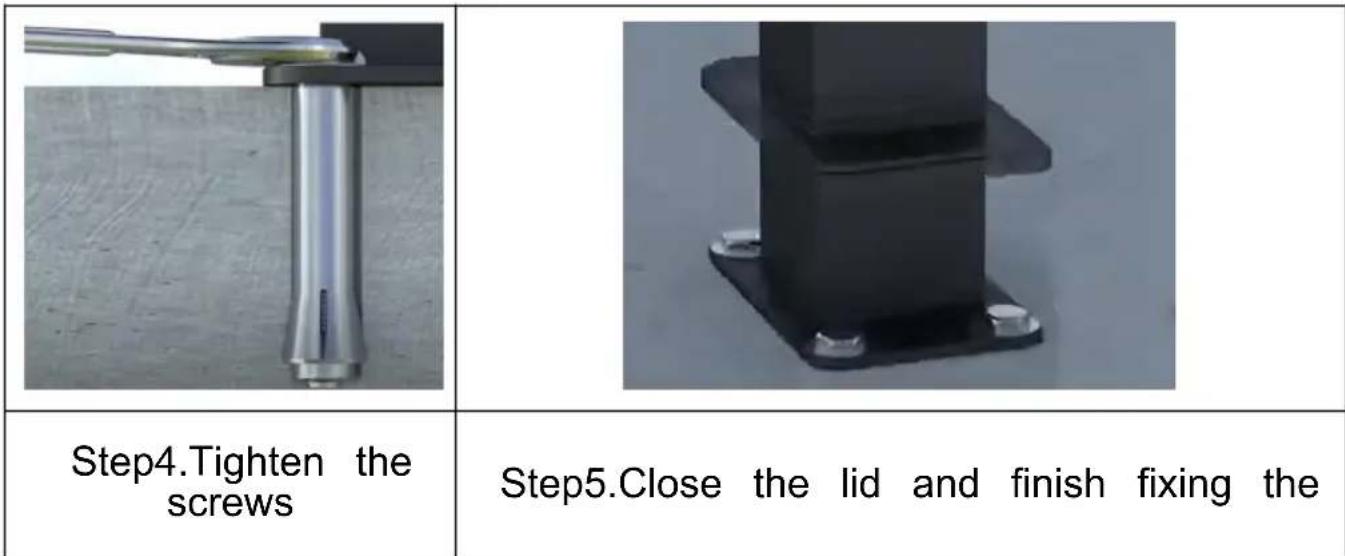

| Step1.Mark the drillin points at the appropriate installation locations. | Step2.use a hammer drill to make a hole ∅ 12 at the marke points. | Step3.Hammer the anchor screw into the drilled hole. |
Note: Ensure that the column is upright when fixing the bottom plate the post.

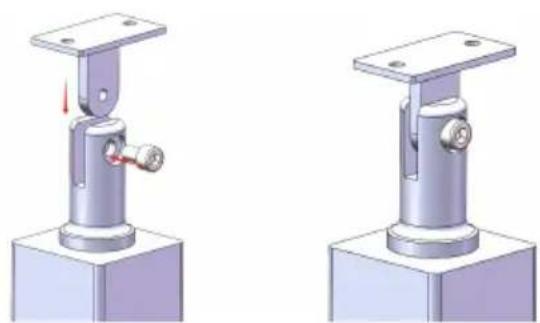

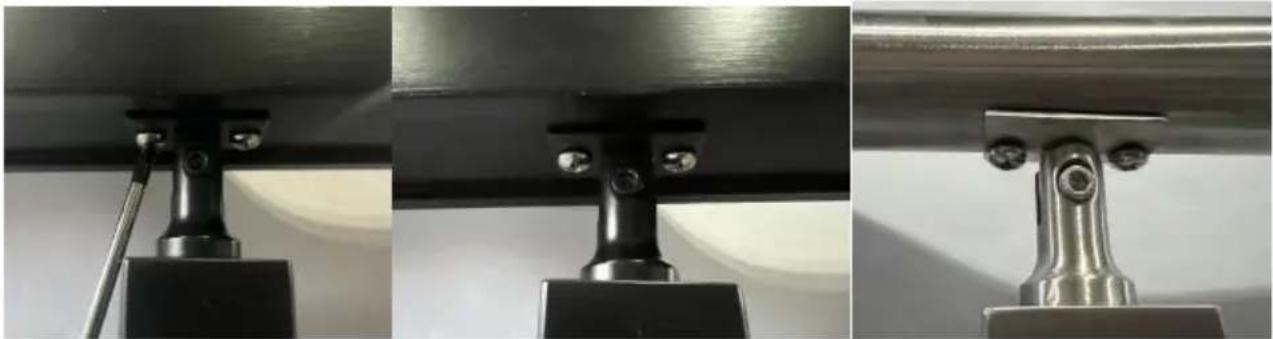

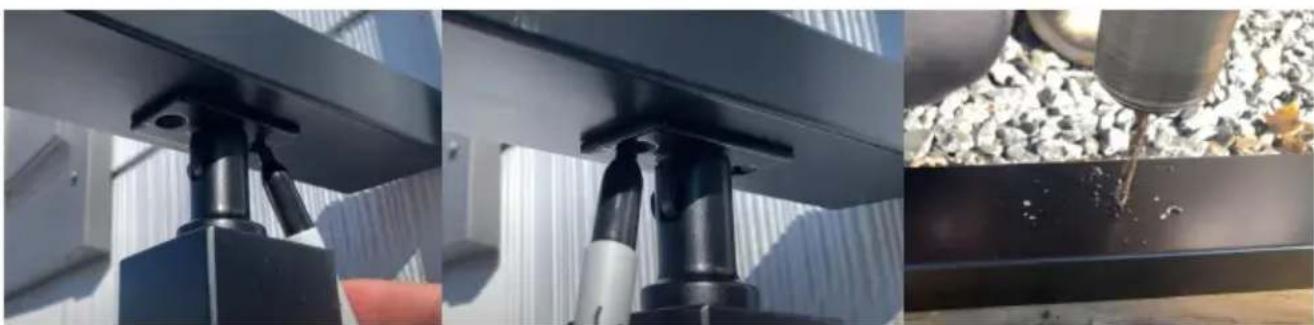

Mount with handrail(horizontal)
Step1: Fixed bracket
Step2: Determine the installation position of the handrail, and then make the position under the handrail and bracket holes and drill holes with 5.5- 5.6mm drill.
Step3: Use the self-tapping screws in the accessory to fix the handrail the support.
It is also suitable for the installation of arc handrails and brackets.

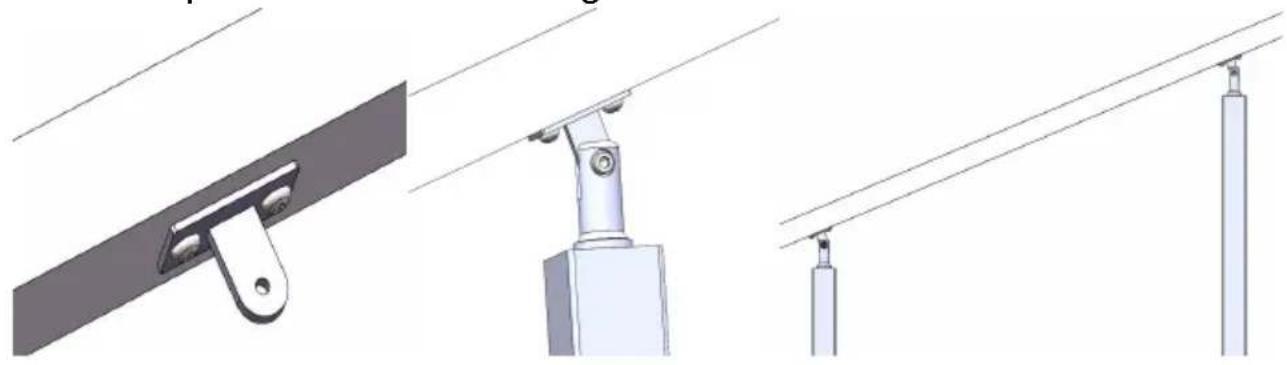

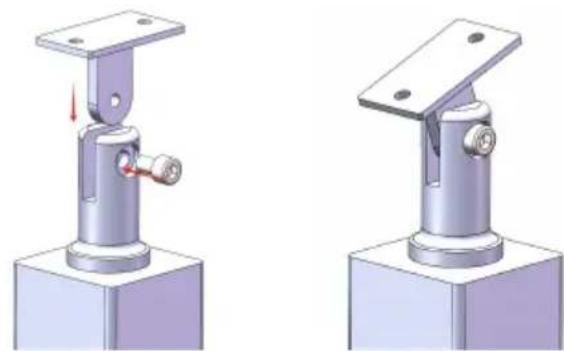

Mount with handrail(gradients)
Step1: Fixed bracket

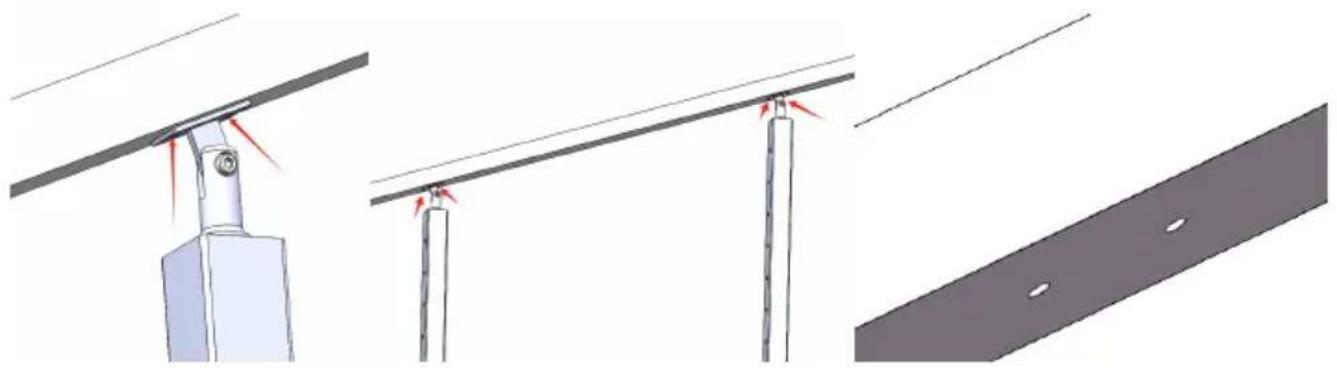

Step2: Adjust the Angle of the bracket to fit the underside of the handrail. Determine the installation position of the handrail, and then make the position under the handrail and bracket holes and drill holes with 5.5- 5.6mm drill.
Note:The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.
Step3:Remove the bracket from the post and then use the self-tapping screws in the accessory to fix the bracket to the handrail.
Fix the post and bracket again.
| It is also suitable for the instal of arc handrails and brackets | For model HR-017 |

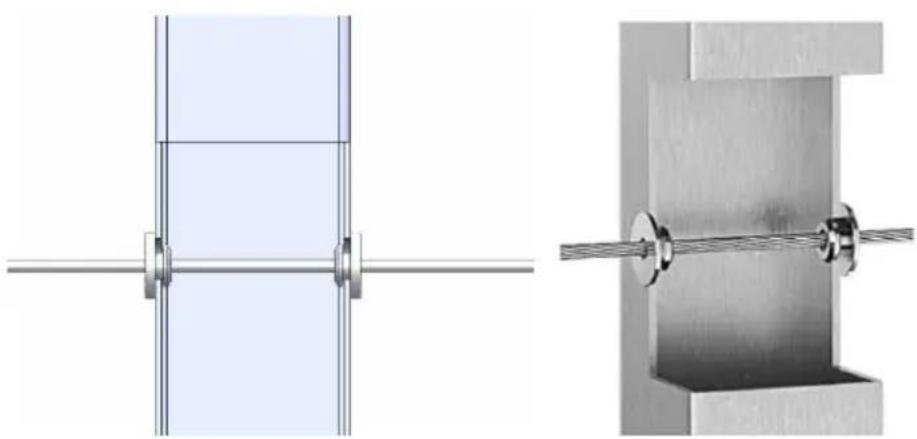

Install with wire rope and fittings
For Level Wheel Protector Sleeve
For Stud Tensioner Horizontal mounting and Angle
For Turnbuckle Tensioner and Fixed Terminal
Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Technical Support and E-Warranty Certificate
www.vevor.com/support
