USER MANUAL HR-005 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
CABLE RAILING POST
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL:HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-015/HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023

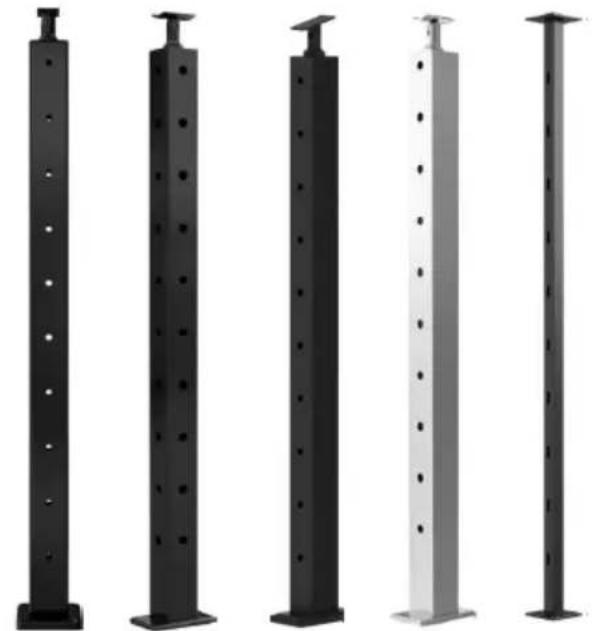

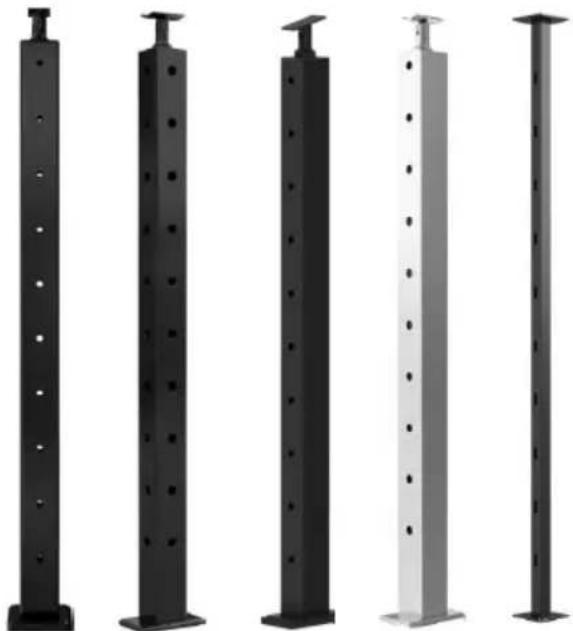

Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
- Product capabilities apply to properly and completely assembled product only.
- Please keep small spare parts out of children's reach, it is not a toy not allow children to play.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area.
SAVE THESE INSTRUCTIONS
MAIN FEATRUES
This product is mainly used for column installation of wire functions a decorative accessories.
VEVOR's Cable Railing Post is made of all stainless steel materials, has great resistance to rust and corrosion. It will work for long life t interior and exterior railings with low maintenance. Please note that it recommended for coastal projects.
We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.
INSTALLATION INSTRUCTION
Installation indication and Applicable post
Applicable to all engineering installation scenarios.
Note: This product only includes the column and its installation fasten excluding wire rope, Cable Railing Kit, handrail.
| Model | Drilled | Height (mm) | Drilled number | Hole diameter (mm) | Pitch of holes (mm) | Section size (mm) | Color | Include (pcs) |
| HR-001 | level | 1067 | 12 | 10.5 | 80 | 50*50 | Black | 4 |
| HR-002 | level | 914 | 10 | 10.5 | 80 | 50*50 | Black | 4 |
| HR-003 | level | 1067 | 12 | 8 | 80 | 30*50 | Black | 4 |
| HR-004 | level | 914 | 10 | 8 | 80 | 30*50 | Black | 4 |
| HR-005 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Silver | 1 |
| HR-006 | 30° | 1067 | 12 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-007 | L | 1067 | 12 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-008 | Non | 914 | / | / | / | 50*50 | Black | 1 |
| HR-009 | level | 914 | 10 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-010 | 30° | 914 | 10 | 10.5×15 | 80 | 50*50 | Black | 1 |
| HR-011 | L | 914 | 10 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-012 | level | 914 | 10 | 10.5 | 80 | 50*50 | Silver | 1 |
| HR-013 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-014 | L | 1067 | 12 | 8 | 80 | 30*50 | Black | 1 |
| HR-015 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Black | 1 |
| HR-016 | L | 914 | 10 | 8 | 80 | 30*50 | Black | 1 |
| HR-017 | Non | 914 | / | / | / | 38*38 | Black | 1 |
| HR-018 | level | 1067 | 12 | 8 | 80 | 30*50 | Black | 1 |
| HR-019 | Non | 1067 | / | / | / | 50*50 | Black | 1 |
| HR-020 | level | 914 | 10 | 8 | 80 | 30*50 | Black | 1 |
| HR-021 | level | 1067 | 12 | 10.5 | 80 | 50*50 | Black | 1 |
| HR-022 | level | 914 | 10 | 8 | 80 | 30*50 | Silver | 1 |
| HR-023 | level | 1067 | 12 | 10.5 | 80 | 50*50 | Silver | 1 |

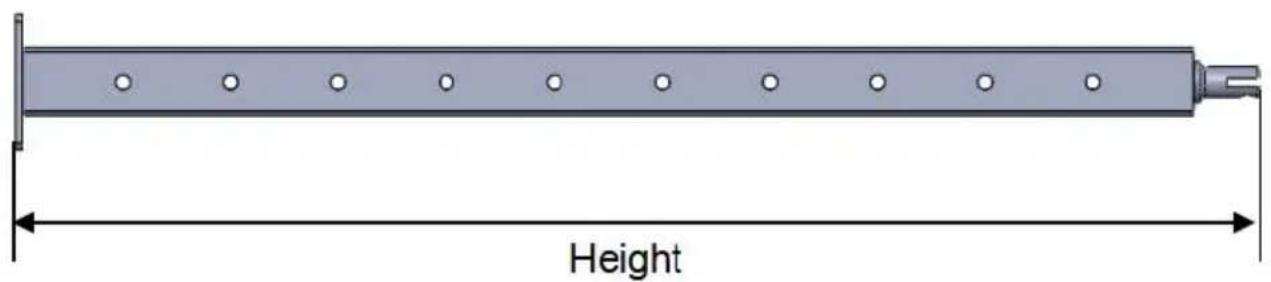

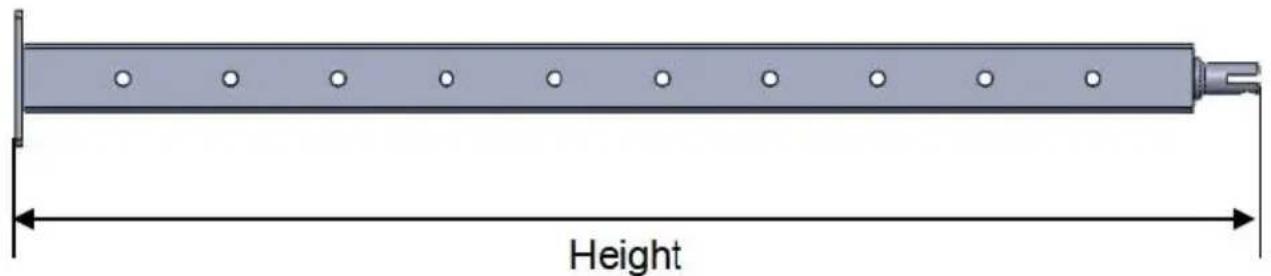

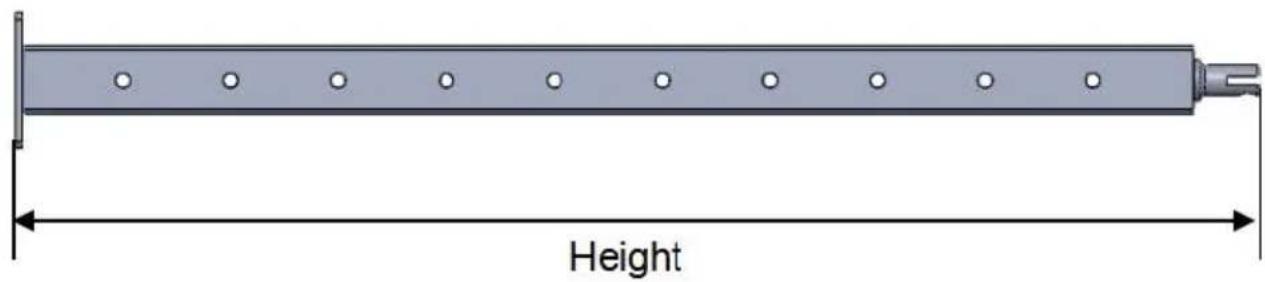

HeightPACKAGE INCLUDE
| No | Components | Picture | QTY | ||||
| Fit model | |||||||
| HR-001/HR-002 | HR005~HR012/HR-019/HR-021/HR-023/ | HR-003/HR-004 | HR-013~HR-016/HR-018/HR-020/HR-022/ | HR-017 | |||
| 1 | post |  | 4 | 1 | 4 | 1 | / |
 | / | / | / | / | 1 | ||
| 2 | Square cover |  | 4 | 1 | / | / | / |
| 3 | Rectangular cover |  | / | / | 4 | 1 | / |
| 4 | anchor bolt |  | 16 | 4 | 16 | 4 | 4 |
| 5 | Curved bracket |  | 4 | 1 | 4 | 1 | / |
| 6 | Horizontal bracket |  | 4 | 1 | 4 | 1 | / |
| 7 | hex wrench |  | 4 | 1 | 4 | 1 | 1 |
| 8 | Open end wrench |  | 4 | 1 | 4 | 1 | 1 |
| 9 | Tapping screw |  | 8 | 2 | 8 | 2 | 4 |
| 10 | Plastic cover |  | / | / | / | / | 1 |
INSTALLATION

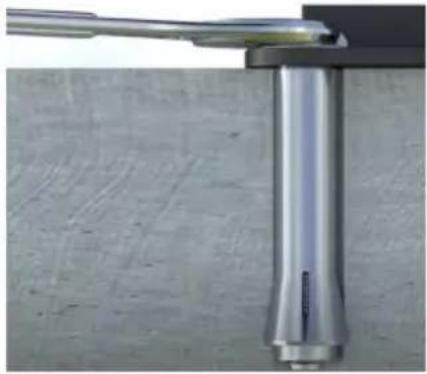

For concrete or wood floor
 |  |  |
| Step1.Mark the drillin points at the appropriate installation locations. | Step2.use a hammer drill to make a hole ∅ 12 at the mark points. | Step3.Hammer the anchor screw into the drilled hole. |
 |  |
| Step4.Tighten the screws | Step5.Close the lid and finish fixing the |
Note: Ensure that the column is upright when fixing the bottom plan the post.

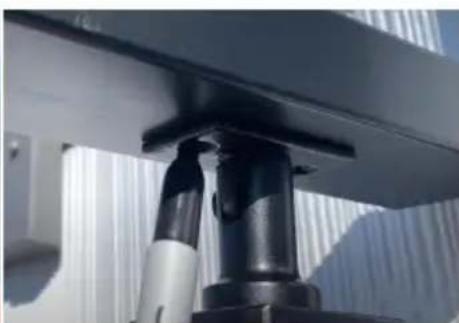

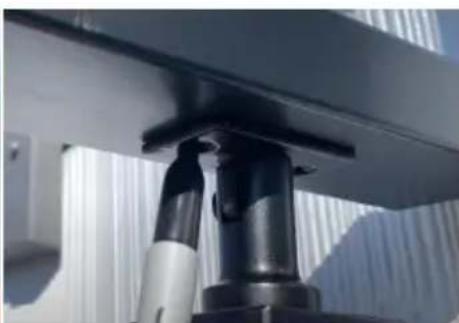

Mount with handrail(horizontal)

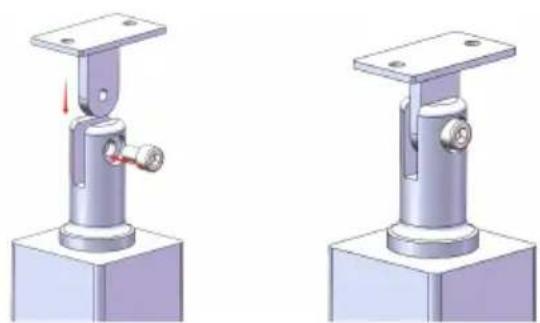

Step1: Fixed bracket


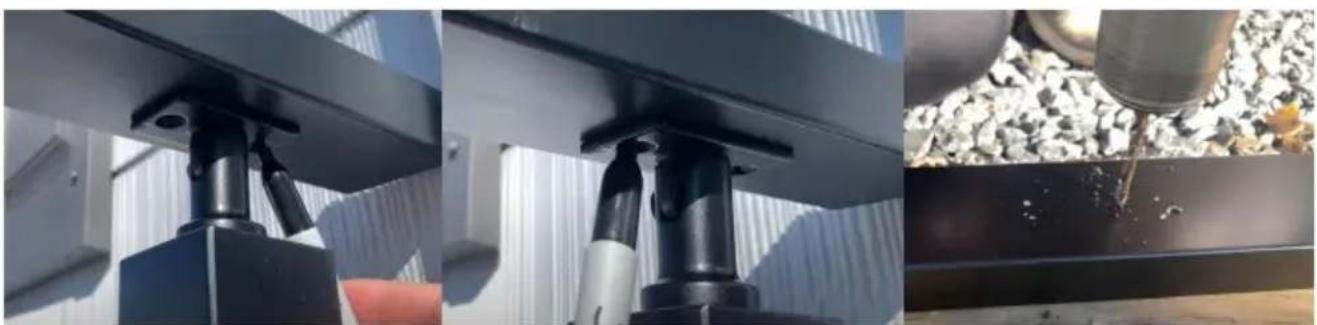

Three-panel photo collage showing industrial equipment components: a black metal frame, a mechanical assembly with a base, and a close-up of a cylindrical component being poured into a granular material (no visible text or symbols)Step3: Use the self-tapping screws in the accessory to fix the handra the support.


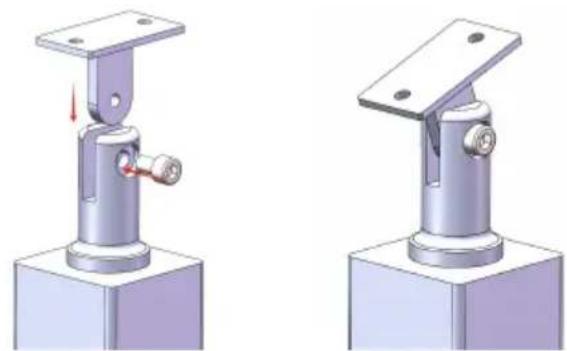

Mount with handrail(gradient)
Step1: Fixed bracket
Note: The handrail and bracket can be pre-fixed with the help of clamping tools, so that multiple bracket installation points can be marked and positioned at the same time.


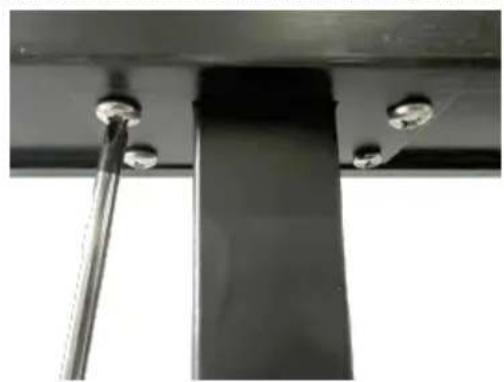

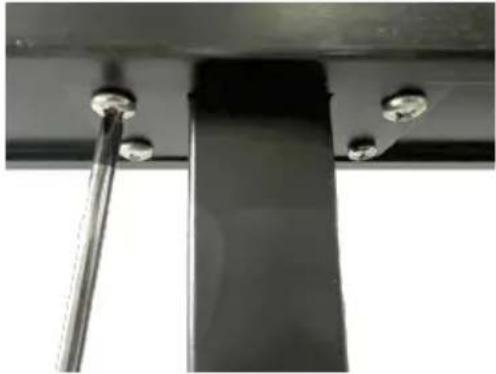

Fix the post and bracket again.
 |  |

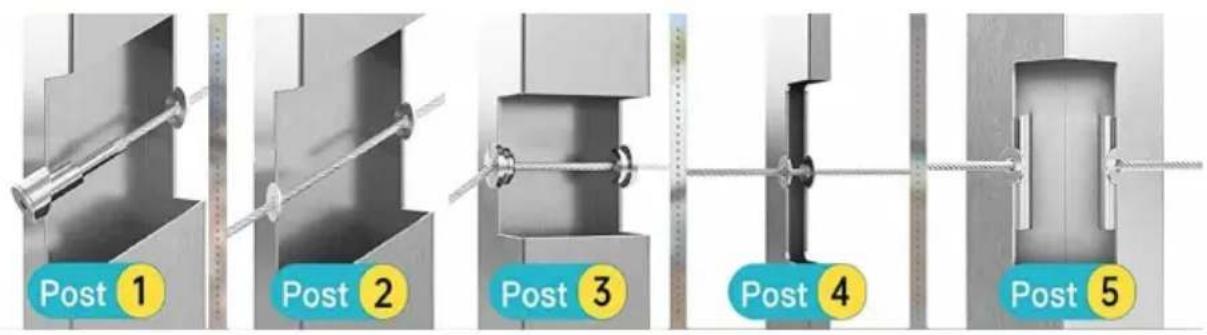

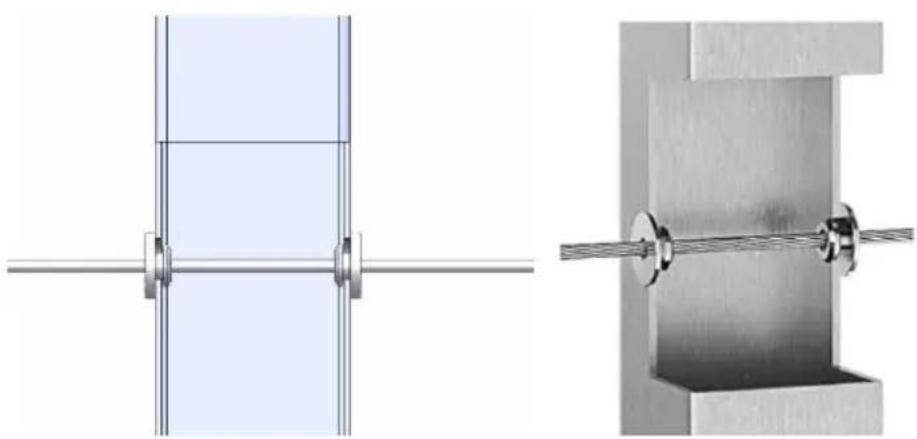

Install with wire rope and fittings
For Level Wheel Protector Sleeve
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repeat of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODÈLE : HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023

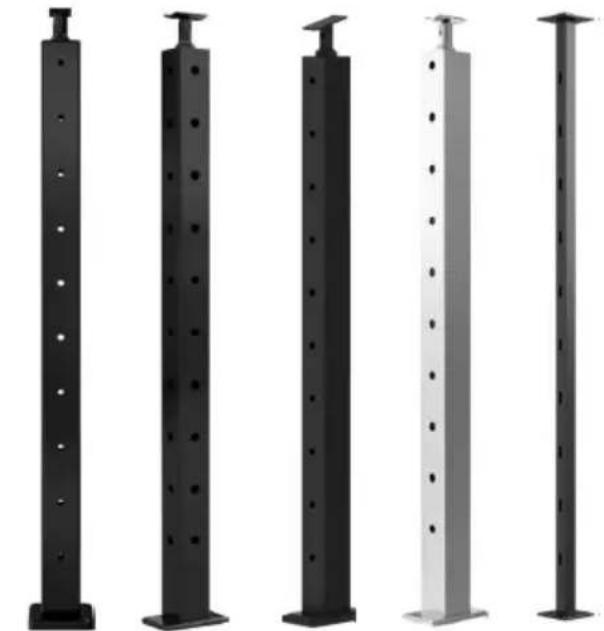

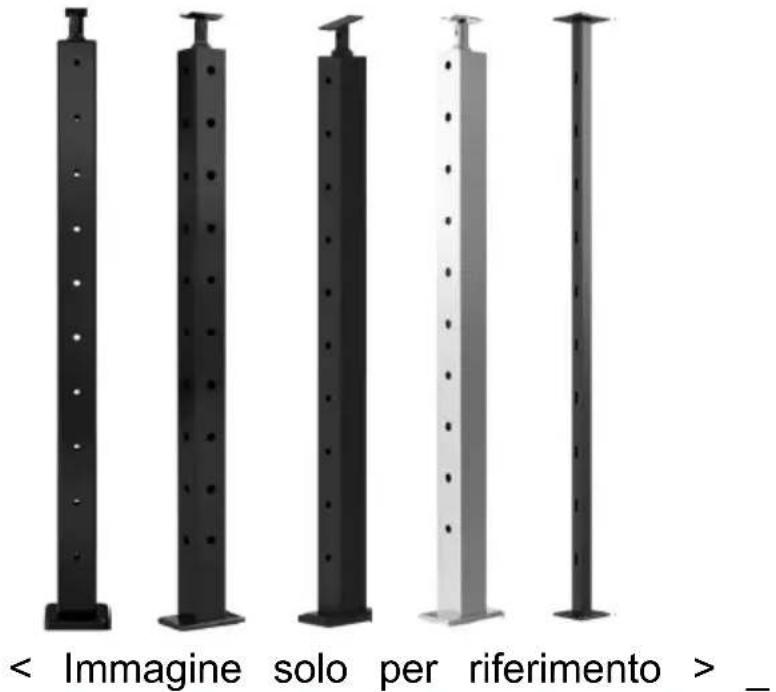

Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
GARANTIES IMPORTANTES
| Modèle | Foré | Hauteur (mm) | Numéro percé | Diamètre du trou (mm) | Pas des trous (mm) | Taille de section (mm) | Coul eur | Inclure (pièces) |
| HR-001 | niveau | 1067 | 12 | 10,5 | 80 | 50*50 | Noir | 4 |
| HR-002 | niveau | 914 | dix | 10,5 | 80 | 50*50 | Noir | 4 |
| HR-003 | niveau | 1067 | 12 | 8 | 80 | 30*50 | Noir | 4 |
| HR-004 | niveau | 914 | dix | 8 | 80 | 30*50 | Noir | 4 |
| HR-005 | 30° | 1067 | 12 | 10,5×15 | 80 | 50*50 | Arge nt | 1 |
| HR-006 | 30° | 1067 | 12 | 10,5×15 | 80 | 50*50 | Noir | 1 |
| HR-007 | L | 1067 | 12 | 10,5 | 80 | 50*50 | Noir | 1 |
| HR-008 | Non | 914 | / | / | / | 50*50 | Noir | 1 |
| HR-009 | niveau | 914 | dix | 10,5 | 80 | 50*50 | Noir | 1 |
| HR-010 | 30° | 914 | dix | 10,5×15 | 80 | 50*50 | Noir | 1 |
| HR-011 | L | 914 | dix | 10,5 | 80 | 50*50 | Noir | 1 |
| HR-012 | niveau | 914 | dix | 10,5 | 80 | 50*50 | Arge nt | 1 |
| HR-013 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Noir | 1 |
| HR-014 | L | 1067 | 12 | 8 | 80 | 30*50 | Noir | 1 |
| HR-015 | 30° | 914 | dix | 8×13 | 80 | 30*50 | Noir | 1 |
| HR-016 | L | 914 | dix | 8 | 80 | 30*50 | Noir | 1 |
| HR-017 | Non | 914 | / | / | / | 38*38 | Noir | 1 |
| HR-018 | nive au | 1067 | 12 | 8 | 80 | 30*50 | Noir | 1 |
| HR-019 | Non | 1067 | / | / | / | 50*50 | Noir | 1 |
| HR-020 | nive au | 914 | dix | 8 | 80 | 30*50 | Noir | 1 |
| HR-021 | nive au | 1067 | 12 | 10,5 | 80 | 50*50 | Noir | 1 |
| HR-022 | nive au | 914 | dix | 8 | 80 | 3 0*50 | Arge nt | 1 |
| HR-023 | nive au | 1067 | 12 | 10,5 | 80 | 50*50 | Arge nt | 1 |


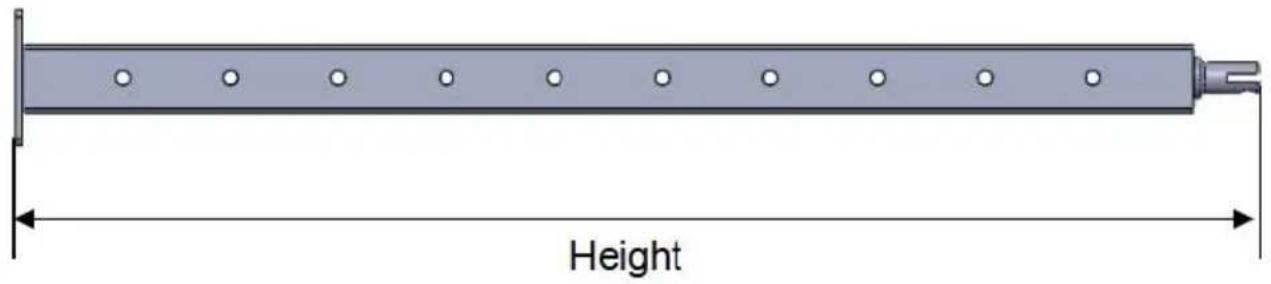

HeightEMBALLER INCLUDE
| No n | Composa nts | Image | QTÉ | ||||
| Modèle adapté | |||||||
| HR-001 / HR-002 | HR005 ~ HR012/HR-0 19/ HR-0 21/ HR-0 23/ | HR-00 3/ HR-00 4 | HR-013 ~ HR-01 6/ HR-018 / HR-0 20/ HR-0 22/ | HR-0 17 | |||
| 1 | poste | 4 | 1 | 4 | 1 | / | |
| / | / | / | / | 1 | |||
| 2 | Couverture carrée |  | 4 | 1 | / | / | / |
| 3 | Couverture rectangulaire |  | / | / | 4 | 1 | / |
| 4 | boulond'ancrage |  | 16 | 4 | 16 | 4 | 4 |
| 5 | Support incurvé |  | 4 | 1 | 4 | 1 | / |
| 6 | Support horizontal |  | 4 | 1 | 4 | 1 | / |
| 7 | clé hexagonale |  | 4 | 1 | 4 | 1 | 1 |
| 8 | Clé ouverte |  | 4 | 1 | 4 | 1 | 1 |
| 9 | Taraudage |  | 8 | 2 | 8 | 2 | 4 |
| dix | Couverture plastique |  | / | / | / | / | 1 |
INSTALLATION
Close-up of a black mechanical component with a cylindrical base and mounting bracket, no visible text or symbols


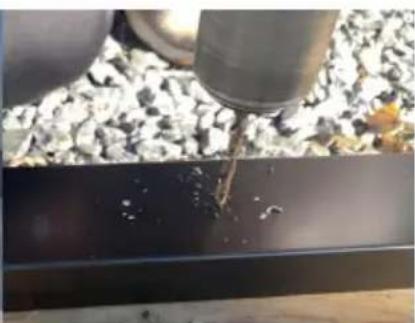

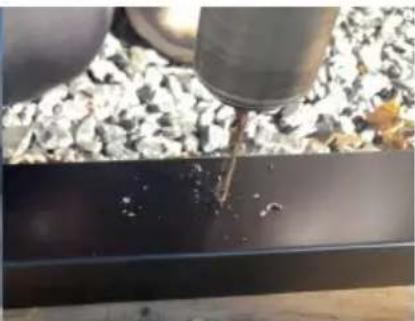

Close-up of a metal cutting machine tool in operation, showing material residue and machining process (no text or symbols visible)natural_image
Three-panel photo showing mechanical assembly components: a black metal bracket, a metallic bracket with bolts, and a metallic bracket (no text or symbols visible)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: bracket, vertical rod, and flat plate (no text or symbols present)natural_image
Technical illustration of three mechanical support components with diagonal lines, no text or symbols presentnatural_image
Technical diagram showing two mechanical assembly configurations with metal components and connecting rods (no text or symbols)natural_image
Pure mechanical assembly diagram showing a threaded rod inserted into a rectangular block (no text or symbols)
Two views of a metallic mechanical assembly with coiled spring and threaded rod (no text or symbols visible)Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETASTWC NSW 2122 Australie
Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
| Model I | Geb ohrt | Höhe (mm) | Gebo hrte Num mer | Lochd urchm esser (mm) | Locha bstand (mm) | Abschn ittsgröß e (mm) | Farbe | Eins chlie ßen (Stk.) |
| HR-0 01 | Ebe ne | 1067 | 12 | 10,5 | 80 | 50*50 | Schwarz | 4 |
| HR-0 02 | Ebe ne | 914 | 10 | 10,5 | 80 | 50*50 | Schwarz | 4 |
| HR-0 03 | Ebe ne | 1067 | 12 | 8 | 80 | 30*50 | Schwarz | 4 |
| HR-0 04 | Ebe ne | 914 | 10 | 8 | 80 | 30*50 | Schwarz | 4 |
| HR-0 05 | 30° | 1067 | 12 | 10,5×1 5 | 80 | 50*50 | Silber | 1 |
| HR-0 06 | 30° | 1067 | 12 | 10,5×1 5 | 80 | 50*50 | Schwarz | 1 |
| HR-0 07 | L | 1067 | 12 | 10,5 | 80 | 50*50 | Schwarz | 1 |
| HR-0 08 | Nicht | 914 | / | / | / | 50*50 | Schwarz | 1 |
| HR-0 09 | Ebe ne | 914 | 10 | 10,5 | 80 | 50*50 | Schwarz | 1 |
| HR-0 10 | 30° | 914 | 10 | 10,5×1 5 | 80 | 50*50 | Schwarz | 1 |
| HR-0 11 | L | 914 | 10 | 10,5 | 80 | 50*50 | Schwarz | 1 |
| HR-0 12 | Ebe ne | 914 | 10 | 10,5 | 80 | 50*50 | Silber | 1 |
| HR-0 13 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Schwarz | 1 |
| HR-0 14 | L | 1067 | 12 | 8 | 80 | 30*50 | Schwarz | 1 |
| HR-0 15 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Schwarz | 1 |
| HR-016 | L | 914 | 10 | 8 | 80 | 30*50 | Schwarz | 1 |
| HR-017 | Nicht | 914 | / | / | / | 38*38 | Schwarz | 1 |
| HR-018 | Ebe ne | 1067 | 12 | 8 | 80 | 30*50 | Schwarz | 1 |
| HR-019 | Nicht | 1067 | / | / | / | 50*50 | Schwarz | 1 |
| HR-020 | Ebe ne | 914 | 10 | 8 | 80 | 30*50 | Schwarz | 1 |
| HR-021 | Ebe ne | 1067 | 12 | 10,5 | 80 | 50*50 | Schwarz | 1 |
| HR-022 | Ebe ne | 914 | 10 | 8 | 80 | 3 0*50 | Silber | 1 |
| HR-023 | Ebe ne | 1067 | 12 | 10,5 | 80 | 50*50 | Silber | 1 |
| NEIN | Komponenten | Bild | MENGE | ||||
| Passendes Modell | |||||||
| HR-001/HR-002 | HR005~HR012/HR-019/HR-0 21/HR-0 23/ | HR-00 3/HR-00 4 | HR-013 ~ HR-01 6/HR-018 /HR-0 20/HR-0 22/ | HR-017 | |||
| 1 | Post | 4 | 1 | 4 | 1 | / | |
| / | / | / | / | 1 | |||
| 2 | Quadratische Abdeckung |  | 4 | 1 | / | / | / |
| 3 | Rechteckige Abdeckung |  | / | / | 4 | 1 | / |
| 4 | Ankerbolzen |  | 16 | 4 | 16 | 4 | 4 |
| 5 | Gebogene Halterung |  | 4 | 1 | 4 | 1 | / |
| 6 | Horizontale Halterung |  | 4 | 1 | 4 | 1 | / |
| 7 | Sechskant schlüssel |  | 4 | 1 | 4 | 1 | 1 |
| 8 | Gabelschlüssel |  | 4 | 1 | 4 | 1 | 1 |
| 9 | Blechschaube |  | 8 | 2 | 8 | 2 | 4 |
| 10 | Plastikhülle |  | / | / | / | / | 1 |
INSTALLATION
Mechanical assembly diagram showing a lever mechanism with a pin and base (no text or symbols)
Three-panel photo collage showing mechanical assembly steps: top view of a black structural component, side view of a mechanical component with a pipe pouring liquid into a dark metal surface (no text or symbols visible)natural_image
Three-panel black-and-white photo showing mechanical components: a metallic bracket with bolts, a black plate with a rod, and a metallic support bracket (no text or symbols visible)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: a mechanical support, a vertical rod with red arrows indicating force or direction, and a flat panel with circular holes (no text or symbols present)natural_image
Technical illustration of three mechanical components with diagonal lines, no text or symbols presentnatural_image
Two technical diagrams showing structural components: a metal bracket and a vertical support structure (no text or symbols)natural_image
Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)natural_image
Pure mechanical assembly diagram showing a threaded rod inserted into a rectangular block (no text or symbols)
Technical illustration of two mechanical components with coiled wires, shown from different angles (no text or symbols)Adresse: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELLO: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
TUTELA IMPORTANTE
Mechanical assembly diagram showing a lever mechanism with a central hub and base (no text or symbols)
Three-panel photo collage showing mechanical assembly steps: top view of a black structural component, side view of a mechanical component with a pipe pouring liquid into a dark metal surface (no text or symbols visible)natural_image
Three-panel black-and-white photo showing mechanical assembly components: a metal bracket with bolts, a metallic rod with bolts, and a metallic bracket with bolts (no visible text or symbols)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: a vertical support structure, a horizontal support column, and a flat panel with mounting holes (no text or symbols present)natural_image
Technical line drawings of three mechanical components: a bracket, a vertical support post, and a vertical rod (no text or symbols present)natural_image
Technical diagram showing two mechanical assembly configurations with metal rods and structural supports (no text or symbols)natural_image
Close-up of a metallic mechanical component with a threaded rod inserted into a rectangular frame (no text or symbols visible)
Technical illustration of two mechanical components with coiled springs, shown from different angles (no text or symbols)Indirizzo: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELO: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
Close-up of a black metal bracket with a red cylindrical rod inserted at the base, against a plain background (no text or symbols visible)natural_image
Close-up of a yellow and black drill bit on a concrete surface with red X marks indicating measurement points (no text or symbols present)natural_image
Close-up of a hammer striking a black metal bracket with green pins, against a concrete wall (no text or symbols visible)natural_image
Mechanical assembly diagram showing a lever mechanism with a central shaft and mounting base (no text or symbols)
Close-up of a black mechanical component with a cylindrical shaft and mounting bracket, mounted on a metal frame (no visible text or symbols)
Three-panel black-and-white photo showing mechanical components with bolts and a metal bracket (no text or symbols visible)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: a mechanical support, a vertical rod with red arrows indicating force or direction, and a flat panel with circular holes (no text or symbols present)natural_image
Technical illustration of three mechanical components mounted on a pole, shown from different angles (no text or symbols present)natural_image
Technical diagram showing two mechanical assembly components with metal rods and connectors (no text or symbols)natural_image
Pure mechanical assembly diagram showing a threaded rod inserted into a rectangular block (no text or symbols)
Metallic rectangular component with two vertical rods extending outward (no text or symbols)
Importado a EE. UU.: Sanven Technology Ltd. Suite 250, 9166 Anah Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODEL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/ HR-022/HR-023
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WAŻNI OCHRONIARZE
| Model | Wier cone | Wyso kość (mm) | Wywi ercon y nume r | Średni ca otworu (mm) | Rozsta w otworów (mm) | Rozmia r przekro ju (mm) | Kolor | Uwz gled nij (szt.) |
| HR-0 01 | pozi om | 1067 | 12 | 10,5 | 80 | 50*50 | Czar ny | 4 |
| HR-0 02 | pozi om | 914 | 10 | 10,5 | 80 | 50*50 | Czar ny | 4 |
| HR-0 03 | pozi om | 1067 | 12 | 8 | 80 | 30*50 | Czar ny | 4 |
| HR-0 04 | pozi om | 914 | 10 | 8 | 80 | 30*50 | Czar ny | 4 |
| HR-0 05 | 30° | 1067 | 12 | 10,5×1 5 | 80 | 50*50 | Srebro | 1 |
| HR-0 06 | 30° | 1067 | 12 | 10,5×1 5 | 80 | 50*50 | Czar ny | 1 |
| HR-0 07 | L | 1067 | 12 | 10,5 | 80 | 50*50 | Czar ny | 1 |
| HR-0 08 | Nie | 914 | / | / | / | 50*50 | Czar ny | 1 |
| HR-0 09 | pozi om | 914 | 10 | 10,5 | 80 | 50*50 | Czar ny | 1 |
| HR-0 10 | 30° | 914 | 10 | 10,5×1 5 | 80 | 50*50 | Czar ny | 1 |
| HR-0 11 | L | 914 | 10 | 10,5 | 80 | 50*50 | Czar ny | 1 |
| HR-0 12 | pozi om | 914 | 10 | 10,5 | 80 | 50*50 | Srebro | 1 |
| HR-0 13 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Czar ny | 1 |
| HR-0 14 | L | 1067 | 12 | 8 | 80 | 30*50 | Czar ny | 1 |
| HR-015 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Czarny | 1 |
| HR-016 | L | 914 | 10 | 8 | 80 | 30*50 | Czar ny | 1 |
| HR-017 | Nie | 914 | / | / | / | 38*38 | Czar ny | 1 |
| HR-018 | pozi om | 1067 | 12 | 8 | 80 | 30*50 | Czar ny | 1 |
| HR-019 | Nie | 1067 | / | / | / | 50*50 | Czar ny | 1 |
| HR-020 | pozi om | 914 | 10 | 8 | 80 | 30*50 | Czar ny | 1 |
| HR-021 | pozi om | 1067 | 12 | 10,5 | 80 | 50*50 | Czar ny | 1 |
| HR-022 | pozi om | 914 | 10 | 8 | 80 | 3 0*50 | Srebro | 1 |
| HR-023 | pozi om | 1067 | 12 | 10,5 | 80 | 50*50 | Srebro | 1 |
Close-up of a yellow and black screwdriver with red X marks on a textured surface (no text or symbols visible)natural_image
Close-up of a hammer striking a metal bracket with green and yellow pins (no text or symbols visible)natural_image
Mechanical assembly diagram showing a lever mechanism with a pin and base (no text or symbols)
Close-up of a black mechanical component with a cylindrical base and mounting bracket, no visible text or symbols
Three-panel photo showing mechanical assembly components: a metallic bracket with bolts, a black base, and a metallic rod (no text or symbols visible)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical component with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: bracket, vertical rod, and flat plate (no text or symbols present)natural_image
Technical line drawings of three mechanical components: a bracket, a vertical support post, and a vertical rod (no text or symbols present)natural_image
Technical diagram showing two mechanical assembly configurations with metal components and connecting rods (no text or symbols)natural_image
Close-up of a metallic screw fastener inserted into a rectangular frame (no text or symbols visible)
Technical illustration of two metallic mechanical components with coiled springs, shown from different angles (no text or symbols)Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj
Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD N 2122 Australia
Import do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim P
Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support
KABELRAILINGPAAL
MODELLEN: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELLEN: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
BELANGRIJKE VEILIGHEIDSMAATREGELEN
INSTALLATIE INSTRUCTIE
| Model | Geb oord | Hoog te (mm) | Gebo ord num mer | Gatdia meter (mm) | Gaten afstan d (mm) | Sectieg rootte (mm) | Kleur | Inclusief (stuk s) |
| HR-0 01 | nive au | 1067 | 12 | 10,5 | 80 | 50*50 | Zwart | 4 |
| HR-0 02 | nive au | 914 | 10 | 10,5 | 80 | 50*50 | Zwart | 4 |
| HR-0 03 | nive au | 1067 | 12 | 8 | 80 | 30*50 | Zwart | 4 |
| HR-0 04 | nive au | 914 | 10 | 8 | 80 | 30*50 | Zwart | 4 |
| HR-0 05 | 30° | 1067 | 12 | 10,5×1 5 | 80 | 50*50 | Zilver | 1 |
| HR-0 06 | 30° | 1067 | 12 | 10,5×1 5 | 80 | 50*50 | Zwart | 1 |
| HR-0 07 | L | 1067 | 12 | 10,5 | 80 | 50*50 | Zwart | 1 |
| HR-0 08 | Niet | 914 | / | / | / | 50*50 | Zwart | 1 |
| HR-0 09 | nive au | 914 | 10 | 10,5 | 80 | 50*50 | Zwart | 1 |
| HR-0 10 | 30° | 914 | 10 | 10,5×1 5 | 80 | 50*50 | Zwart | 1 |
| HR-0 11 | L | 914 | 10 | 10,5 | 80 | 50*50 | Zwart | 1 |
| HR-0 12 | nive au | 914 | 10 | 10,5 | 80 | 50*50 | Zilver | 1 |
| HR-0 13 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Zwart | 1 |
| HR-0 14 | L | 1067 | 12 | 8 | 80 | 30*50 | Zwart | 1 |
| HR-0 15 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Zwart | 1 |
| HR-016 | L | 914 | 10 | 8 | 80 | 30*50 | Zwart | 1 |
| HR-017 | Niet | 914 | / | / | / | 38*38 | Zwart | 1 |
| HR-018 | nive au | 1067 | 12 | 8 | 80 | 30*50 | Zwart | 1 |
| HR-019 | Niet | 1067 | / | / | / | 50*50 | Zwart | 1 |
| HR-020 | nive au | 914 | 10 | 8 | 80 | 30*50 | Zwart | 1 |
| HR-021 | nive au | 1067 | 12 | 10,5 | 80 | 50*50 | Zwart | 1 |
| HR-022 | nive au | 914 | 10 | 8 | 80 | 3 0*50 | Zilver | 1 |
| HR-023 | nive au | 1067 | 12 | 10,5 | 80 | 50*50 | Zilver | 1 |
| Ne e | Componenten | Afbeelding | AANTAL | ||||
| Passend model | |||||||
| HR-001 / HR-002 | HR005~HR0 12/HR-019/ HR-0 21/ HR-0 23/ | HR-00 3/ HR-00 4 | HR-013 ~ HR-01 6/ HR-018 / HR-0 20/ HR-0 22/ | HR-0 17 | |||
| 1 | na | 4 | 1 | 4 | 1 | / | |
| / | / | / | / | 1 | |||
| 2 | Vierkant deksel |  | 4 | 1 | / | / | / |
| 3 | Rechthoek ig deksel |  | / | / | 4 | 1 | / |
| 4 | verankeringsbout |  | 16 | 4 | 16 | 4 | 4 |
| 5 | Gebogen beugel |  | 4 | 1 | 4 | 1 | / |
| 6 | Horizontale beugel |  | 4 | 1 | 4 | 1 | / |
| 7 | inbussleut el |  | 4 | 1 | 4 | 1 | 1 |
| 8 | Steeksleut el |  | 4 | 1 | 4 | 1 | 1 |
| 9 | Tapschroef |  | 8 | 2 | 8 | 2 | 4 |
| 10 | Plastic hoesje |  | / | / | / | / | 1 |
INSTALLATIE
Mechanical assembly diagram showing a lever mechanism with a pin and base (no text or symbols)
Three-panel photo collage showing industrial equipment components: a black metal frame, a black cylindrical component with a handle, and a metallic pipe pouring liquid into a dark metal surface (no text or symbols visible)natural_image
Three-panel photo showing mechanical assembly components: a black bracket with screws, a black plate with bolts, and a metallic bracket with bolts (no visible text or symbols)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical component with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: a mechanical support, a vertical rod with red arrows indicating force or direction, and a flat panel with circular holes (no text or symbols present)natural_image
Technical illustration of three mechanical components with diagonal lines, no text or symbols presentnatural_image
Mechanical assembly diagram showing a lever mounted on a base with a curved surface (no text or symbols)
Technical diagram showing two mechanical assembly components with metal rods and connectors (no text or symbols)Voor noppenspanner Horizontale montage en hoek
Metallic rectangular component with two vertical rods extending outward (no text or symbols)
Unit 5 Albert Edward House, The Pavilion
Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
MODELL: HR-001/HR-002/HR-003/HR-004/HR-005/HR-006/HR-007/HR-008/HR-009/HR-010/HR-011/HR-012/HR-013/HR-014 HR-0 1 5 /HR-016/HR-017/HR-018/HR-019/HR-020/HR-021/HR-022/HR-023
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
VIKTIGA SÄKERHETSÅTGÄRDER
| Model I | Borr ad | Höjd (mm) | Borra t num mer | Håldia meter (mm) | Hålstig ning (mm) | Sektion sstorlek (mm) | Färg | Inklu dera (st) |
| HR-001 | nivå | 1067 | 12 | 10,5 | 80 | 50*50 | Svart | 4 |
| HR-002 | nivå | 914 | 10 | 10,5 | 80 | 50*50 | Svart | 4 |
| HR-003 | nivå | 1067 | 12 | 8 | 80 | 30*50 | Svart | 4 |
| HR-004 | nivå | 914 | 10 | 8 | 80 | 30*50 | Svart | 4 |
| HR-005 | 30° | 1067 | 12 | 10,5×15 | 80 | 50*50 | Silver | 1 |
| HR-006 | 30° | 1067 | 12 | 10,5×15 | 80 | 50*50 | Svart | 1 |
| HR-007 | L | 1067 | 12 | 10,5 | 80 | 50*50 | Svart | 1 |
| HR-008 | Ej | 914 | / | / | / | 50*50 | Svart | 1 |
| HR-009 | nivå | 914 | 10 | 10,5 | 80 | 50*50 | Svart | 1 |
| HR-010 | 30° | 914 | 10 | 10,5×15 | 80 | 50*50 | Svart | 1 |
| HR-011 | L | 914 | 10 | 10,5 | 80 | 50*50 | Svart | 1 |
| HR-012 | nivå | 914 | 10 | 10,5 | 80 | 50*50 | Silver | 1 |
| HR-013 | 30° | 1067 | 12 | 8×13 | 80 | 30*50 | Svart | 1 |
| HR-014 | L | 1067 | 12 | 8 | 80 | 30*50 | Svart | 1 |
| HR-015 | 30° | 914 | 10 | 8×13 | 80 | 30*50 | Svart | 1 |
| HR-016 | L | 914 | 10 | 8 | 80 | 30*50 | Svart | 1 |
| HR-017 | Ej | 914 | / | / | / | 38*38 | Svart | 1 |
| HR-018 | nivå | 1067 | 12 | 8 | 80 | 30*50 | Svart | 1 |
| HR-019 | Ej | 1067 | / | / | / | 50*50 | Svart | 1 |
| HR-020 | nivå | 914 | 10 | 8 | 80 | 30*50 | Svart | 1 |
| HR-021 | nivå | 1067 | 12 | 10,5 | 80 | 50*50 | Svart | 1 |
| HR-022 | nivå | 914 | 10 | 8 | 80 | 3 0*50 | Silver | 1 |
| HR-023 | nivå | 1067 | 12 | 10,5 | 80 | 50*50 | Silver | 1 |
Close-up of a black mechanical component mounted on a blue base, with a finger pointing to it (no visible text or symbols)
Three-panel black-and-white photo showing mechanical components: a metallic bracket with bolts, a black base, and a metallic frame (no text or symbols visible)natural_image
Mechanical assembly diagrams showing two configurations of a mechanical clamp or bracket with no visible text or symbolsnatural_image
Technical illustration showing three different installation methods: mounting bracket, vertical support column, and flat plate (no text or symbols present)natural_image
Technical illustration of three mechanical components with diagonal lines, no text or symbols presentnatural_image
Technical diagram showing two mechanical assembly components with metal fasteners and a central shaft (no text or symbols)natural_image
Close-up of a metallic screw fastener inserted into a rectangular frame (no text or symbols visible)
Close-up of a metallic mechanical component with two threaded rods extending outward (no text or symbols visible)
Importerad till AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOC NSW 2122 Australien
Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
Pooledas Group Ltd
Unit 5 Albert Edward House, The Pavilion Preston, United Kingdom
| EC | REP |
SHUNSHUN GmbH
Römeräcker 9 Z2021, 76351
www.vevor.com/support
