USER MANUAL 487H0A32V0 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: 326QJTGOV0 / 327DG74KV0 / 327MMQSHV0 / 367ZVVUXV0

4078VRULV0 / 4872WVXVV0 / 405S2LA2V0 / 487H0A32V0

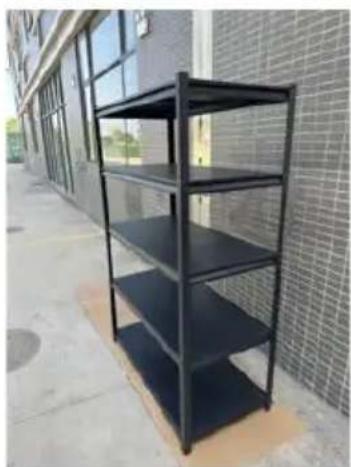

Exterior view of a black metal shelving unit mounted on a brown base, against a brick wall and water background (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFETY INSTRUCTIONS

	Warning - To reduce the risk of injury, user must re instructions manual carefully.
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this may lead to an accident. To reduce the risk of injurelectrocution, please always follow the recommendation shown below.
	Warning- Be sure to wear gloves when using this pr

WARNING!

1) Keep this manual for the safety warnings and precautions. The manual offers important information on how to assemble, use and maintain this product.
2) Please handle metal edges carefully.
3) DO NOT stand on this product or use it as a ladder.
4) DO NOT alter this product in any manner that is not intended, as may cause product damage or personal injury.
5) Always assemble on an even surface.
6) The maximum loaded weight for each shelf is no more than the limit, and the loaded weight is evenly distributed.
7) Store the heaviest items on lower shelves.

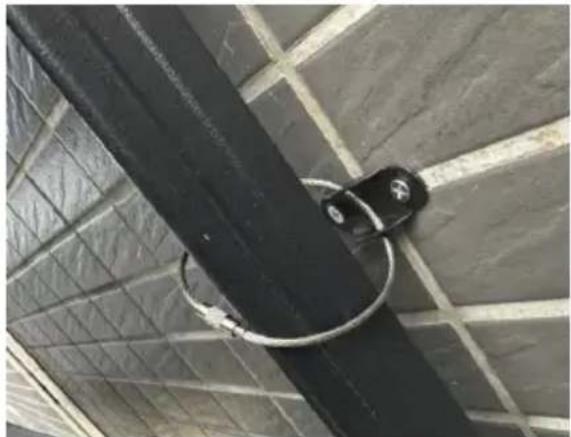

8) Attach the unit to the wall if filling to capacity and tighten the caties (item H from the part list table)

Close-up of a black metal pipe securing a circular ring against a tiled wall (no text or symbols visible)

ASSEMBLY PRECAUTIONS

1. Please assemble the product in strict accordance with the instructic Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assem
3. Do not try to assemble the product when feeling tired or when unc influence of alcohol, drugs or medication.
4. Load-bearing capacity and other product parameters are applied to the properly and completely assembled product only.

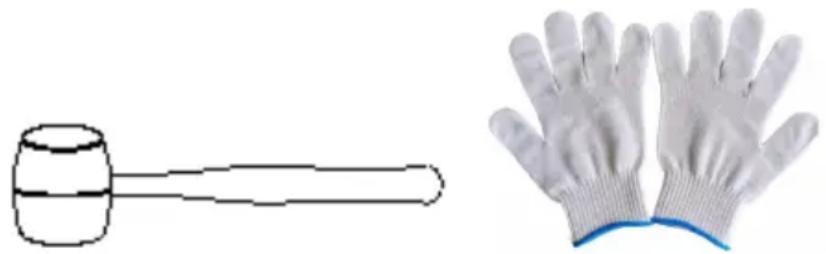

   5.A hammer and a pair of gloves may also be used, provided a clo wood block is placed between the hammer head and the parts.

Two types of gloves: a simple gavel and a pair of gloves with textured soles (no text or symbols)

USE PRECAUTIONS

1. This product is not a toy. Do not allow children to play with or get to this item.
2. Check carefully before use. Do not use it if parts get loosened or damaged.
3. Use on flat, level, and hard surfaces only.
4. Do not exceed the listed load-bearing capacity. Tighten all the knobs securely before placing weights on it. Be aware of the dynamic load-bearing capacity! Sudden load changes may temporarily cause excessive load, resulting in product failure.

SAVE THESE INSTRUCTIONS

PRODUCT PARAMETERS

	1	2	3	4
Model	326QJTGOV0	327DG74KV0	327MMQSHV0	367ZVVUXV0
Product size / inch	16×32×63	16×32×72	18×32×72	18×36×72
Layers	5	5	5	5
Total load limi	2000lbs	2000lbs	2000lbs	2000lbs
load limit for each layer	400lbs	400lbs	400lbs	400lbs

	5	6	7	8
Model	4078VRULV0	4872WVXVV0	405S2LA2V0	487H0A32V0
Product size / inch	18×40×72inch	18×48×78inch	20×40×57inch	24×48×72inch
Layers	5	5	4	5
Total load limi	2000lbs	3000lbs	2400lbs	3000lbs
load limit for each layer	400lbs	600lbs	600lbs	600lbs

Note: Heavy objects should be evenly distributed on the shelf to avoid deformation due to concentrated load. The maximum weight of a single heavy object should not exceed 10kg.

PART LIST

Part	Description	Picture	Part Qty
			326QJT GOV0	327DG74 KV0	327MMQ SHV0	367ZVV UXV0
			16×32× 63inch	16×32× 72inch	18×32× 72inch	18×36× 72inch
A	Metal plate		5	5	5	5
B	Upright post		8	8	8	8
C	Top shelf short beam		10	10	10	10
D	Top shelf long beam		10	10	10	10
E	Fixings		4	4	4	4
F	Post cap		16	16	16	16
G	Gloves		1 pair	1 pair	1 pair	1 pair
H	Anti-tip accessories		2 sets	2 sets	2 sets	2 sets
I	Hammer		1	1	1	1
Height of separated shelves			31.5inch	36inch	36inch	36inch

Note: The Pictures in the part list are for reference only; please refer to the appearance of the items received

PART LIST

Part	Description	Picture	Part Qty
			4078VRUL V0	4872WV XVV0	405S2LA 2V0	487H0A32V 0
			18×40 ×72inch	18×48 ×78inch	20×40 ×57inch	24×48 ×72inch
A	Metal plate		5	5	4	5
B	Upright post		8	8	8	8
C	Top shelf short beam		10	10	8	10
D	Top shelf long beam		10	10	8	10
E	Fixings		4	4	4	4
F	Post cap		16	16	16	16
G	Gloves		1 pair	1 pair	1 pair	1 pair
H	Anti-tip accessories		2 sets	2 sets	2 sets	2 sets
I	Hammer		1	1	1	1
Height of separated shelves			36inch	39inch	28.5inch	36inch

Note: The Pictures in the part list are for reference only; please refer to the appearance of the items received

Attention:

For additional information regarding the parts listed below, please refer to the Assembly Diagram in this manual. Unwrap and separate parts in a clear work area.

ASSEMBLY STEP

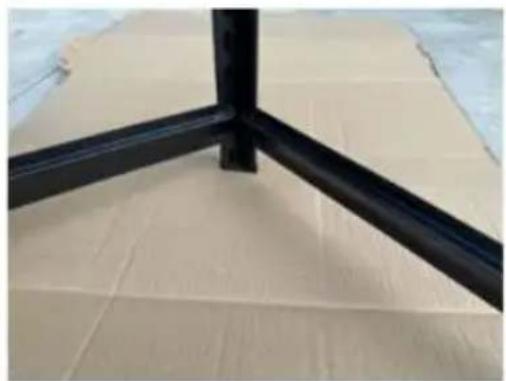

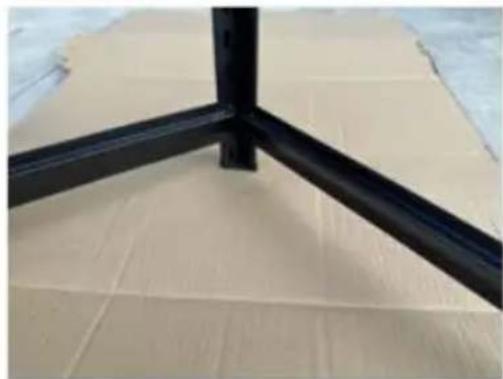

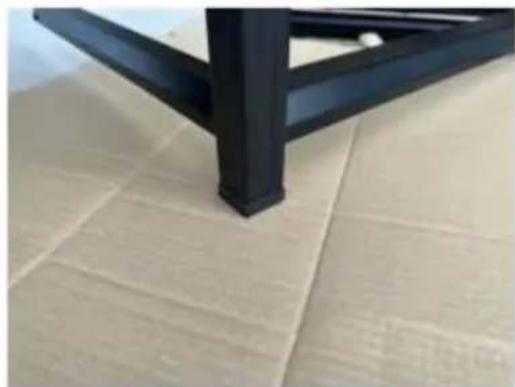

Step 1: Post Cap Assembly

1. Slide each post (B) into post cap (F) as shown.
2. Repeat for all 4 upright posts.

Attention: Post caps are for upright feet only.

Close-up of a black metal frame and beige tiled floor with textured surface (no text or symbols visible)

Close-up of a black metal frame attached to a beige cardboard sheet (no text or symbols visible)

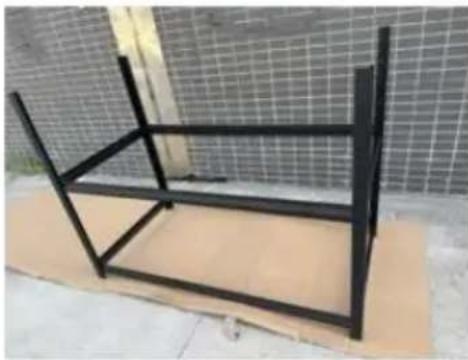

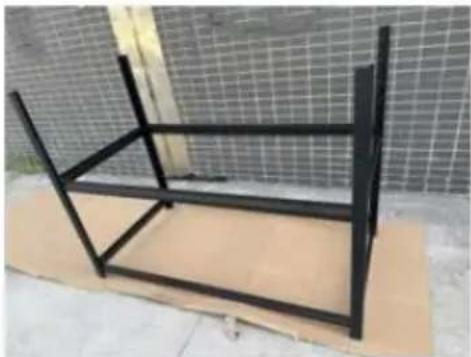

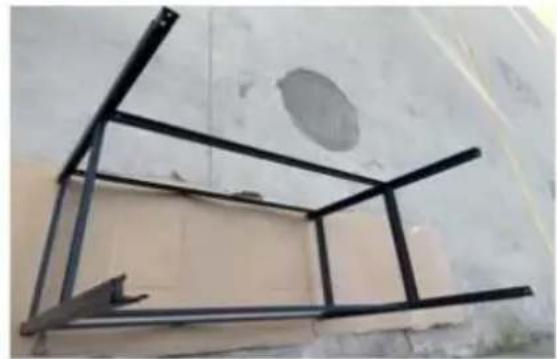

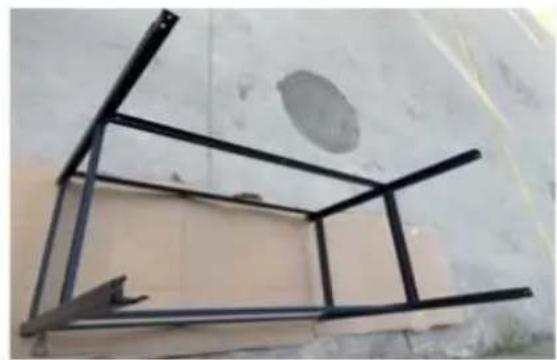

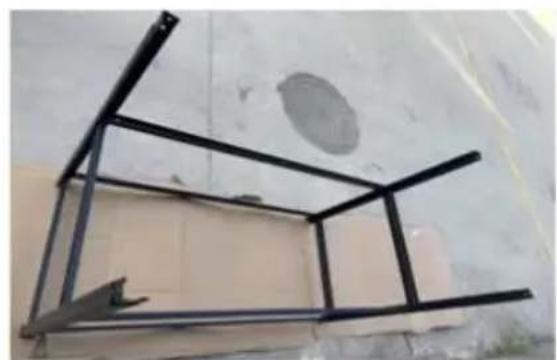

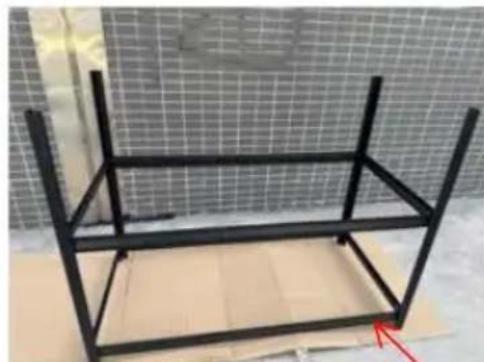

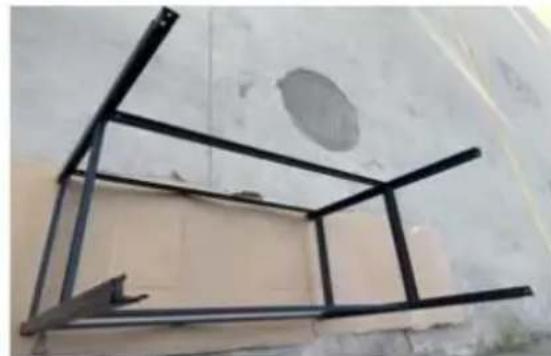

Step 2: Short and Long Beam Assembly

1. Align short beams (C) & top shelf long beams (D) to aligned notches between four upright posts (B).
2. Once in position, tap firmly using a rubber mallet.
3. Repeat process for opposite side, ensuring both ends are set at the same height.

Black metal frame structure with support beams, placed on a cardboard box against a tiled wall (no text or symbols visible)

Black metal frame structure on a cardboard base, no visible text or symbols

First layer

Note:

• Keep the first layer off the ground within 1 to 3 hole heights to prevent columns from deforming and collapsing due to excessive height.
• Ensure that the height of each level is as uniform as possible.

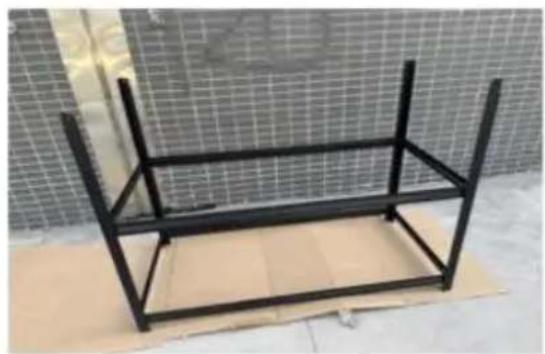

Step 3: Fixings Assembly

1. Fix fixings(E) at the top of the upright post(B), and tap down to

Black metal frame structure on a cardboard base, placed against a tiled wall (no text or symbols visible)

Exterior view of a metal frame structure against a plain wall (no text or symbols visible)

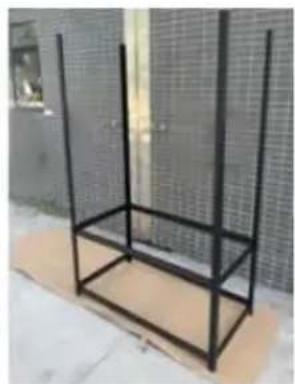

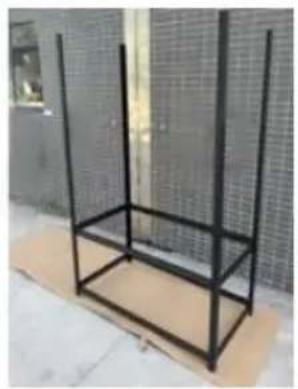

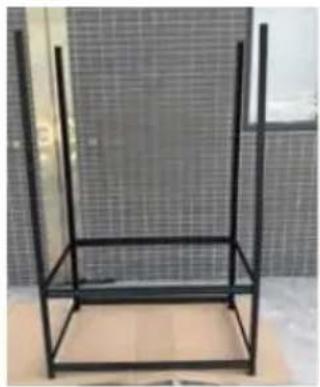

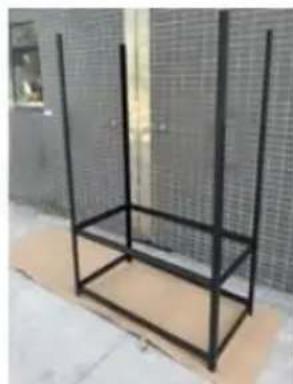

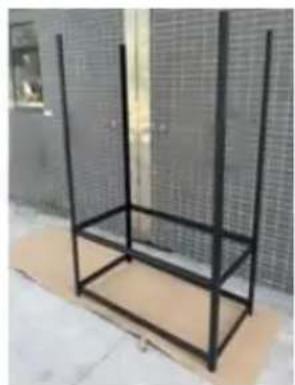

Step 4: Install The Upright Post

1. The bottom of the upright post(B) is secured to each fixing(E), and down to the end.

Metal frame structure with grid-patterned panel, no visible text or symbols

Metal cage structure with vertical supports, placed on a concrete floor against a textured wall (no text or symbols visible)

Step 5: Install the third, fourth and fifth top shelf long beam(D) short beam(C); the installation method is the same as Step 2.

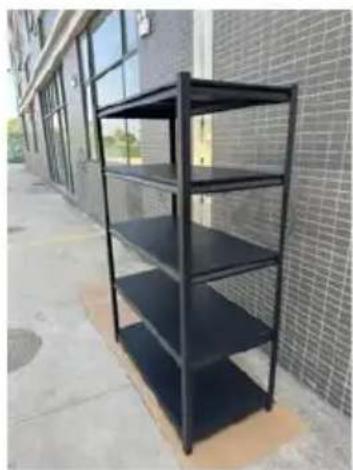

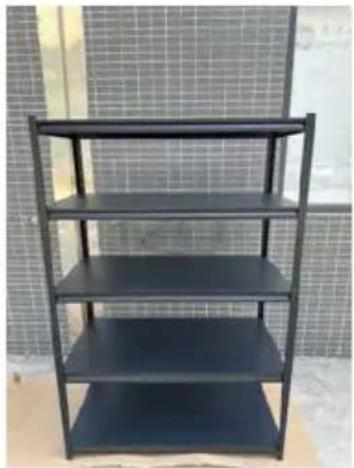

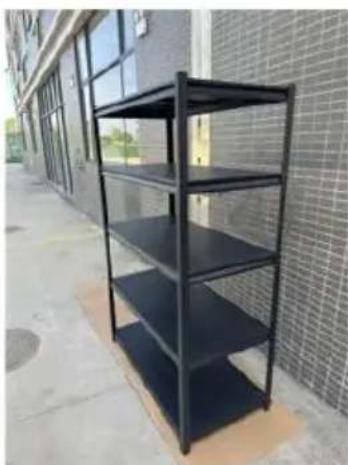

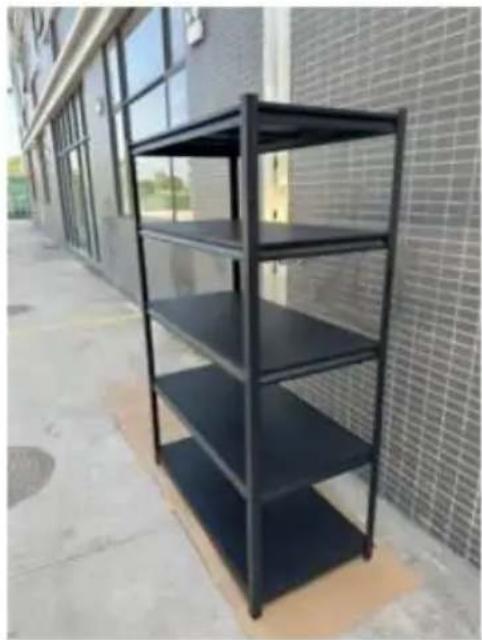

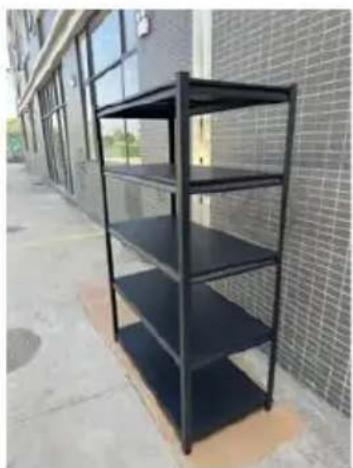

Step 6: Metal plate Top Shelf Assembly

1. Insert Metal plate top shelf (A) onto the top shelf supports.
2. Ensure it sits flush with the top of the unit frame.

Black metal shelf with five shelves, displayed against a tiled wall background (no text or symbols visible)

Exterior view of a black metal shelving unit on a sidewalk, with brick walls and windows in the background (no text or symbols visible)

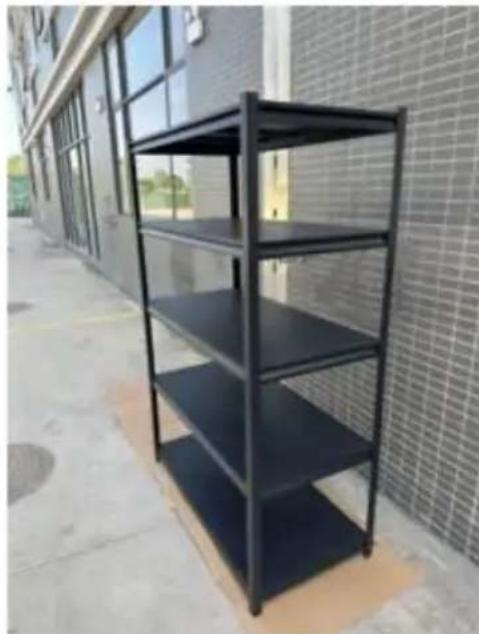

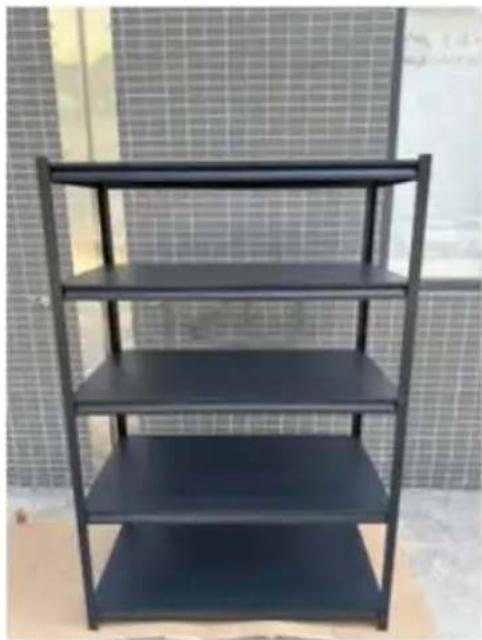

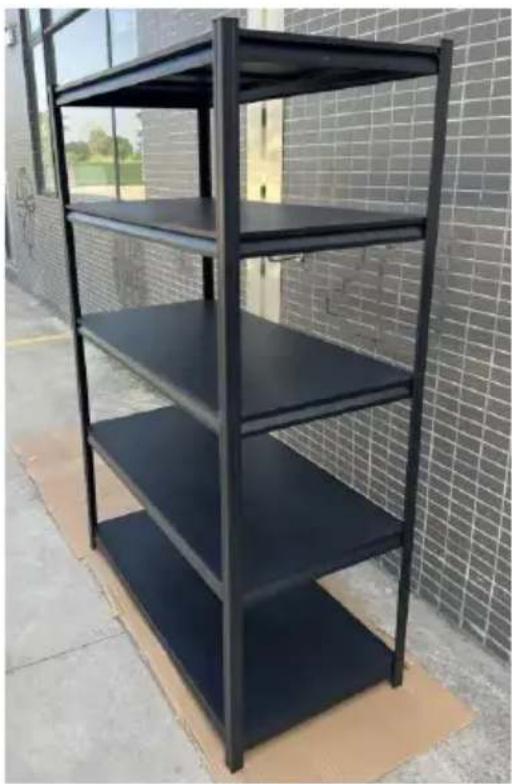

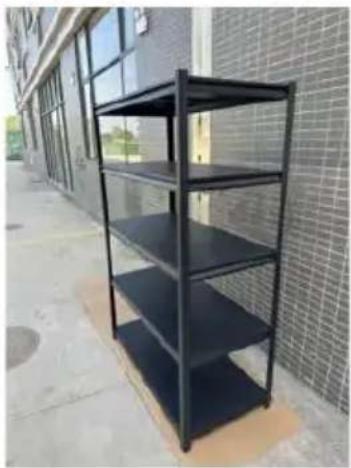

Step 7: Install The Top Glue Foot

1. Slide each post (B) into post cap (F) as shown.
2. Repeat for all 4 upright posts.
3. Assembly is now complete, and your unit is ready for use.

Black metal shelving unit with five shelves, displayed against a tiled wall background (no text or symbols visible)

Exterior view of a black metal shelving unit on a paved surface, with a brick wall and window in the background (no text or symbols visible)

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
