USER MANUAL ZX0901 ITEM 50T Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

SHOP PRESS

( HYDRAULIC CYLINDER )

MODEL: ZX0901 ITEM 50T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SHOP PRESS

MODEL: ZX0901 ITEM 50T

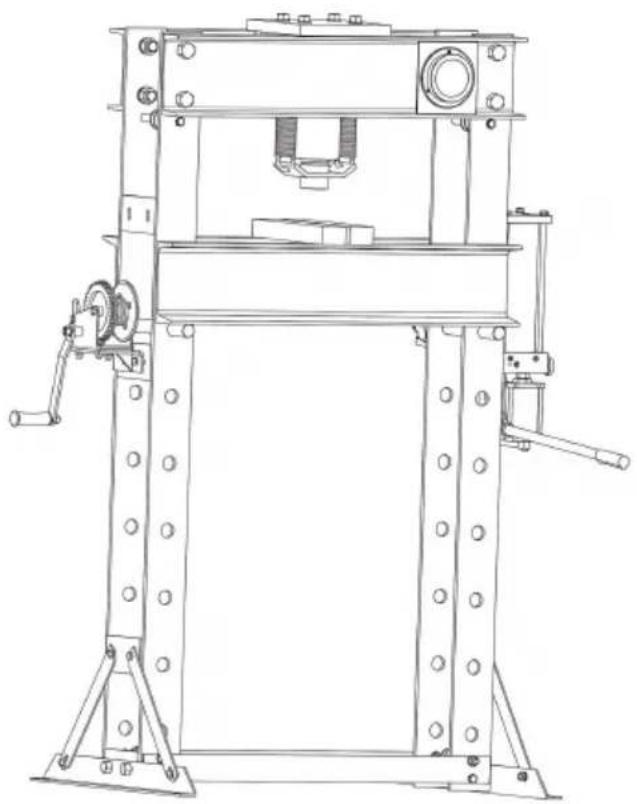

Technical line drawing of a mechanical press or lifting device with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS AND CAUTIONS.

SPECIFIC PRODUCT WARNINGS

1. Do not operate the Shop Press beyond rated capacity.
2. Warning! If you detect anything that may indicate imminent structural failure of the Shop Press, discontinue use immediately.

3. Do not install this equipment on any asphalt, wooden, soft or tiled surface. Make sure the Shop Press is firmly secured to a dry, oil/grease free, flat, le concrete surface capable of supporting the combined weight of the Shop Press, the work piece being pressed, and any additional tools and equipment. Do not install the Shop Press on expansion seams or on cracked, defective concrete.

4. Maintain a safe work environment. Do not use the Shop Press near wet areas and do not expose to moisture. Make sure there is adequate surrounding work space. Do not operate in the presence of flammable liquids, gases, or dust.

5. Read and understand all instructions and safety precautions in the manufacturer's manual for the work piece you are pressing, when applicable. Always use the manufacturer's recommended pressing points, minimum/maximum pressing force required, etc. for the work piece you are pressing.

6. Avoid off-center loads. If the Jack Plate seems unusually hard to press, immediately stop the operation. Adjust the work piece to eliminate or diminish an off-center load. Do not operate the Shop Press if the work piece tilts or binds during the down movement of the Pressure Head Assembly.

7. Prior to lowering the Jack Plate remove tool trays, stands, and all other tools and equipment from the Press Apron.

8. Always keep hands, fingers, and feet away from the Jack Plate and Pres: Apron during the pressing process. Make sure the Jack Plate(s) are in good condition before use.

9. Never attempt to remove a work piece stuck in the moving parts of the Shop Press. Unscrew the Release Valve and, only after returning the Jack

Ram to its neutral position, should you attempt to remove the work piece.

1. The work piece must be supported and controlled at all times during operation. Use a roller stand (not provided) with a larger work piece.
   Whenever possible, secure the work piece with clamps (not provided).
2. Once contact between the pressure head and work piece has been made, step away as far as possible and continue to slowly apply pressure under the procedure is complete.
3. Never leave a compressed work piece unattended. When a work piece is compressed, there is a large degree of force that has been stored in the w piece, which must be controlled until the pressure from the Head Assembly is released.
4. Before performing service or maintenance release the load from the Shop Press.

Warning: The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be supplied by operator.

SAVE THESE INSTRUCTIONS

TECHNICAL DATA

Capacity	Max working distance	Min working distance	Stroke
50T	983mm	83mm	185mm

Forward

This Shop Press is designed for automotive, truck, implement, fleet, a industrial repair shops where pressing, bending, straightening and forming, is required. Typical applications include installation and removal of alternator and power steering pump bearings, axle bearings, transmission bearings, seals, u-joints and others. It is not intended for use as an assembly table or as fixture stand used to secure a large assembly component. Unlike presses equipped with a separately mounted pump, the power unit on this press can not be equipped with pressure gauge, therefore monitoring the load must be done by other means, such as a load cell digital indicator. Whatever means is chosen the load measuring means shall be calibrated annually.

PACKING LIST

NO.	DESCRIPTION	QTY	NO.	DESCRIPTION	QTY
1	Hex Bolt M10*30	2	9	Hex Bolt M16*35	4
2	Washerφ10	14	10	Washerφ16	4
3	Spring Washer φ10	14	11	Spring Washer φ16	4
4	Hex Nut M10	10	12	Hex Nut M16	4
5	Hex Bolt M10*25	12	13	Cotter Pin	2
6	Handle	1	14	Block	2
7	Oblique Shore	4	15	Main Body	1
8	Angle Iron	2	16	Inlet Port (Eur)	1

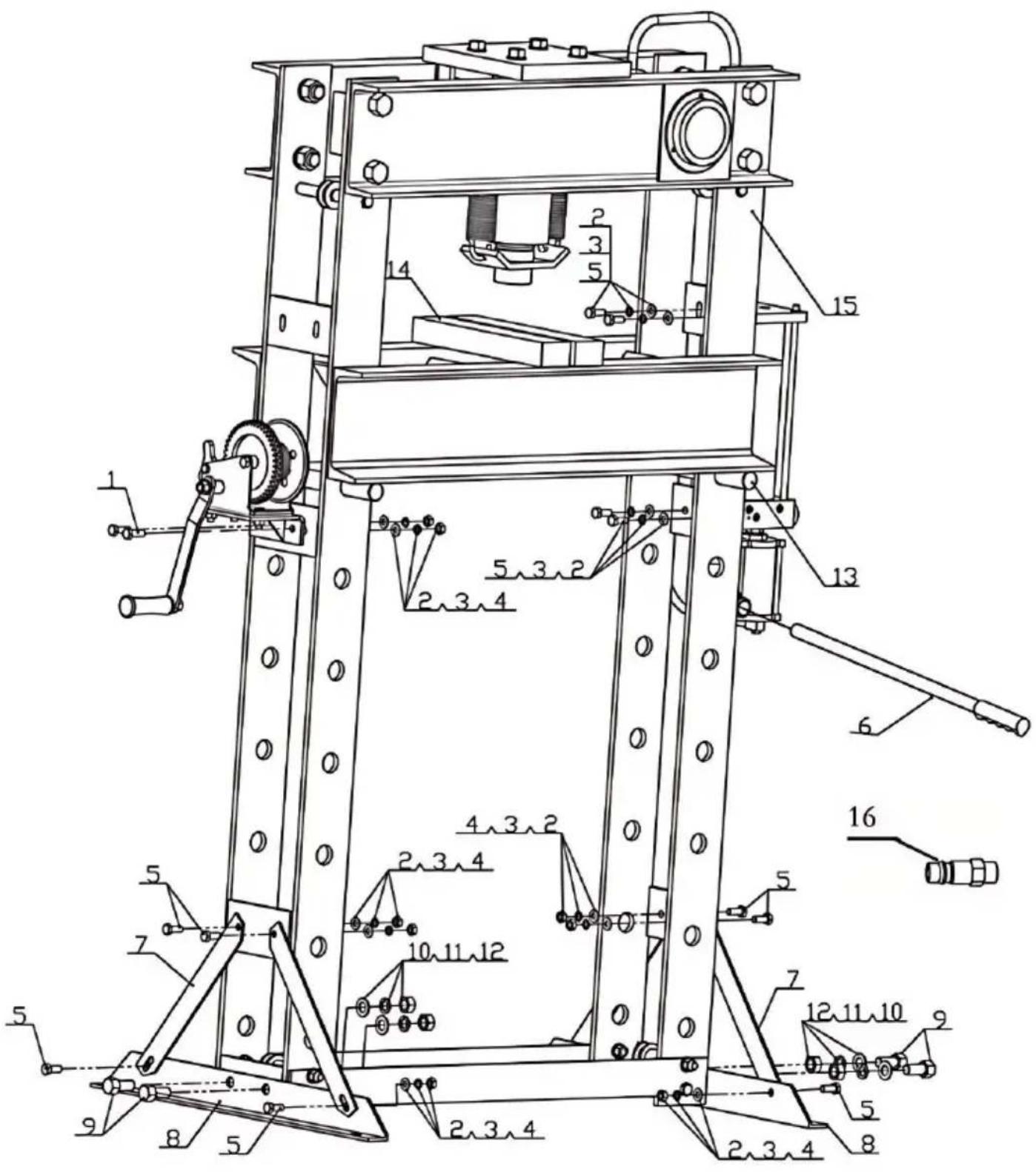

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

Technical line drawing of a mechanical device frame with no visible text or symbols

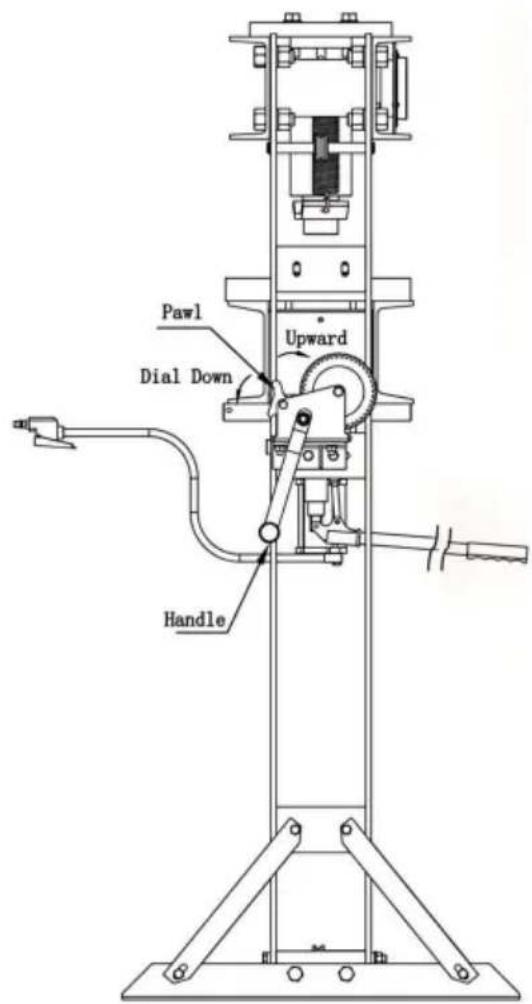

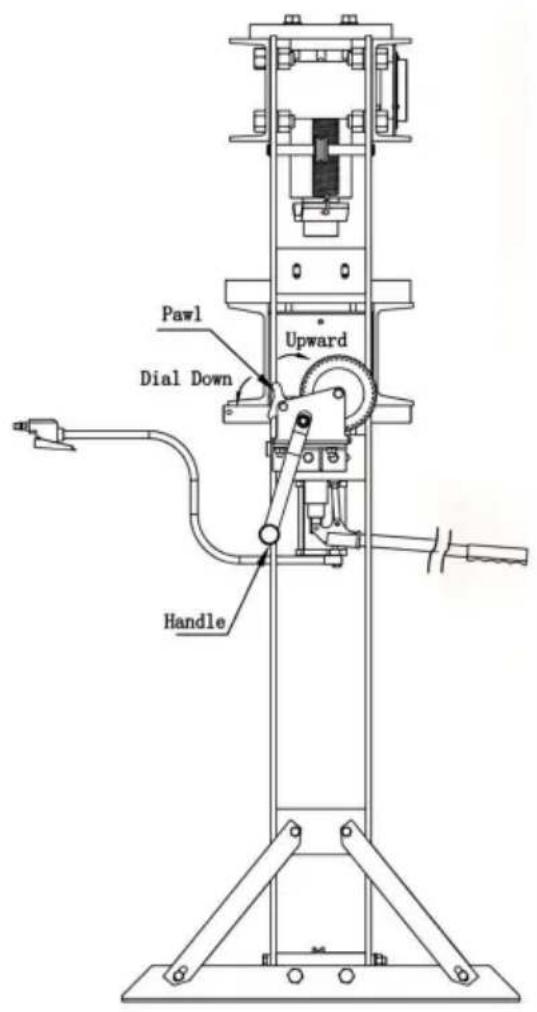

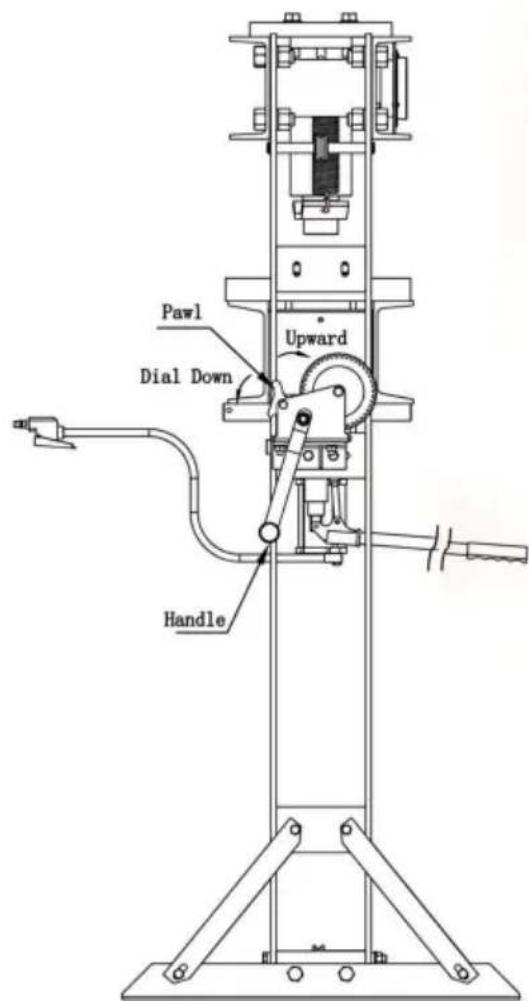

Pawl Dial Down Upward Handle

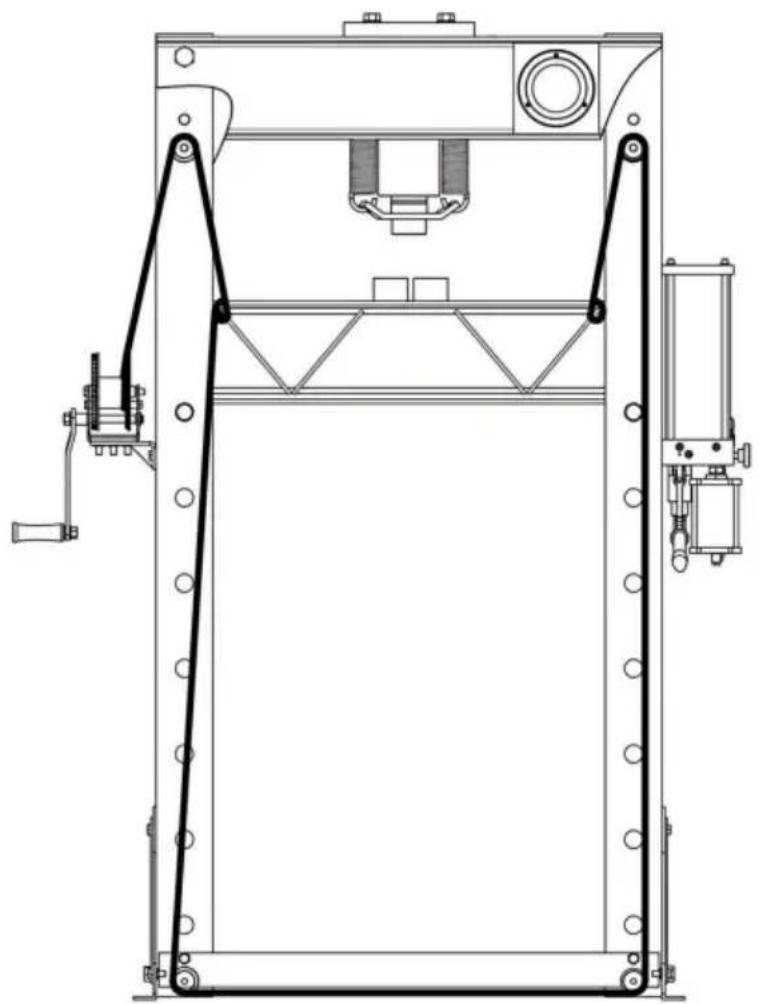

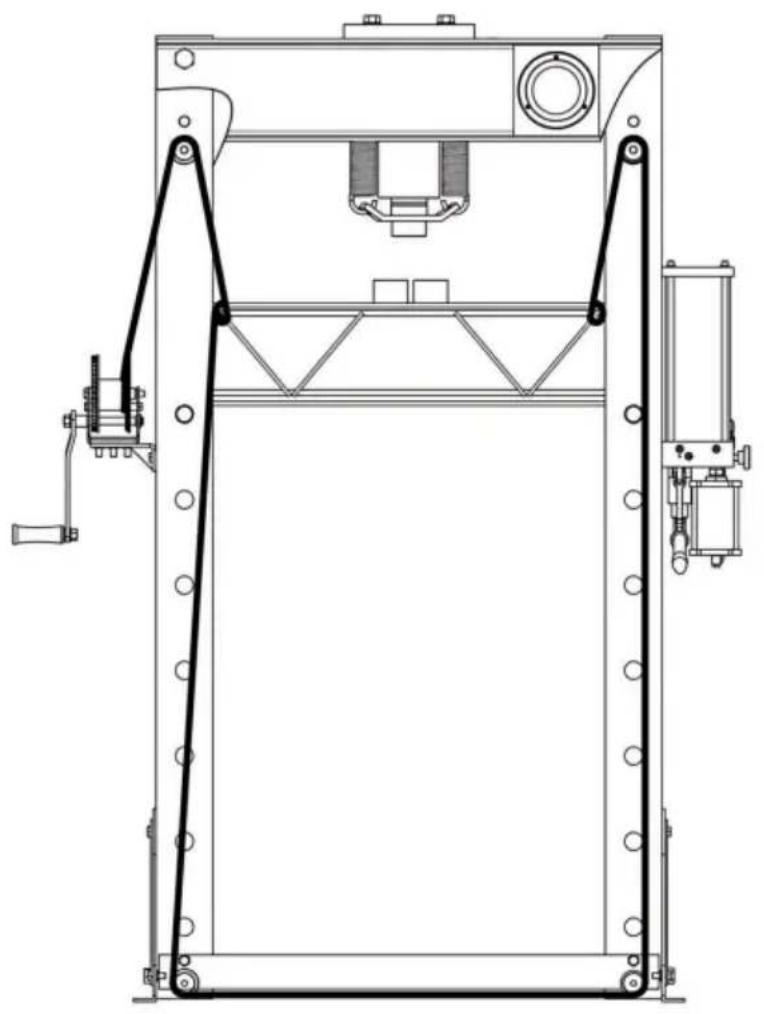

The wire rope is wound as shown on the above, pay attention to make the wire rope has been wound on the upper and lower four pulleys bef The table rises:

The pawl pivots upward, and the handle can be cranked clockwise to be worktable up and thread the pin into the appropriate hole. Then pawl pi downward again, cranking the handle counterclockwise to place the table pin so that the wire rope is no longer under tension.

table onto the pin so that the wire rope is no longer under tension.

The table is lowered:

Pawl upward dial, clockwise crank the handle, the worktable up a little pin out. Then, pawl downward pawl, crank the handle counterclockwise, p table to the the appropriate position, put the pin into the corresponding counterclockwise Crank the handle counterclockwise to place the table on so that the steel the wire rope is no longer under tension.

1. 50-Ton Shop Press comes with two Arbor Plates. The Arbor Plates can be individually or connected as shown below by the Arbor Lock.
2. The gap between the two plates is expandable from 0-5". To adjust the between the two Arbor Pates, loosen each bolt on the side of the plates, and gap between the plates, then retighten the bolts before use.
3. To set the Aprons at a specific height, slide the two Pins through opposi adjustment holes on the Press Frame legs and secure in place using the tw R-Clips.
4. Place the Arbor Plate onto the Press Apron, making sure to center it o Press Apron.
5. WARNING! If the Arbor Plates rest on an obstruction (such as bolt, debris an uneven base can be created. This can lead to unusual stress on the Ark Plates and possibly a break and/or personal injury.
6. Insert the narrower jack handle (the end with the pin) into the larger han engage the pin into the "T" slot.
7. Using the slotted end of the jack handle, tighten (turn clockwise) the relie of the Jack.
8. Insert the larger tube of jack handle into the Jack Handle Connector local the side of the Jack.
9. pump the handle up and down to extend the Jack and operate the Shop
10. WARNING! Should you detect any kind of structural failure, stop using the Shop Press immediately. If necessary, have the unit repaired by a qualified technician.
11. When finished, remove the jack handle from the Jack Handle Connector loosen (turn counter-clockwise) the relief valve of the Jack.

Bleeding

1. Remove the Oil Fill Plug located on the back of the Jack to expose the Hole.
2. Open the Release Valve located on the front of the Jack, above. Insert the Handle into the Pump Core. Slowly pump handle to force air out of the Oil
3. As soon as the oil starts to come out of the hole, stop pumping. Replac Fill Plug. Close the Release Valve.
4. Check the oil level. It must be just below the Oil File Hole. If necessary high quality hydraulic oil 15#.

WARNING!

Don't overstroke. overload, It May Cau Cylinder Cannot Reset. Oil Leaking, Equipment Damage Or Personal Injury.

1. Do Not Operate The Shop Press Be Stroke.When You See The Limit Line Of The Oil Cylinder, Please Stop Pressing Down Immediately.
2. Do Not Operate The Shop Press Be Rated Capacity.
3. Avoid Off-Center Loads.
4. Always Keep Hands, Fingers, And Fe Away From The Jack Plate And Press During The Pressing Process.

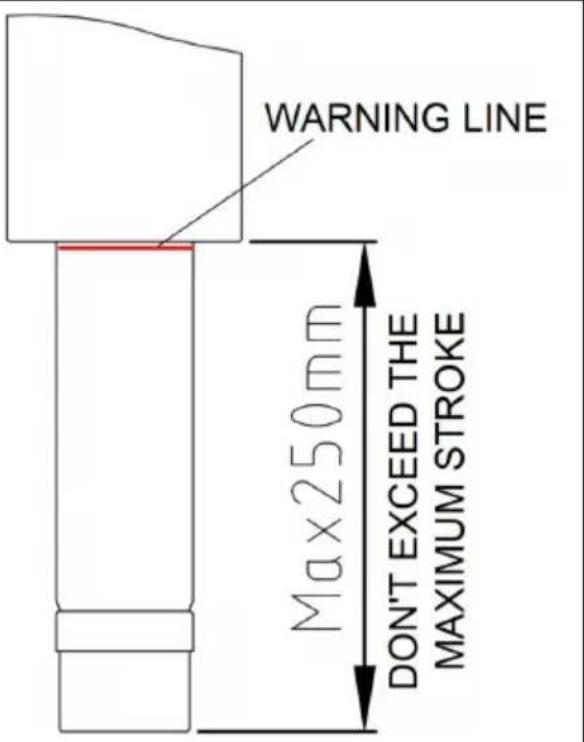

WARNING LINE Max250mm DON'T EXCEED THE MAXIMUM STROKE

MAINTENANCE

1. Caution: Always release load from the Shop Press before performing any inspection, maintenance, or cleaning.
2. Before each use, inspect the general condition of the Shop Press. Check structural failure, loose, cracked, bent or damaged parts, misalignment or bindi of moving parts, and any other condition that may affect its safe operation. I abnormal noise or vibration occurs, have the problem corrected before further Do not use damaged equipment.
3. To prevent rust, coat all exposed surfaces with a light weight oil.
4. Always keep the Arbor Plates and Press Apron area clean and free of other lubricants.
5. To clean, wipe with a clean, damp cloth.
6. When storing, keep the Shop Press covered with a clean drop cloth in a dry location.
